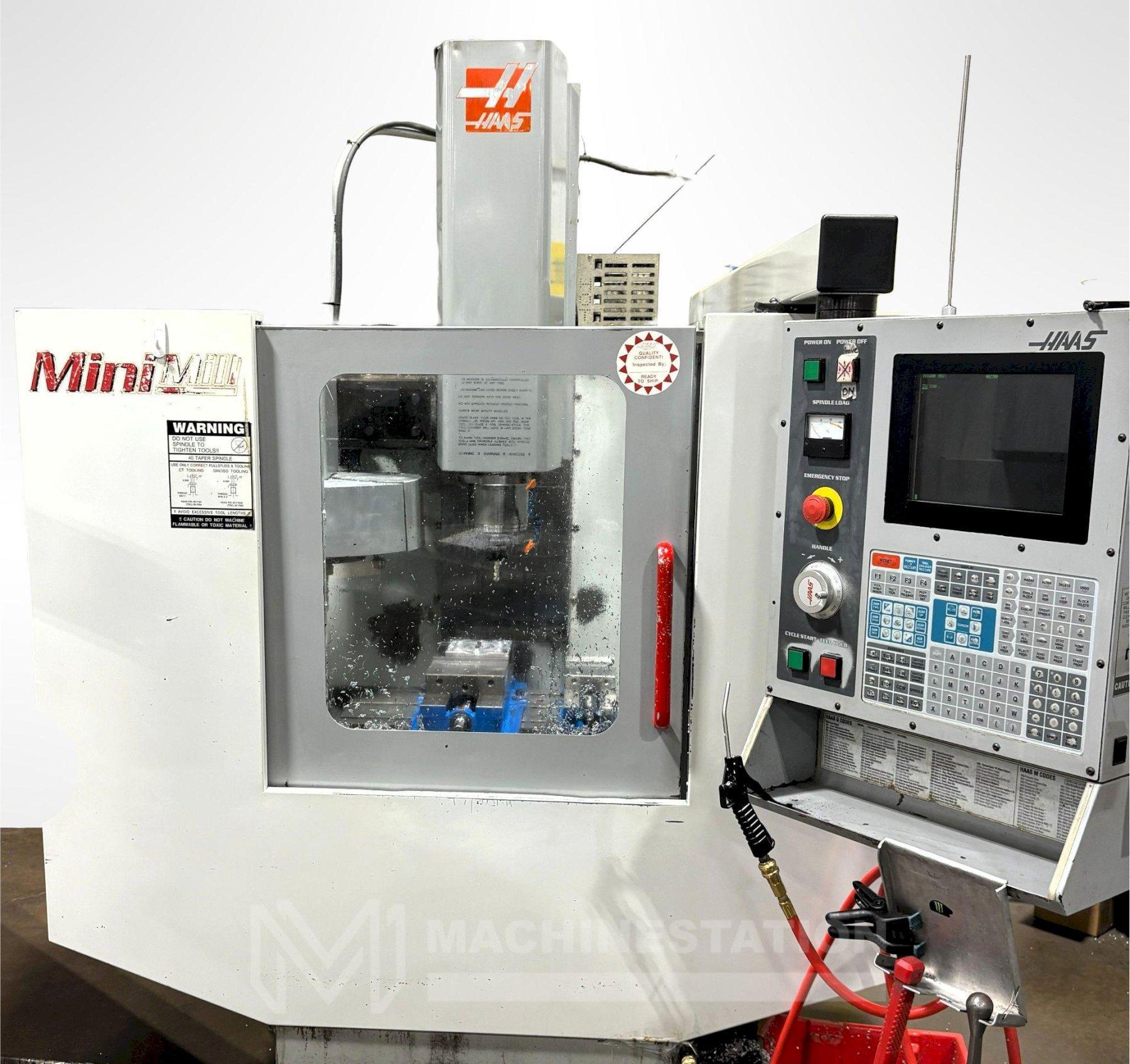

Haas Mini Mill CNC Vertical Machining Center

Brand
HAAS
Category
Machining Centers
Type
Machining Centers, Vertical
Model
MINI MILL
Stock #
115104
Year
2002
Condition
Not specified

Location

Not specified
REQUEST FINANCING

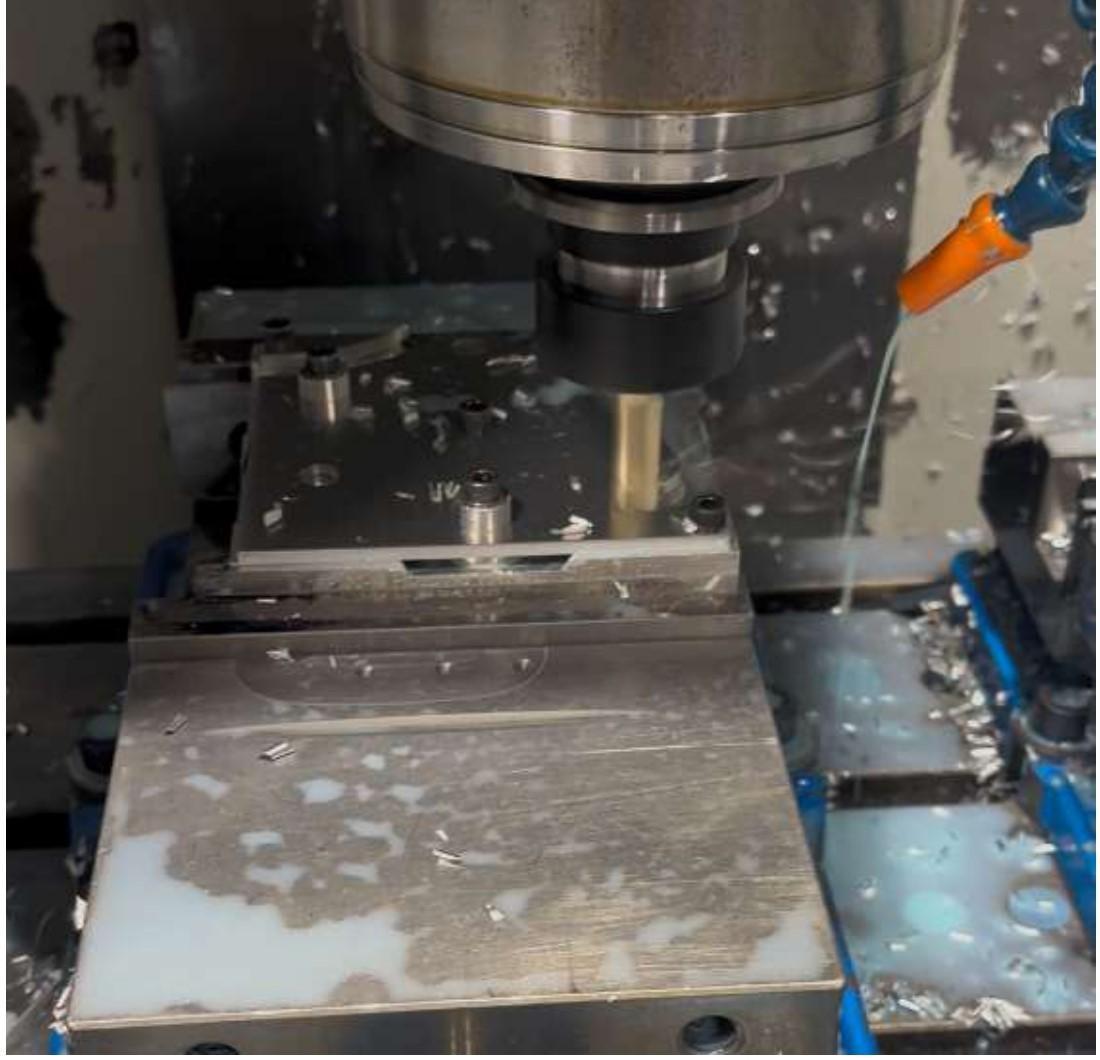

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 115104
Make: Haas
Model: Mini Mill
Year of Manufacture: 2002
Equipped With:

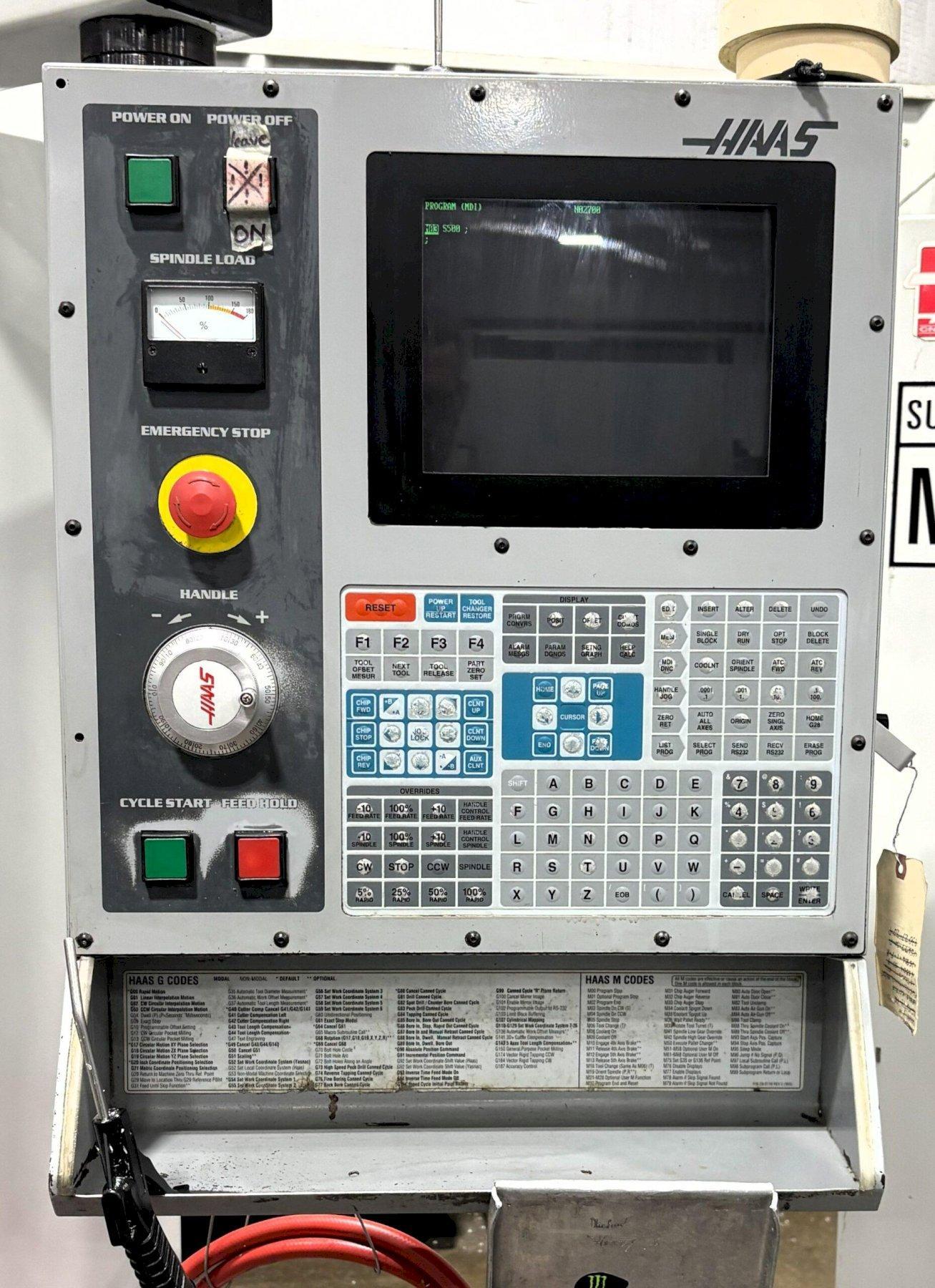

  • Haas CNC Control
  • 6000 RPM Spindle
  • 40 Taper Spindle
  • 10 Station Automatic Tool Changer
  • Rigid Tapping
  • Telescopic way covers
  • Coolant System

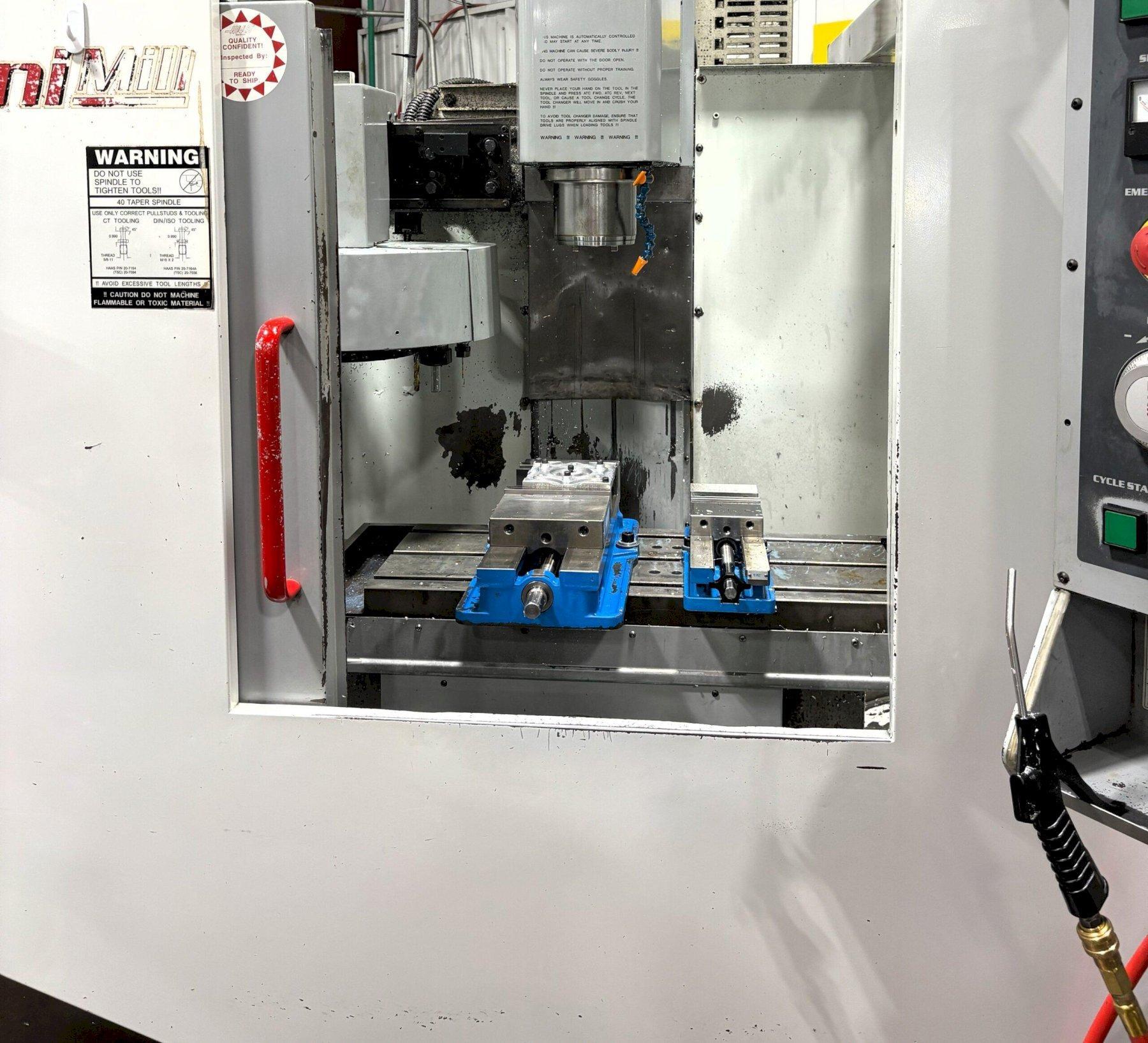

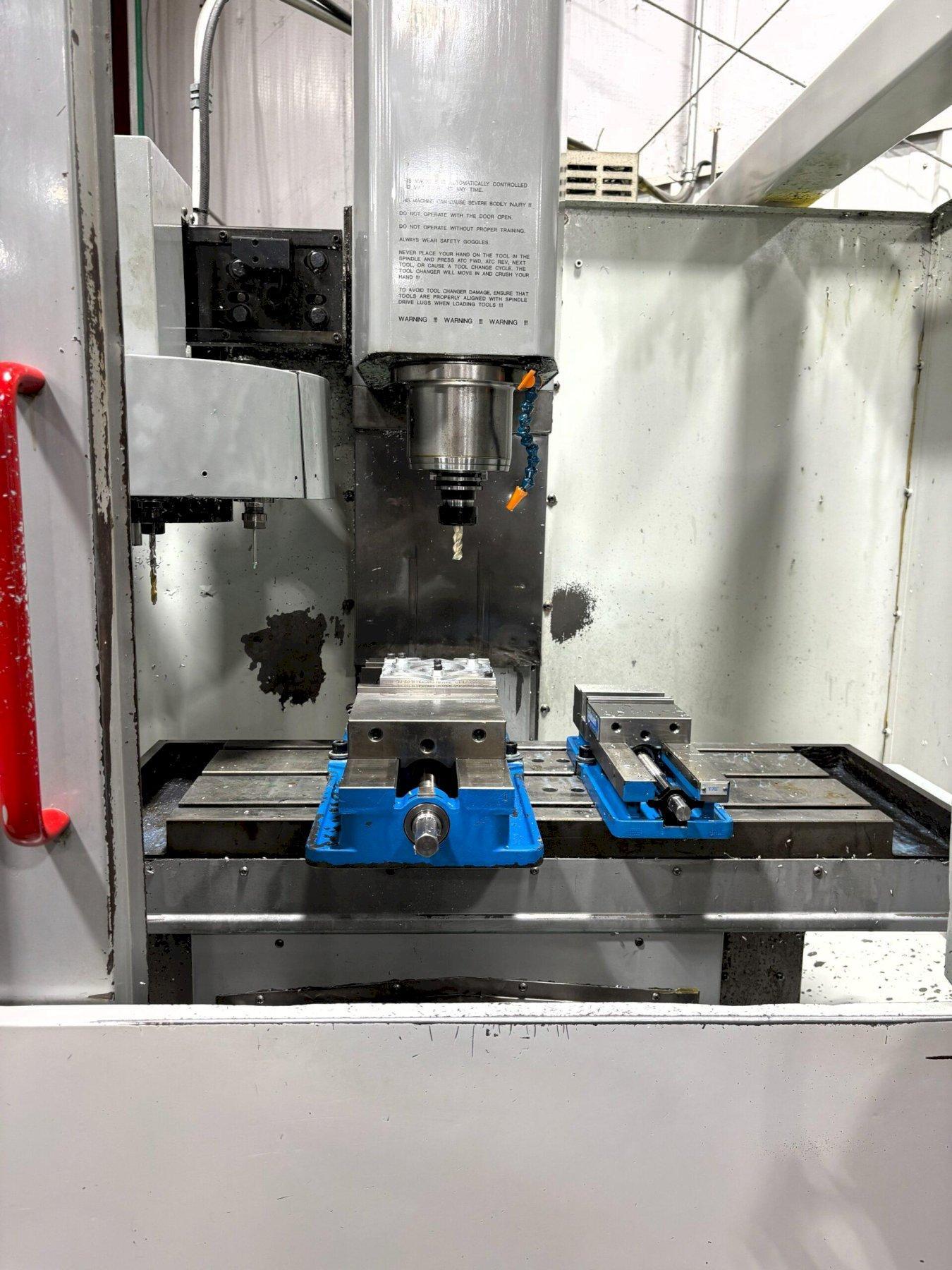

  • Note: Vises are not included with the machine
Table:
  • Length: 36.0″
  • Width: 12″
  • Number of Std T-Slots: 3
  • T-Slot Width: 5/8″
  • Max Weight on Table: 500 lbs
Travel:
  • X-Axis: 16″
  • Y-Axis: 12″
  • Z-Axis: 10″
  • Rapid Traverse Rates: 600 Inch Per Minute
  • Cutting Feed Rates: 500 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 14″
Automatic Tool Changer:
  • Capacity: 10 Station
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 3.5″
  • Tool Change Time: 4.2 Sec.
Spindle:
  • Taper Size: 40
  • Speed Range: 6000 RPM
  • Spindle Power: 15 HP
  • Max Torque: 33.0 ft-lbf @ 1200 rpm
General:
  • Air Required: 100 psi, 4 scfm

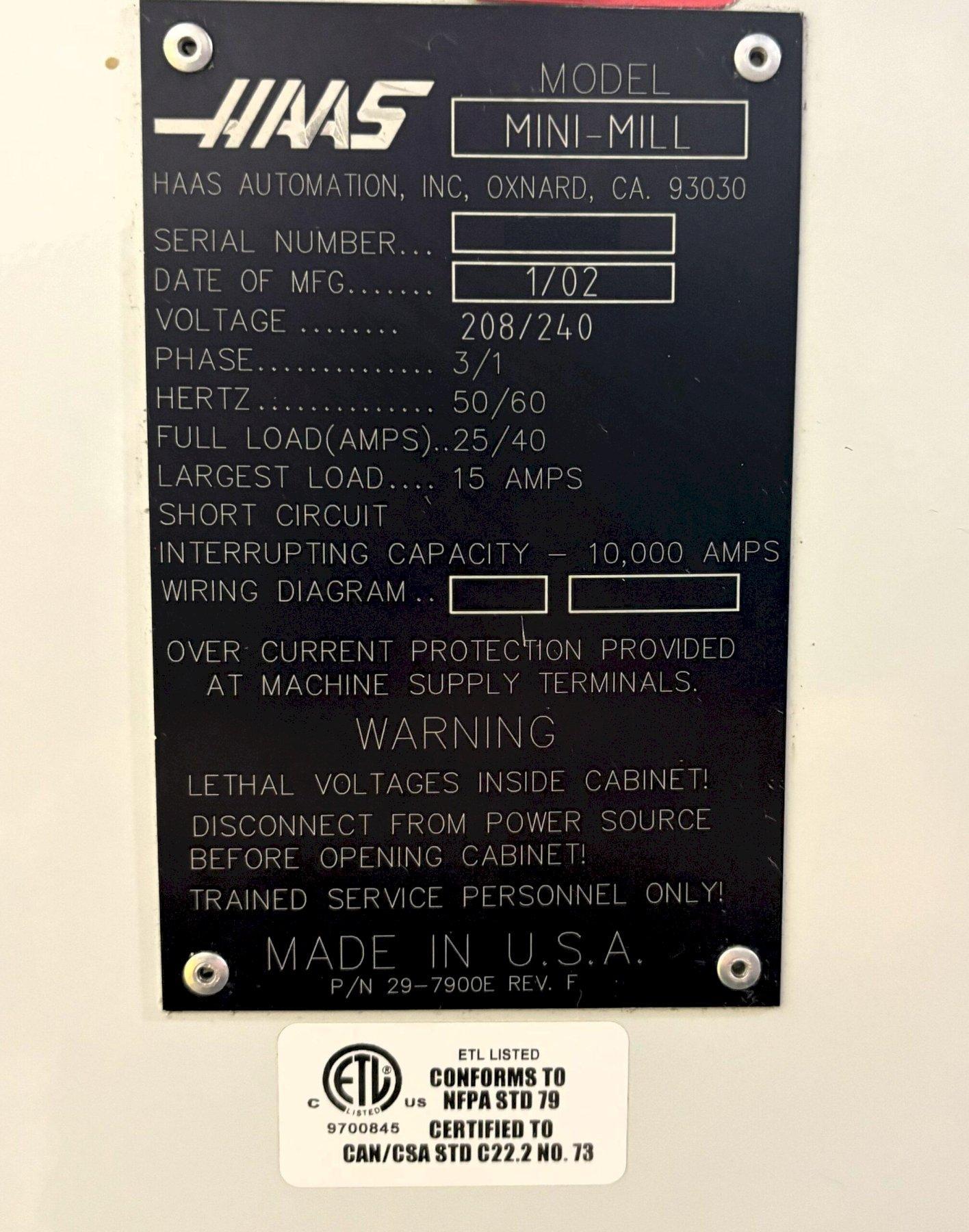

  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 90″ x 64″ x 100″ High
  • Weight: 4000 lbs
