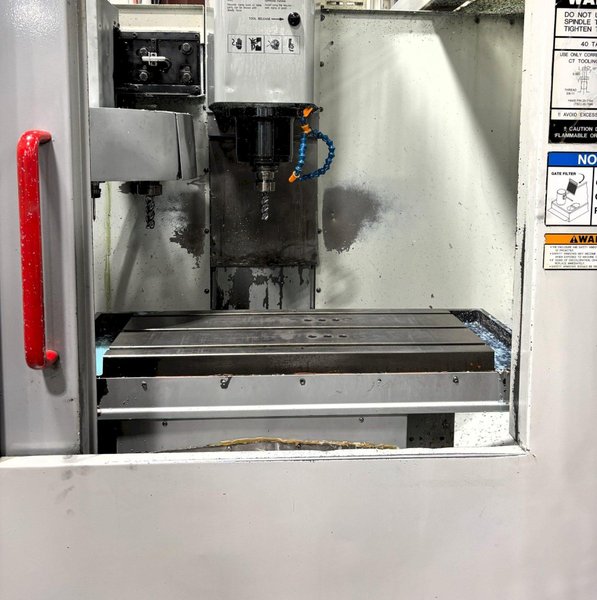

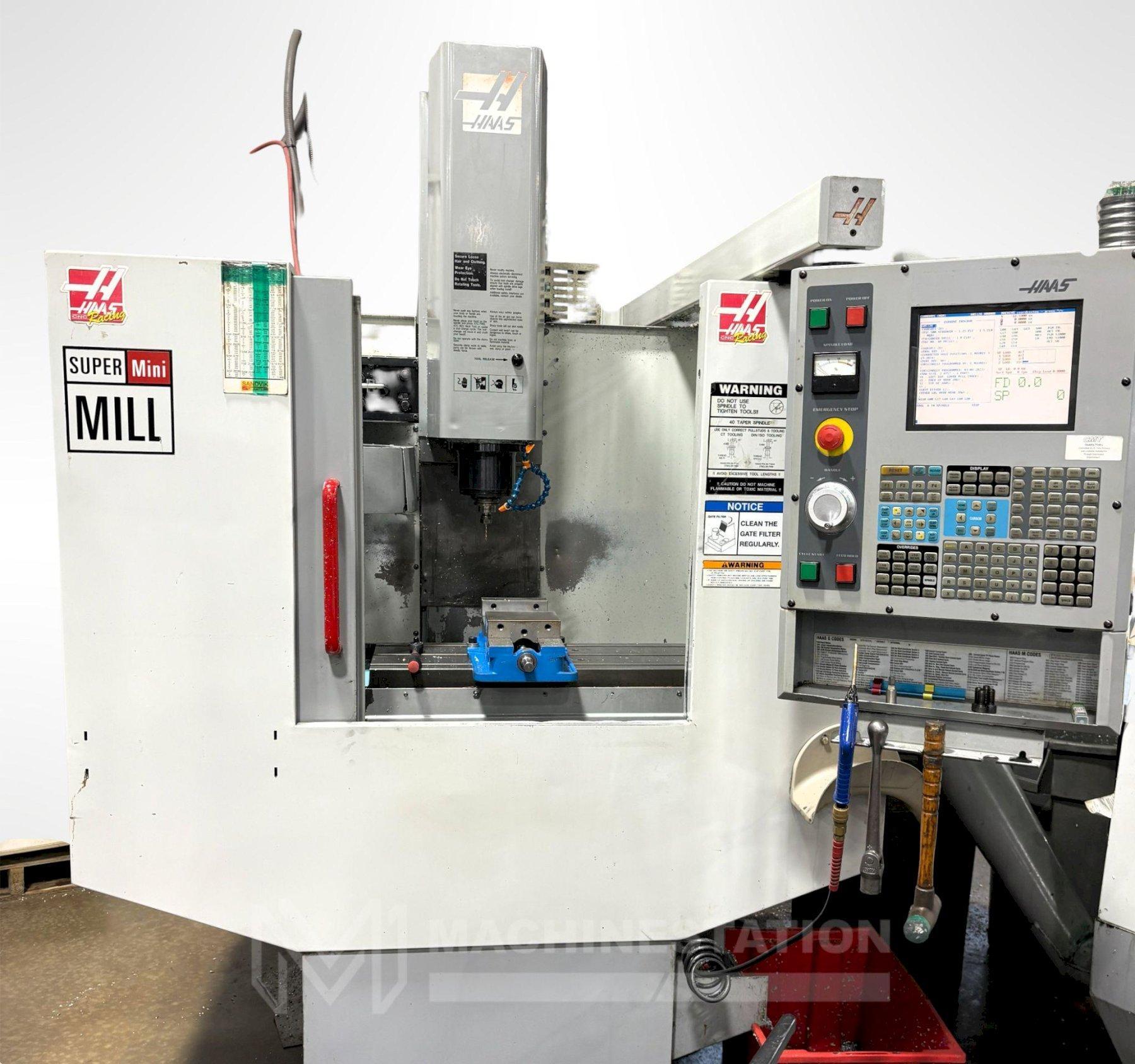

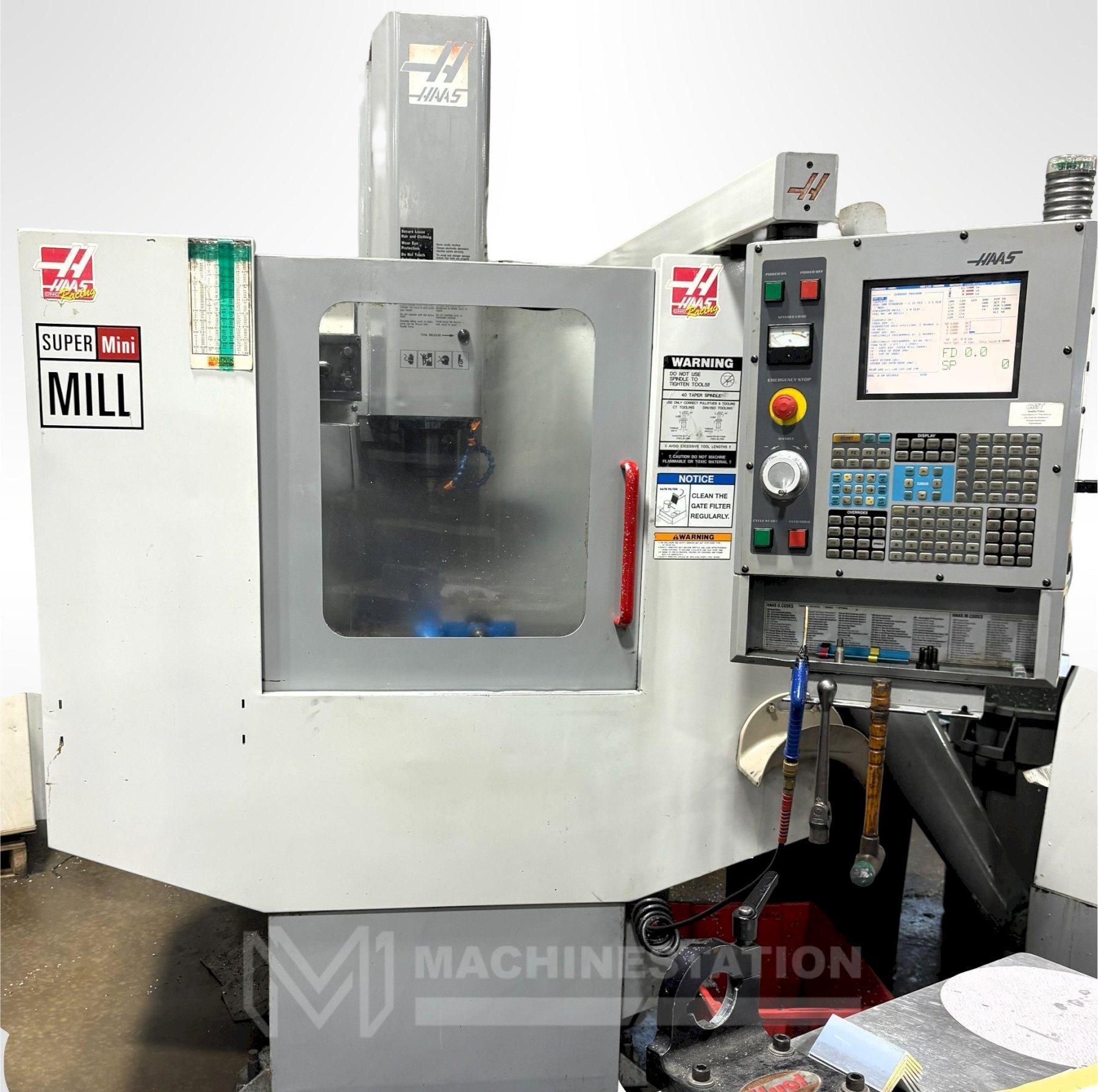

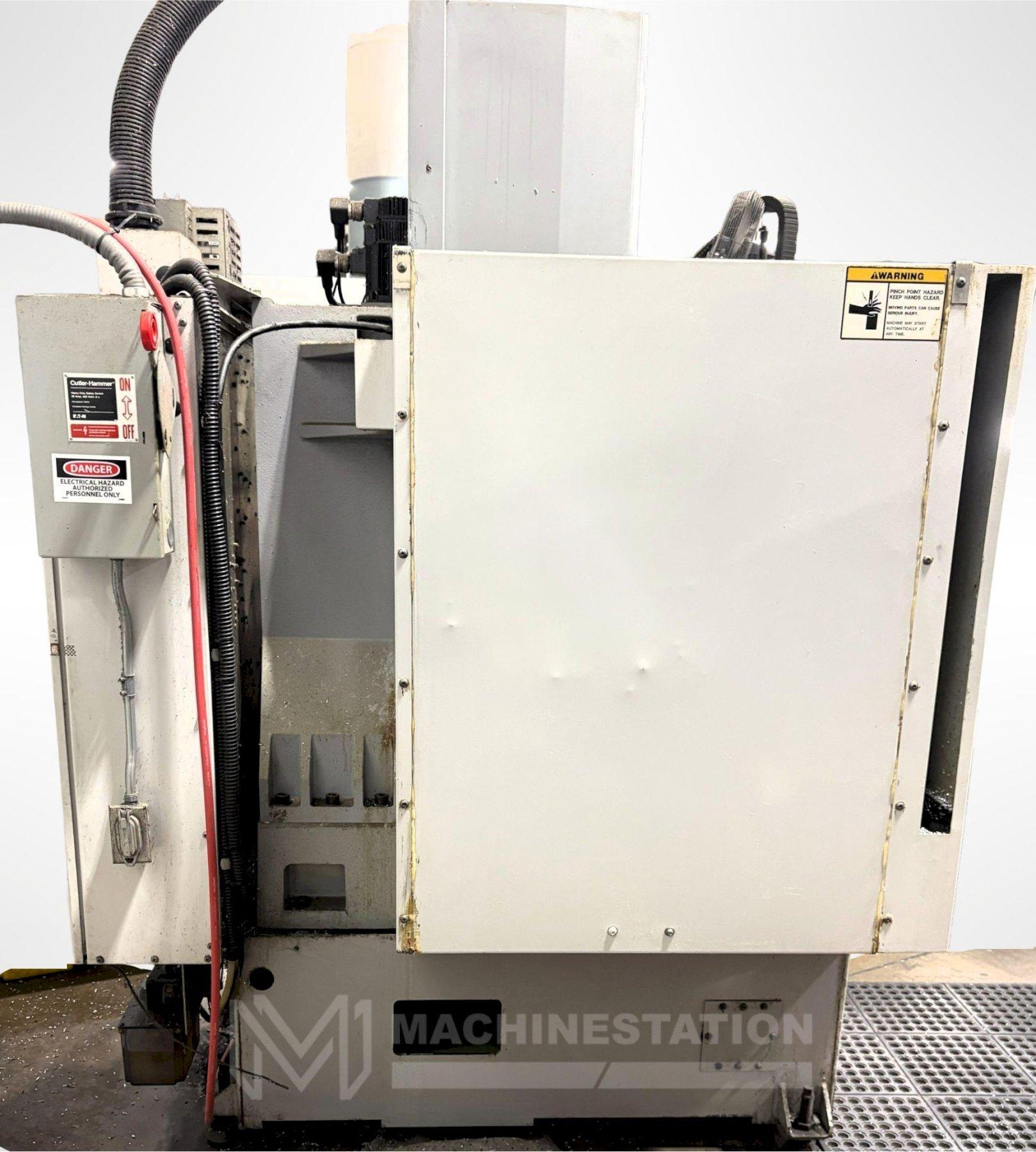

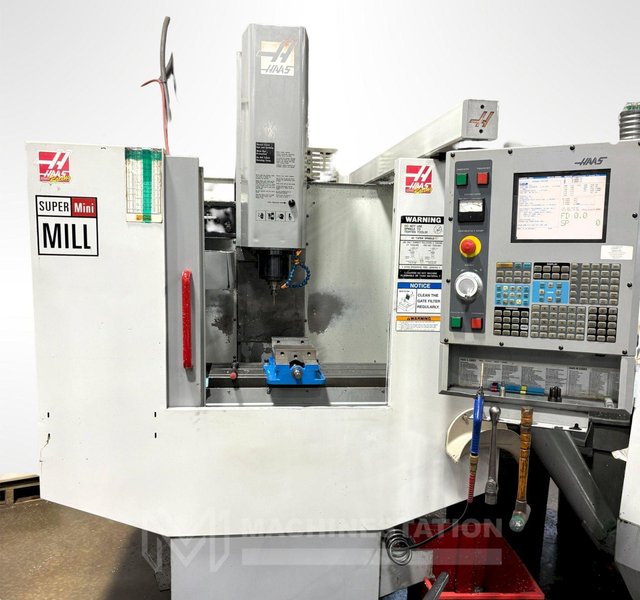

Haas Super Mini Mill CNC Vertical Machining Center

Haas Super Mini Mill CNC Vertical Machining Center

Name: Used HAAS Haas Super Mini Mill For Sale 115105
Brand: HAAS
SKU: 115105
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	115105
Make:	Haas
Model:	Super Mini Mill
Year:	2004
Condition:	Used – Good

Features:

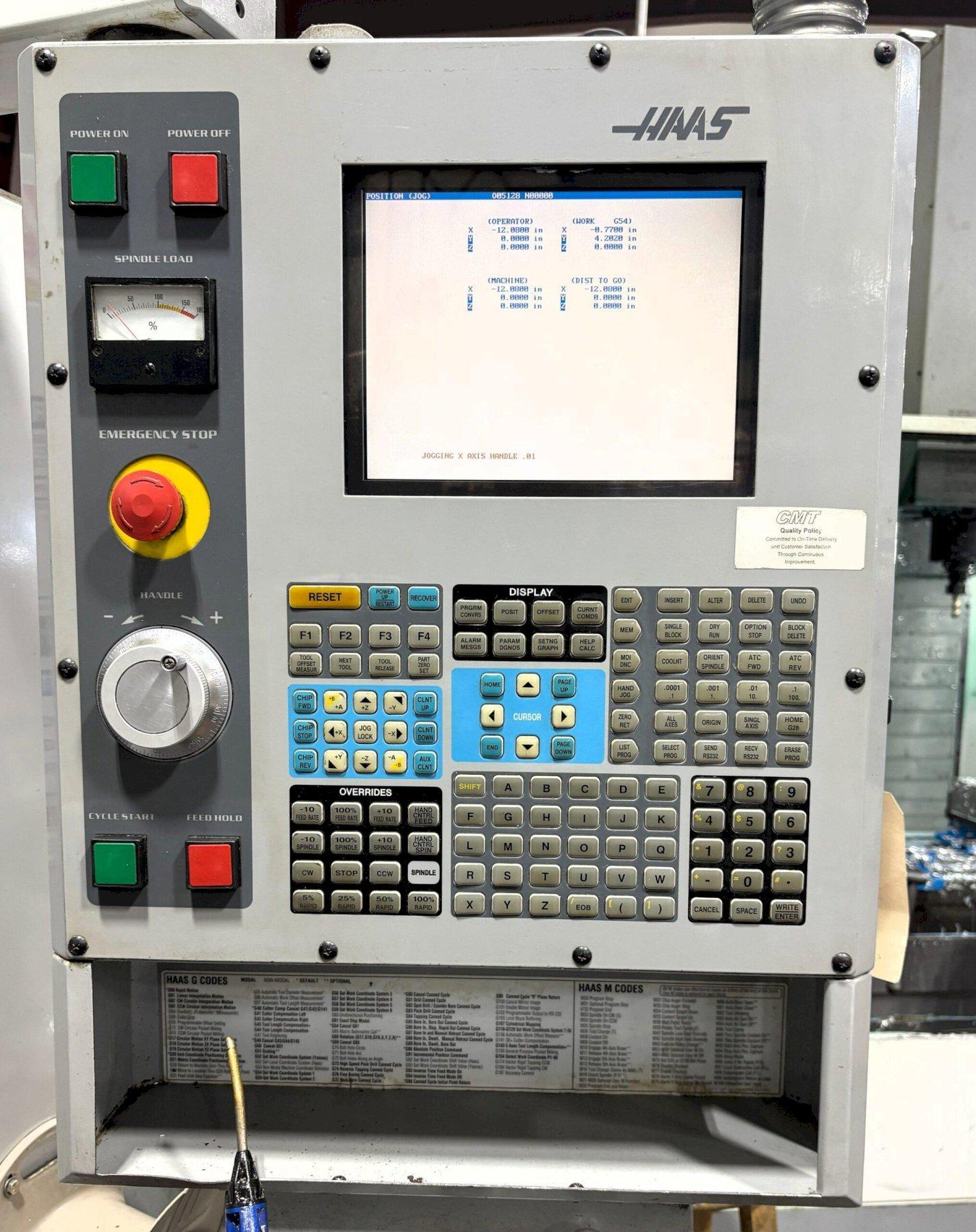

Haas CNC Control
10,000 RPM Spindle
10 Station Automatic Tool Changer
40 Taper Spindle
Coolant System

Travels:
X-Axis: 16″
Y-Axis: 12″
Z-Axis: 10″
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 14″

Table:
Length: 36.0″
Width: 12.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 500 lbs

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 10 Station Umbrella Type
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Tool Changing Time: 2.8 Seconds

General:
Air Required: 100 psi, 4 scfm

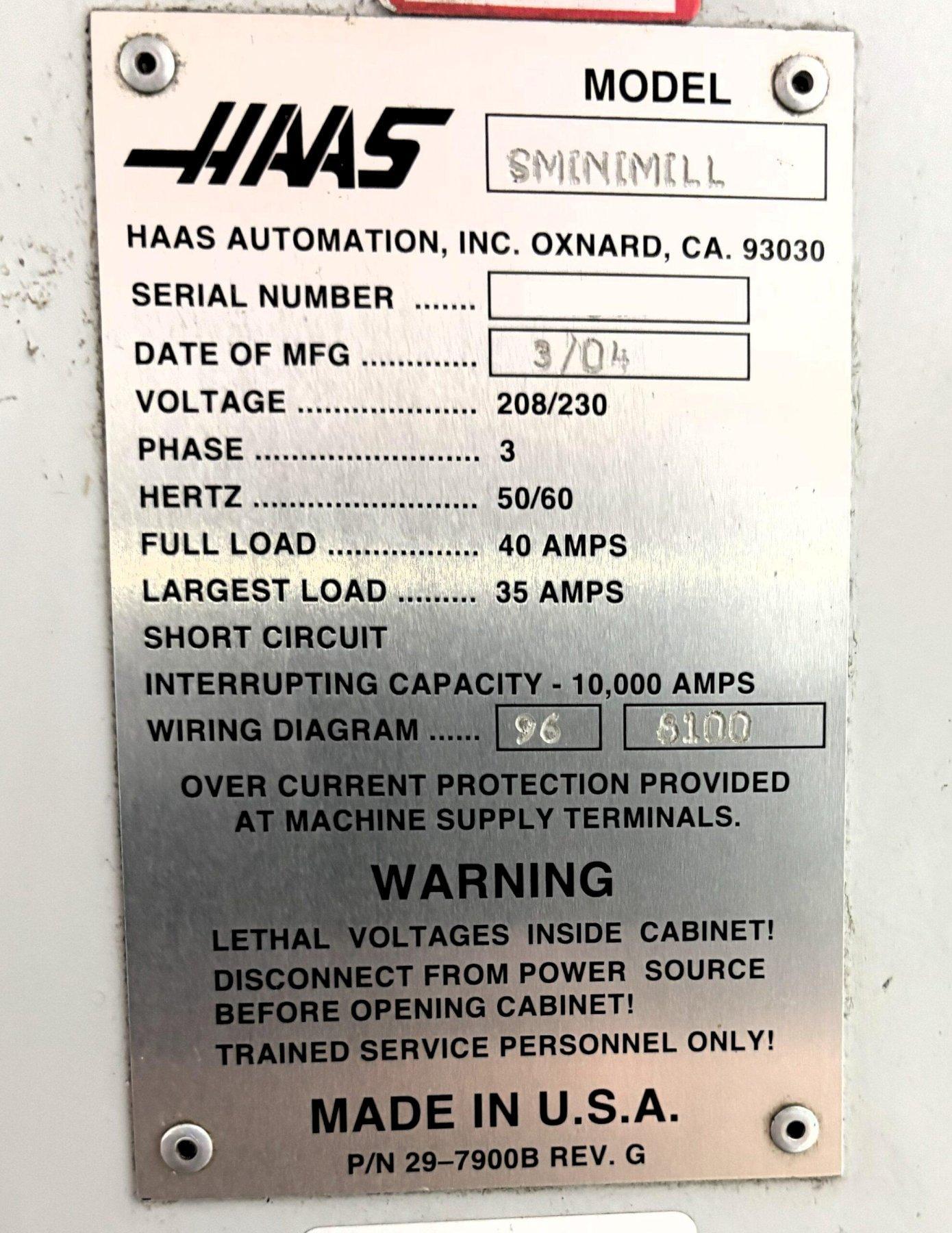

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 90″ x 64″ x 100″ High Approx.
Weight: 4000 lbs. Approx.

No files or videos to display
