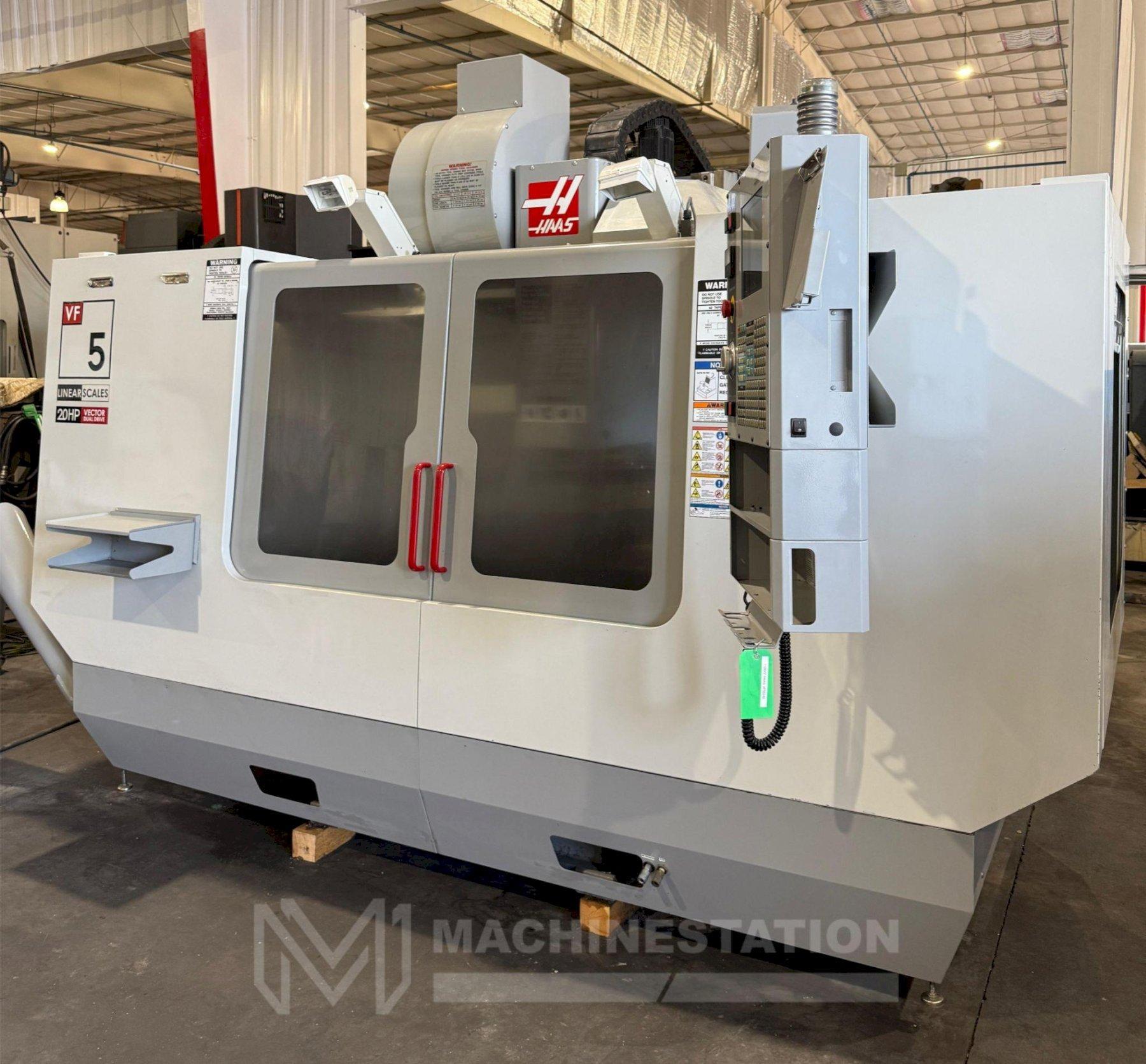

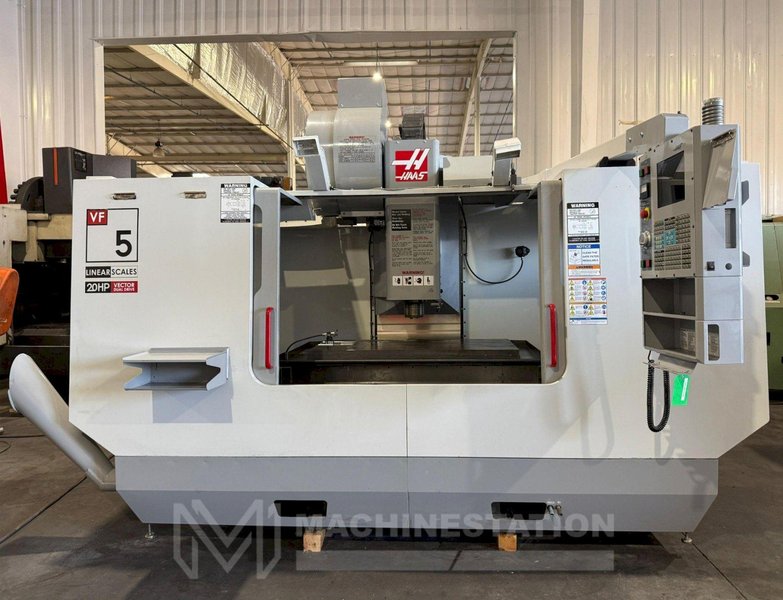

Haas VF-5B/40 CNC Vertical Machining Center – Mill

Haas VF-5B/40 CNC Vertical Machining Center – Mill

Name: Used HAAS HAAS VF-5B/40 For Sale 112872
Brand: HAAS
SKU: 112872
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	VF-5B/40
Year:	2004
Condition:	Used – Good

Equipped With:

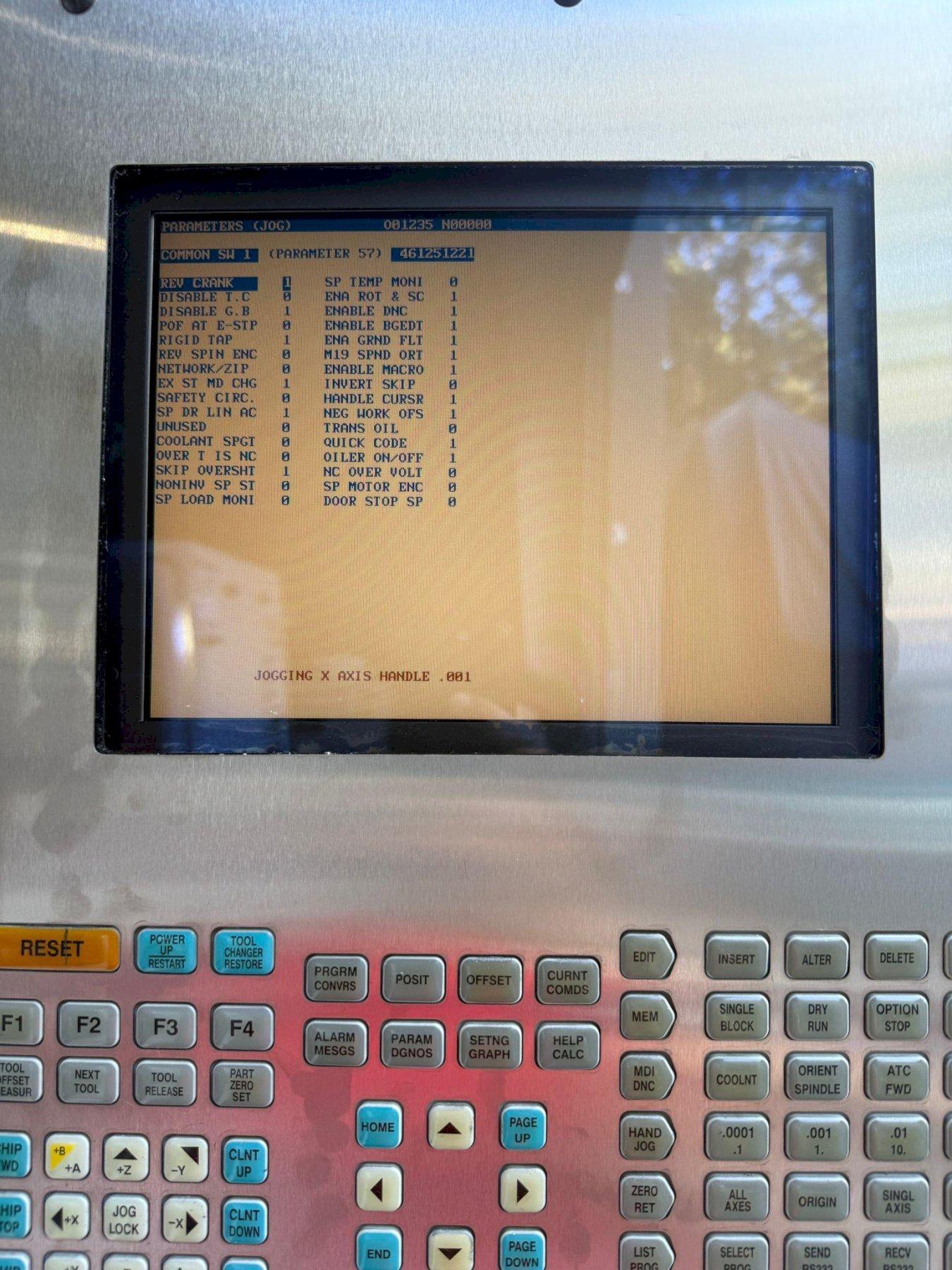

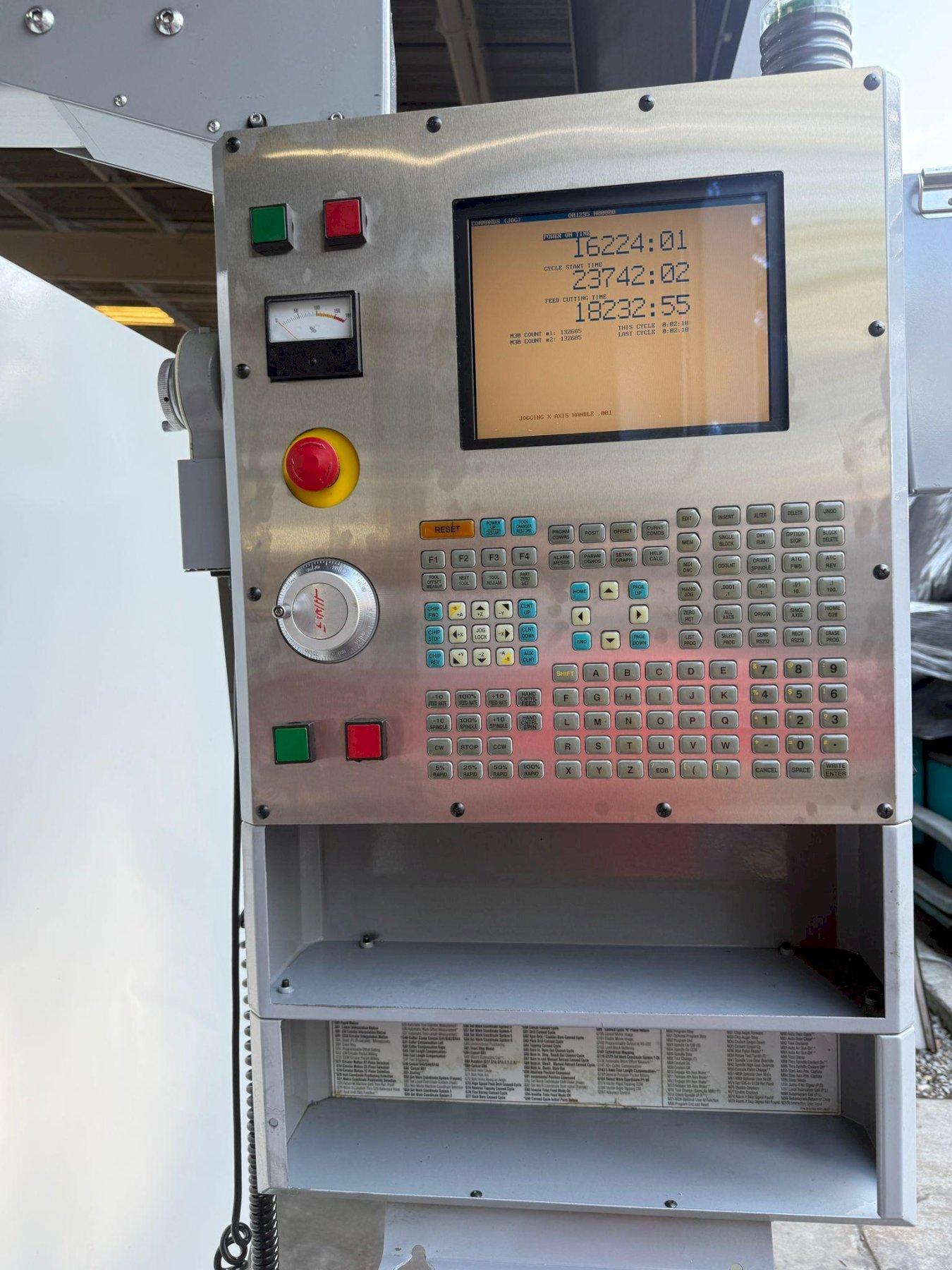

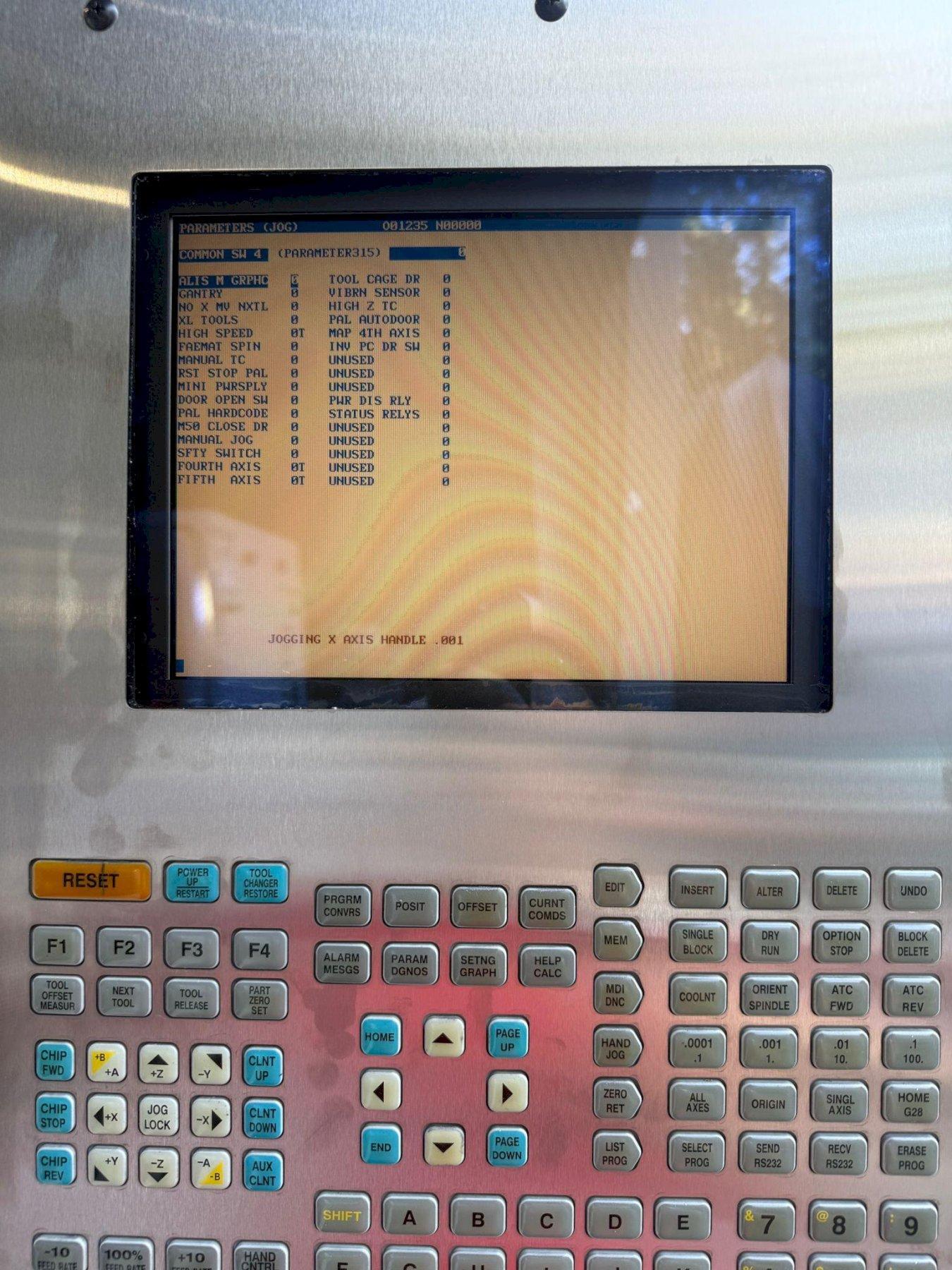

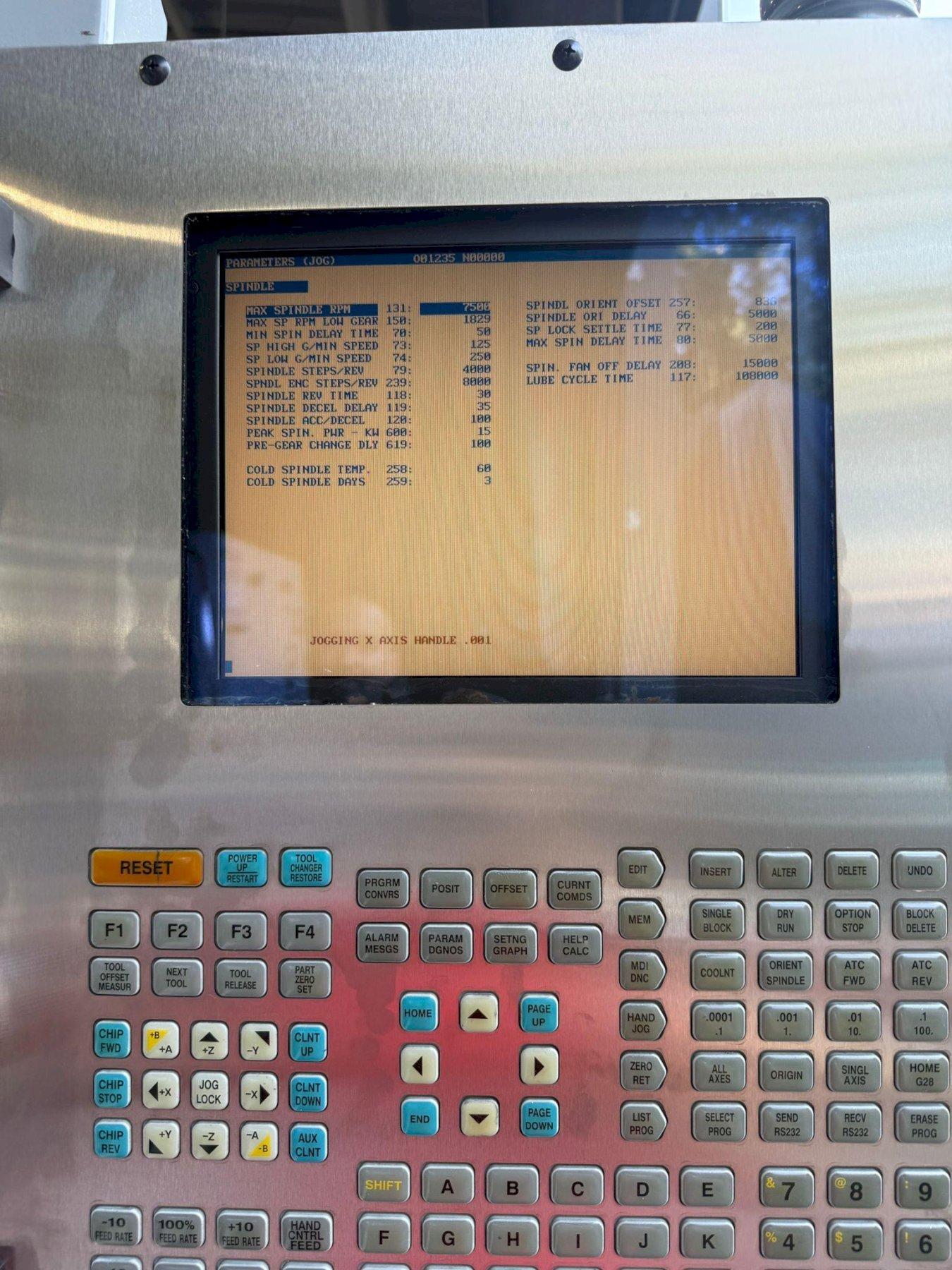

Haas CNC Control
7500 RPM Spindle

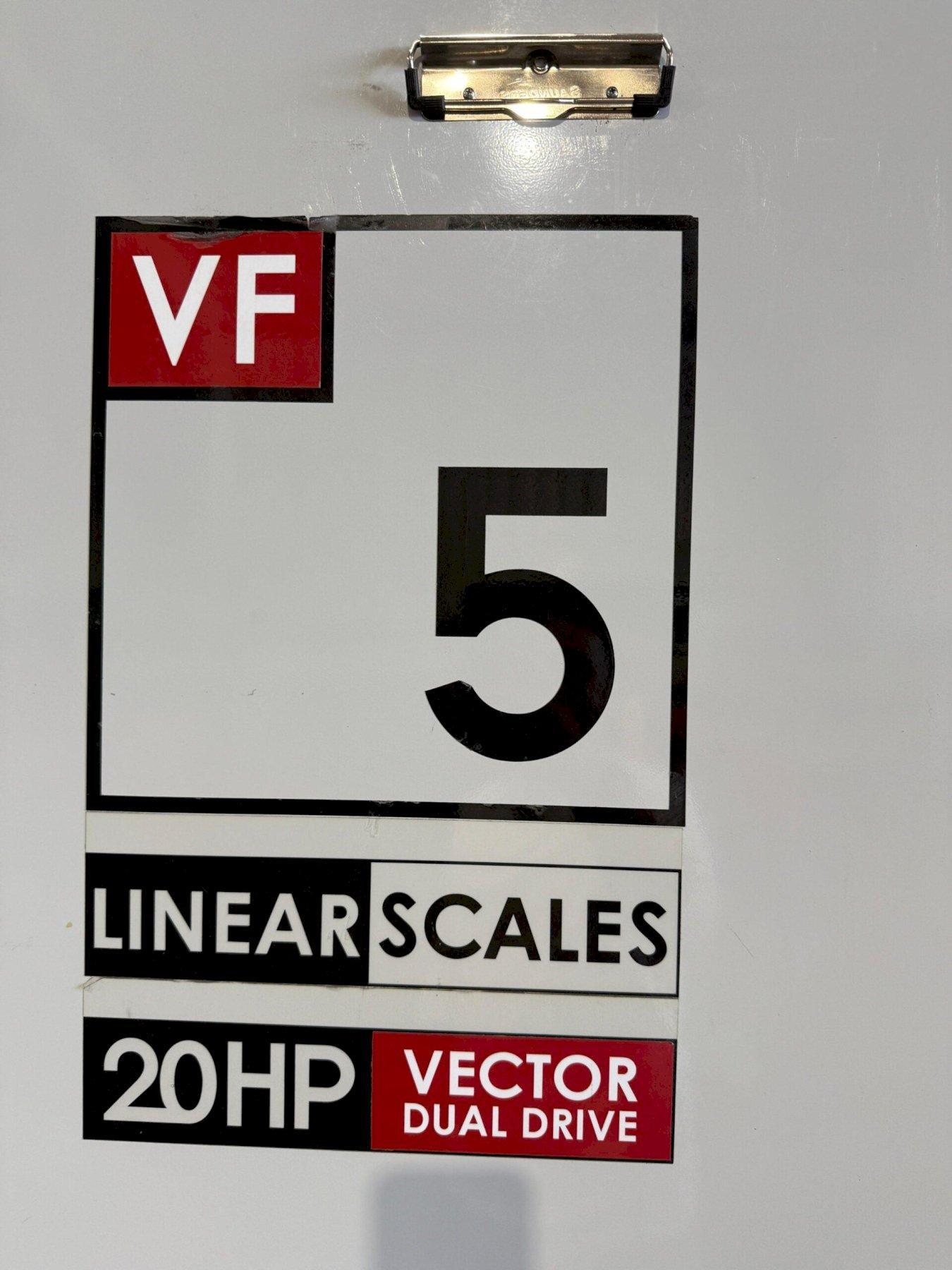

Linear Scales
20 HP Vector Dual Drive

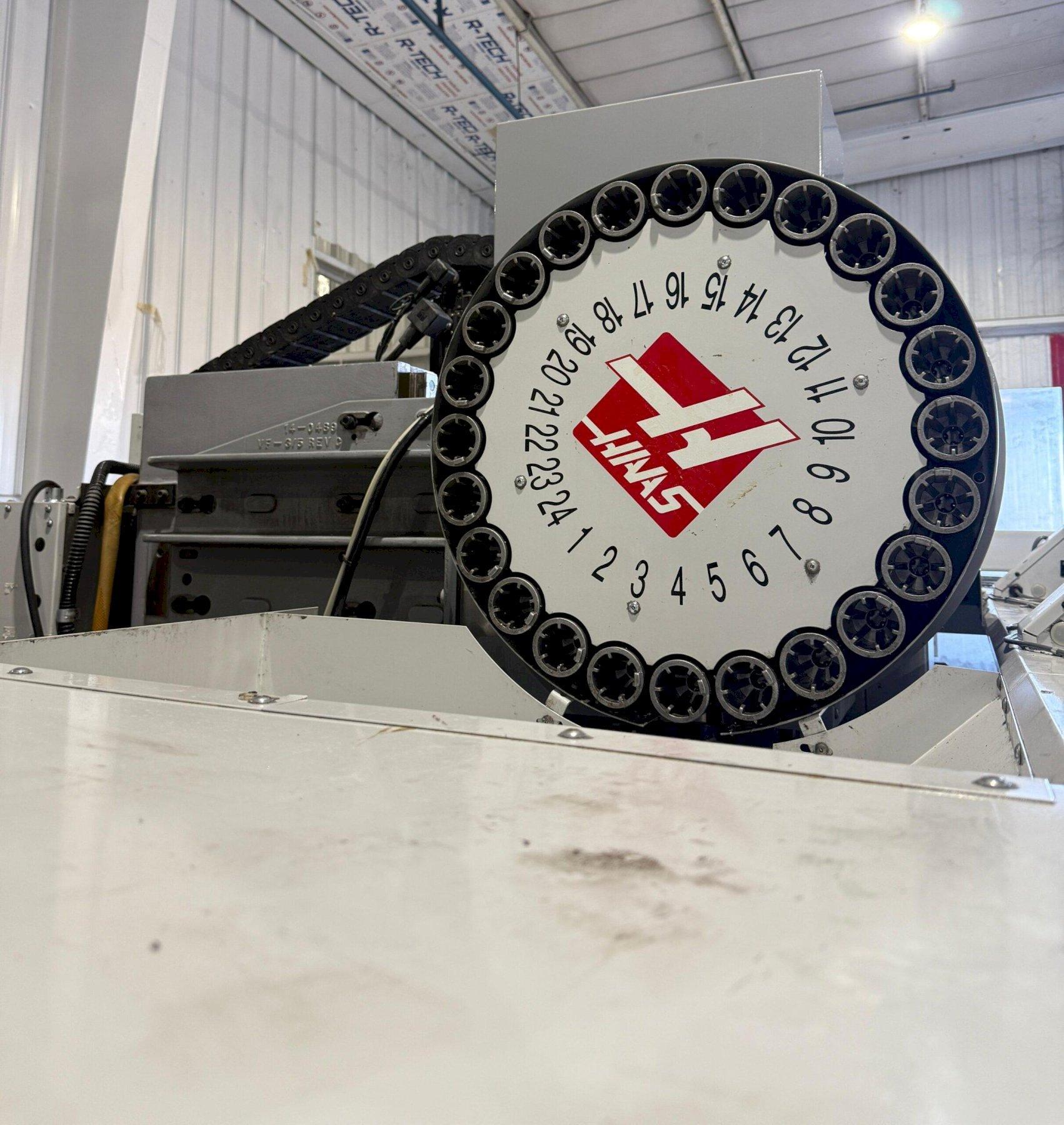

24 Station Side Mount Automatic Tool Changer
Renishaw Probing System – (Probe Needed)

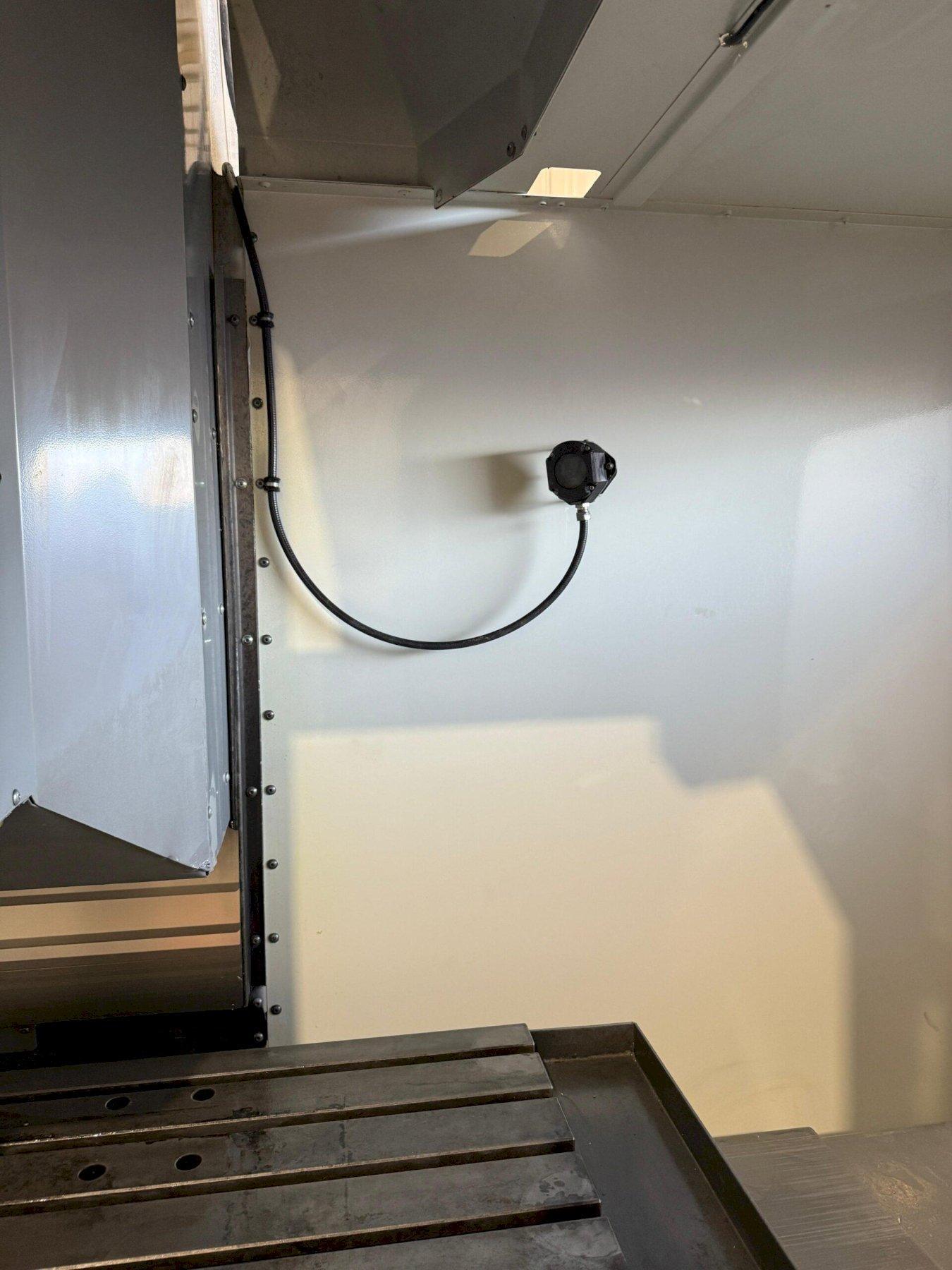

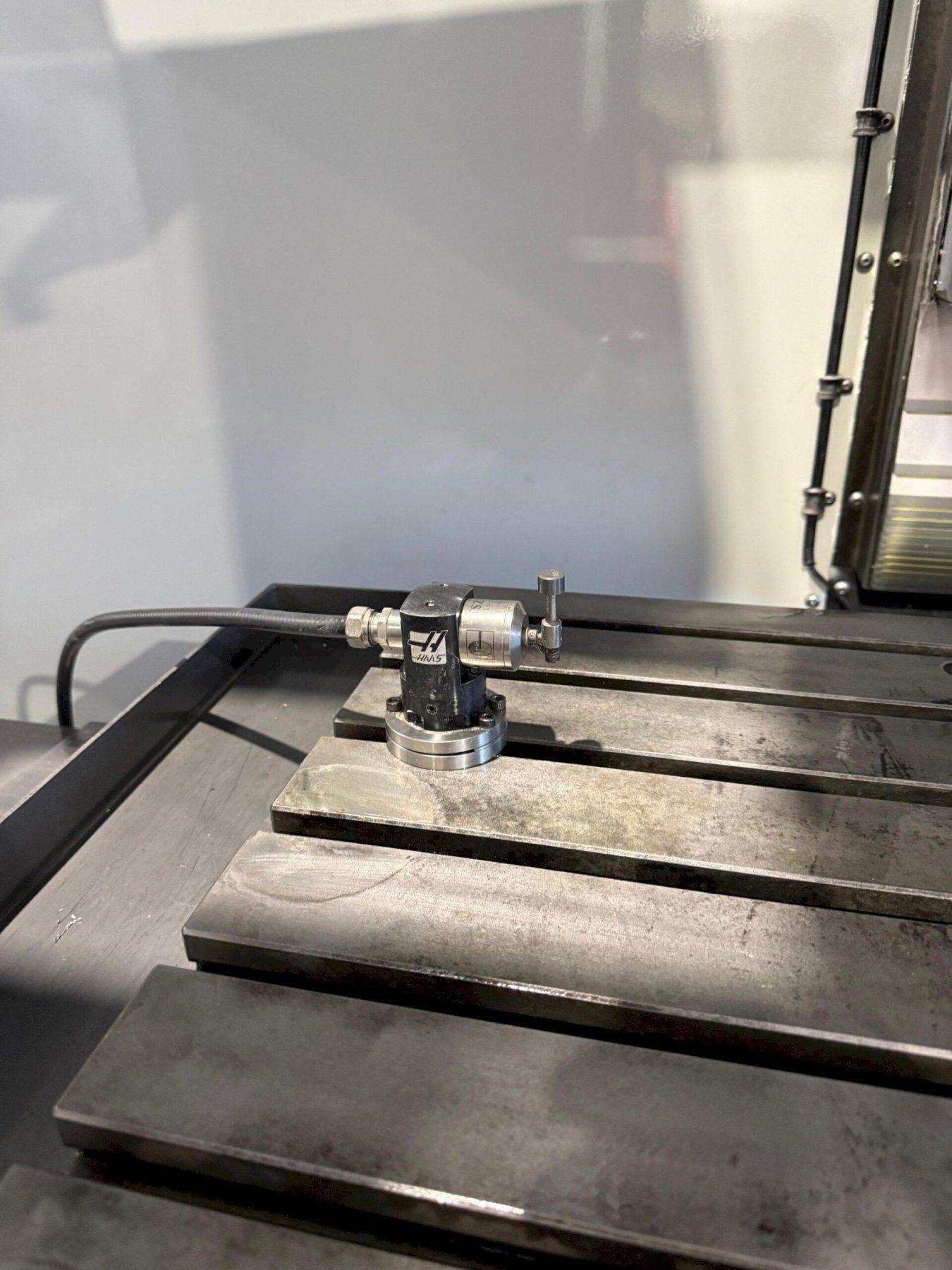

Tool Presetter
Rigid Tapping
Spindle Orientation
Macros
Quick Code Programming
Coolant System
Chip Auger

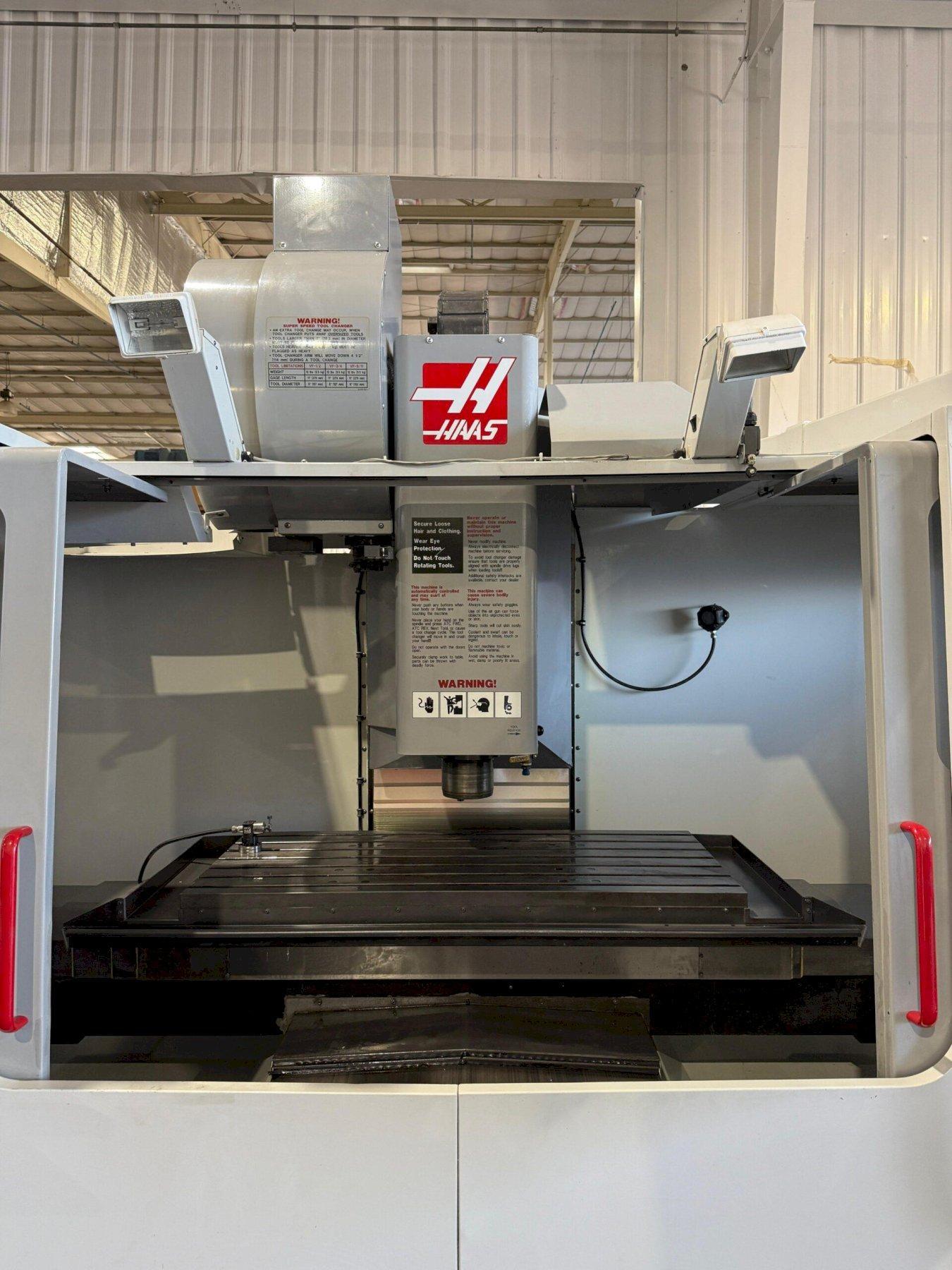

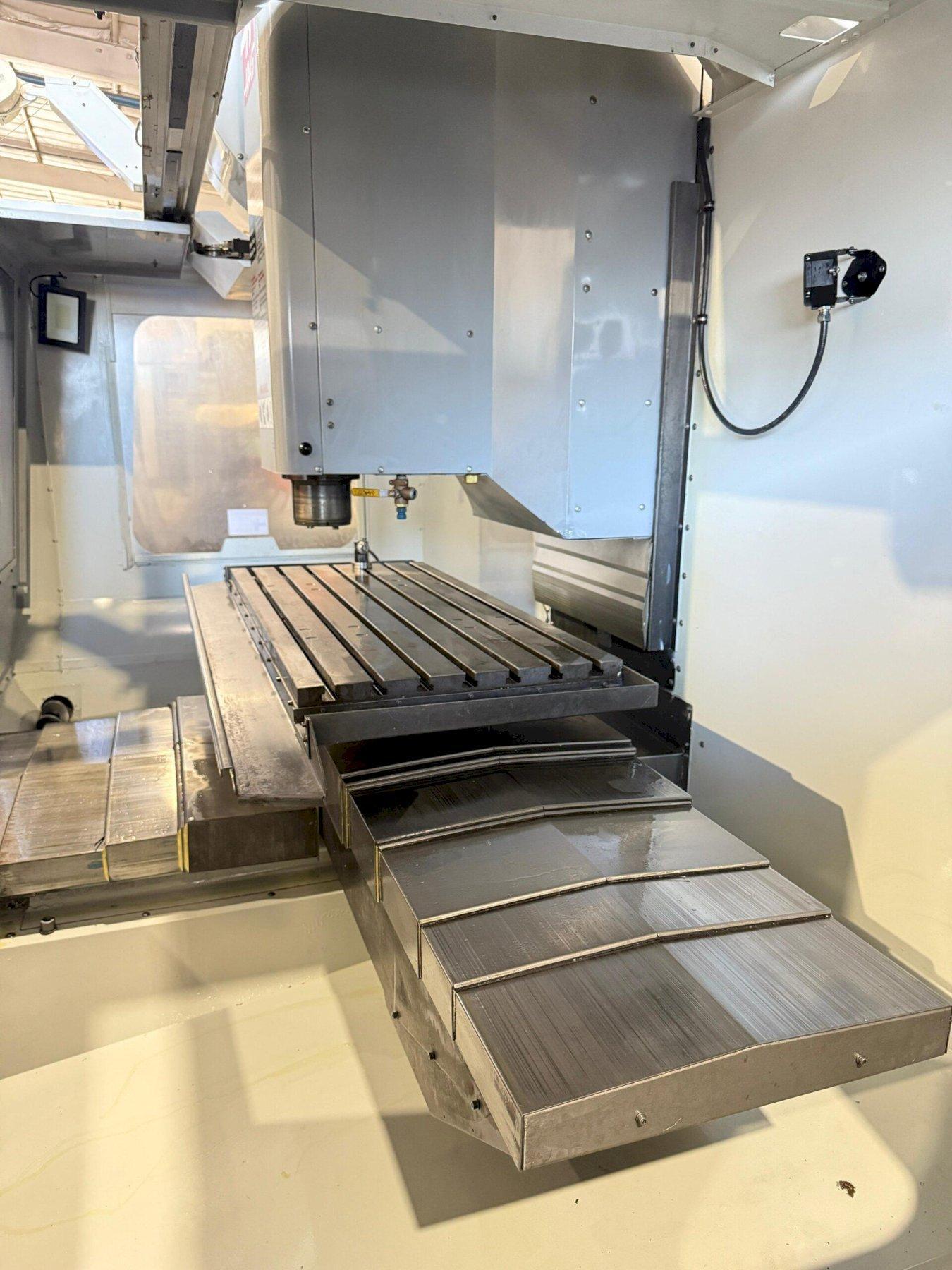

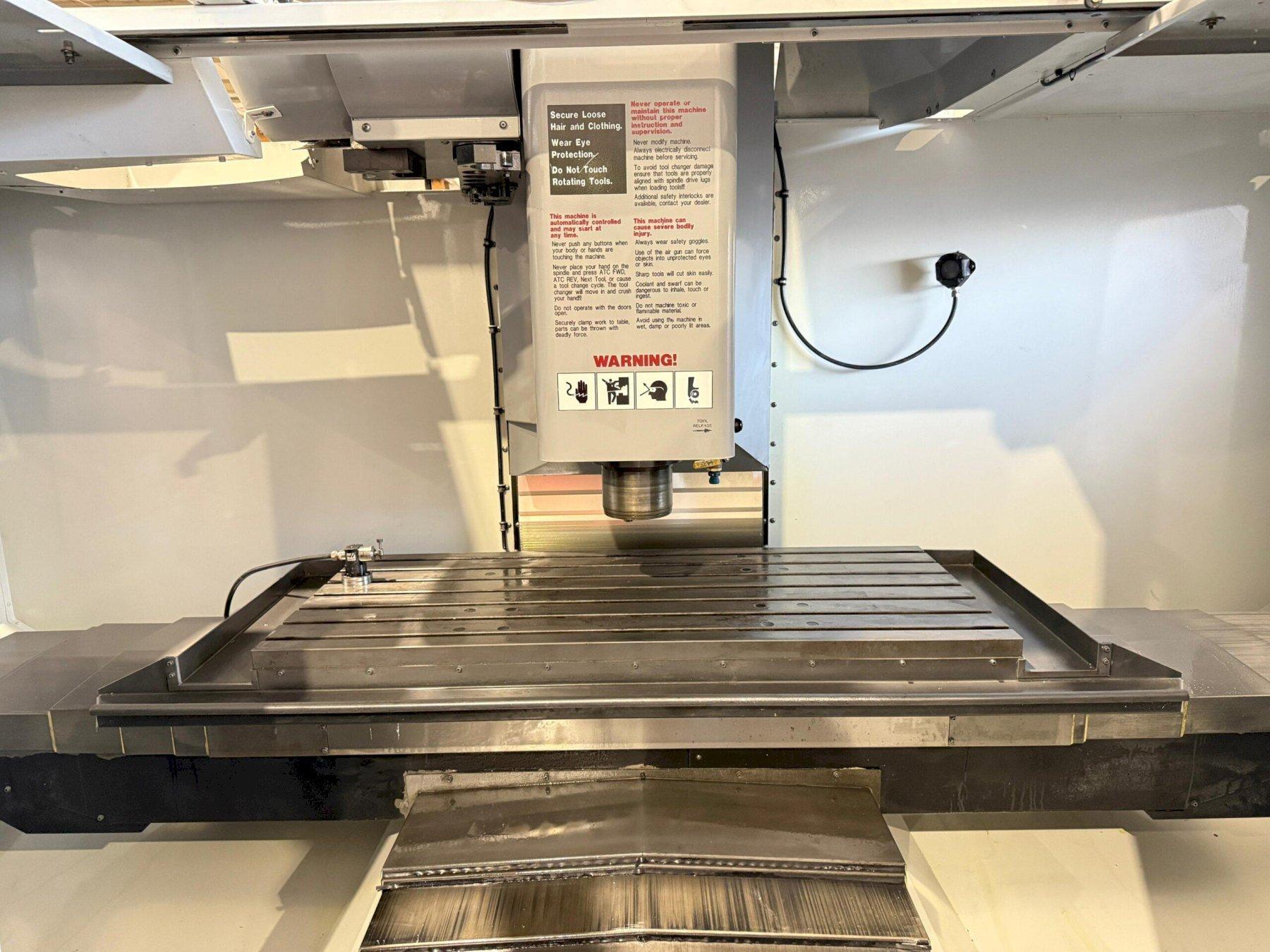

Table:
Length: 54.0″
Width: 24.0″
Number of Std T-Slots: 7
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

Travels:
X-Axis: 50″
Y-Axis: 26″
Z-Axis: 25″
Rapid Traverse Rates: 710 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″
