SPECIFICATIONS:

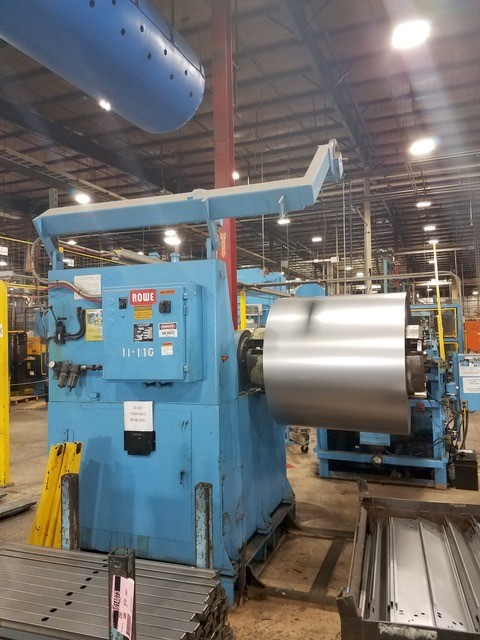

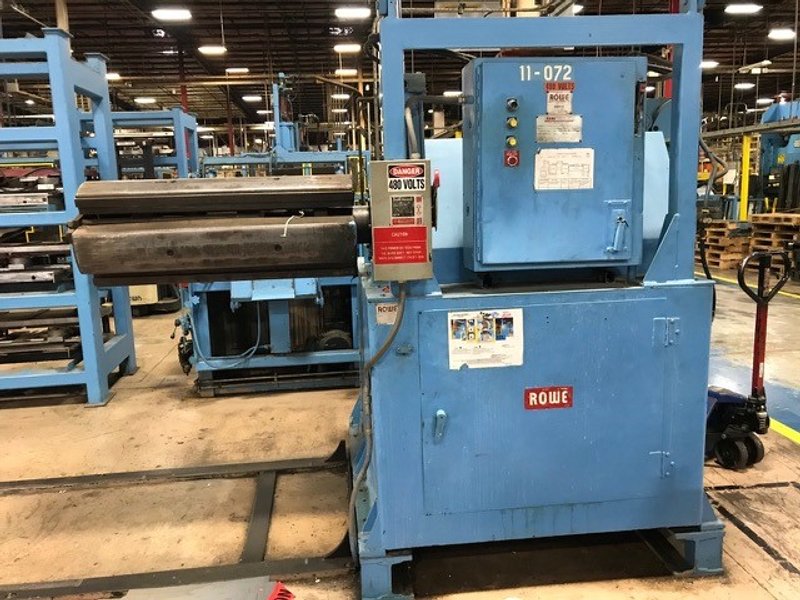

Rowe Uncoiler

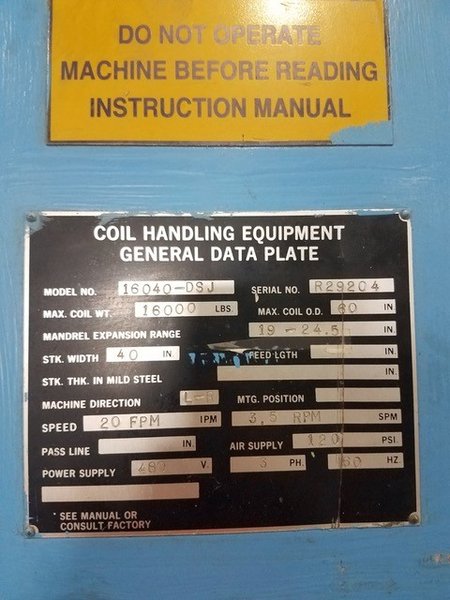

..Model Number..........................................16040-DSJ
..Serial Number.........................................29204
..Maximum coil weight...................................16,000 lbs.
..Maximum coil OD.......................................60"
..Stock Width...........................................40"
..Speed.................................................20 FPM/3.5RPM
..Line Direction........................................Left To Right
..Air Supply............................................120 PSI
..Power Requirements....................................480V,3PH,60Hz
..Approximate
dimensions................................117"x71"x100"high(8,000lbs)

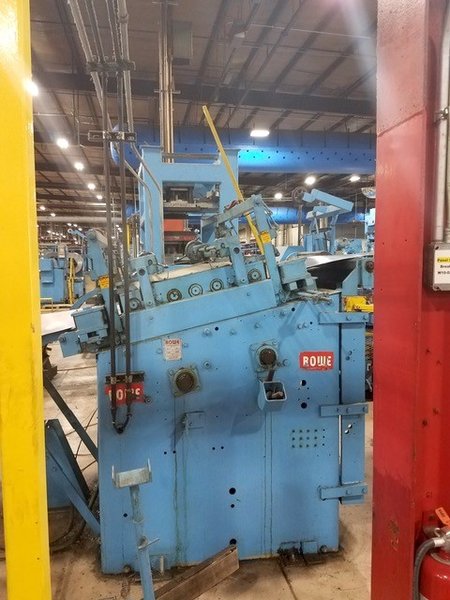

Rowe Straightener


..Model Number..........................................C3-40
..Serial Nimber.........................................28141
..Maximum Width.........................................41"
..Maximum Thickness(mild steel).........................0.110"
..Approximate
Dimensions................................84"x87"x82"high(9,000lbs)


Bradbury Rollformer

..Type..................................................Dual
head(adjustable)duplex rollformer
..Model.................................................130-3.1/4-18
..Number of forming stations............................18
..Rollspace.............................................14-1/2"to48"
..Diameter of spindles..................................1-1/2"
..Vertical Adjustments..................................4-1/2"to4-3/8"
..Horizontal center distance............................7"
..Rollspace each head...................................3-1/4"
..Passline height.......................................42"
..Tooling gear ratio,bottom to top......................1.5714 to 1
..Standard workspeed....................................80 FPM+/-4 FPM
..Line direction........................................Left To Right
..Motor.................................................10HP
..Power requirements....................................480V/3Ph?60Hz
..Approximate dimentions................................153"x102"x73"
High(25,000lbs)

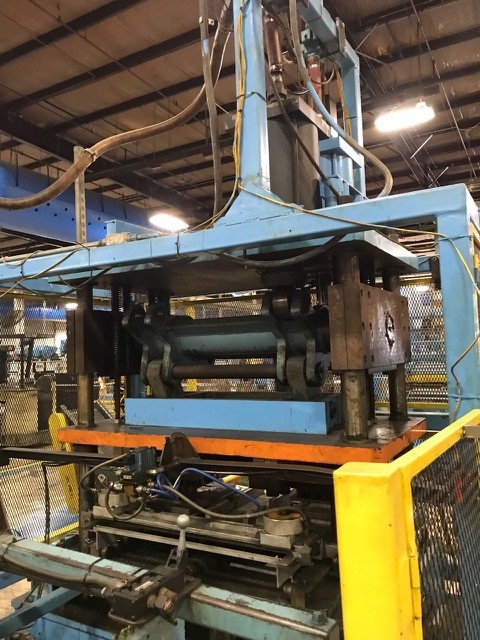

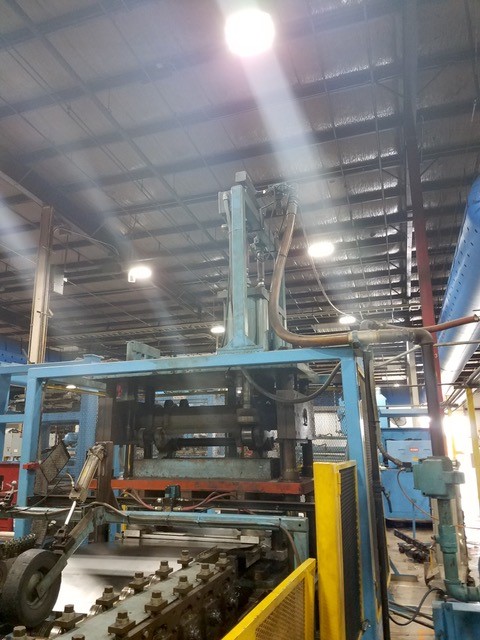

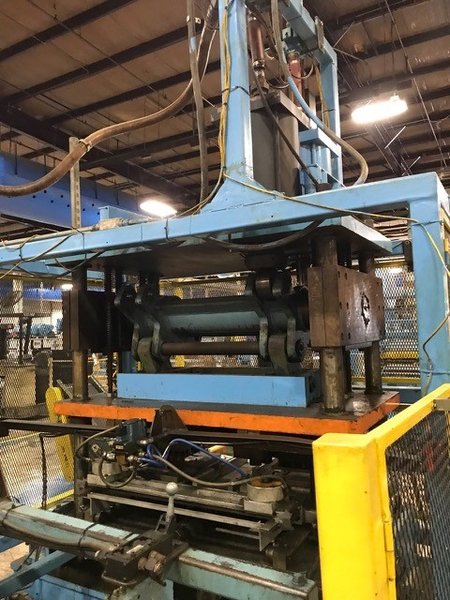

Tishken presses(2)


..Model number..........................................ACO-S-50
..Serial Numbers.......................................20202(flying
Press),21854(flying shear)
..Year.................................................1989(flying
press),1997(flying shear)
..Tonnage..............................................50
..Distance between posts...............................49"x21"
..Diameter of posts....................................3"
..Diameter of cylinder rods............................3"
..Approximate weight,press & shear.....................11,000lbs(each)
..Approximate dimentions(press)........................88"x60"x109"
high
..Approximate dimentions with guards(press)............91"x60"x138"
high
..Approximate dimentions(shear)........................88"x41"x109"
high
..Approximate dimentions with guards(shear)............91"x51"x138"
high

Features:

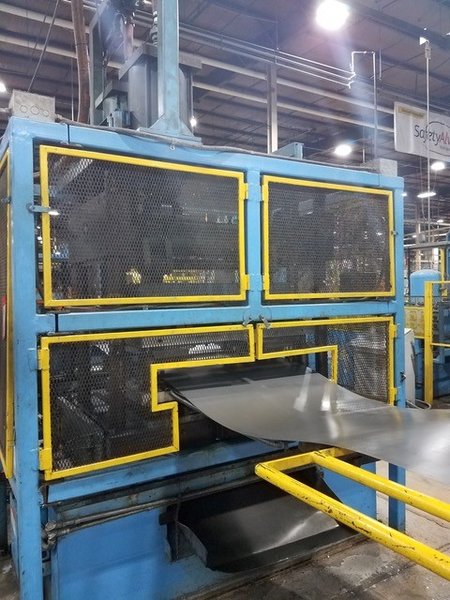

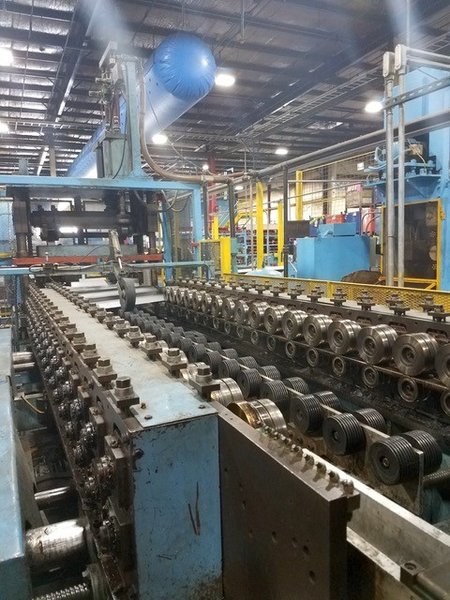

18 stand Bradbury rollformer:With reverse & jog functions[Brake
motor-gear reducer drive[Spindles mounted intapered roller
bearings[Powered head traverse system-located from center in and
out,preset locations through encoder and counter

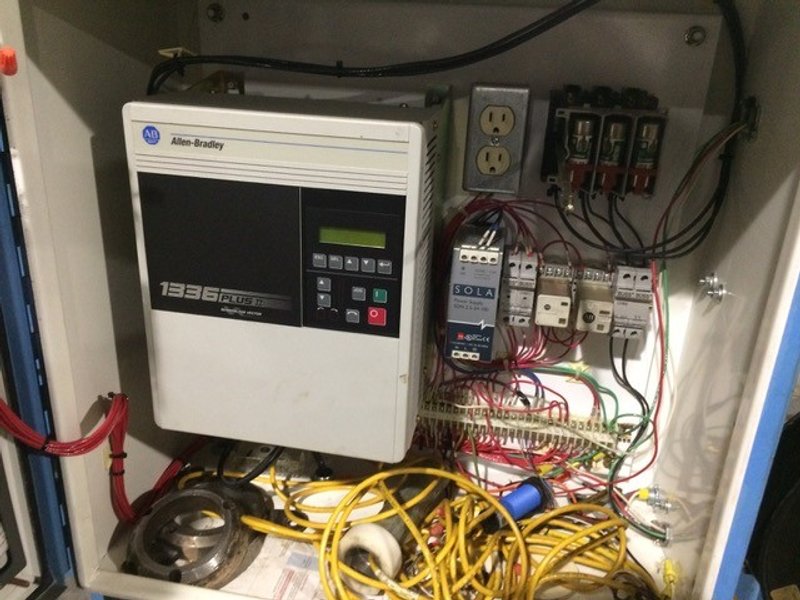

16,000 lb x 40"Rowe uncoiler: With Allen Bradley1336 Plus 11 variable
frequency drive[Powered expansion

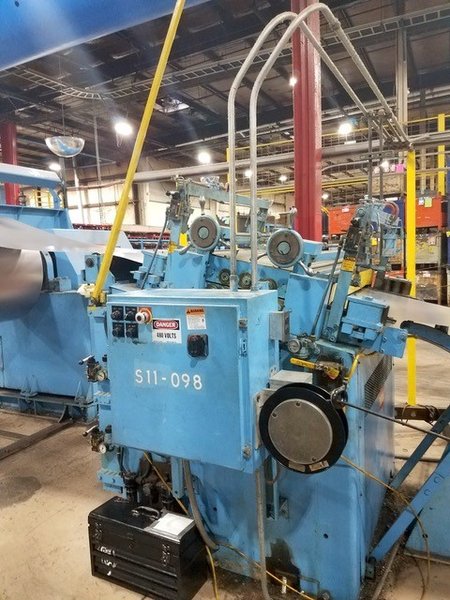

40" x .110" Rowe straightener:Allen Bradley MicroLogix
1000PLC[7-roll,3 over4 roll configuration

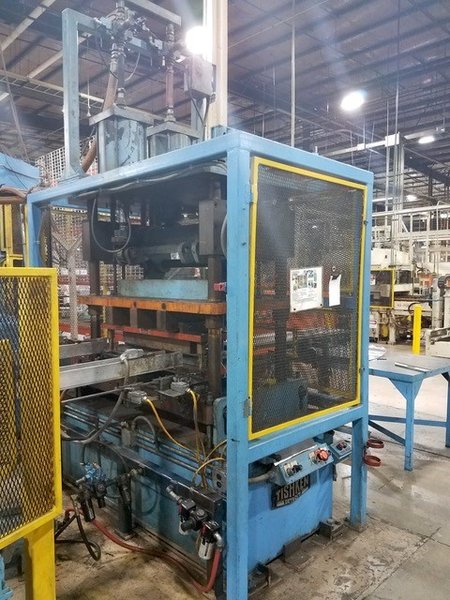

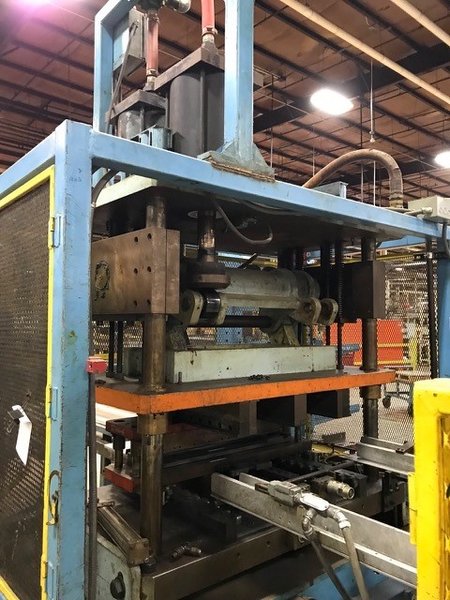

50 ton Tishken flying press
50 ton Tishken flying shear

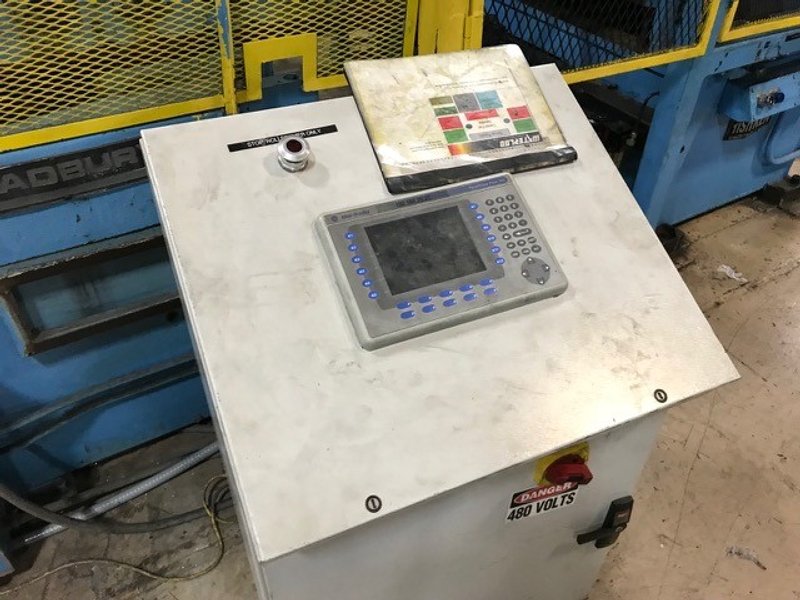

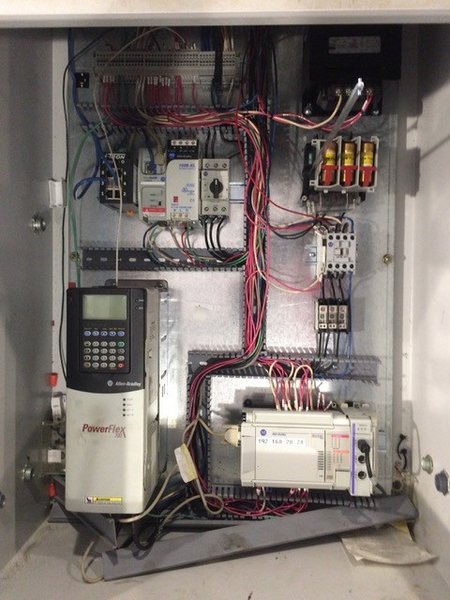

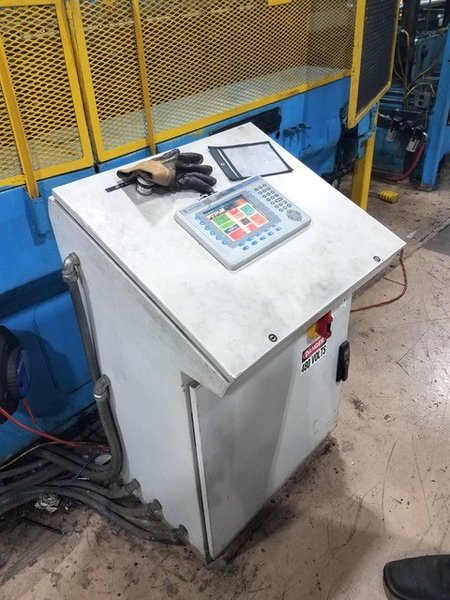

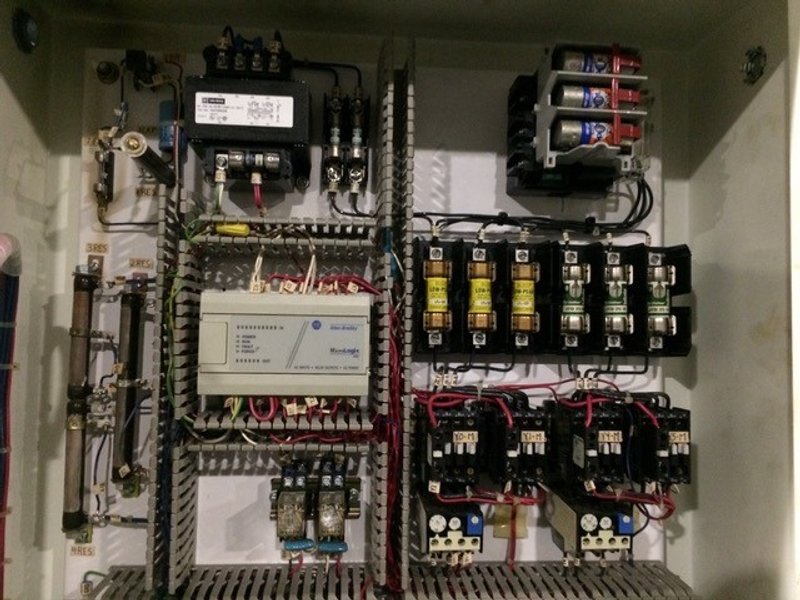

Updated OperatorPanel:Allen Bradley Panelview Plus 700 display[Allen
Bradley Powerflex 700 variable frequency drive[Allen Bradley
MicroLogix 1500PLC
