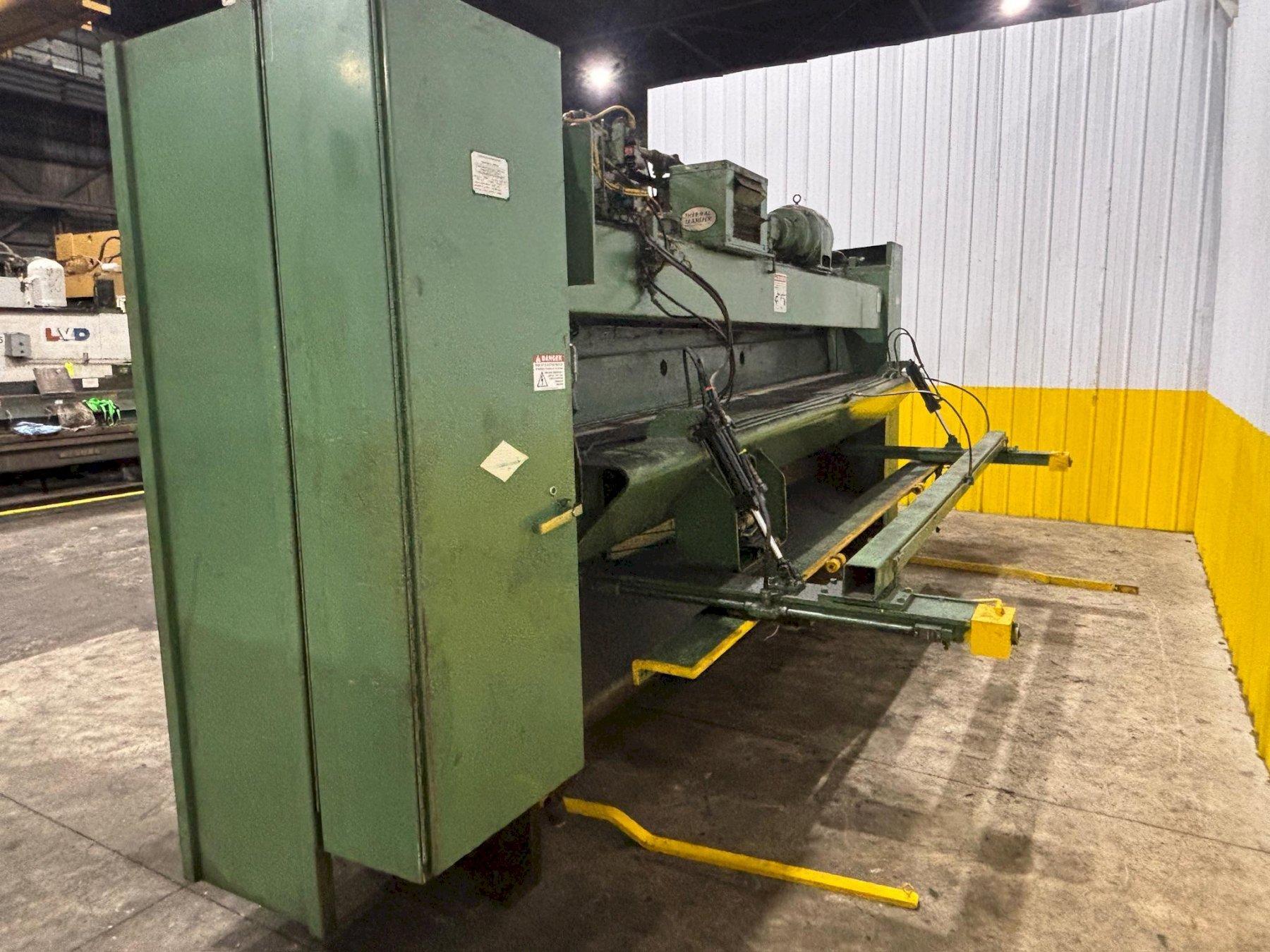

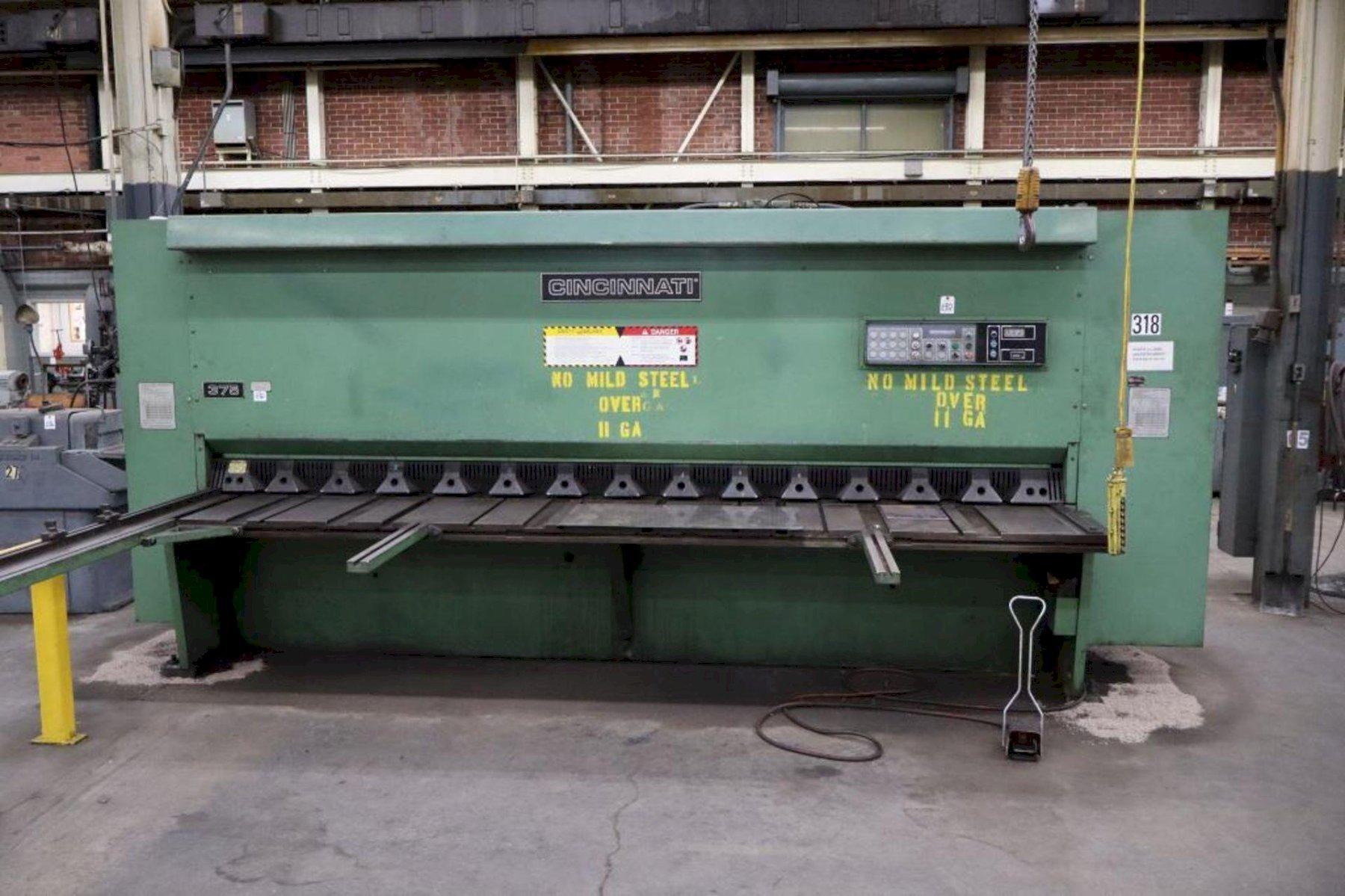

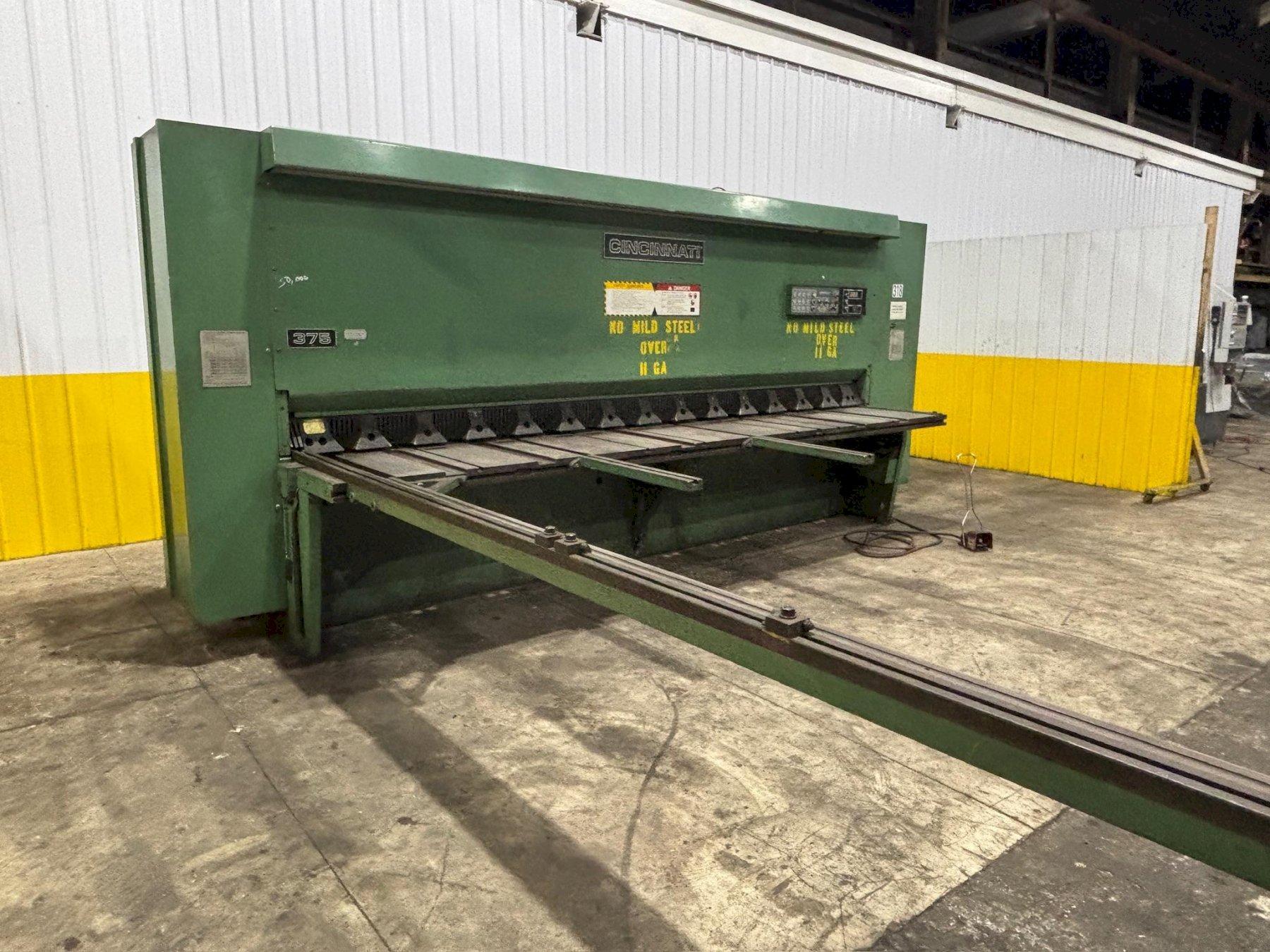

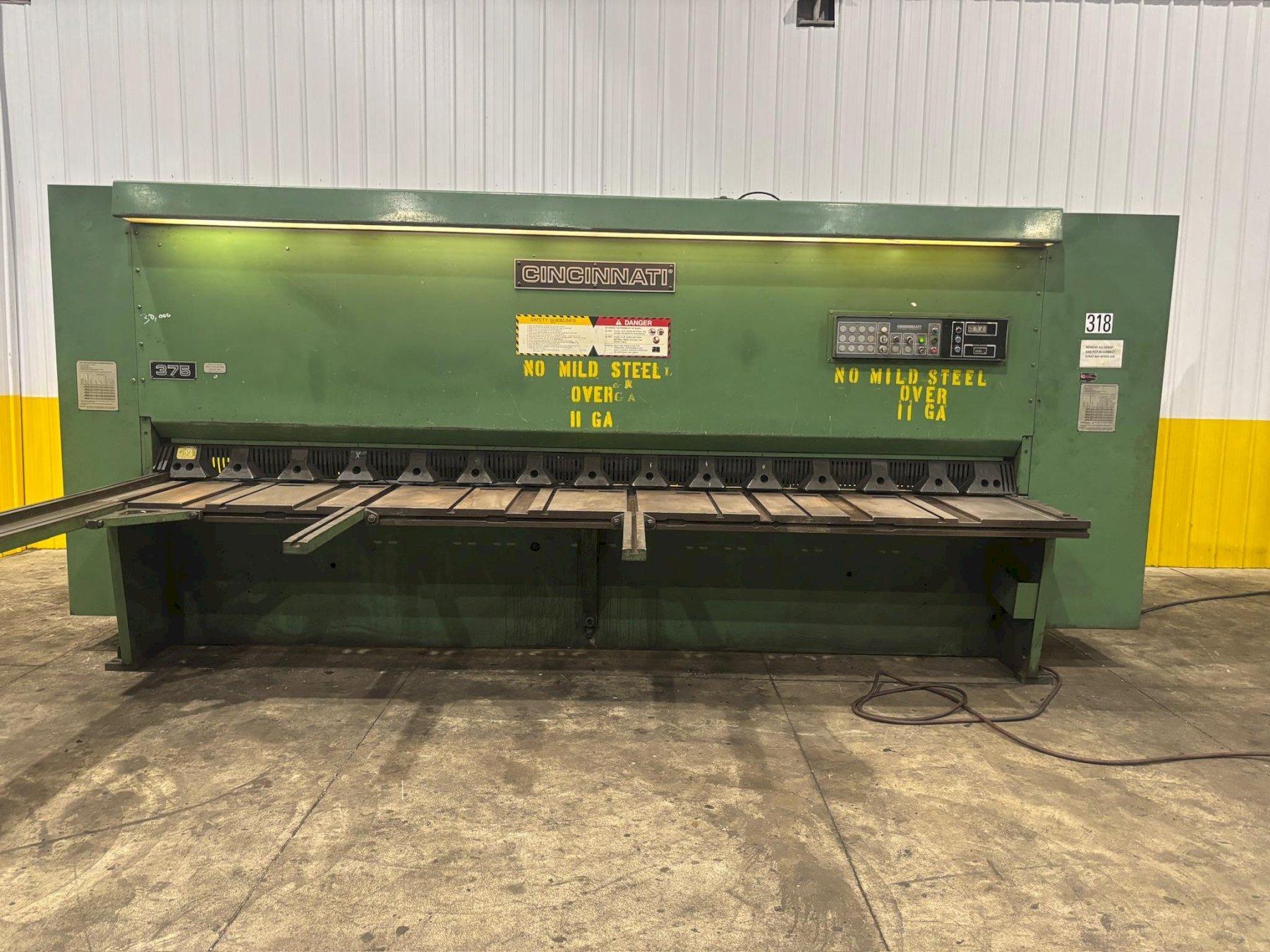

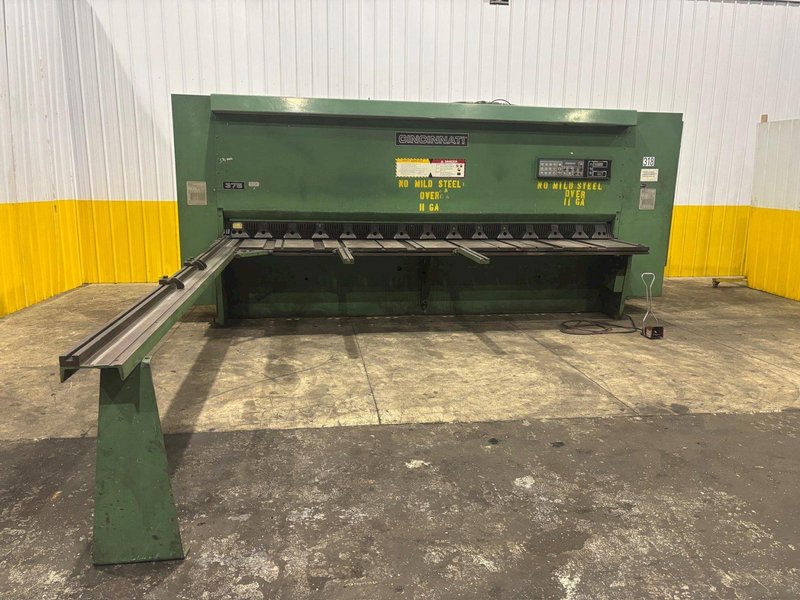

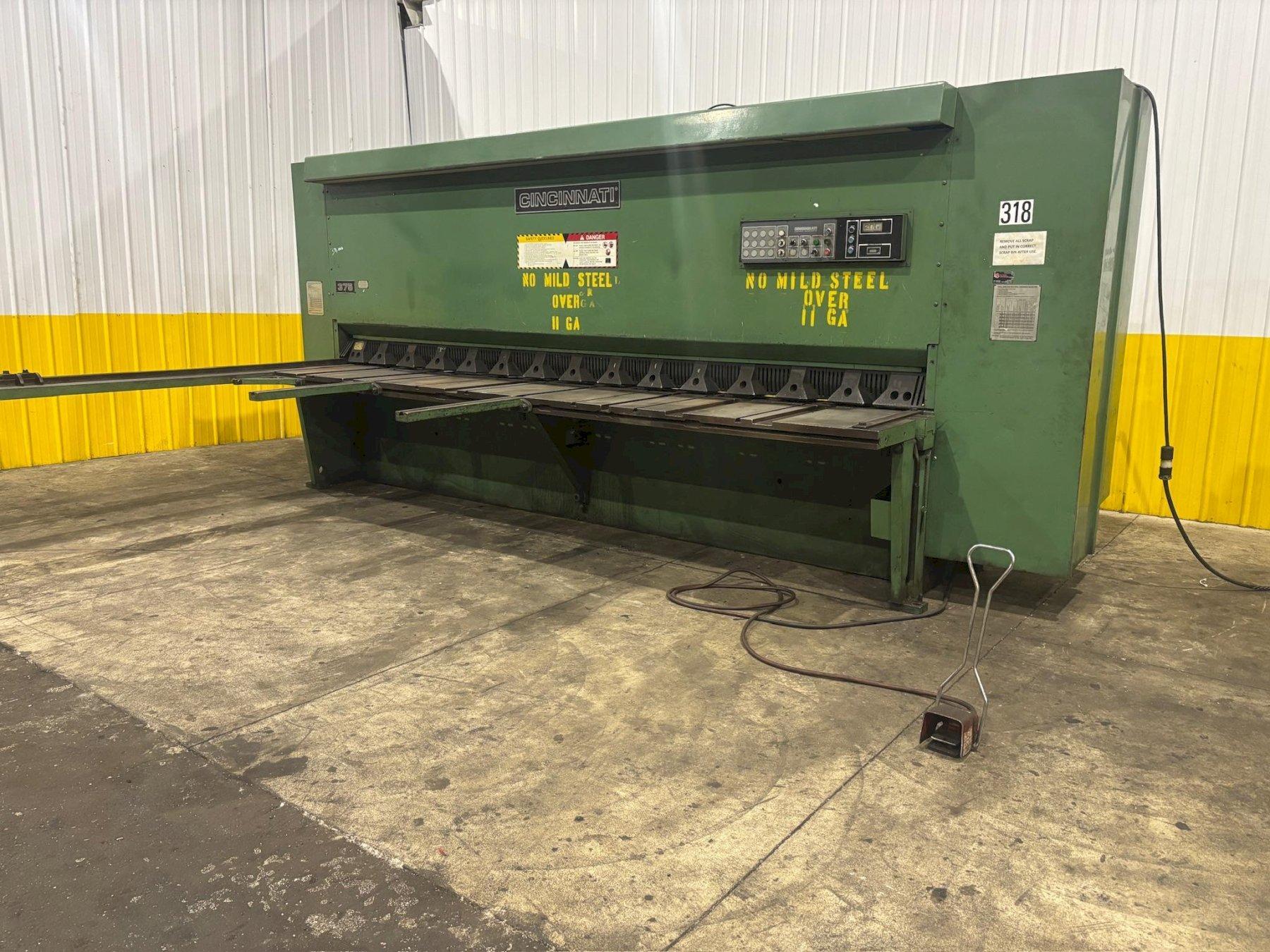

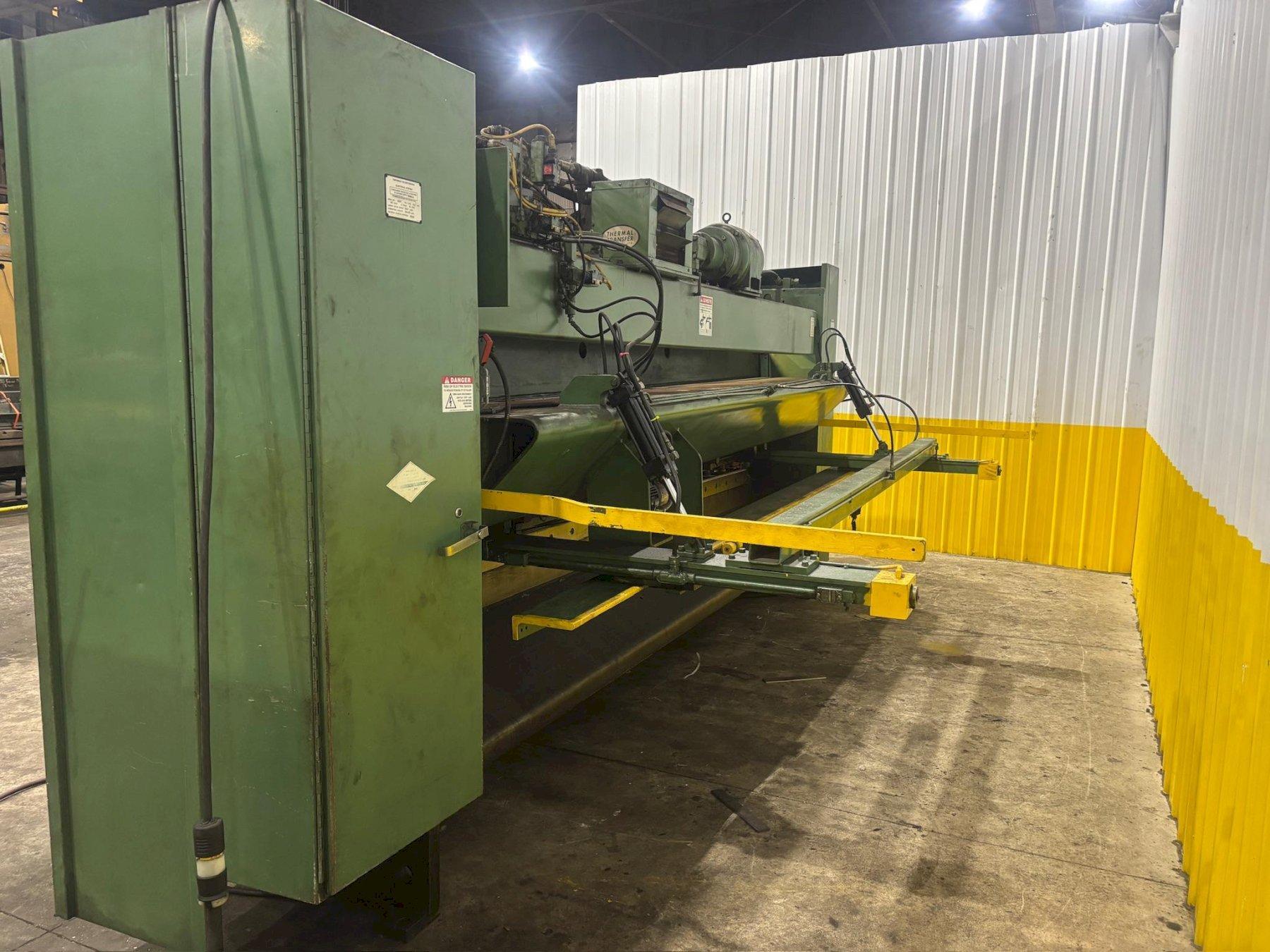

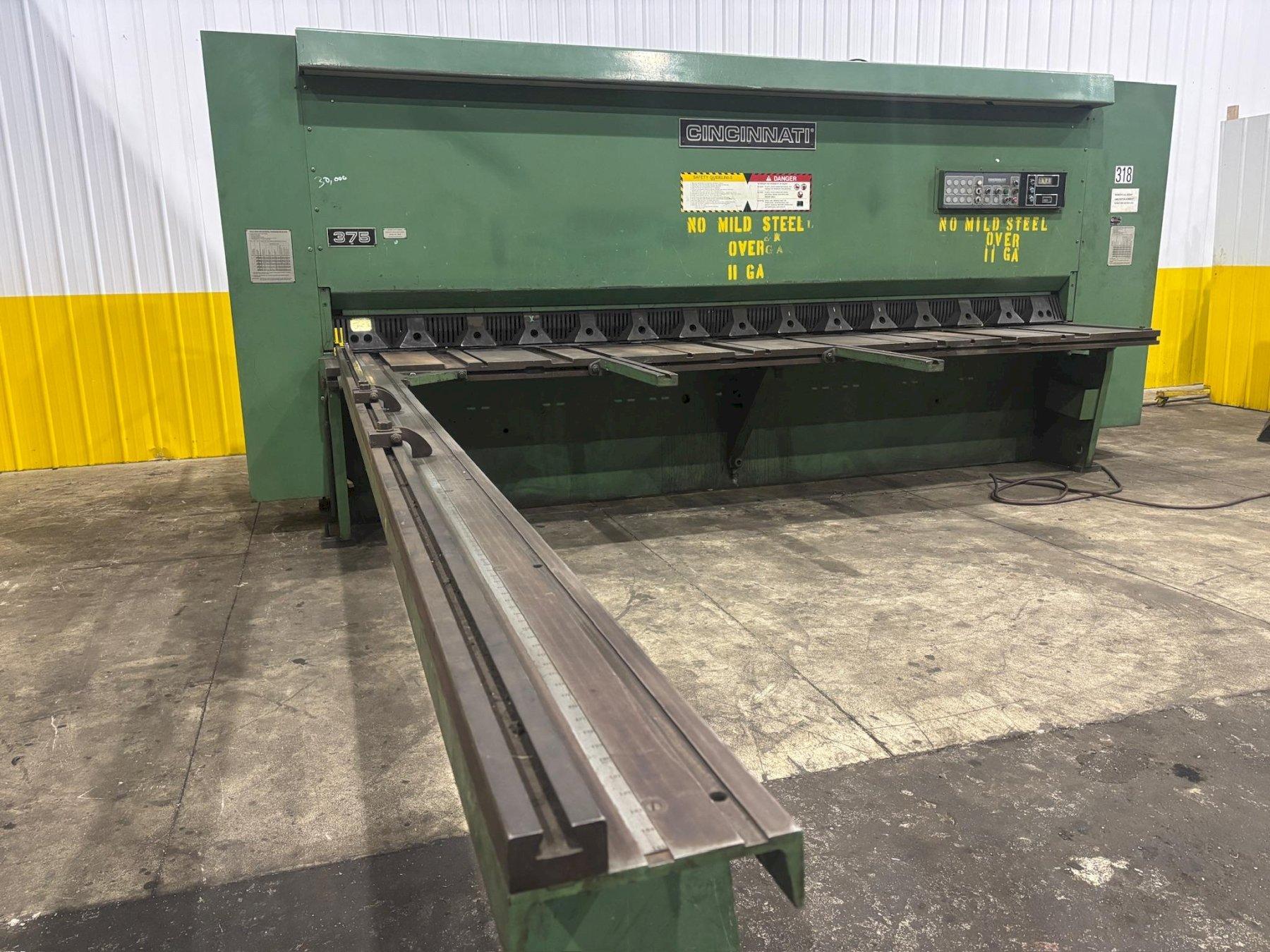

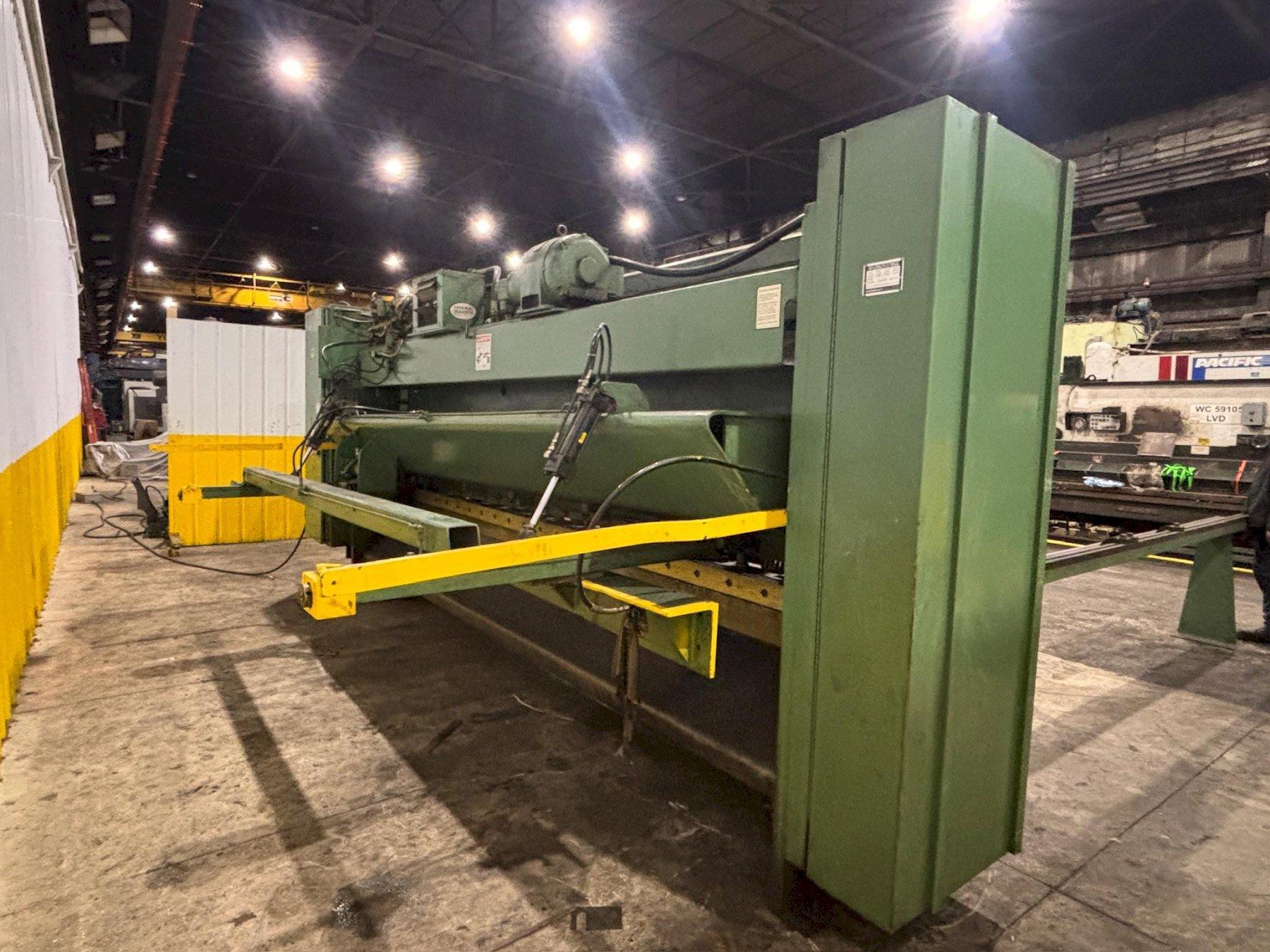

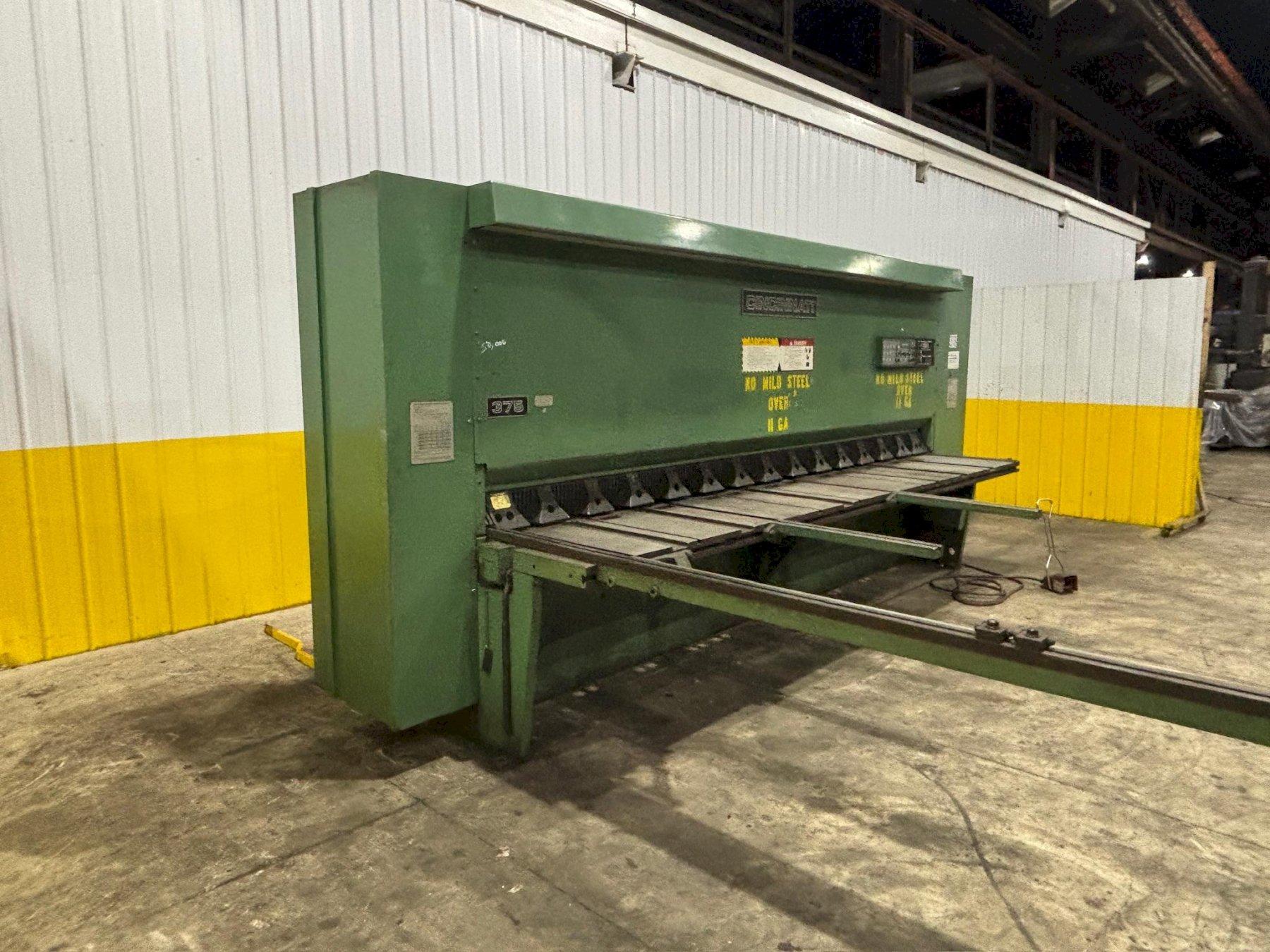

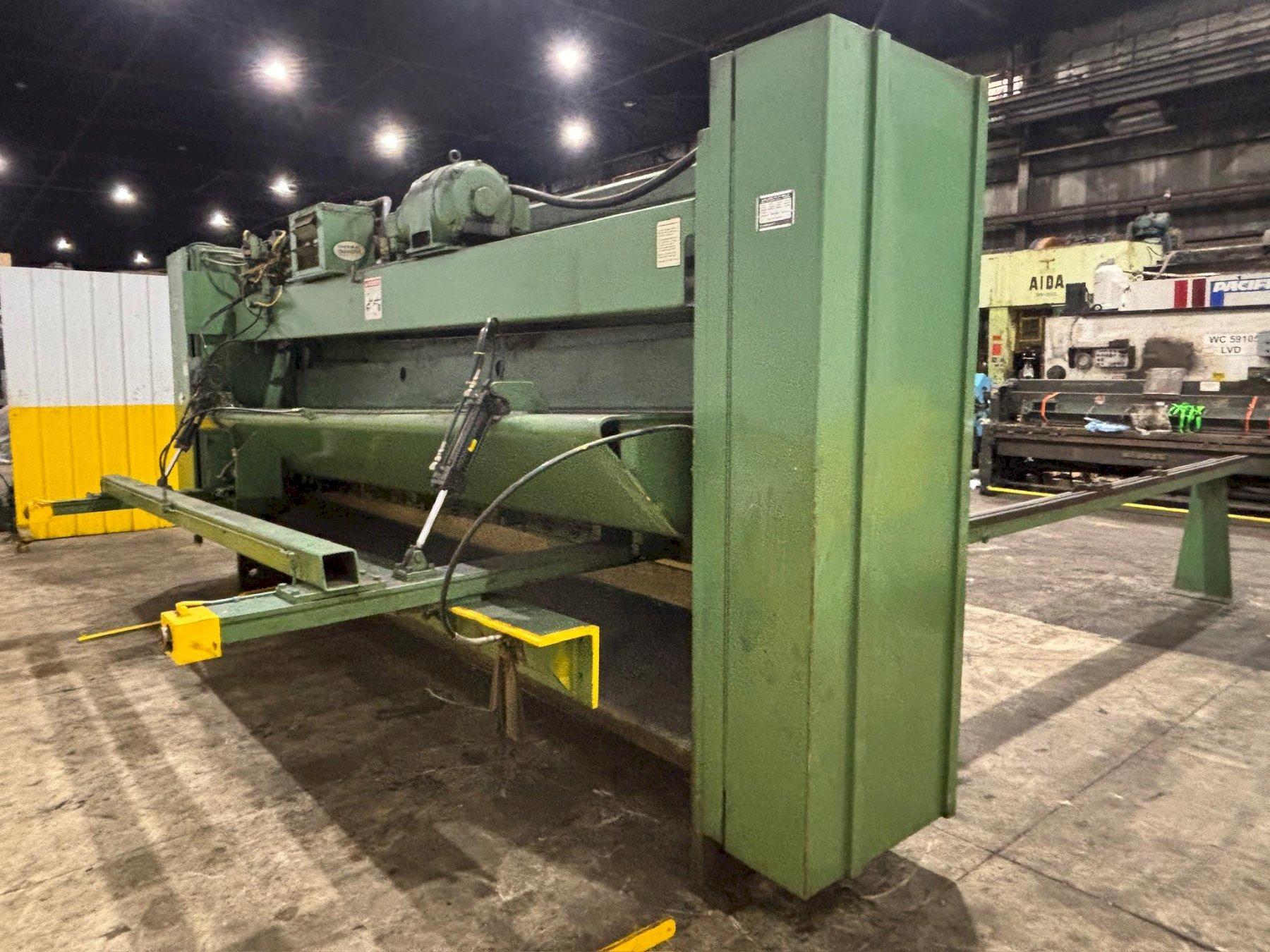

14' X 3/8" CINCINNATI 375 HS POWER SQUARING SHEAR WITH BACK GAUGE; FLOOR STANDING: YOBRO #24238
Brand
Category
Model
375 HS
Stock #
24238
Year
Not specified
Condition
Good
Location
Ohio
| Dimensions | 222" L-R x 109" F-B x 99" H |
| Weight | 32500 pounds |
|

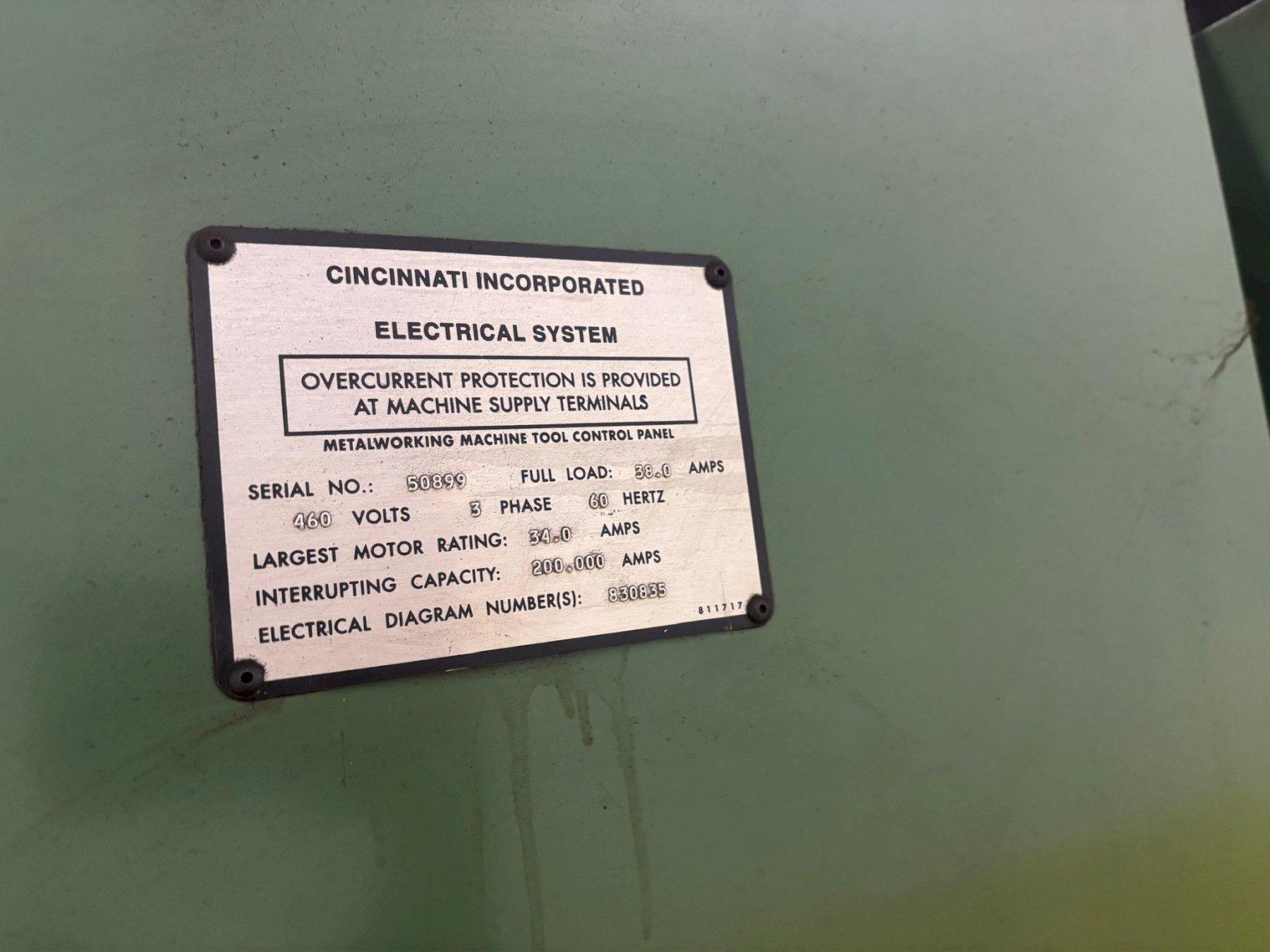

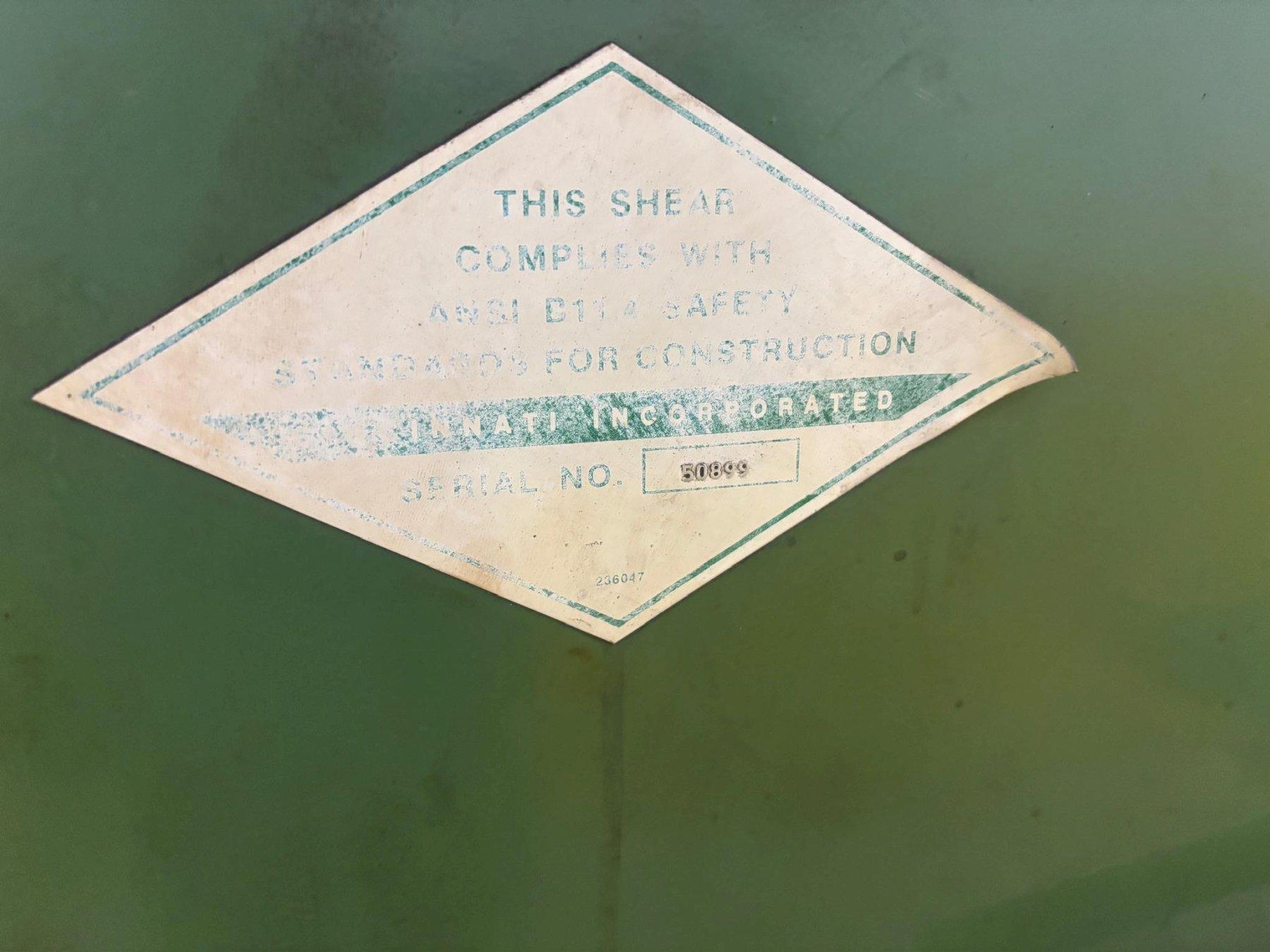

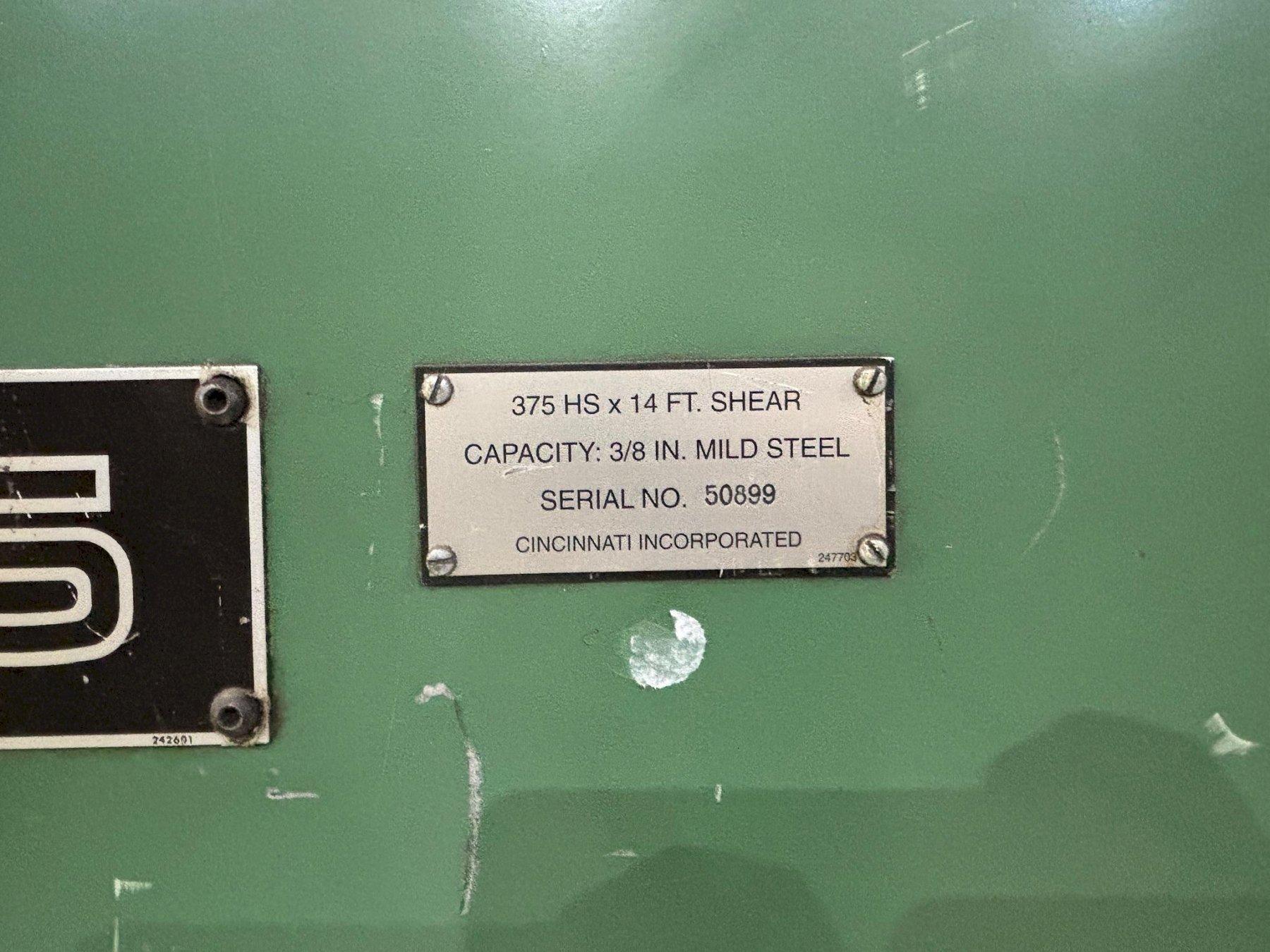

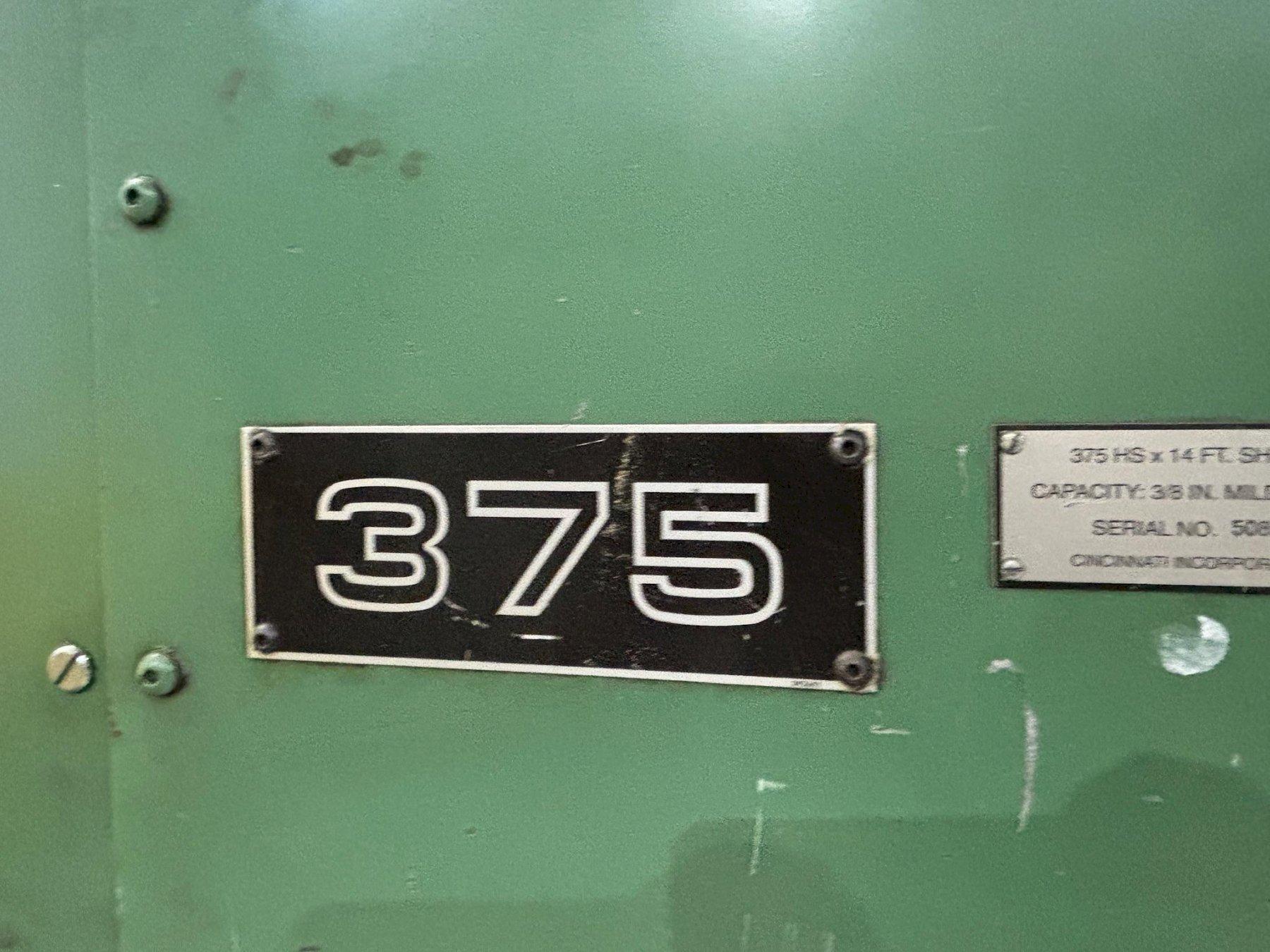

SERIAL ........................................ 50899
MODEL ......................................... 375HSX14'
CAPACITY ...................................... 14 FT. X 3/8" MILD STEEL
TYPE .......................................... FLOOR STANDING (NO PIT)

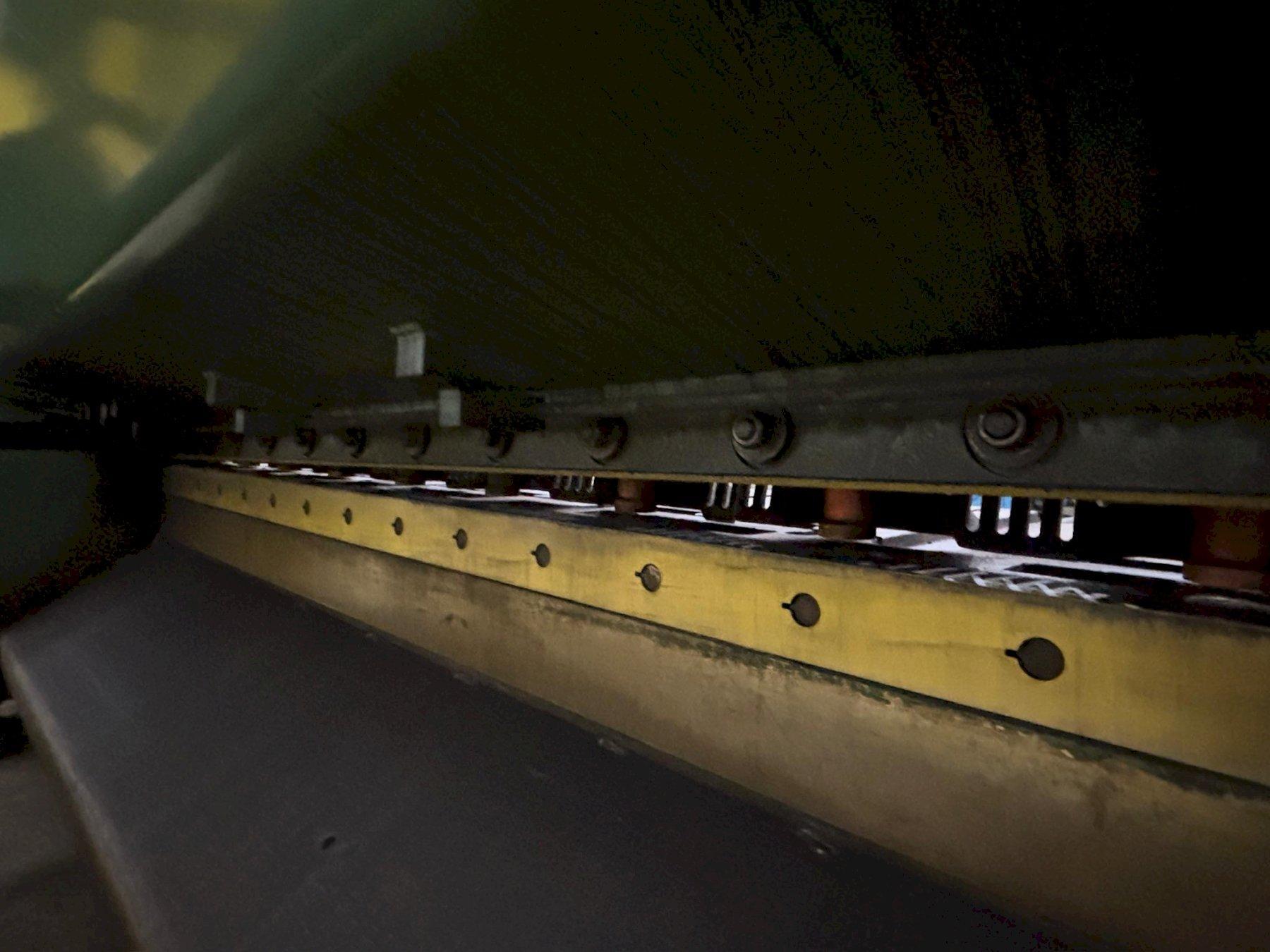

LENGTH OF KNIVES .............................. 172"
RAKE ANGLE .................................... 7/16"
DISTANCE UNDER HOLDDOWNS ...................... 5/8"

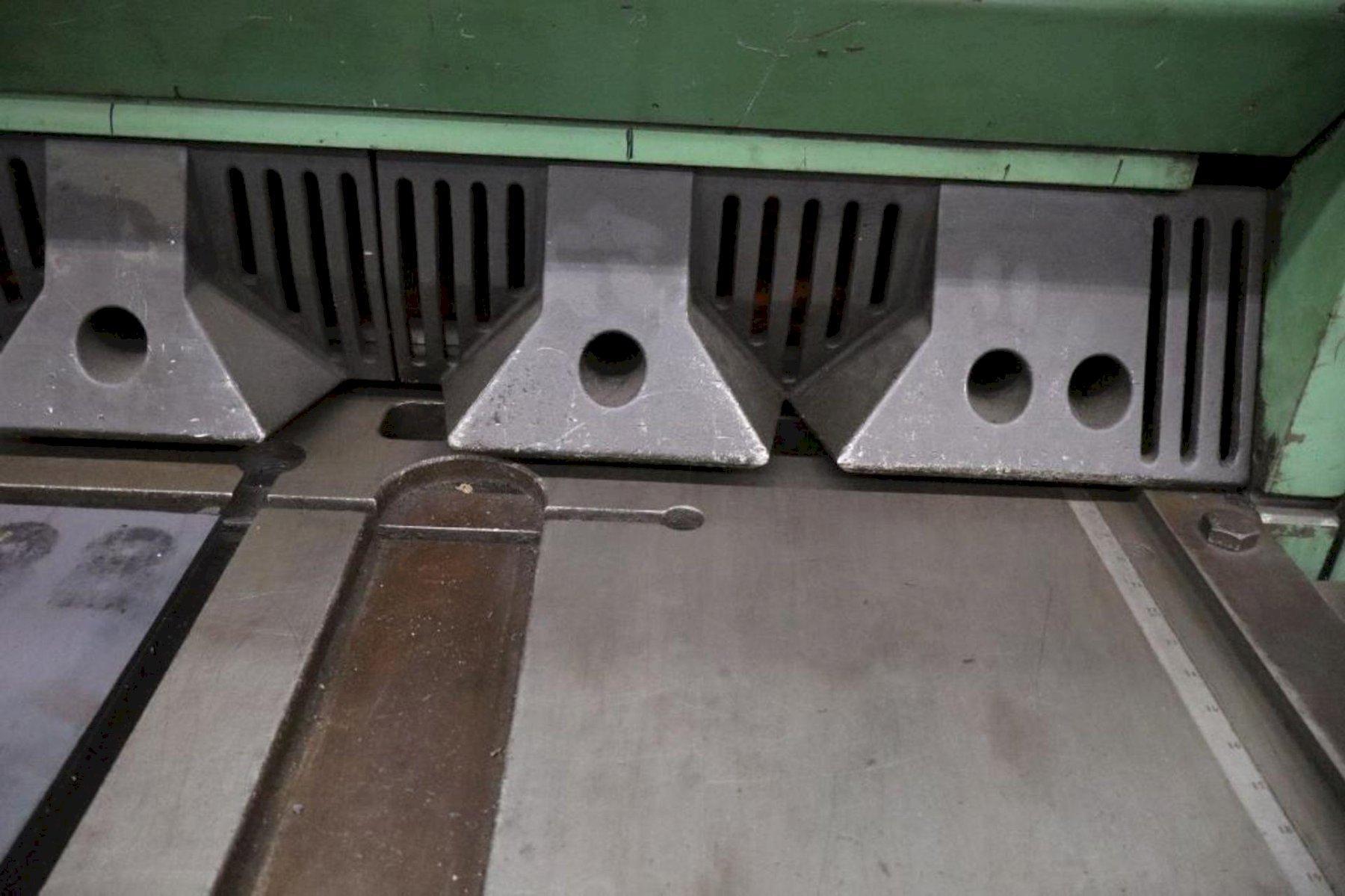

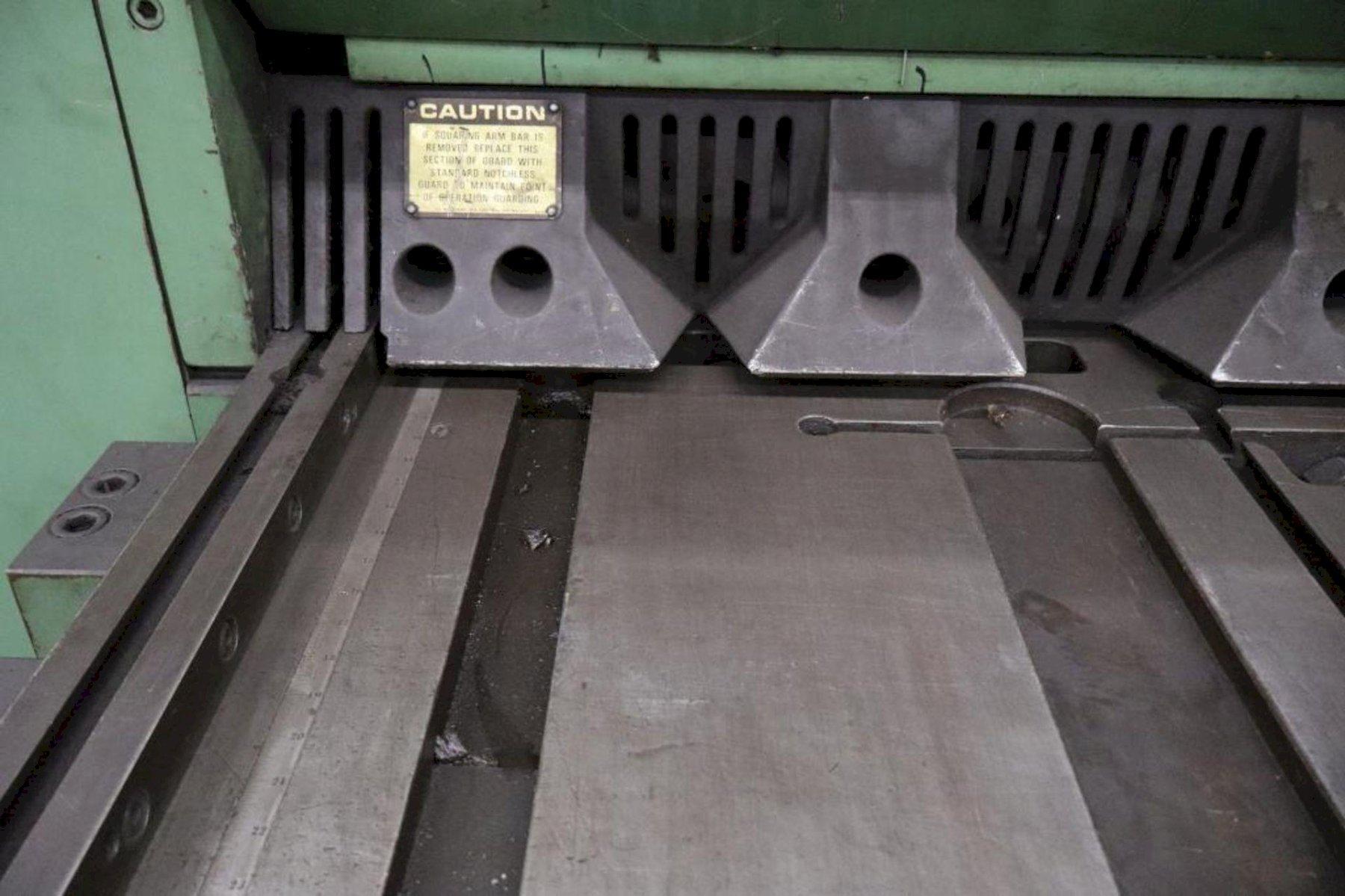

NUMBER OF HOLDDOWNS ........................... 17
FORCE OF HOLDDOWNS ............................ 1925 TONS
MAX SPM ....................................... 41
MIN SPM ....................................... 7
FLOOR TO TOP OF BED ........................... 36"
FRONT OPERATED BACK GAUGE ..................... 48"

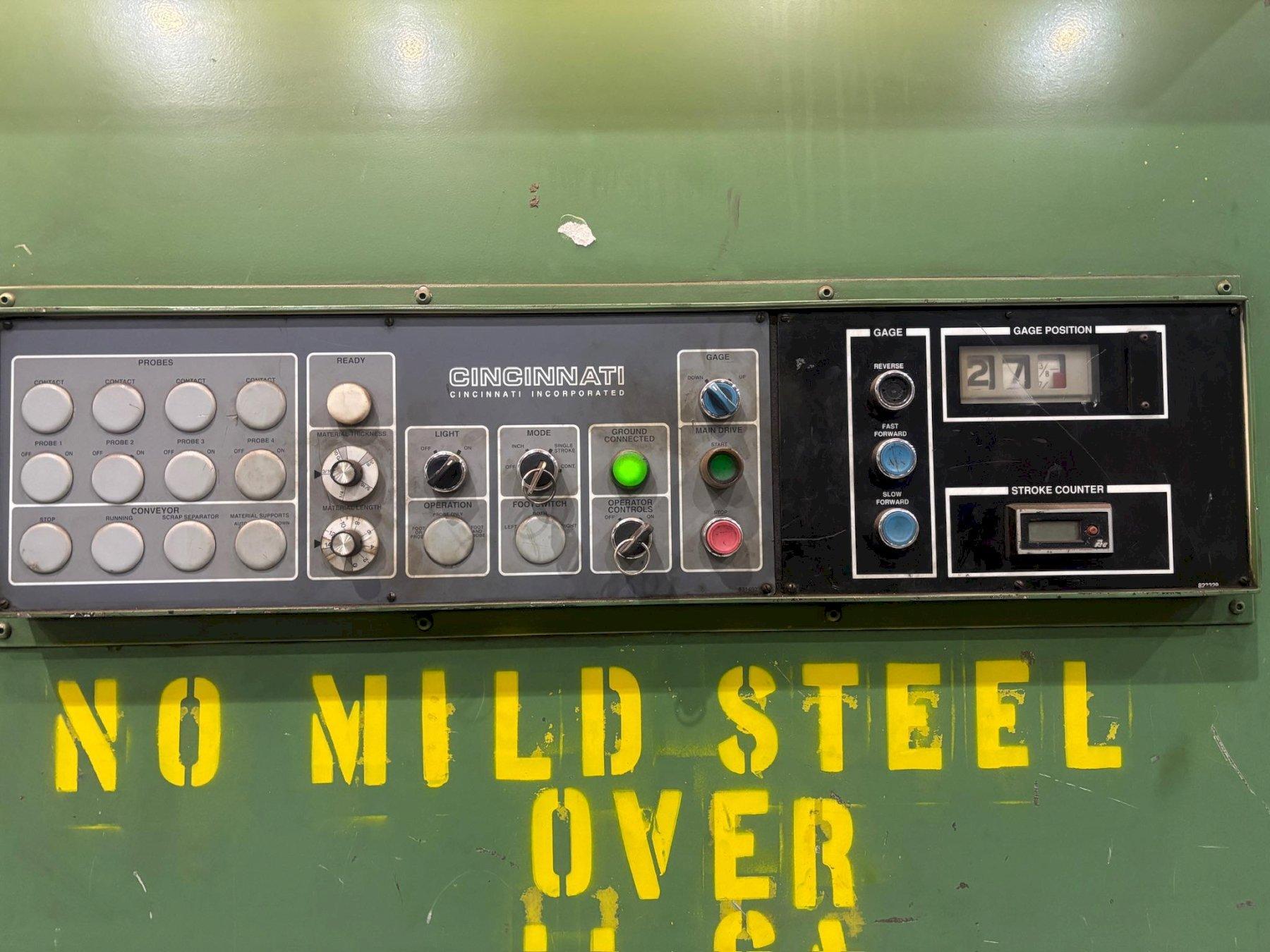

PUSHBUTTONS FOR FAST/SLOW-REVERSE/READOUT ..... YES SQUARING ARM .................................. 12'

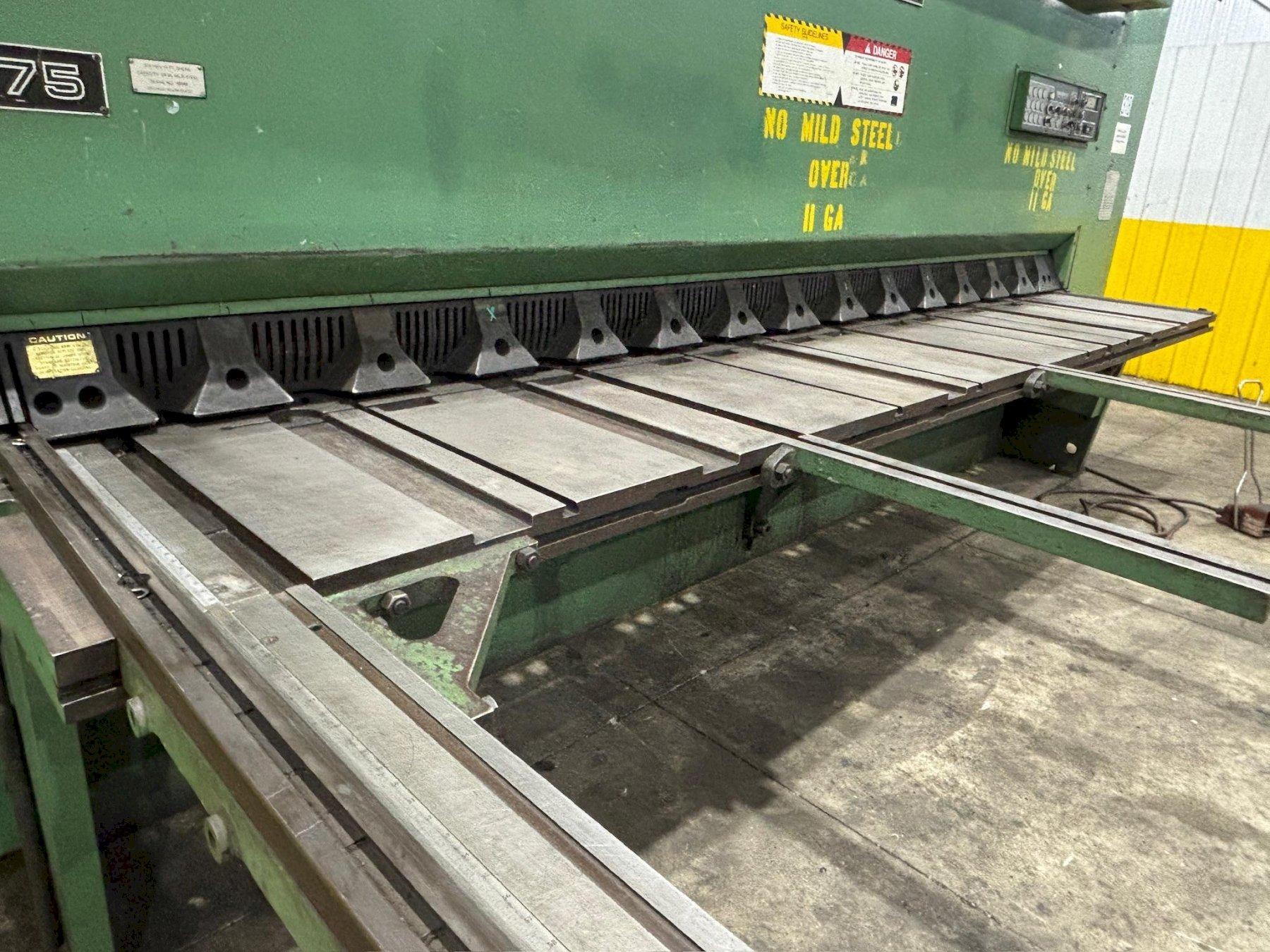

NUMBER OF STOCK SUPPORT ARMS .................. 2

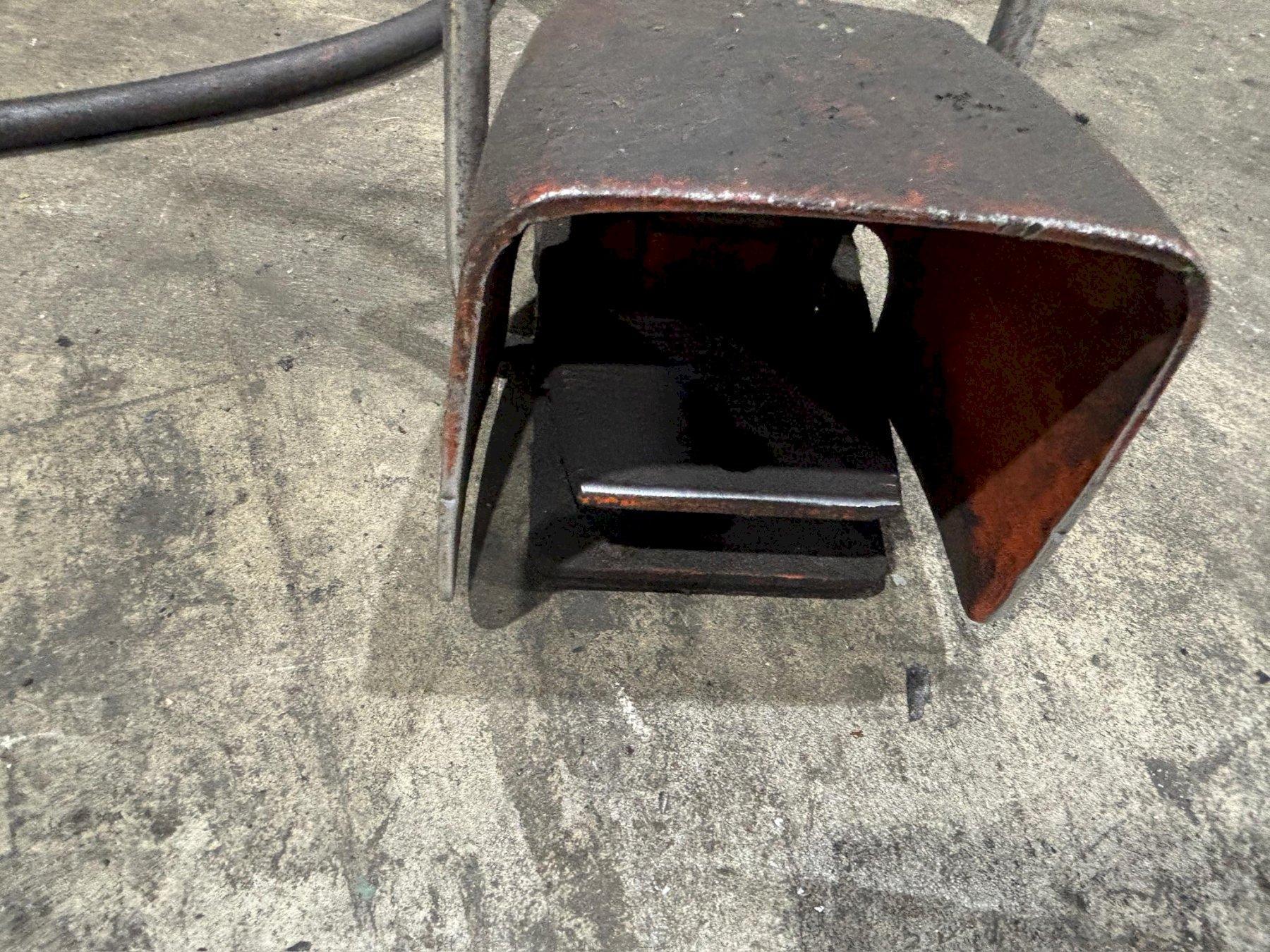

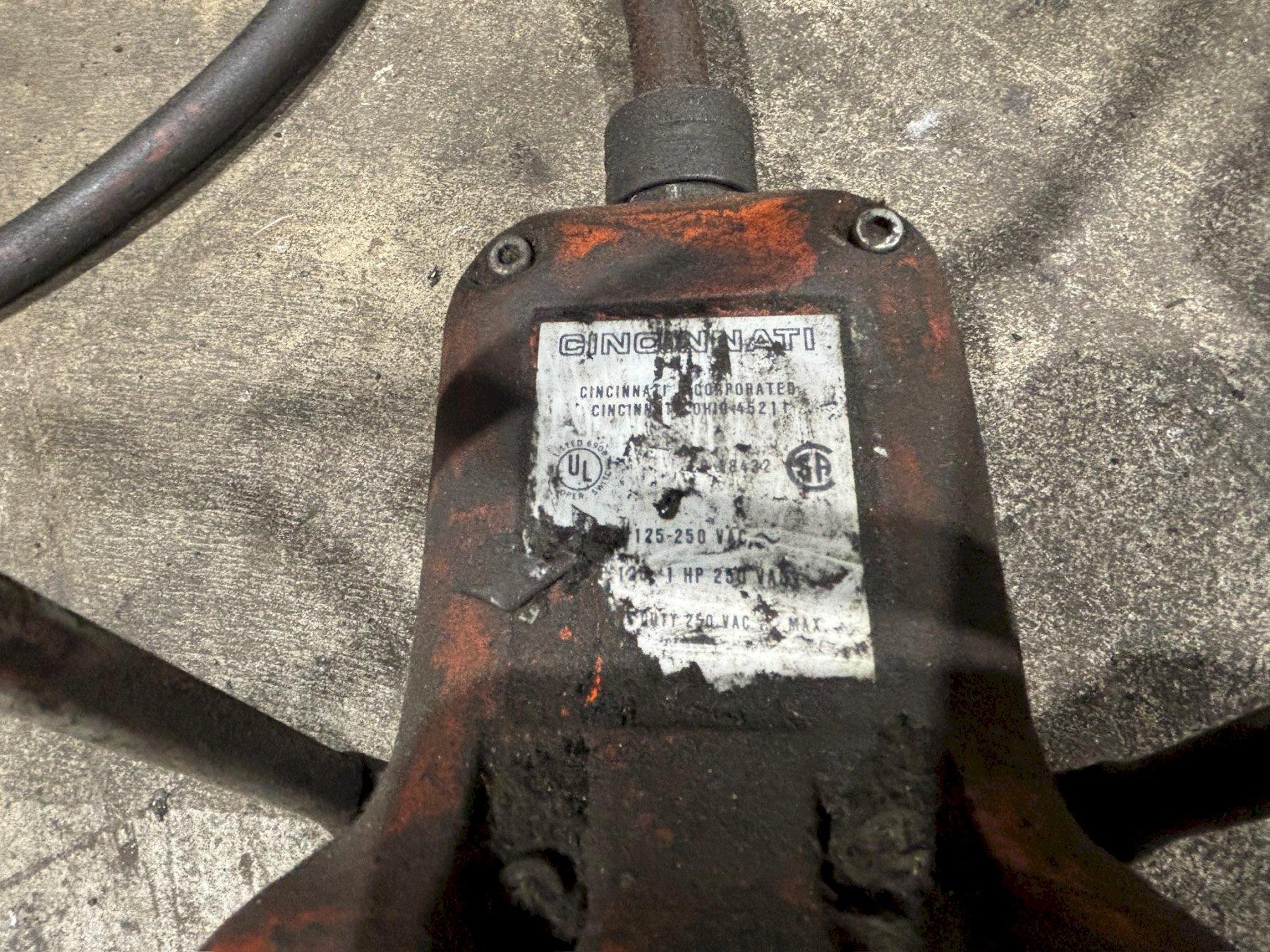

ELECTRIC FOOT SWITCH .......................... YES

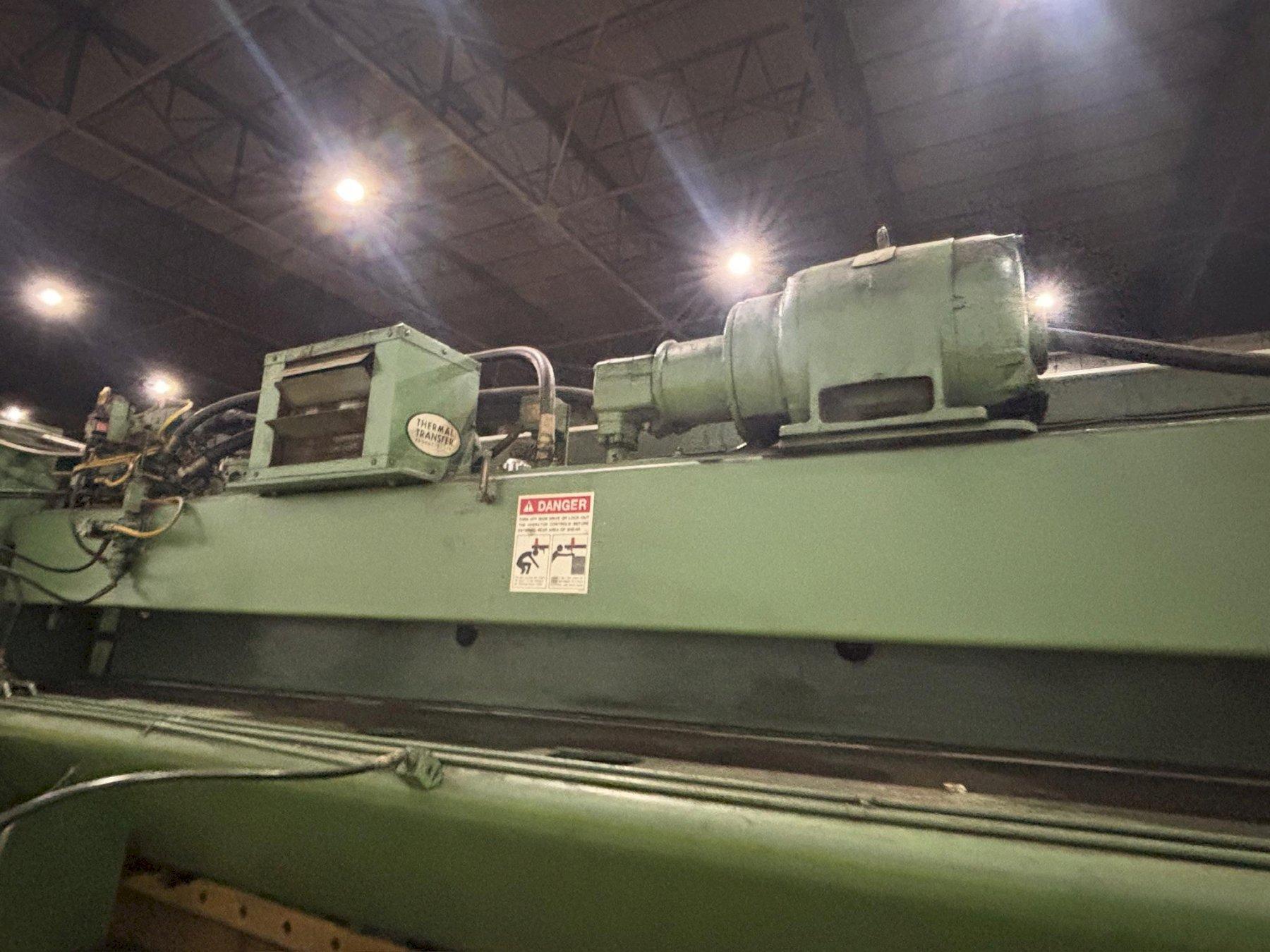

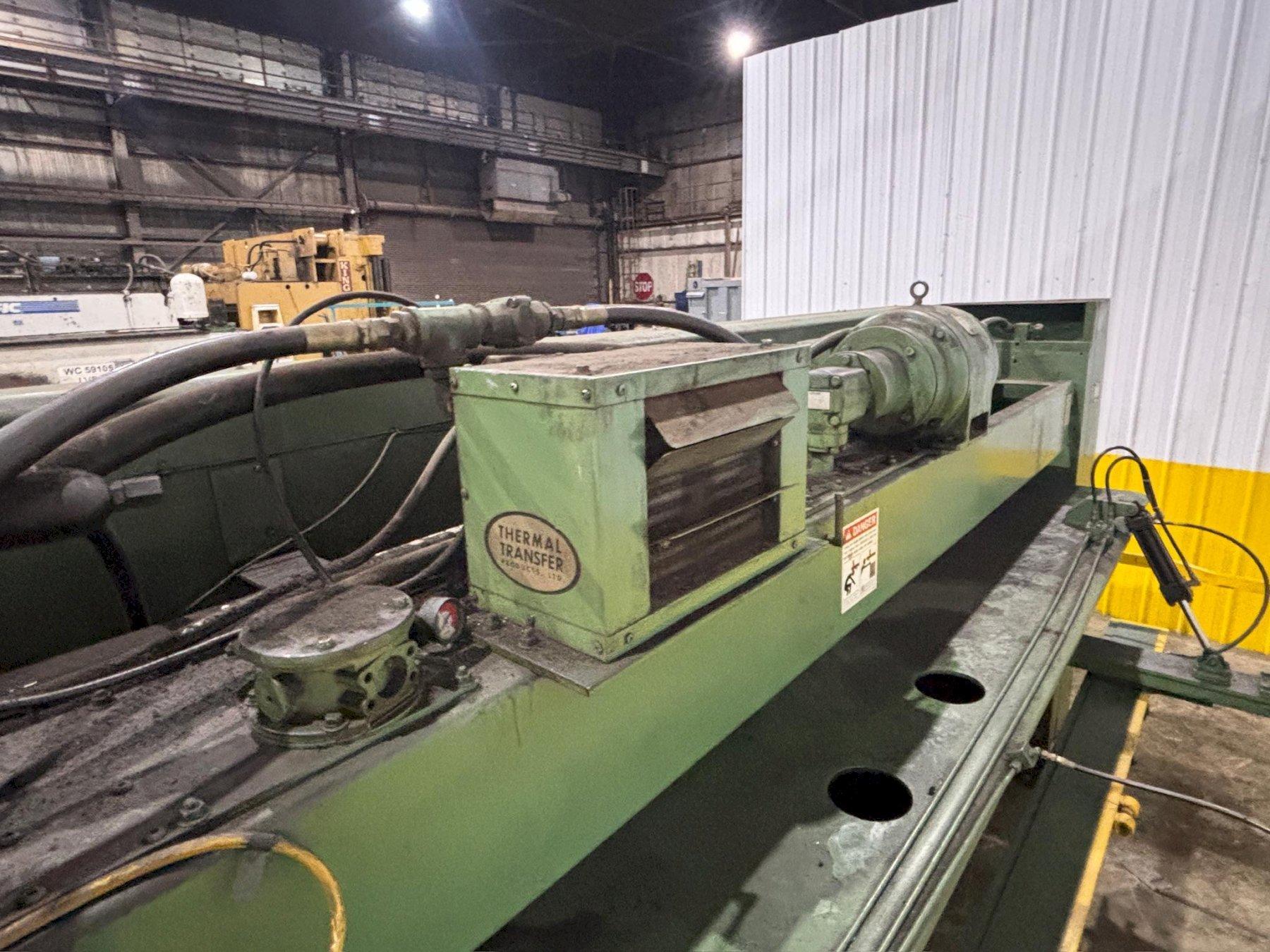

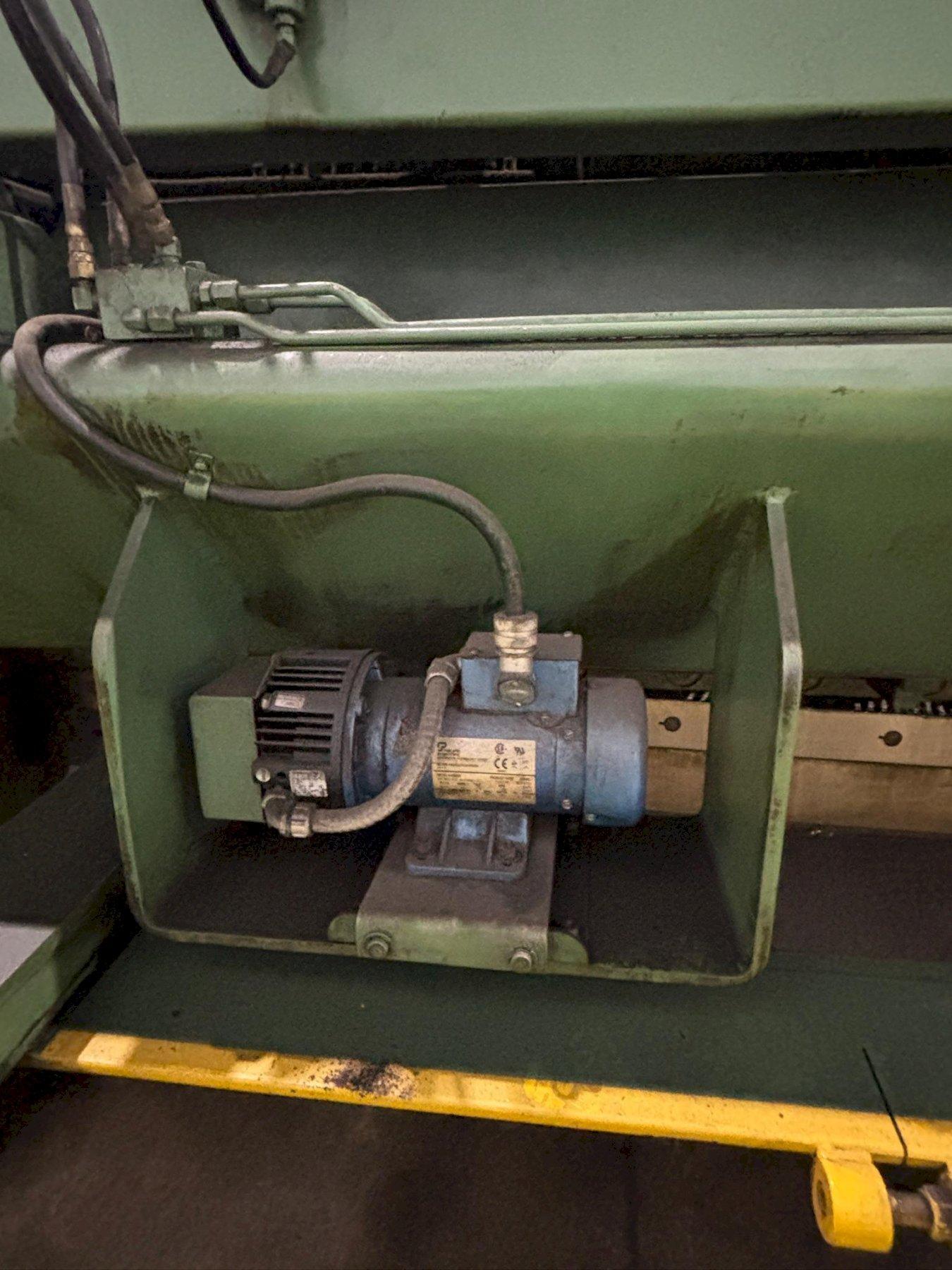

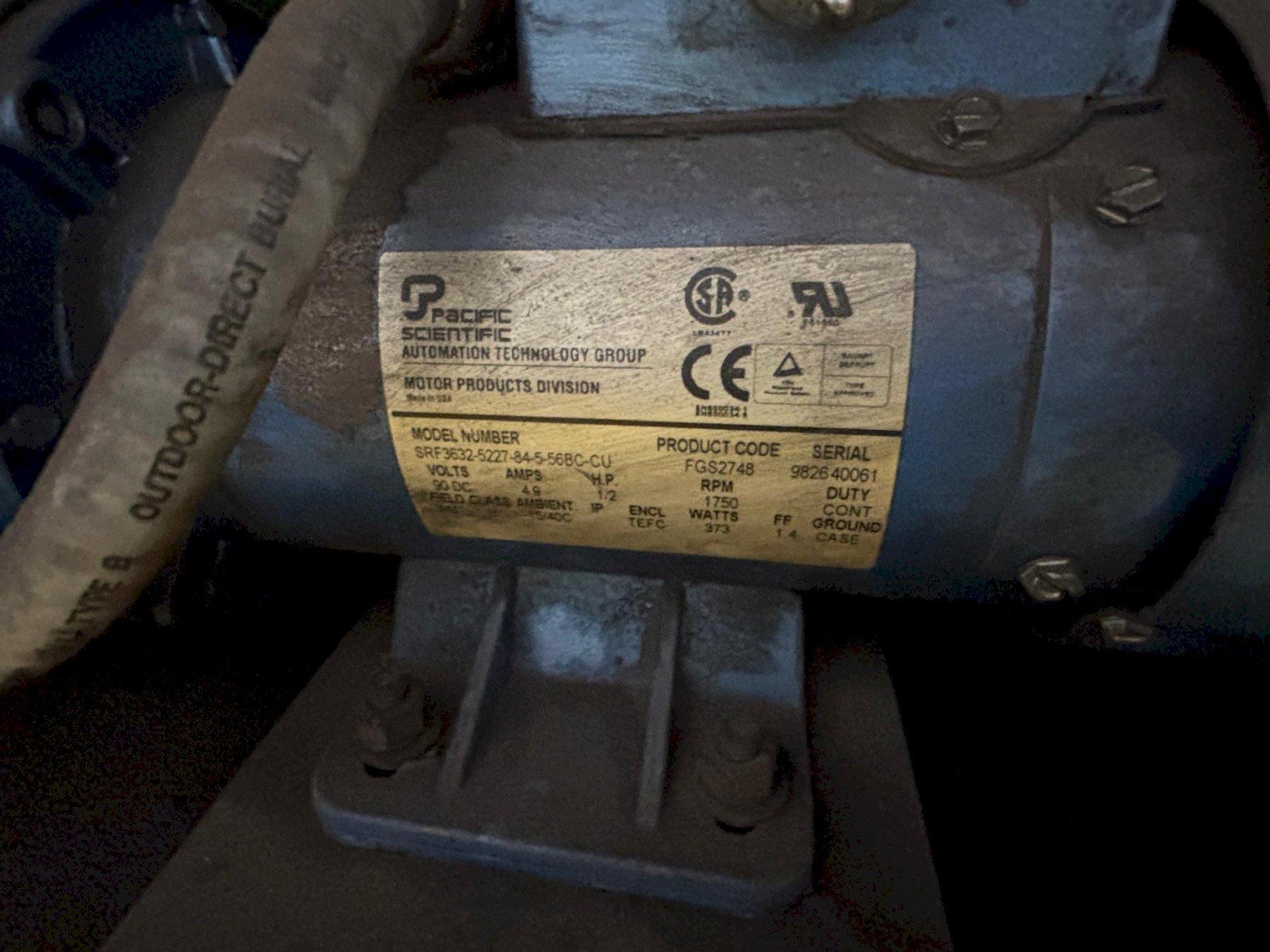

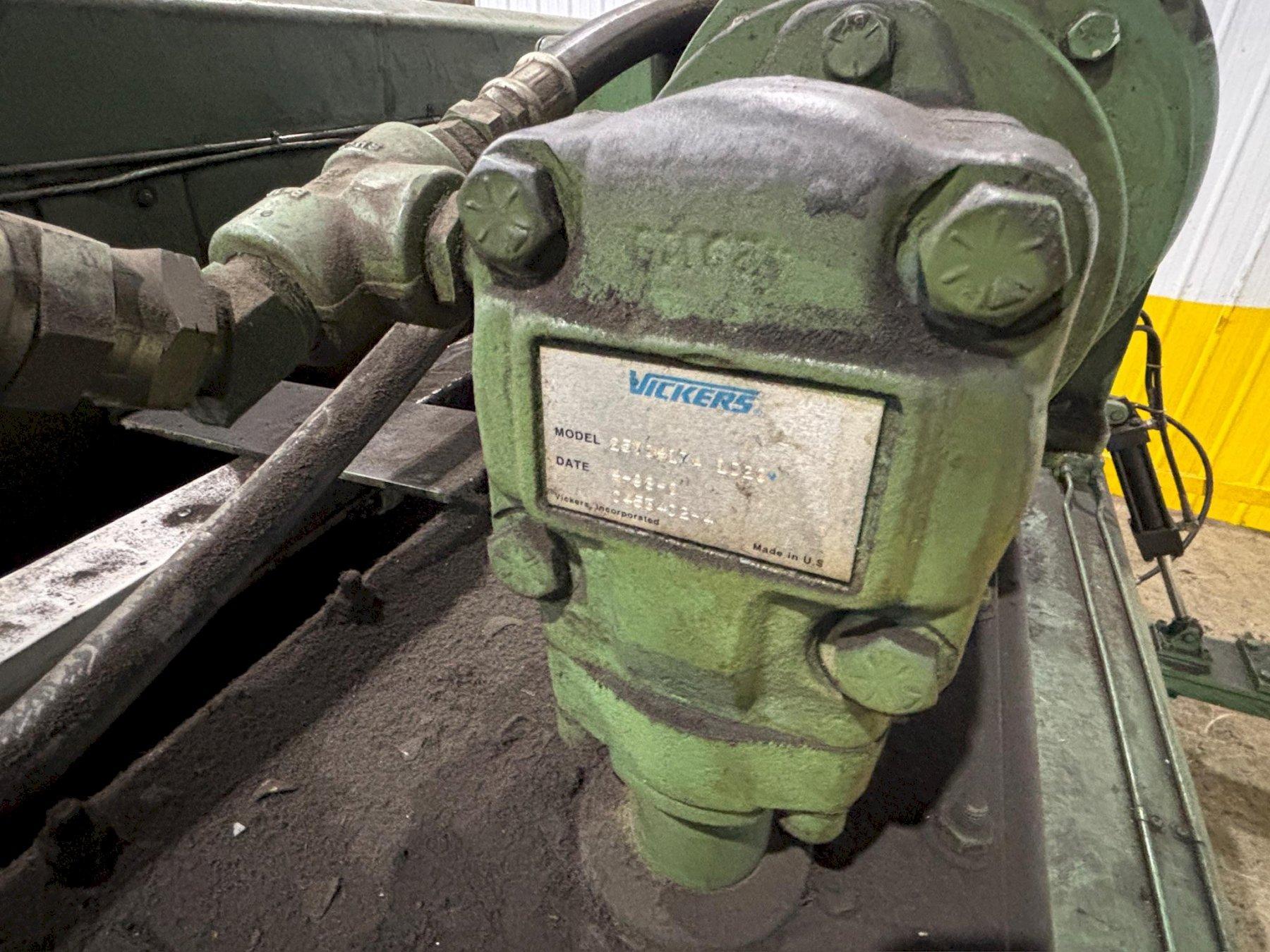

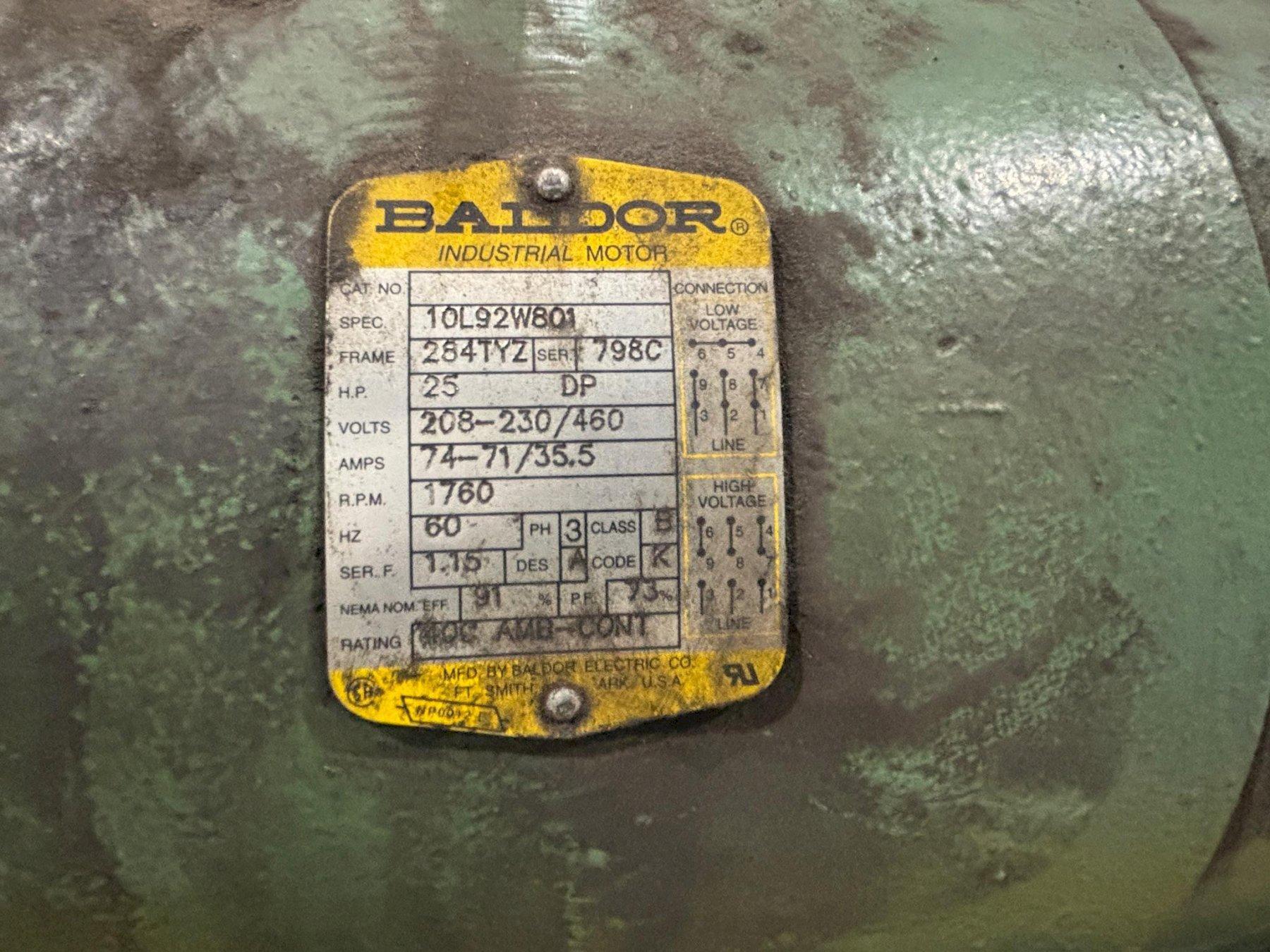

START / STOP PUSH BUTTONS ..................... YES UP /DOWN SELECTOR SWITH FOR GAUGE ............. YES STROKE COUNTER ................................ YES TRANSFER BALLS (TOP OF TABLE) ................. YES (6) DOVETAIL SLOTS (TOP OF BED) ............... YES DOVETAIL SLOT (FRONT OF BED) .................. YES MATERIAL THICKNESS & LENGTH KNOBS ............. YES REAR PARTS CHUTE .............................. YES BACK GAUGE MOTOR .............................. 1/2HP/1750RPM/90DC HYDRAULIC PUMP MOTOR .......................... 25HP/1775RPM/230/460V/3PH/60CY KEY SELECTOR SWITCH INCH/OFF/SINGLE STROK/CONTINUOUS MAX MIN POWER BLADE CLEARANCE ADJ W/CONTROL FOR MAX/MIN |
|
