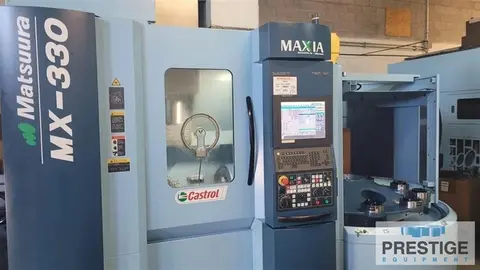

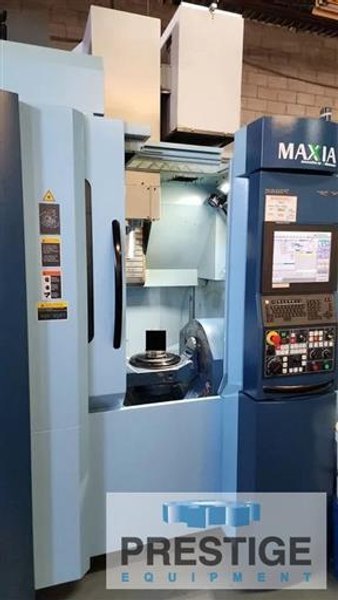

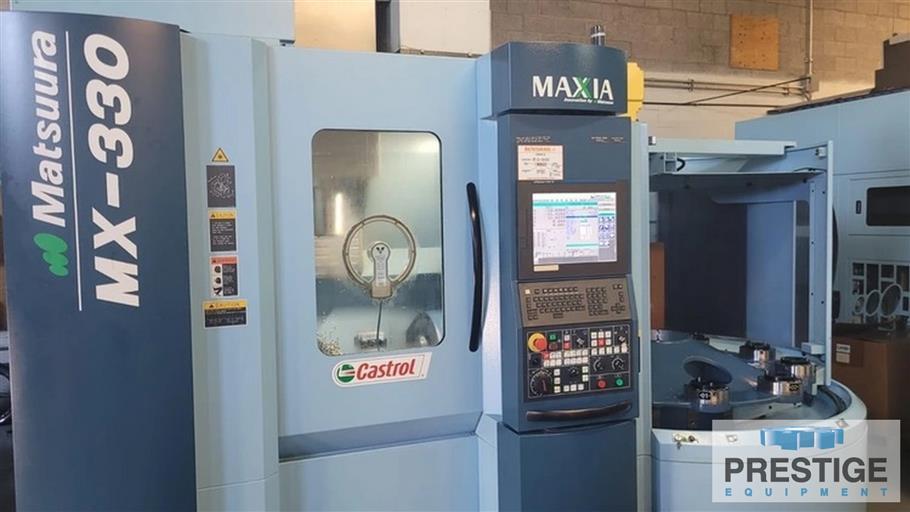

Matsuura MX-330 5-Axis PC10 CNC Vertical Machining Center

CAPACITY:
X-Axis Stroke 17.13"
Y-Axis Stroke 18.31"
Z-Axis Stroke 22.05"
A-Axis Rotation -125/+10 Deg.
C-Axis Rotation 360 Deg.
Working Surface 9.84"
Loading Capacity 176 Lbs.
Maximum Workpiece Size 12.99" x 12.59"
Spindle Drive 15 HP/ 20 HP
Spindle Speeds, Max. 20,000 RPM
Spindle Taper CAT #40
Rapids, X/Y/Z 1574.8 IPM
Feed Rate X/Y/Z 0.03-1574.8 IPM
Approximate Weight w/ Pallet System 21,500 Lbs.



Equipped With:

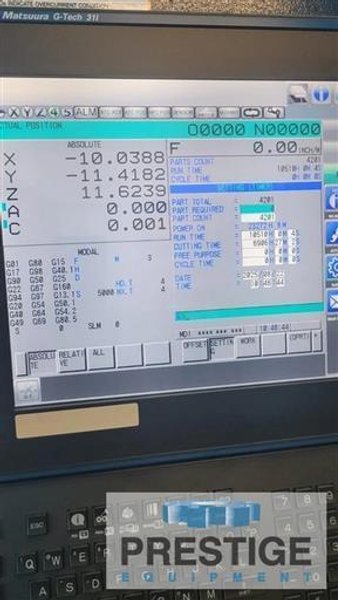

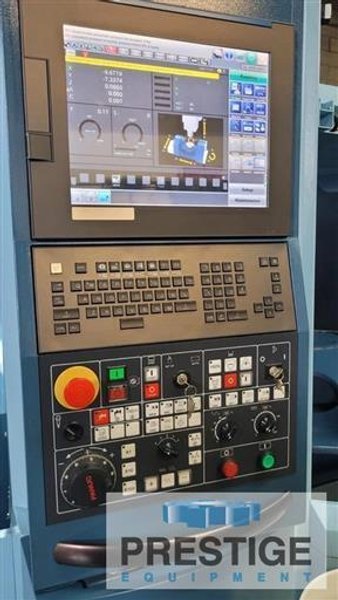

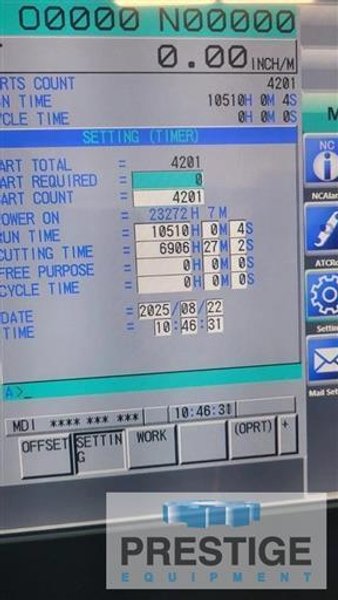

Matsuura G-TECH 31iB CNC Control with 15" Touch Screen

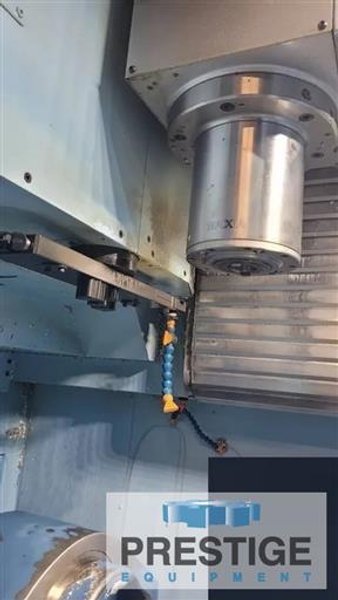

20,000 RPM High Speed CAT #40 Oil-Air Lubricated Spindle

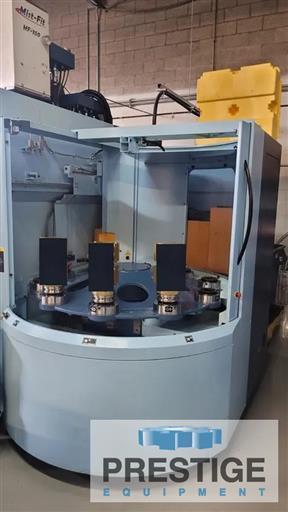

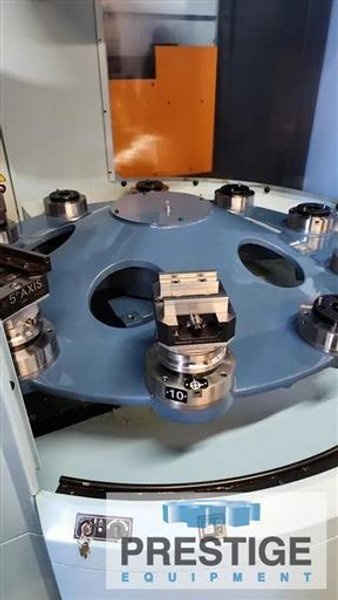

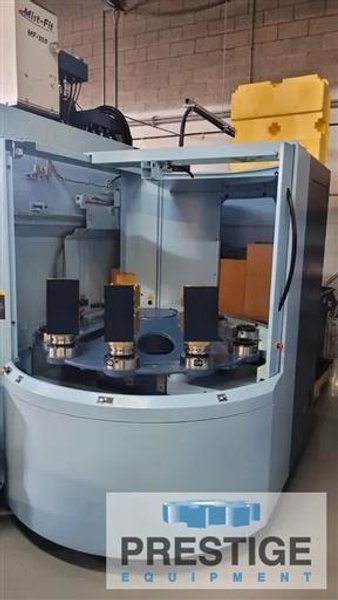

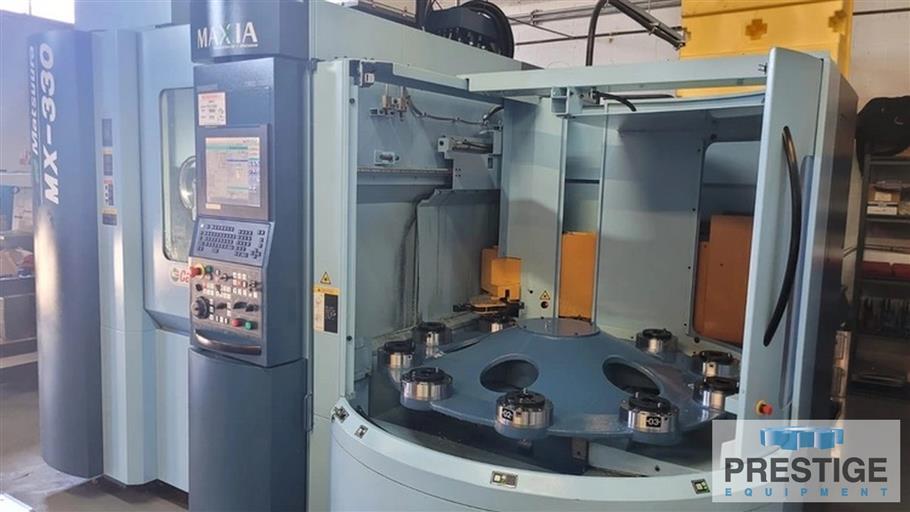

10 Station Pallet System
Renishaw OMP-60 Spindle Probe
Renishaw NC-4 Laser Tool Setter Probe
High Pressure Coolant Pump (300 PSI) with Fine Filtration
Environmental Thermal Displacement Compensation
90 Station Automatic Tool Changer
Mist Collector & Air Dryer
Spindle Oil Cooler with Overload Protection
LNS Turbo Micor-Hinge 250 Chip Conveyor(Rear Discharge)


NOTE: Inspect Under Power
