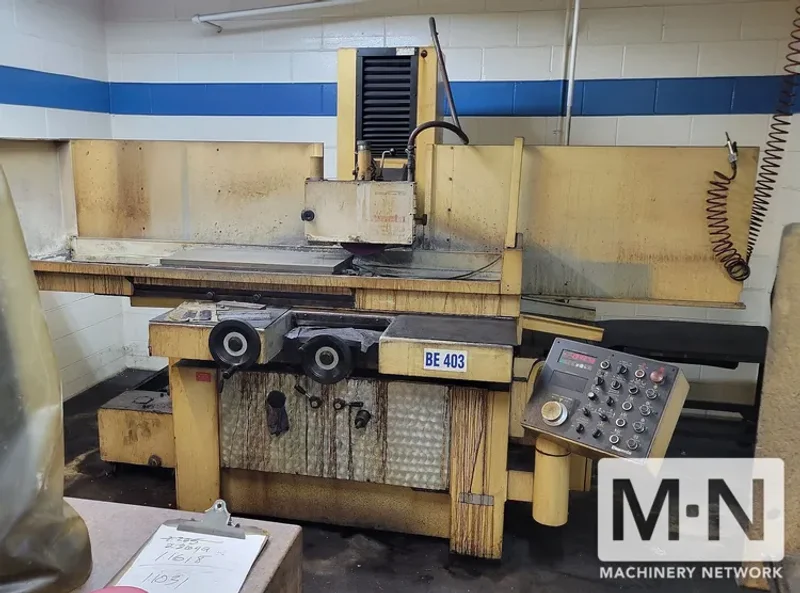

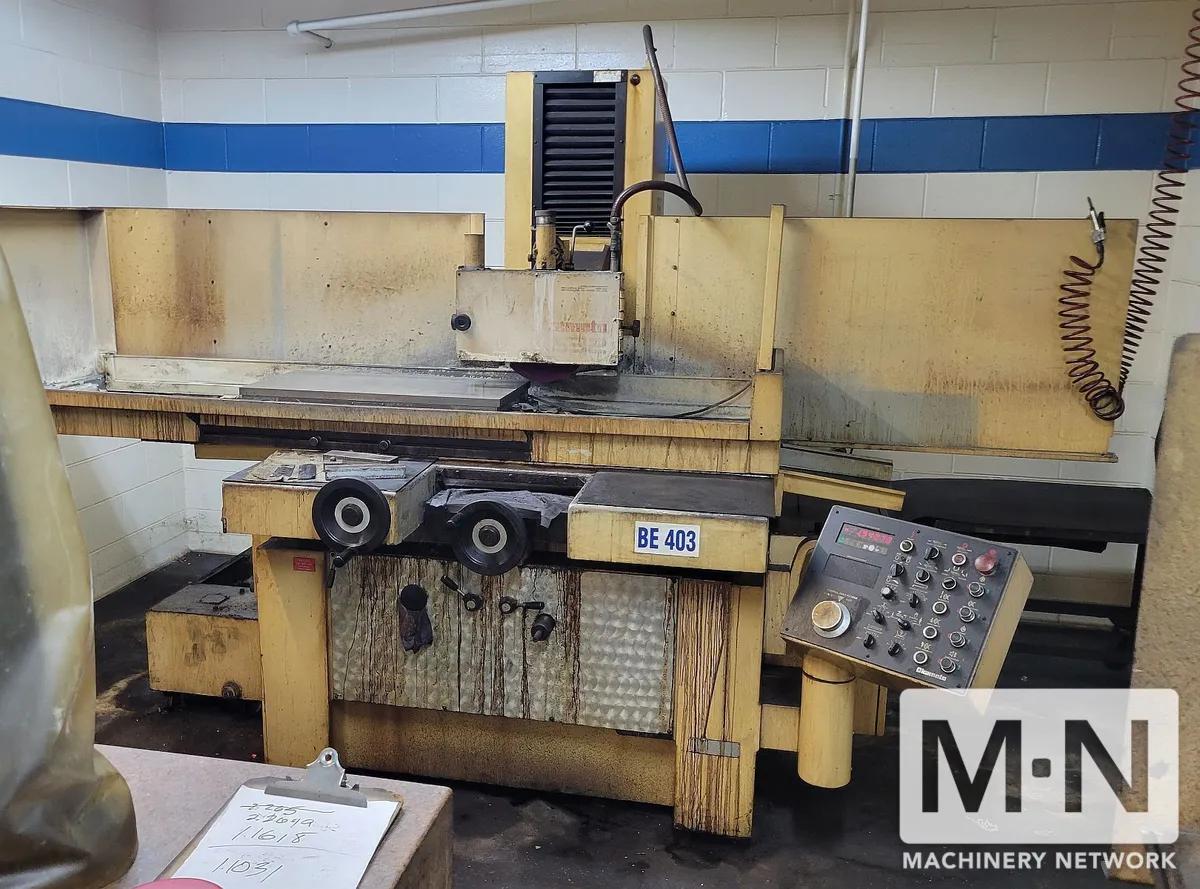

Okamoto ACC-1632DX Surface Grinder

Name: Okamoto ACC-1632DX Surface Grinder
Brand: OKAMOTO
SKU: 52219
Availability: PreOrder

Brand

OKAMOTO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Manufacturer:

OKAMOTO

Model:

ACC-1632DX

Stock #:

52219

Status:

For Sale

ImperialMetric

Table size	16" x 32"	16" x 32"
Table travel - longitudinal	38"	38"
Table travel - cross	18"	18"
Distance - spindle center to table	8" - 18"	8" - 18"
Max table load	1,540 lb	698.5 kg
Longitudinal table speeds	1 - 82 FPM	1 - 82 FPM
Cross feed - manual, per grad.	0.001"	0.001"
Cross feed - manual, per rev.	0.25"	0.25"
Cross feed - automatic	0.02 - 0.8 IPM	0.02 - 0.8 IPM
Down feed - manual, per grad	0.00001"	0.00001"
Down feed - manual, per rev.	0.1"	0.1"
Down feed - auto incremental	0.00005 - 0.0015"	0.00005 - 0.0015"
Power rapid elevation	16 IPM	16 IPM
Power	5 hp	3.7 kW
Grinding wheel dimensions	12" x 1.5" x 5" bore	12" x 1.5" x 5" bore
Grinding wheel speed	1800 RPM	1800 RPM
Dimensions	108" x 87" x 70"	108" x 87" x 70"
Weight	9,000 LBS	9,000 LBS

"DX" programmable electronic auto incremental downfeed
- Servo driven downfeed
- Auto incremental downfeed for both surface and plunge operations
- Dual rate auto downfeed with coarse & fine selections
- Digital display for vertical axis
- Sparkout passes (0 - 5) w/auto table park at end of grinding cycle
- Electronic handwheel for manual vertical movement with each grad. equivalent to .00001", .0001" or .001"
- Power rapid wheel positioning
16" x 32" Electro-magnetic chuck
Over the wheel dresser
Coolant system
