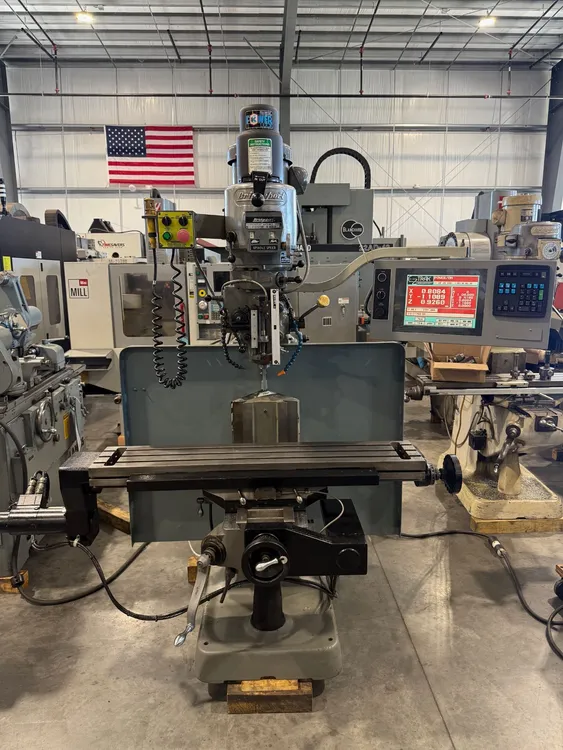

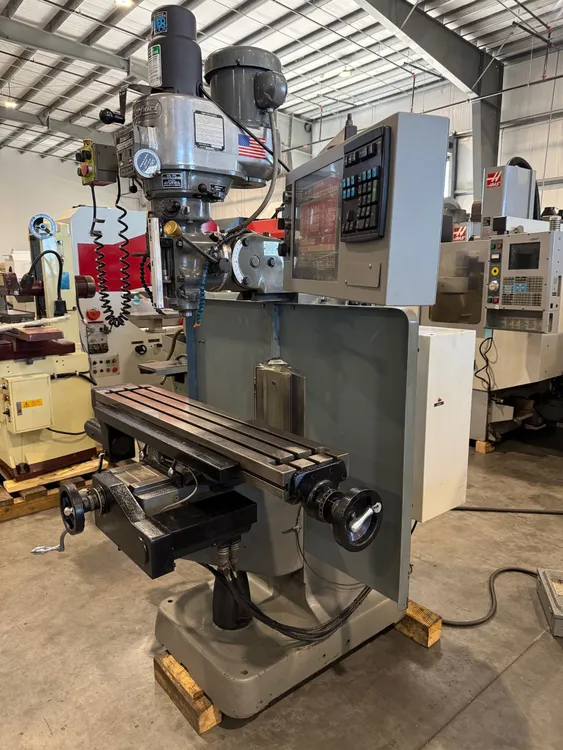

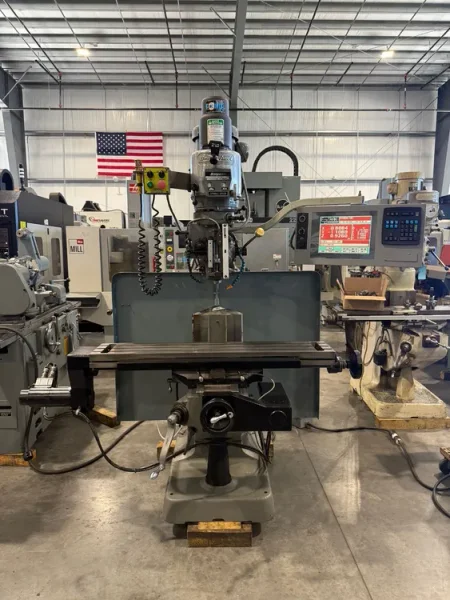

BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1999’ #7846

BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1999’ #7846

Name: BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1999’ #7846
Brand: BRIDGEPORT
SKU: 7846
Availability: PreOrder

Brand

BRIDGEPORT

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

CNC Vertical Mills

Manufacturer:

BRIDGEPORT

Model:

EZ TRAK

Year:

1999

Stock #:

7846

Status:

For Sale

Description

BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1999’ #7846

ImperialMetric

Table-W	9"	228.6 mm
Table-L	48"	1,219.2 mm
Travel-Long	30"	762 mm
Travel-Cross	12"	304.8 mm
Power	2 hp	1.5 kW
RPM	4,200 RPM	4,200 RPM
Dimensions	76” L x 57” W x 83’’ H	76” L x 57” W x 83’’ H
Weight	2000 Lbs.	2000 Lbs.

BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1999’ #7846
Reference #7846
Model # Series 1

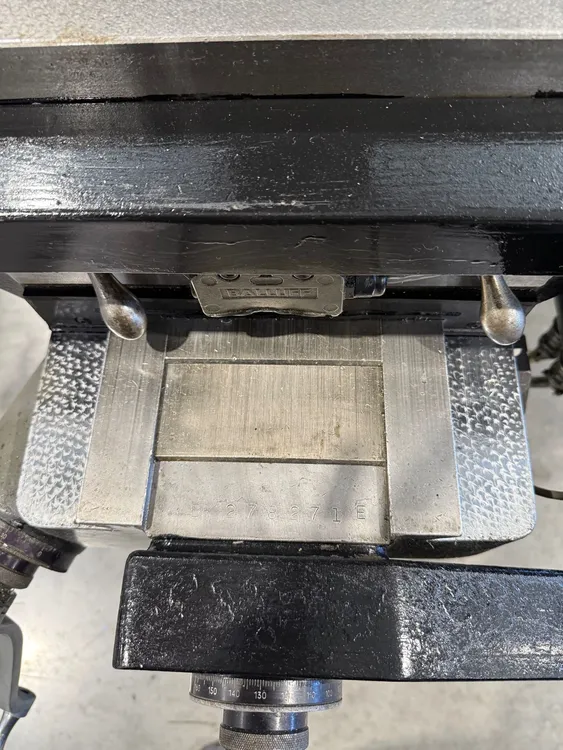

Serial # 278271E
Year of manufacture- 1999’

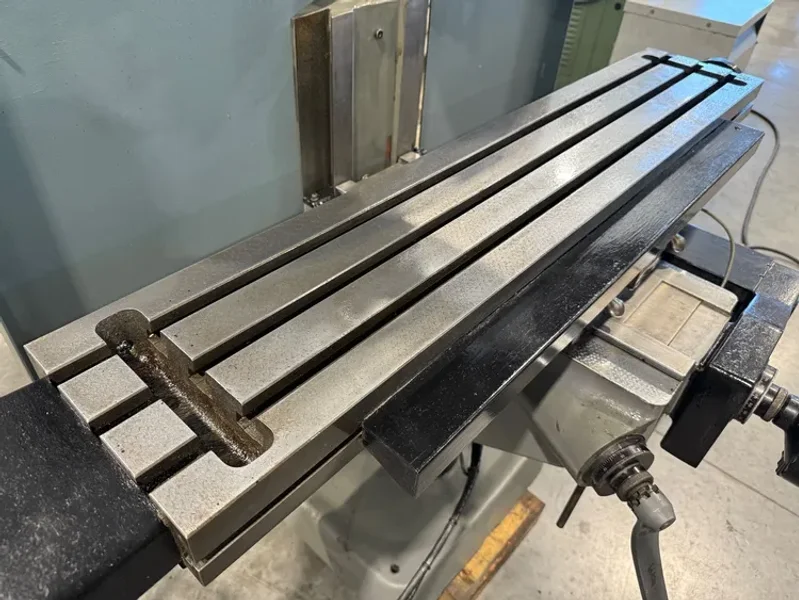

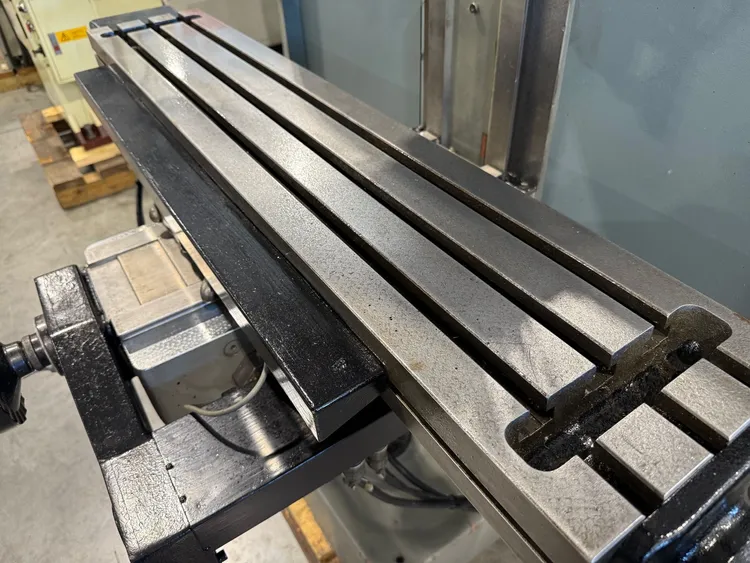

Table working surface- 9” x 48”
Number of t-slots- (3)
Range:
Longitudinal- 26”
Cross- 12”
Vertical, knee- 16”
Quill- 5”
Maximum/Minimum distance, spindle nose to table- 18.5"/2.5"
Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75"
Ram travel- 12”
Head tilt, left & right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
(3) Power quill feeds- .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds, two ranges-60-4,200 R.P.M
Spindle taper- R-8

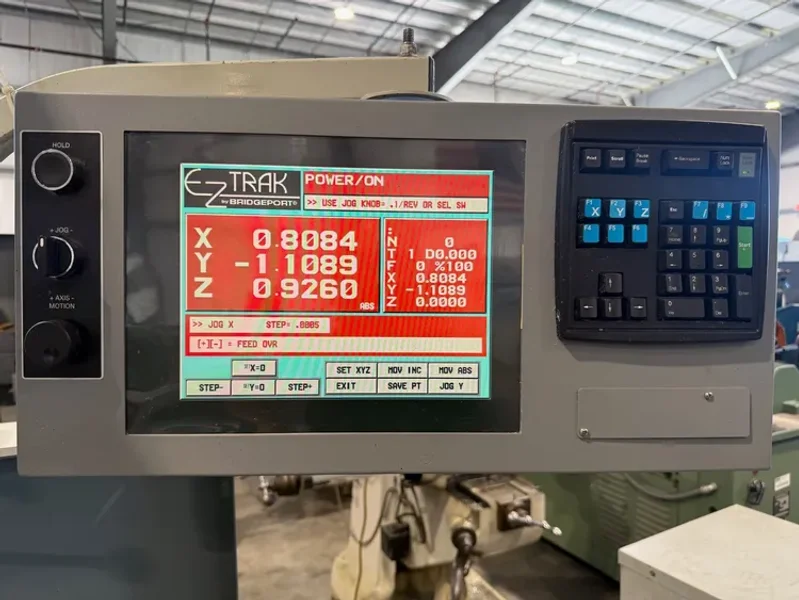

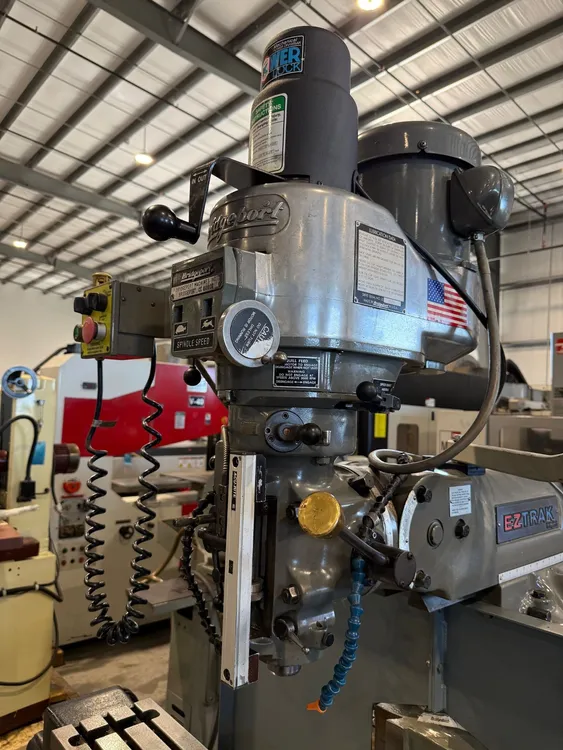

Bridgeport EZTRAK CNC CONTROL two-axis CNC/three-axis digital readout, RS-232 port
Three-axis digital readout during manual operations
Ballscrews installed in the table and saddle
KURT Pneumatic drawbar
Chrome ways
BIJUR one-shot lubrication system
2 H.P. 3/60/230 spindle drive motor and electrical controls

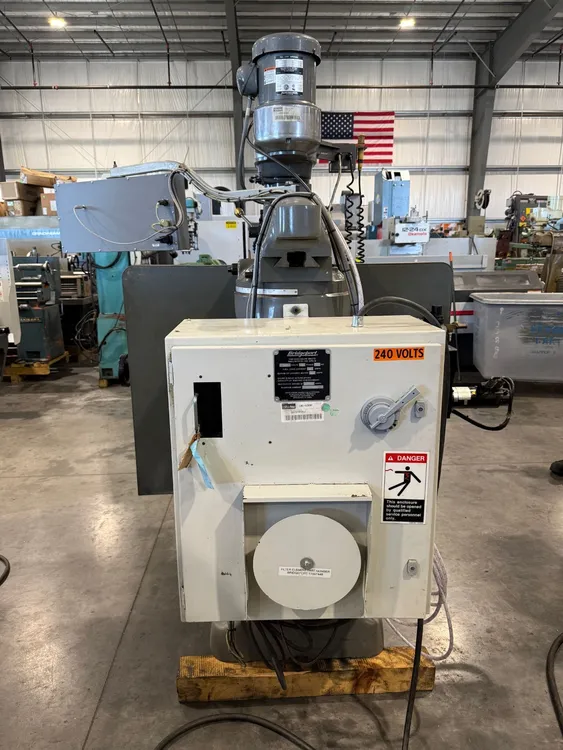

Machine is wired for 230 volt operation.
Machine weight- 2000 Lbs.
Machine dimensions- 76” L x 57” W x 83’’ H
Machine location- F.O.B. Sarasota, Florida
