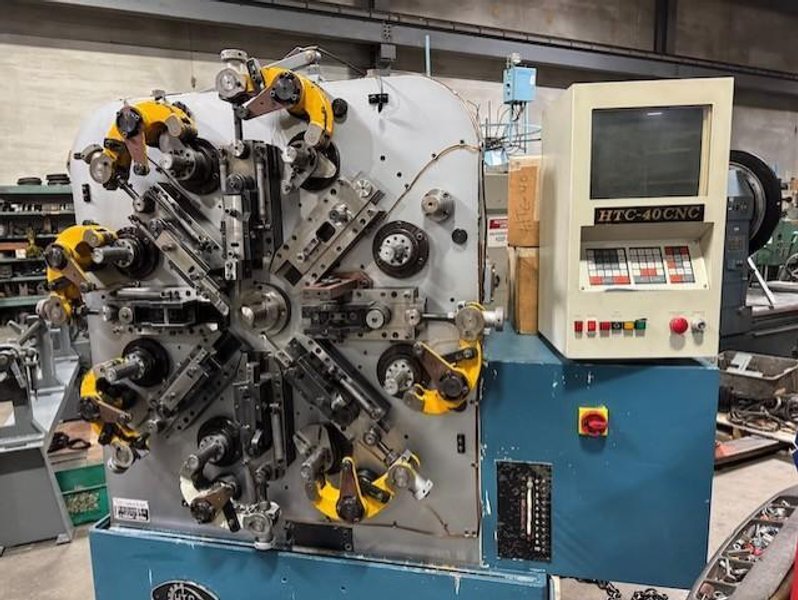

HTC40, 2-AXIS WIRE FORMER
Brand
Category
Type
Model
HTC-40CNC
Stock #
117065
Year
Not specified
Condition
Used
Location
Not specified
|
SPECIFICATIONS:
Wire Diameter: .070" - .157" (1.8 mm - 4.0 mm)├
Max. OD: 2.0" (50 mm)├
Max. Spring Length: 5.5" (140 mm)├
Max. Feed Speed: 500 mm per min.├
├
Min. Feed Value: +/- .0004" (0.01 mm)├
├
Max. Feed Value: +/- 393.7" (9999.9 mm) Per Step├
├
Min. Cam Value: +/- 0.1°├
├
Max Cam Value: +/- 359.9°├
├
Max. Cam Speed: 99 RPM├
Computer Memory: 19 Programs with 999 Steps├
├
Floppy Memory: 99 Programs with 999 Steps├
├
Servo├
├
Wire Feed: 5.0 KW├
├
Cam Shaft: 3.0 KW├
├
Dimensions: 73" x 63" x 75" (185 x 160 x 190 cm)├
├
Weight: 5700 lbs. (2600 kgs)├
├
Equipped with:├
2 Axis (Feed, Camshaft)├

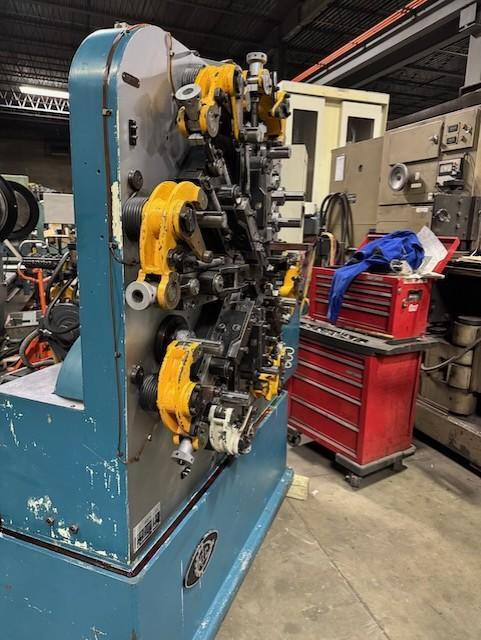

8 Forming Slides├

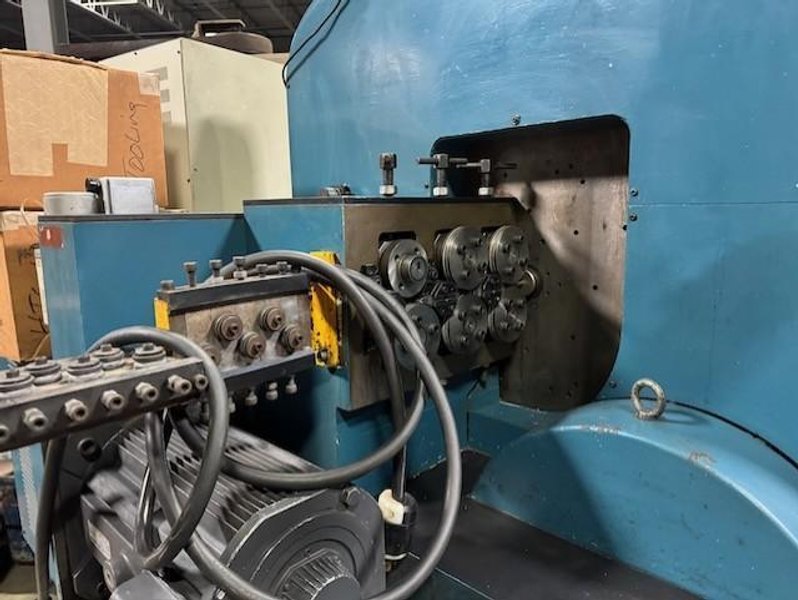

2 Plane Straightener├

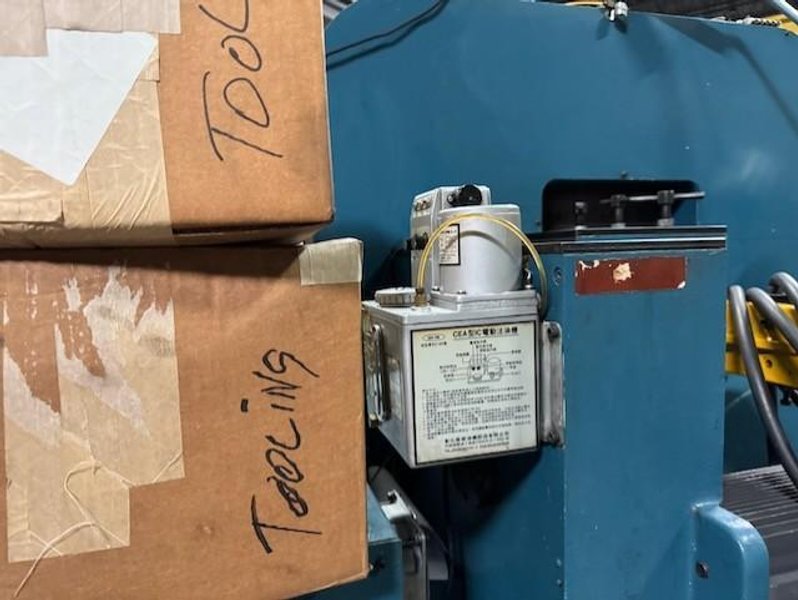

Misc. Tooling
|
