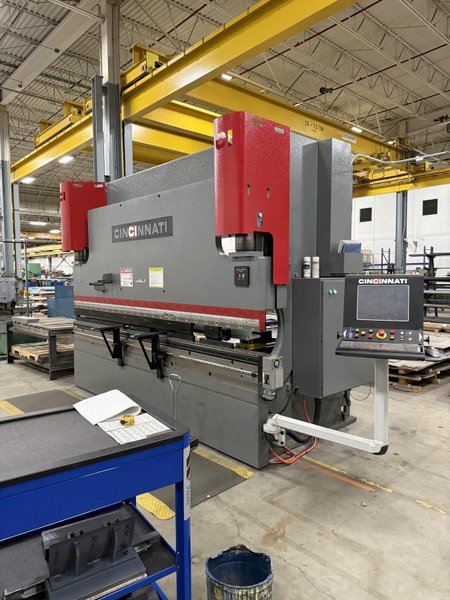

175 TON X 12' CINCINNATI MODEL #175BX10 HYDRAULIC PRESS BRAKE 2021: STOCK 24185

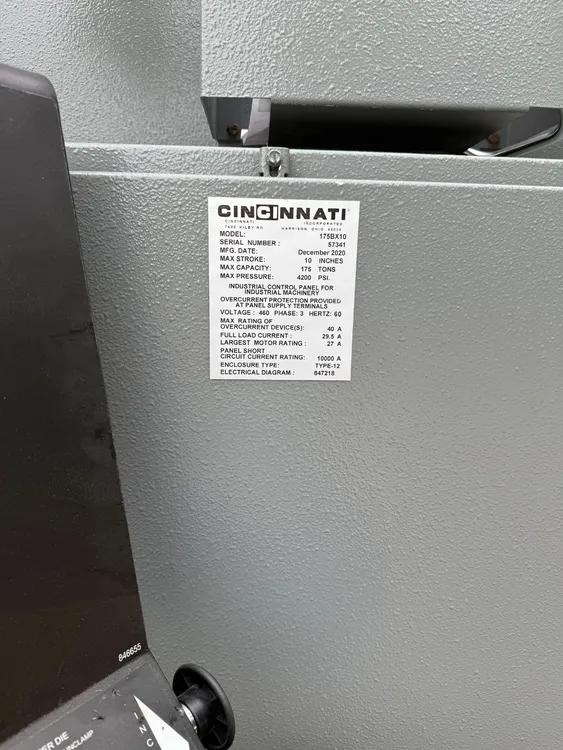

SERIAL 57341
New 12/2020
MODEL 12’ CINCINNATI 175BX10 PRESS BRAKE
LENGTH Ft.-Nominal: 12’
CLEAR DISTANCE BETWEEN HOUSINGS Ft.-In.: 10’ 7.5”
TOTAL OVERALL DIE SURFACE: 12’
SHIPPING WEIGHT: 25,000LBS
BED TOP ABOVE FLOOR: 34”
BED TOP WIDTH: 4.5”
BENDING CAPACITY GA. x FT.: 3/8 x 6.3”
BENDING CAPACITY VEE: 3”

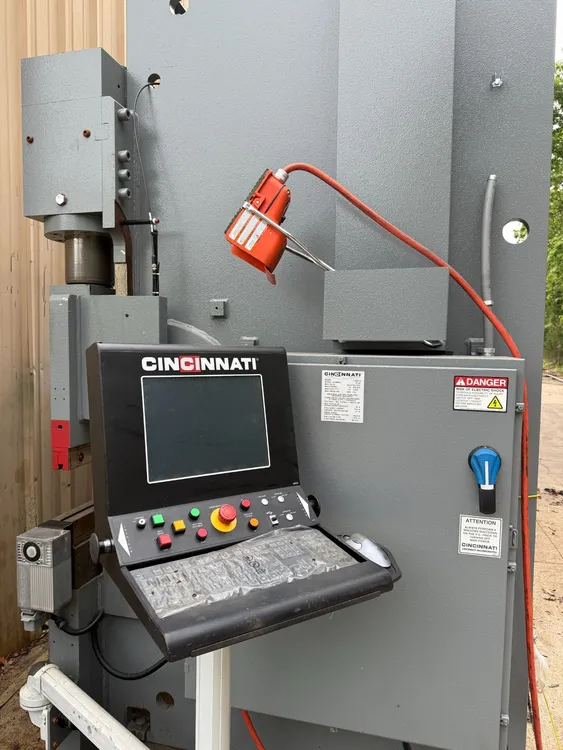

CONTROL: CINCINNATI BASEFORM CNC CONTROLLER W/TOUCHSCREEN
MOTOR H.P.: 20HP
MAX PRESSURE: 4200 PSI
WIRED 460V 3 PHASE

SPECIFICATIONS
MAX. SPEED AT FULL TONNAGE Inches/Min.: 24
MAX TONNAGE AT FULL FORM. SPEED Tons: 175
STD. STROKE LENGTH: 10”
THROAT CLEARANCE FROM CENTER OF DIES: 16”
DIE SPACE OPEN HEIGHT: 17”
DIE SPACE CLOSED HEIGHT: 7”
RAM SPEED HIGH APPROACH: 300 Inches/Min.
RAM SPEED VARIABLE FORMING: 10-24 Inches/Min.
RAM SPEED RETURN: 80-190 Inches/Min.
OVERALL HEIGHT ABOVE FLOOR: 113.50”
