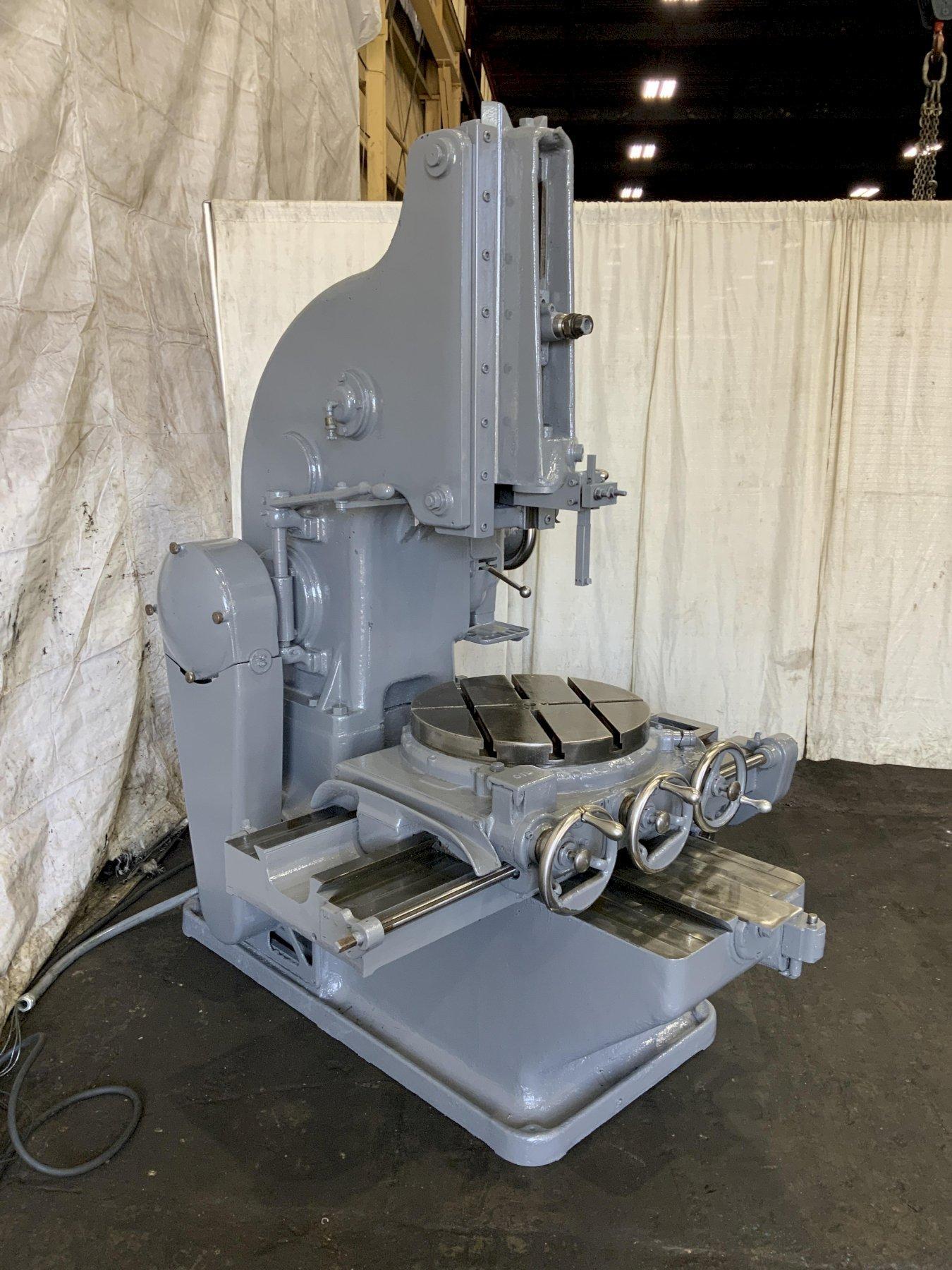

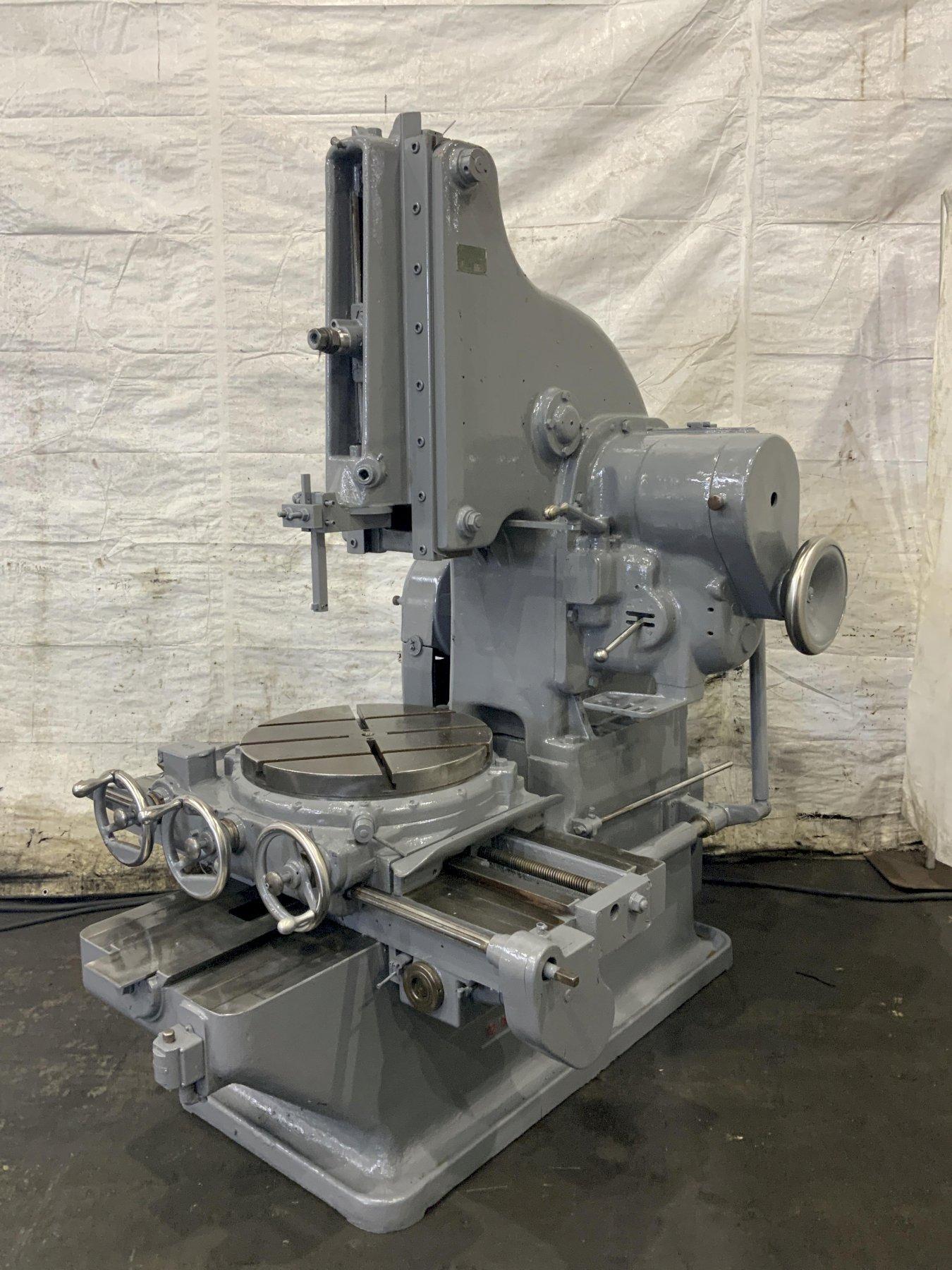

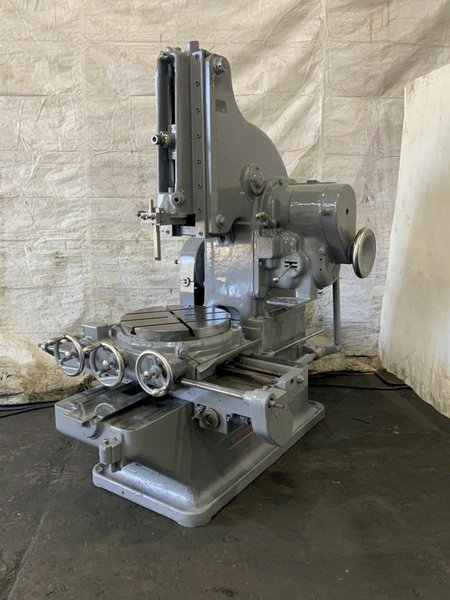

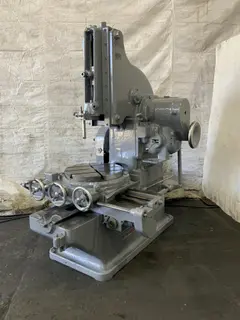

12" PRATT & WHITNEY MODEL B VERTICAL SLOTTER: STOCK #80446
Brand
Category
Type
Model
B
Stock #
80446
Year
Not specified
Condition
Not specified
Location
Not specified
|

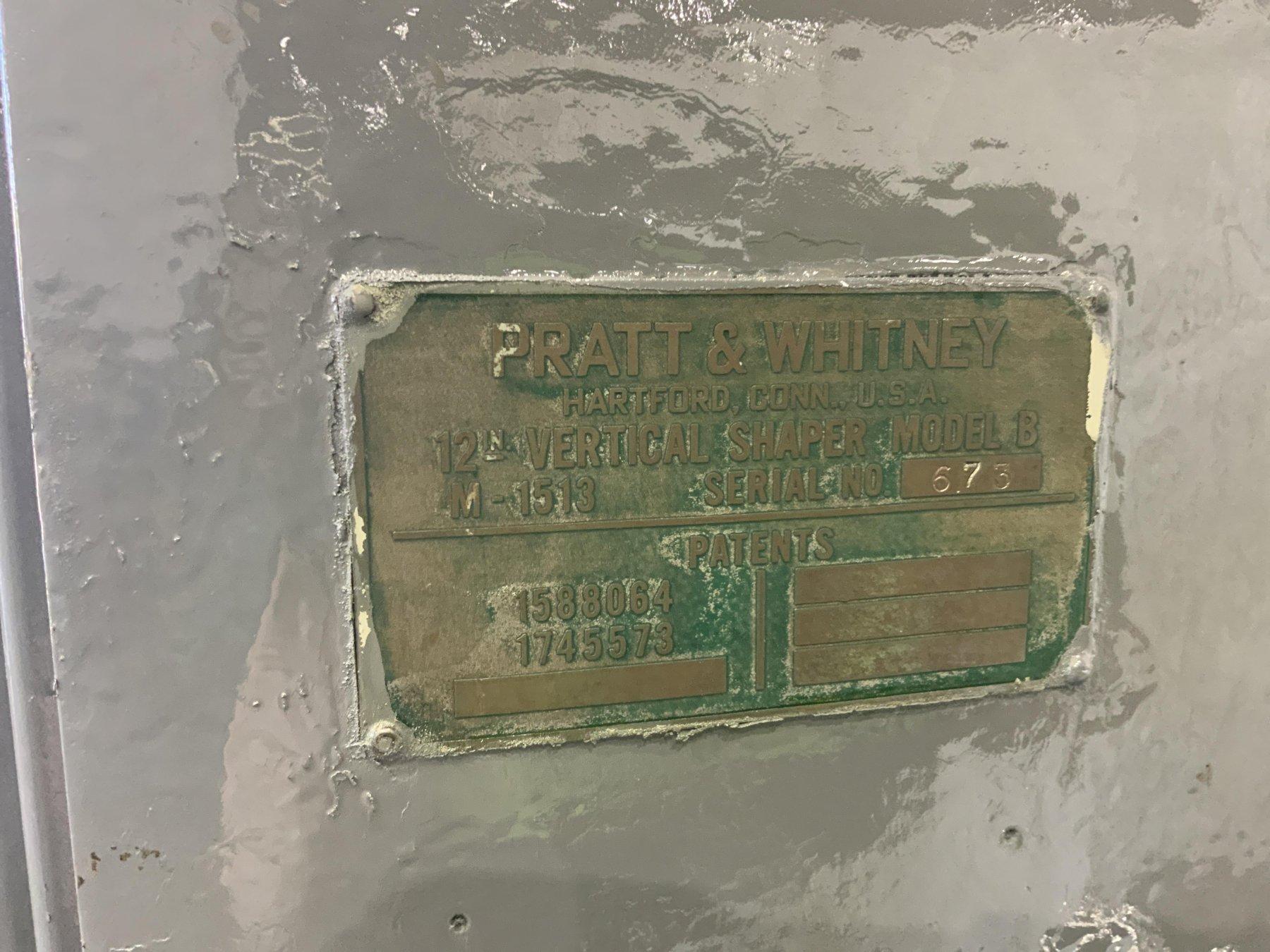

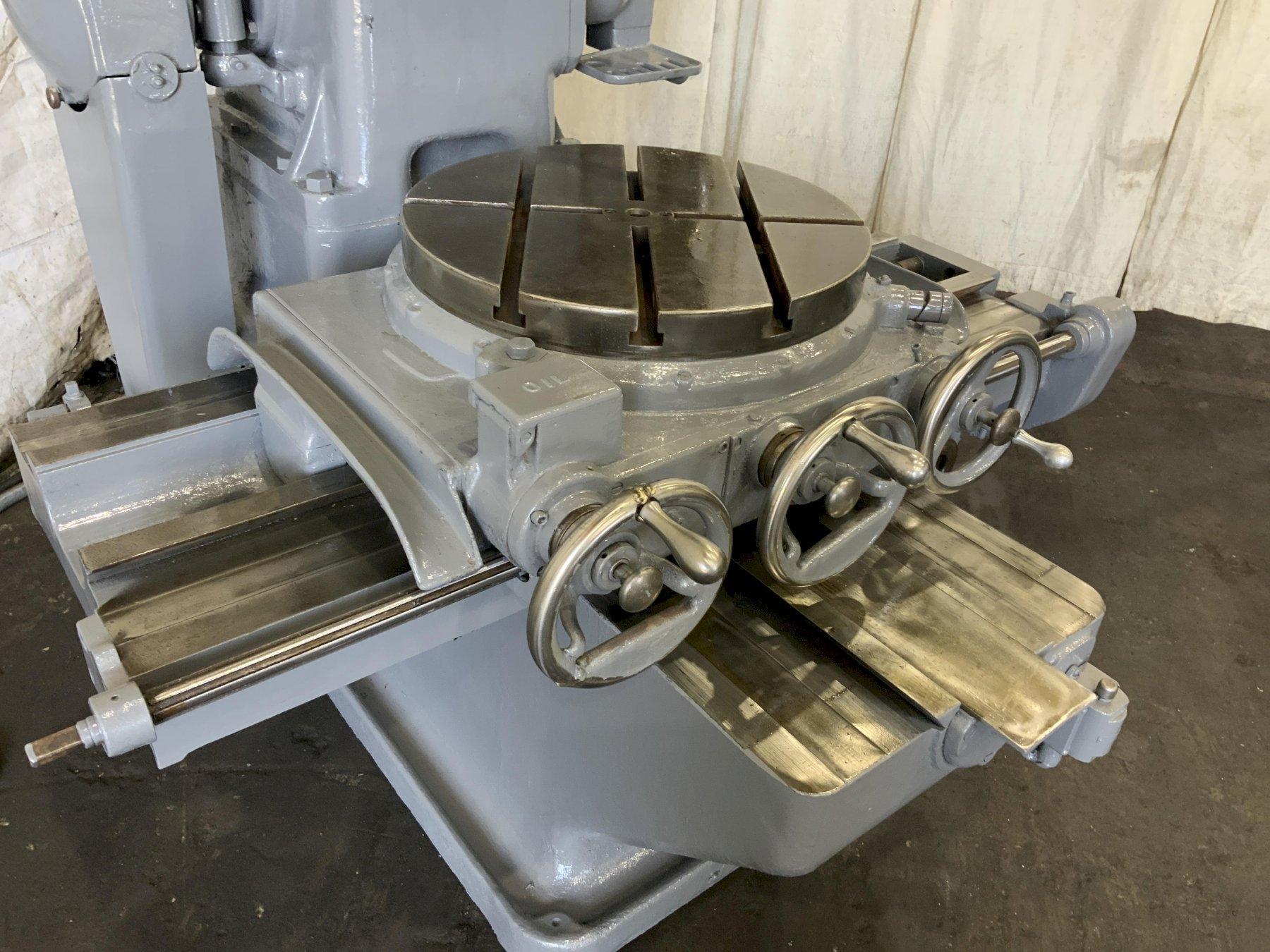

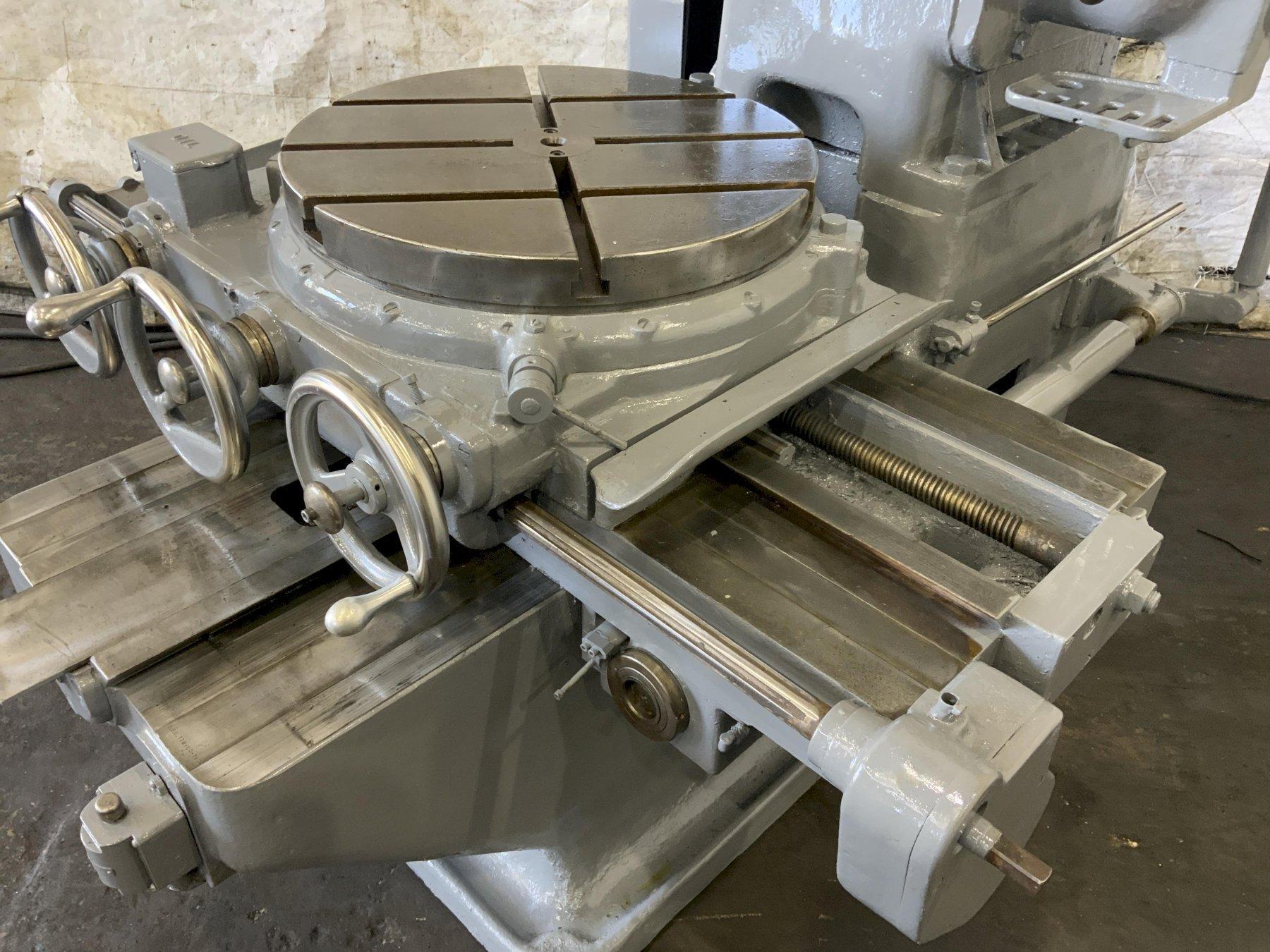

SERIAL ......................... 673 MODEL .......................... 1513 STROKE OF RAM .................. 0 TO 12" RAM ADJUSTMENT ................. 16-1/8" ANGULAR RAM ADJUSTMENT ......... 0 TO 5 DEGREES STROKES PER MINUTE ............. 19, 31, 48, 76 CUTTING SPEEDS ................. 5 TO 84 FPM DIAMETER OF ROTARY TABLE ....... 24" LONGITUDINAL TRAVE OF TABLE .... 25" CROSS TRAVEL OF TABLE .......... 25" LONGITUDINAL & CROSS FEEDS ..... .0021 TO .0833" PER STROKE ROTARY TABLE FEEDS ............. .0043 TO .1745 PER STROKE TABLE TO RAM GUIDES ............ 17" FLOOR TO TABLE ................. 37" MAIN MOTOR ..................... 5 HORSEPOWER |
