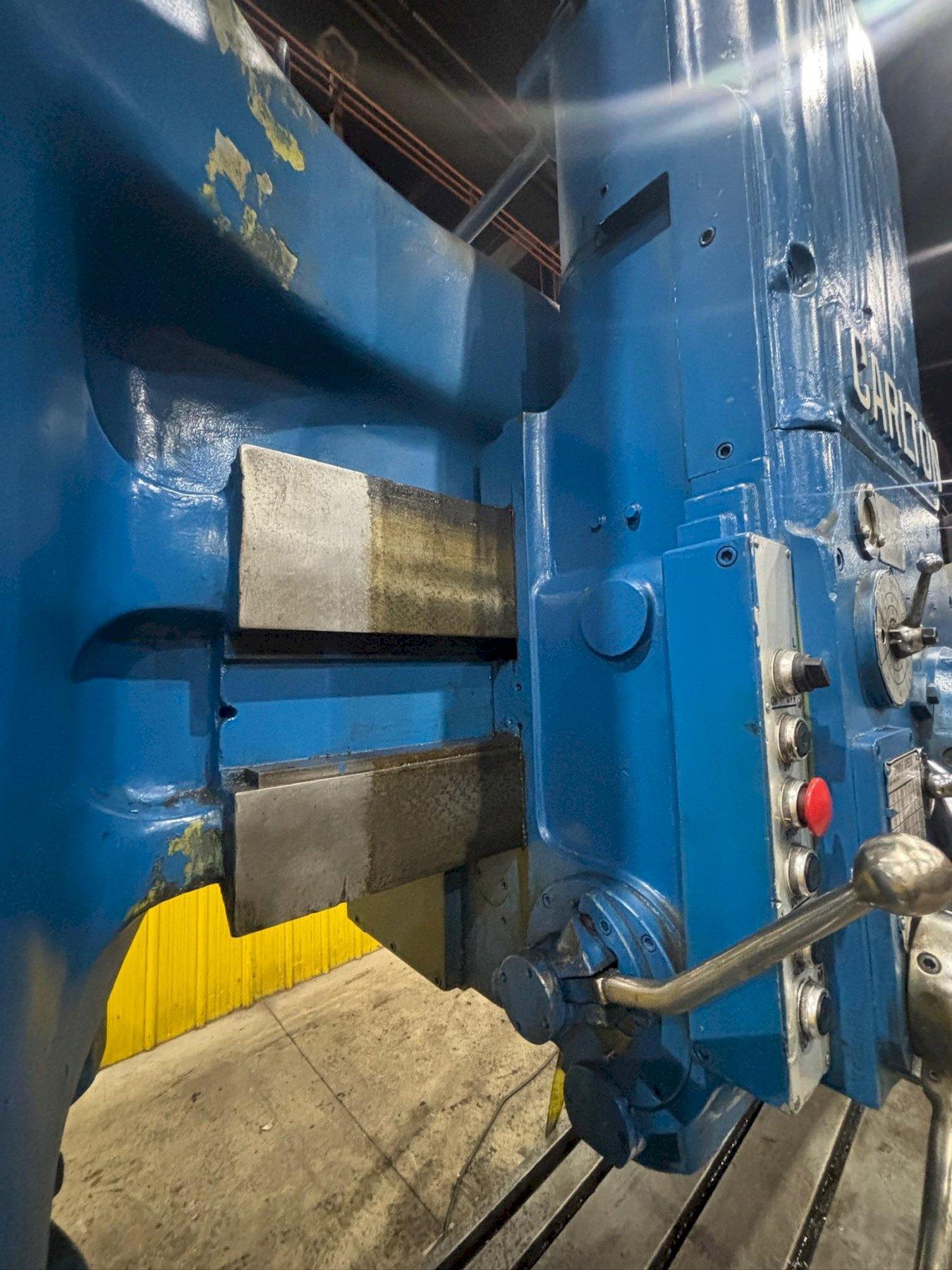

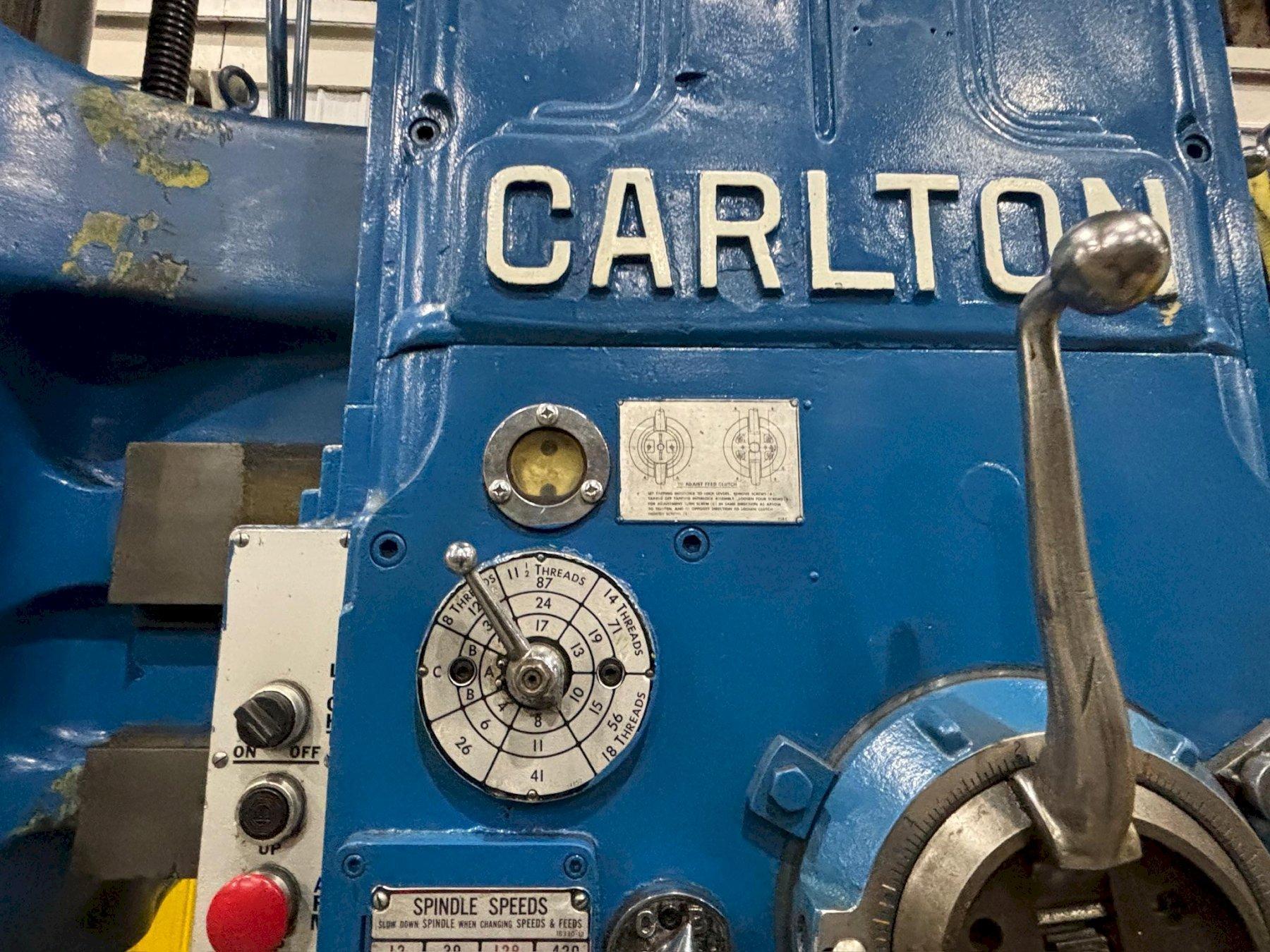

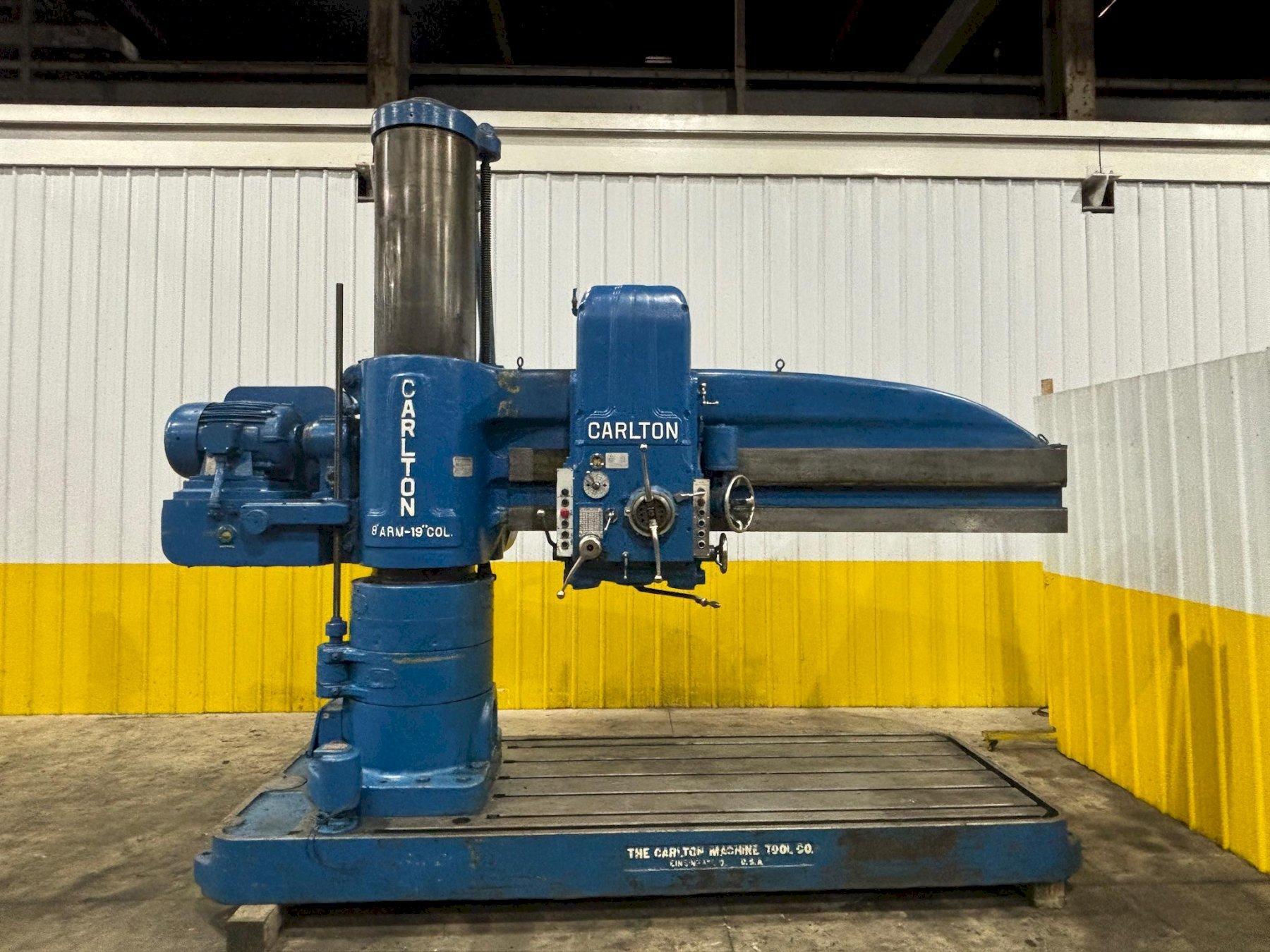

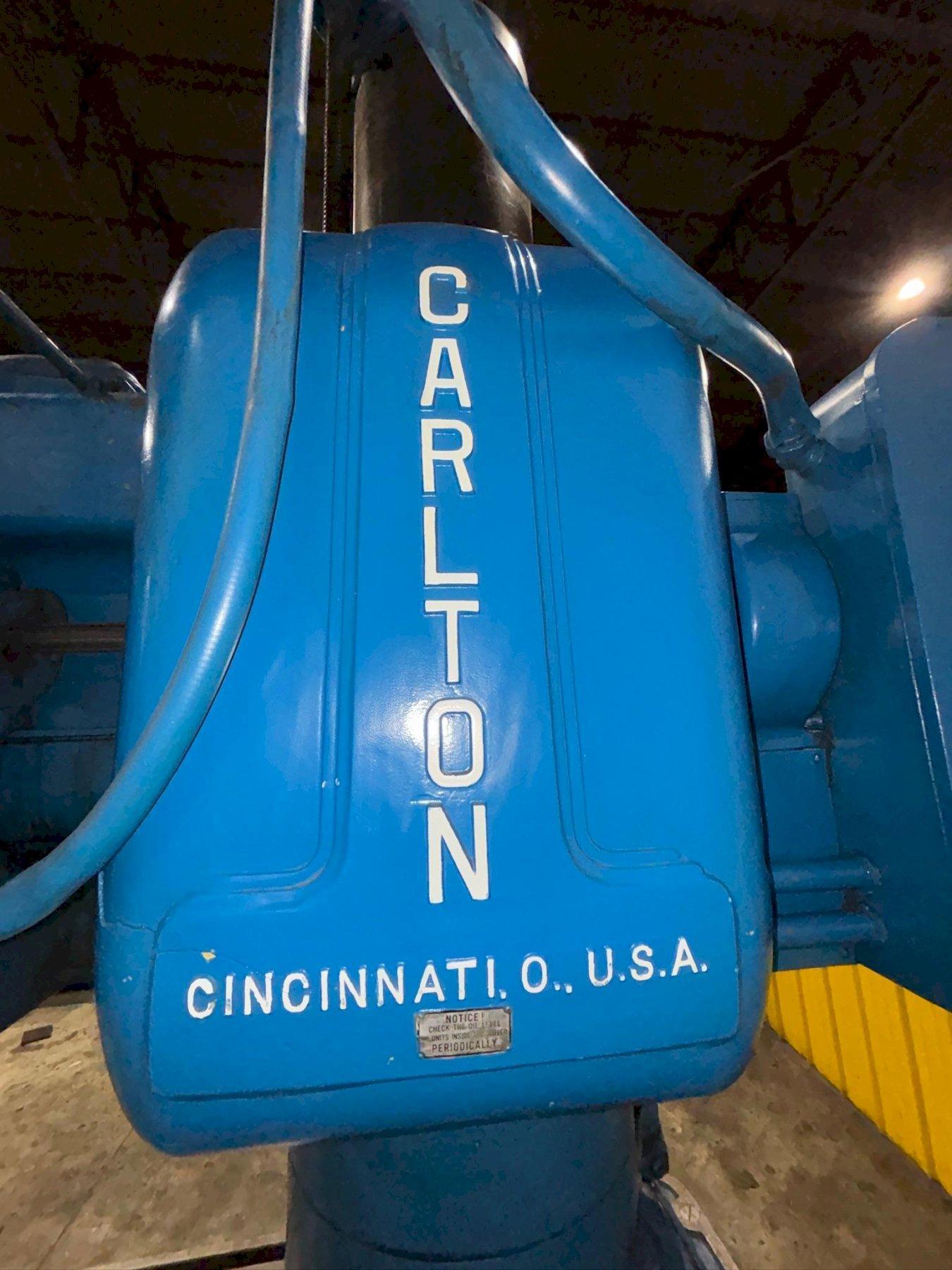

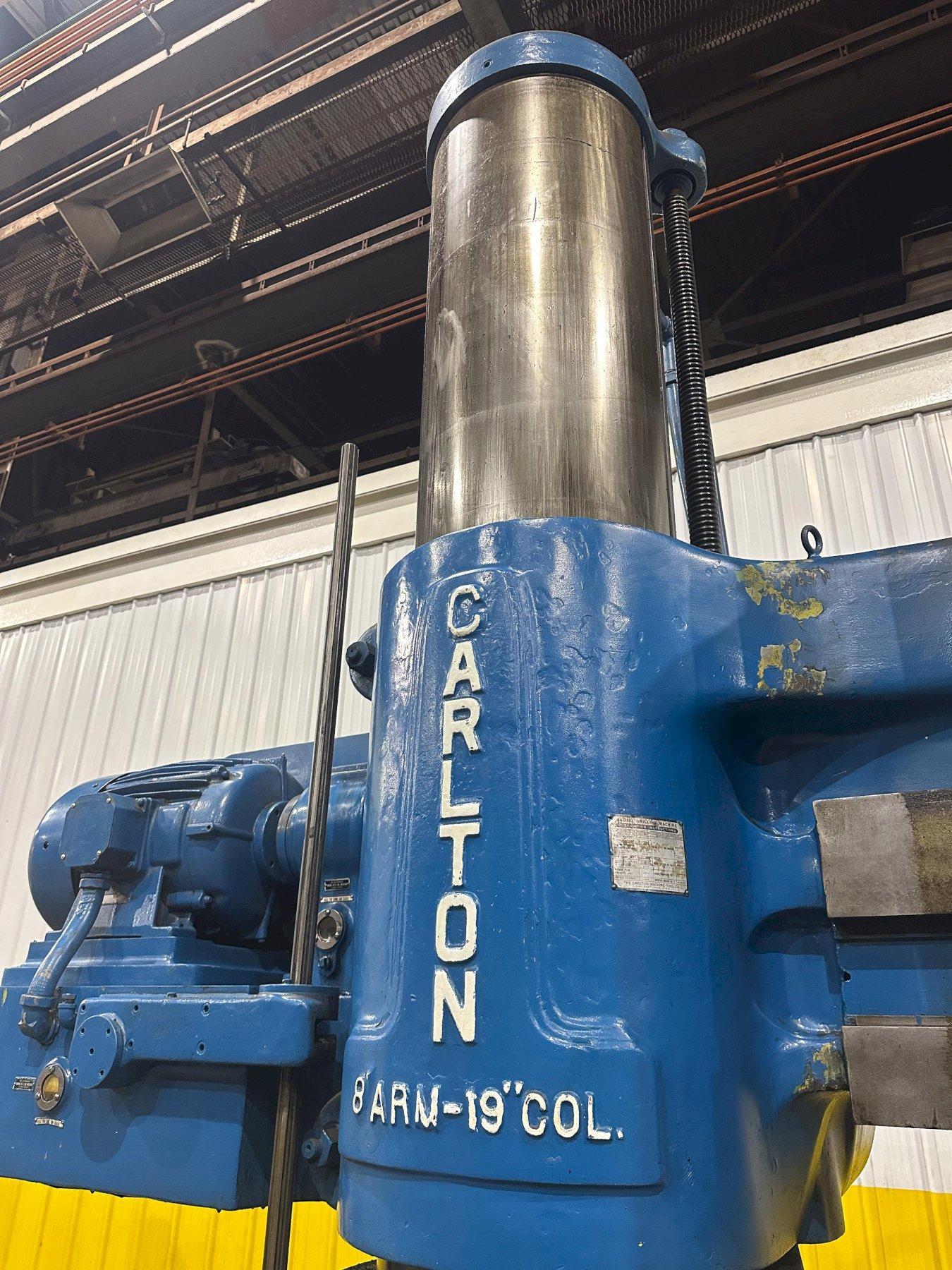

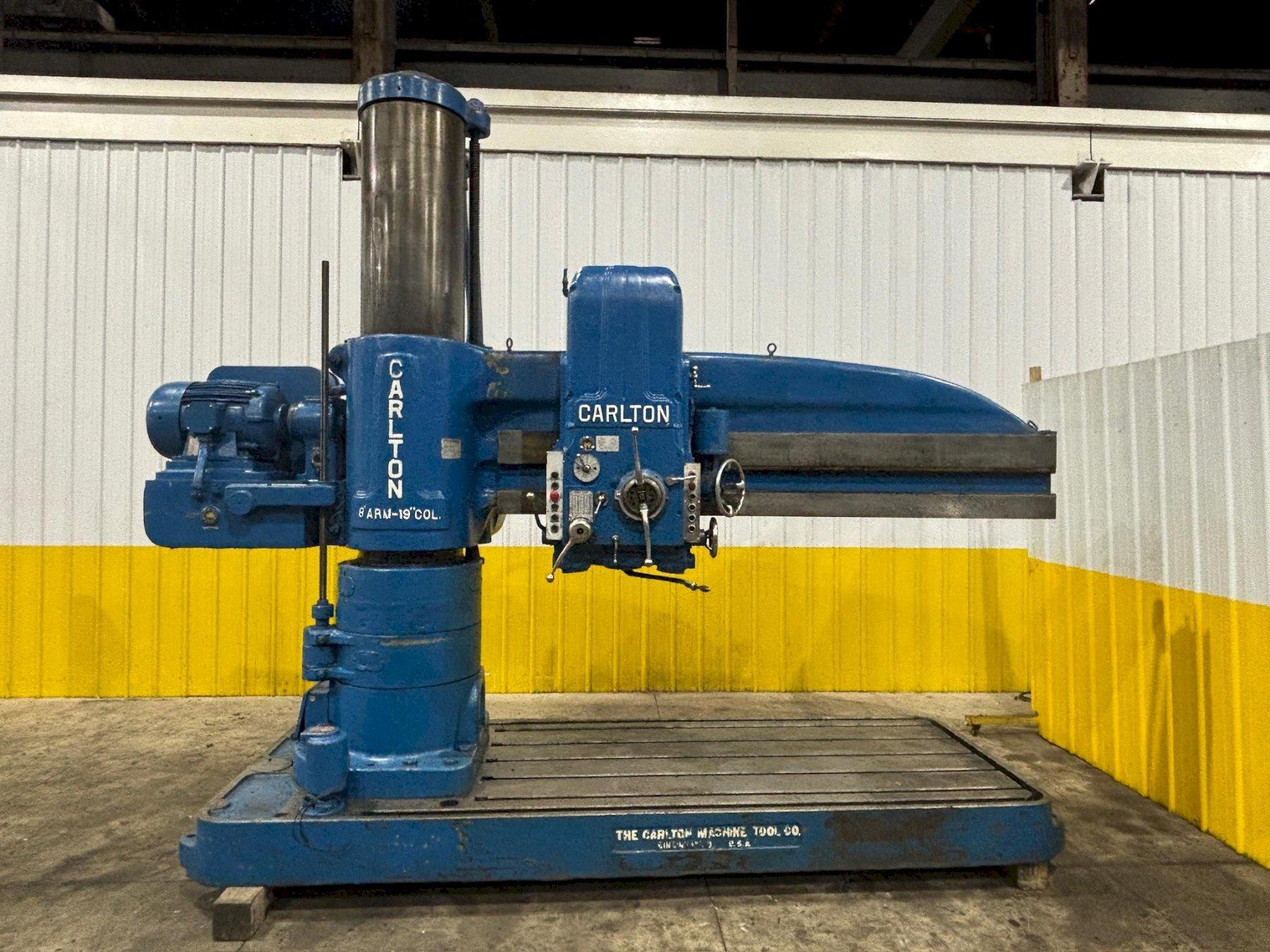

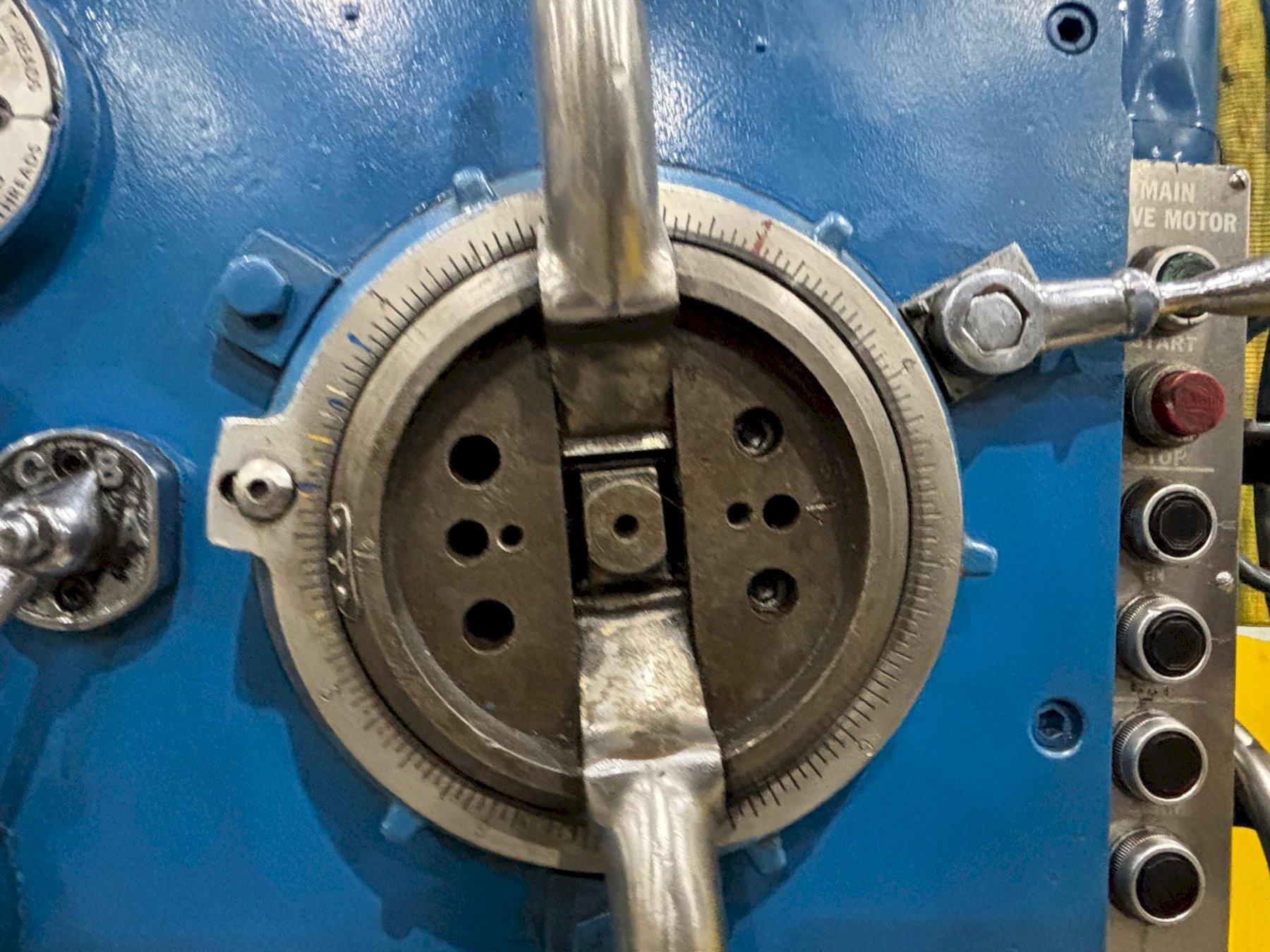

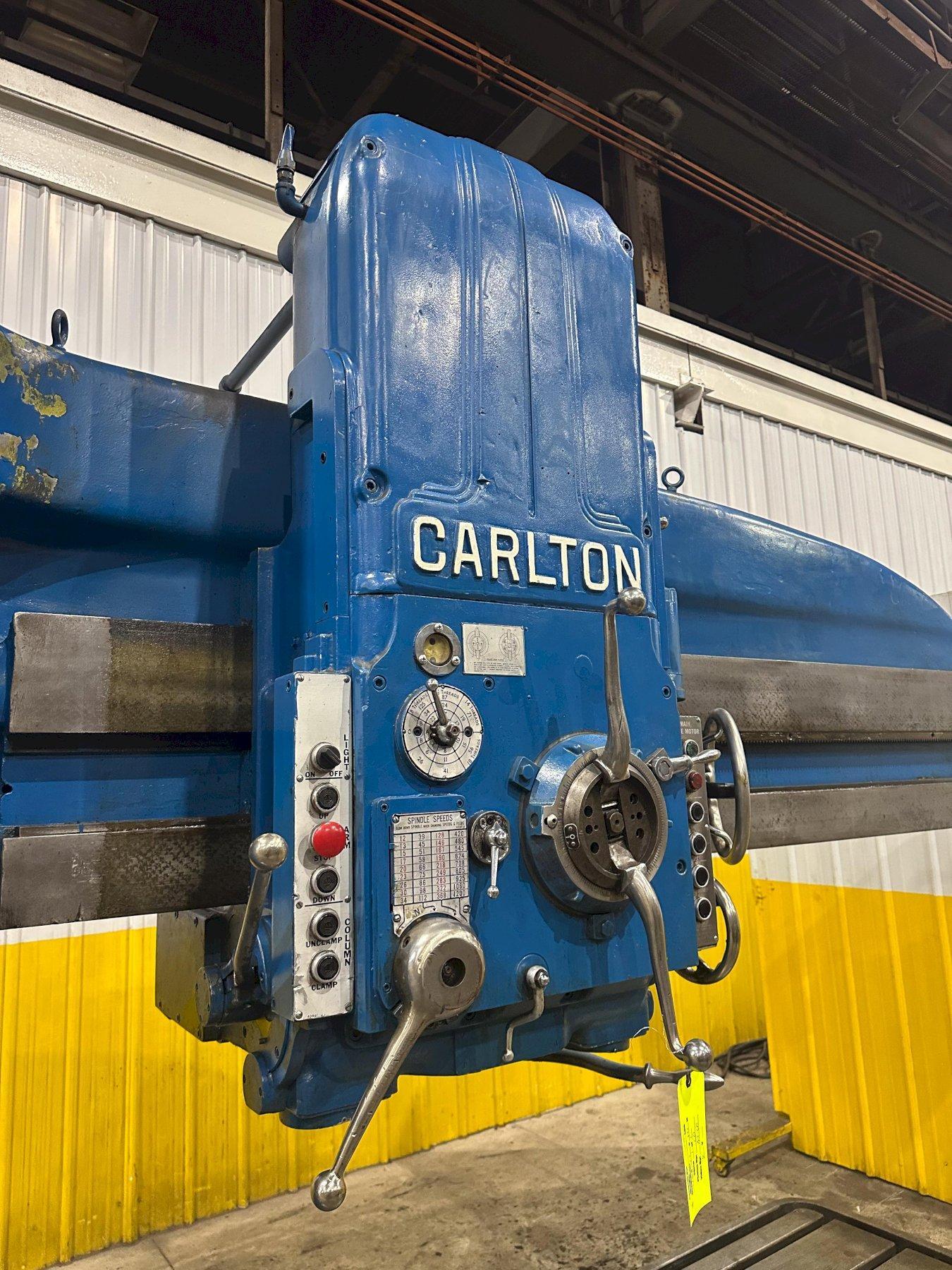

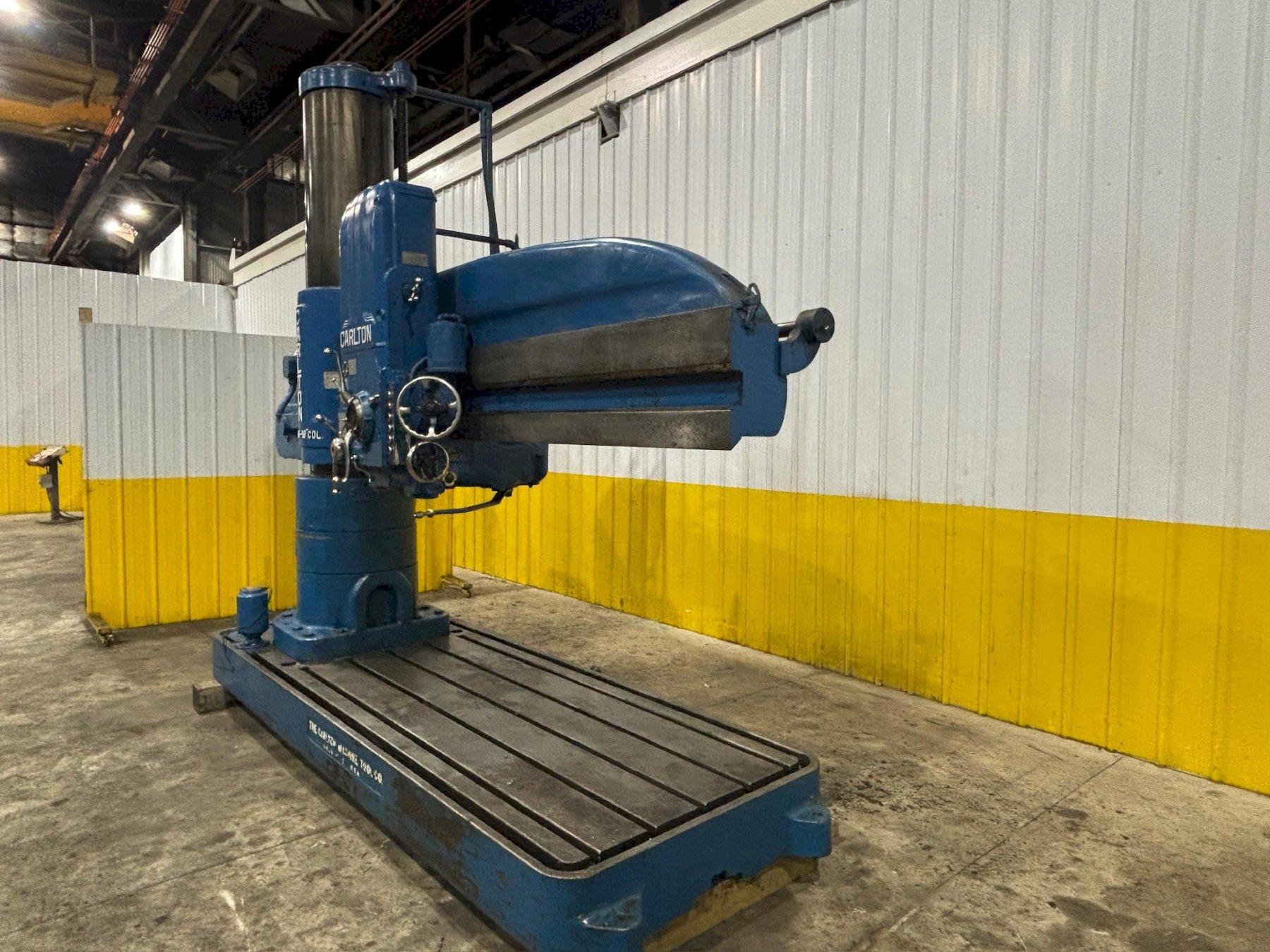

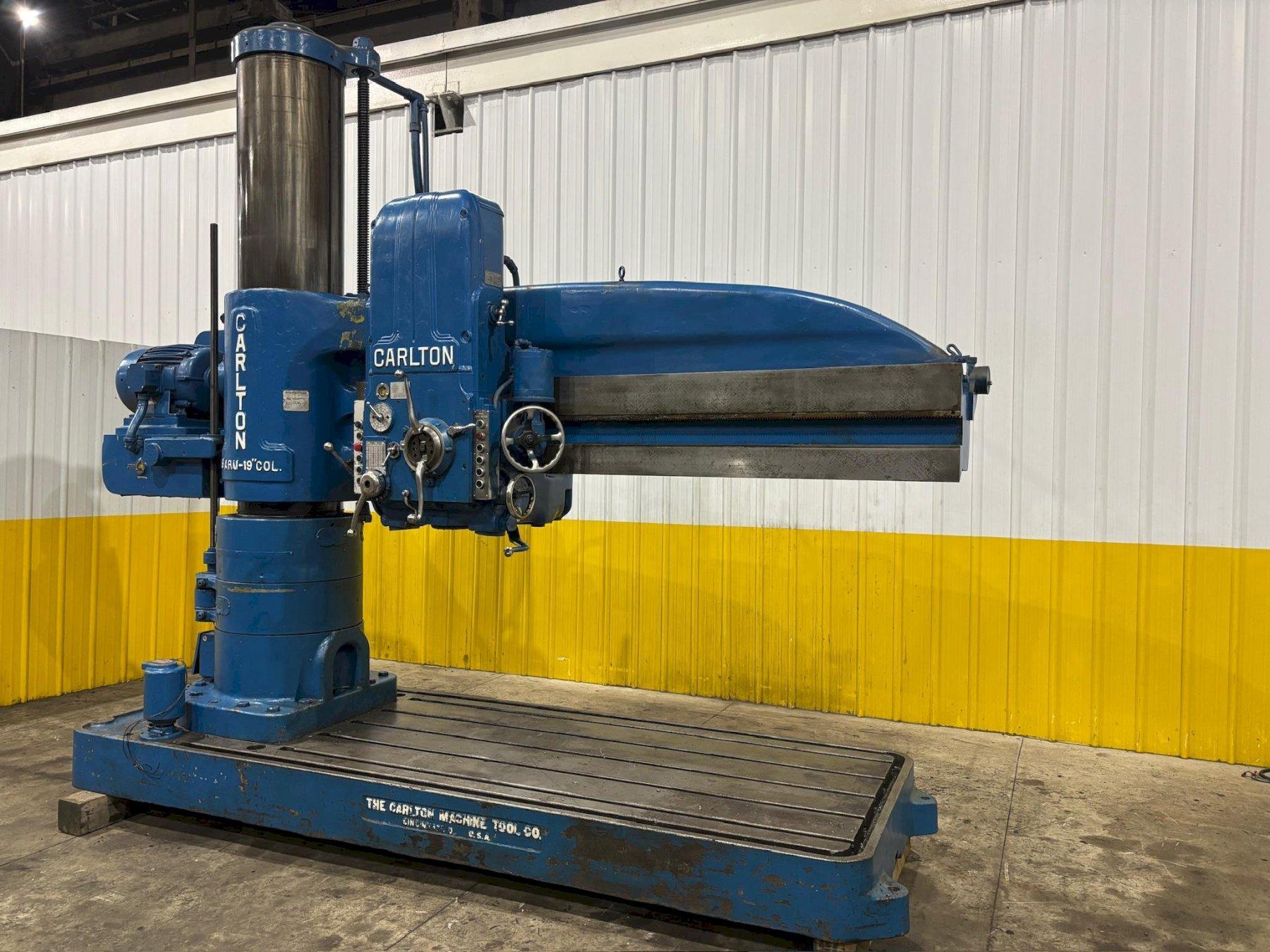

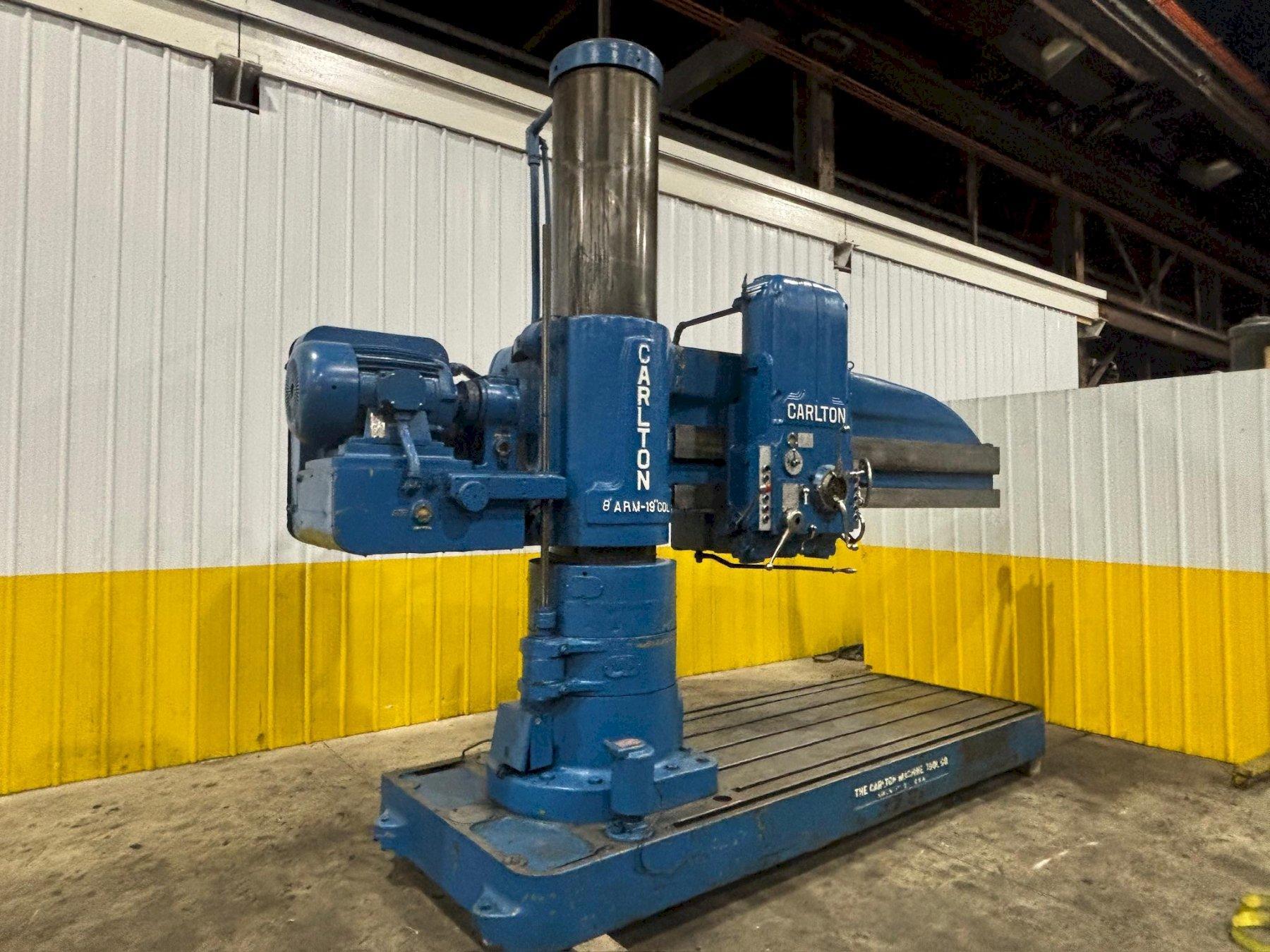

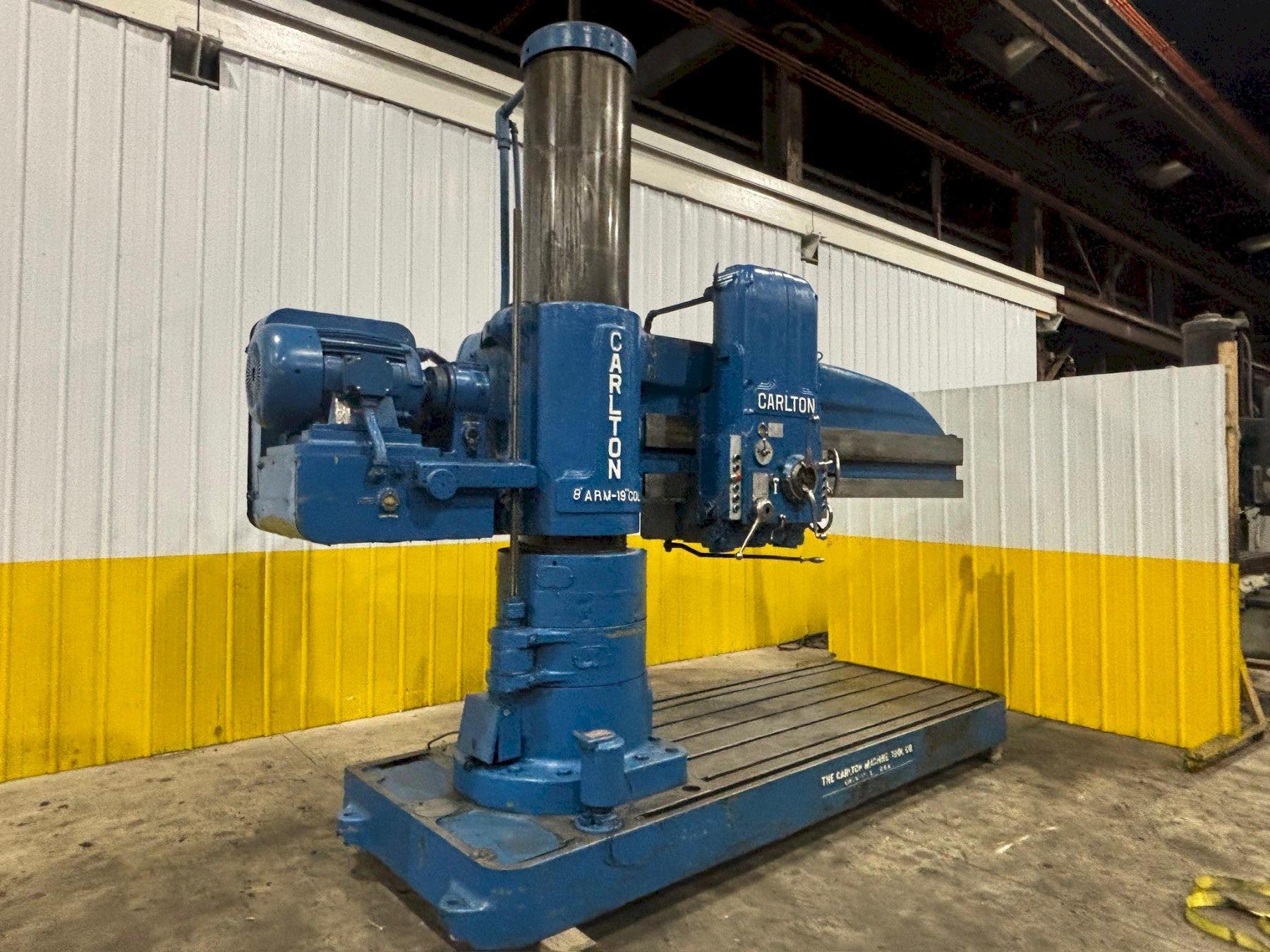

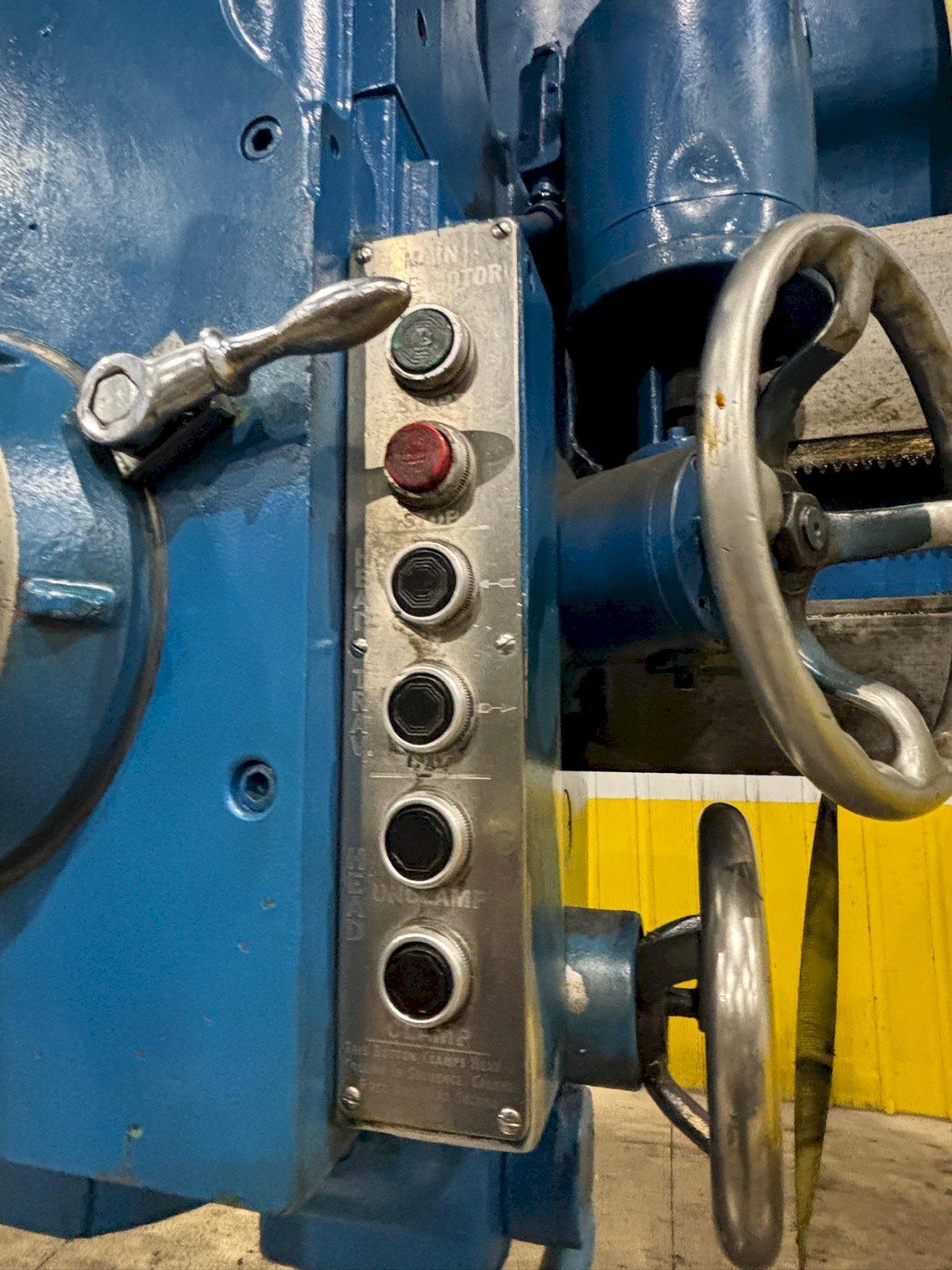

8' x 19" CARLTON MODEL #4A RADIAL ARM DRILL: YOBRO #24183

8' x 19" CARLTON MODEL #4A RADIAL ARM DRILL: YOBRO #24183

Name: Used CARLTON Drills, Radial For Sale 24183
Brand: CARLTON
SKU: 24183
Availability: PreOrder

Brand

CARLTON

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Dimensions

51" W X 151" L

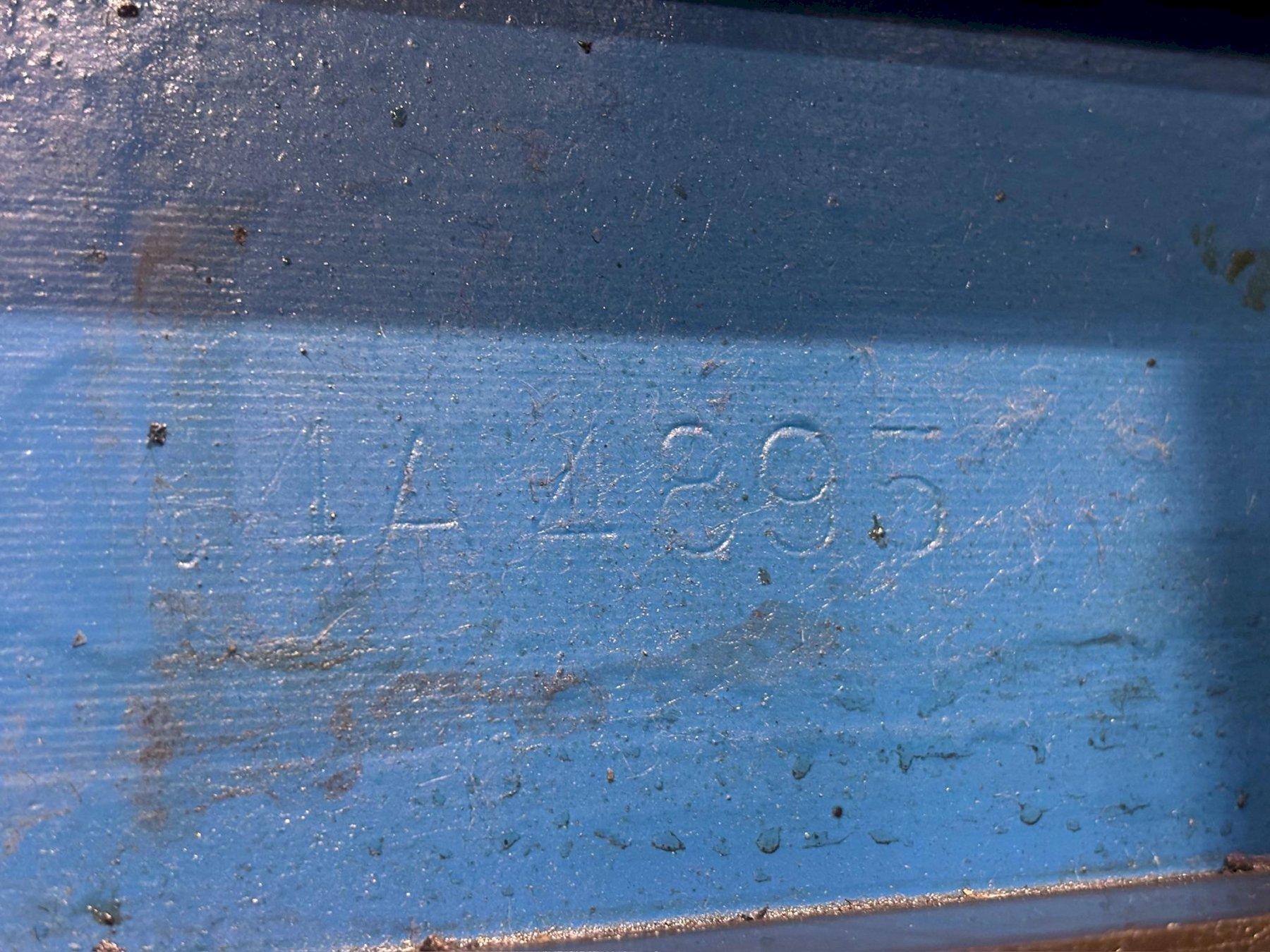

SERIAL ......................... 4A-4895

MODEL .......................... 4A

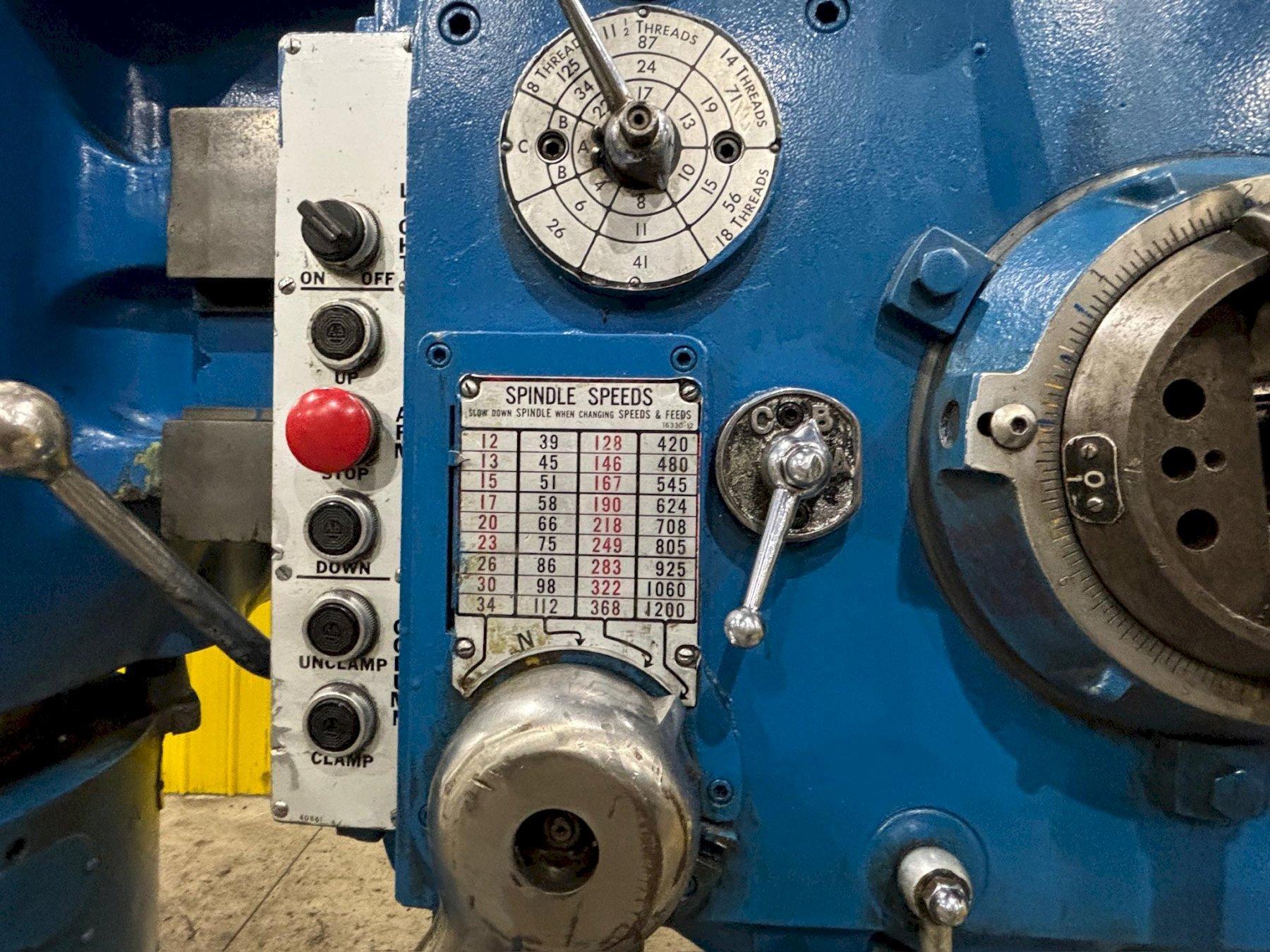

SPINDLE SPEEDS ................. 12 TO 1200 RPM

FEEDS .......................... (18) .004 to .125 IPR

THREADS ........................ 8, 11-1/2, 14, 18 TPI

DIAMETER OF SPINDLE ............ 4"

SPINDLE TRAVEL ................. 20"

TAPER IN SPINDLE ............... #6 MT

DISTANCE SPINDLE TO BASE ....... 40" MIN TO 106" MAX

DISTANCE SPINDLE TO COLUMN ..... 15" MIN TO 96" MAX

TRAVEL OF HEAD ON ARM ......... 81"

TRAVEL OF ARM ON COLUMN ........ 54"

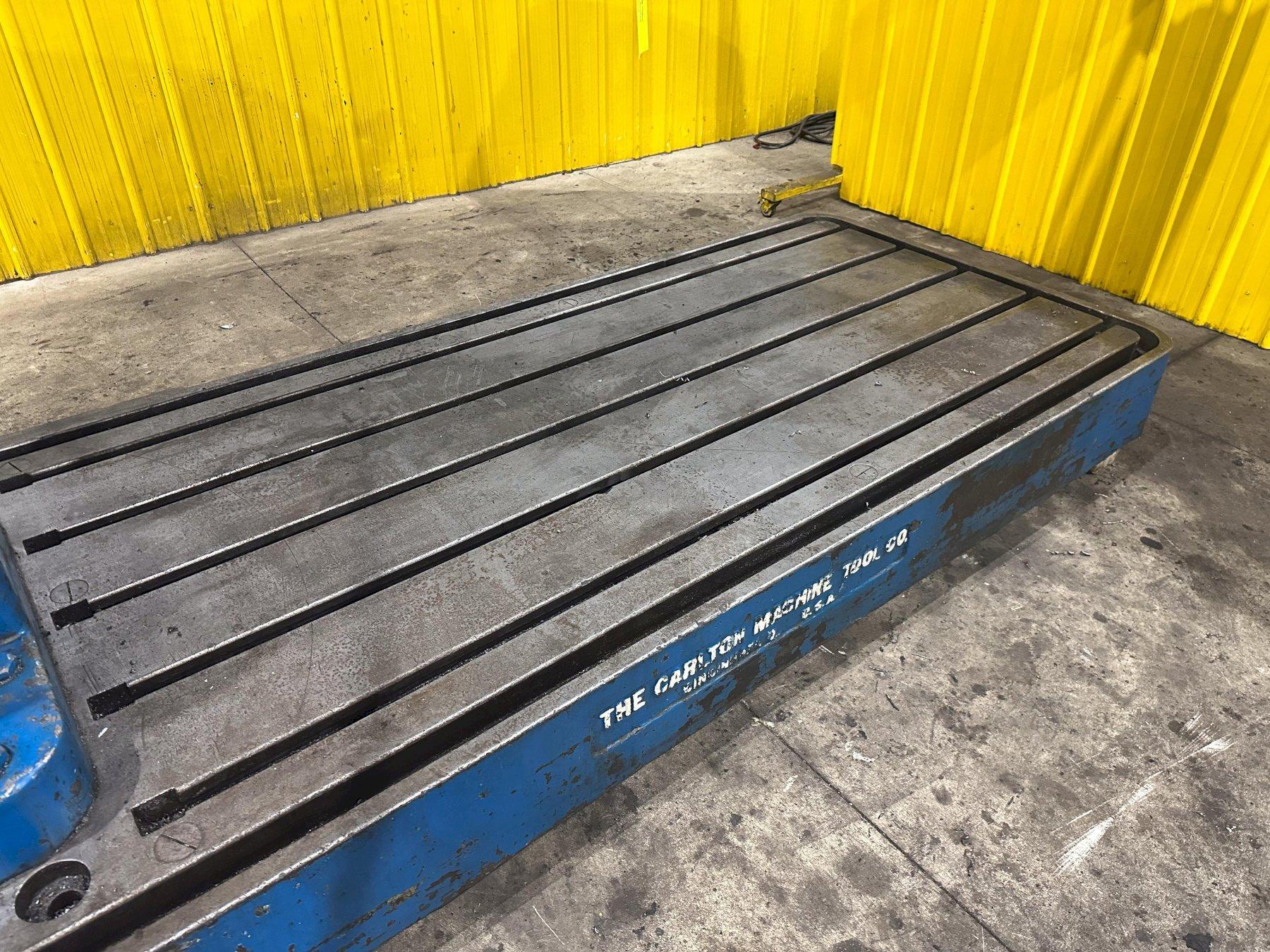

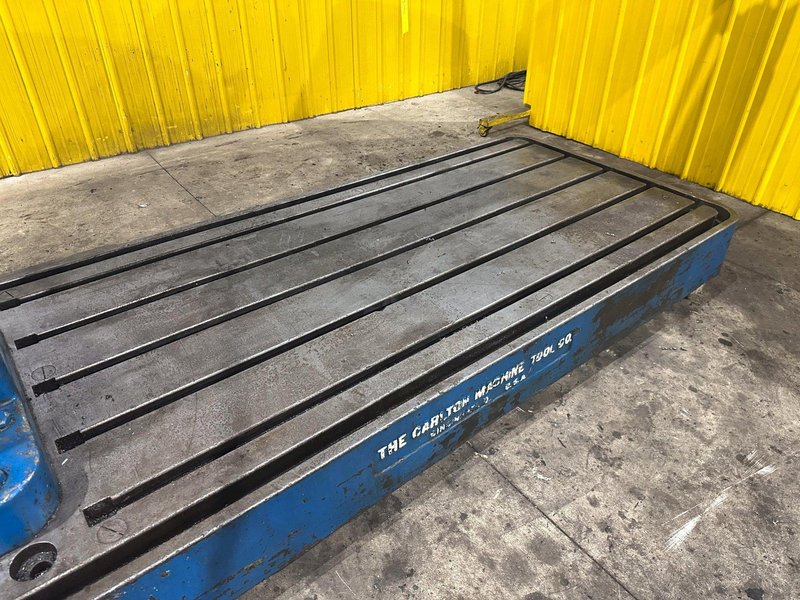

AREA OF BASE ................... 101" X 50"

POWER ARM ELEVATION ............ YES

POWER HEAD TRAVERSE ............ YES

POWER CLAMPING ................. YES

COOLANT ........................ YES

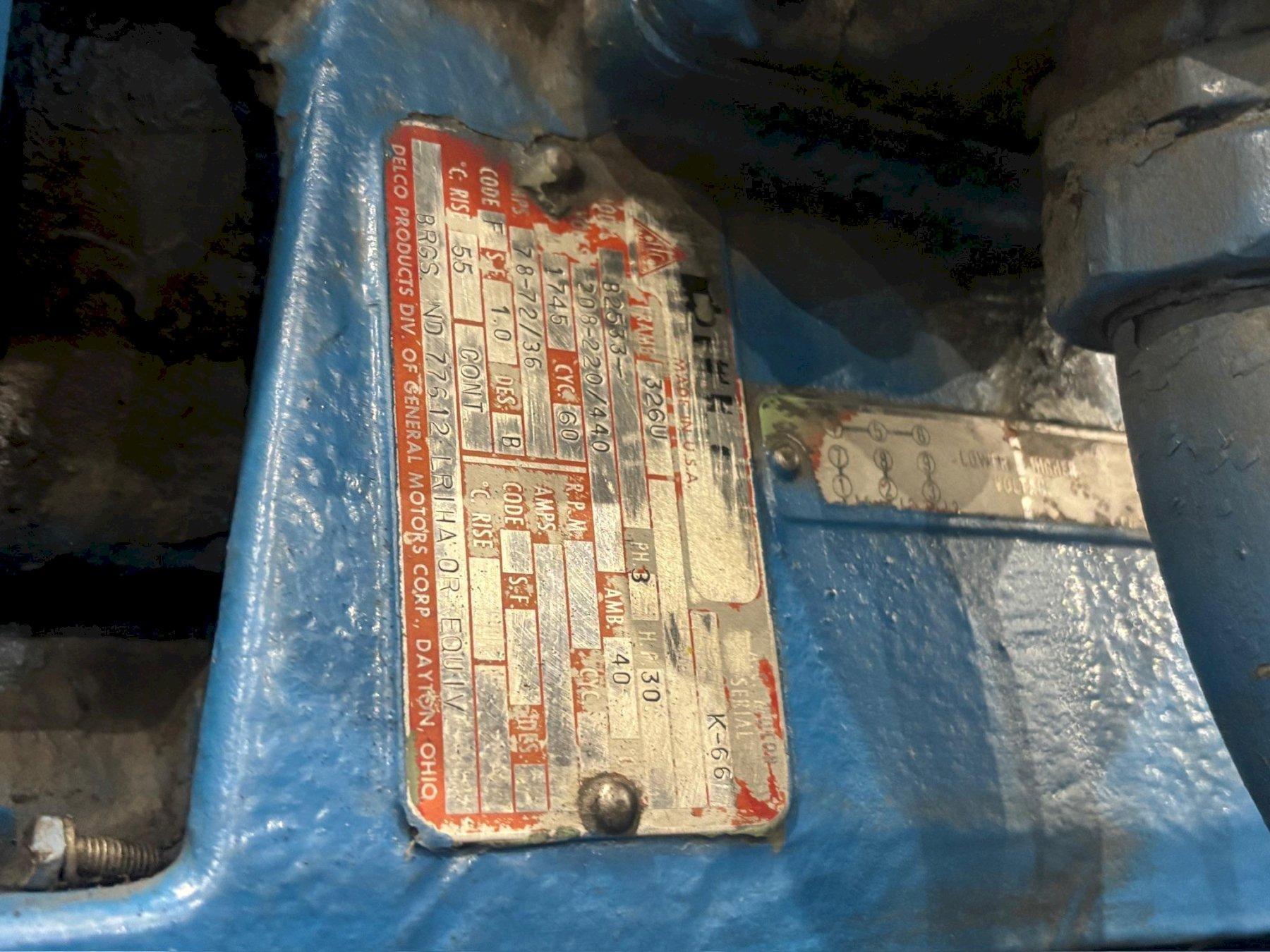

MAIN SPINDLE MOTOR ............. 30 HORSEPOWER

Watch 8' x 19" CARLTON MODEL #4A RADIAL ARM DRILL: YOBRO #24183
