254mm x 304mm (10" x 12" 2 HIGH FARMER NORTON REVERING ROLLING MILL (14551)

254mm x 304mm (10" x 12" 2 HIGH FARMER NORTON REVERING ROLLING MILL (14551)

Name: Used SIR JAMES FARMER NORTON & CO. 2 HIGH REVERSING ROLLING MILL For Sale 14551
Brand: SIR JAMES FARMER NORTON & CO.
SKU: 14551
Availability: PreOrder

Brand

SIR JAMES FARMER NORTON & CO.

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Max Width Workpiece	12 inches
Max Roll Dia.	10 inches

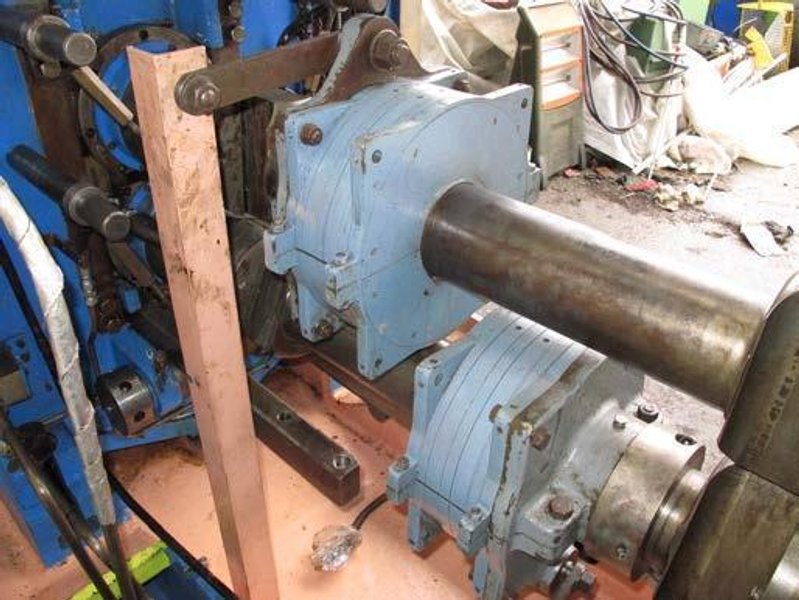

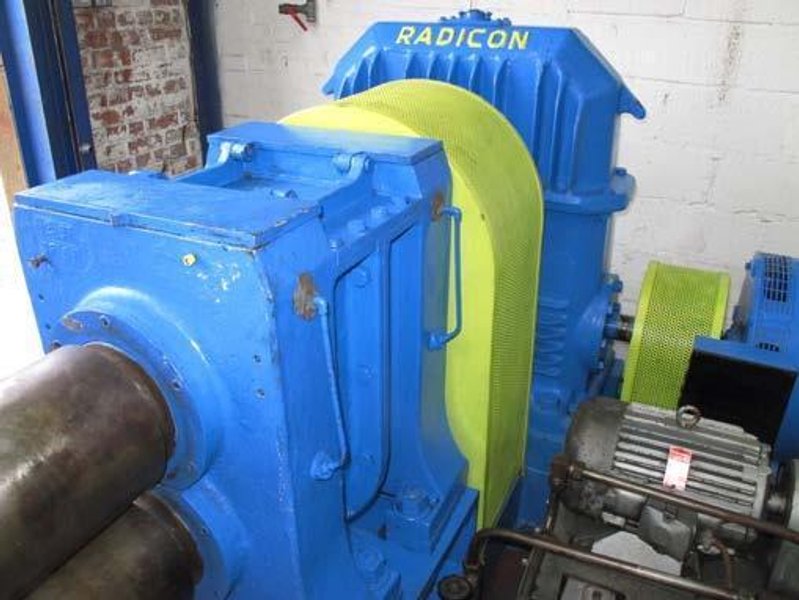

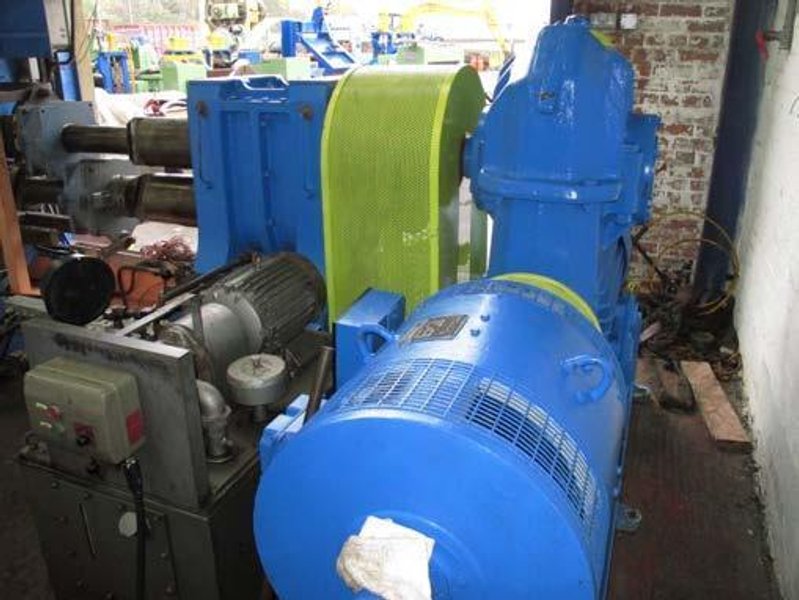

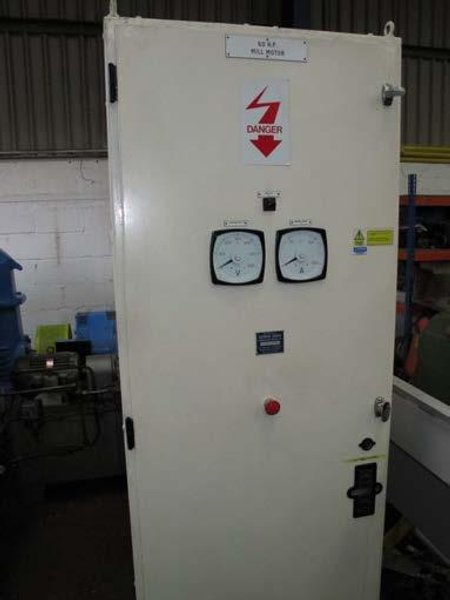

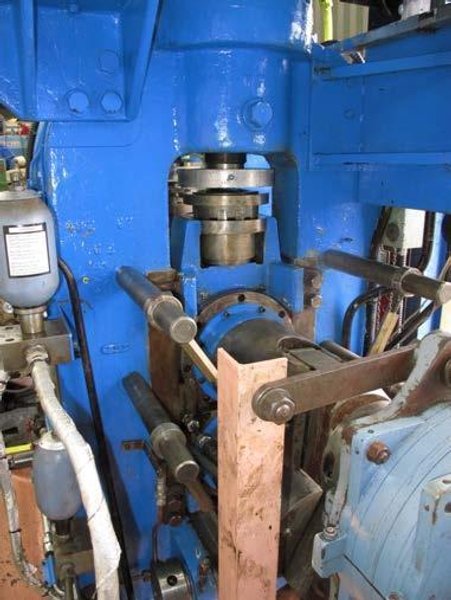

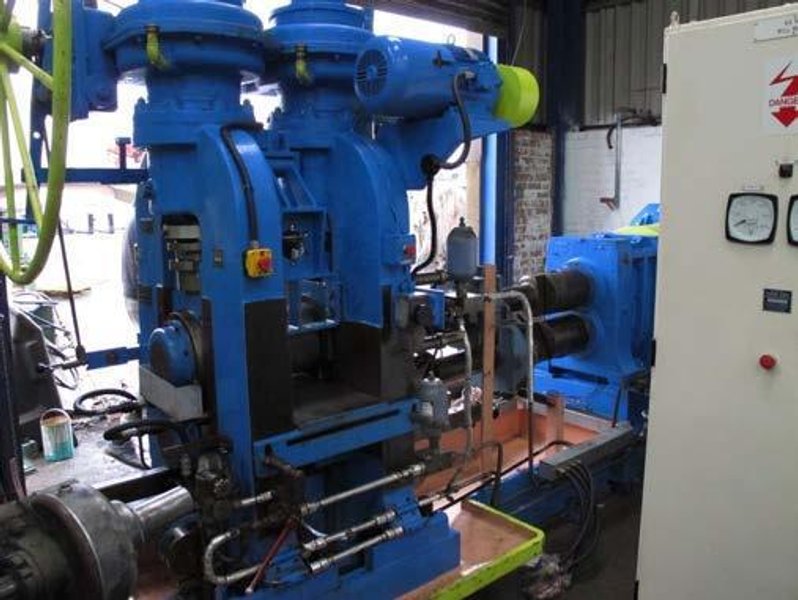

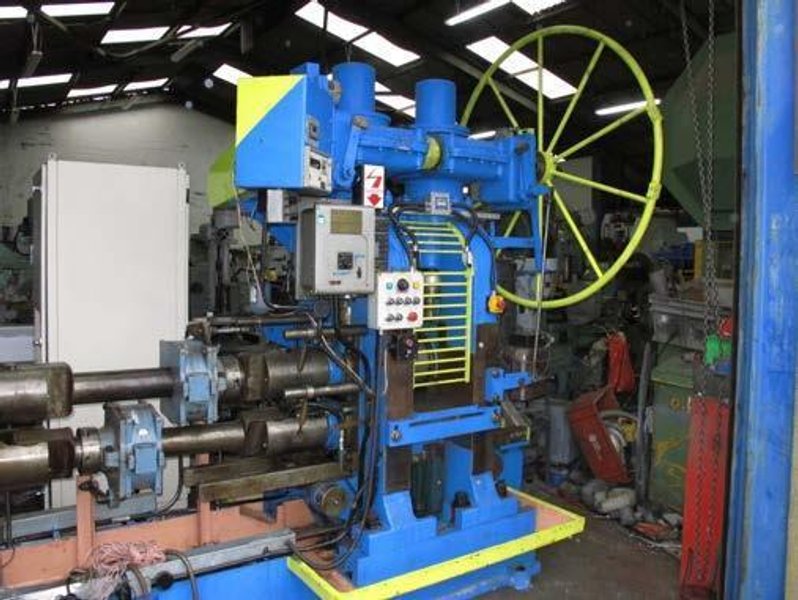

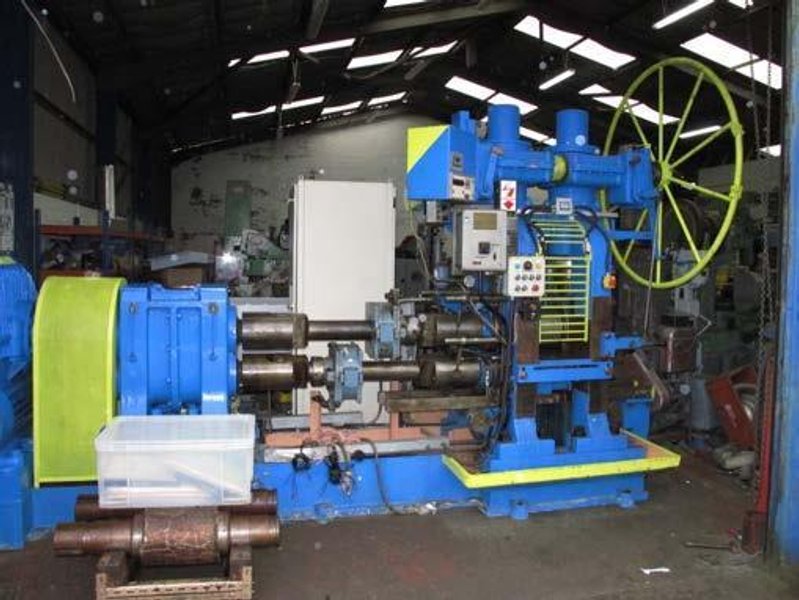

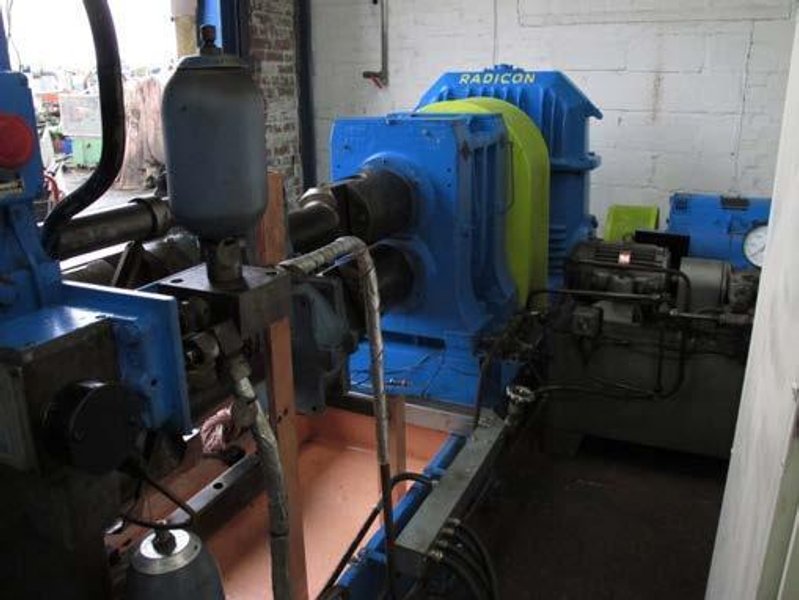

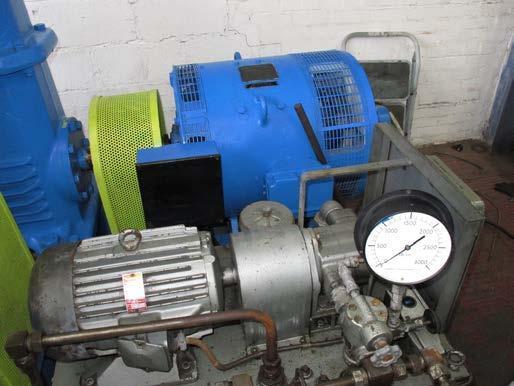

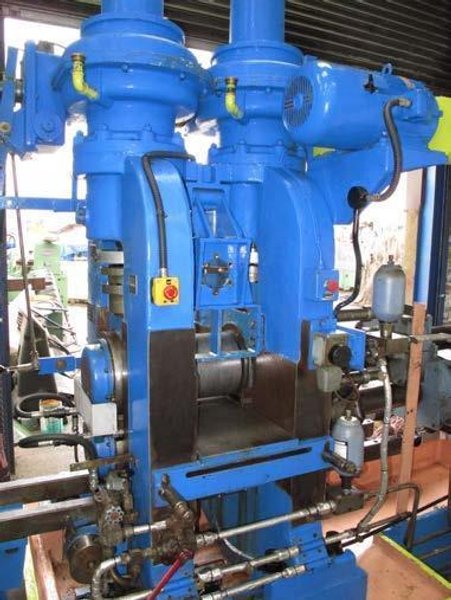

254mm x 304mm (10" x 12" 2 HIGH FARMER NORTON REVERING ROLLING MILL Stock # 14551 Manufacturer:.......... Sir James Farmer Norton & Co. Ltd, Manchester, England Year of Manufacture:... 1967 (Rebuilt by George Jones 2010) Roll Diameter:......... 254mm (10”) Roll Face:............. 304mm (12”) Provision for 381mm (15”) If Required Roll Separating Force:. at 22.8 m/min (75 FPM) 80 Tons at:.................... 15.2 m/min (50 FPM) 90 Tons at:.................... 7.6 m/min (25 FPM) 100 Tons Rolling Speed:......... 0/22.8 m/min (0/75 FPM) Passline:.............. 914mm (36") MAIN DRIVE DATA MAIN MILL MOTOR Manufacturer:.......... English Electric Power:................. 0/60 HP DC Speed:................. 0/1500 RPM Volts:................. 500V Current:............... 98 Amps Mill Motor Coupling:... Holset Type RB 0.5 Worm Unit Output Coupling:.............. Holset Type WB6 Worm Unit Manufacturer:.......... David Brown Radicon Type:.................. BU-17-50-L Roll Neck Beatings:.... Timken M.231649 D - M231610 SCREWDOWN DATA Worm Unit Manufacturer:.......... David Brown Radicon Type:.................. BU-17-50-L Motor Manufacturer:.......... English Electric Power:................. 3 HP Speed:................. 705 RPM Worm Reduction Ratio:.. 96/1 COMPRISES 2-High Mill Stand Elliott Load Cells DAVID BROWN Radicon Gearbox 2-Hi Pinion Roll Change Sled Baseplates Two (2) Drive shafts Fitted with ASEA Ringtorductors Torque meters VICKERS SPERRY RAND Hydraulic Pack Motor: English Electric Power: 10 HP Speed: 1445 RPM Voltage: 415V Electrical Controls ORBIT CONTROLS Bi-Directional Counter One (1) New Set of Rolls Temporary Specifications Subject to Revisions PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION

No files or videos to display
