36" HI-RIB (7.2 TYPE) PANEL RAFTED ROLLFORMER LINE; INCLUDES UNCOILER, FLYING SHEAR & STACKER: YOBRO #24156

36" HI-RIB (7.2 TYPE) PANEL RAFTED ROLLFORMER LINE; INCLUDES UNCOILER, FLYING SHEAR & STACKER: YOBRO #24156

Name: Used Roll Formers For Sale 24156
Brand: Unknown
SKU: 24156
Availability: PreOrder

Brand

Not specified

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

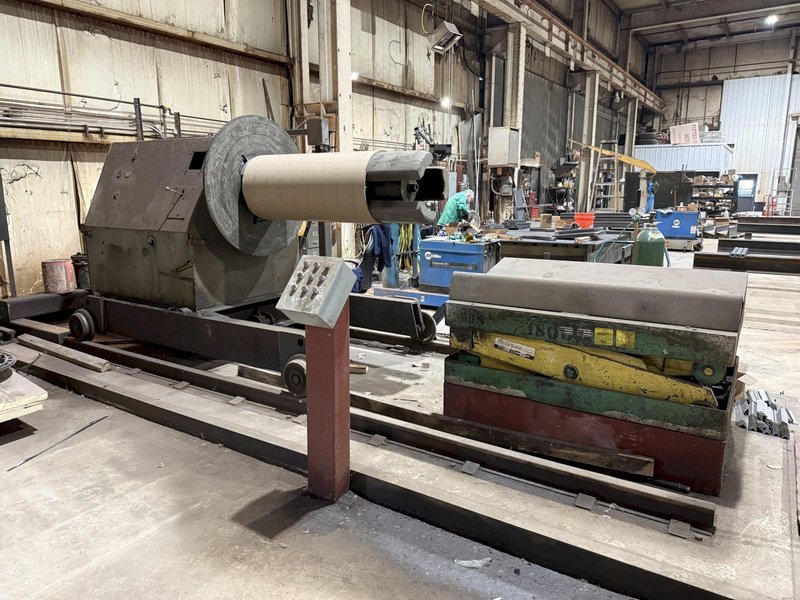

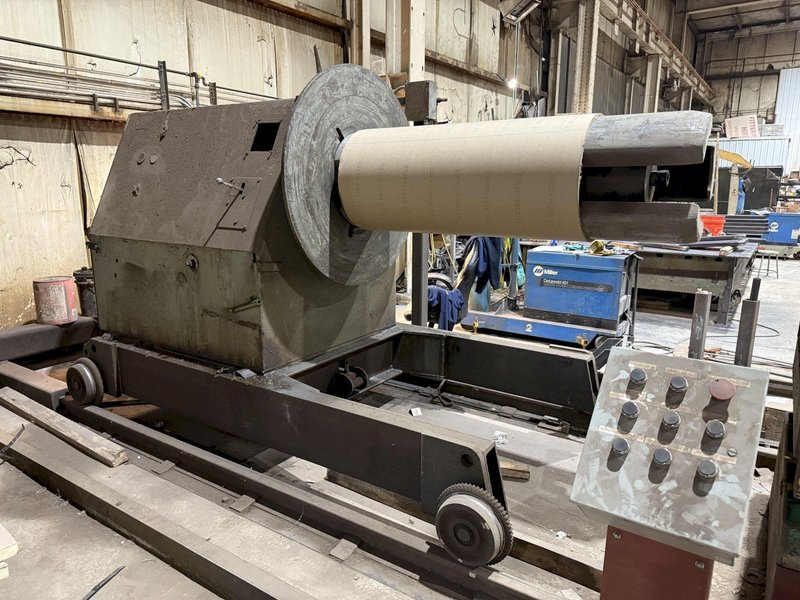

AMERICAN UNCOILER:
SERIAL .............................. 8611
MODEL ............................... 10
COIL CAPACITY ....................... 20,000 LBS
MAX COIL WIDTH ...................... 48"
MAX COIL O.D ........................ 60"
COIL I.D ............................ 14" - 20"
POWERED TRAVERSING .................. YES
OPERATOR CONTROL STATION ............ YES
DRIVE MOTOR HP ...................... 3 HP

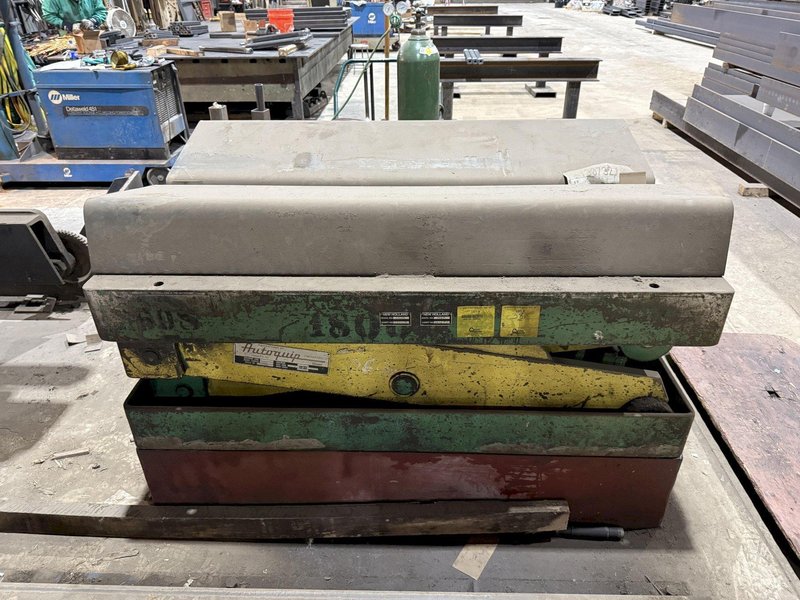

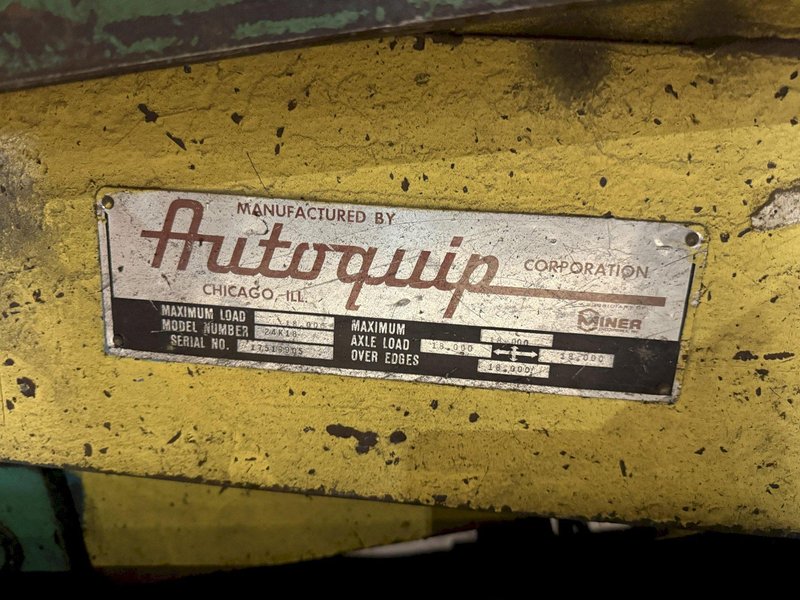

AUTOQUIP COIL CAR
SERIAL .............................. 17518905
MODEL ............................... 24K18
COIL CAPACITY ....................... 18,000 LBS

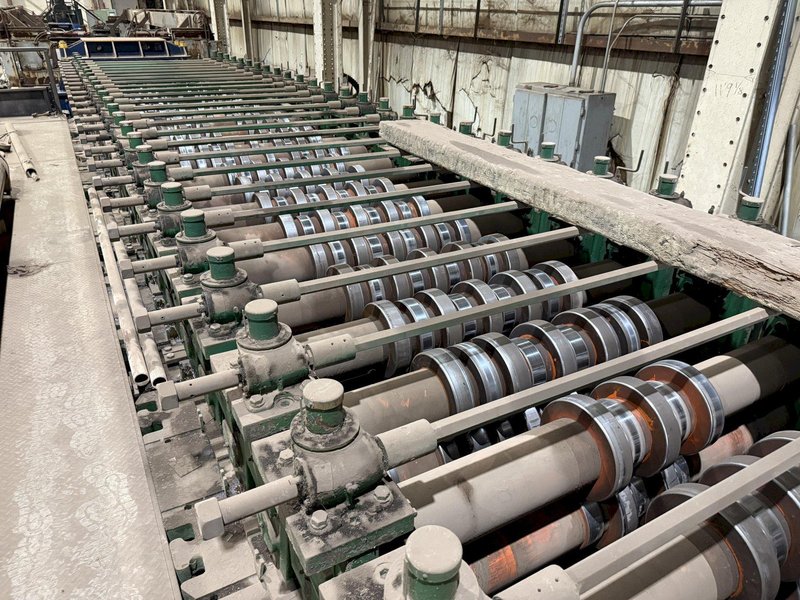

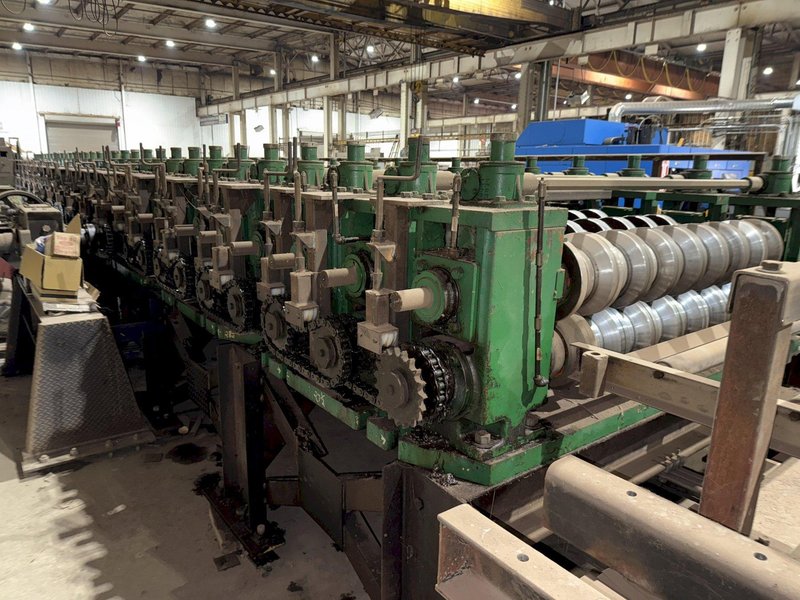

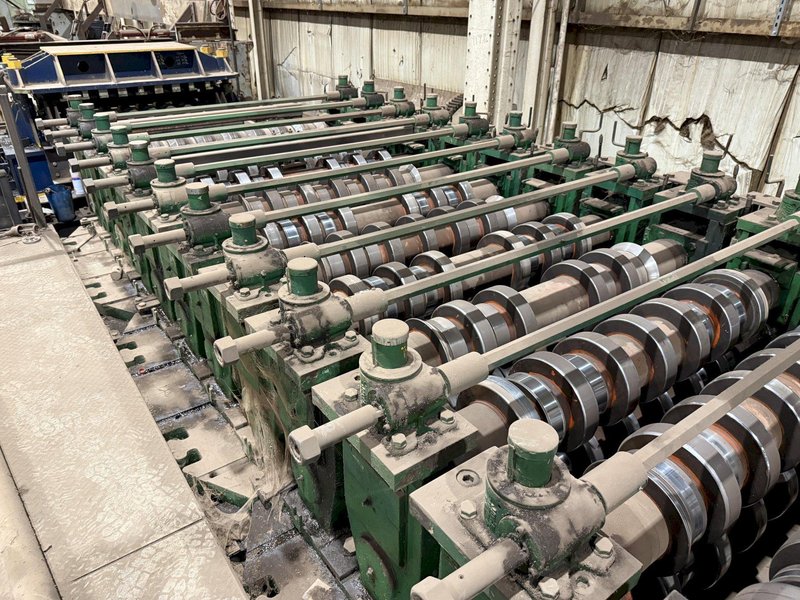

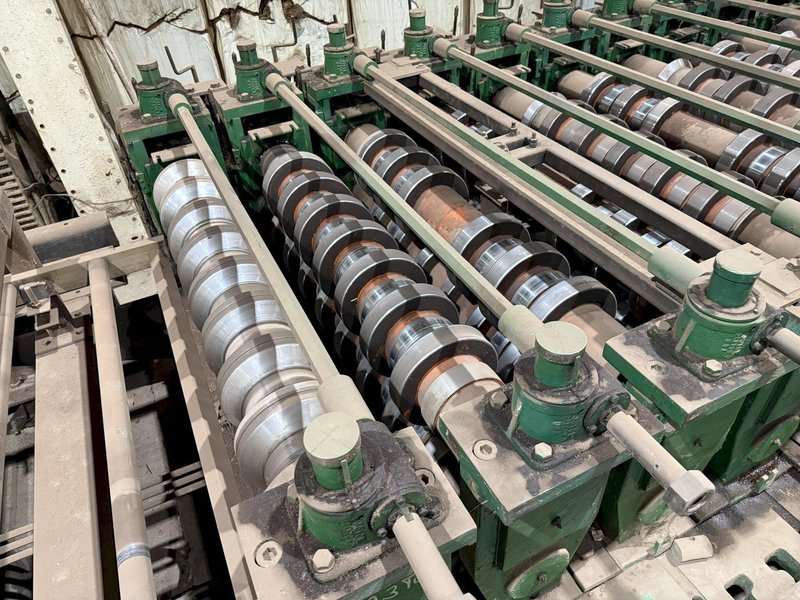

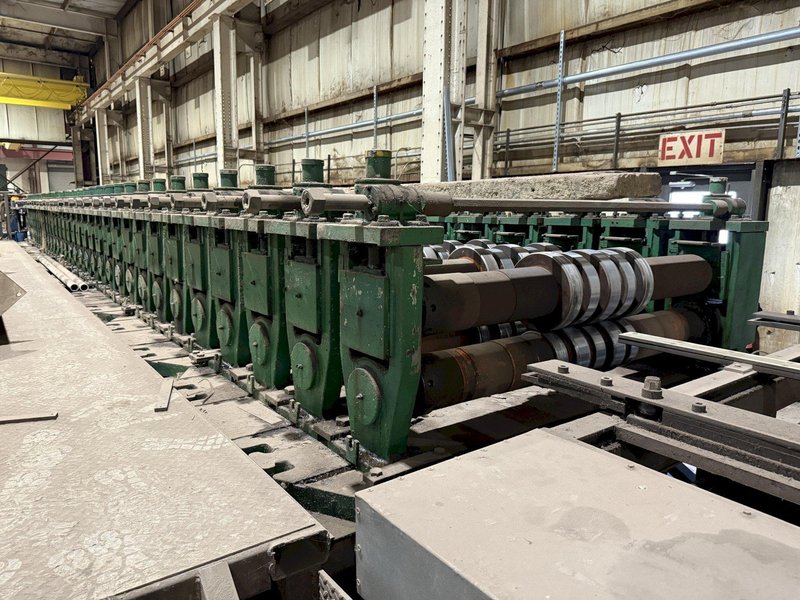

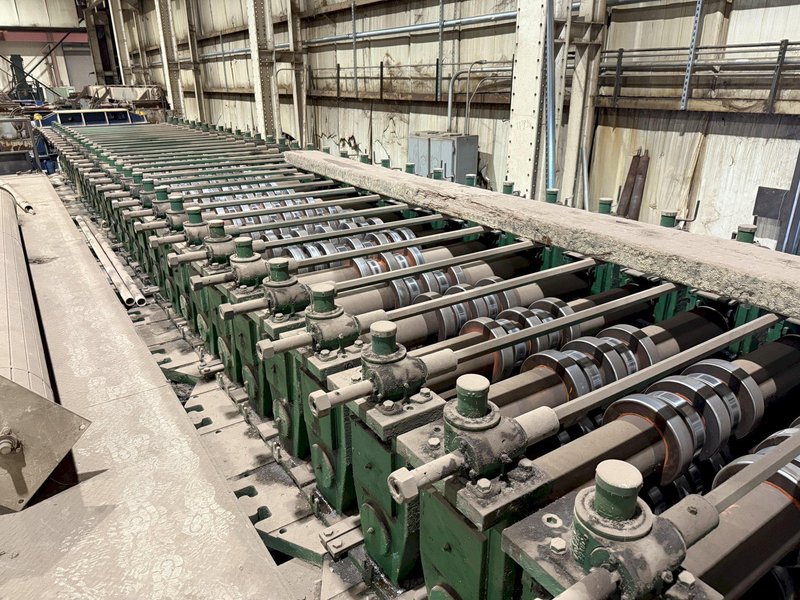

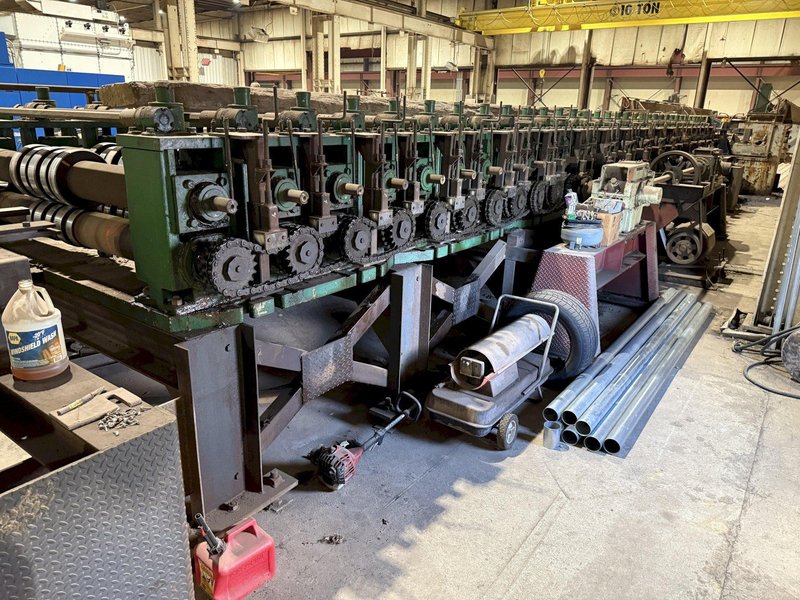

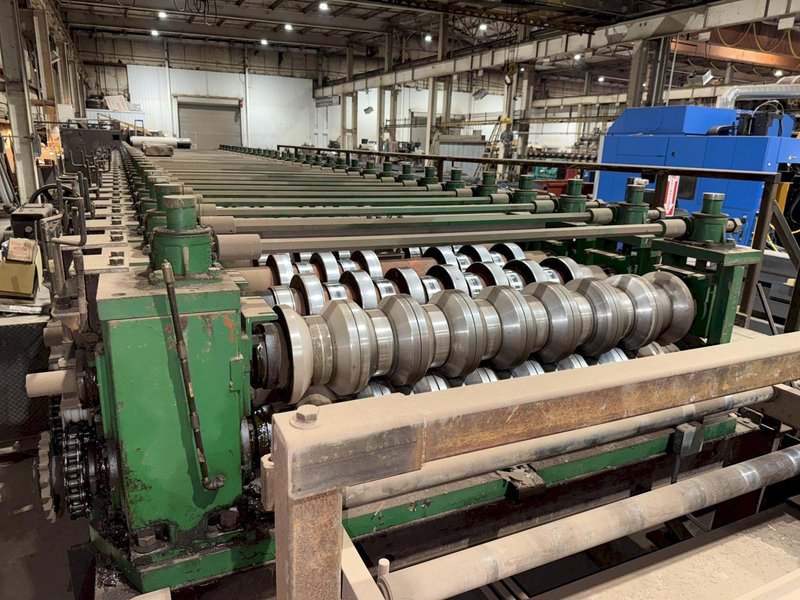

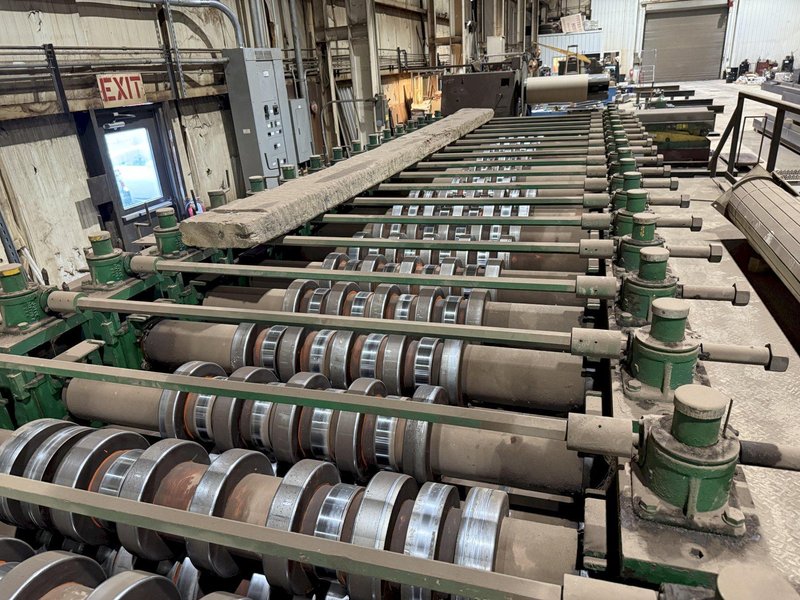

ROLLFORMER:

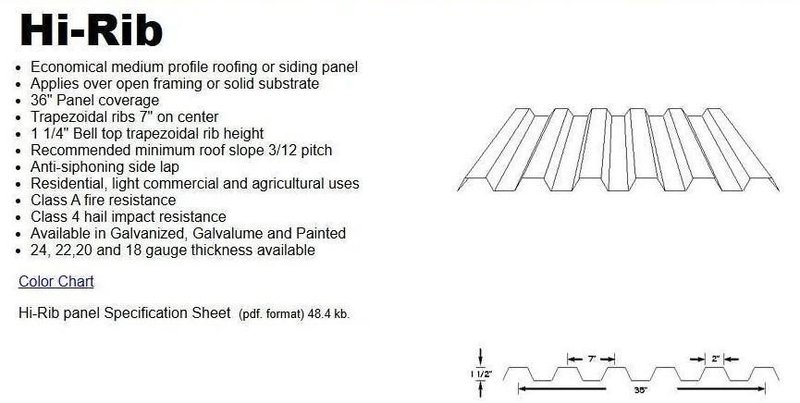

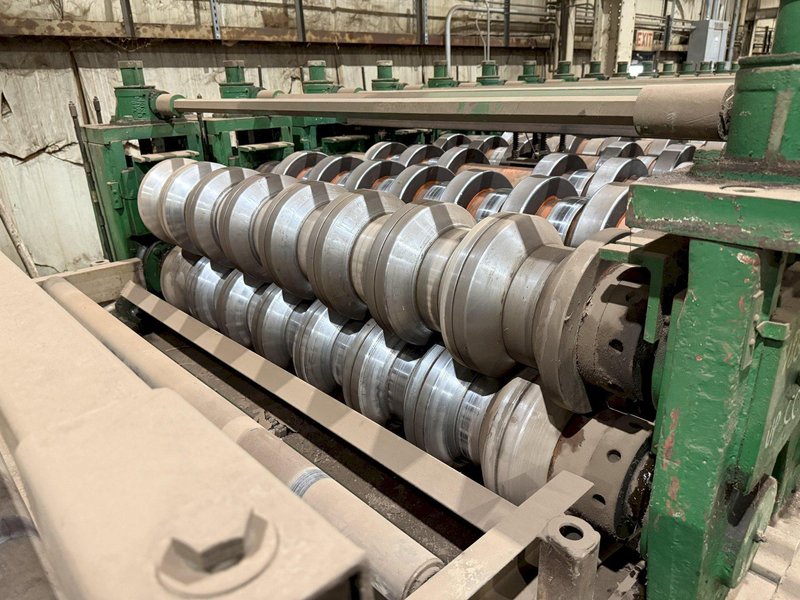

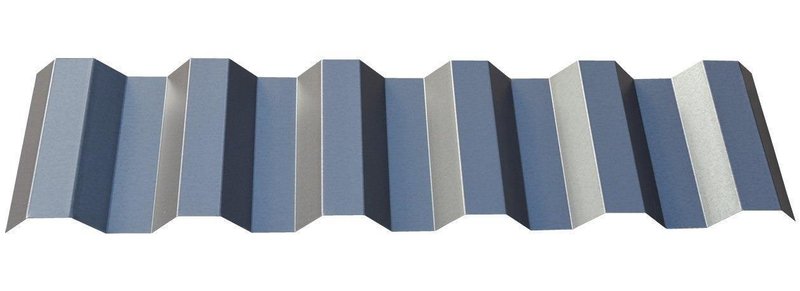

TOOLING MAKES ....................... HI-RIB PANEL
PANEL THICKENSS CAPACITY ............ 18 TO 24 GAUGE
NUMBER OF PASSES .................... 32
NUMBER OF RAFTS ..................... 8 (4 PASSES PER RAFT)
ROLL SPACING......................... 44"
HORIZONTAL CENTERS................... 15"
VERTICAL ADJUSTMENT.................. 7" - 10"
BASE TO BOTTOM OF SPINDLE............ 8"

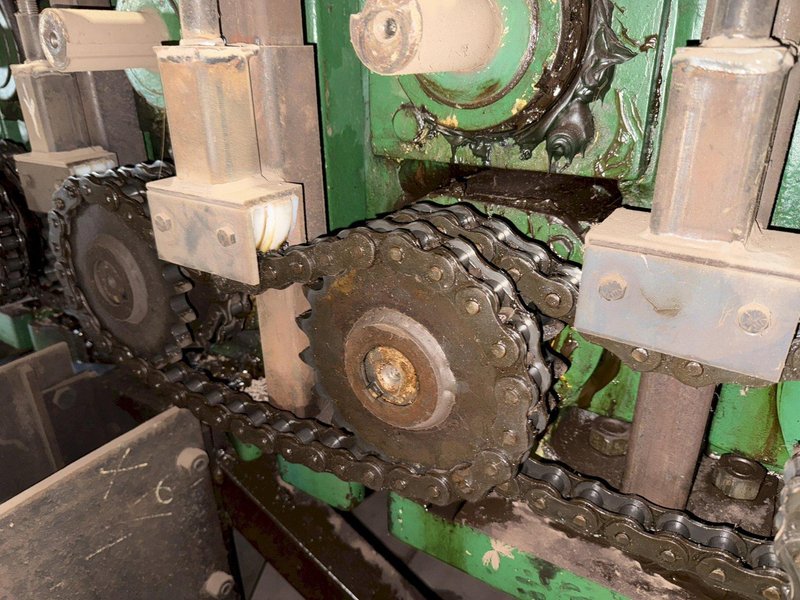

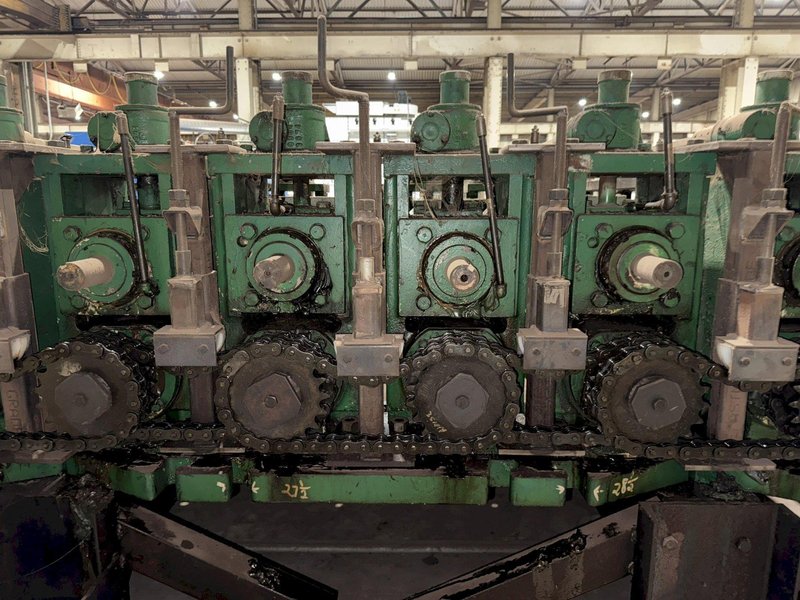

CHAIN DRIVEN ........................ YES

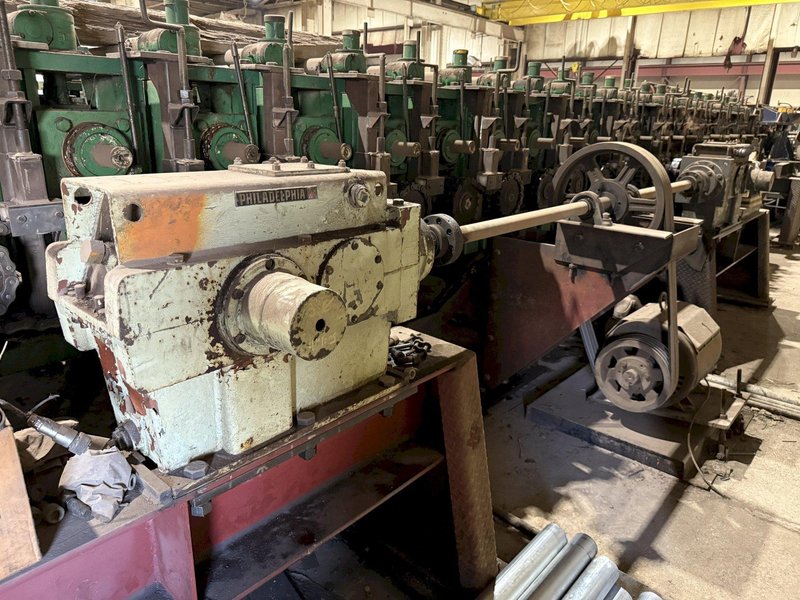

PHILADELPHIA GEAR REDUCERS .......... YES
FABRICATED STEEL BASE ............... YES

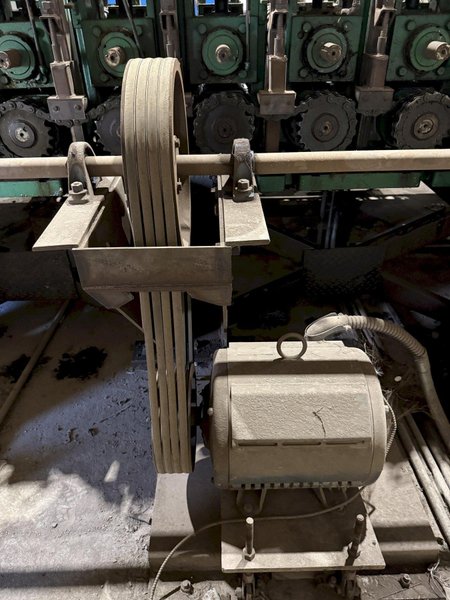

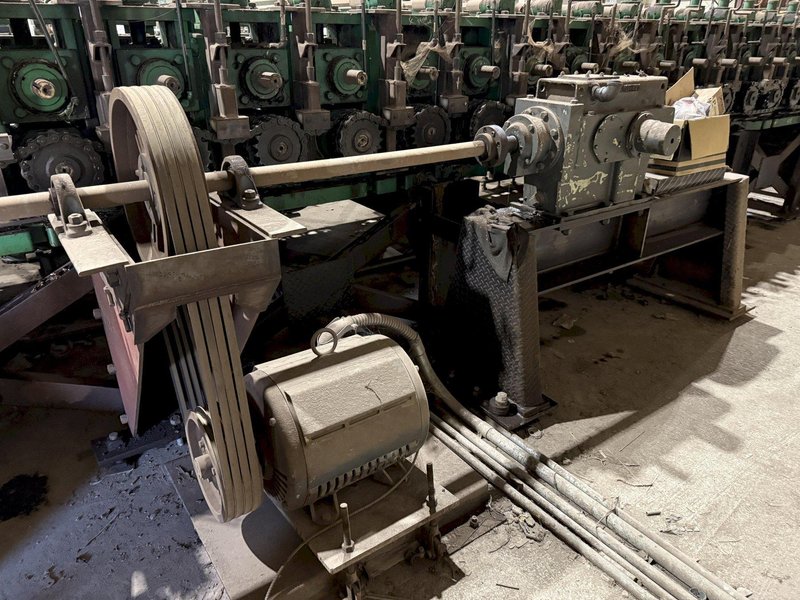

MAIN DRIVE MOTOR .................... 60 HP

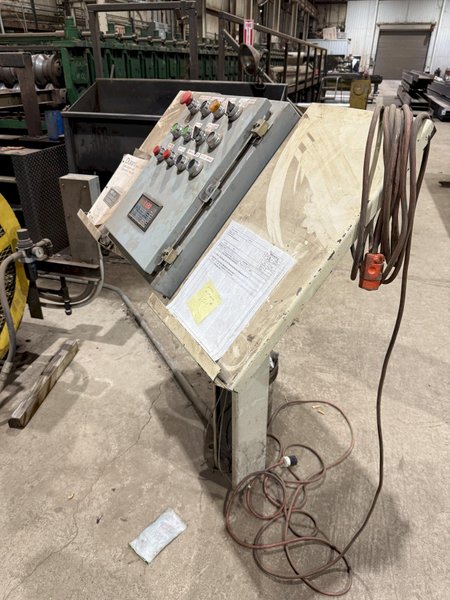

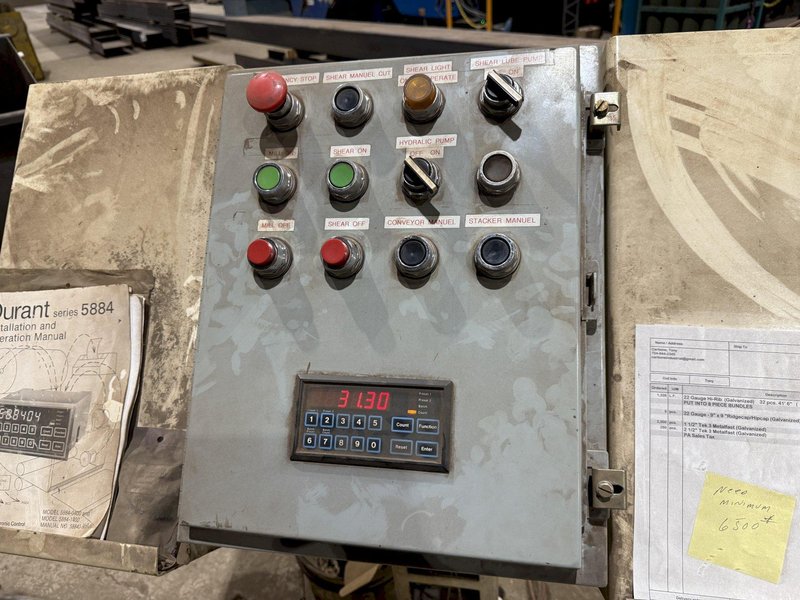

CONTROLS:
OPERATORS STATION ................... YES

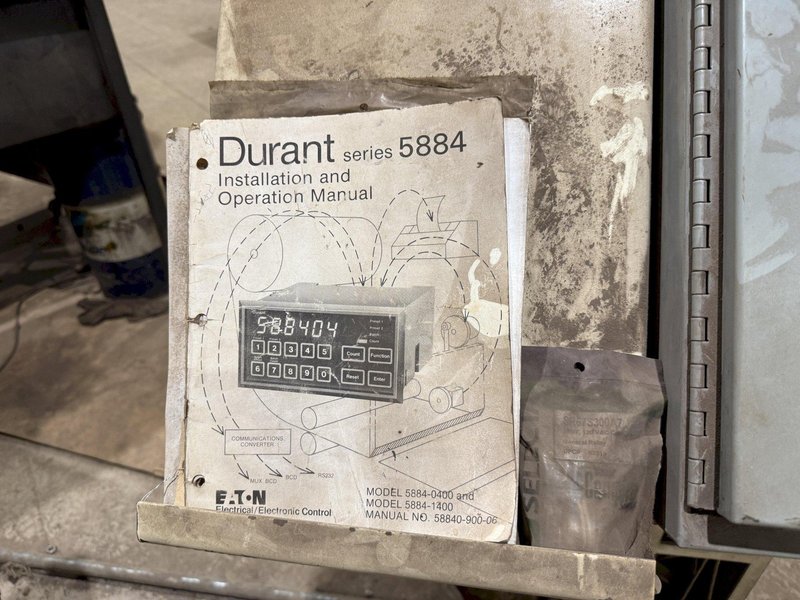

DURANT CONTROLLER ................... SERIES 5884
ROTARY DIAL COUNTER ................. YES

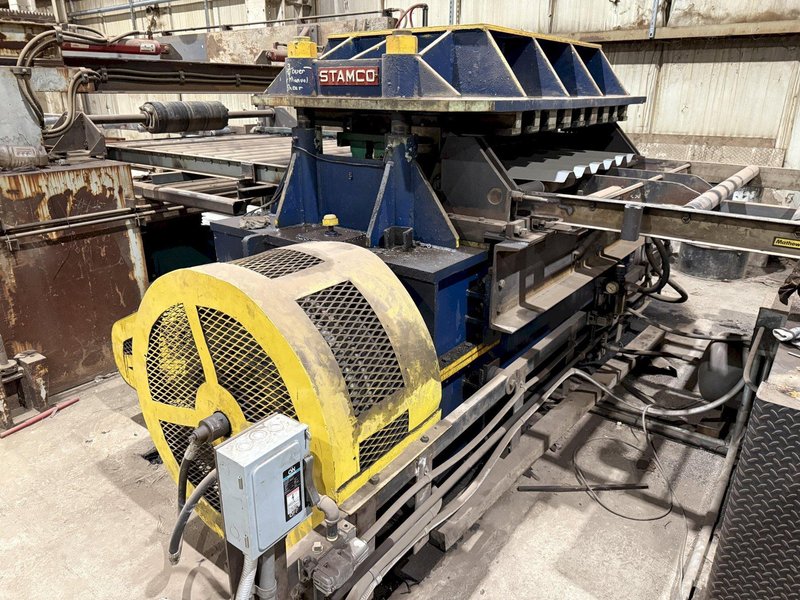

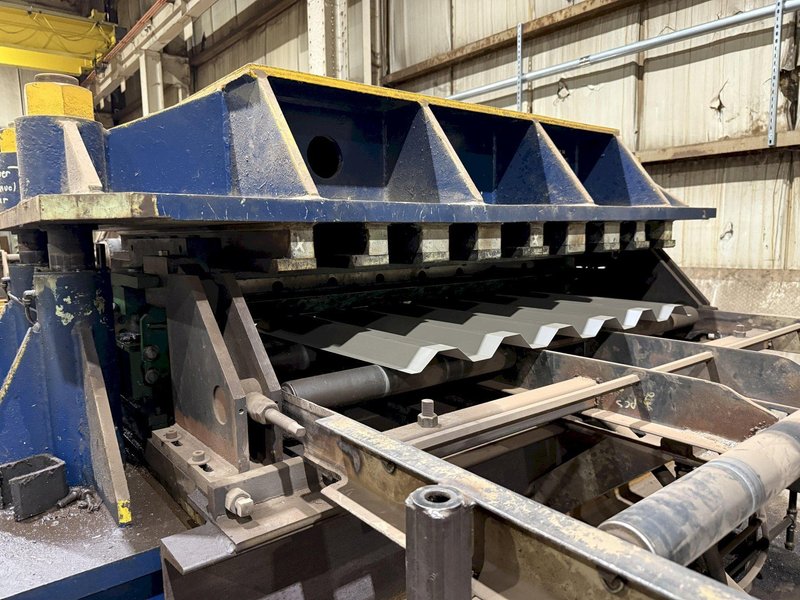

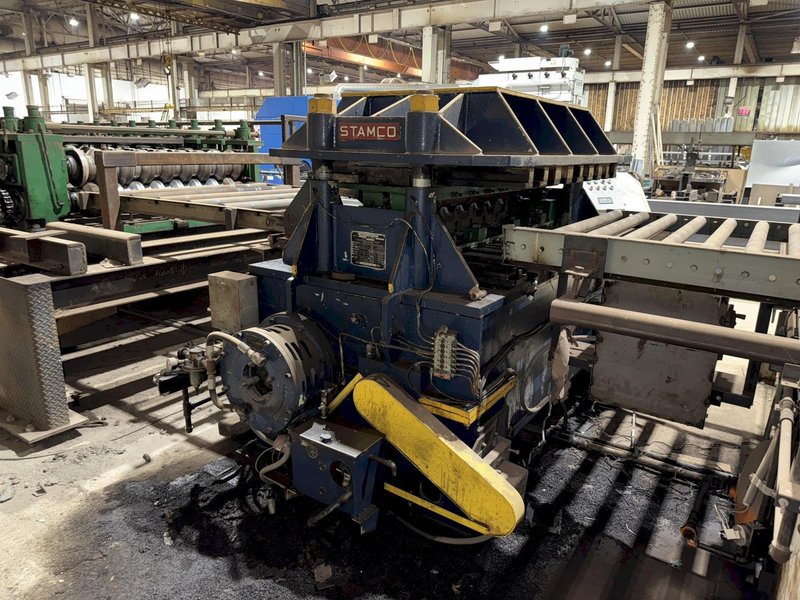

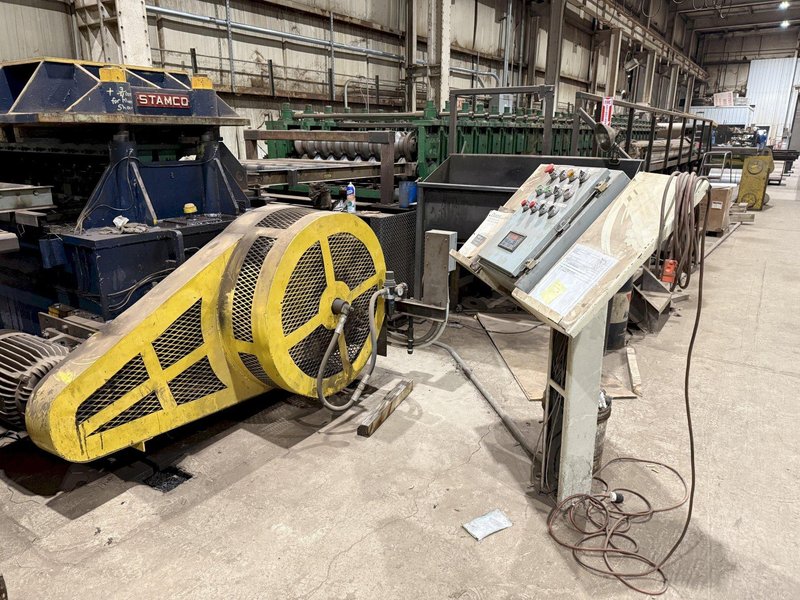

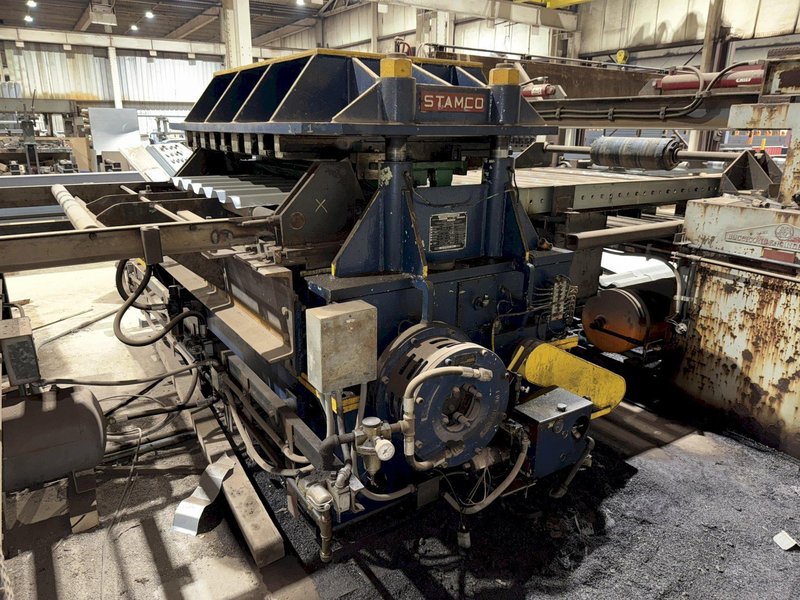

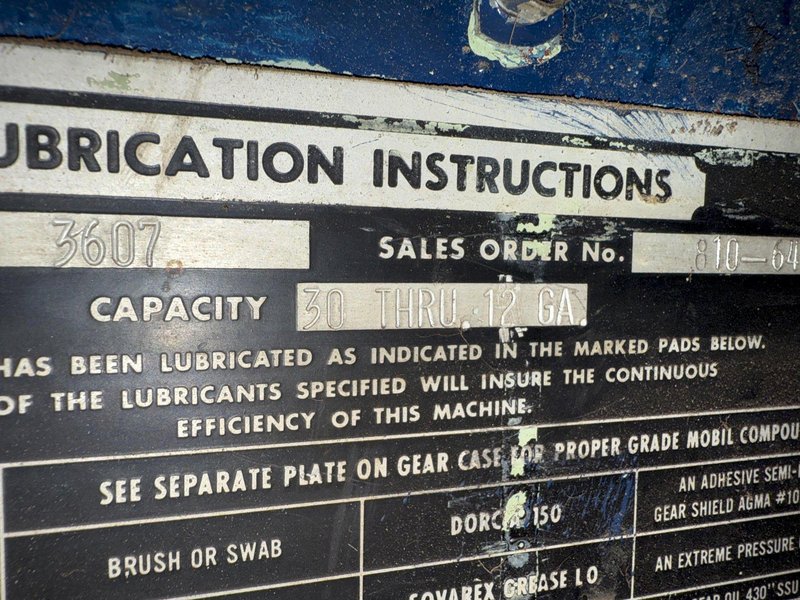

STAMCO CUT OFF PRESS:
SERIAL .............................. 810-64
MODEL ............................... 3607
COIL CAPACITY ....................... 30 THRU 12 GA

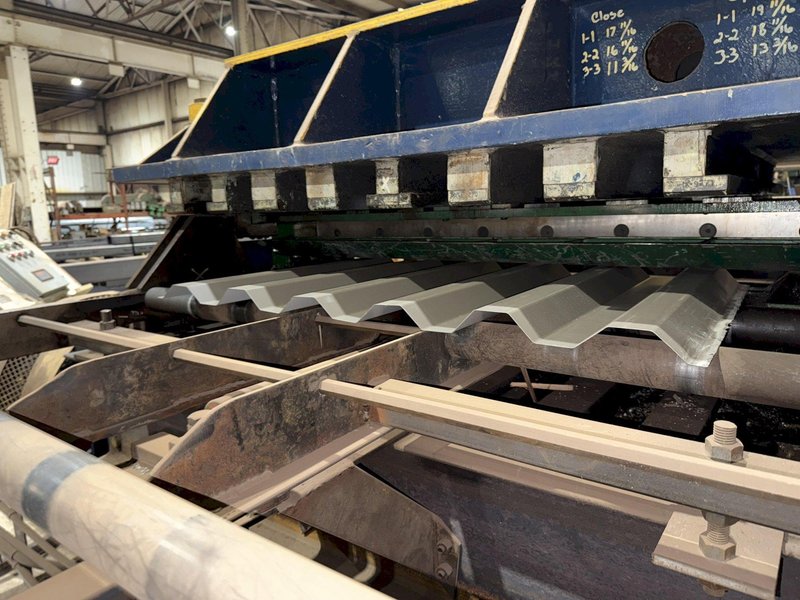

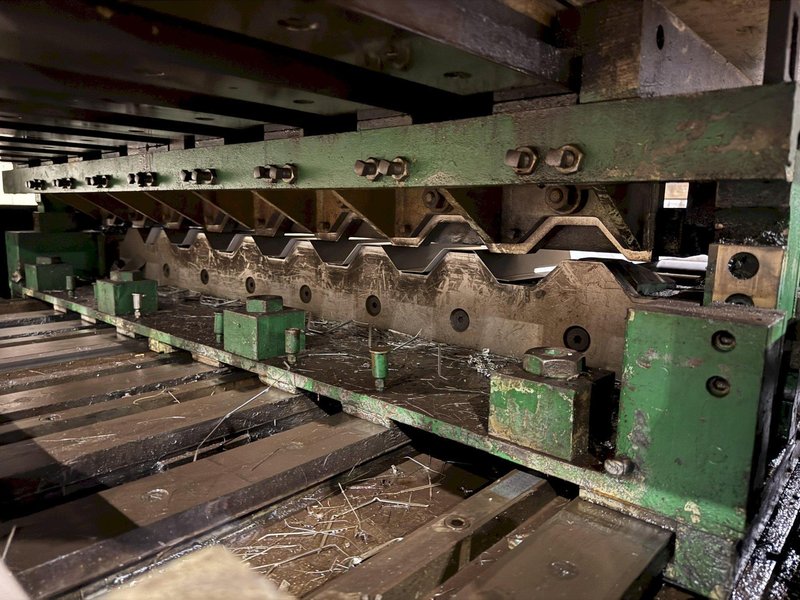

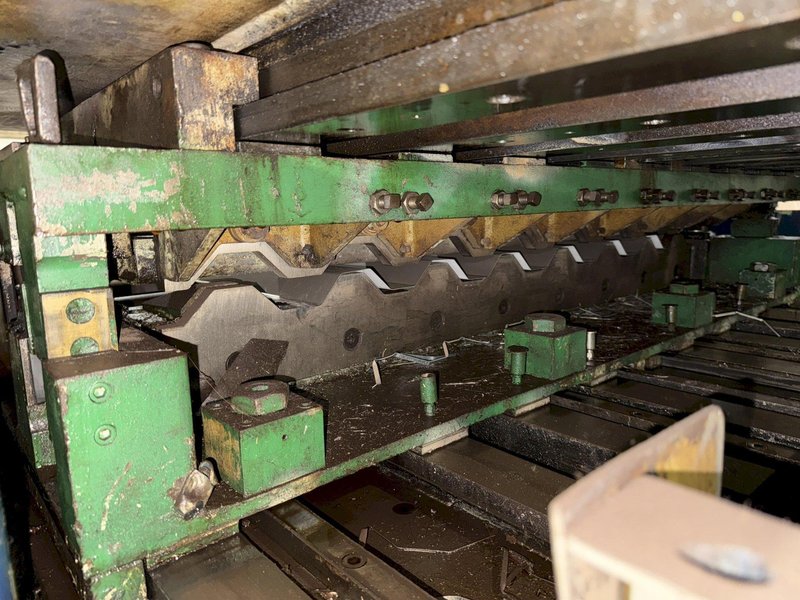

FLYING CUT OFF DIE .................. YES
AIR CLUTCH .......................... YES
MAIN DRIVE MOTOR .................... 15

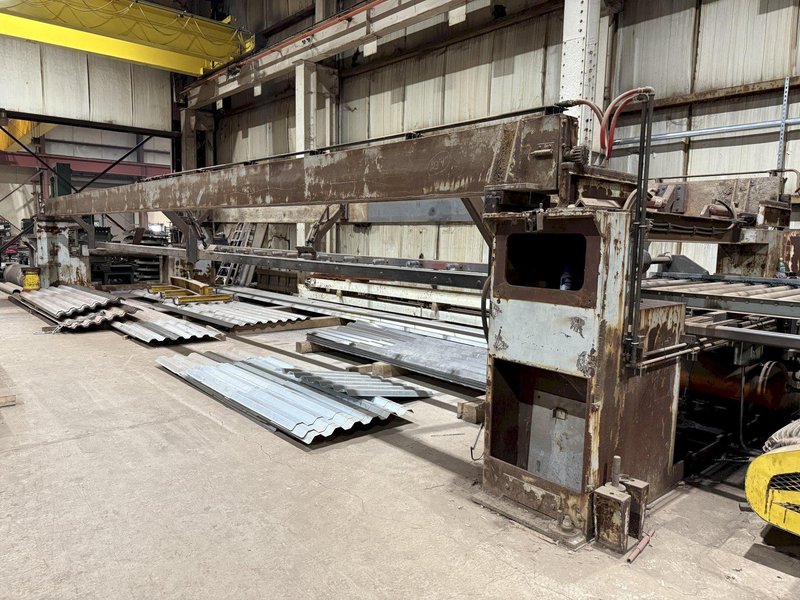

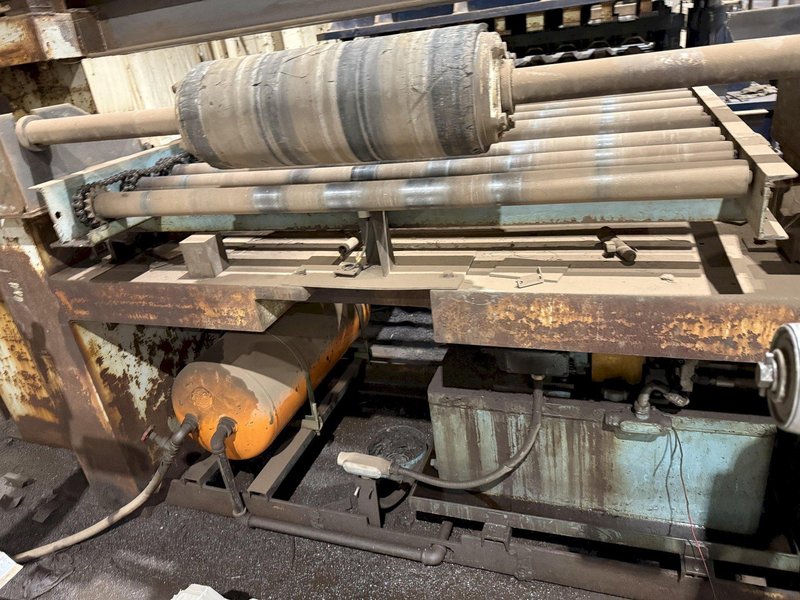

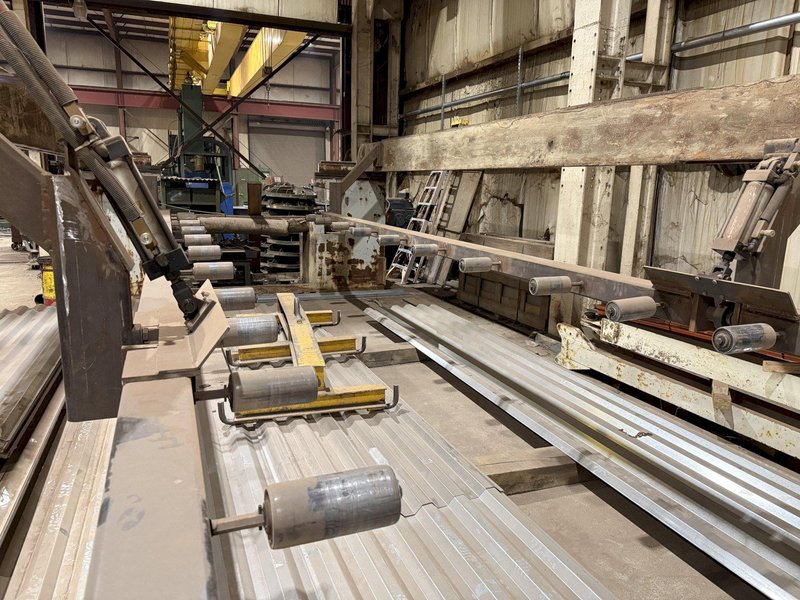

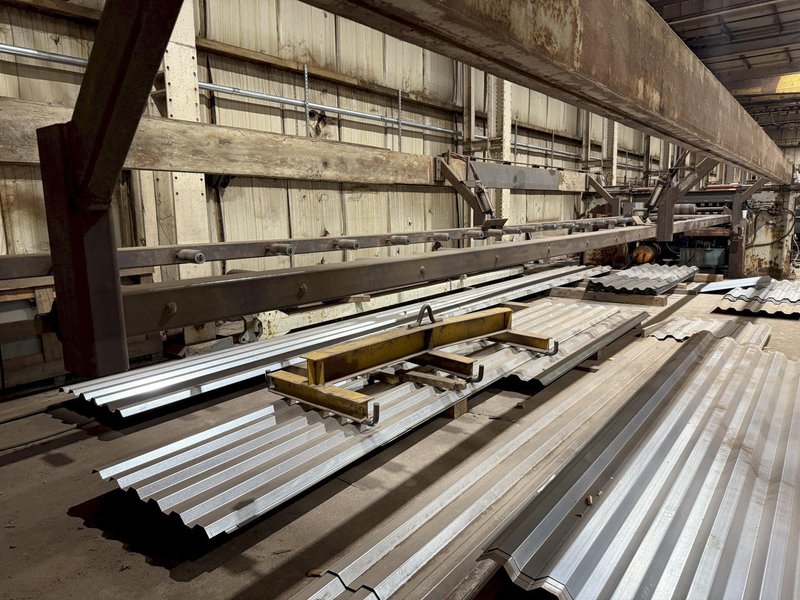

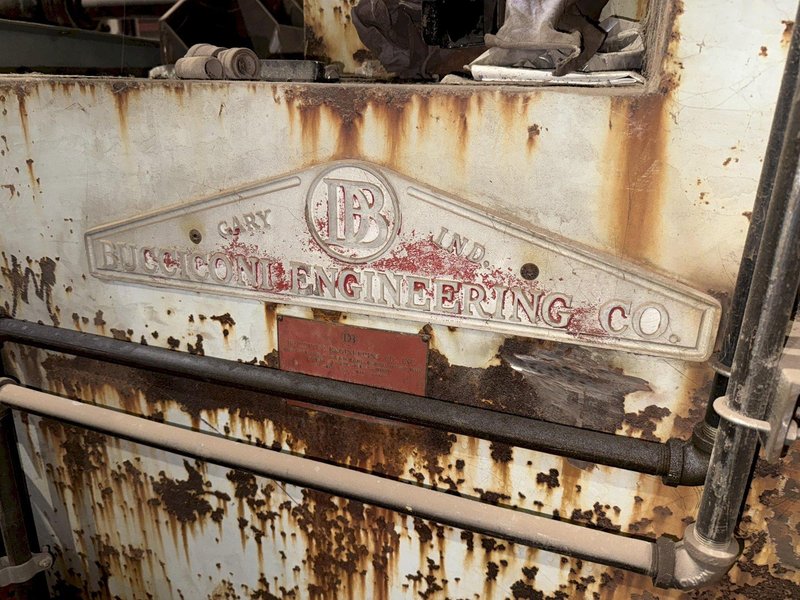

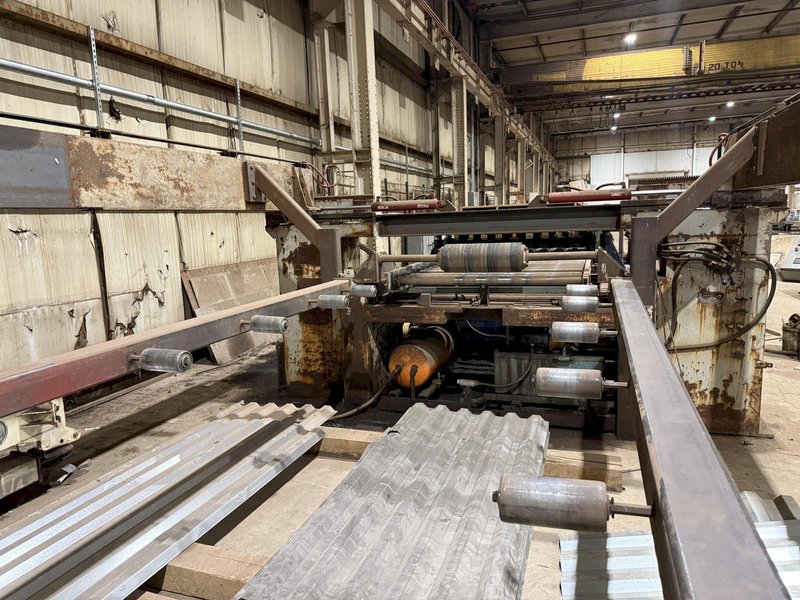

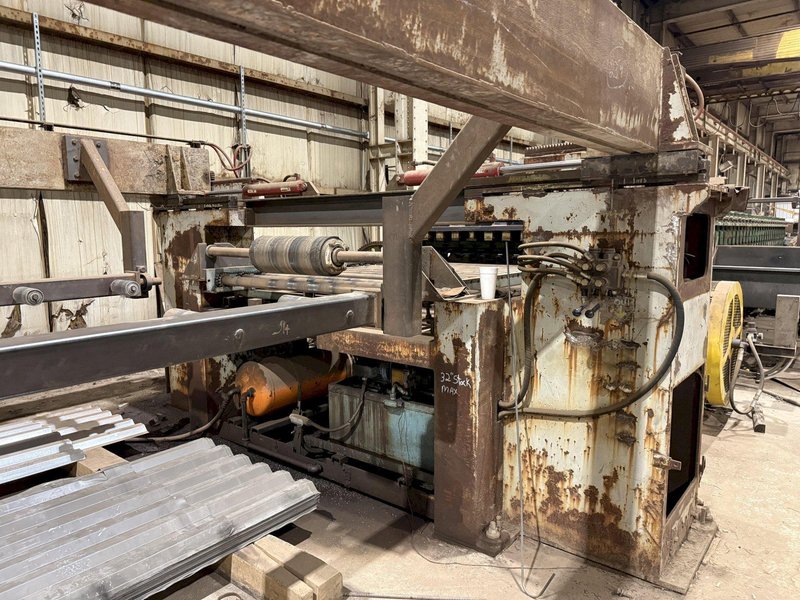

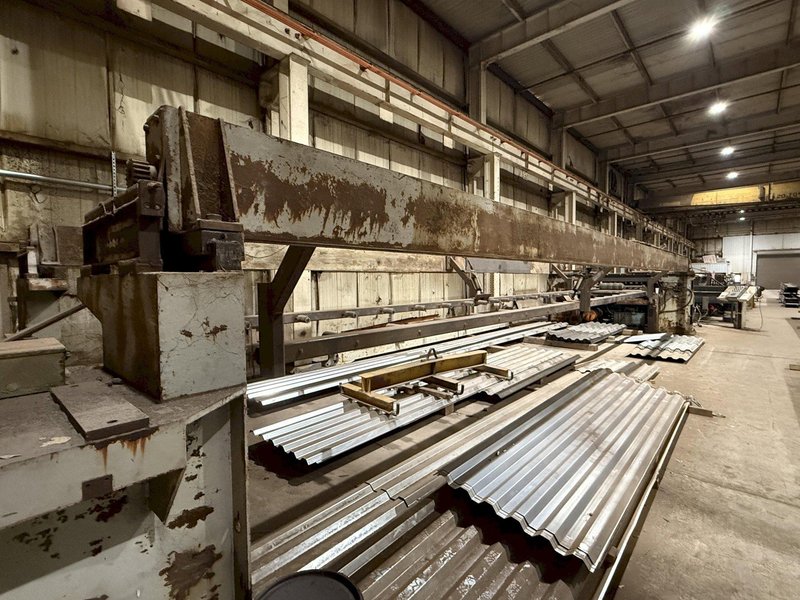

BUCCICONI ENGINEERING SHEET STACKER:
MAX LENGTH OF PANEL ................. 40'
ADJUSTABLE WIDTH .................... YES, HYDRAULIC ADJUSTMENT
DUAL ARM DESIGN ..................... YES
RUNOUT ROLLERS ...................... YES
