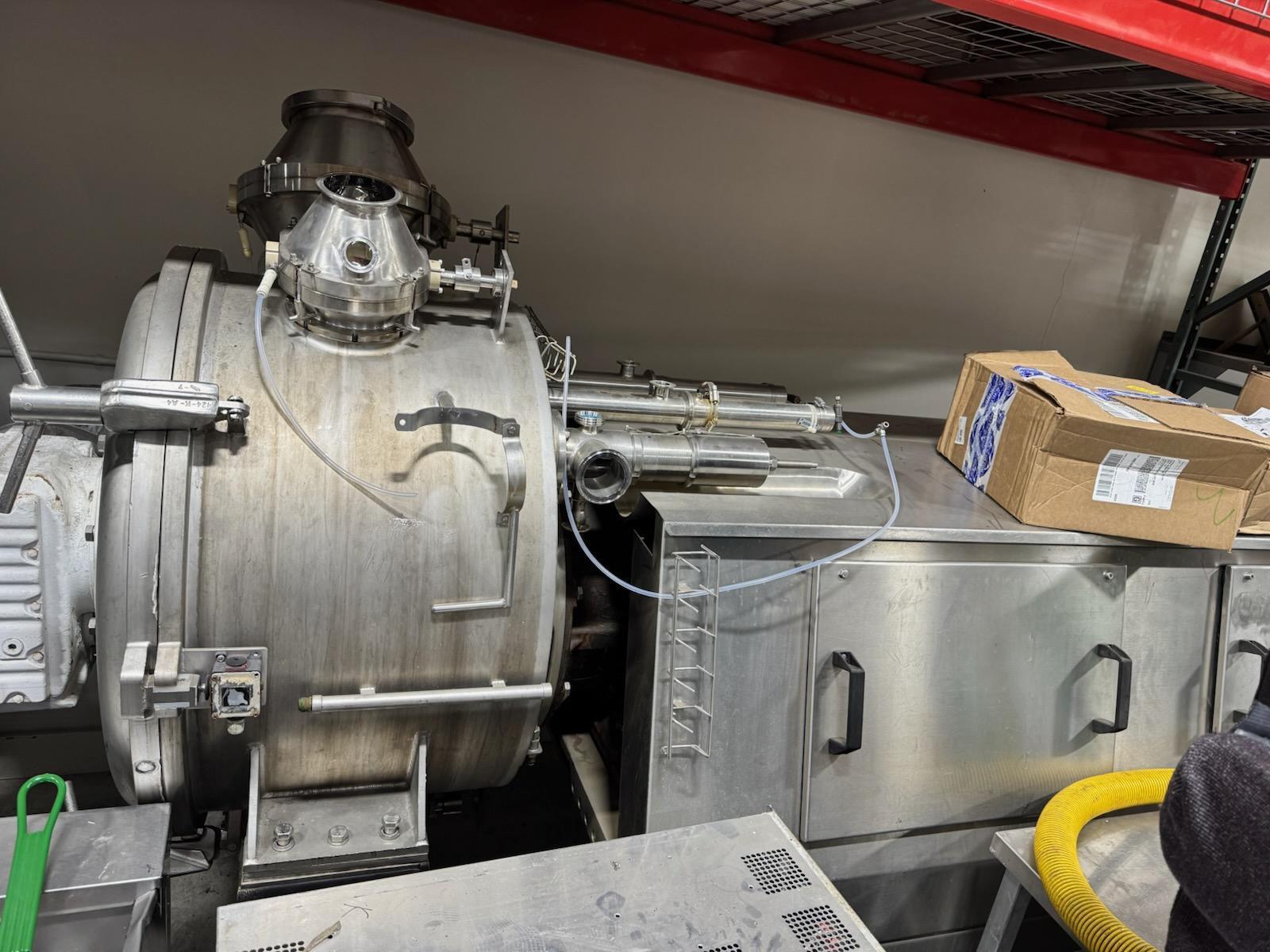

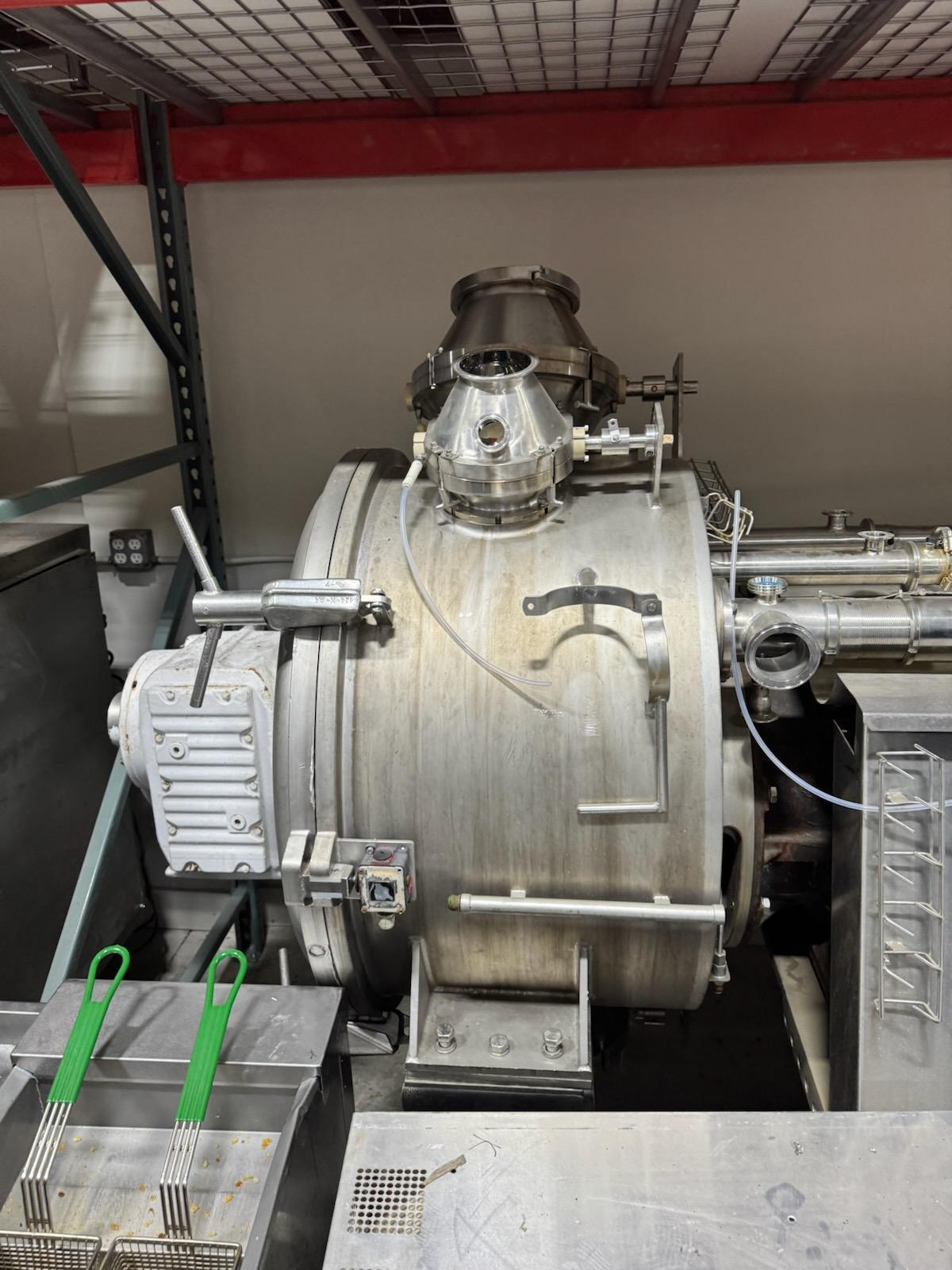

Stephan 300L Mixer

Net vessel volume: 300 L (batch size ~100–220 L)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Processes: mixing, cutting, dispersing, emulsifying, heating, cooling, deaerating

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heating: steam jacket and/or direct steam injection

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cooling: jacket cooling with chilled water options

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature capacity: up to ~95 °C

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor power: ~75 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Energy consumption: ~50–58 kWh/h (process-dependent)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Steam requirement: ~130 kg/h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: approx. 3.5 m × 2.8 m × 3.2 m (L×W×H)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: ~4,400 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vacuum deaeration option available

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Discharge: bottom seat valve / slide valve

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control: PLC / HMI automation (varies by year and retrofit)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
