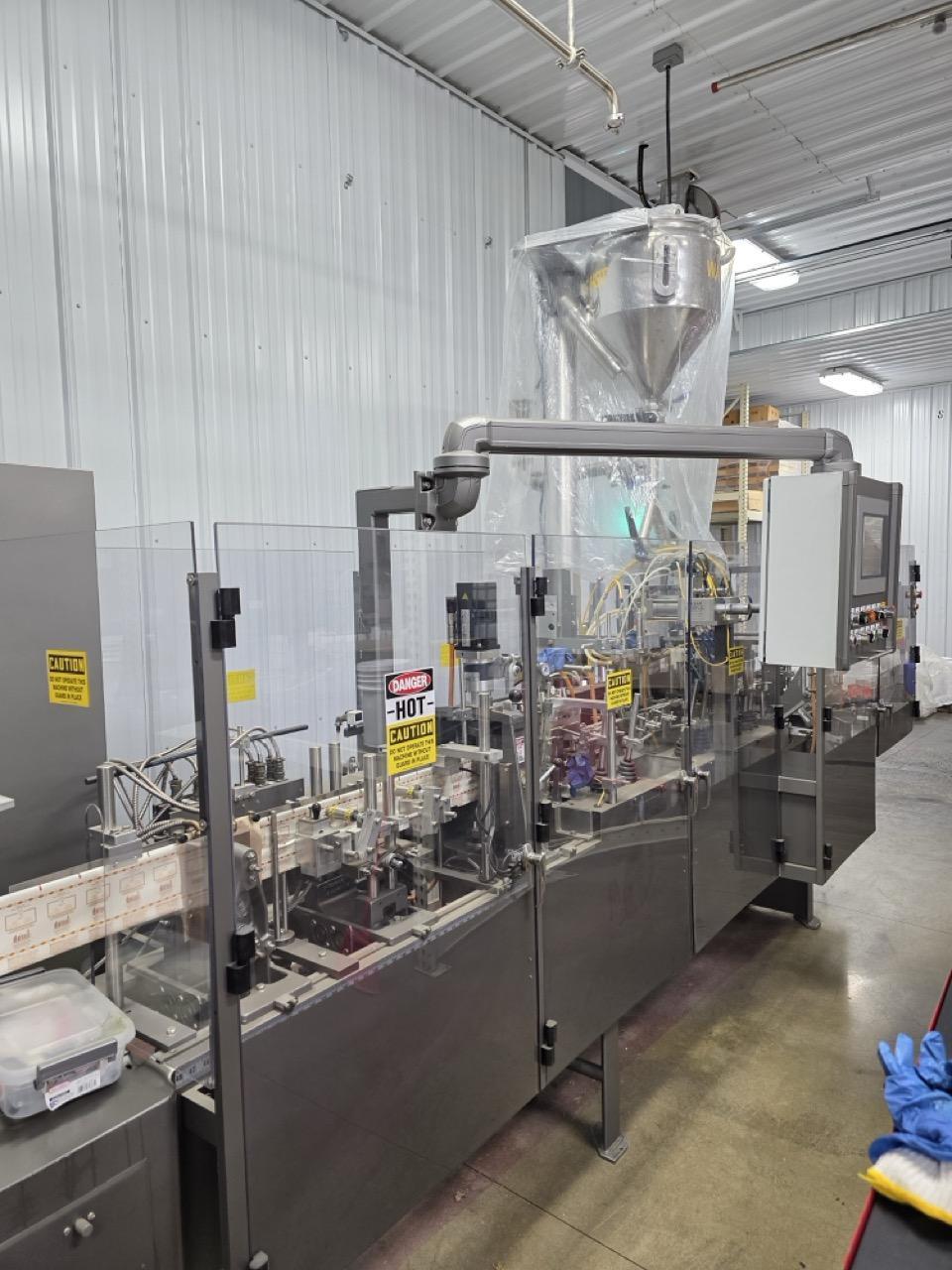

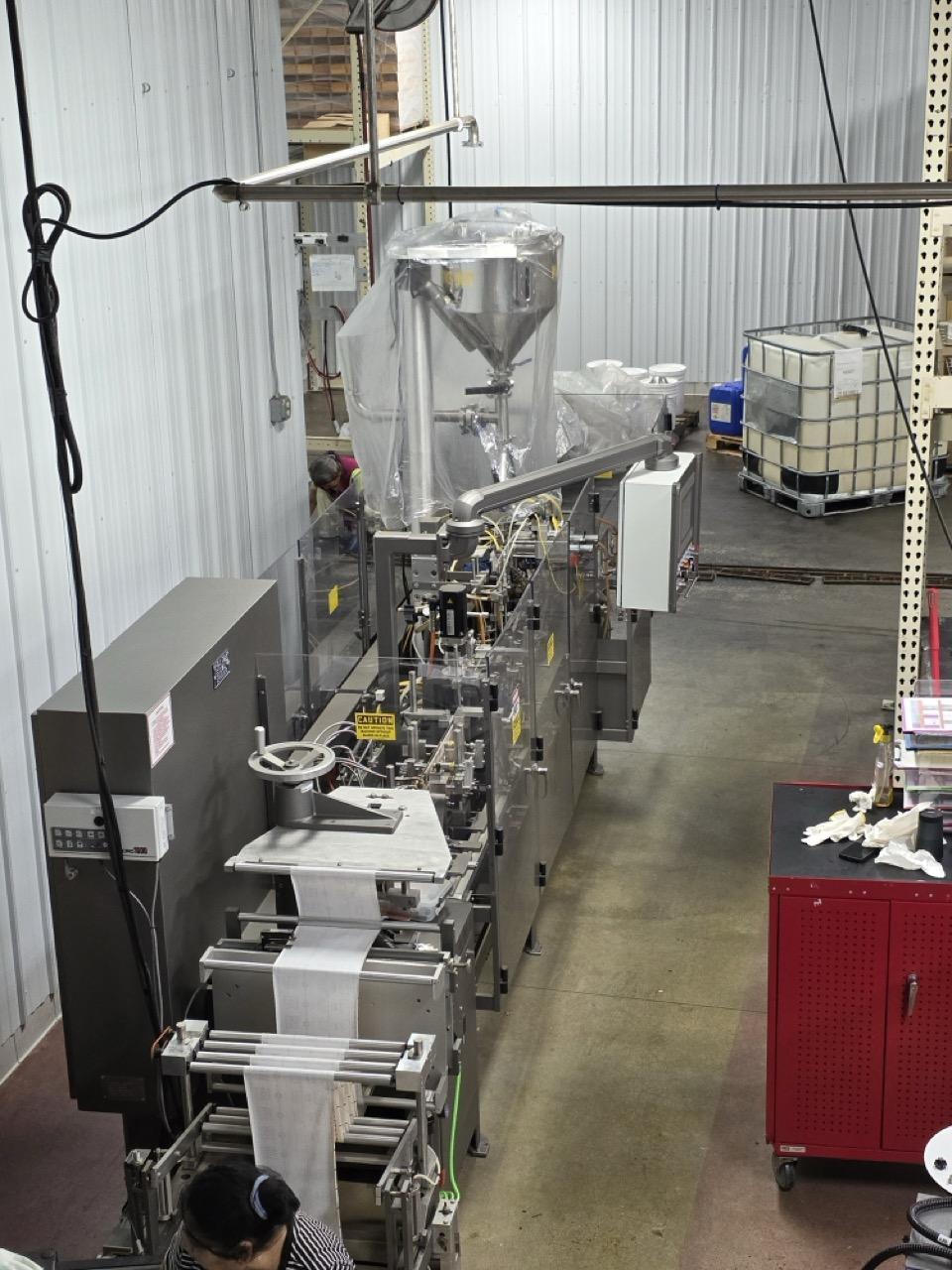

HMC Pouchmaster Packager IM 7-12 HFFS for Liquid Packaging in 1-up or 2-up Configuration, 2020

Used HMC Pouchmaster Packager IM 7-12 HFFS for Liquid Packaging in 1-up or 2-up Configuration for sale:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This horizontal form fill and seal machine was previously used to package a viscous condiment into sachets

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Minimum pouch size: 4 x 4 – Maximum pouch size: 9 3/4″ x 13 1/2″ – Maximum gusset size: 3″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Electrical requirements: 480V, 60Hz, 50 Amp – Air requirements: 35 CFM, 80 PSI (Minimum), 3/4″ line minimum feed

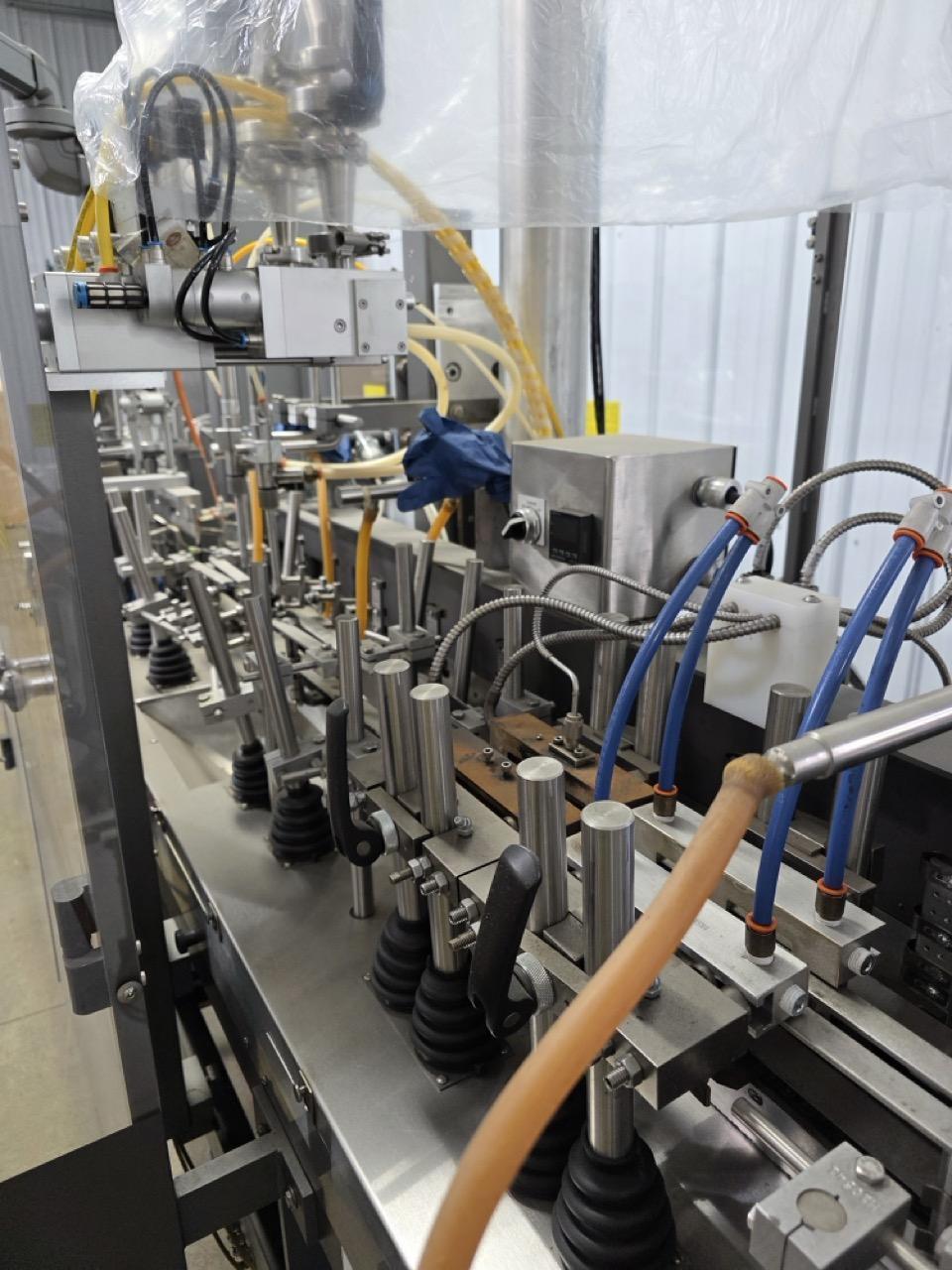

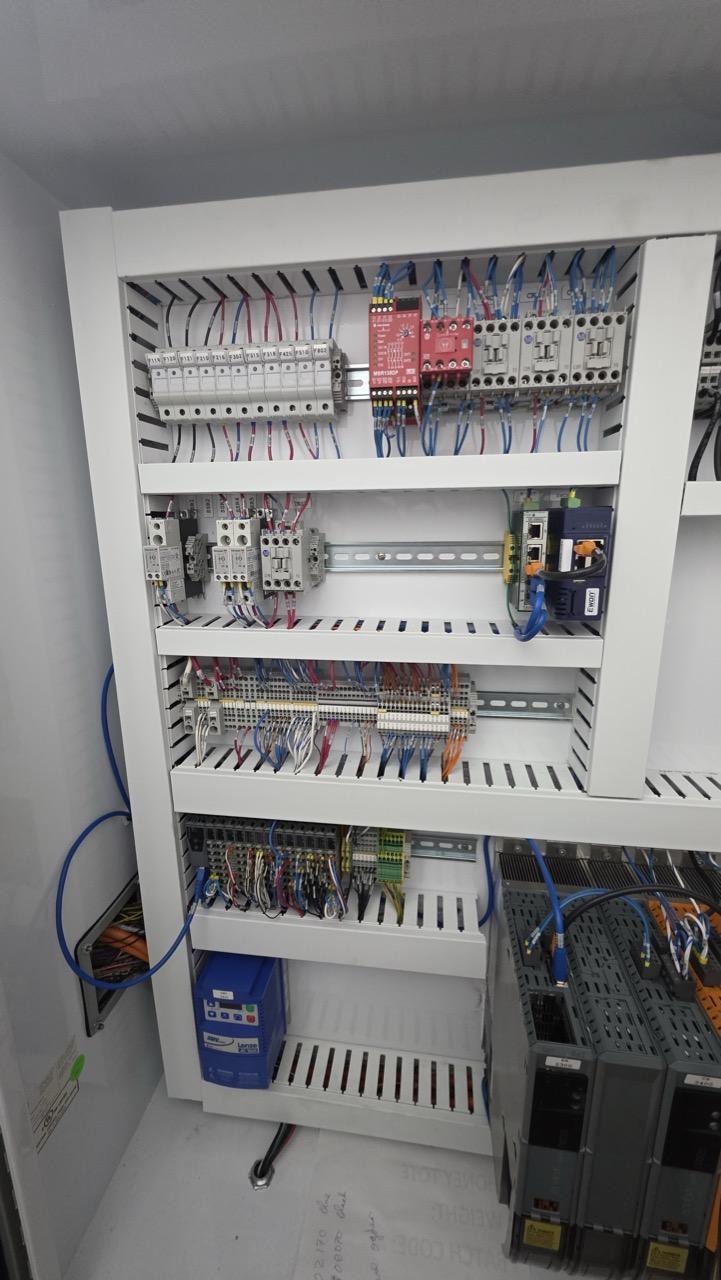

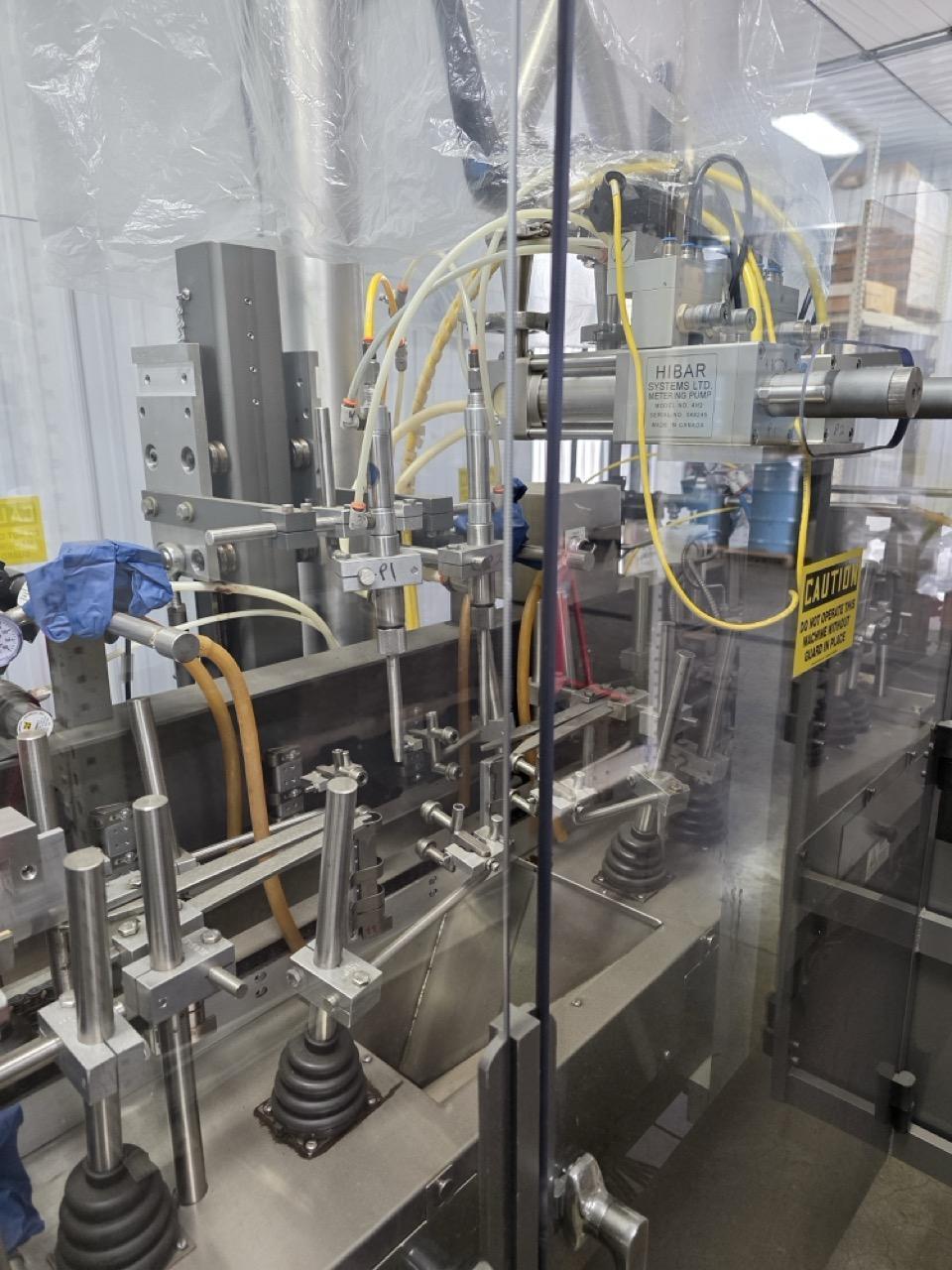

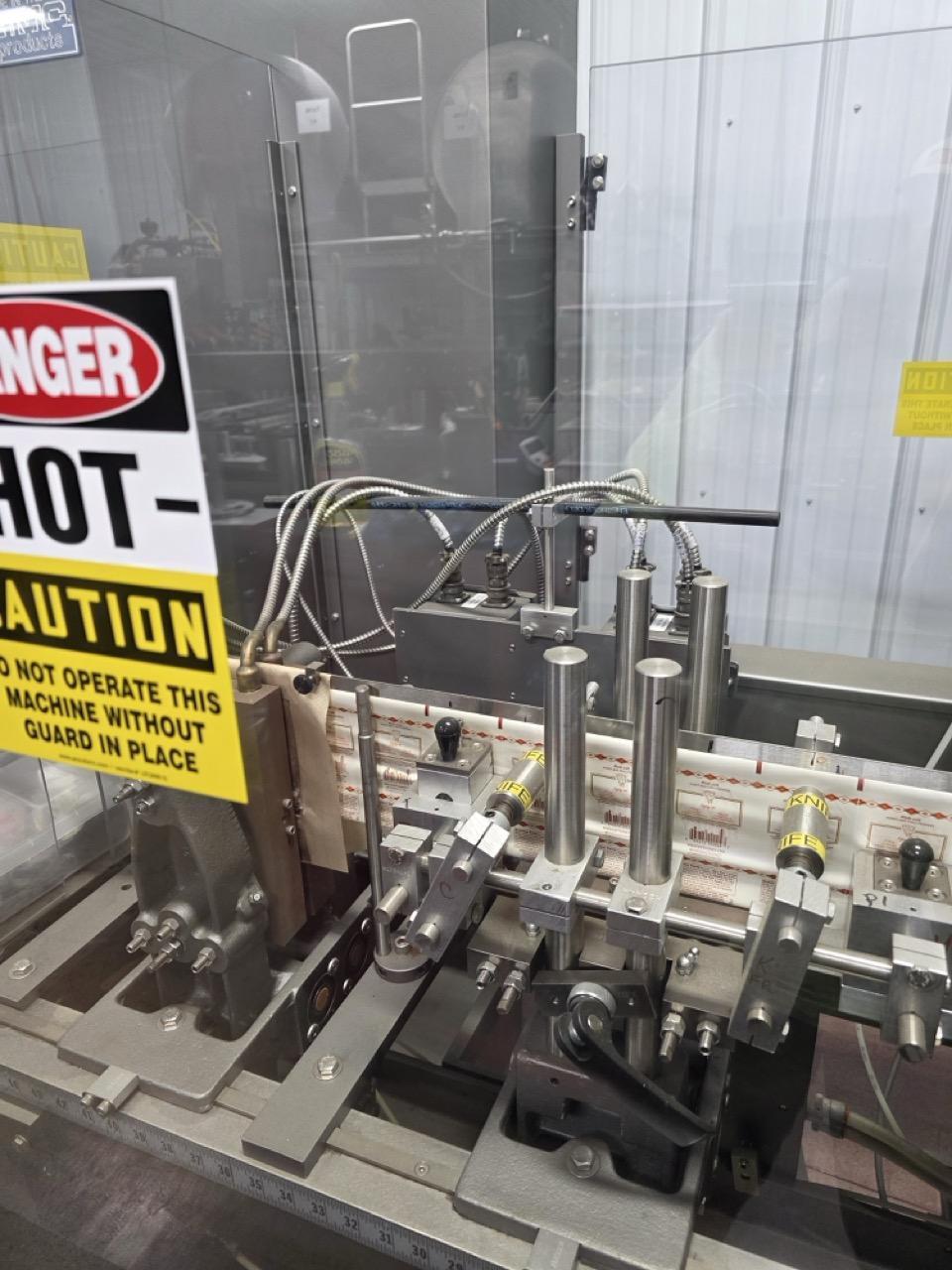

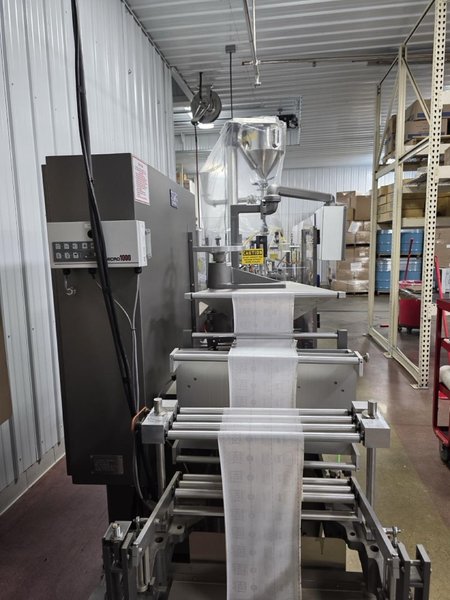

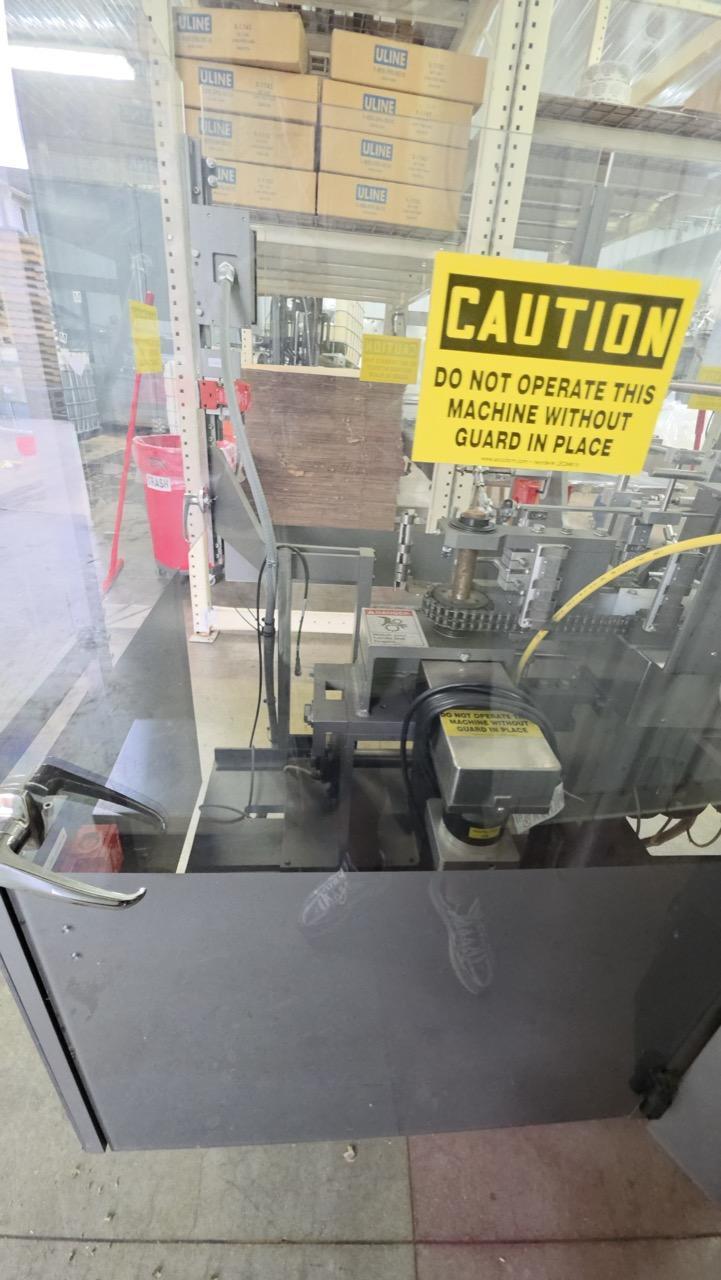

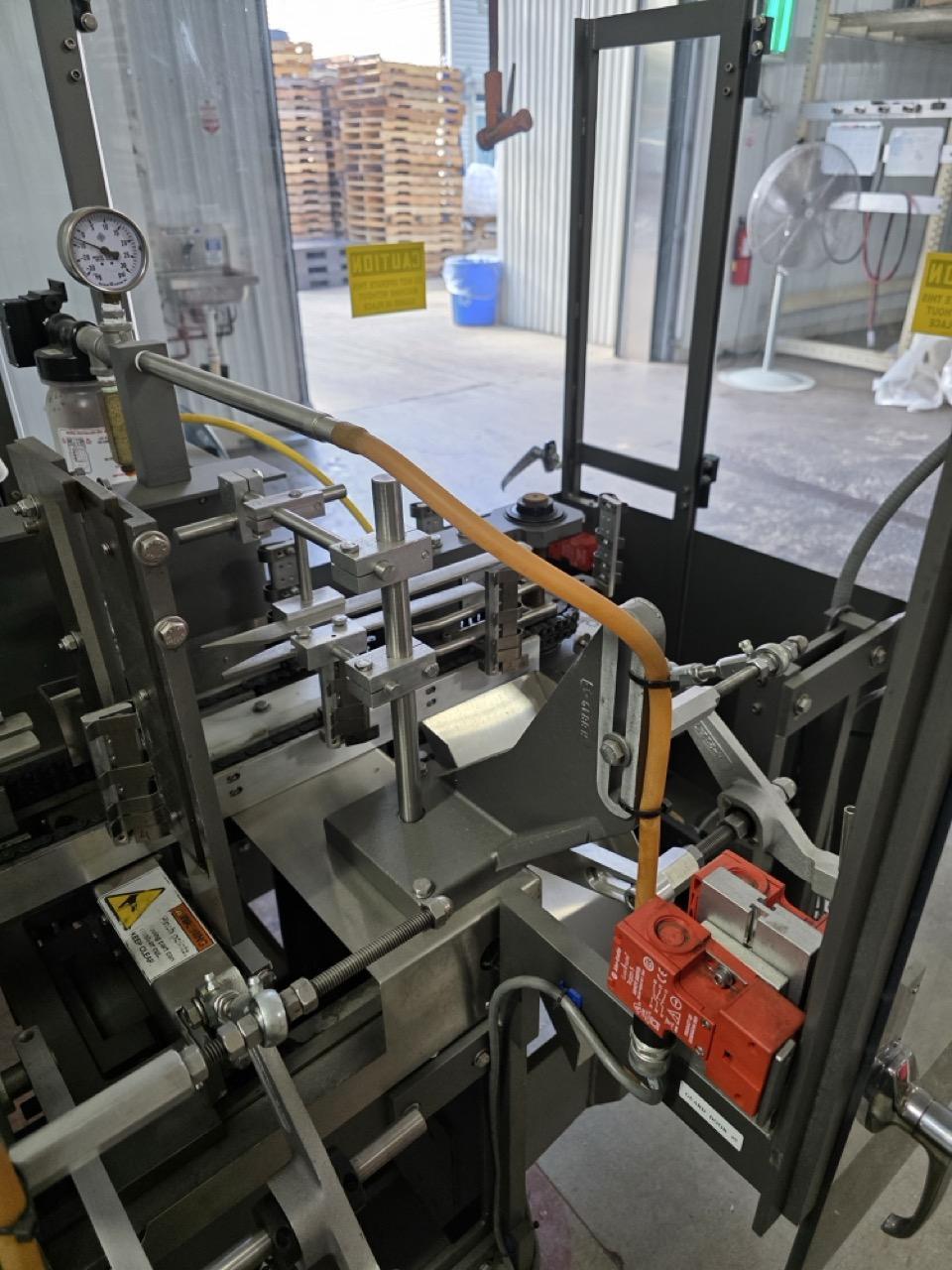

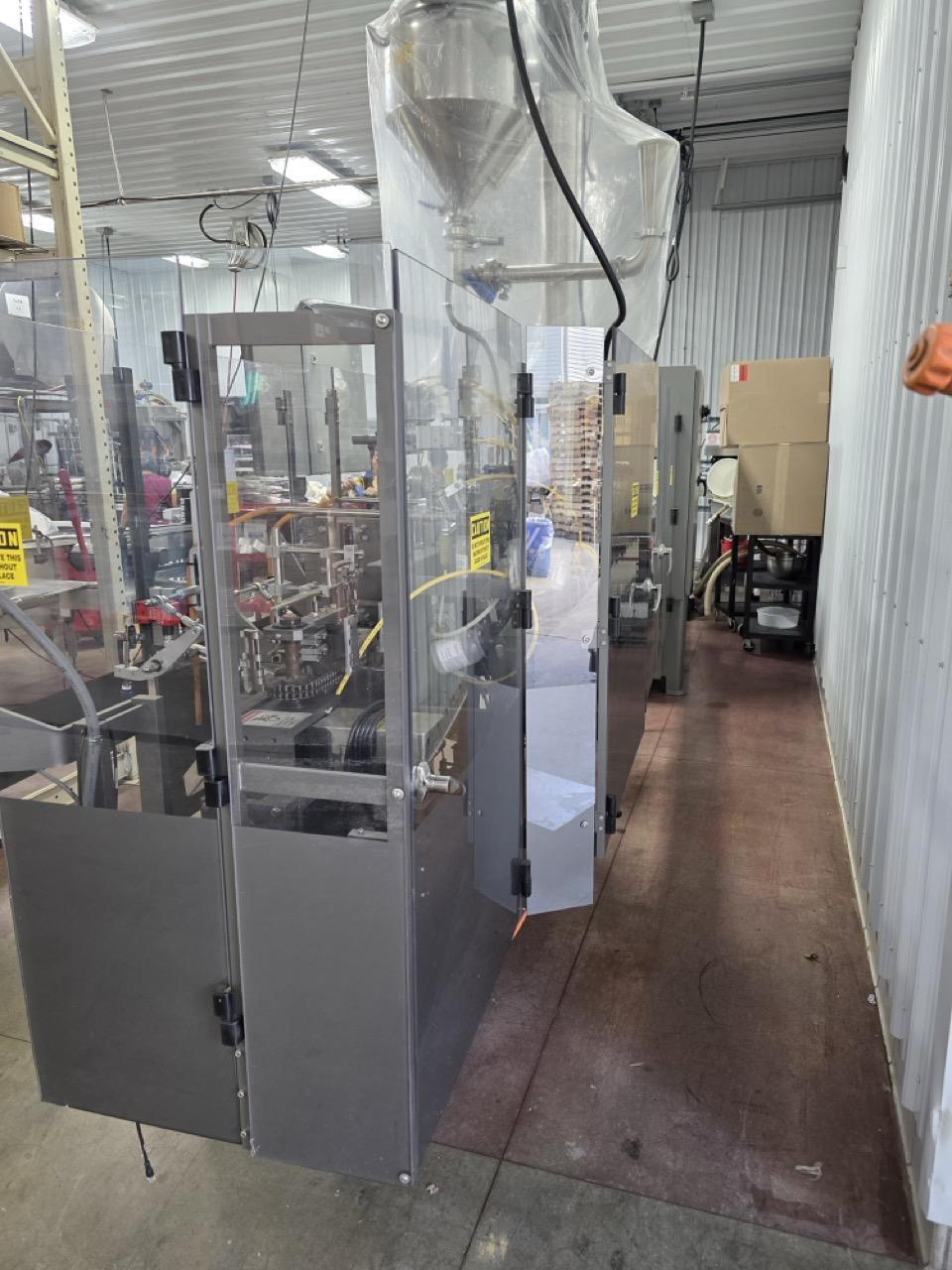

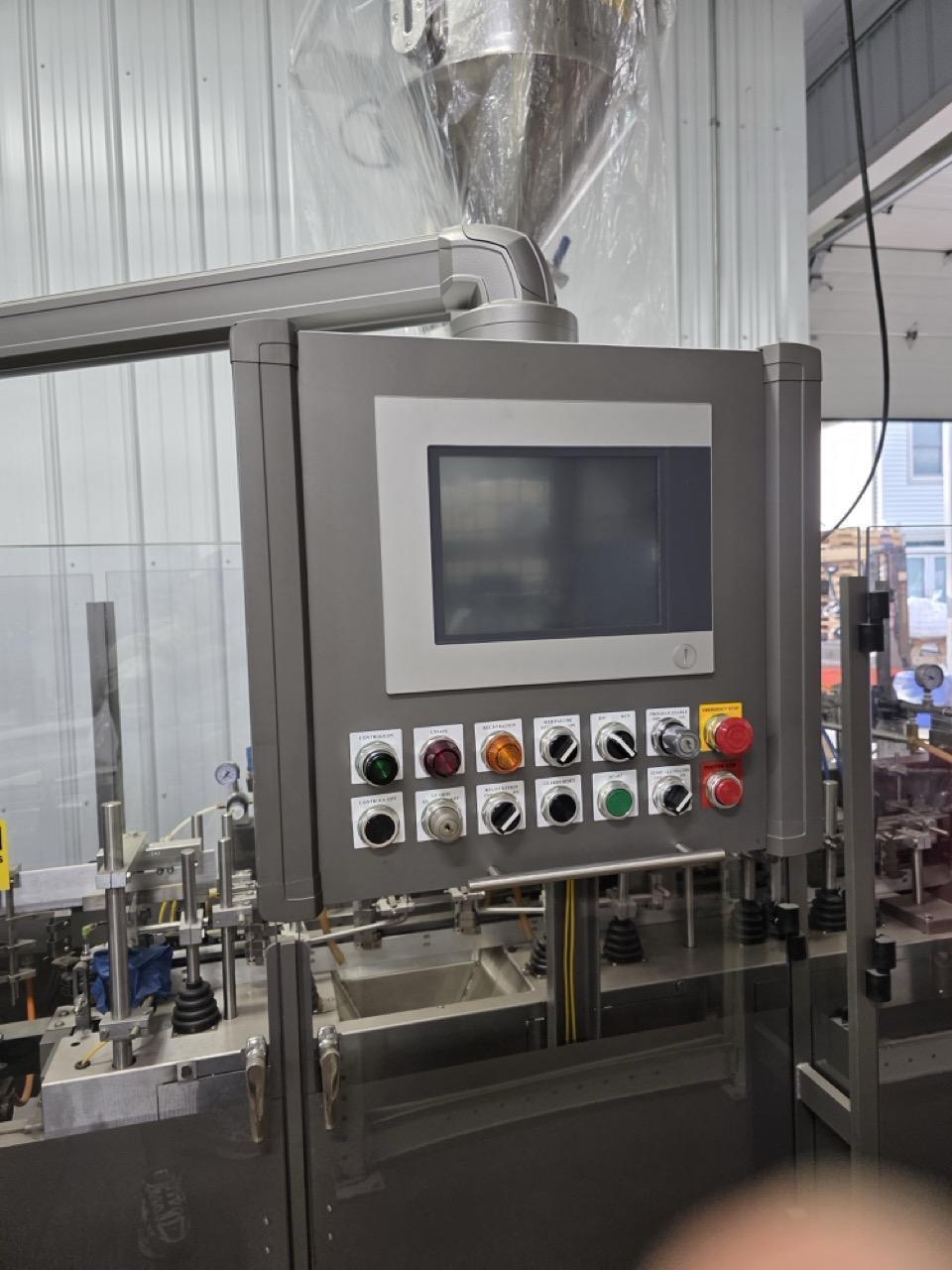

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Designed to form, fill and seal a variety of products into a pouch made of laminated materials, it can also handle most thermo-sealing web materials – Maximum web roll diameter: 18″ – Specifically configured to package liquid in a 1-up or 2-up configuration – Runs up to 60 indexes / 120 pouches per minute 2-up (speeds dependent on filling variables) – Variable speed AC servo drive – Stainless steel ways – Operator safety guards with machine electrical interlock, front rear, and discharge end – Single point plow adjustment – Servo driven feed rolls – Registration – B&R controls – Two (2) normal and two (2) emergency stop switches – Machine “JOG” capability – Web fail and web jam shutdown – Vacuum opening at fill stations, with vacuum detect – Blow back at all vacuum stations – Servo torque limiter on the conveyor drive – Online slitter, 2-up – Bag reject for no vacuum/no fill – Offline indexing pouch counting conveyor – Low air pressure shutdown
