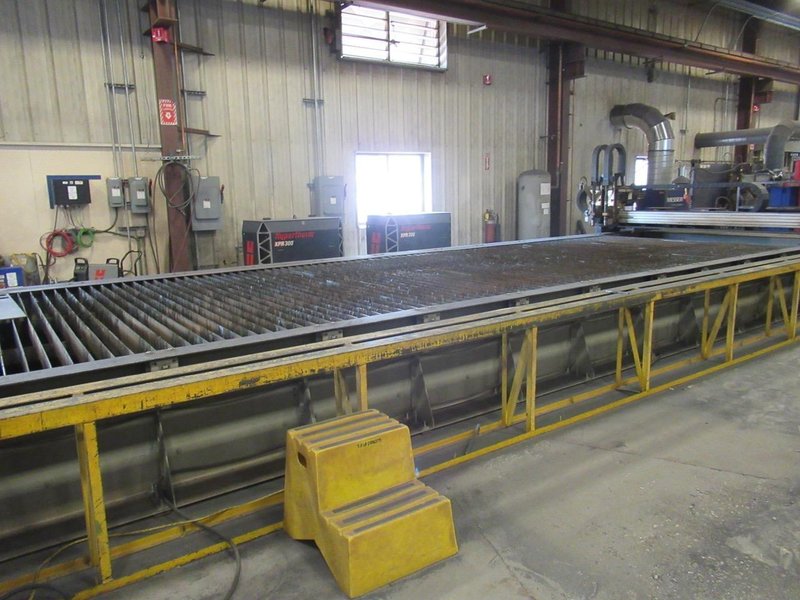

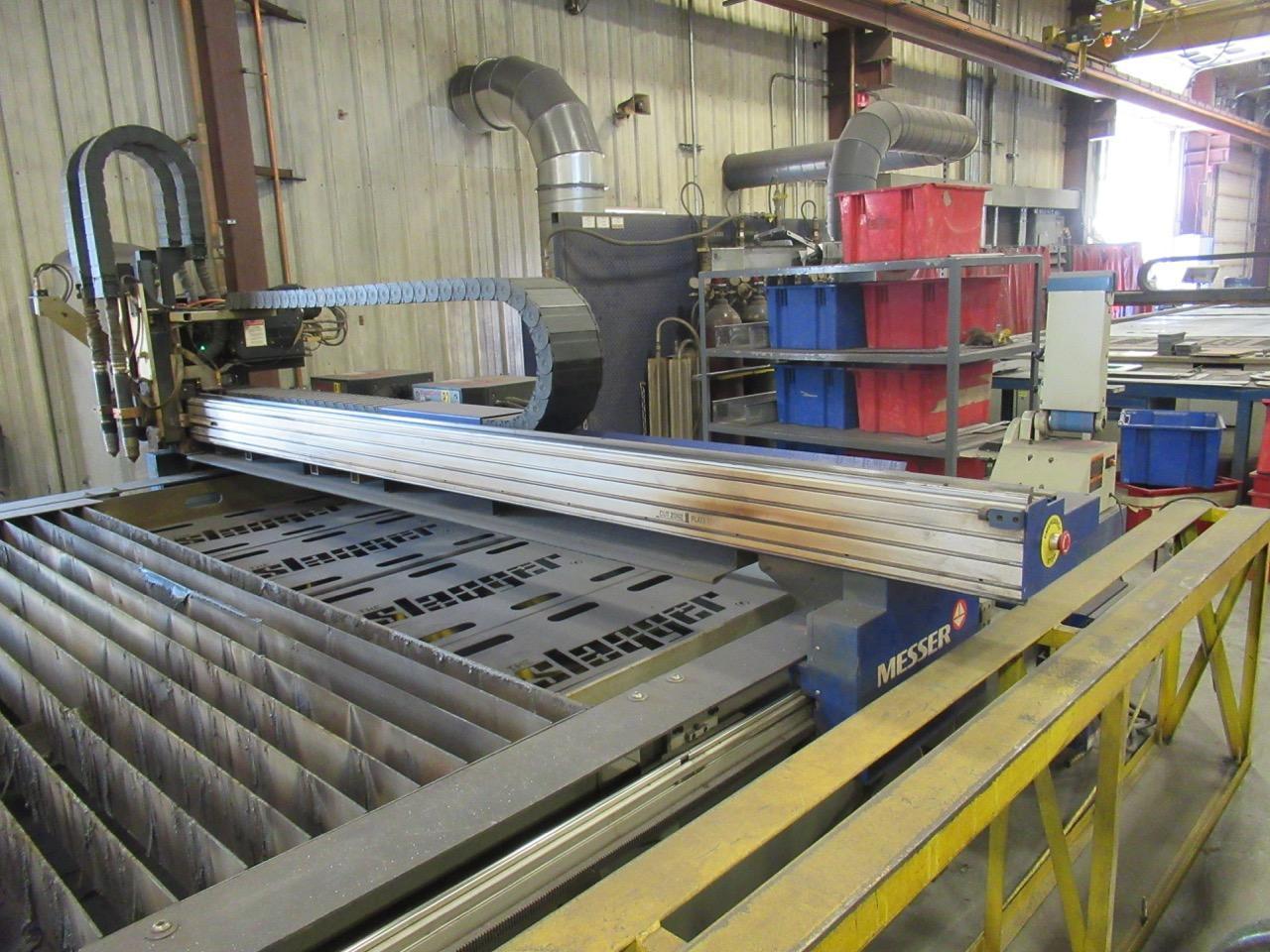

10’ x 50’ Messer MMEvo CNC Plasma, 2017 – Hypertherm XPR 300

Cutting Table Size: 10’ x 50’ Maximum Cutting Thickness (Edge Start): Mild Steel: Up to 3.0″ Stainless Steel: Up to 2.0″ Aluminum: Up to 2.0″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Piercing Thickness (Direct Pierce): Mild Steel: Up to 2.0″ Stainless Steel: Up to 1.5″ Aluminum: Up to 1.5″

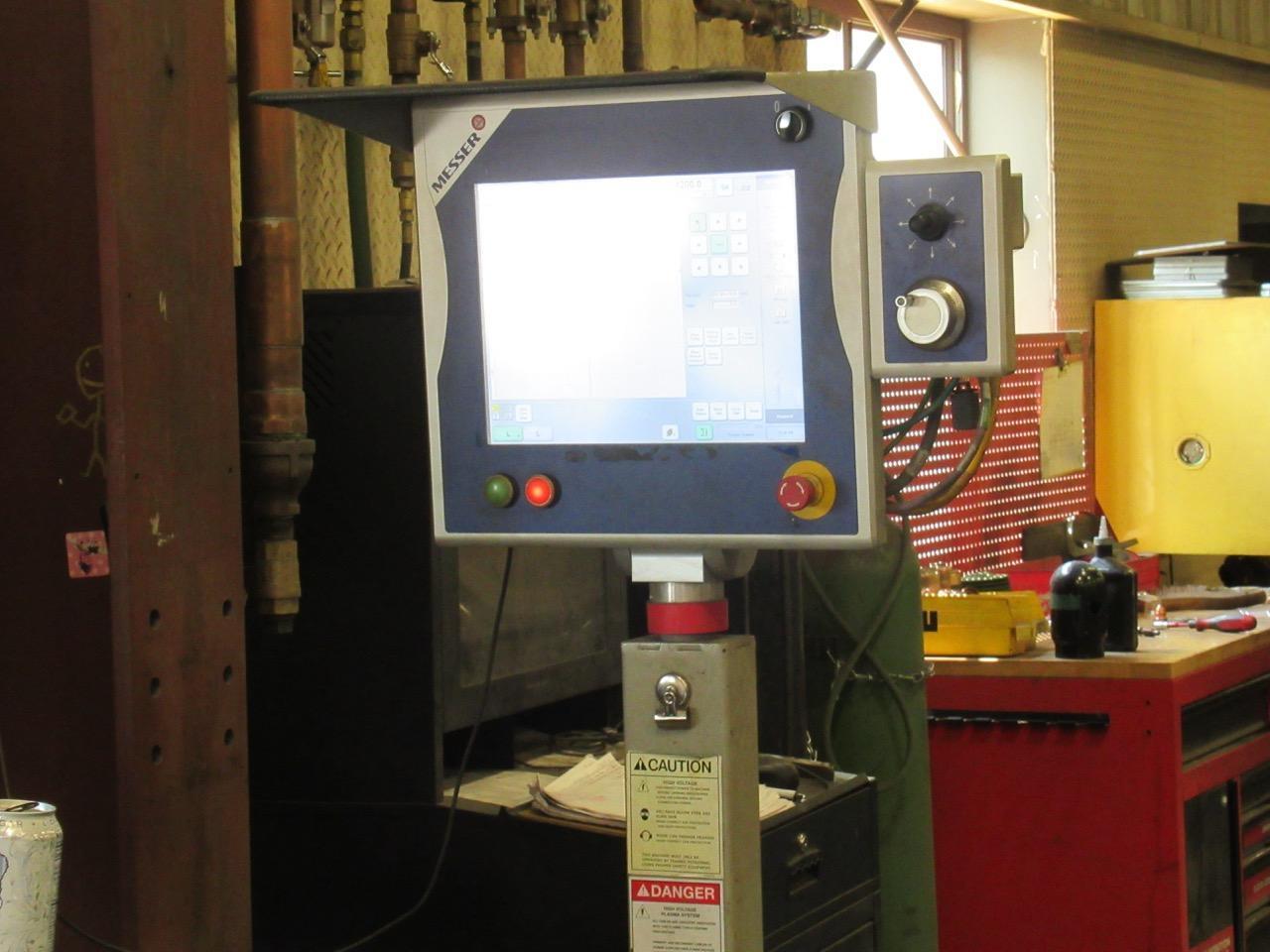

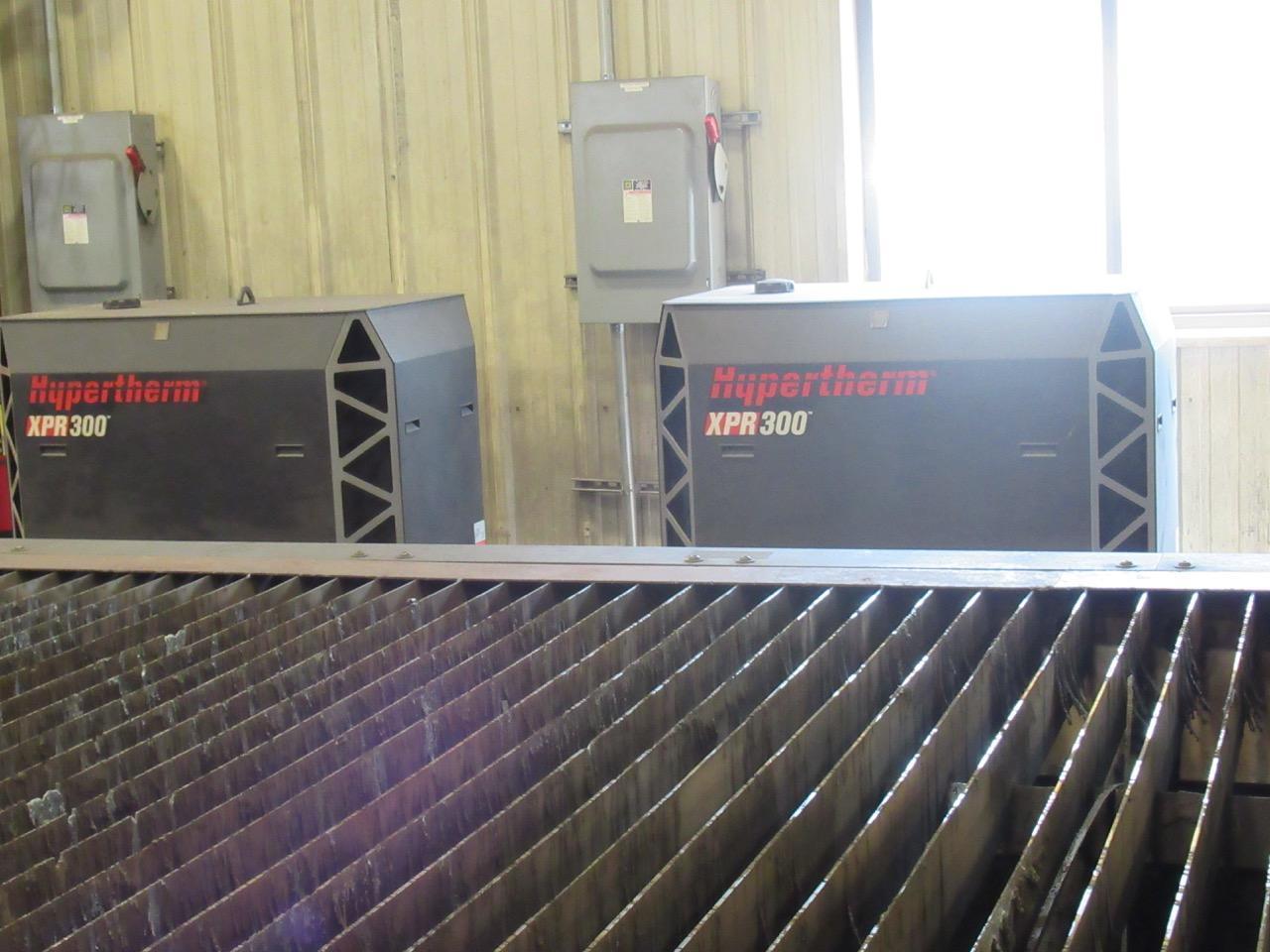

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drive System: Dual-side, precision rack-and-pinion Plasma System: Hypertherm XPR 300 Torch Setup: Automatic height control, collision protection Processes Supported: Plasma and oxyfuel Controller: Global Control Plus touchscreen Software: OmniWin nesting (license transferable) Fume Management: Downdraft table with zoning; external dust collection system INCLUDED Positioning Speed: Up to 1,400 IPM Repeatability: ±0.002 in/ft Table Handling: Manual load/unload Weight: 10,000–15,000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heavy-duty gantry system for precision industrial cutting CNC control with touchscreen Global Control Plus Supports cutting of mild steel, stainless steel, and aluminum Torch with auto height and collision safety OmniWin nesting software included and transferable Downdraft fume system with zoning External dust collector included—fully integrated with zoning system Manual load/unload—no automation add-ons

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
