Lincoln Electric System 5 Robotic Welding Cell, 2013 – Fanuc ARCMate 100iC, Lincoln R350 350 Amp Power Supply

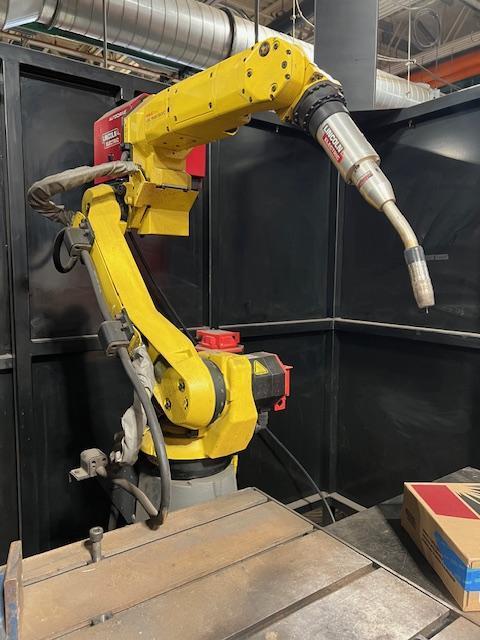

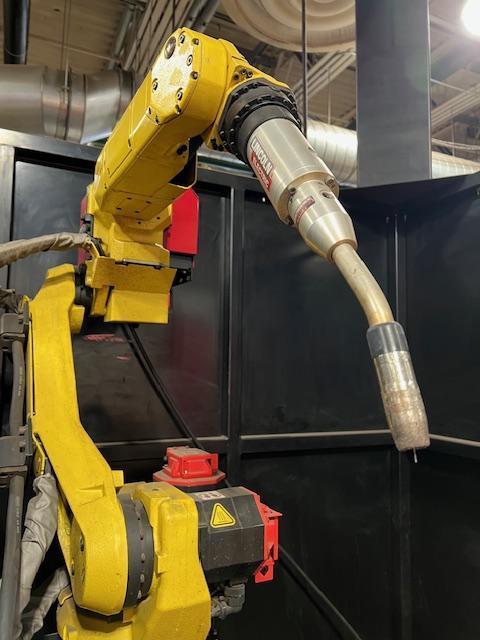

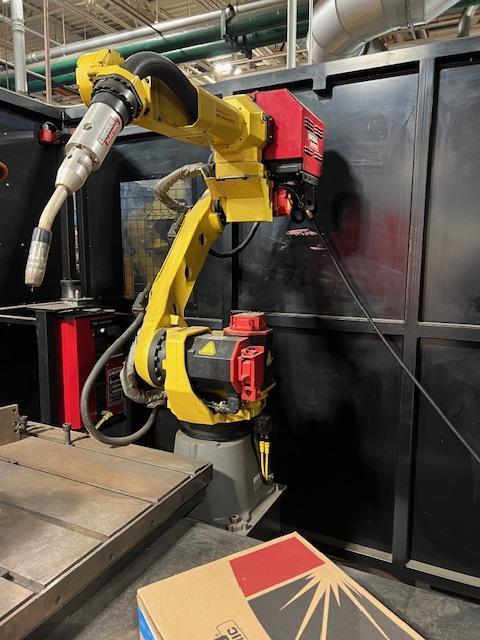

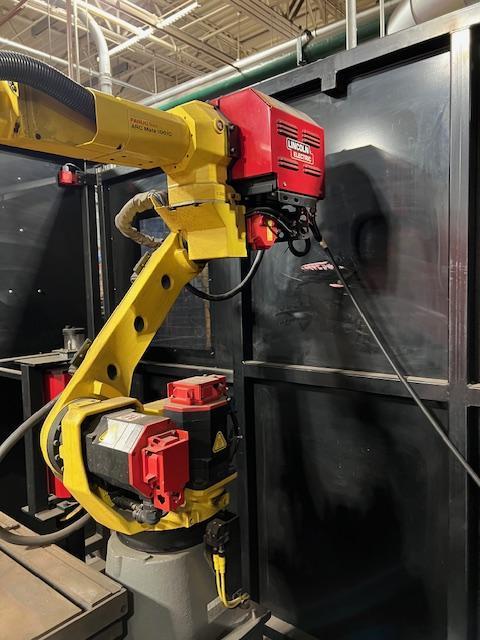

Robot Arm: FANUC AM100iC Axes: 6 Payload: 22 Lbs (10 Kg) Reach: 56″ Controller: FANUC R-30iB Memory: 64 MB DRAM, 64 MB FROM, 3 MB SRAM Welding Power Supply: Lincoln R350 Wire Feeder: 4R100 Wire Drive (4 Powered Drive Rolls, Up To .045″ Solid Or Cored Wire) Torch Package: AD1121-257 With LEA500AC, 3.5′ 22D, .035″–.045″ OiB Drive Roll Kit: KP1505-035S (.035″) Outputs: Model A 16 Outputs Relay (S23214-13) Inputs: Model A 16 Inputs Positive 24VDC (S23214-18) ArcLink XT Cables: AD1312-23 Kit (25 Ft) Worktable Size: 70″ × 24″ Worktable Capacity: 2,500 Lbs System Footprint: 96″ × 70″

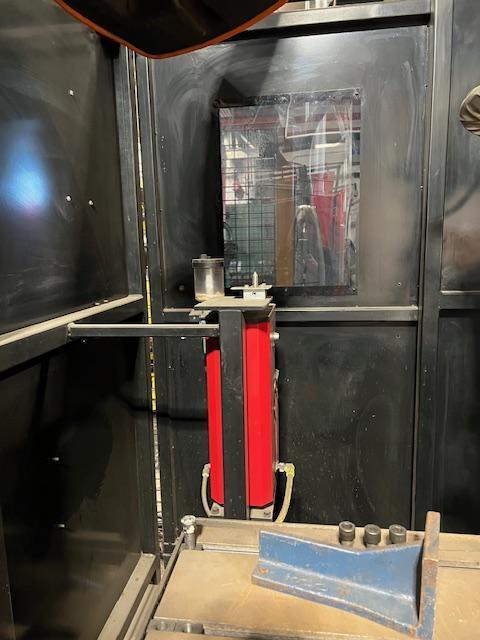

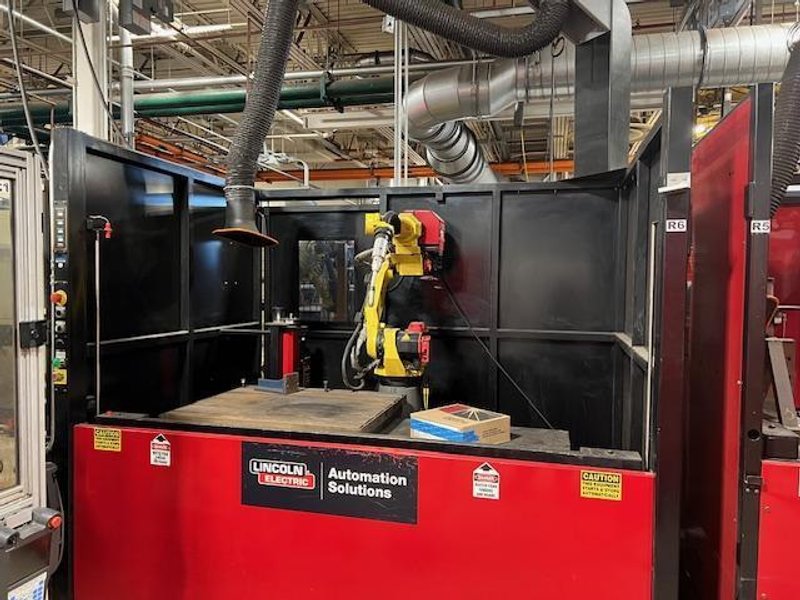

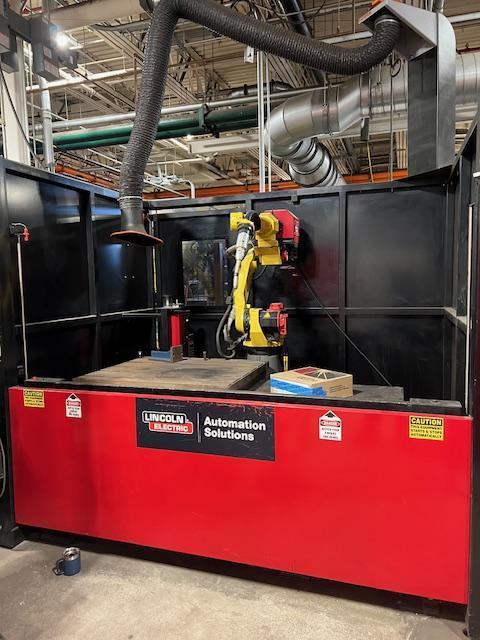

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: FANUC ArcTool Software AD1253-254 PMC Robot Software (Programmable Machine Controller, Ladder Logic) AD1253-77 CheckPoint Cloud Monitoring Software AD1253-37-FI Torch Guard Software (Collision Guard, TorchMate 3 TCP Adjustment) AD1253-90 TouchSense & TAST Bundle (TouchSense, Thru-Arc Seam Tracking AD1564-1 System 5 Workcell With Palletized Base And Surround Enclosure Pneumatic Pop-Up Curtain For Arc-Flash Protection Operator Palm Station With Cycle Start, Fast Reset, And E-Stop AD2391-1 Power Reamer & Wire Clipper With Anti-Spatter Fluid Educational 2D iRVision Package With FANUC XC-56 CCD Scan Camera Banner LED Red Spotlight

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
