AAF International Dry Room Exhaust & Filtration System

Total Exhaust Capacity 21,000 CFM Static Pressure Rating 5.5 in. w.g. Total Motor Power 30 HP Fan Operating Speed 1,747 RPM Maximum Fan Speed 1,989 RPM Motor Voltage 460V/60Hz/3Ph Static Efficiency 73% Sound Power Level 94 dBA Damper Dimensions 19.3″ W x 25.8″ H Filter Frame Compatibility 24″ x 24″ standard Operating Temperature Range 70°F standard

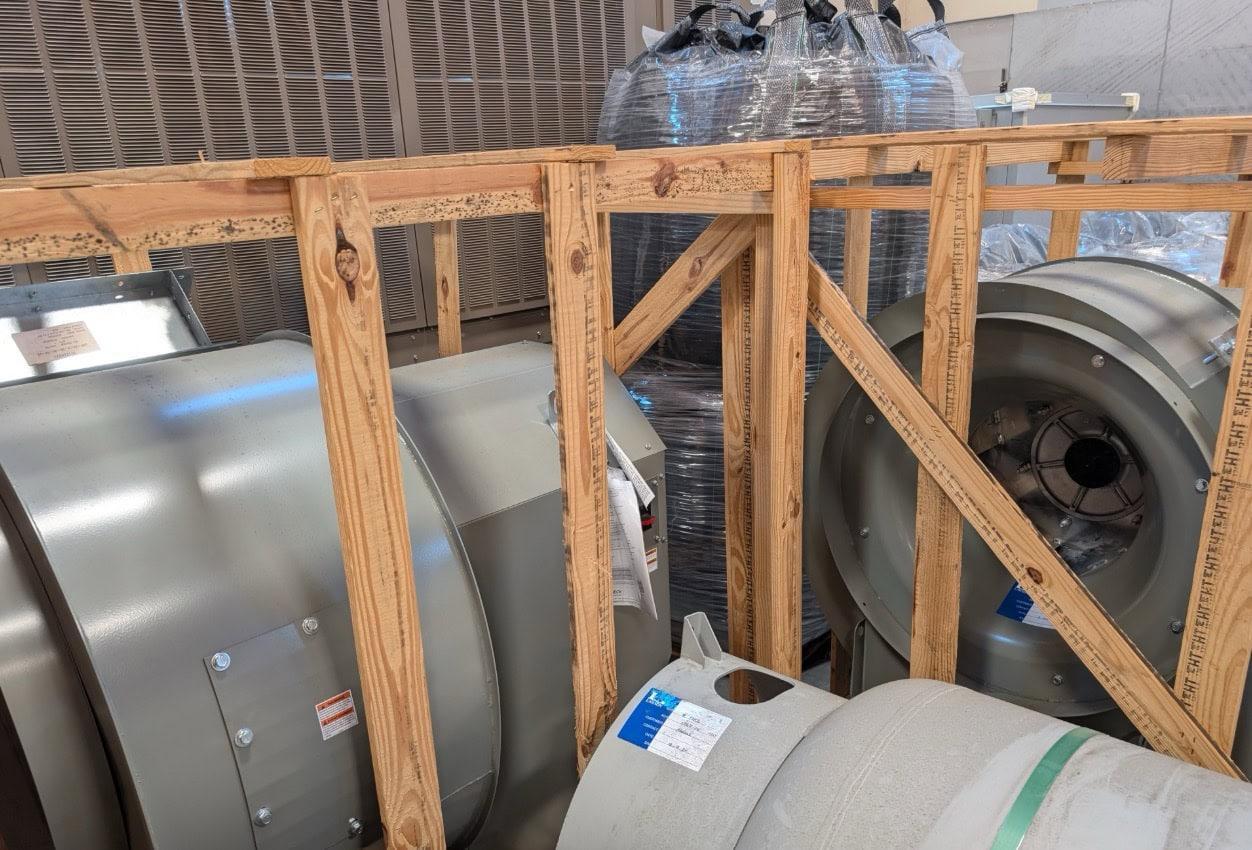

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Included In This System Primary Equipment (5 units) Exhaust Fan EF-1: Greenheck USF-24 Universal Single Width Fan (15 HP, CW rotation) Exhaust Fan EF-2: Greenheck USF-24 Universal Single Width Fan (15 HP, CCW rotation) Backdraft Damper EF-1: Greenheck HB-240 Heavy Duty (19.3″ x 25.8″) Backdraft Damper EF-2: Greenheck HB-240 Heavy Duty (19.3″ x 25.8″) Deep Bed Scrubber: AAF Flanders Multi-Stage

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Filtration Unit Integration Components Electrical disconnect switches (NEMA-3R rated) Motor covers and weather protection Vibration isolation and mounting hardware Consumables Included SAAFCarb™ MB: Engineered chemical media for gas-phase contaminant removal MEGApleat® M9: Extended surface pleated panel filters for high-efficiency particulate removal MEGAcel® : Separator-style HEPA filters for final stage filtration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
