10 Ton Thermal Care Accu-Chiller – R-410A, Water-Cooled, 460V

Equipment Overview Thermal Care’s NQW10 Accuchiller is a 10 HP, water-cooled process chiller using R-410A refrigerant. Designed for precise temperature control in industrial applications, this unit features an onboard digital controller, water circulation pump, and integrated heat exchanger. Commonly used in plastics, manufacturing, and chemical processing environments.

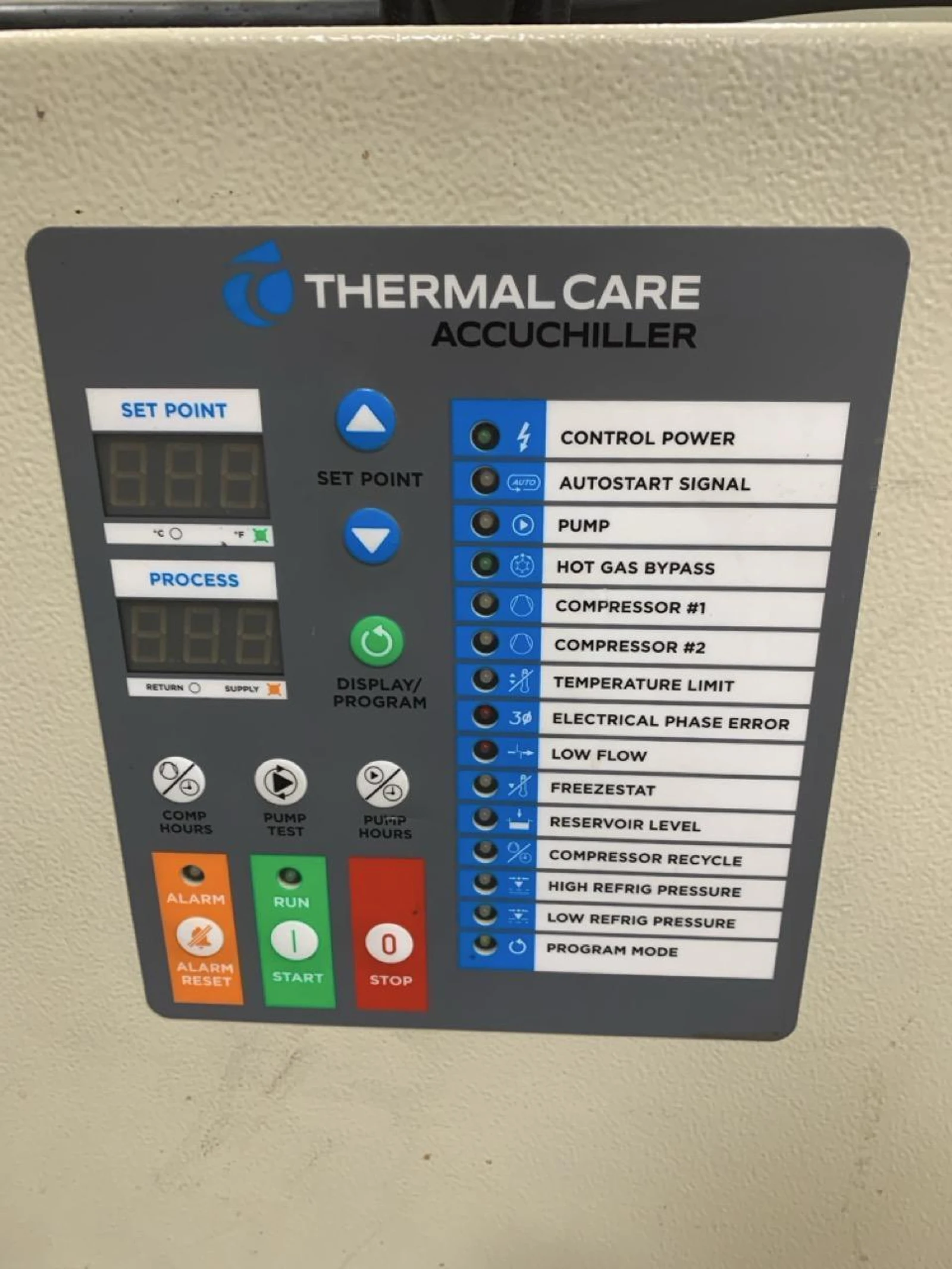

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications • Cooling Capacity: 10 HP • Voltage: 460V / 3-Phase / 60 Hz • Compressor Type: Scroll • Compressor Size: 10 HP • Pump 1: 1.5 HP, 3 FLA • Pump 2: Not present • Heat Transfer Fluid: Water • Refrigerant: R-410A (10 lbs) • Max Fluid Temp: 80°F • Min Fluid Temp: 20°F • Control Panel: Digital interface with status indicators (alarm, run, stop, temperature, compressor states) • Refrigerant Pressure Protection: High/Low Pressure Alarms • Phase Monitoring: Included • Flow Monitoring: Included (Low Flow, Reservoir Level sensors) • Short Circuit Current Rating (SCCR): 5 kA @ 460V • MCA (Minimum Circuit Amps): 27.5 • FLA (Full Load Amps): 22.8 • Largest Motor Load: 10 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
