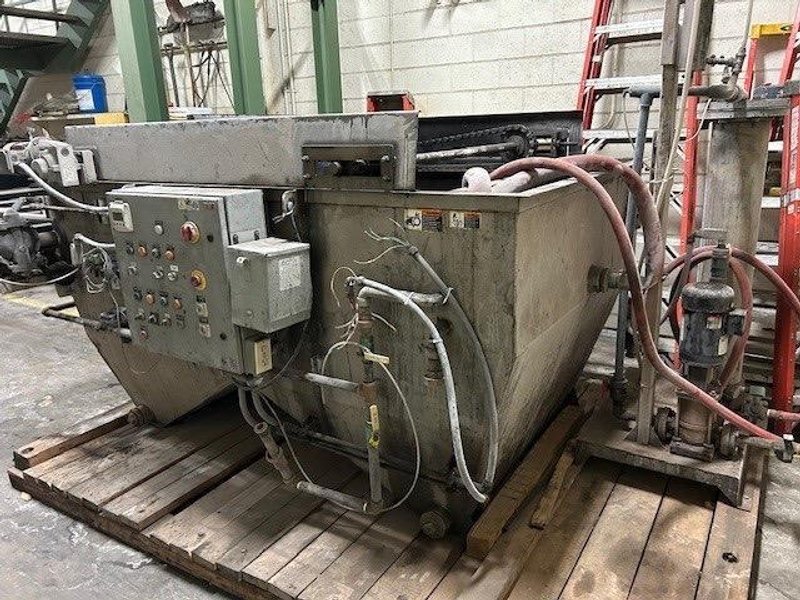

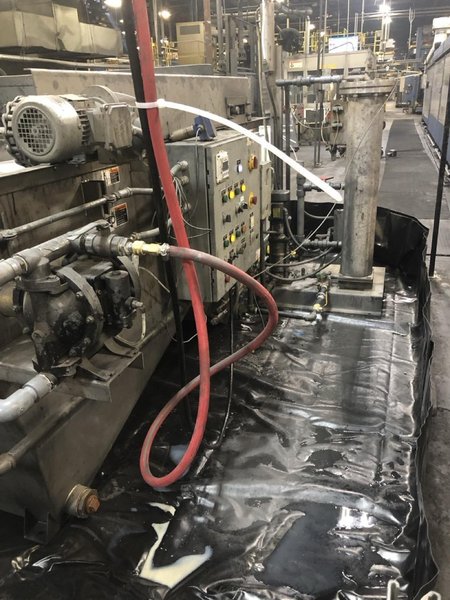

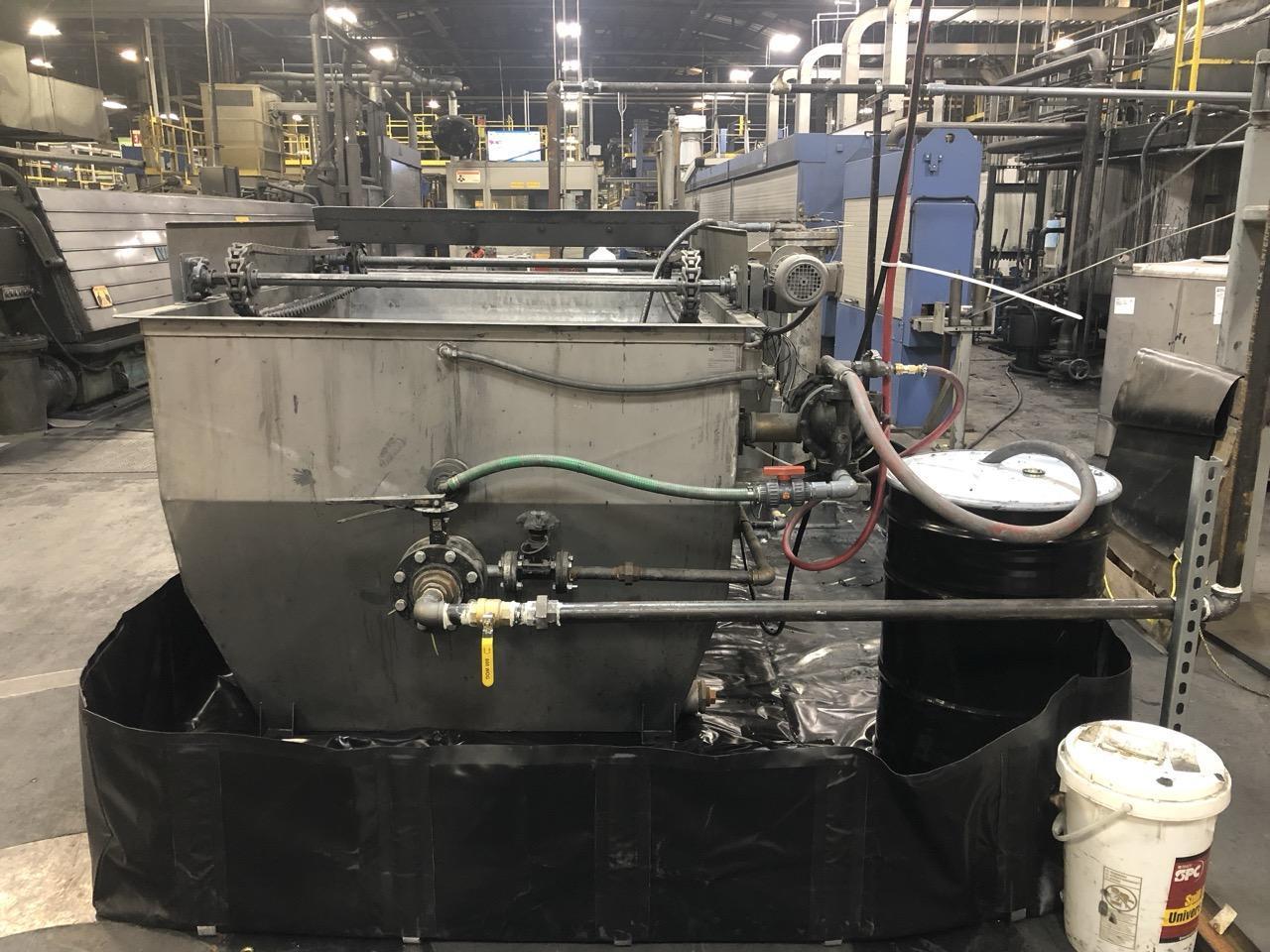

Pan America DAF-25-V Dissolved Air Flotation System with RSS-5 Skid

Equipment Overview The Pan America DAF-25-V is a complete, industrial-scale dissolved air flotation system engineered for high-efficiency removal of suspended solids, oils, and greases. Designed for a maximum flow of 75 GPM (inclusive of recycle flow), it features a V-bottom sludge hopper, mechanical skimmer, and integrated RSS-5 recycle saturation system skid. It is ideal for wastewater clarification in metalworking, food processing, and manufacturing environments.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DAF Core Tank and Structure: – Model: DAF-25-V (V-bottom configuration with auger) – Max Rated Flow: 75 GPM (including recycle loop) – Tank Construction: A36 carbon steel (coated for chemical and corrosion resistance) – Interior Coating: Self-priming coal tar epoxy, 18–22 mils dry film thickness (DFT) – Exterior Coating: Industrial-grade polyurethane enamel, 6 mils DFT – Welds: Double welded and dye penetrant tested – Tank Shape: Rectangular with V-bottom for enhanced sludge consolidation – Float Hopper Volume: 20 gallons – Sludge Volume: 275 gallons – System Footprint: ~11 ft x 8 ft (tank + RSS skid)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mechanical Components: – Surface Skimmer: Mechanical chain and flight system – Flights: 304 stainless steel construction with neoprene/Buna-N wipers – Chain Type: Acetal polymer with Acetal sprockets and guides – Wear Components: UHMWPE wear bars – Drive System: Variable-speed motor with VFD control (mounted on NEMA 4 panel) – Sludge Auger: Stainless steel shaft with coated steel screw and gear motor drive (230/460V 3-phase) – Auger Reach: Full tank length coverage with drive system installed on discharge end – Water Weir: Adjustable 304 stainless steel weir plate with fine leveling control

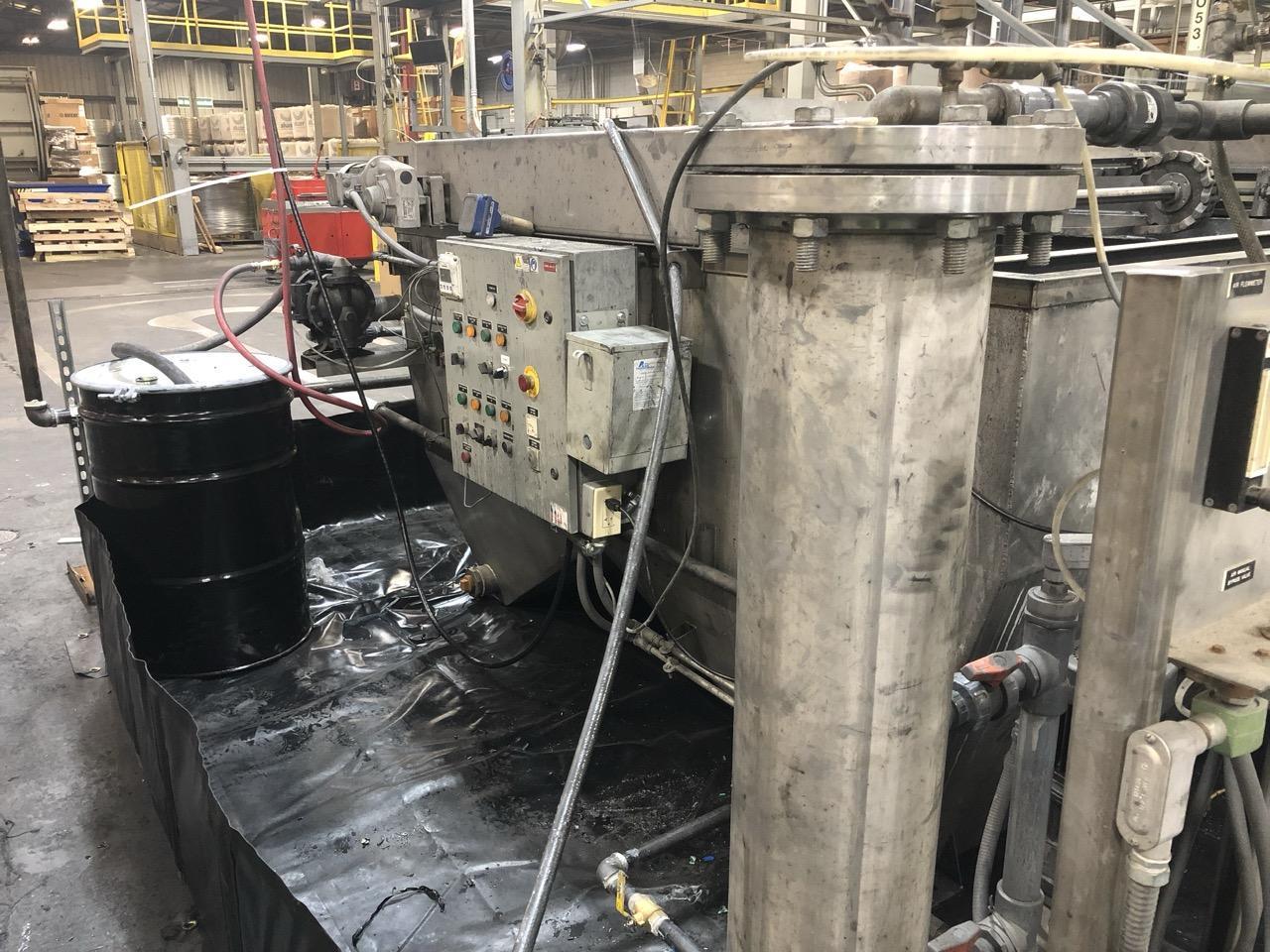

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Recycle Saturation System (RSS-5 Skid): – Pump: High-head centrifugal, 100 psi rating, TEFC motor – Pump Seal: Mechanical water-flush seal, reservoir-fed with visual sight glass – Vessel: 304 stainless steel vertical saturation tank (12″ diameter) – Air Components: Filter/regulator, rotameter with needle valve, check valve, pressure relief valve, solenoid valve – EQ Logic: Auto-Q™ control logic with switch sight glass, float switch level control – Mixing: Inline injection chamber mounted near DAF influent inlet – Air Requirement: 105 psi @ ~10 CFM (typical) – Recycle Flow Capacity: 3–40 GPM for this system variant

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control System and Electrical: – Main Panel: NEMA 4 rated, weather-resistant – Integrated Control: Skimmer timer, float pump, sludge auger, recycle pump – Power Requirement: 480V, 3-phase, 60 Hz, 20 Amps – Auger Drive: Wired through MCP with on/off selector – Float and Sludge Pump Controls: HOA switches, level-activated logic – Air Logic: Includes automatic air valve sequencing and visual pressure gauges

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Connections and Ports: – Influent Inlet: 4” flange – Effluent Outlet: 3” NPT coupling – Sludge Discharge: (2) 3” FNPT bottom drain ports – Float Outlet (Skimmings): 1” FNPT – Air Inlet to RSS: 1/4” NPT female – RSS Water Flush Fill: Manual fill via top-mounted tee with sight tube
