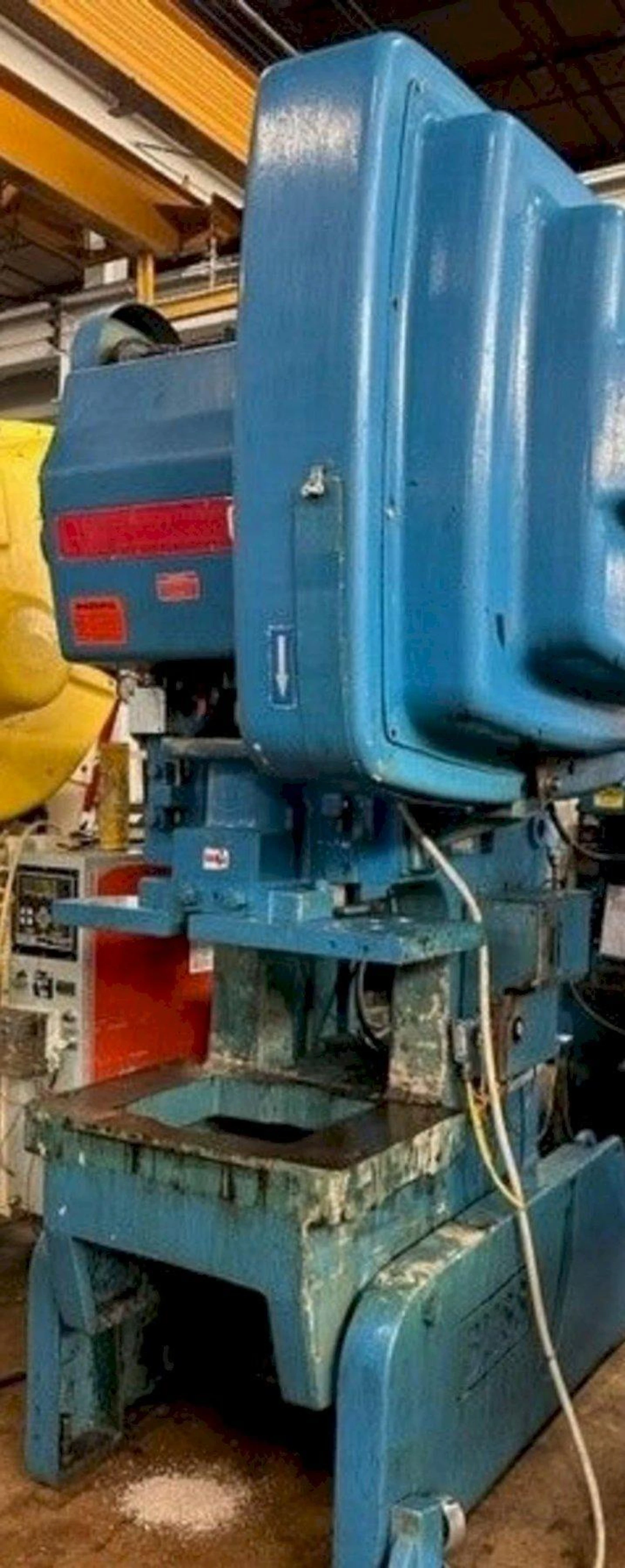

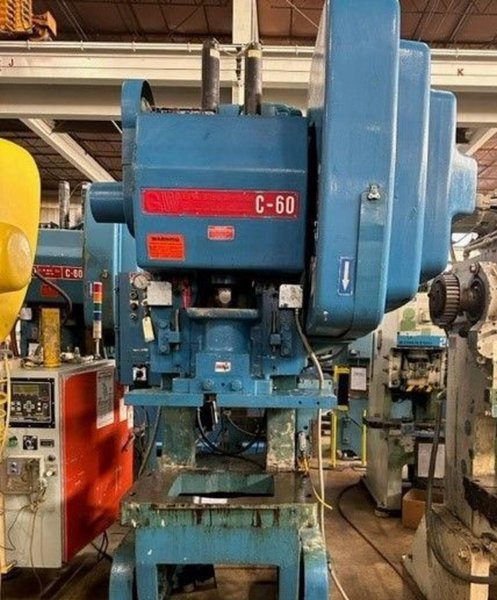

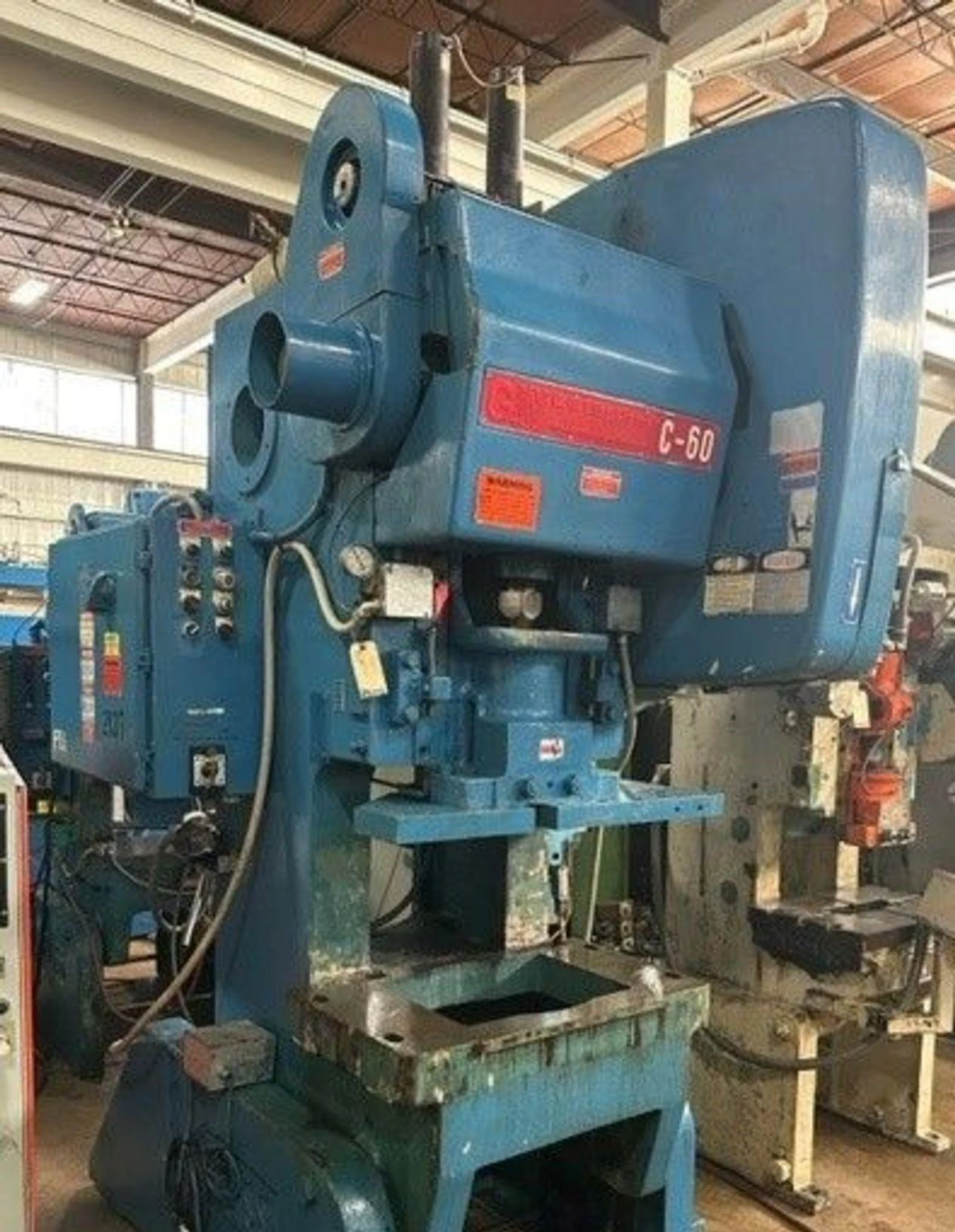

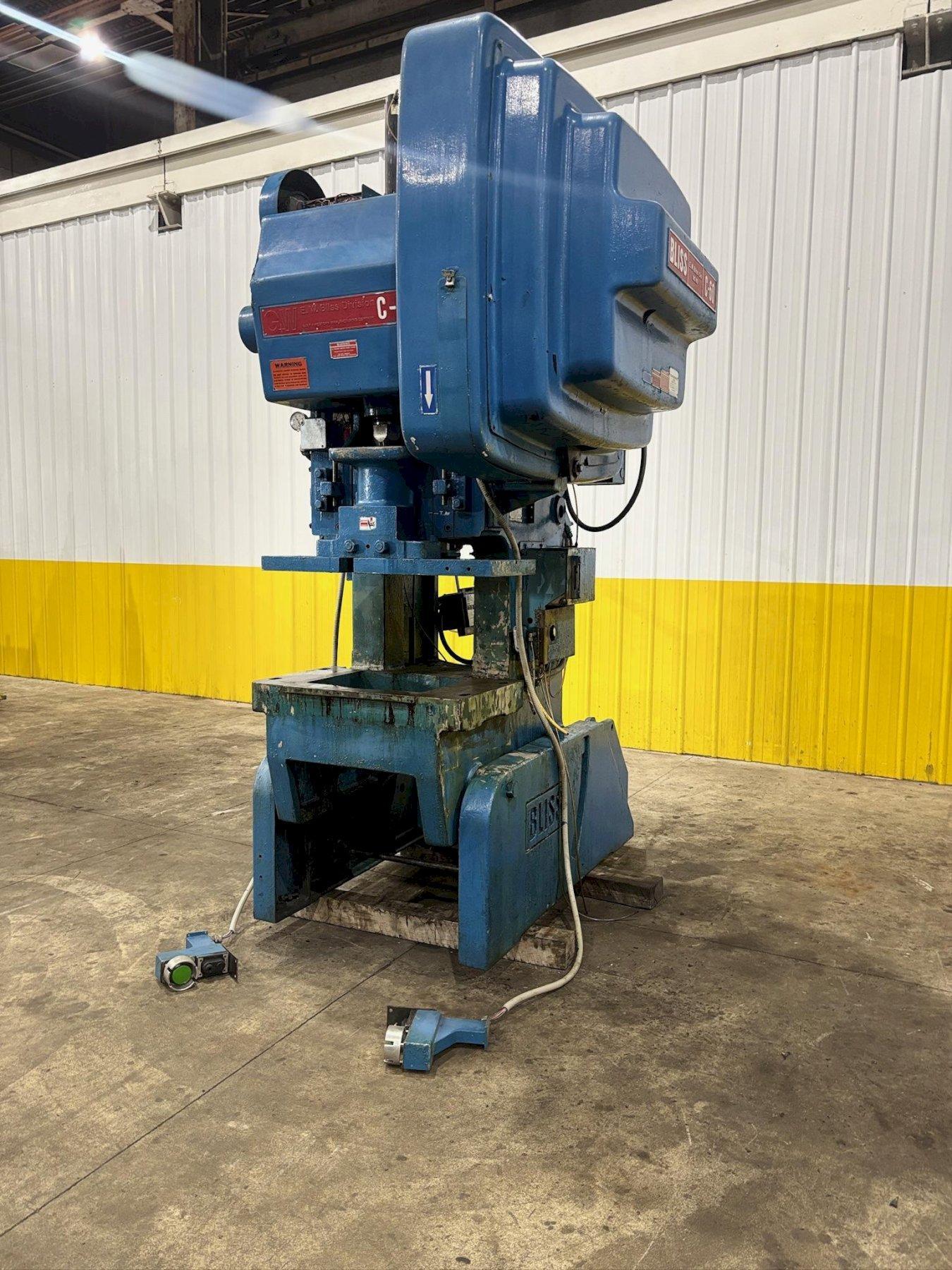

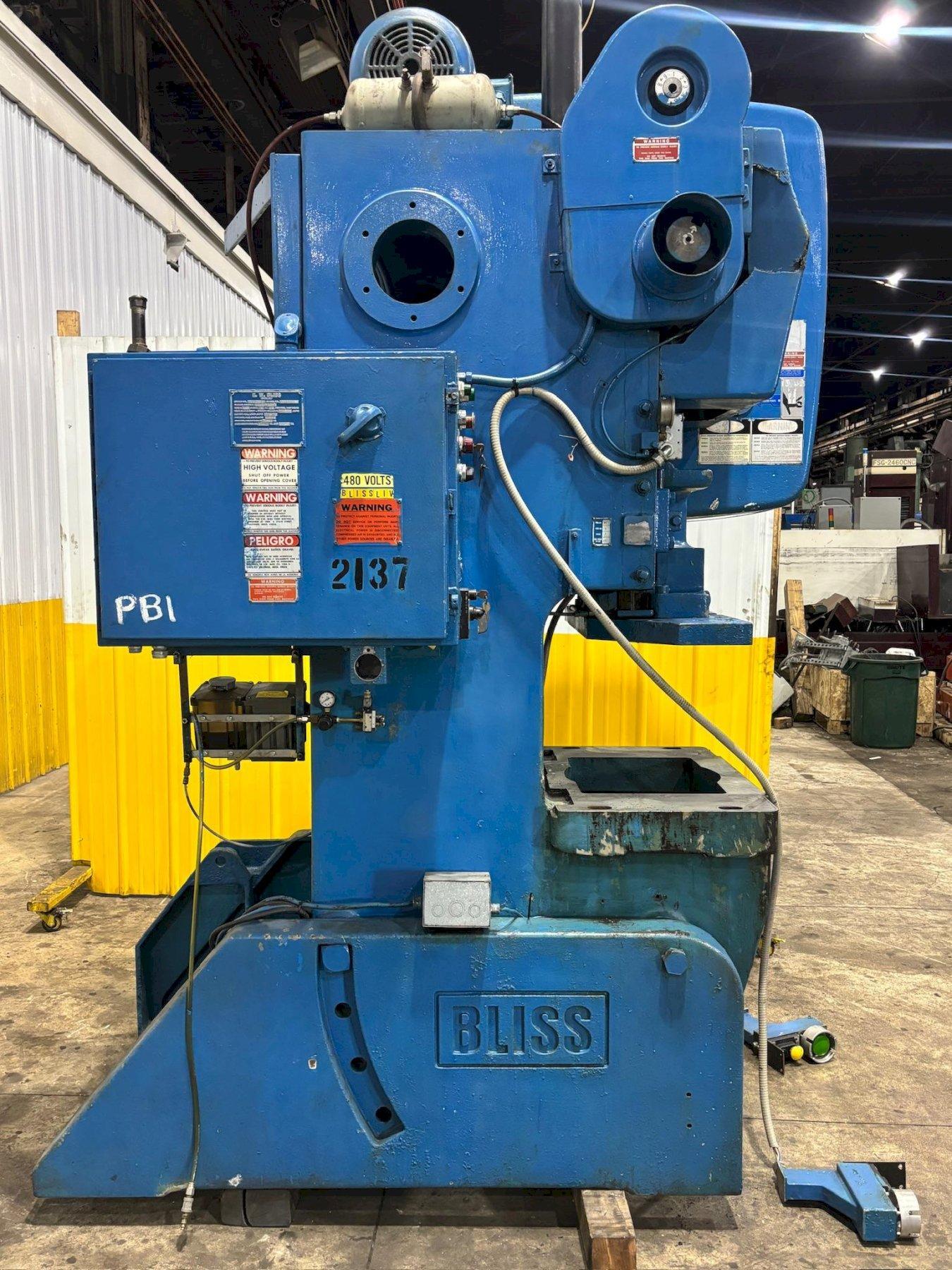

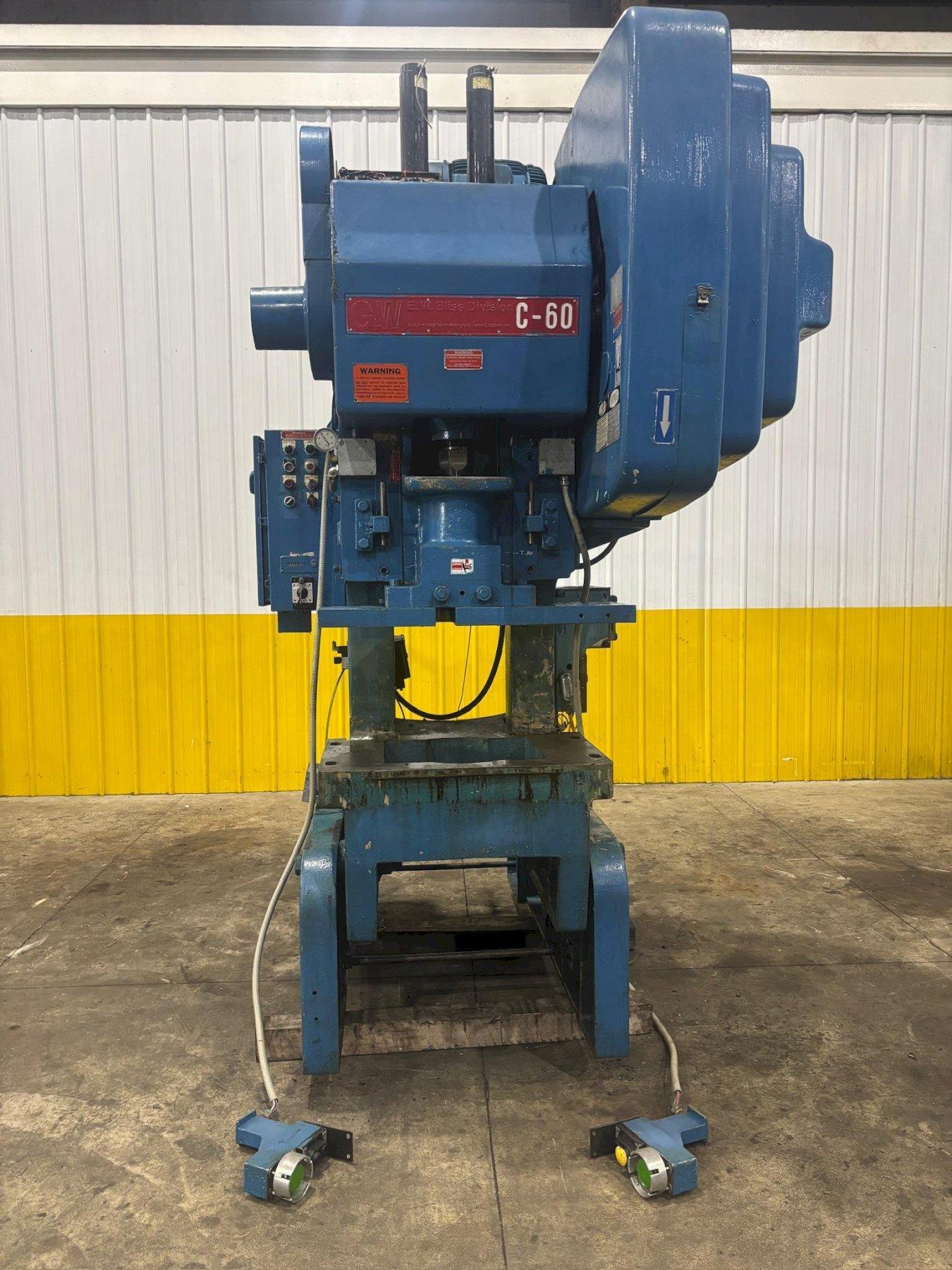

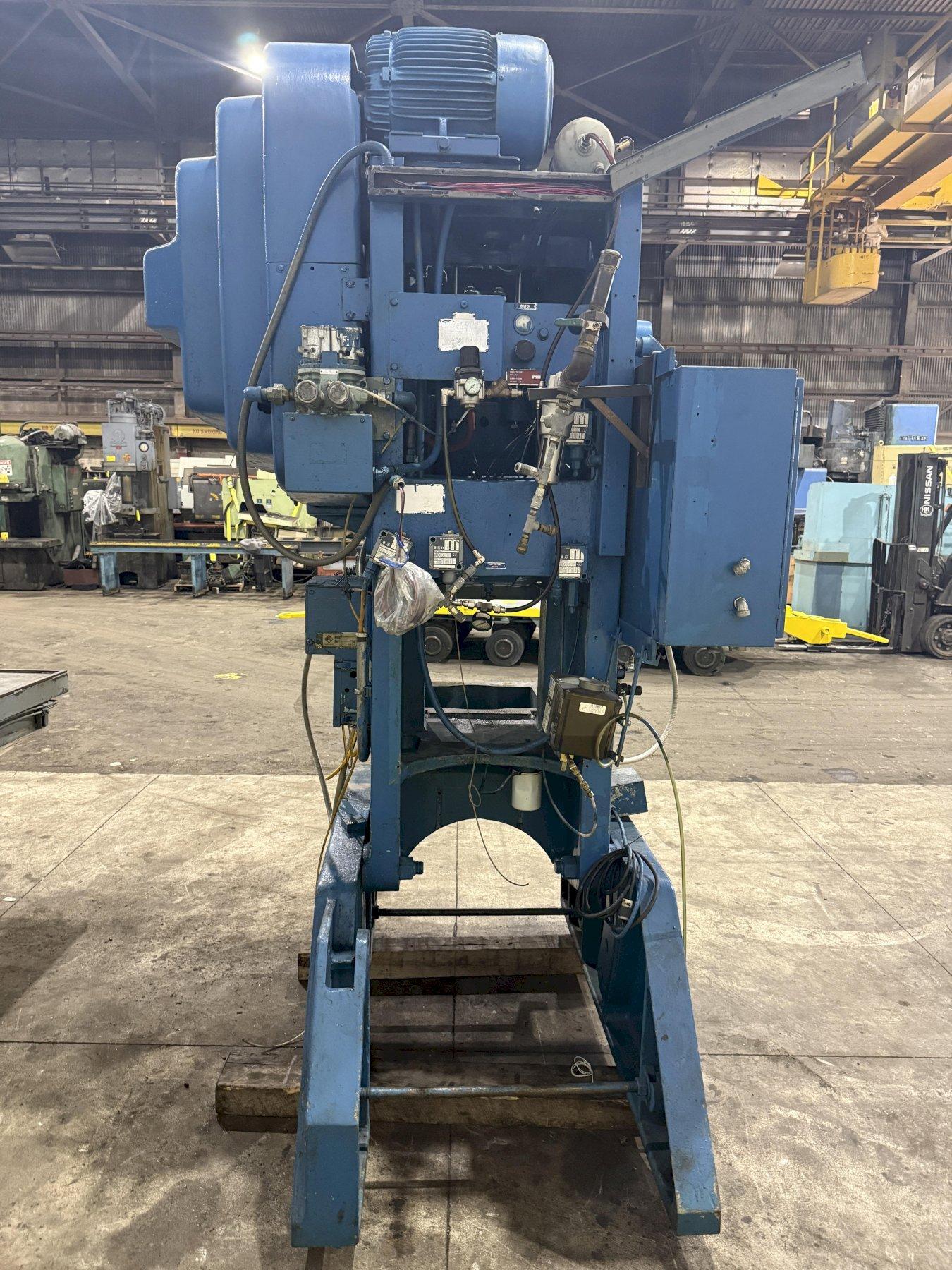

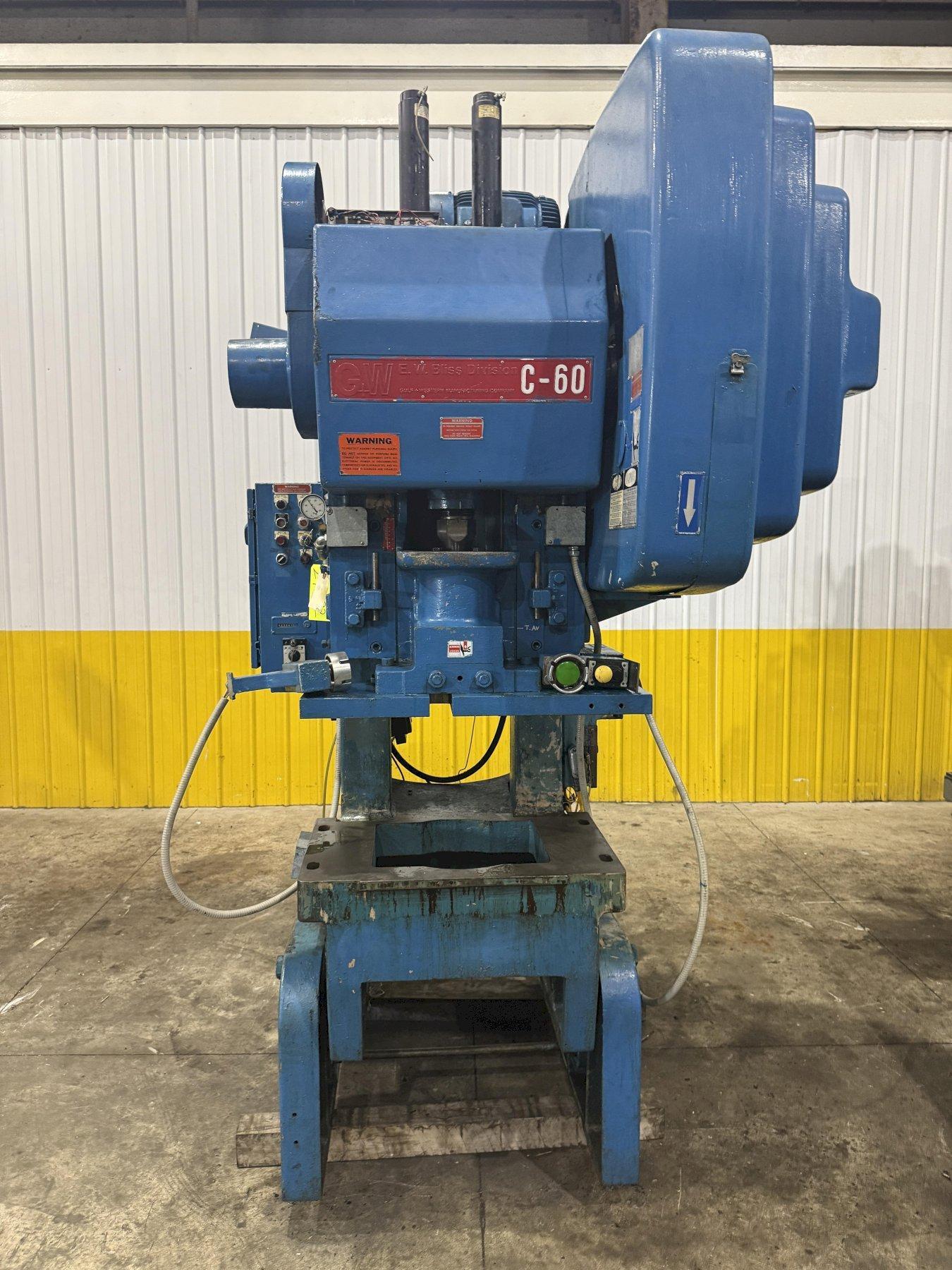

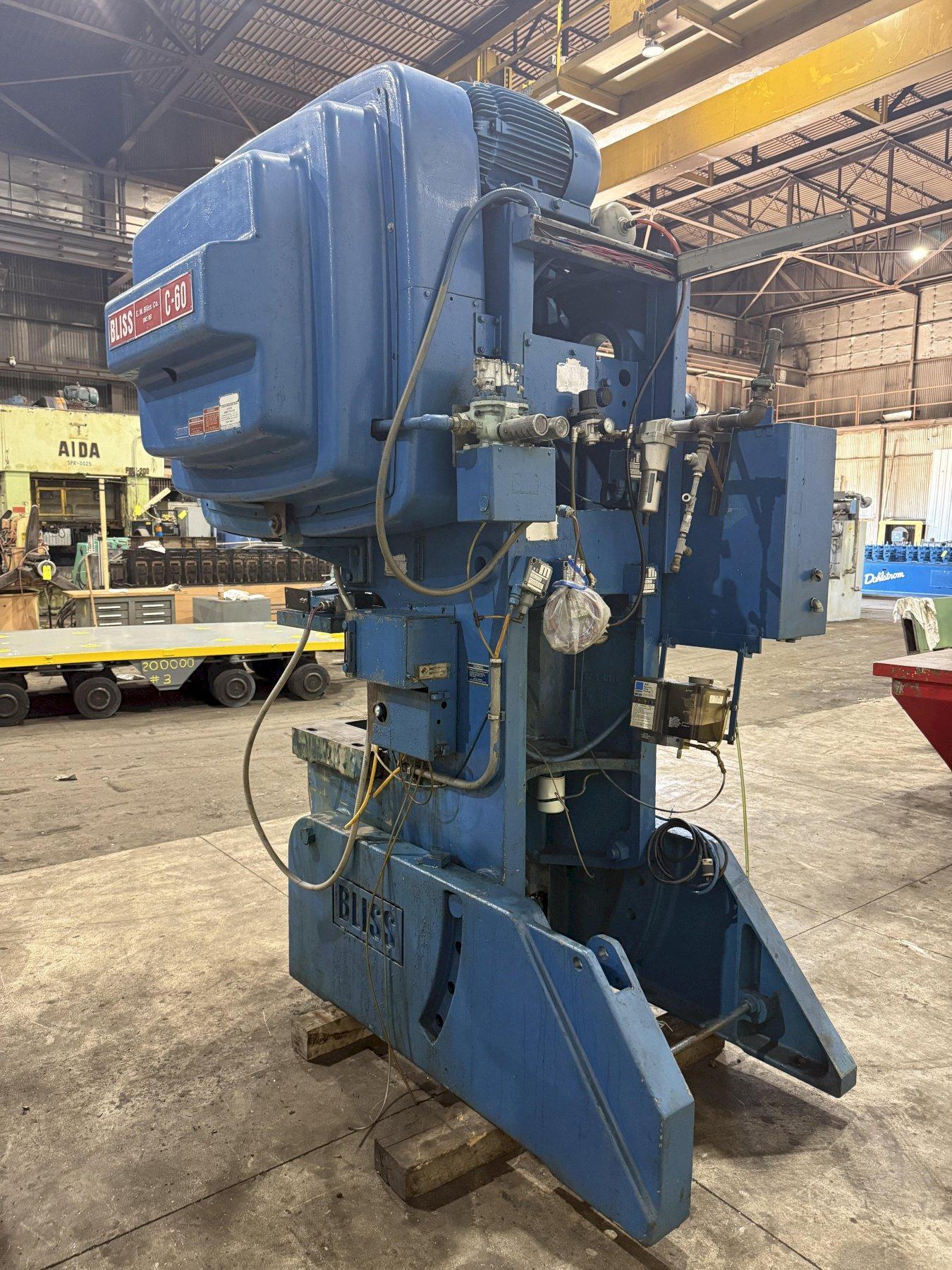

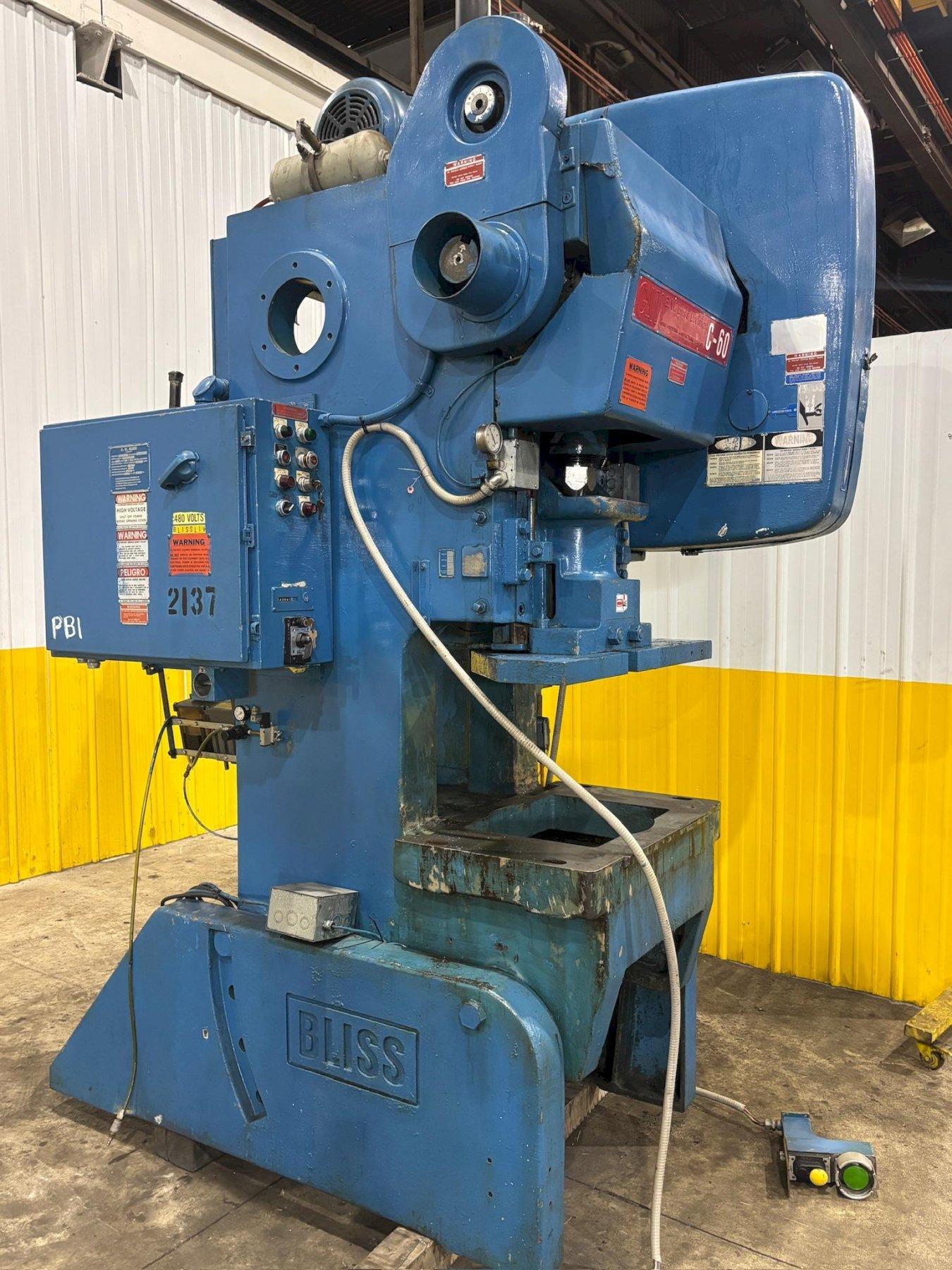

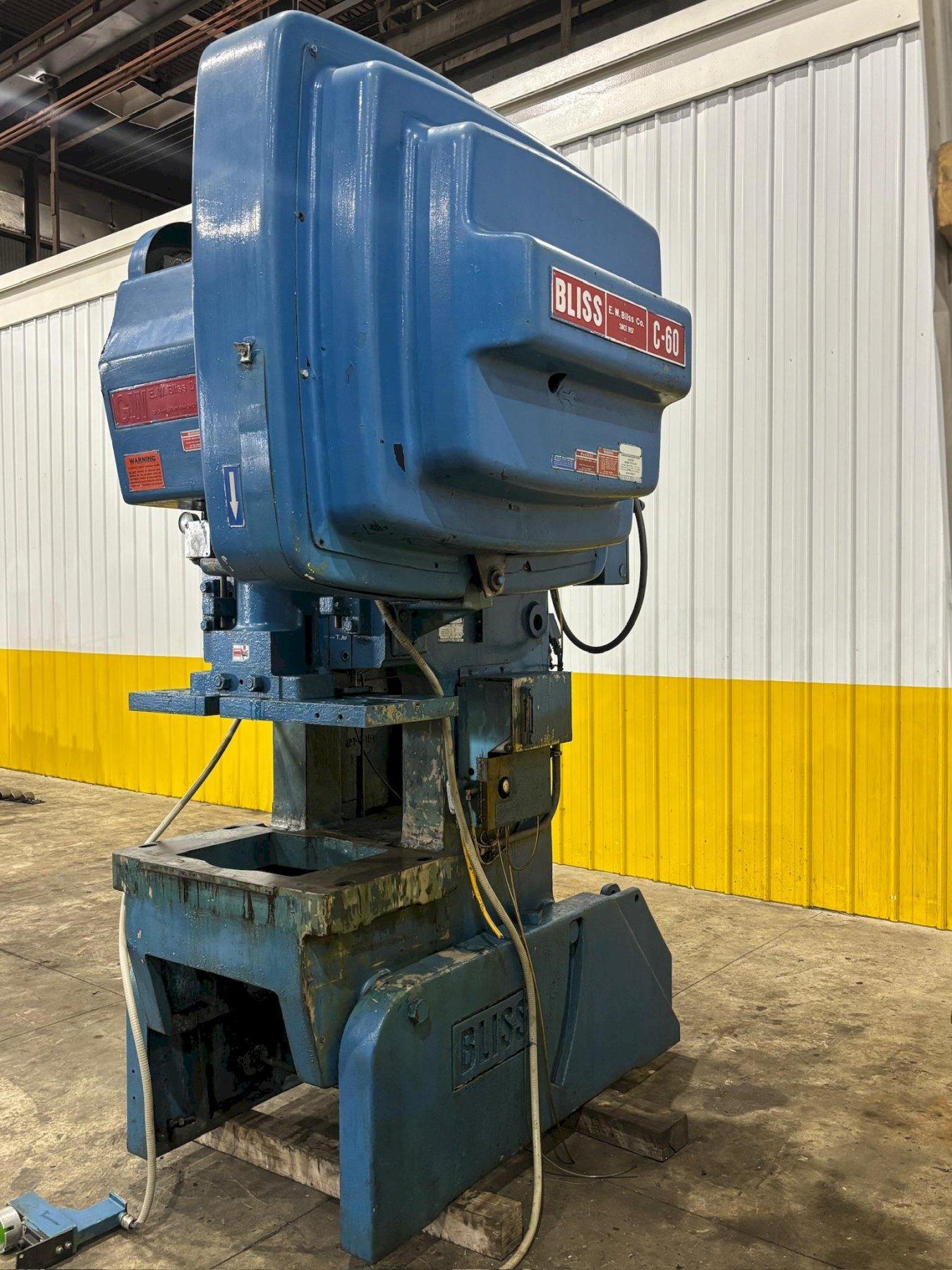

60 TON BLISS MODEL #C-60 OBI PUNCH PRESS 4" STROKE: YOBRO #24082

60 TON BLISS MODEL #C-60 OBI PUNCH PRESS 4" STROKE: YOBRO #24082

Name: Used BLISS C-60 For Sale 24082
Brand: BLISS
SKU: 24082
Availability: PreOrder

Brand

BLISS

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

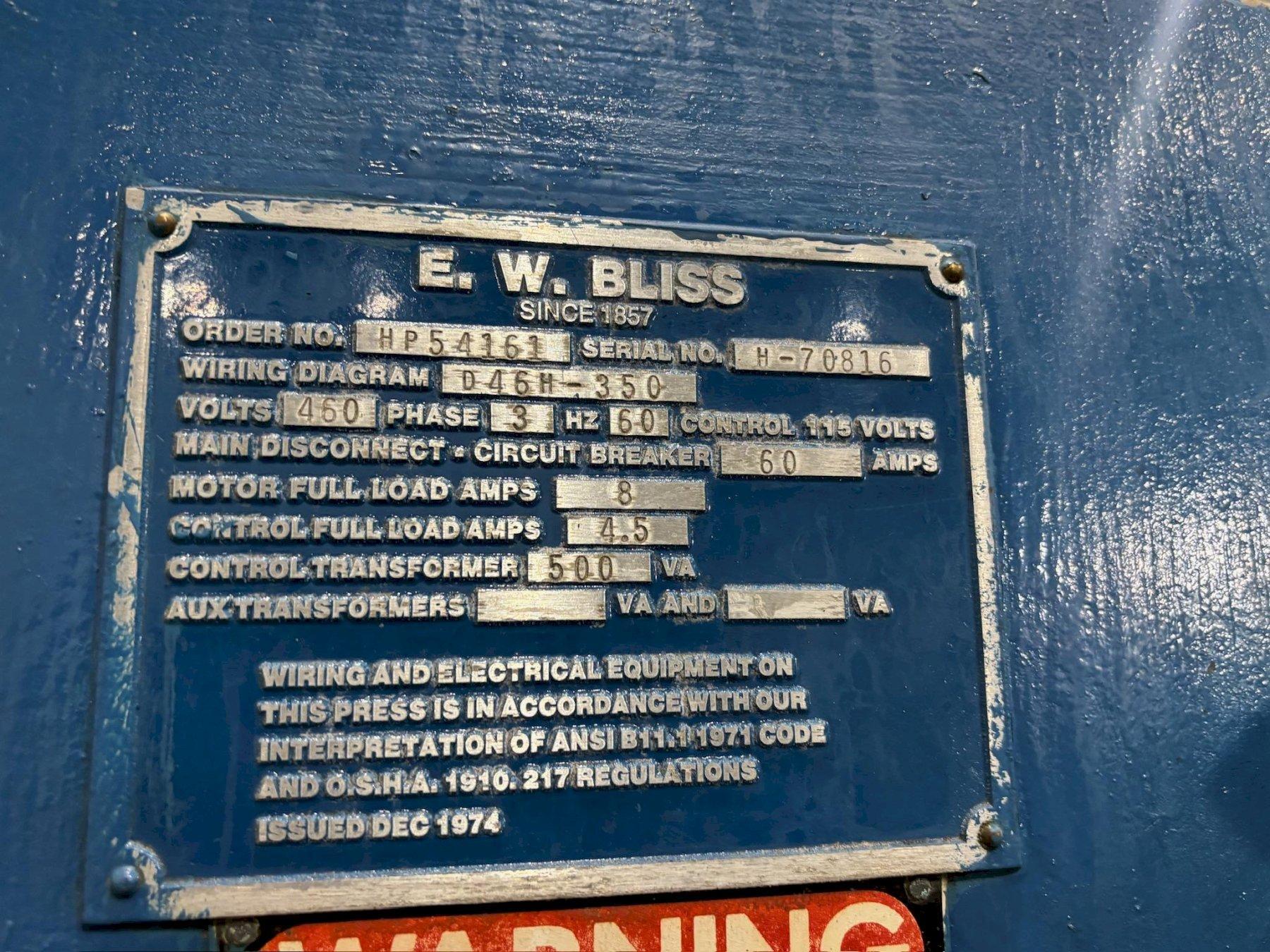

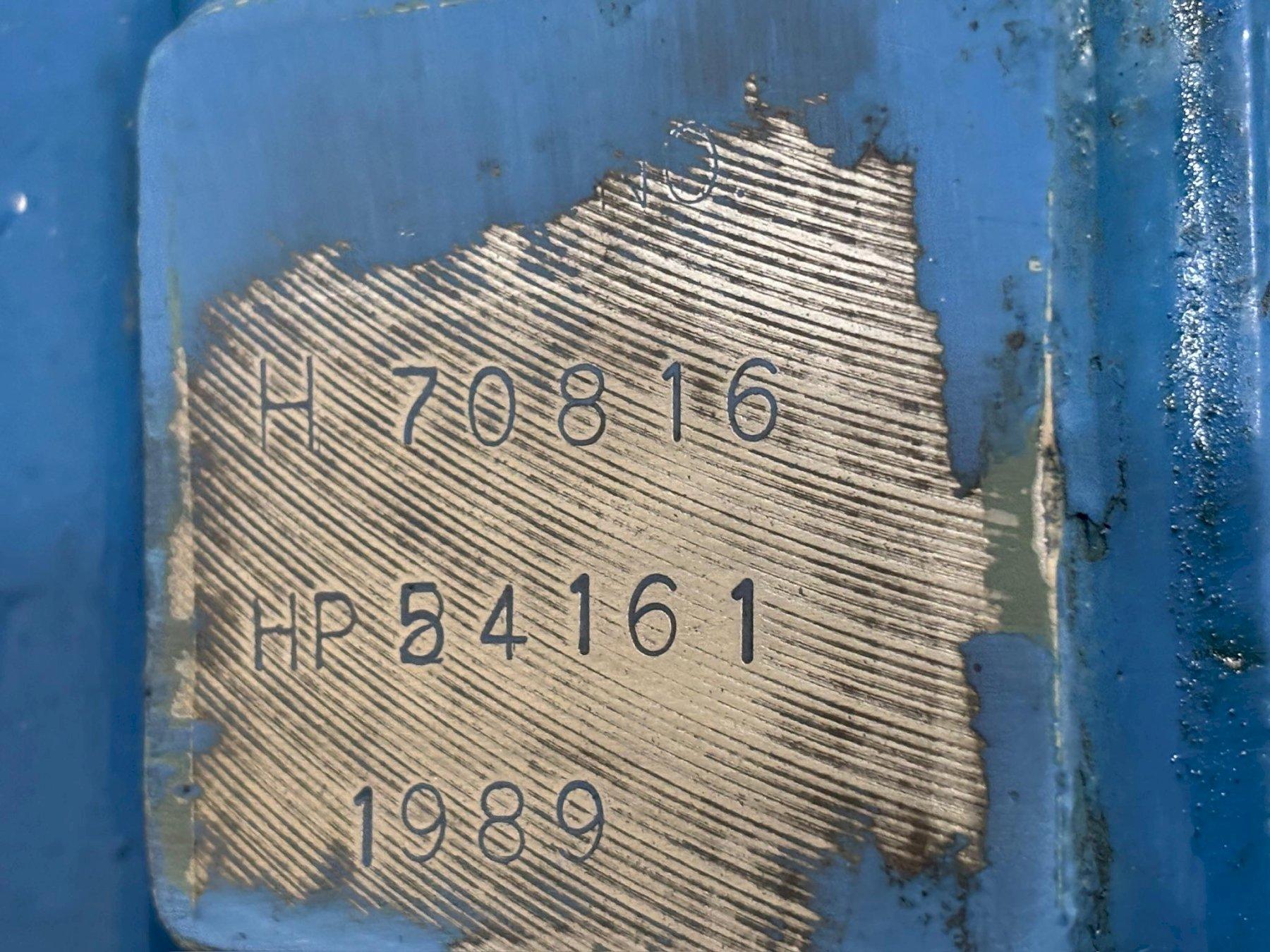

SERIAL .................................. H-70816

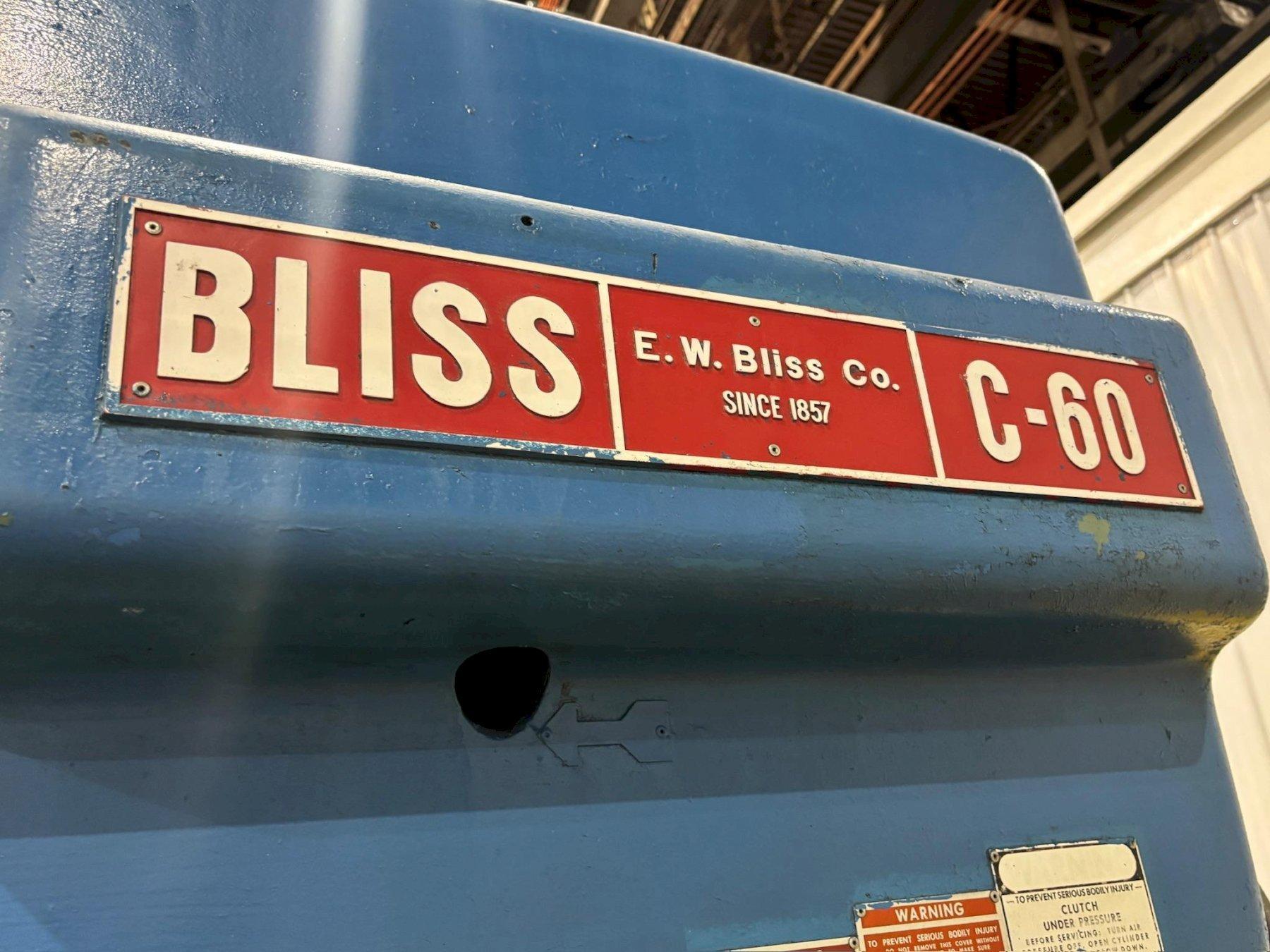

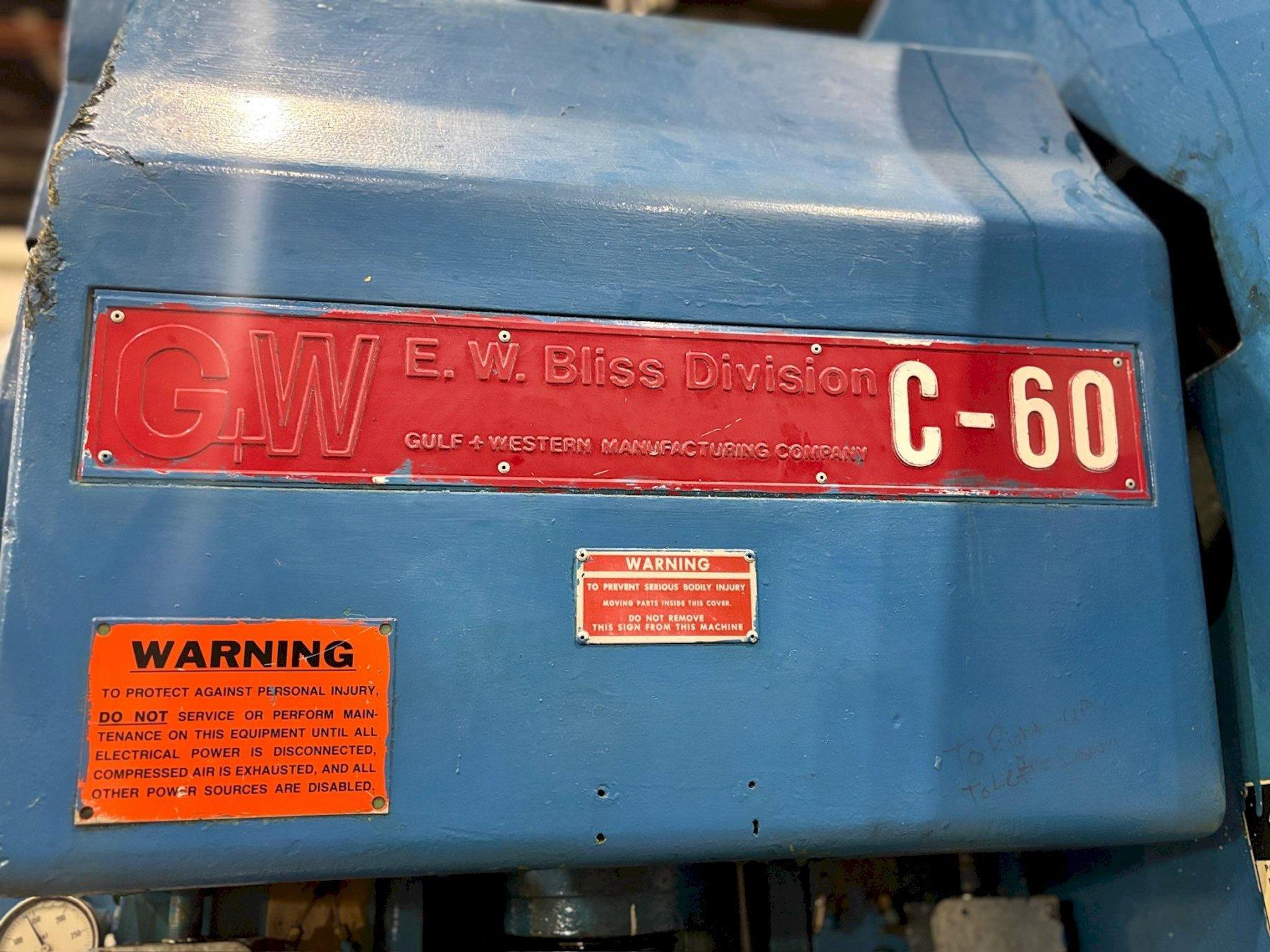

MODEL ................................... C-60
TYPE .................................... FLYWHEEL

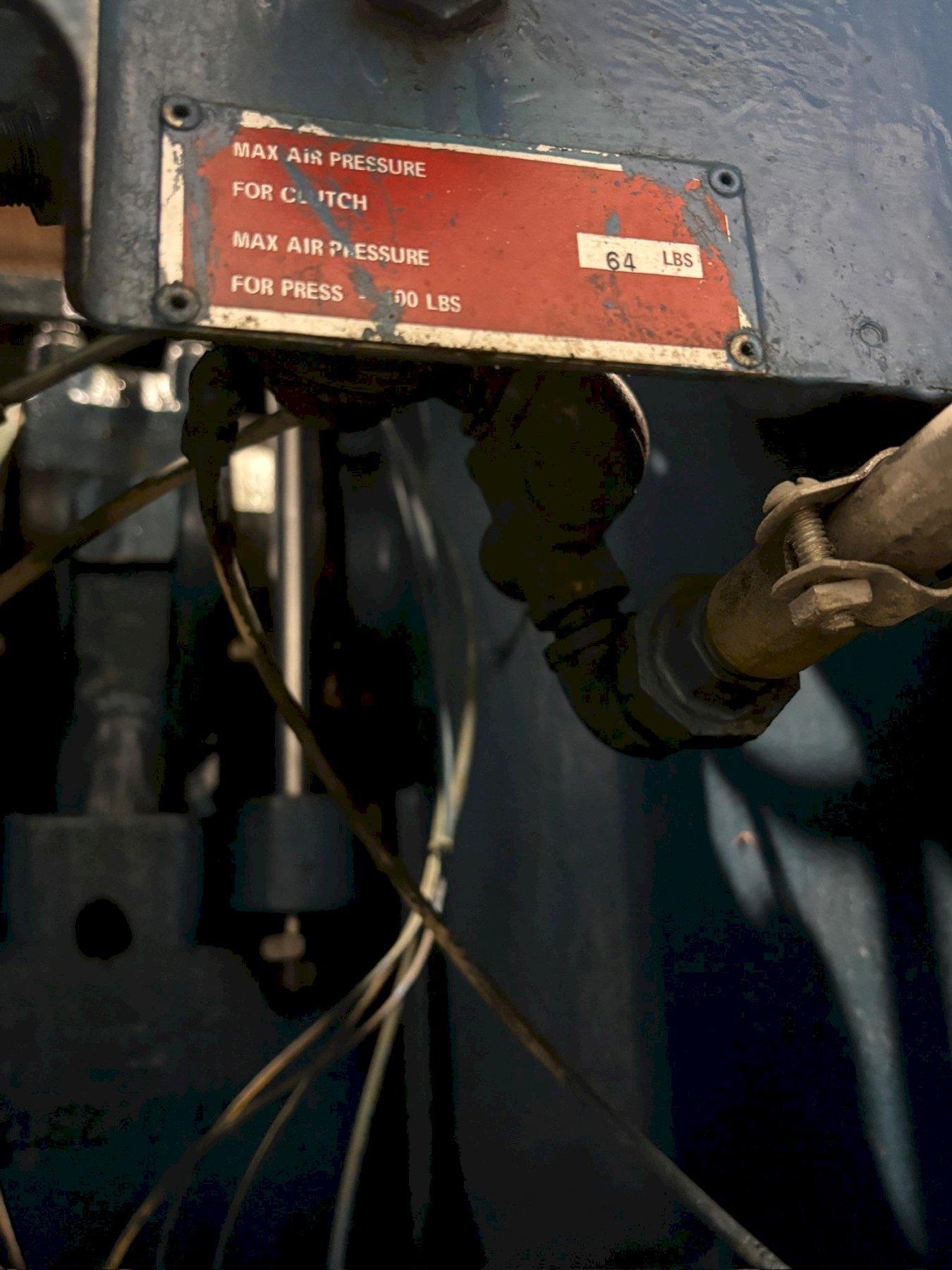

AIR CLUTCH & BRAKE ...................... YES

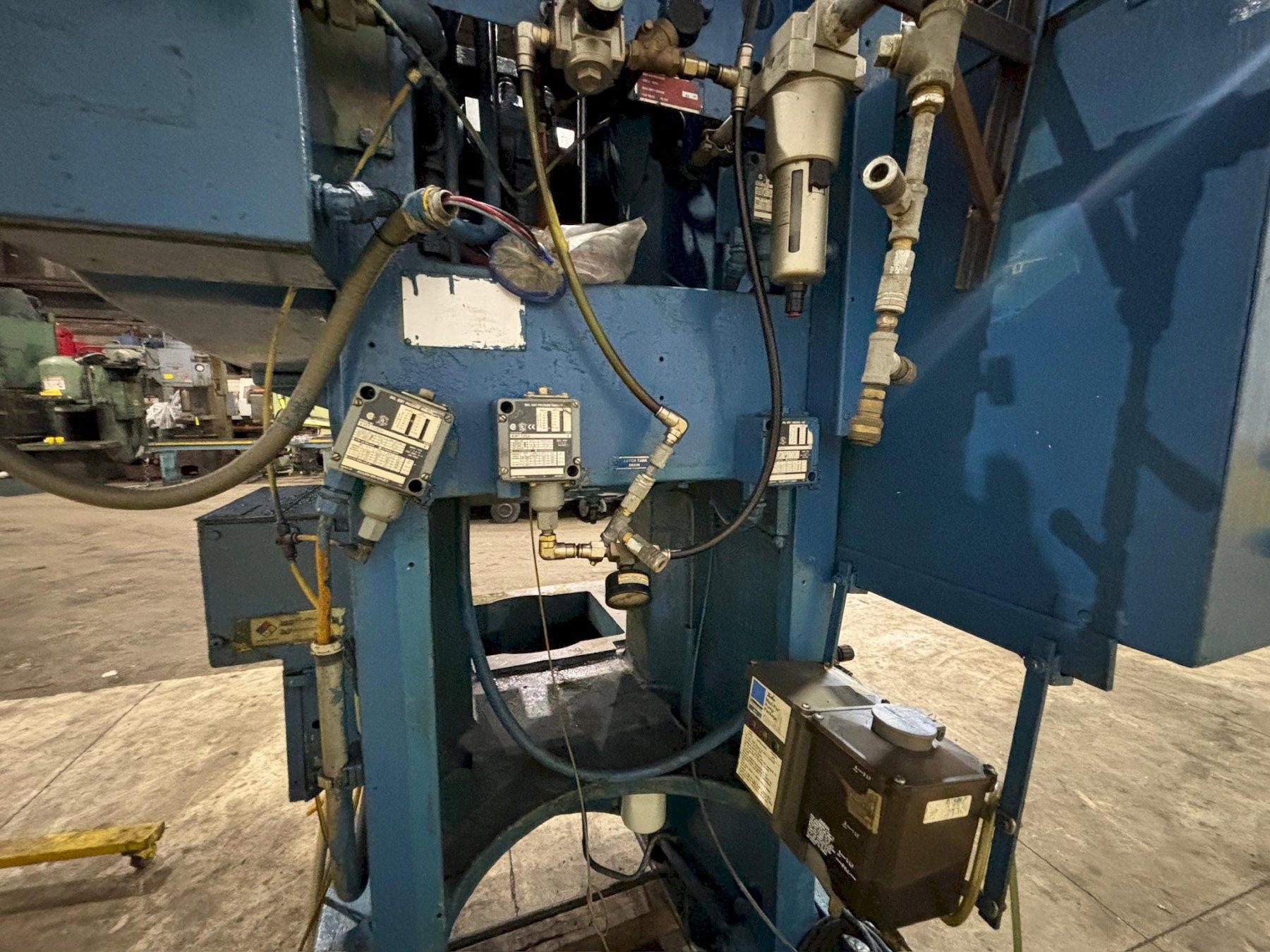

AIR COUNTERBALANCES ..................... YES

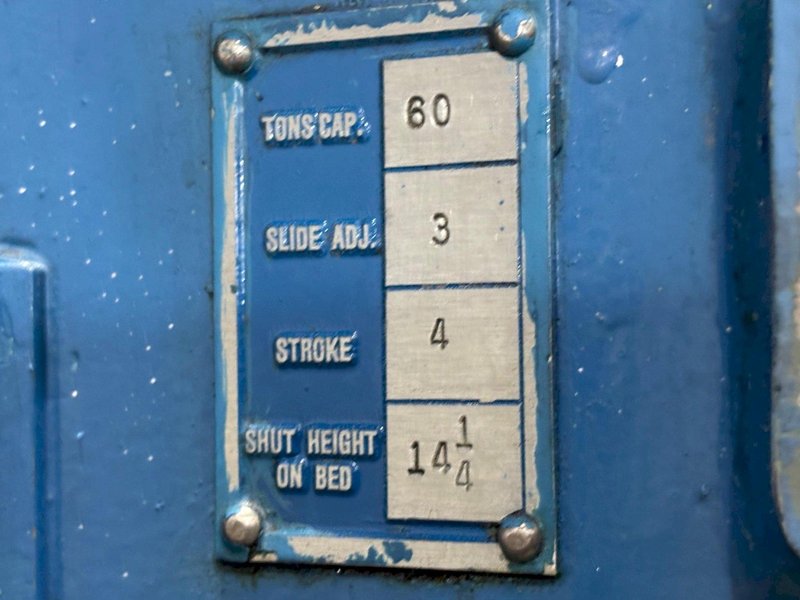

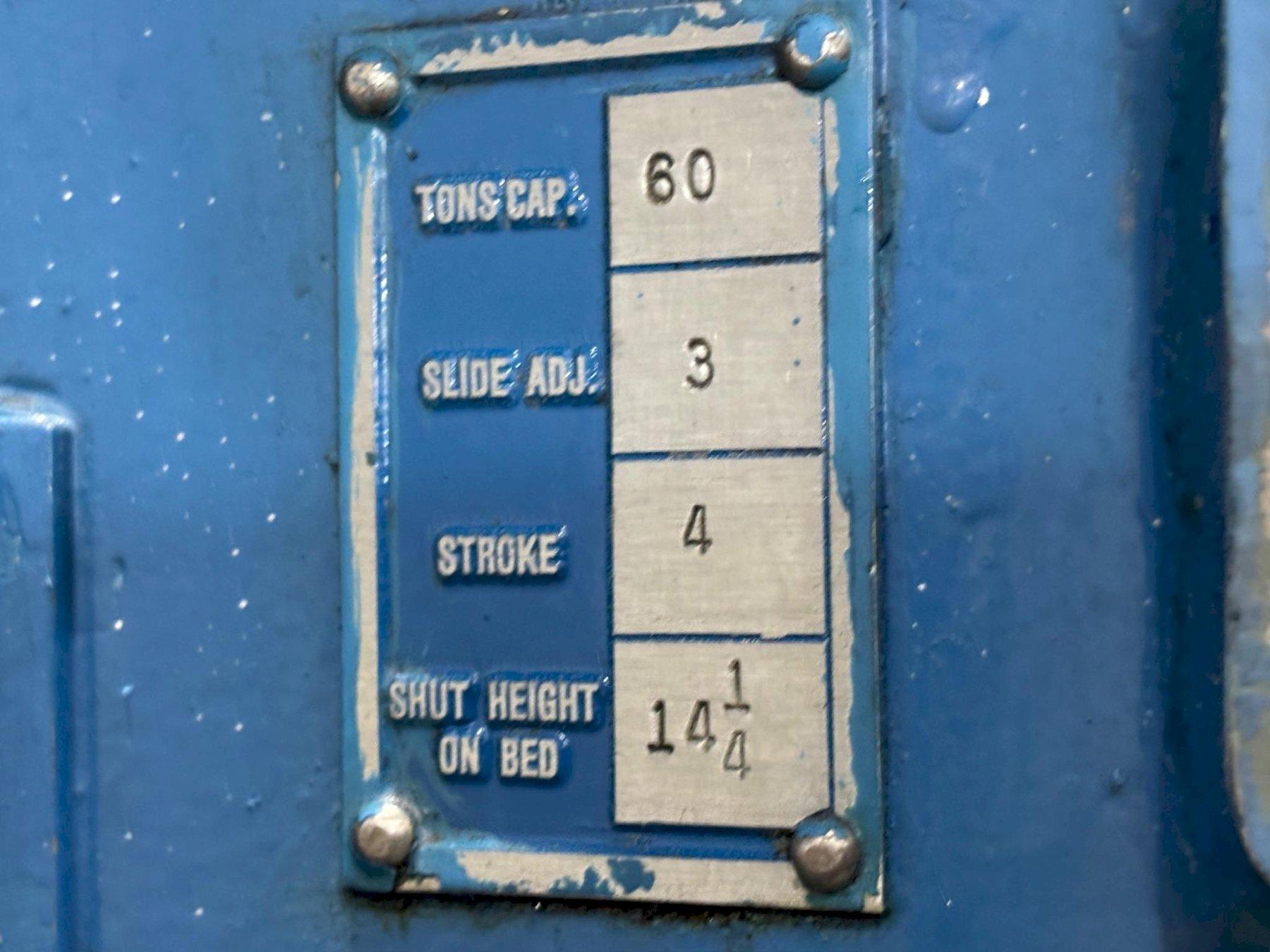

STROKE .................................. 4"

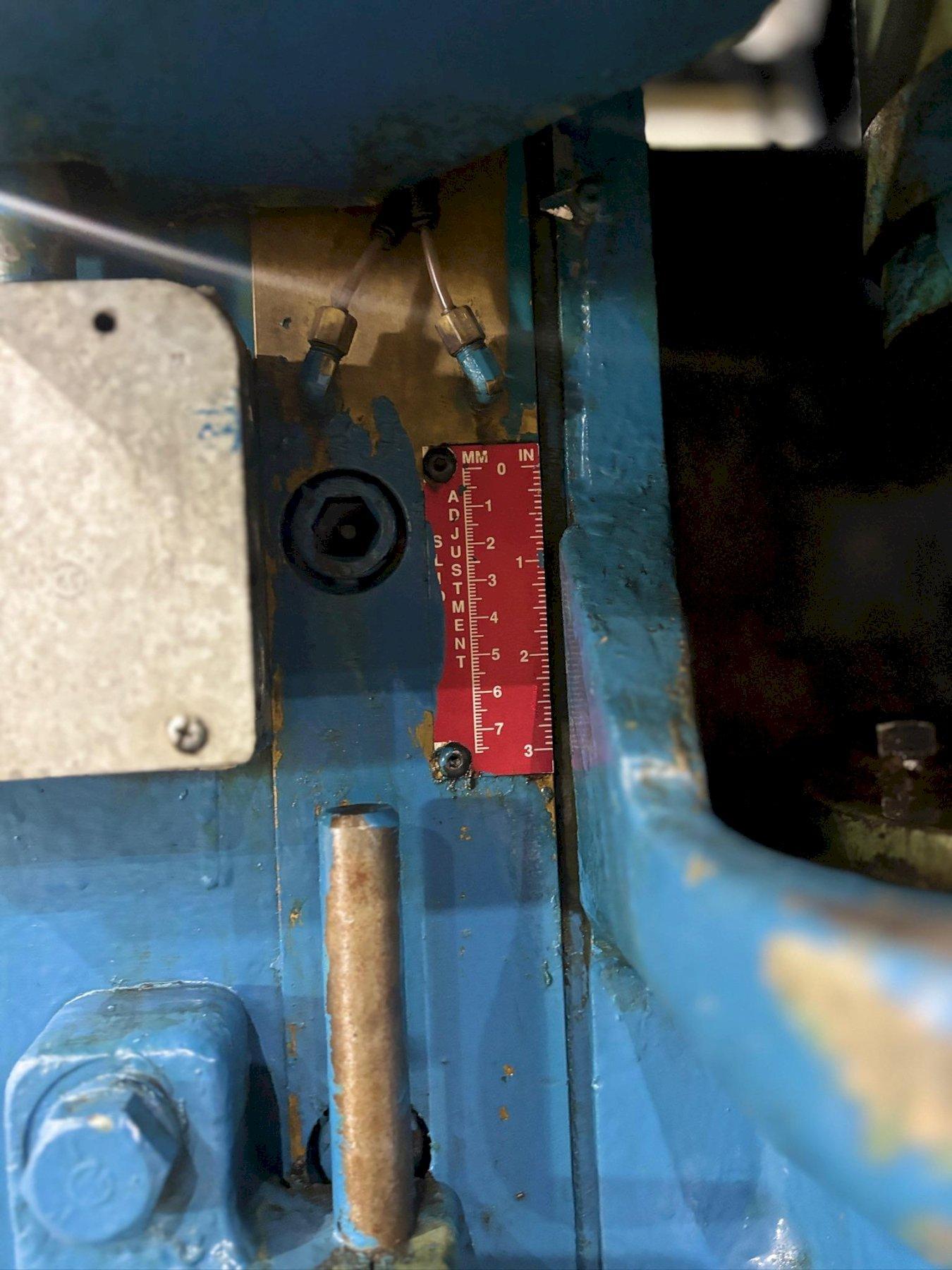

SLIDE ADJUSTMENT ........................ 3"
SHUT EHIGHT SDAU ........................ 14.25" TO TOP OF BED

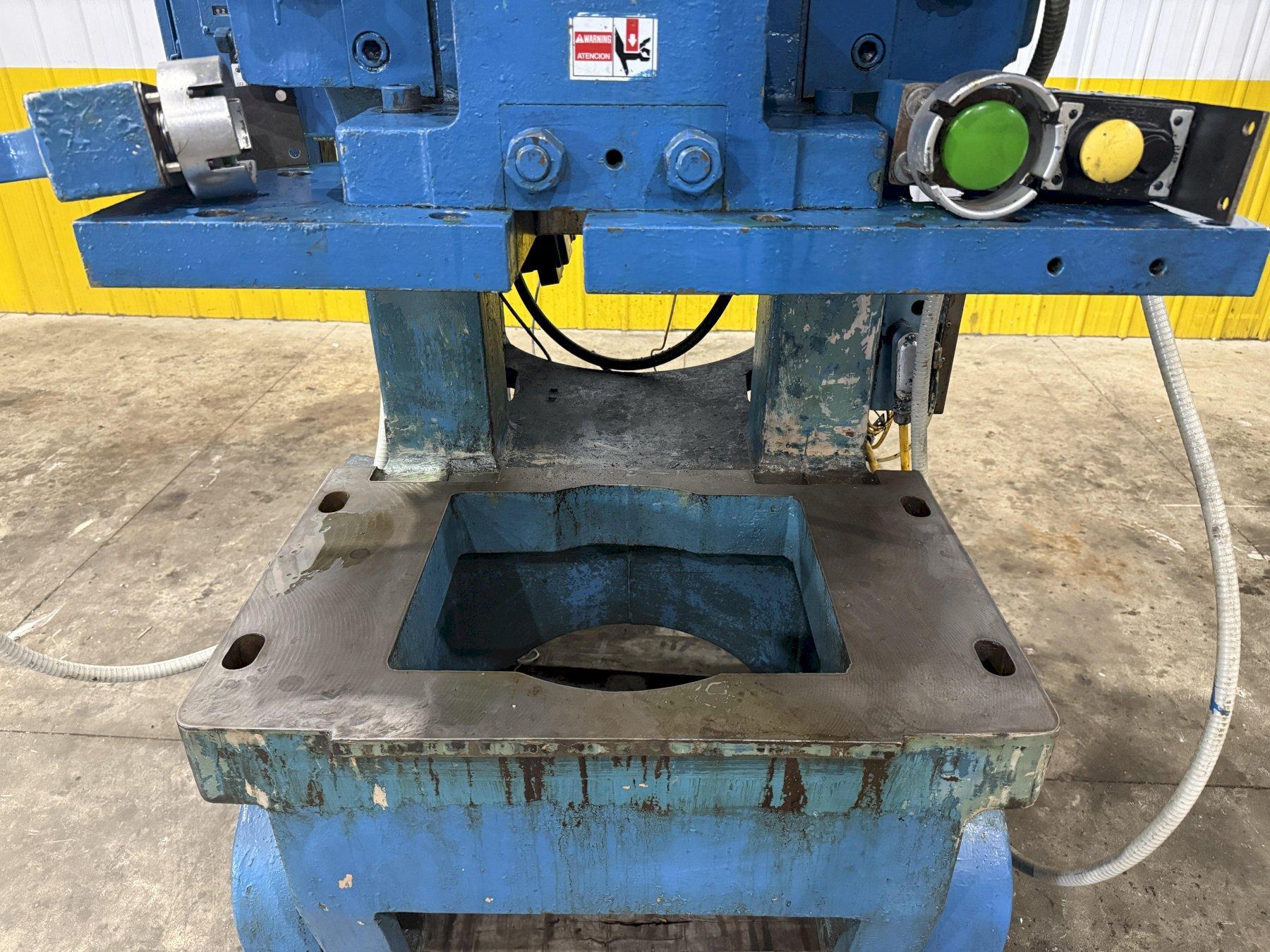

ARES OF BED ............................. 32" L-R x 21" F-B

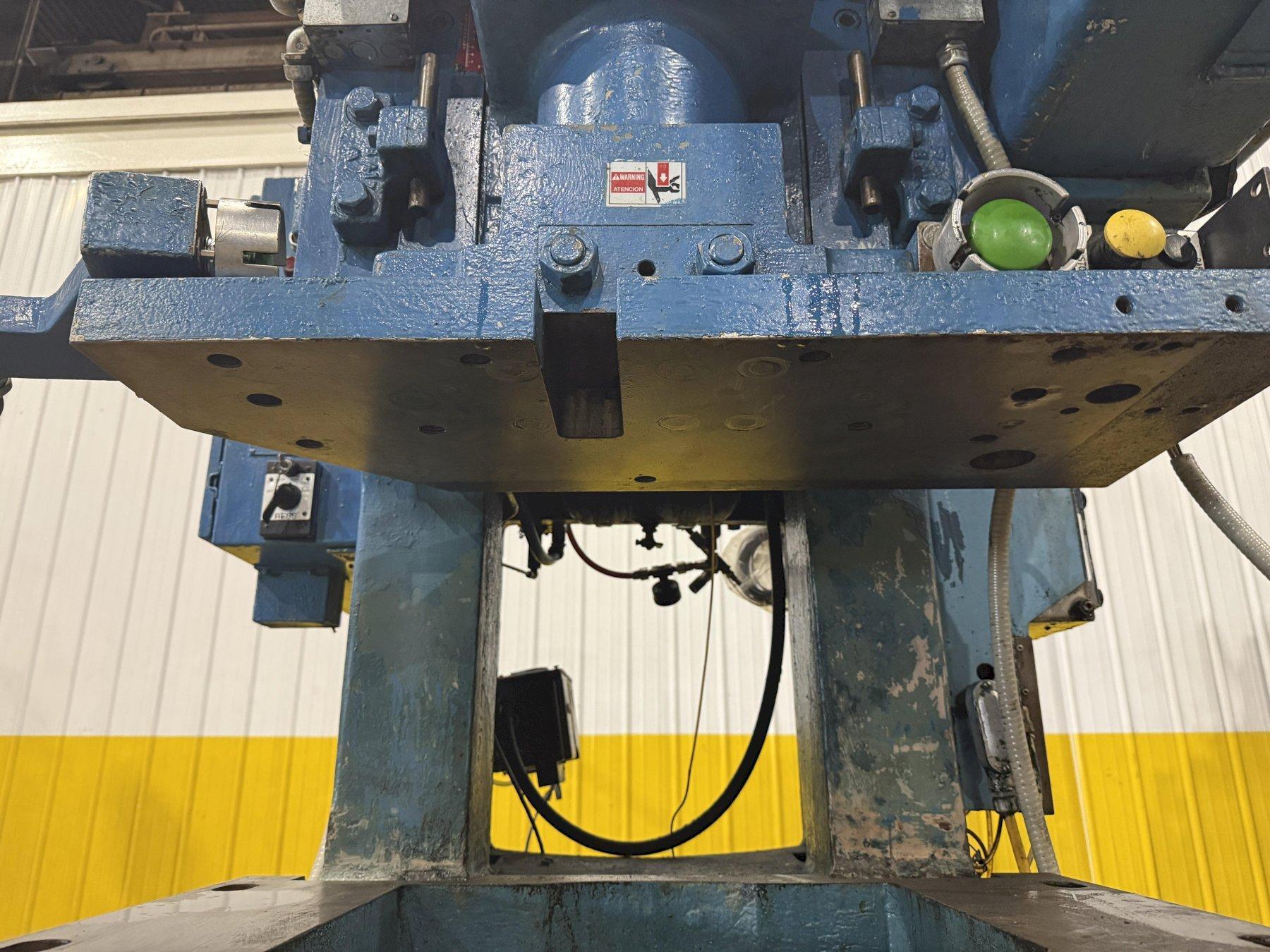

AREA OF SLIDE ........................... 17" L-R x 12" F-B

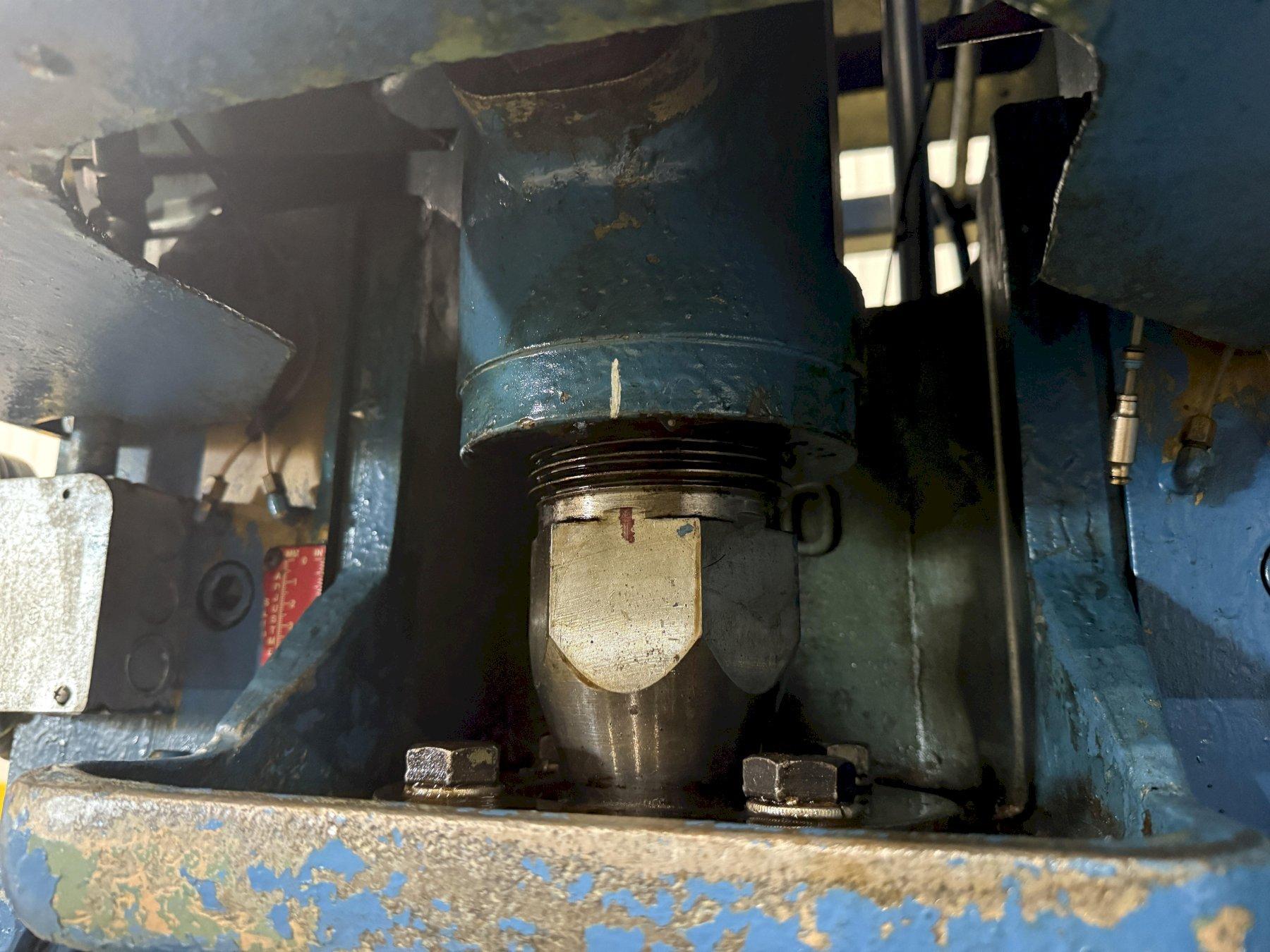

SHANK HOLE DIAMETER ..................... 2"
THROAT DEPTH ............................ 11"
OPENING THROUGH BACK .................... 15"
FLOOR TO TOP OF BED ..................... 36"
SPM (APPROX) ............................ 100

EQUIPPED WITH:

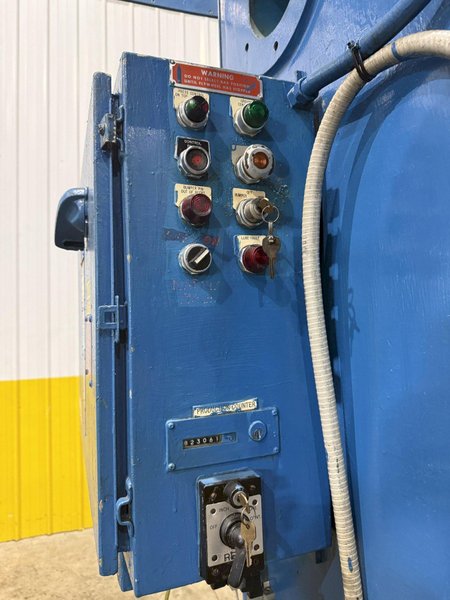

DUAL PALM BUTTONS ....................... EMERGENCY & TOP STOP
PUSH-PULL BUTTON ........................ START / STOP

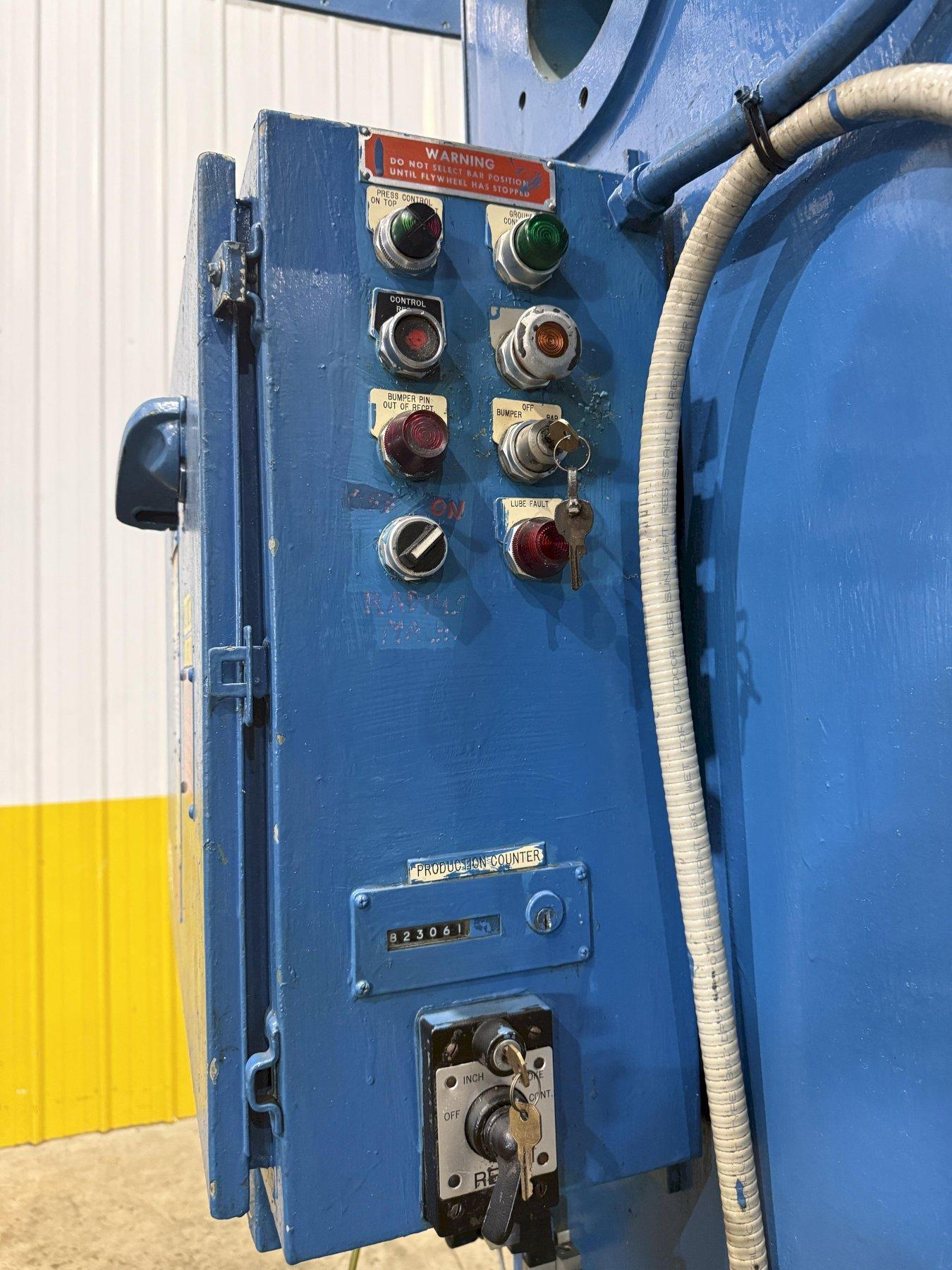

KEY SELECTOR SWITCH ..................... INCH-OFF-SINGLE-CONTINUOUS

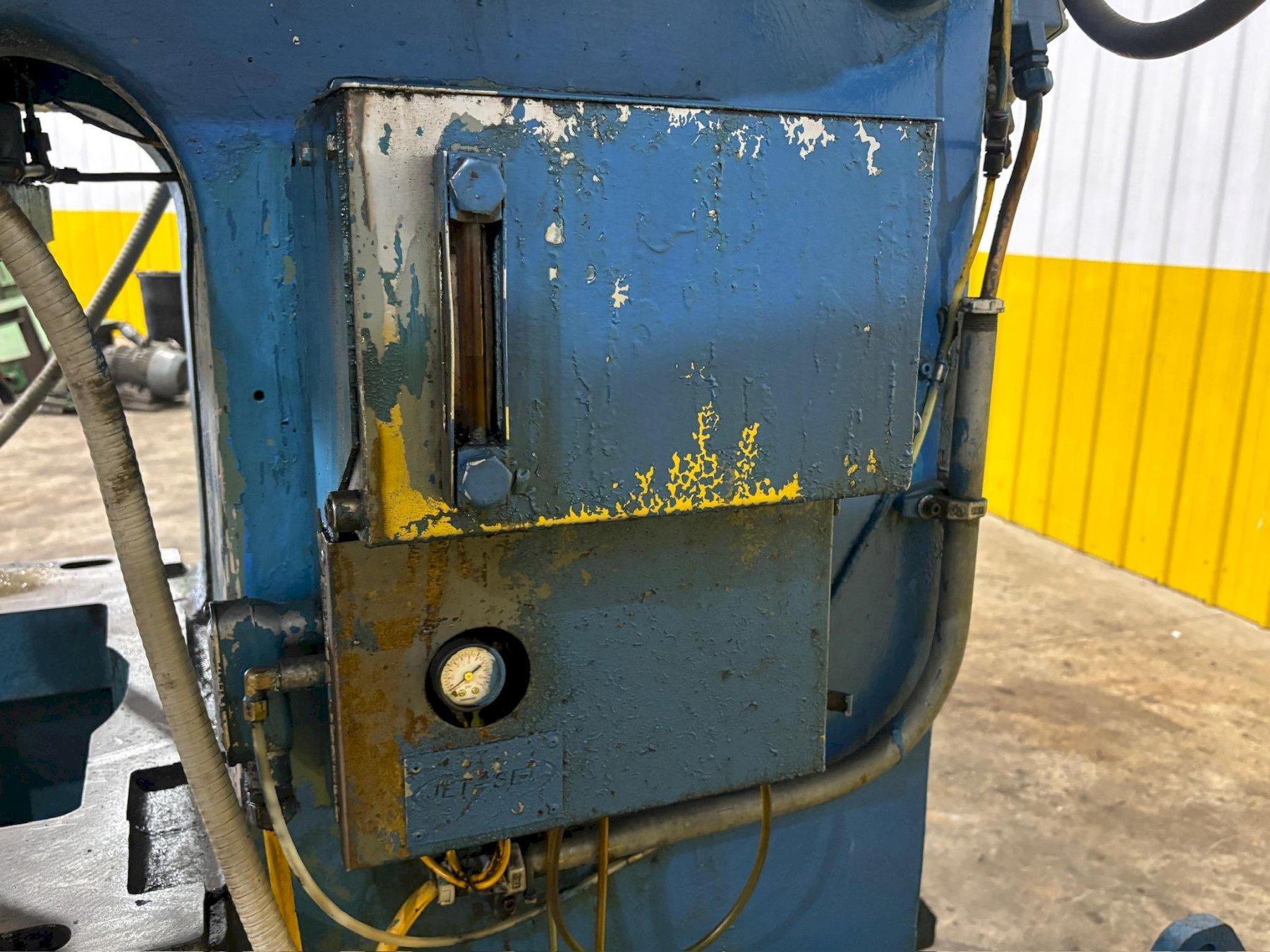

AUTOMATIC OIL LUBRICATION ............... YES
AIR SURGE TANK .......................... YES
KNOCKOUT SLOT IN SLIDE .................. YES

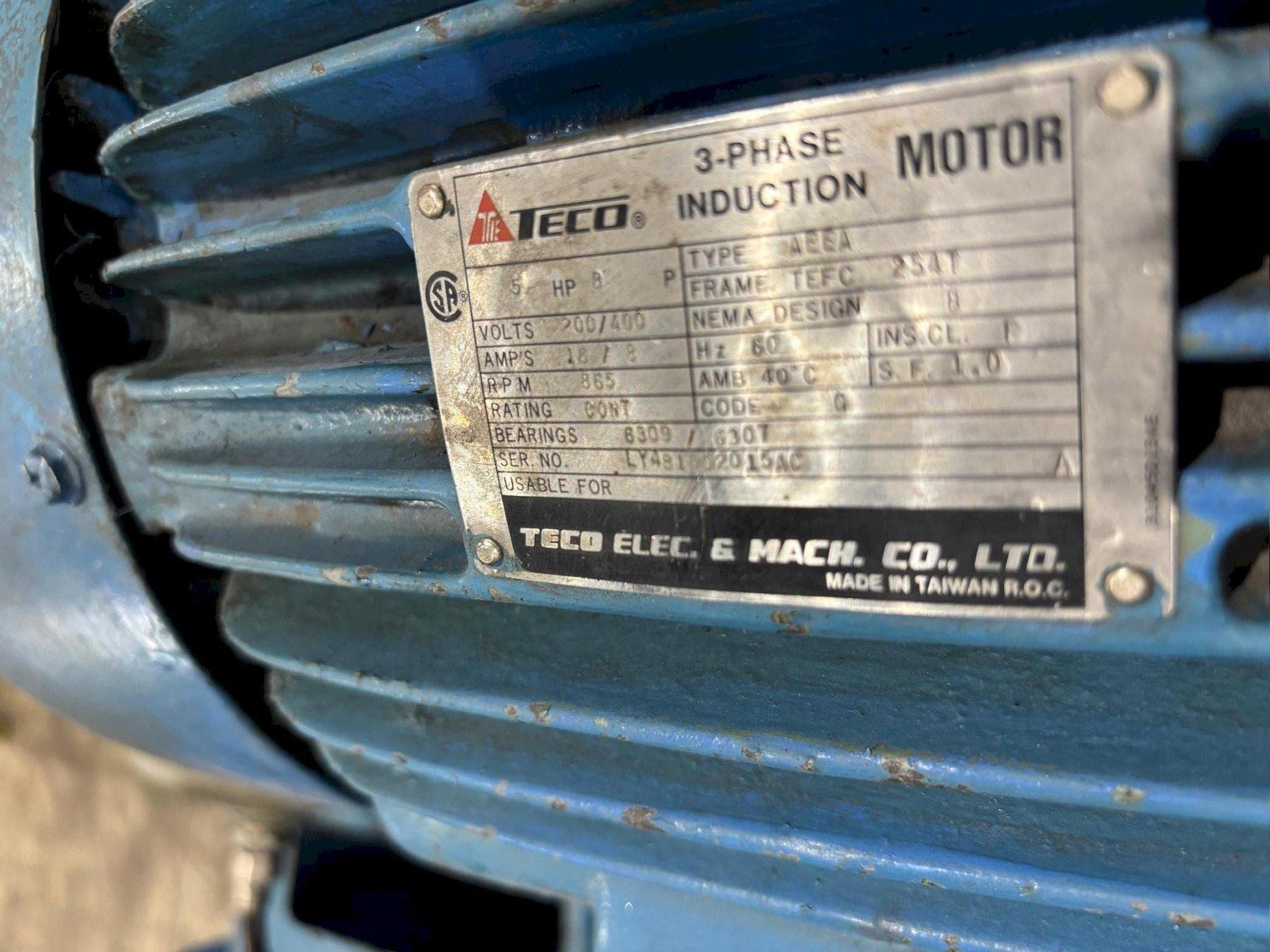

MOTOR ................................... 5HP/865RPM/200/400V/3PH/60CY
