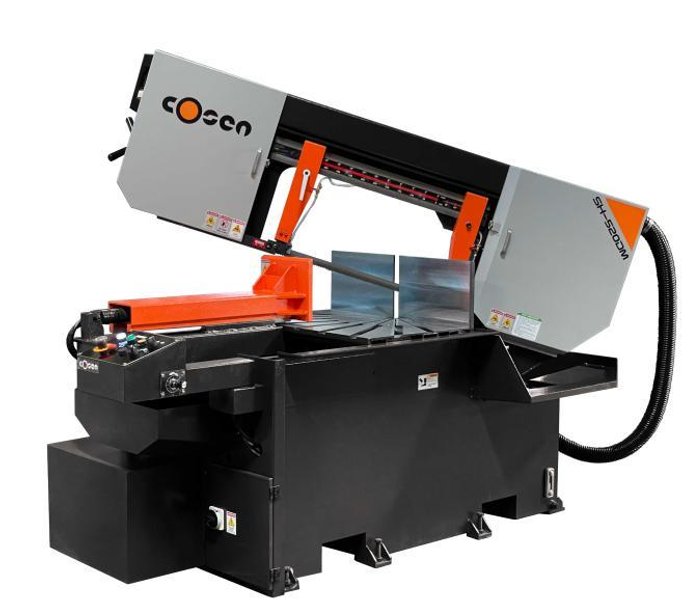

1 - NEW COSEN SEMI-AUTOMATIC SWIVEL HEAD DOUBLE-MITERING BANDSAW, MODEL #: SH-500DM
Brand
Category
Type
Model
SH-500DM
Stock #
87040
Year
Not specified
Condition
New
Location
North Carolina
|
Machine Specifications:
Maximum Cutting Capacity Round (0°, 45°,60°) 13.3”, 12.5”, 9.4”
Square 9.8”, 9.8", 9.4"
Rectangular (0°, 45°,60°) 9.8” x 20.4” , 9.8” x 14.5”, 9.8” x 9.4” Bundle ---
w/ optional top clamps ---
Remnant Piece ---
Blade Variable Speed 65, 111, 160, 249 FPM
Size 15’ 6.22” x 1.25” x .042” Motor Saw Blade 3 HP
Hydraulic 1/2 HP
Coolant 1/8 HP
Auto. Material Feed System Job Storage NA
(Not Available on Semi-Auto Saws) Single Index Stroke NA
Multiple Stroke Indexing NA
Weight 2645 LBS
Power 230V, 3 PH, 60 Hz
(460, 3 PH, 60 Hz Option) Floor Space 101” x 119” x 83”
Work Bed Height 31.4”
*Please note that machine design and specs can change without notice
Max AMP Draw - 230V:
460V: Machine Features: Swivel saw head allows miter cutting from 0 degrees to 60 degrees in Both directions
Hydraulic cylinder plus precision ground hinge support
Hardened worm gear for durability
Hard stops at 90, 45, and 30 degrees for quick angle set up
Blade drive equipped with variable pulley system
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Cast-iron hydraulic vise
Adjustable down-feed control
Saw head automatically raises after each cut
Blade Tension Gage
Included Accessories:
Variable Blade Drive System With 3HP Motor
Adjustable material stop
Additional flushing hose for cleaning
Bi-metal saw blade
Tool Box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Optional Accessories:
Vise Pressure Regulator $ 1,395.00
Heavy-duty Roller Table 5’ long (Part# RT-5-26PM) 25” Max Roller Width. Capacity -4200lbs $ 3,395.00 Heavy-duty Roller Table 10’ long (Part# RT-10-26PM) 25” Max Roller Width. Capacity- 7700lbs $ 4,995.00 Micro Droplet Applicator $ 2,495.00 Buck Boost Transformer for incoming power of 208V or below $ 1,695.00 Voltage Change to 460V 3 PH $ 995.00 |
