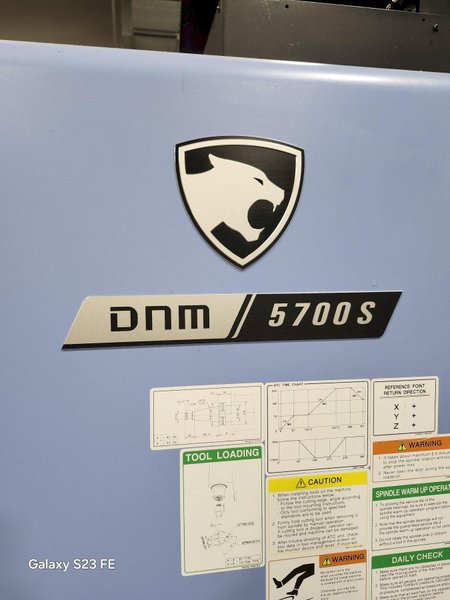

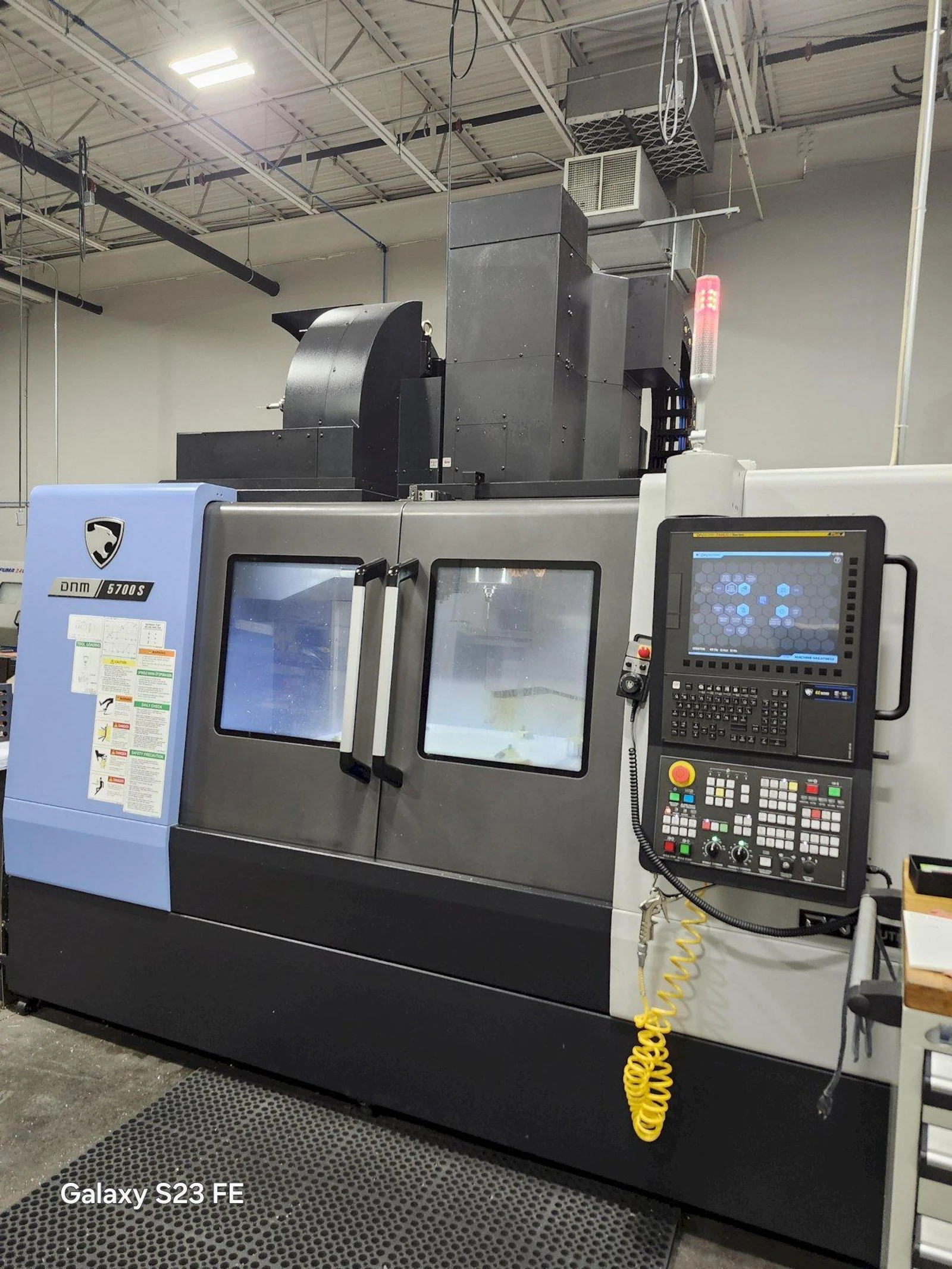

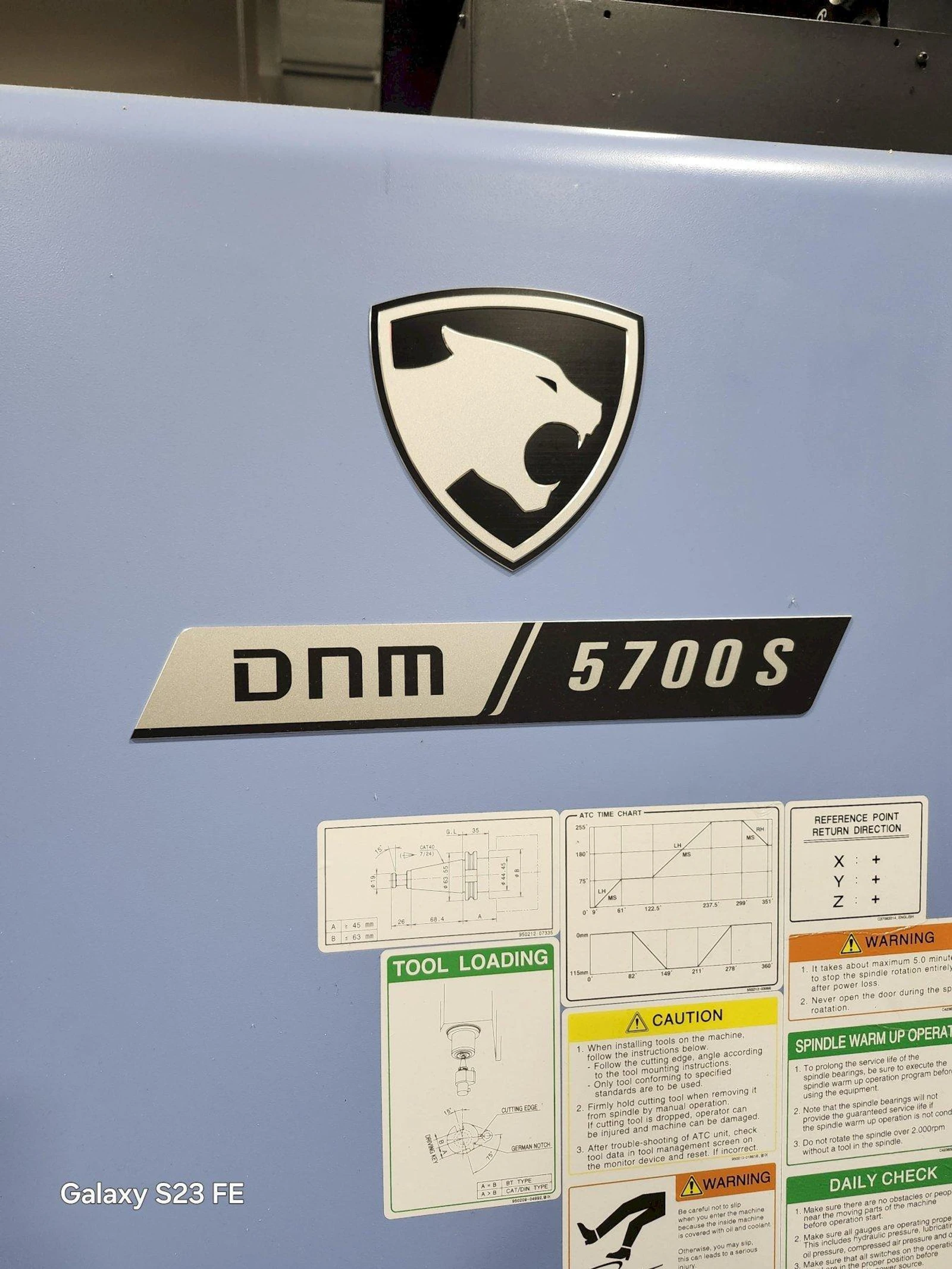

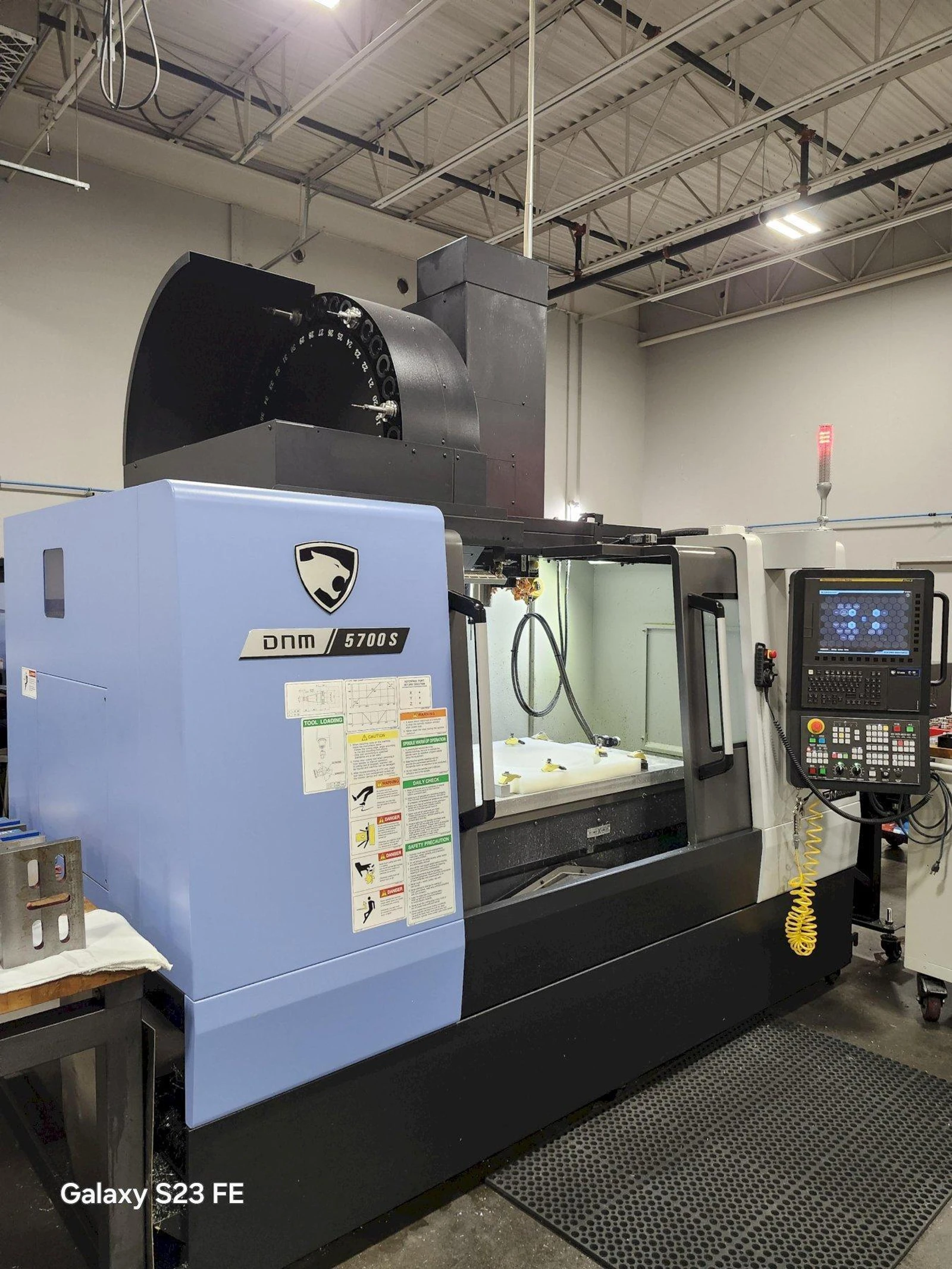

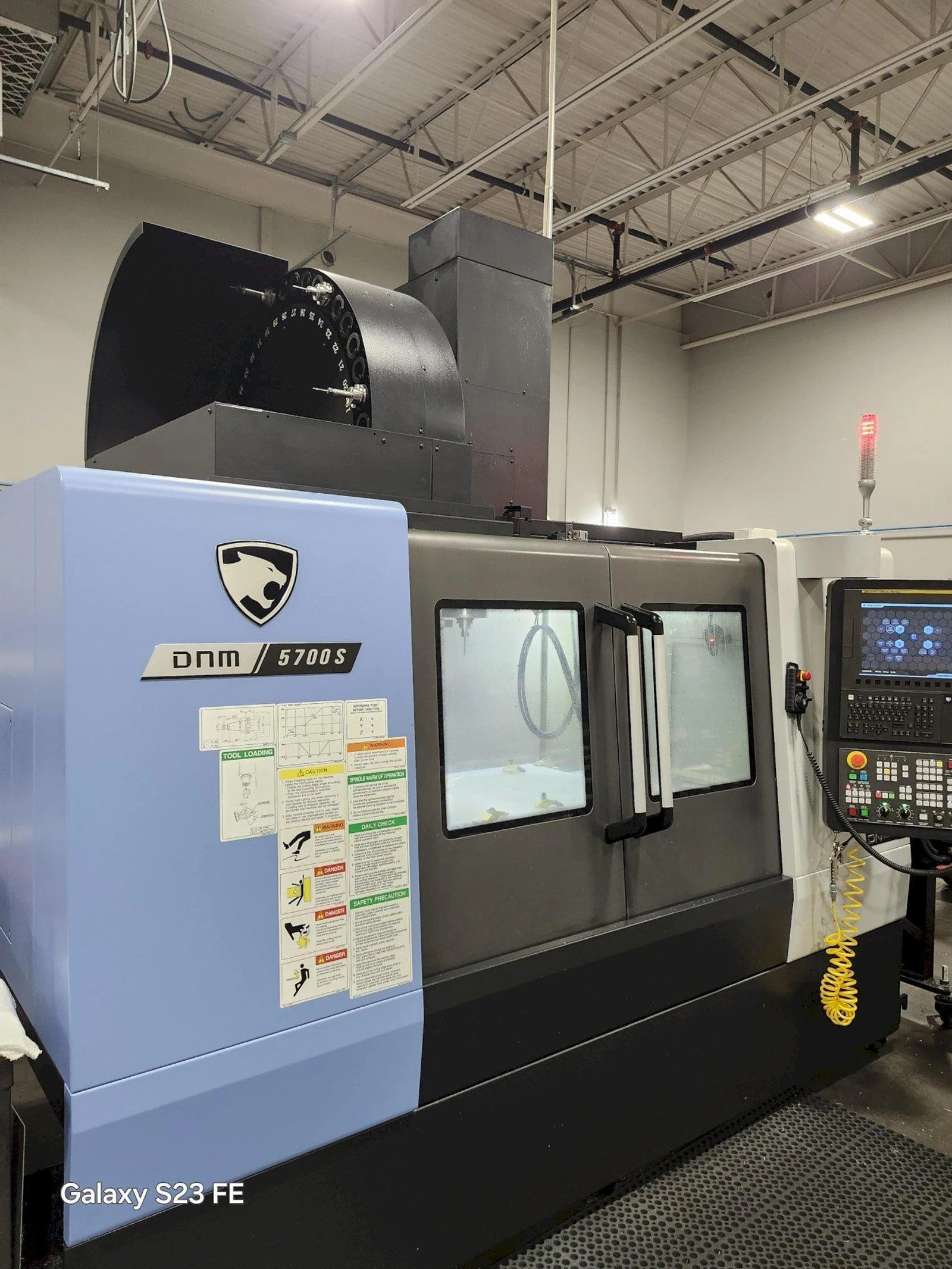

DN Solutions - DNM 5700S CNC Vertical Machining Center, X 41.3, Y 22.4, Z 18.1 Trvls, 15000 RPM, 40 ATC, HP Coolant, Fanuc Oi-Plus, 20.1/49.6 Hp, (New 2023)

Name: Used DN SOLUTIONS DNM 5700S For Sale 56732
Brand: DN SOLUTIONS
SKU: 56732
Availability: PreOrder

Brand

DN SOLUTIONS

Minnesota

CNC Control	yes
Type Of CNC Control	DN Soluttions - Fanuc I Series
# Axis	3
Table Size	51.2 x 22.4 in
Table Capacity	2205 pounds
X-Axis Travel	41.3 inches
Y-Axis Travel	22.4 inches
Z-Axis Travel	18.1 inches
Spindle To Table Distance	150 - 610 mm (5.9 - 24 in.)
X-Axis Rapid Traverse Rate	1653 in./min
Y-Axis Rapid Traverse Rate	1653 in./min
Z-Axis Rapid Traverse Rate	1417 in./min.
Spindle Speed	15000 RPM
Spindle Taper	CAT 40

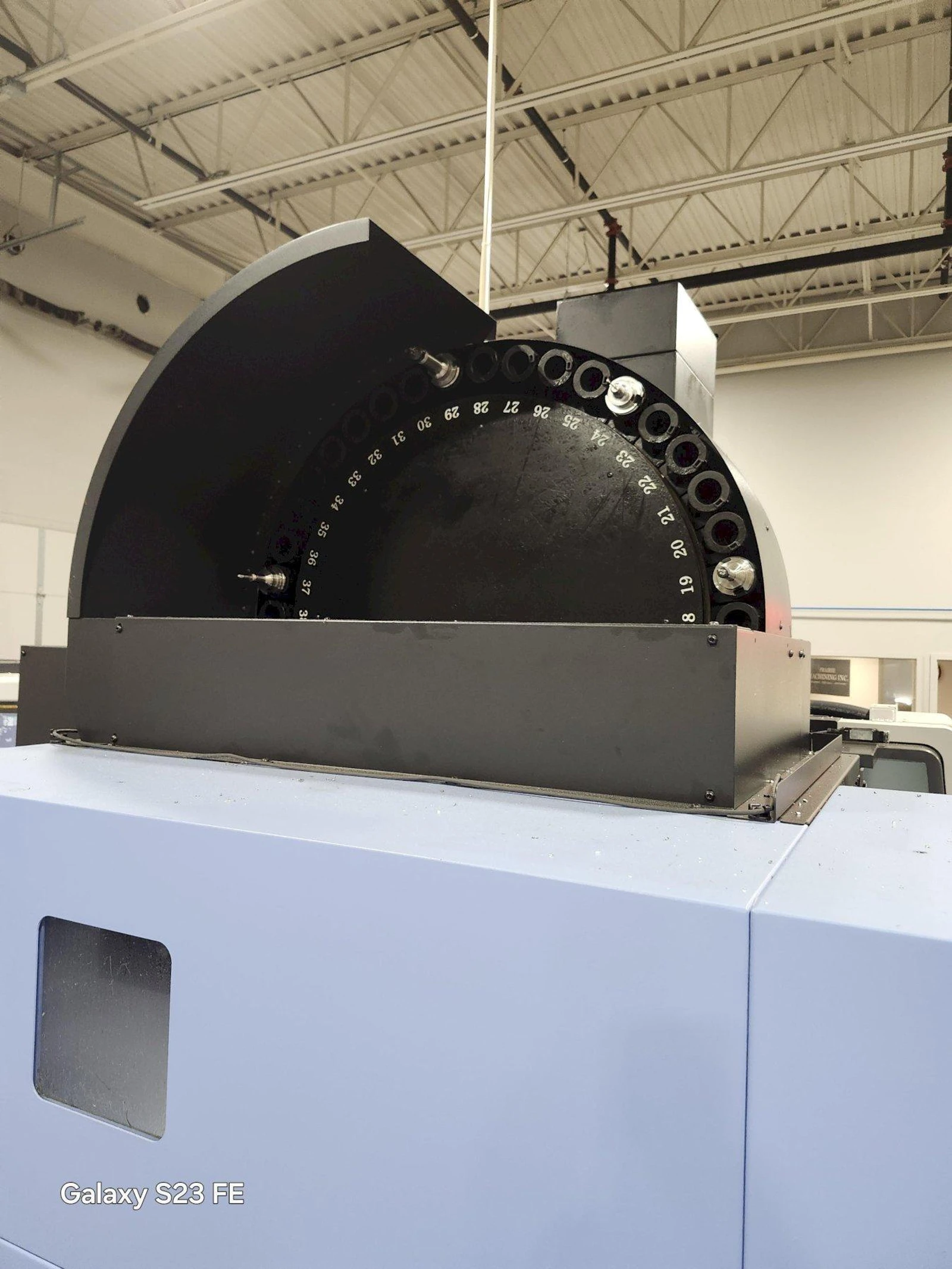

Tool Changer Capacity	40
Main Motor	20.1/49.6 Hp
Coolant Thru Spindle	yes
Torque, Up To	157.9 ft-lbs.
Weight	14500 pounds

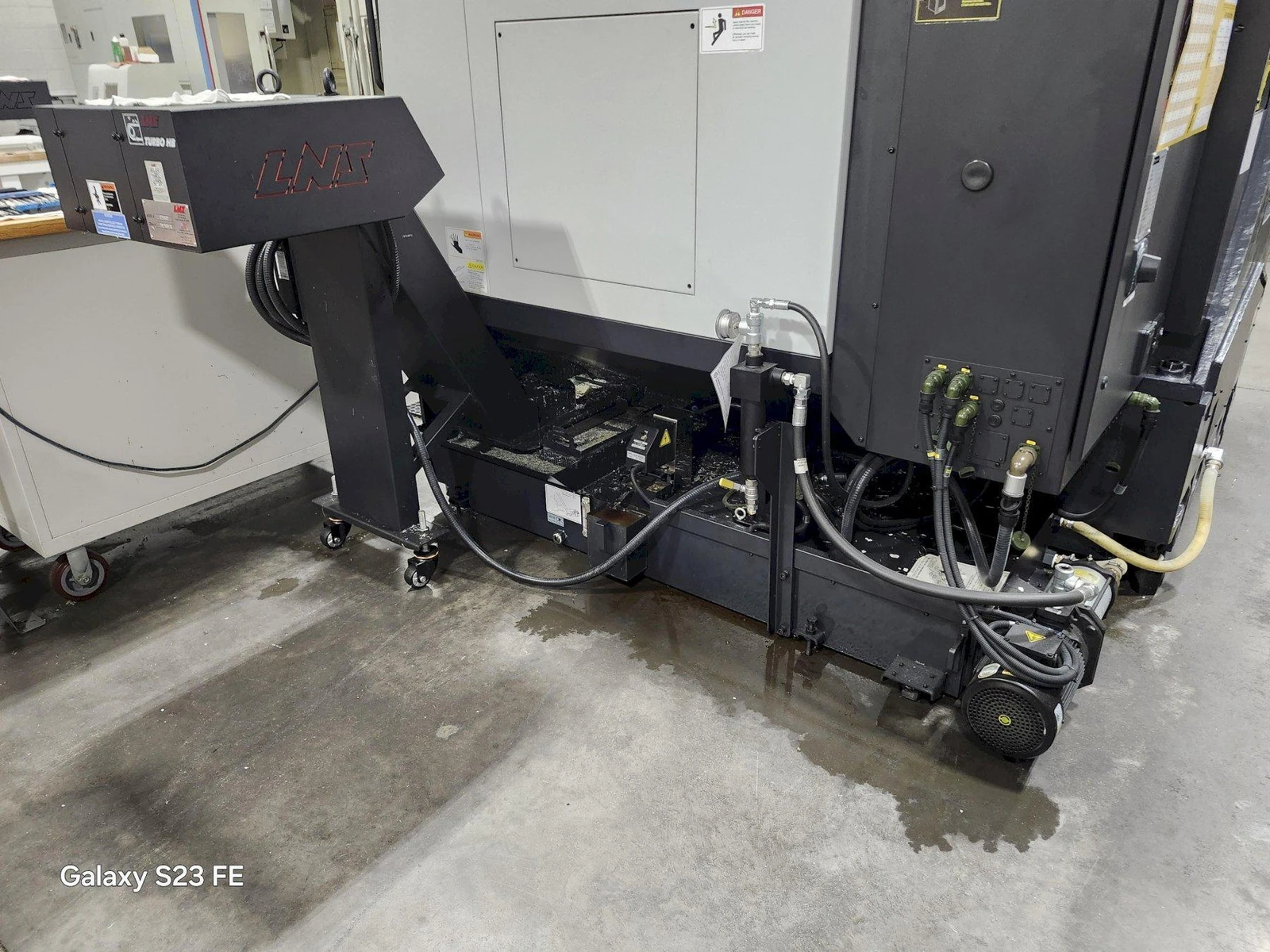

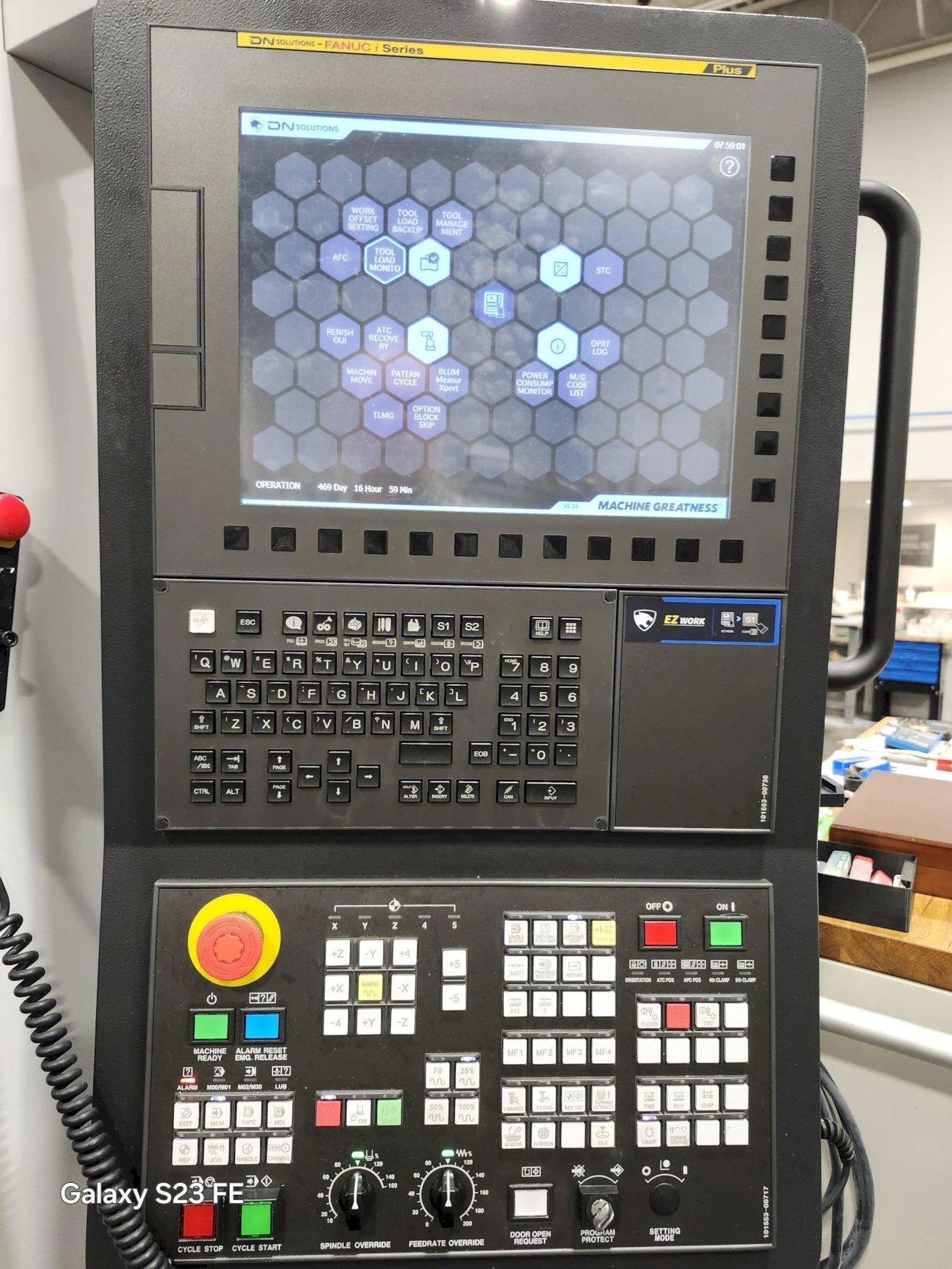

DN Solutions Fanuc i Series Control Hand Wheel Pendant 15,000 rpm spindle Automatic Tool Changer Ball nut cooling Spindle thermal displacement control with multiple sensors Rigid Casting High Pressure Coolant (to be verified) Rigid Tapping (to be verified) Coolant Thru the Spindle (to be verified) Chip Conveyor Manuals
