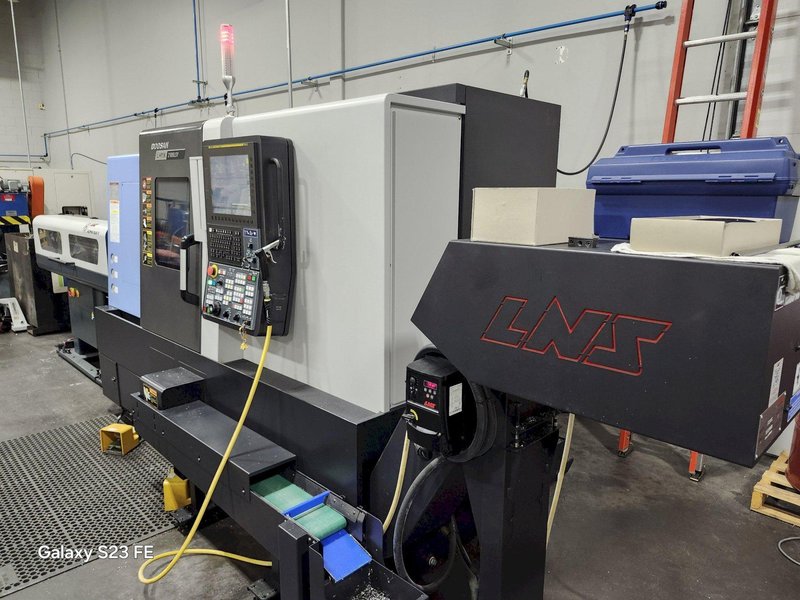

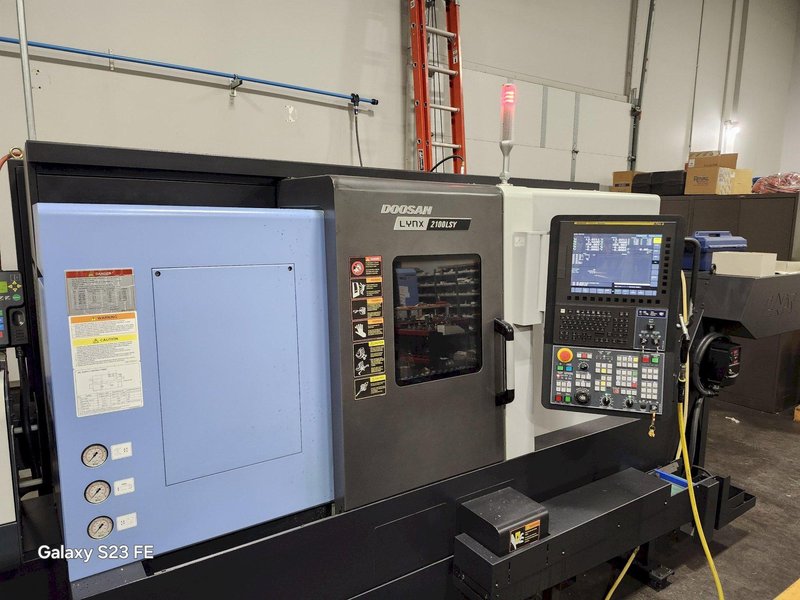

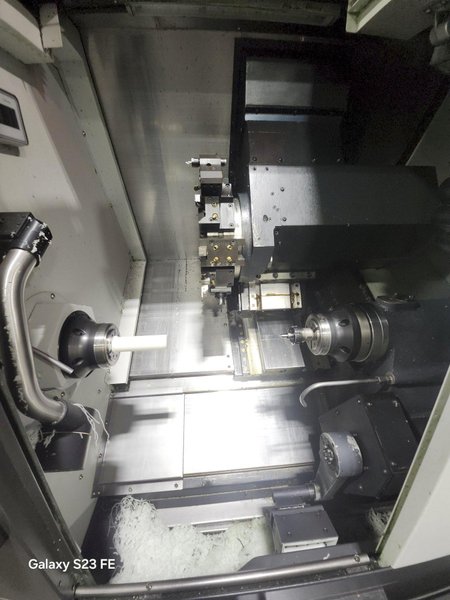

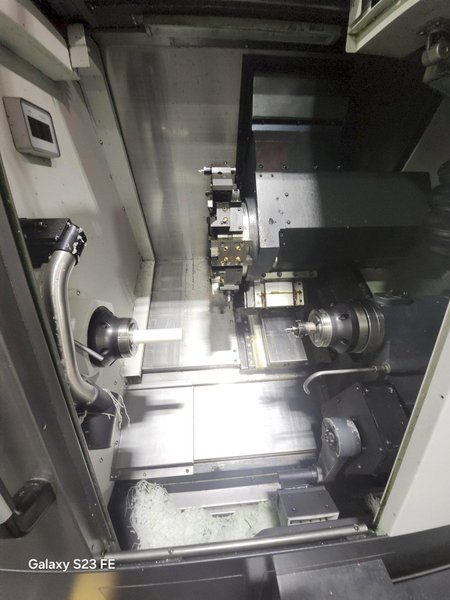

DN Solutions (Doosan) Lynx 2100LSYA CNC Lathe, Live Tooling, Doosan-Fanuc i Series Control, LNS Alpha Series BF, 20 HP, New 2022
Brand
Category
Model
Lynx 2100LSYA
Stock #
56731
Year
2022
Condition
Excellent
Location
Minnesota
| CNC Control | Doosan Fanuc i-Series Control |
| Travel Distance X-axis | 205 mm (8.1 in) |
| Travel Distance Y-axis | 105±52.5 mm (4.1±2.1 in) |
| Travel Distance Z-axis | 560 mm (22 in) |
| Travel Distance B-axis | 560 mm (22 in) |
| C - Axis Indexing | Full C |
| Rapid Traverse X-axis | 30 m/min (1181 in/min) |
| Rapid Traverse Y-axis | 10 m/min (394 in/min) |
| Rapid Traverse Z-axis | 36 m/min (1417 in/min) |
| Main Spindle | yes |
| Spindle Speed | 6000 rpm |
| HP Power | 15 kW (20 Hp) |
| Chuck Size | 6 in |

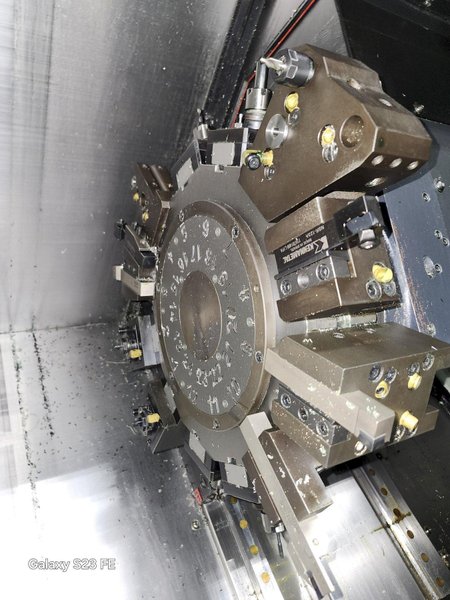

| Turret Stations | 12 |
| MAX TURNING DIAMETER | ⌀300 mm (11.8 in) |
| Max Turning Length | 510 mm (20.1 in) |
| Through Hole Diameter | ⌀61 mm (2.4 in) |

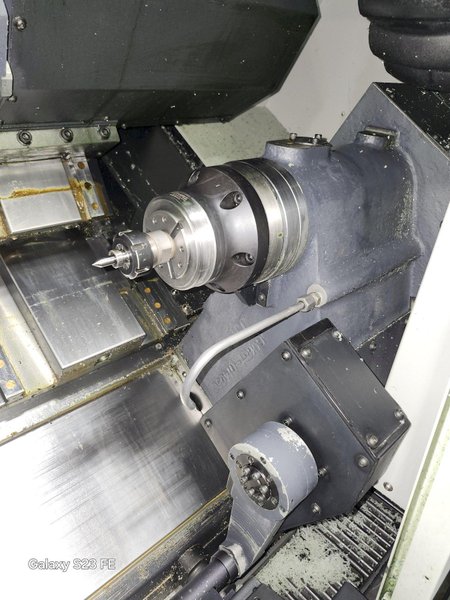

| Sub Spindle | yes |
| Sub Chuck Size | 5 in |
| Sub-Spindle Speed Range | 6000 rpm |
| Sub Spindle Motor | 5.5 kW (7.5 Hp) |
| Turret Live Tooling Torque | 46 Nm (34 ft-lbs) Tooling (Milling) |
| Rotary Tool Speed | 6000 rpm |
| ROTARY TOOL POWER | 3.7 kW (5 Hp) |
| Rotary Tool Torque | 24 Nm (17.3 ft-lbs) |
| Machine Cutting Hours | 3118 |
| Machine Dimensions - L X W X Ht. | 2880 mm (113.4 in.) x 1710 mm (67.5 in.) x 1920 mm (76 in.) |
| Machine Weight | 4150 kg (9150 lbs.) |
|

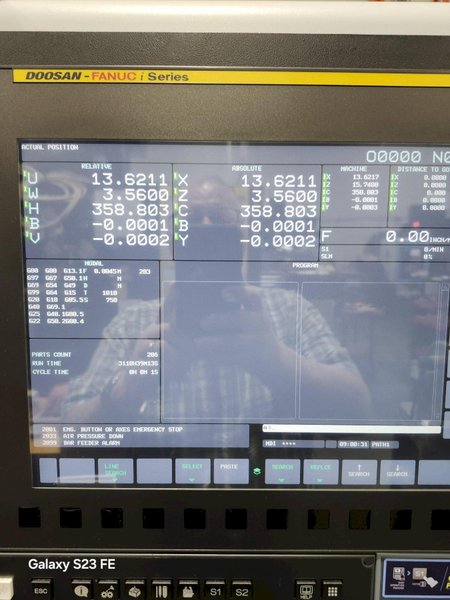

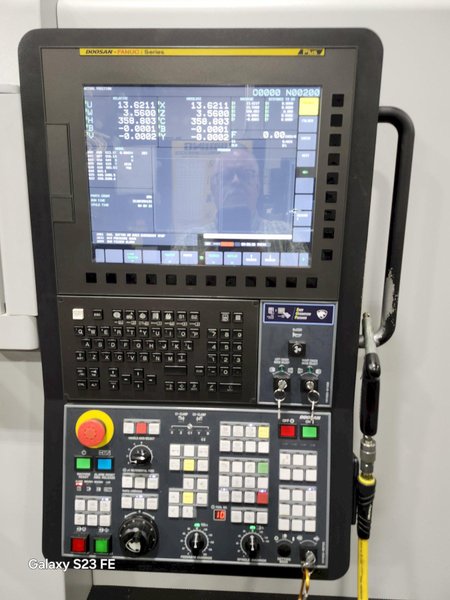

Doosan - Fanuc i Series Control

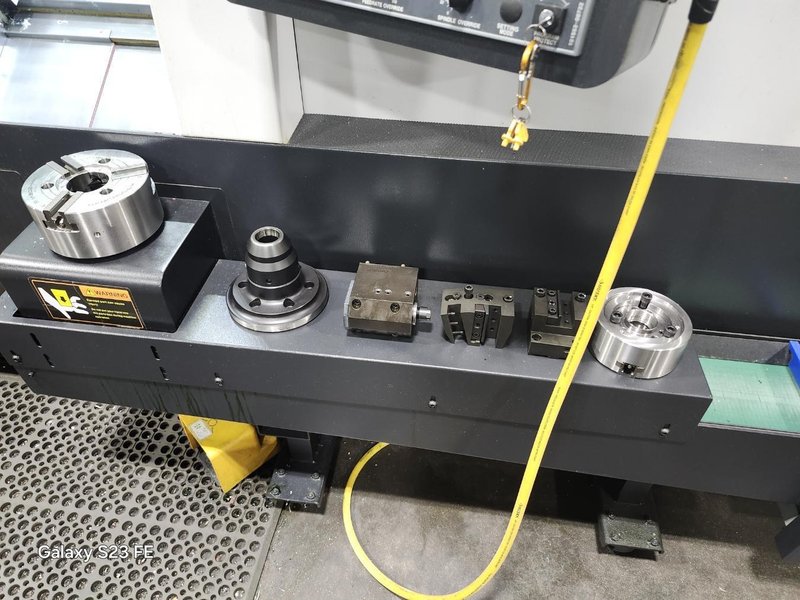

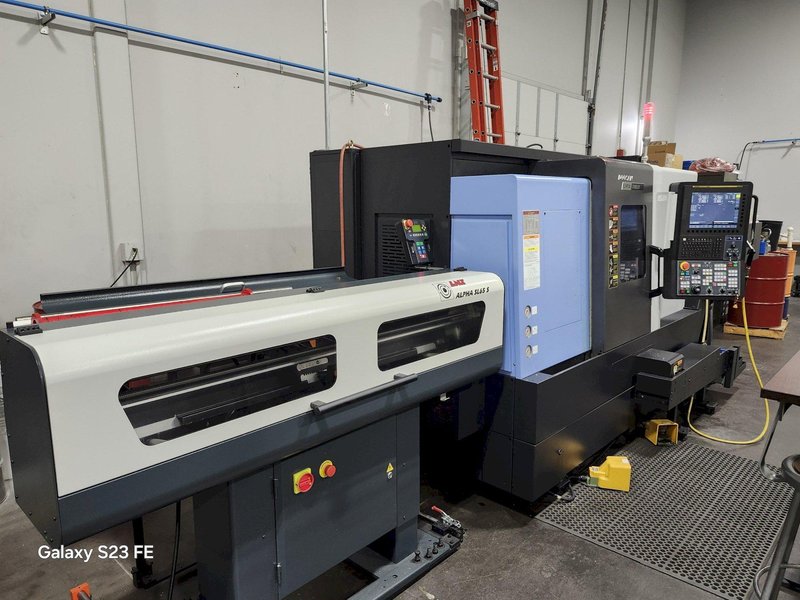

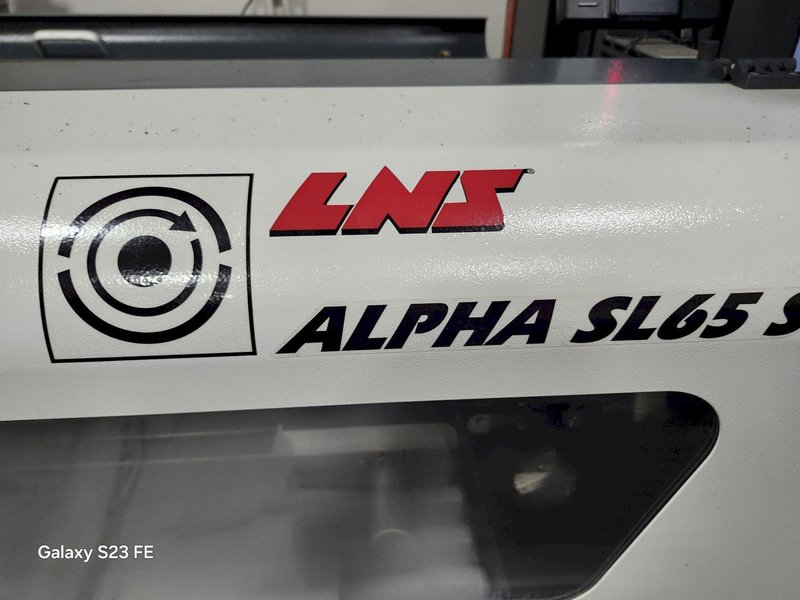

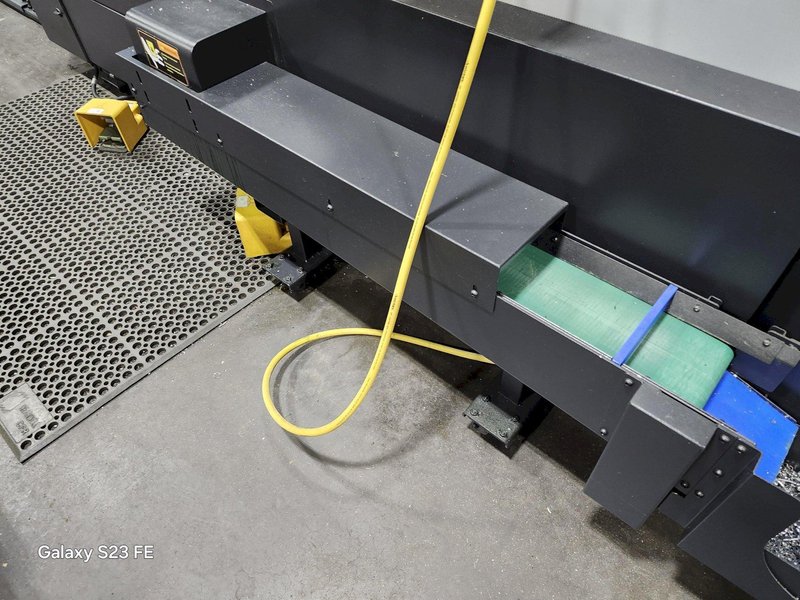

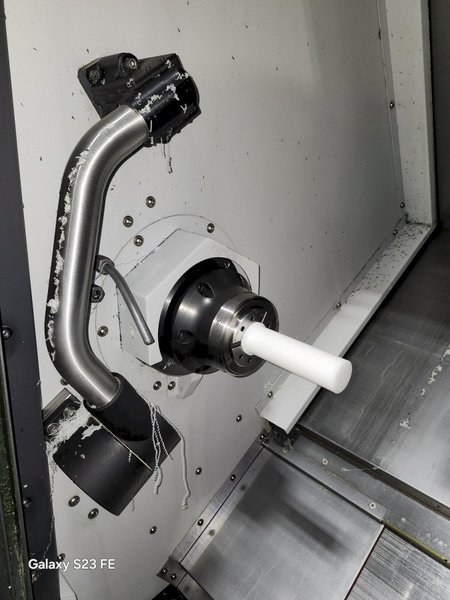

Tool Presetter Multiple Live - Radial/Axial Toolholders Sub Spindle Collet Chuck - Main and Sub Spindle Work Light Chip Conveyor Part Pick-Off Part Conveyor Coolant System LNS Alpha SL65-S Magazine Barfeeder Manuals |
|
Watch https://www.youtube.com/watch?v=ftpA9fbwFu0&t=13s
