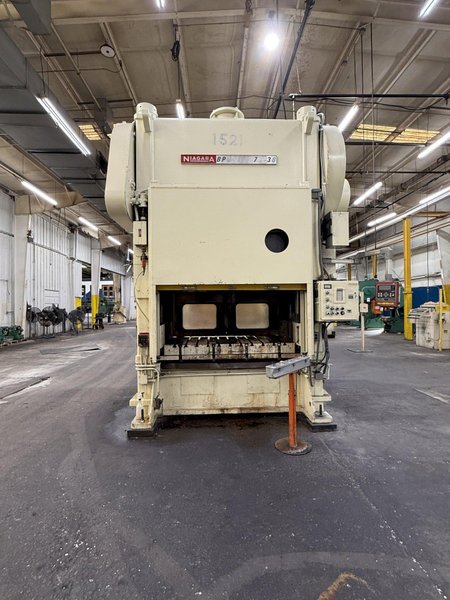

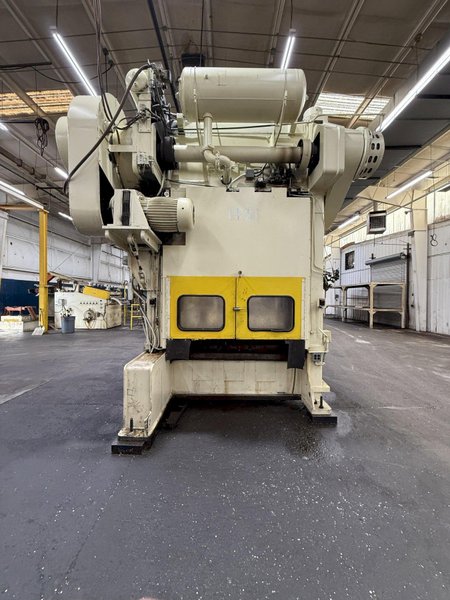

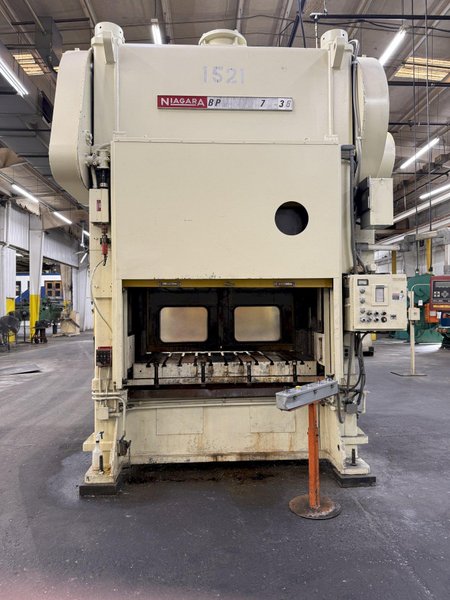

200 ton Niagara BP2-200-72-36 Straight Side Double Crank Press For Sale
Brand
Category
Model
BP2-200-72-36
Stock #
2965
Year
Not specified
Condition
Used
Location
Michigan
Price
$89,500.00
| Tonnage | 200 |
| Stroke | 10 inches |
| Shut Height | 28 inches |
| Adjustment | 10 inches |
| Bed Size | 72" LR x 36" FB |
| Ram Area | 72" LR x 36" FB |
| SPM | 40-80 VSPM |
|
Used 200-ton Niagara Straight Side Press
Press Model BP2-200-72-36 Serial Number 49875 200-ton Capacity 10" Stroke 28" Shut Height 10" Adjustment 72" LR x 36" FB Bed Area 72" LR x 36" FB Slide Area 40-80 VSPM Equipment and Features Air Clutch and Brake Air Counterbalnces Recirculating Lube System T-slotted Ram and Bolster Hydraulic Overloads 22" Wide Windows Twin End Drive Wintriss DiPro 1500 Wintriss Programmable Cam Outputs Motors and Controls Floor Standing Can be seen under power in the Plant. Location Atlanta GA This is a used Niagara Model BP2-200-72-36, a 200-ton straight-side mechanical press. This machine is built for stability and precision with a twin end drive and a generous 72" x 36" bed and slide area. It features a 10" stroke and 28" shut height, making it suitable for a variety of stamping applications. Key features include a recirculating lube system, air clutch and brake, and hydraulic overloads for safety and longevity. It also comes equipped with a Wintriss DiPro 1500 control and programmable cam outputs. This press is currently under power in a plant in Atlanta, Georgia. |
|
