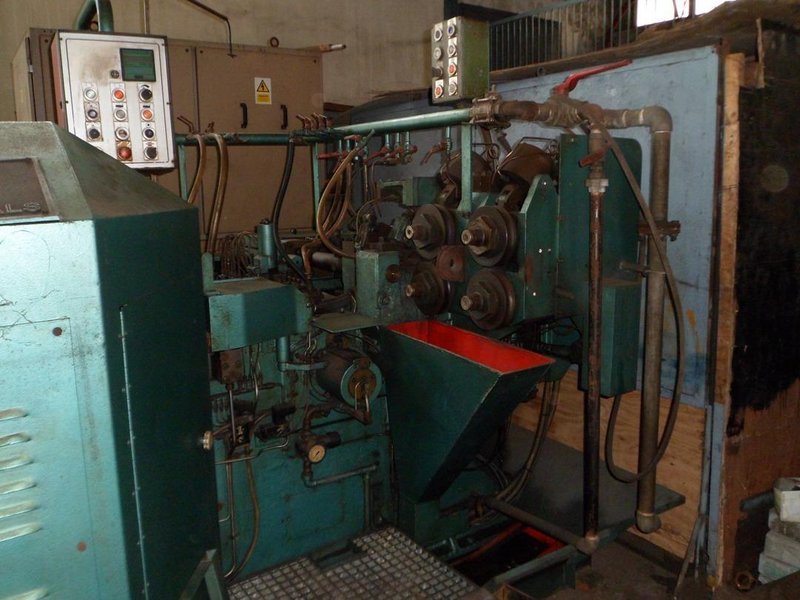

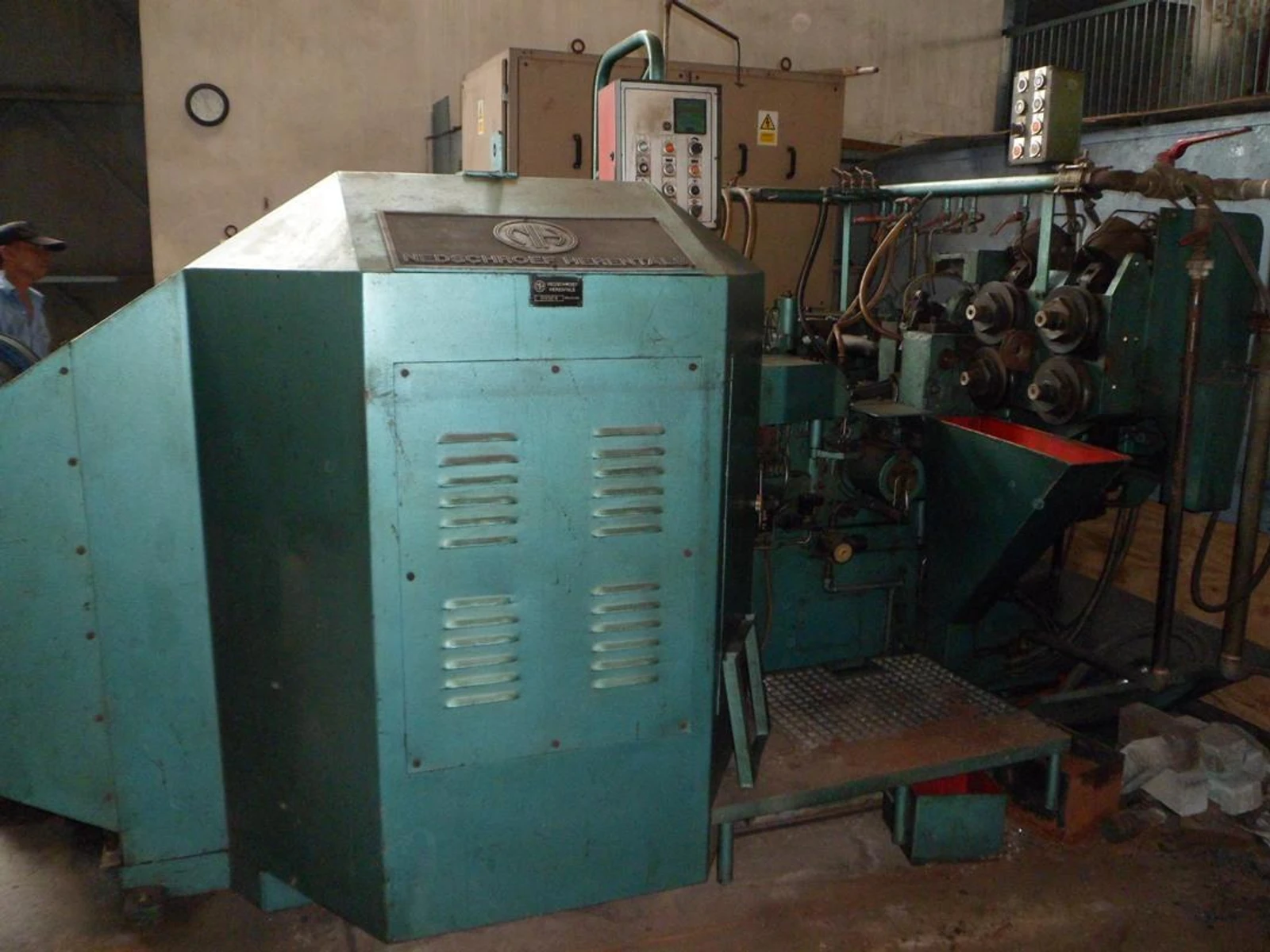

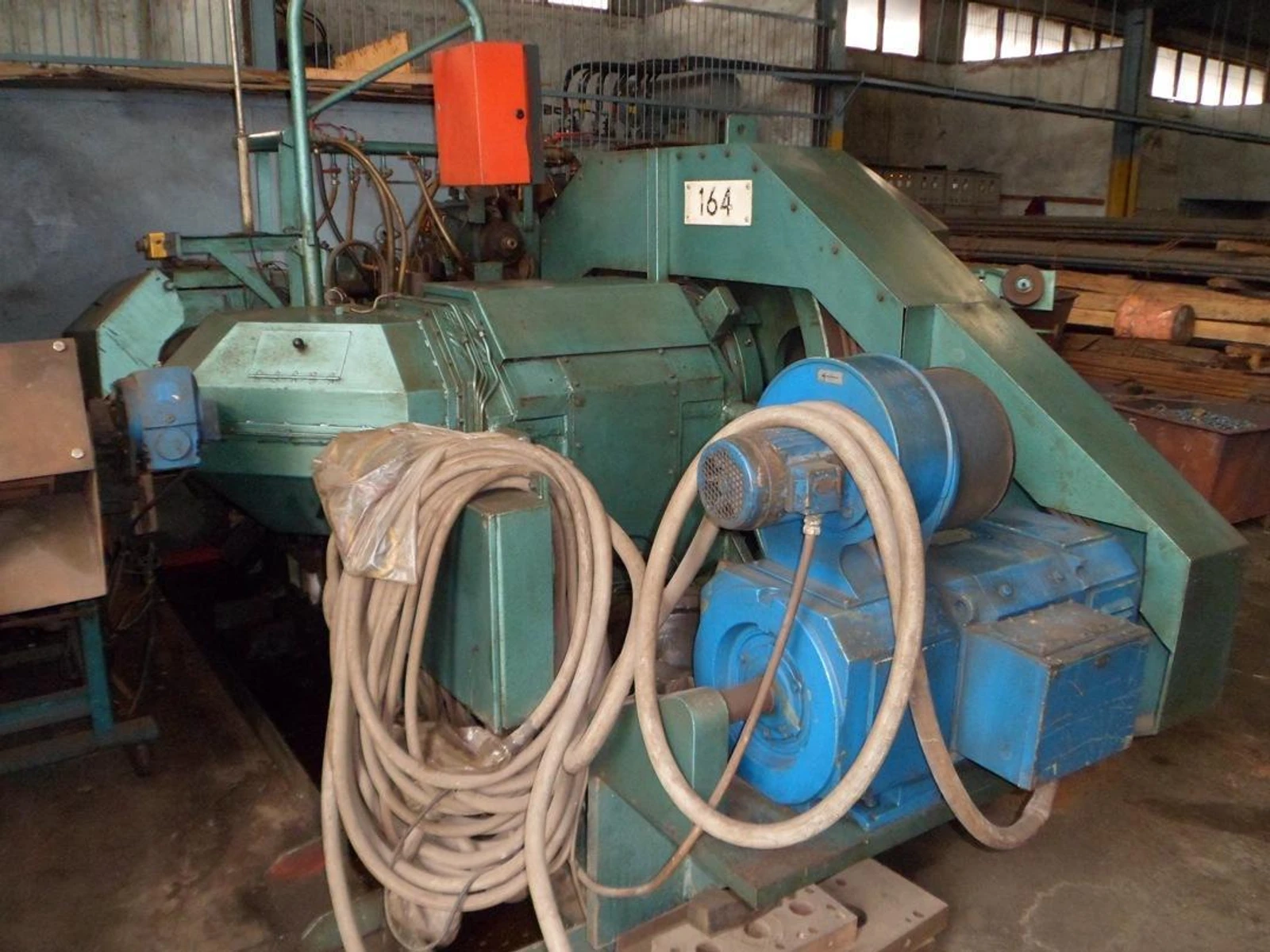

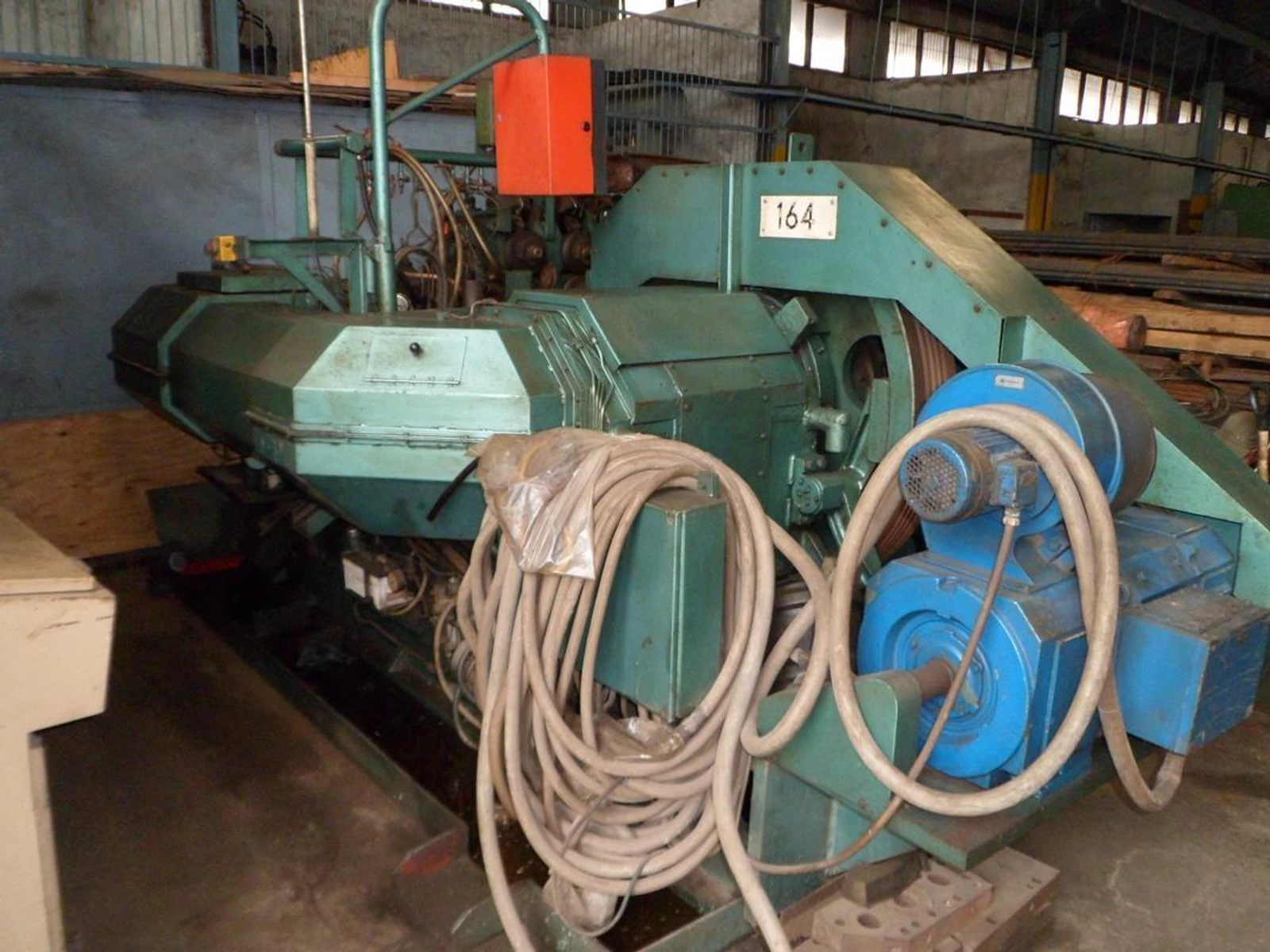

NEDSCHROEF #MW-32, HI-SPEED HOT NUT FORMER

Brand
Not specified
Category
Fastener Equipment
Type
Nut Formers
Model
MW-32
Stock #
117056
Year
1996
Condition
Used

Location

Ontario, Canada
REQUEST FINANCING

YEAR: 1996

MAXIMYM PRODUCTION PER MINUTE: 180

MAJOR SPECIFICATIONS:

                                   METRIC             STANDARD

COMBINED FORGING TONNAGE ........... 60.0 MT .......... 60.0 ST
MAX. NUT SIZE ...................... 22.0 MM .......... 0.866"
MIN. NUT SIZE ...................... 14.0 MM .......... 0.551"
MAX. ACROSS FLATS HEX. NUTS ........ 32.0 MM .......... 1.259"
MAX. ACROSS FLATS SQUARE NUTS ...... 32.0 MM .......... 1.181"
MAX. DIAMETER PRODUCTS ............. 36.0 MM .......... 1.417"
MAX. PRODUCT HEIGHT ................ 27.0 MM .......... 1.062"
MIN. PRODUCT HEIGHT ................ 9.0 MM  .......... 0.354"
MAX. BAR DIAMETER RAW MATERIAL ..... 26.0 MM .......... 1.023"
MAX. CUT-OFF LENGTH ................ 44.0 MM .......... 1.732"
MIN. CUT-OFF LENGTH ................ 12.0 MM .......... 0.472"
DIAMETER FEED ROLLS ................ 180.0 MM ......... 7.086"
DIAMETER OF DIES ................... 60.0 MM .......... 2.362"
HEIGHT OF DIES ..................... 50.0 MM .......... 1.968"
CENTER TO CENTER DISTANCE OF DIES .. 80.0 MM .......... 3.149"
SLIDE TRAVEL ....................... 140.0 MM ......... 5.511"

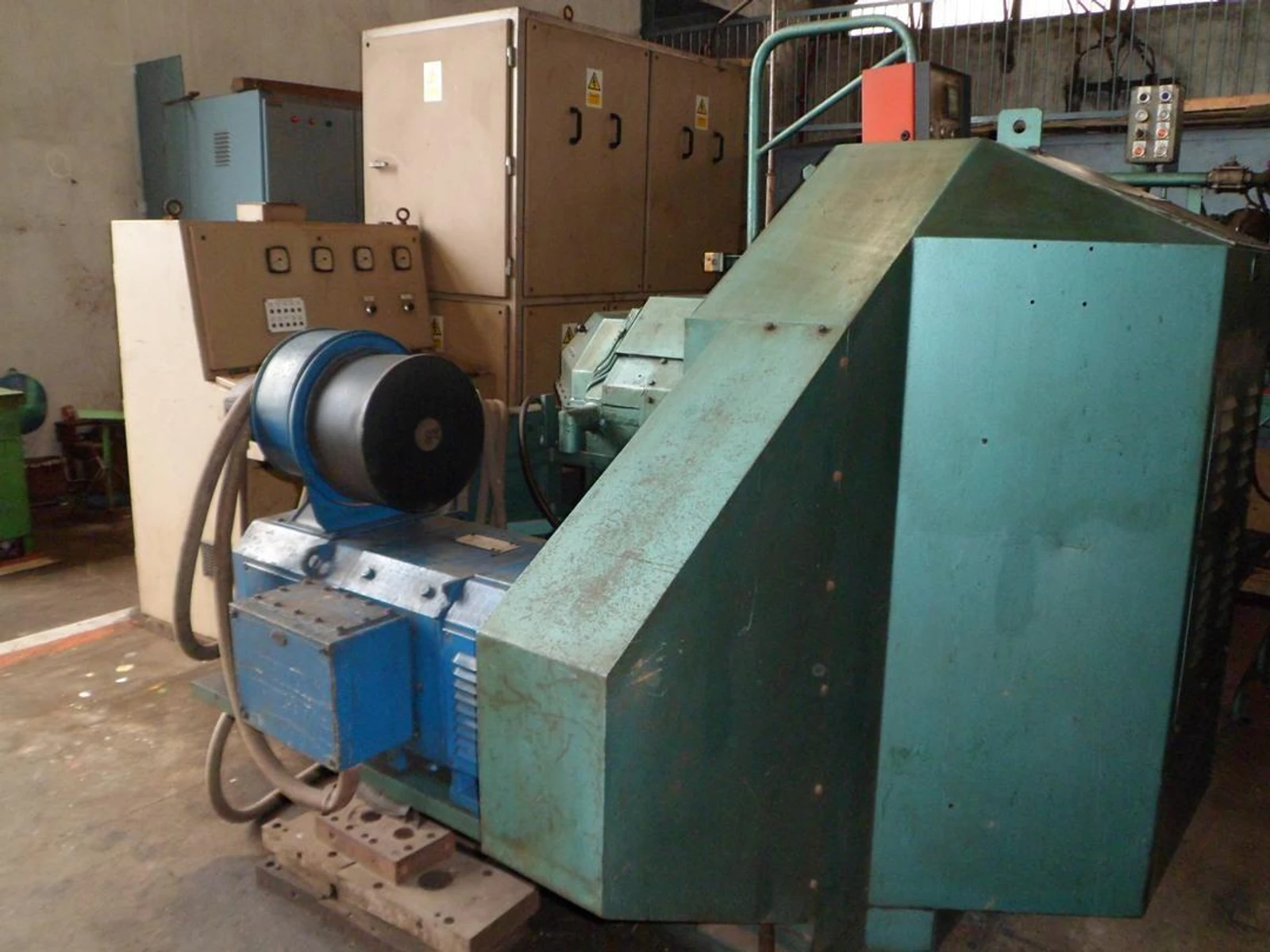

MAIN MOTOR ......................... 22.0 KW .......... 29.0 HP
NET WEIGHT ......................... 9.000 KGS 19,800 LBS

FLOOR SPACE:

LENGTH ............................. 382.0 CM ......... 150.3"
WIDTH .............................. 206.0 CM ......... 81.1"


COMPLETE WITH:

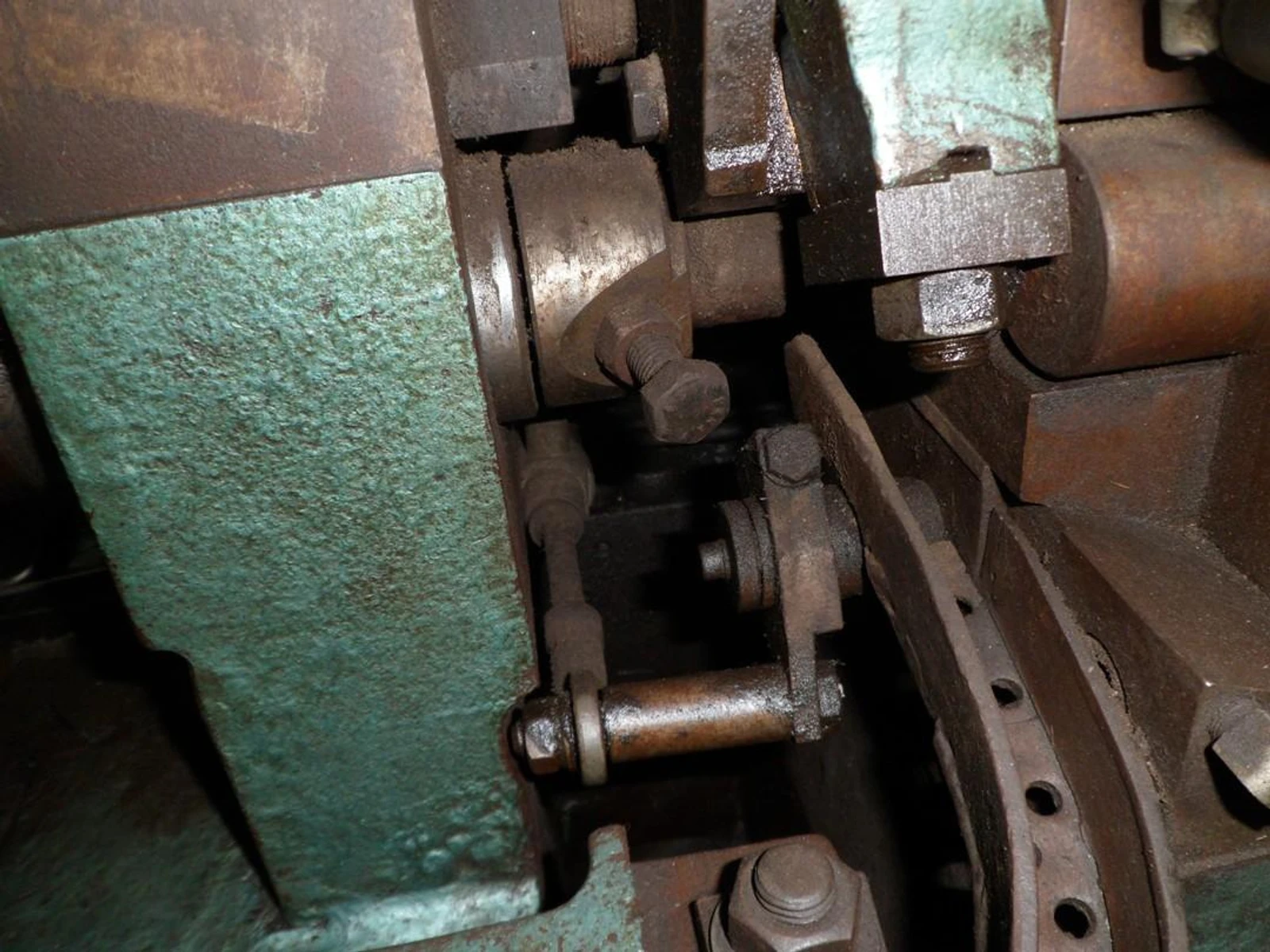

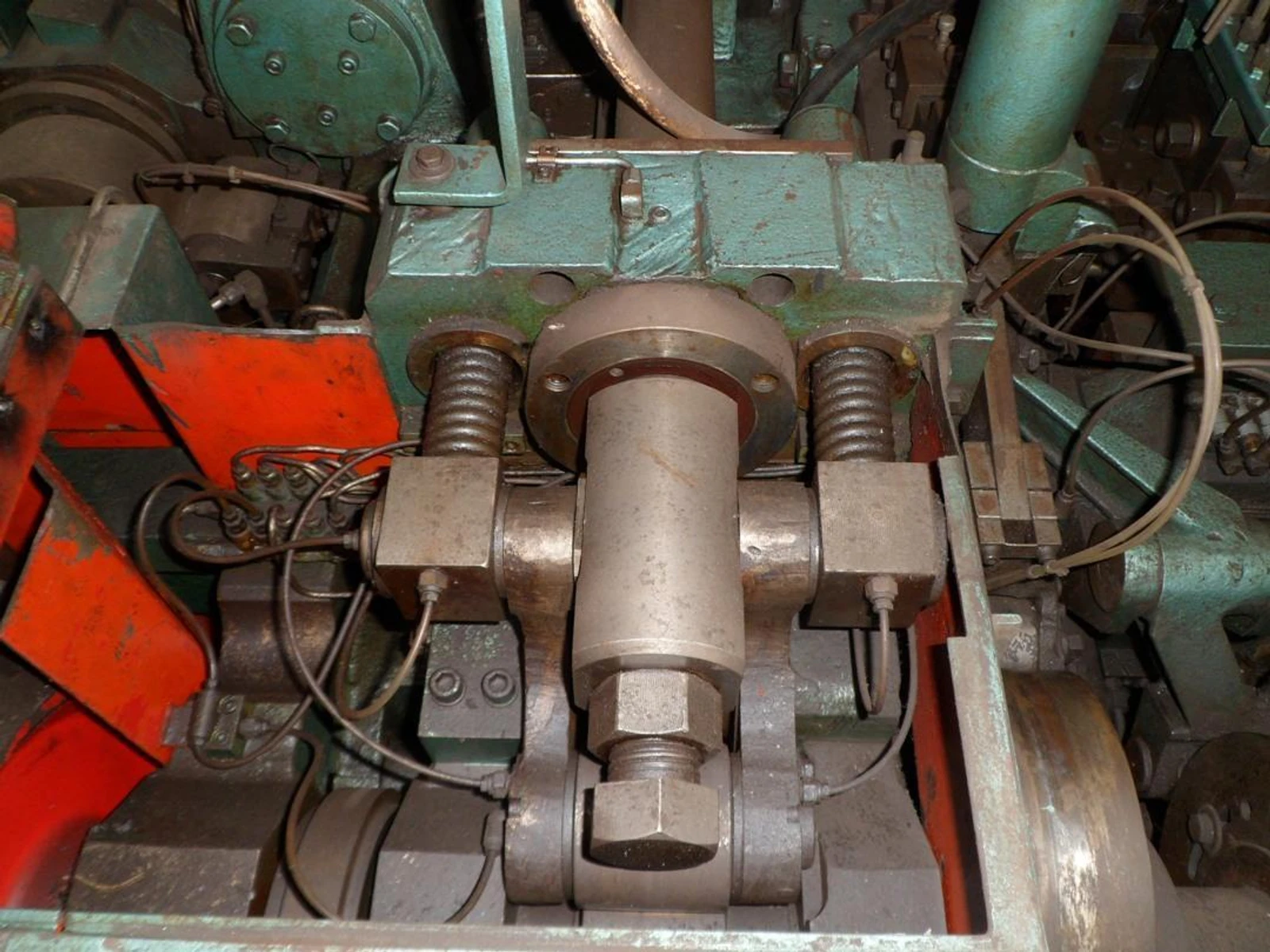

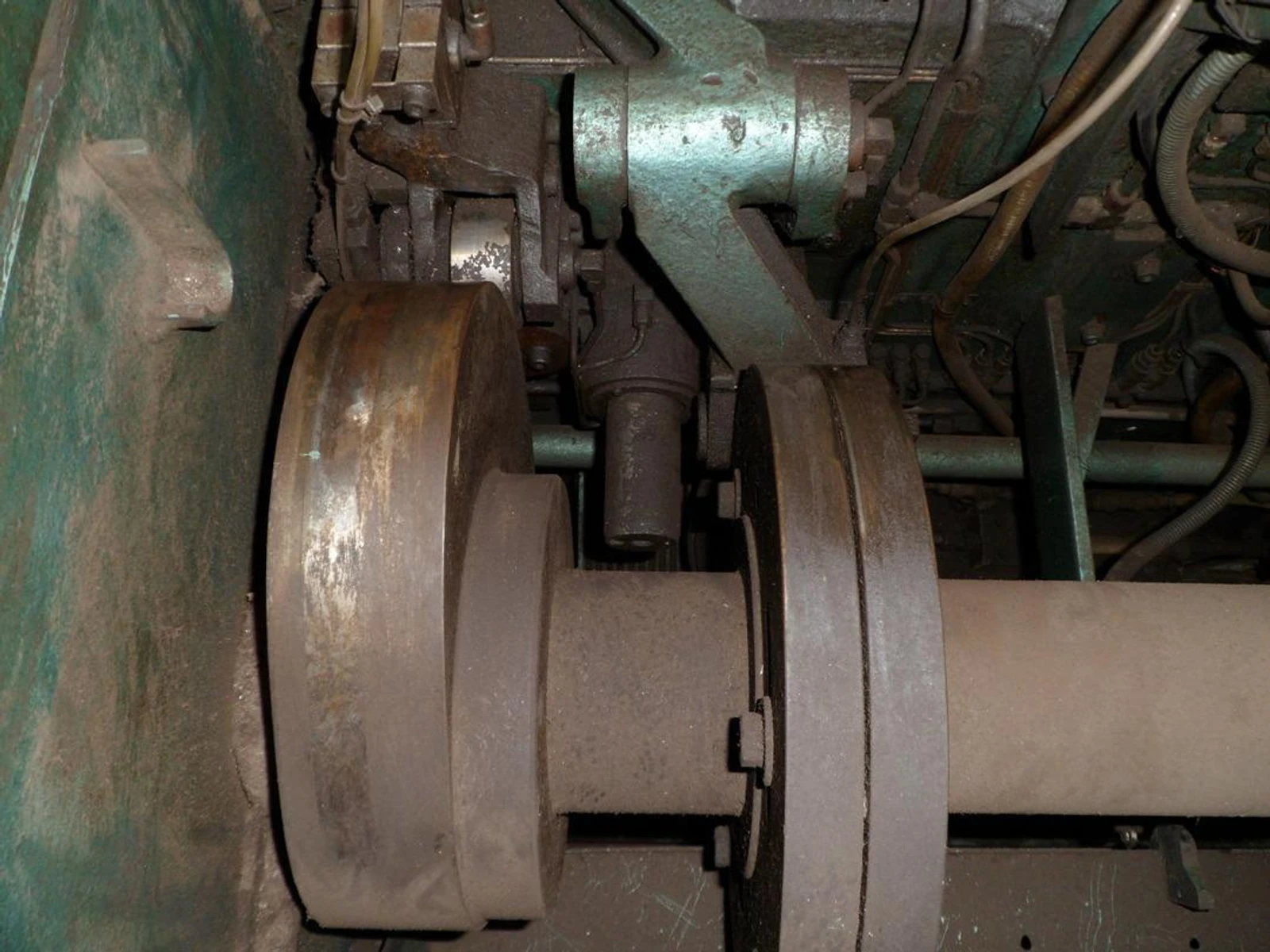

CRANSHARFT CUT-OFF MECHANISM

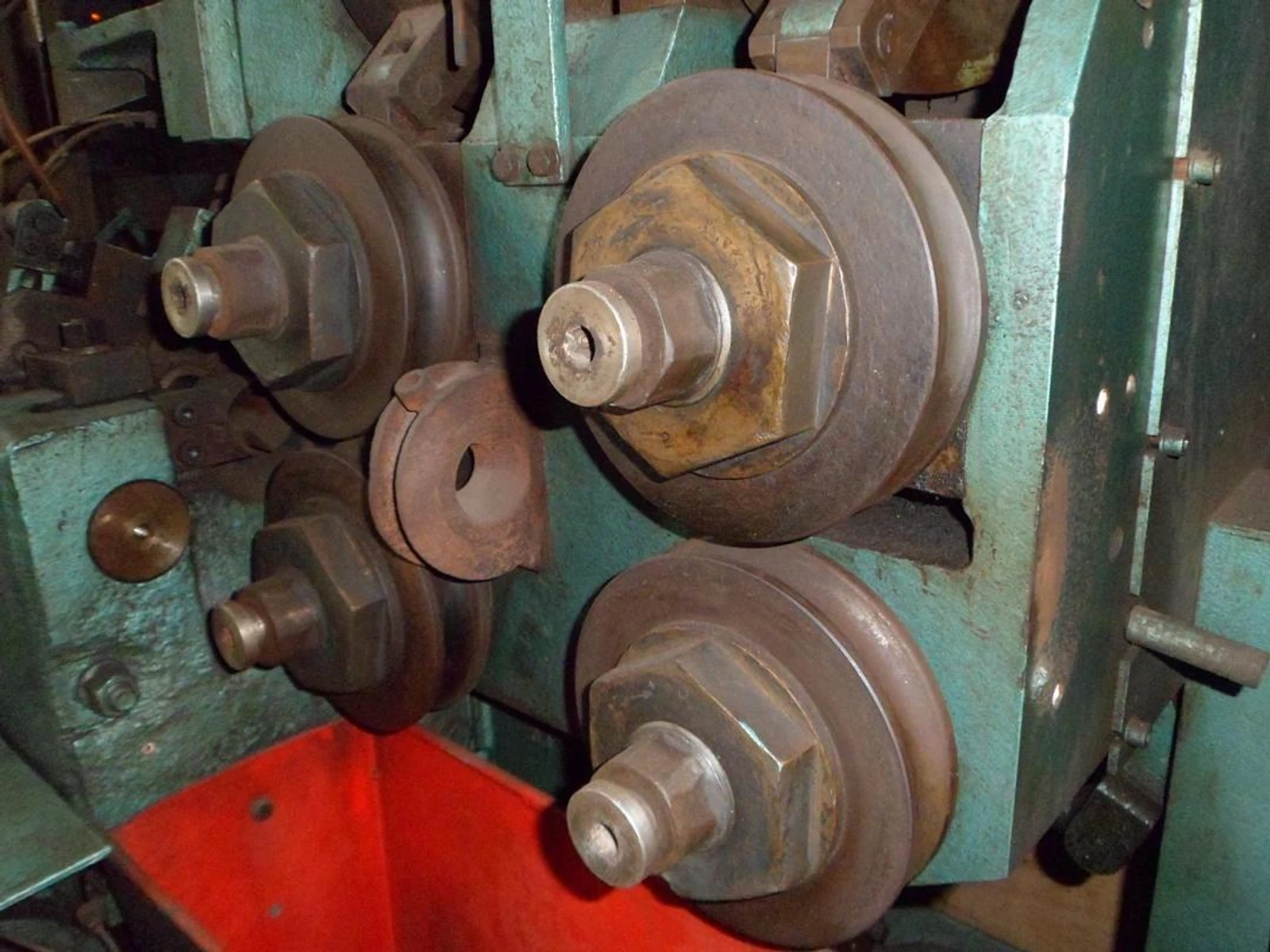

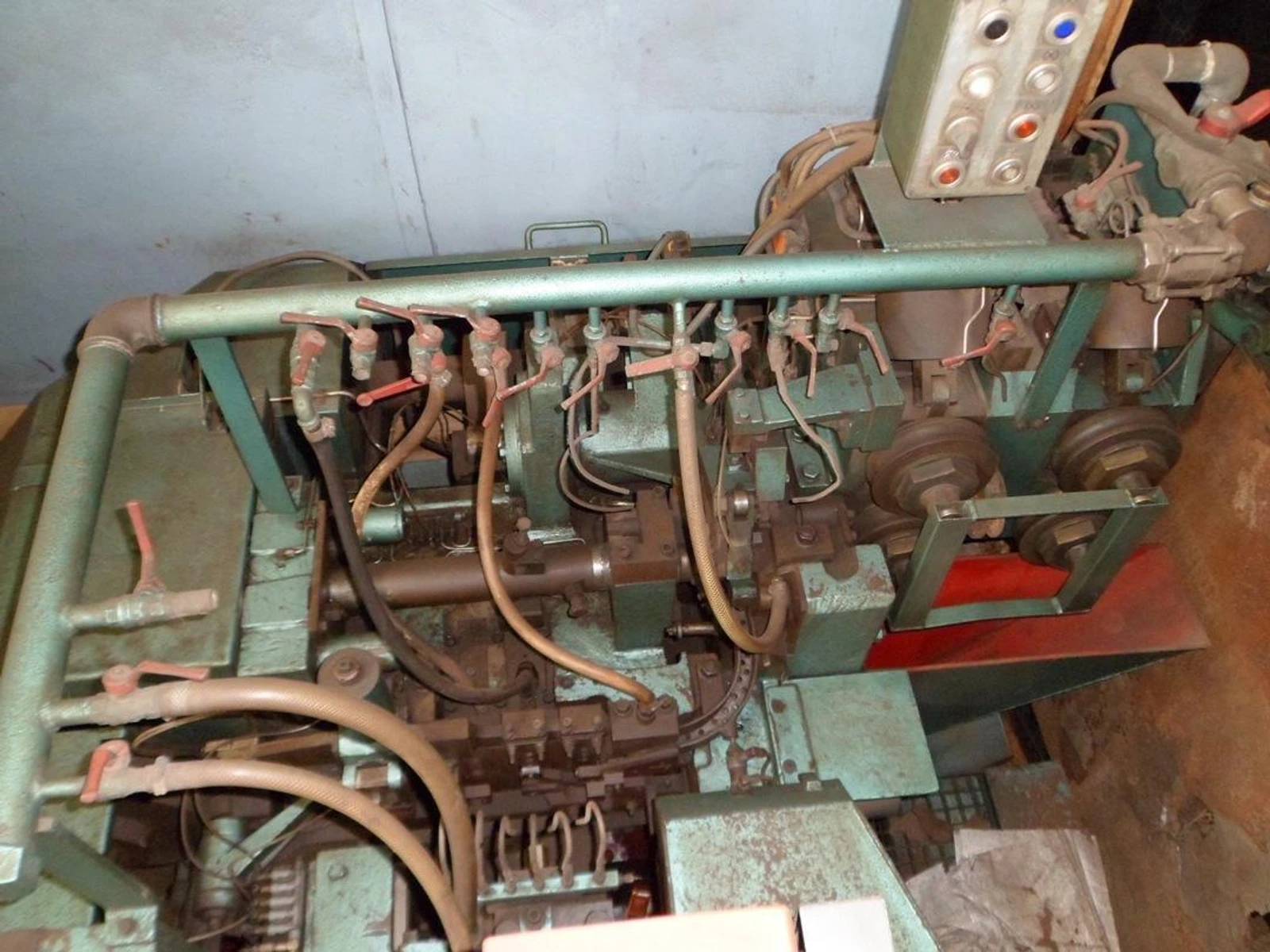

AIR OPERATED FEED ROLLERS

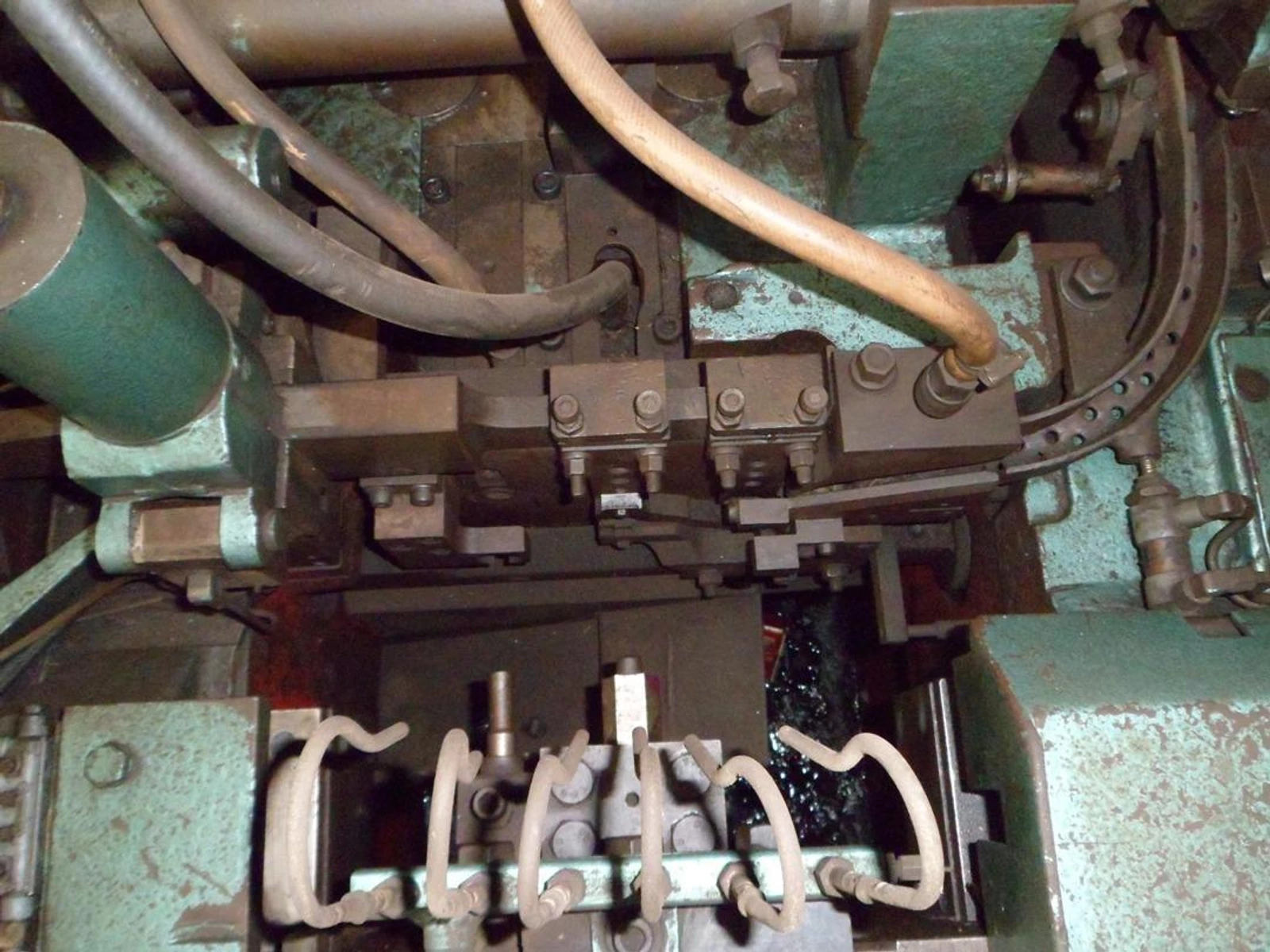

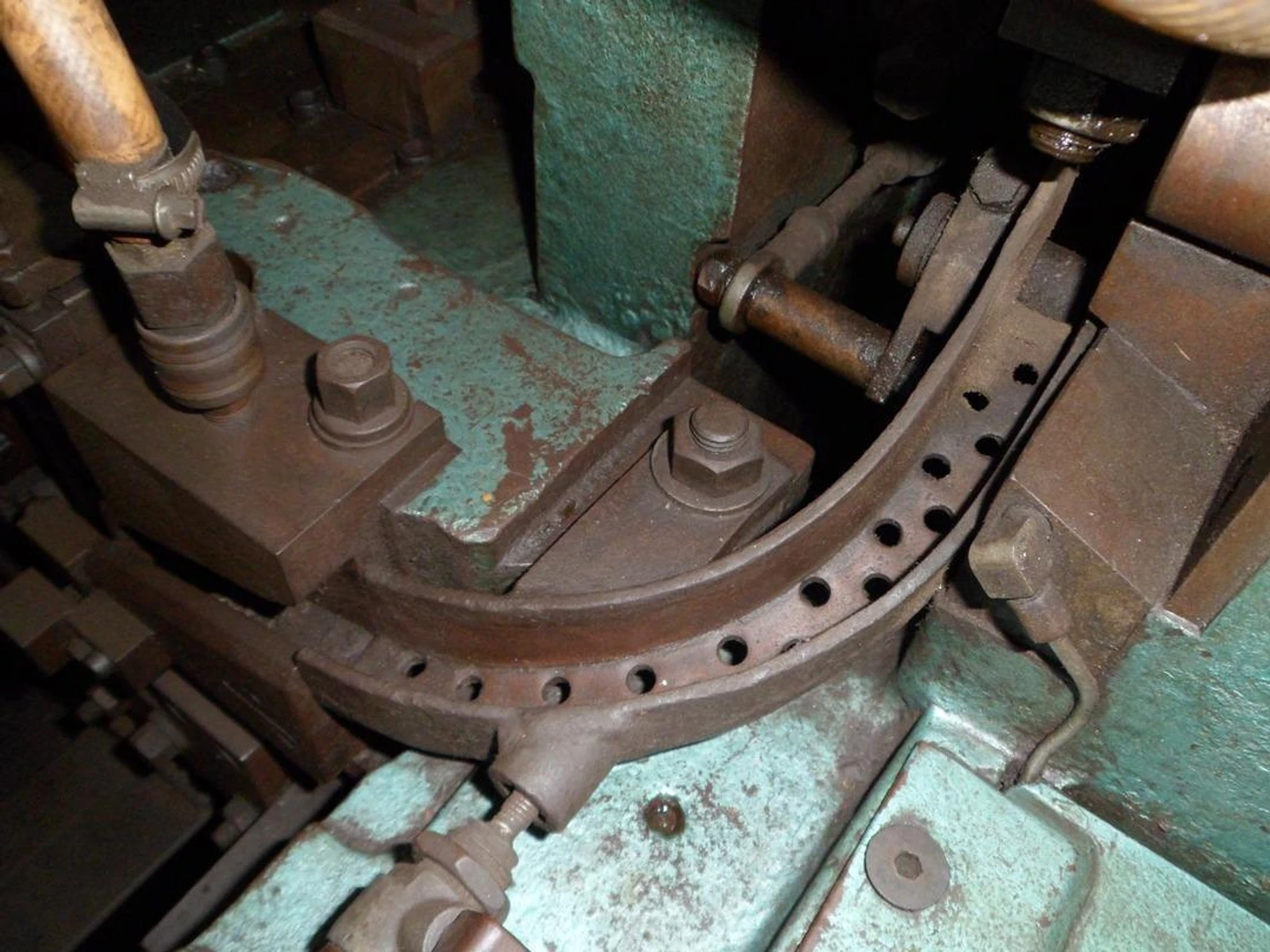

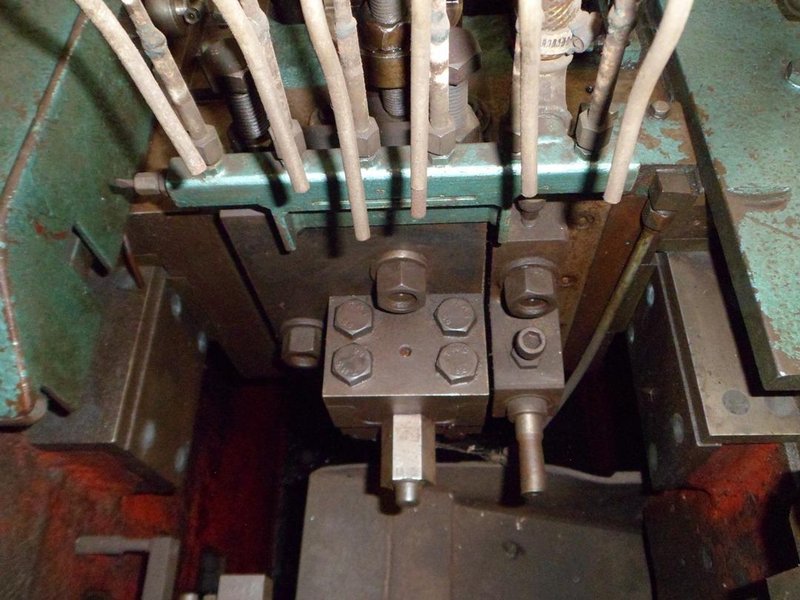

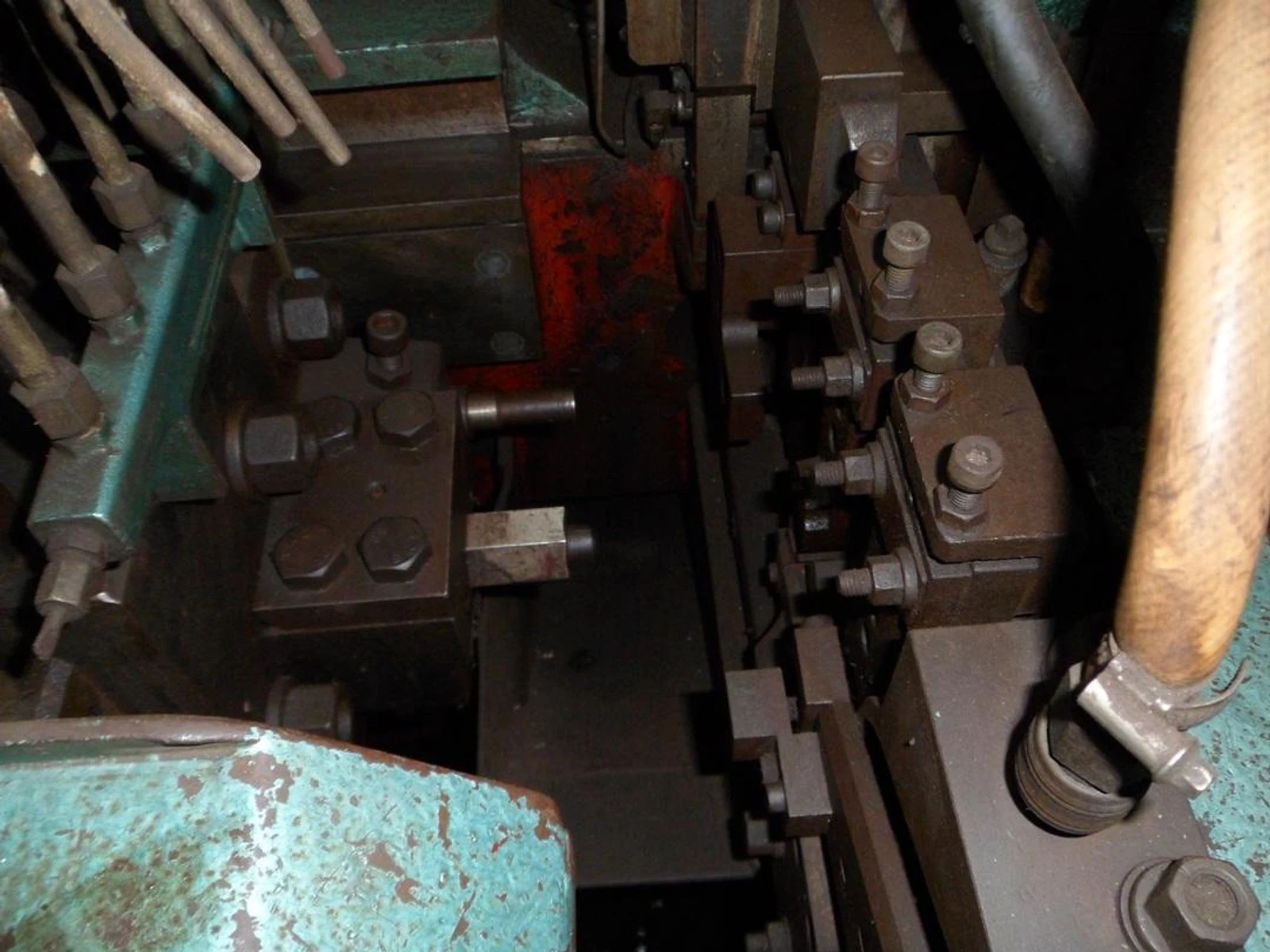

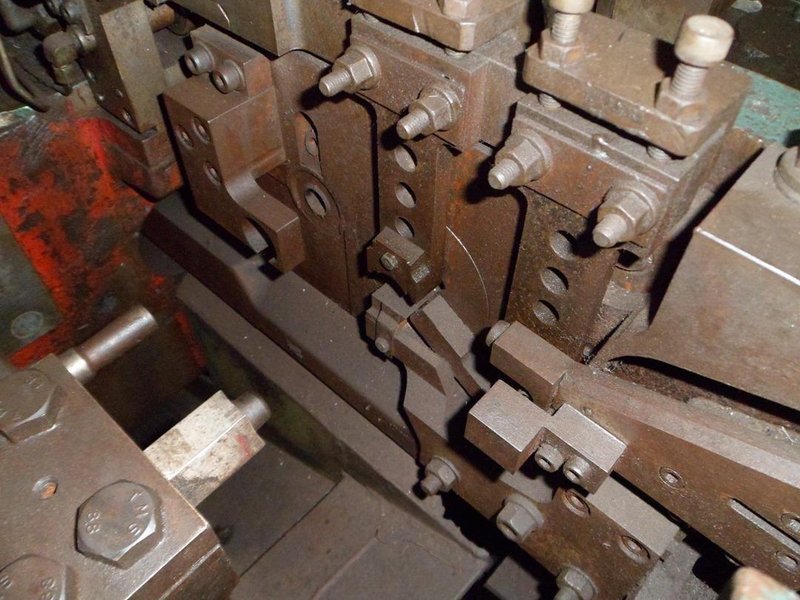

TWO FINGER PAIR TRANSFER OF BLANK FROM CHUTE TO FORMING DIE

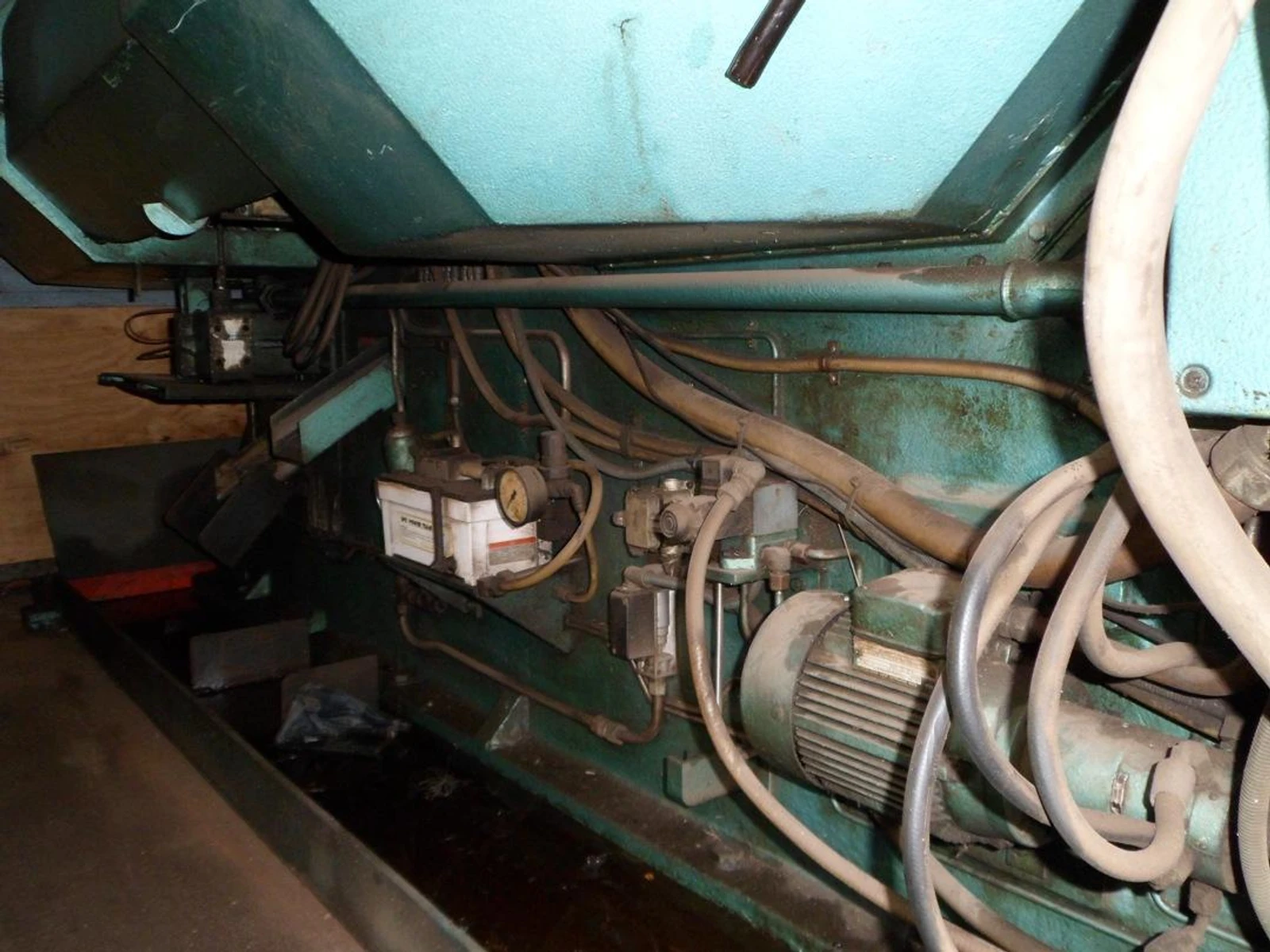

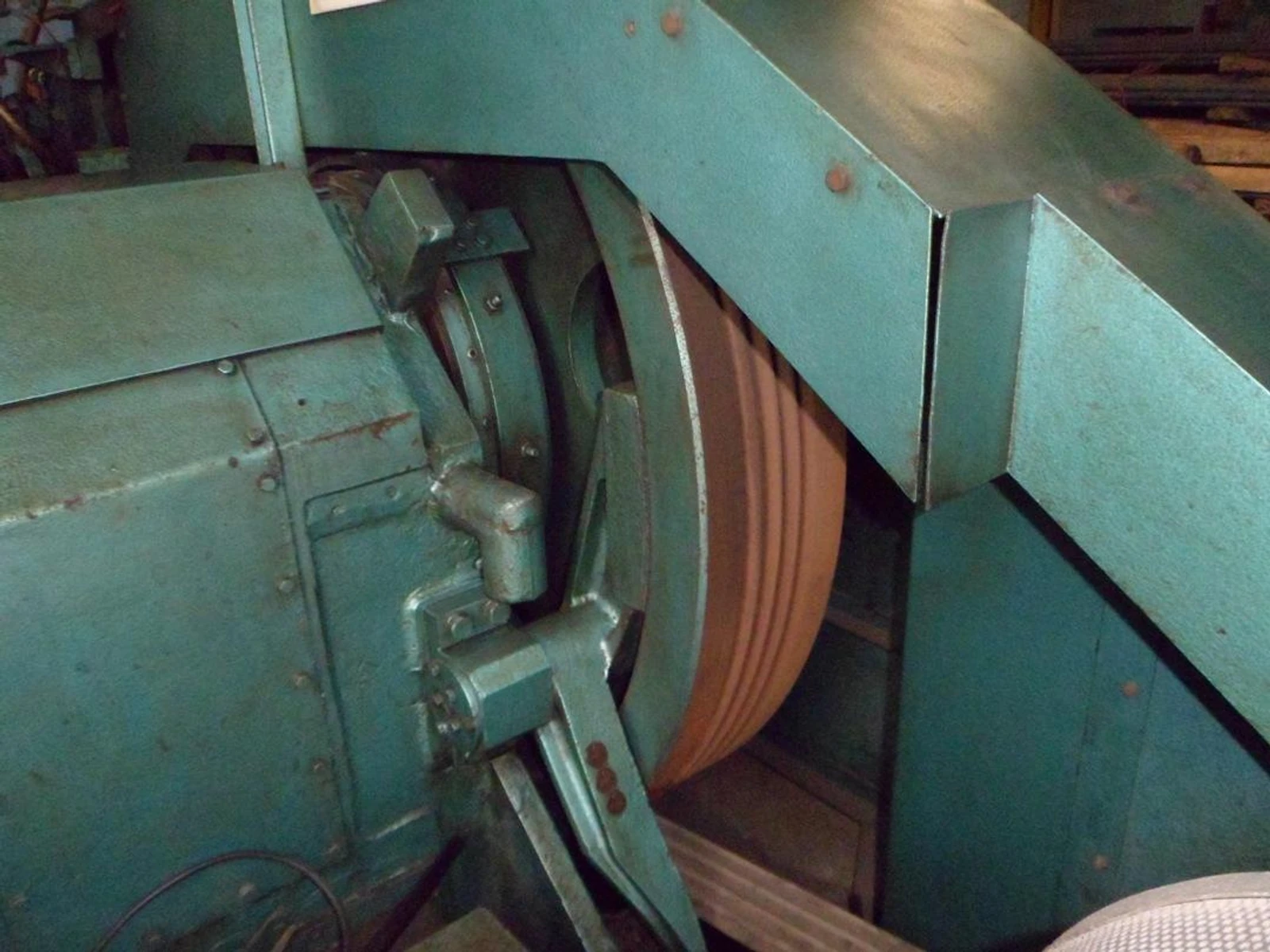

MACHINE IS DRIVEN THROUGH AIR-OPERATED CLUTCH AND BRAKE SYSTEM

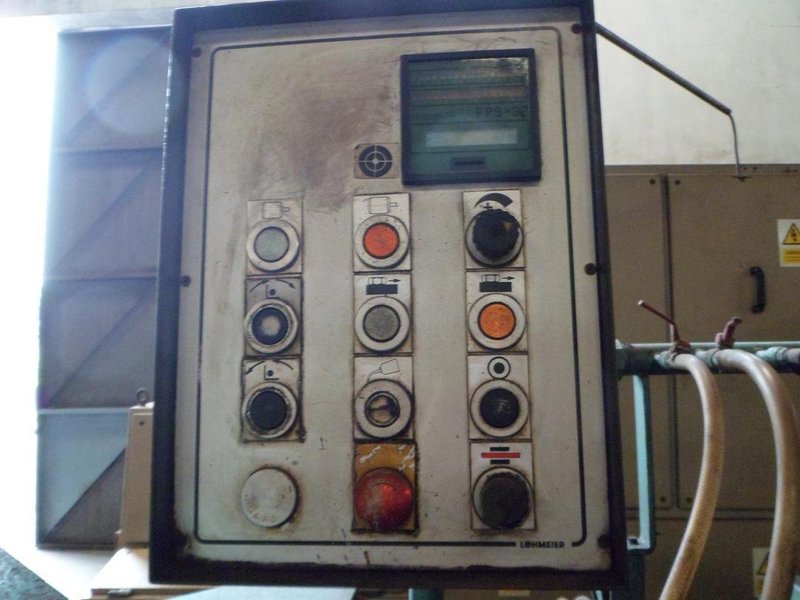

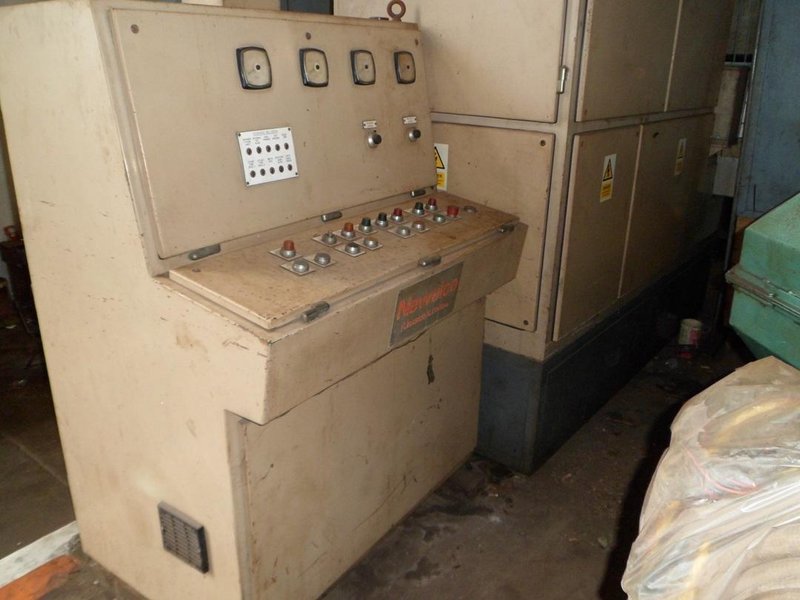

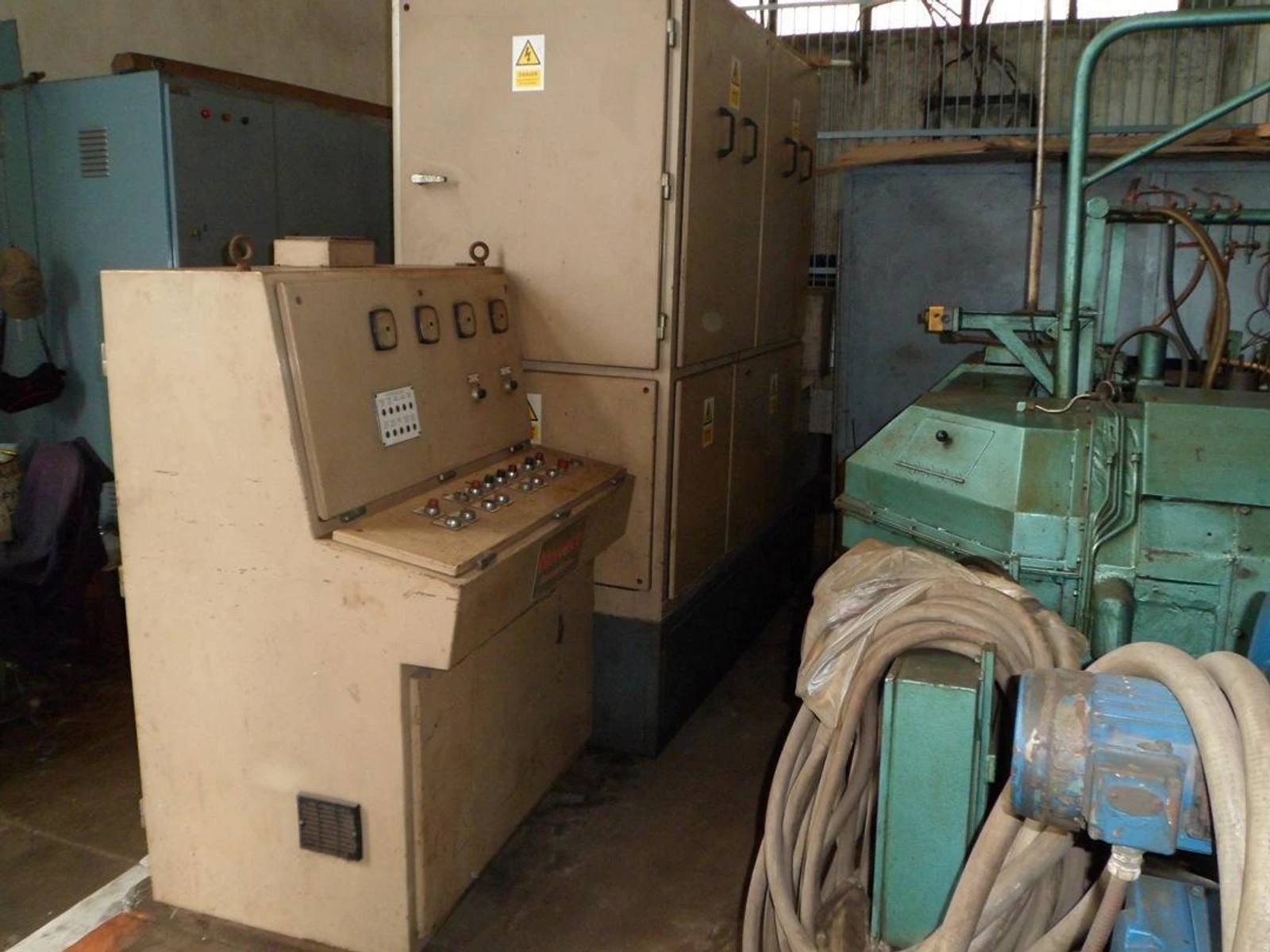

OPERATORS PUSH BUTTON CONTROL STATION

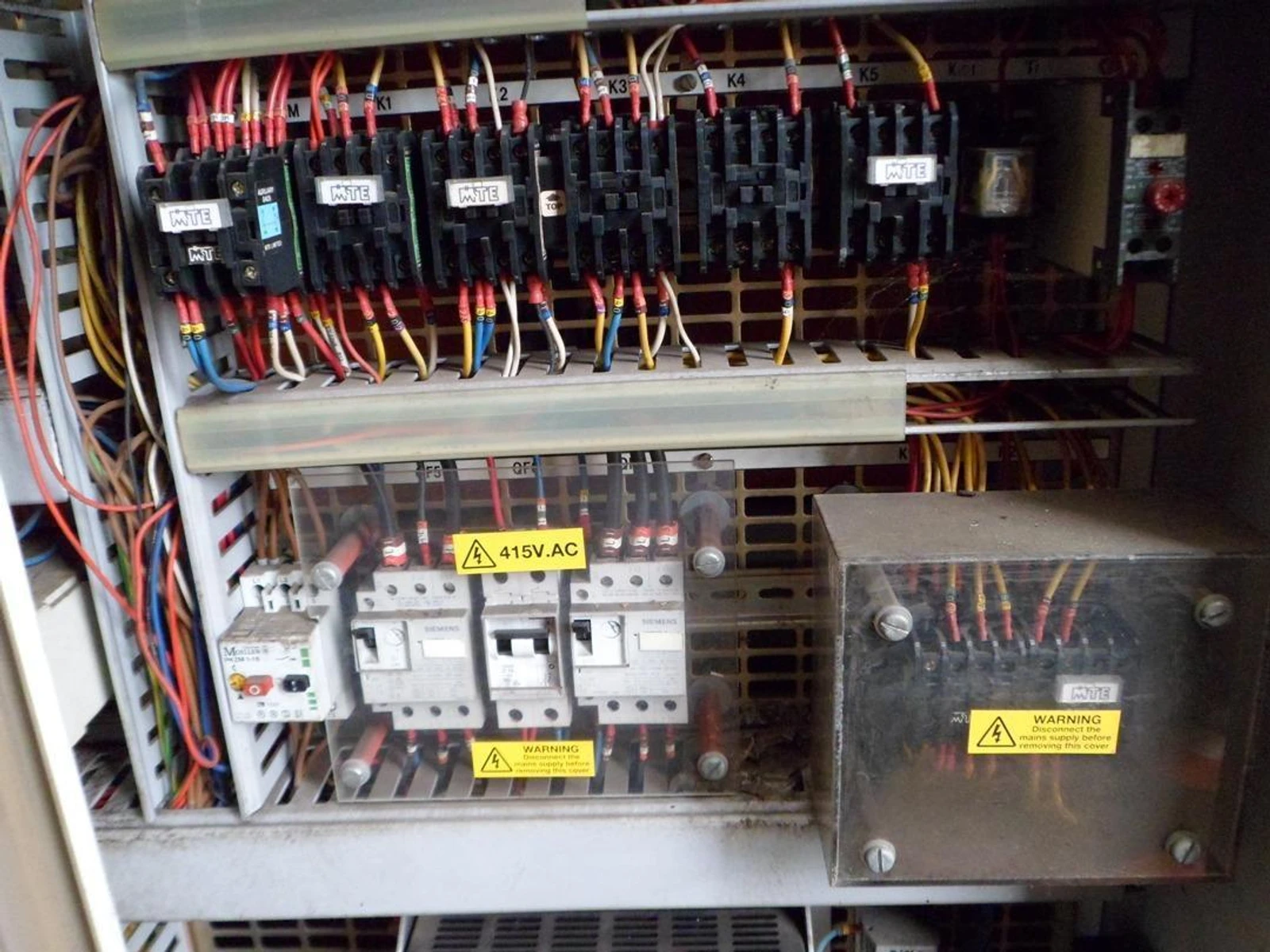

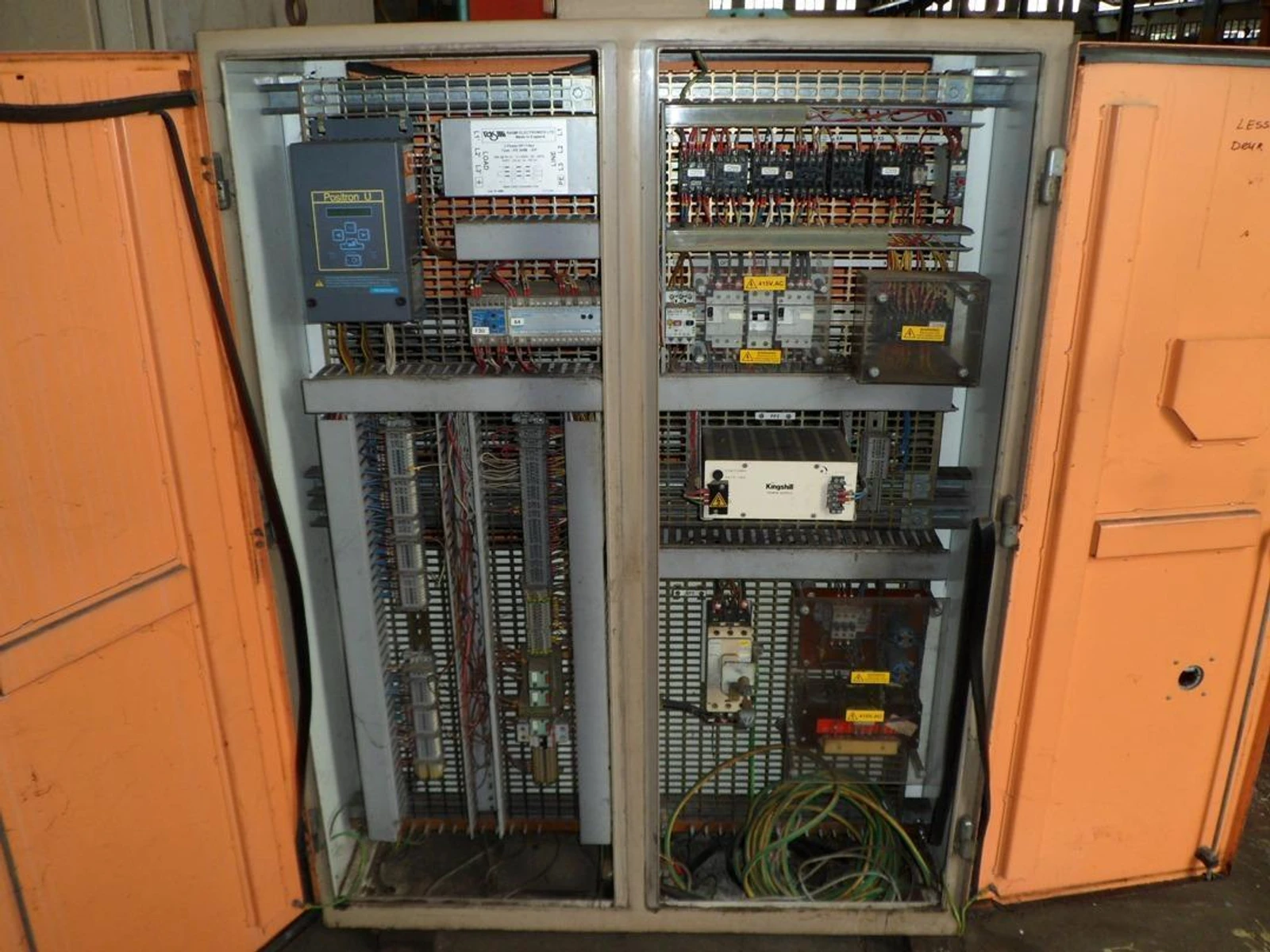

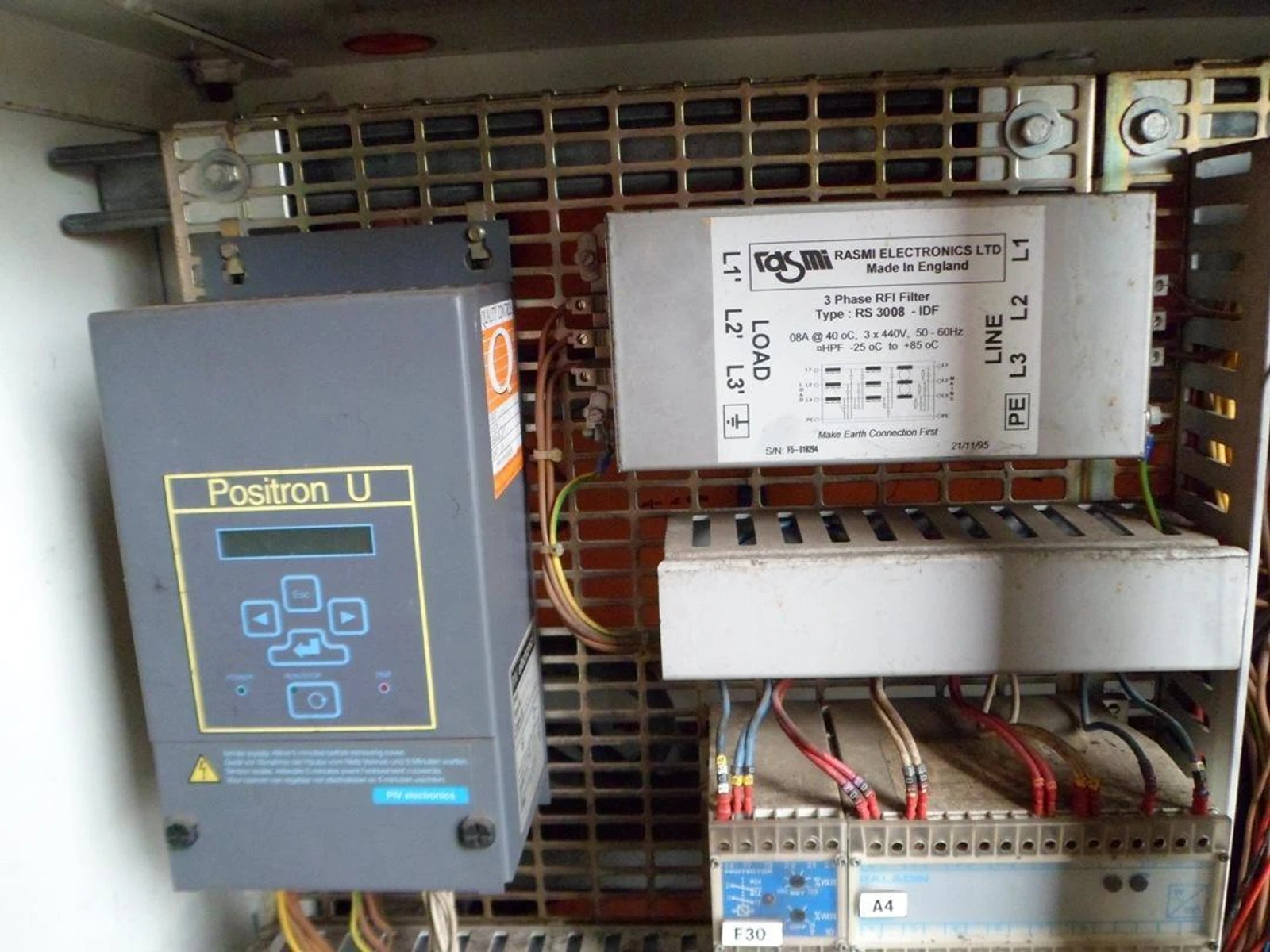

ELECTRICS

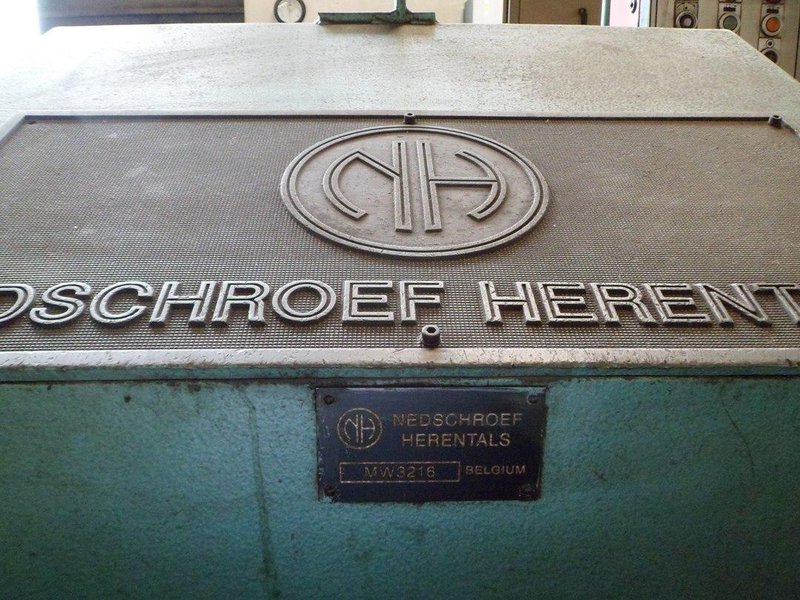

*NOTE MACHINE WAS REBUILT BY NEDSCHROEF IN HERENTAL BELGIUM

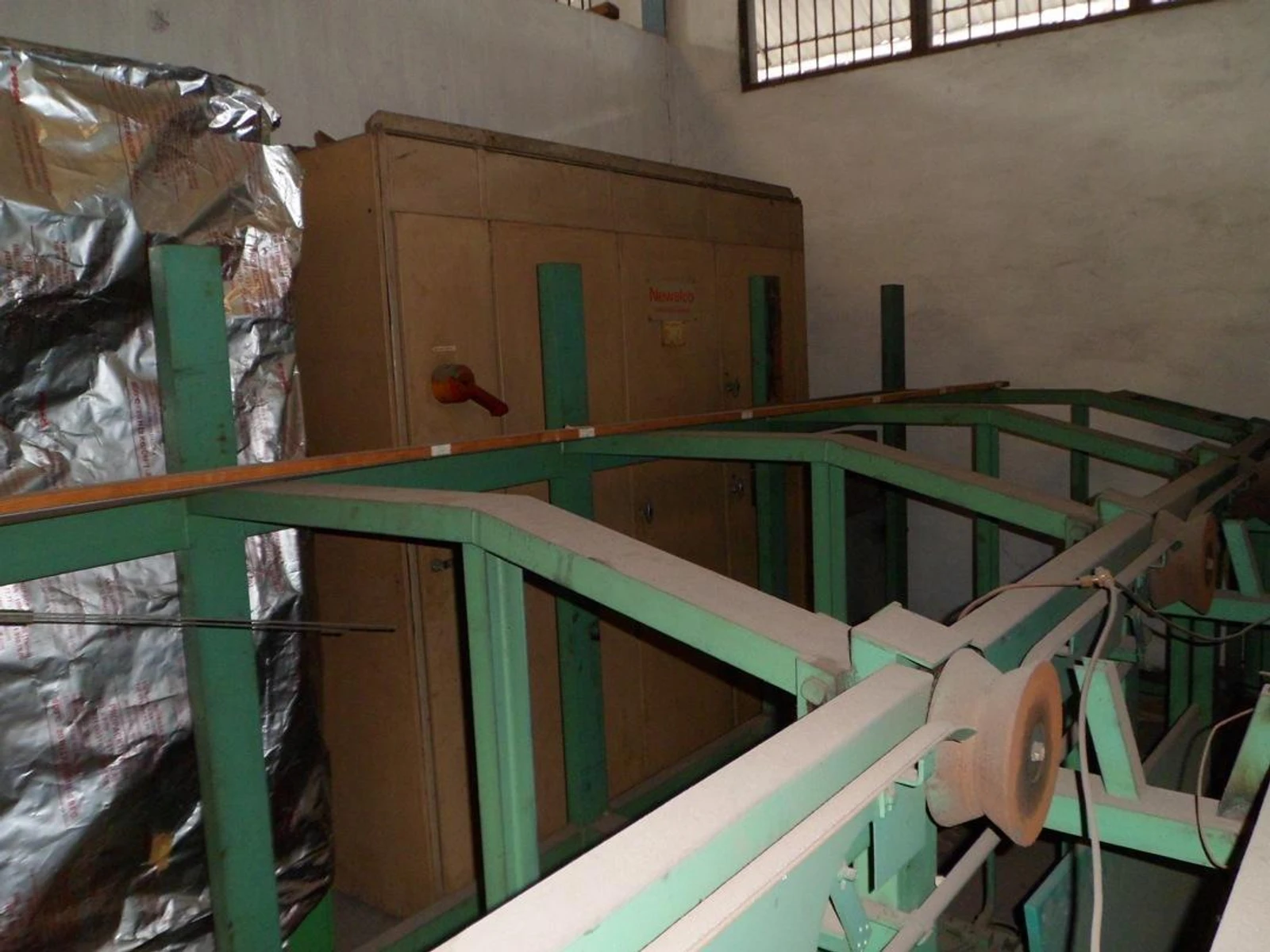

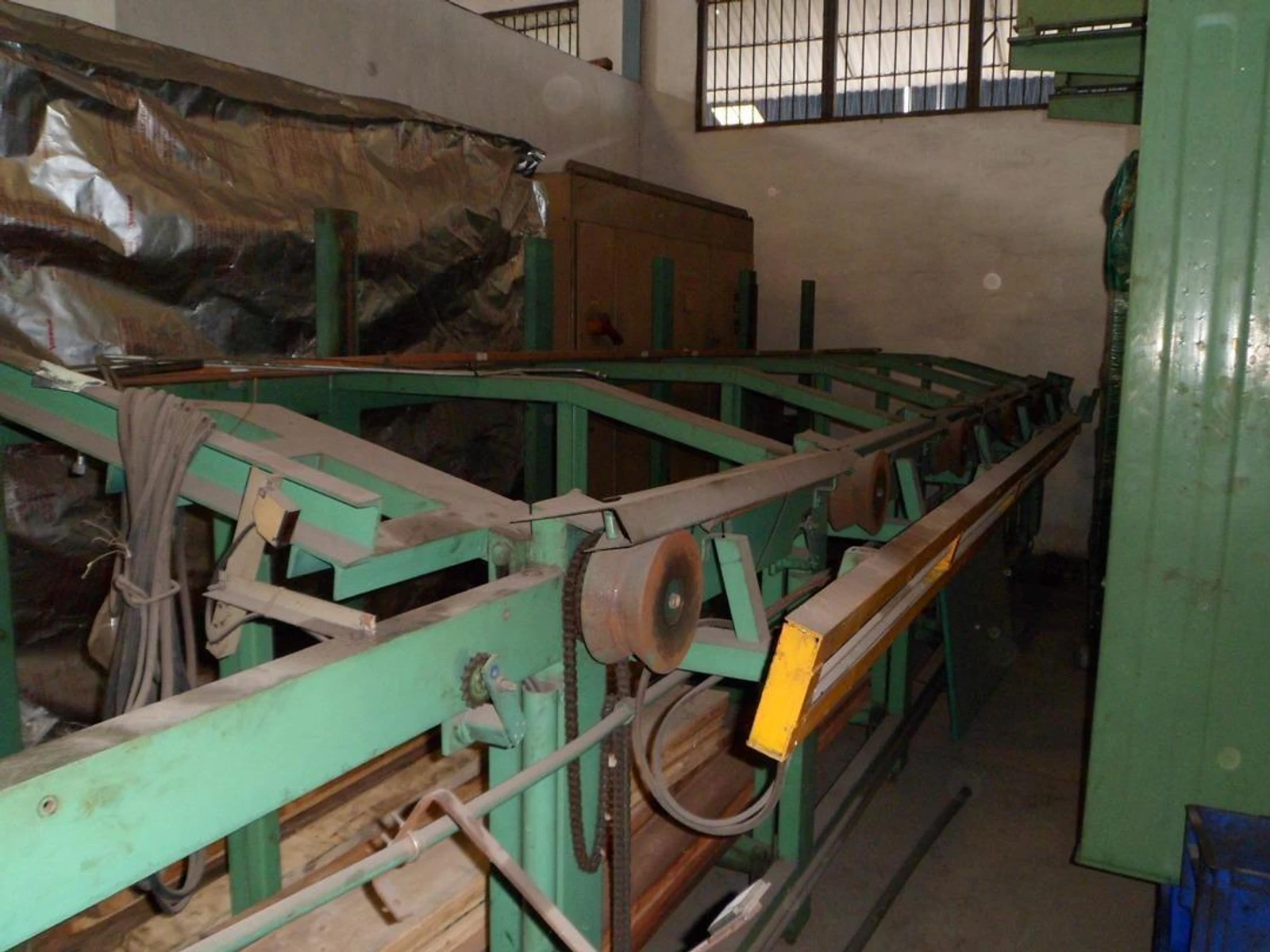

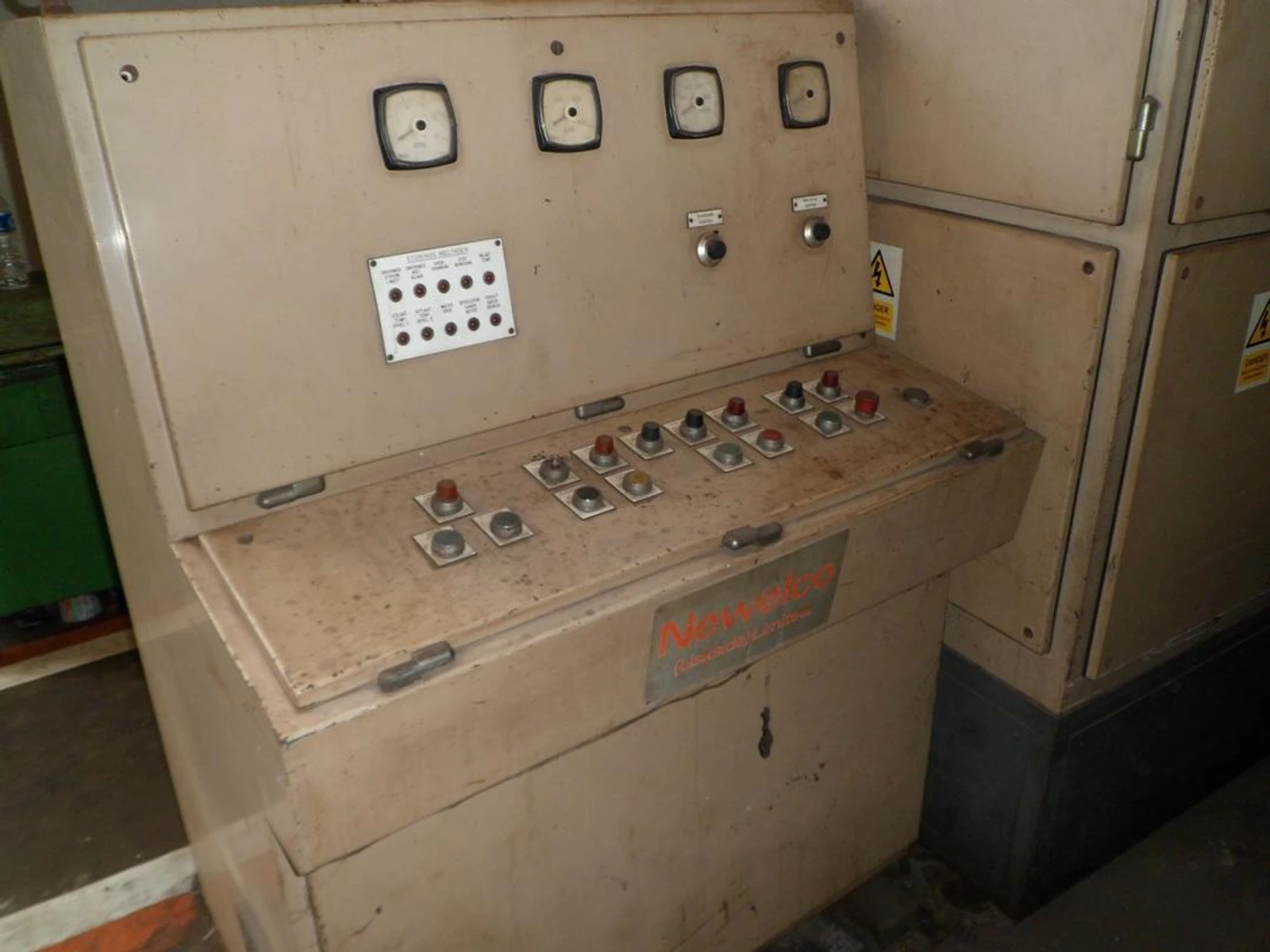

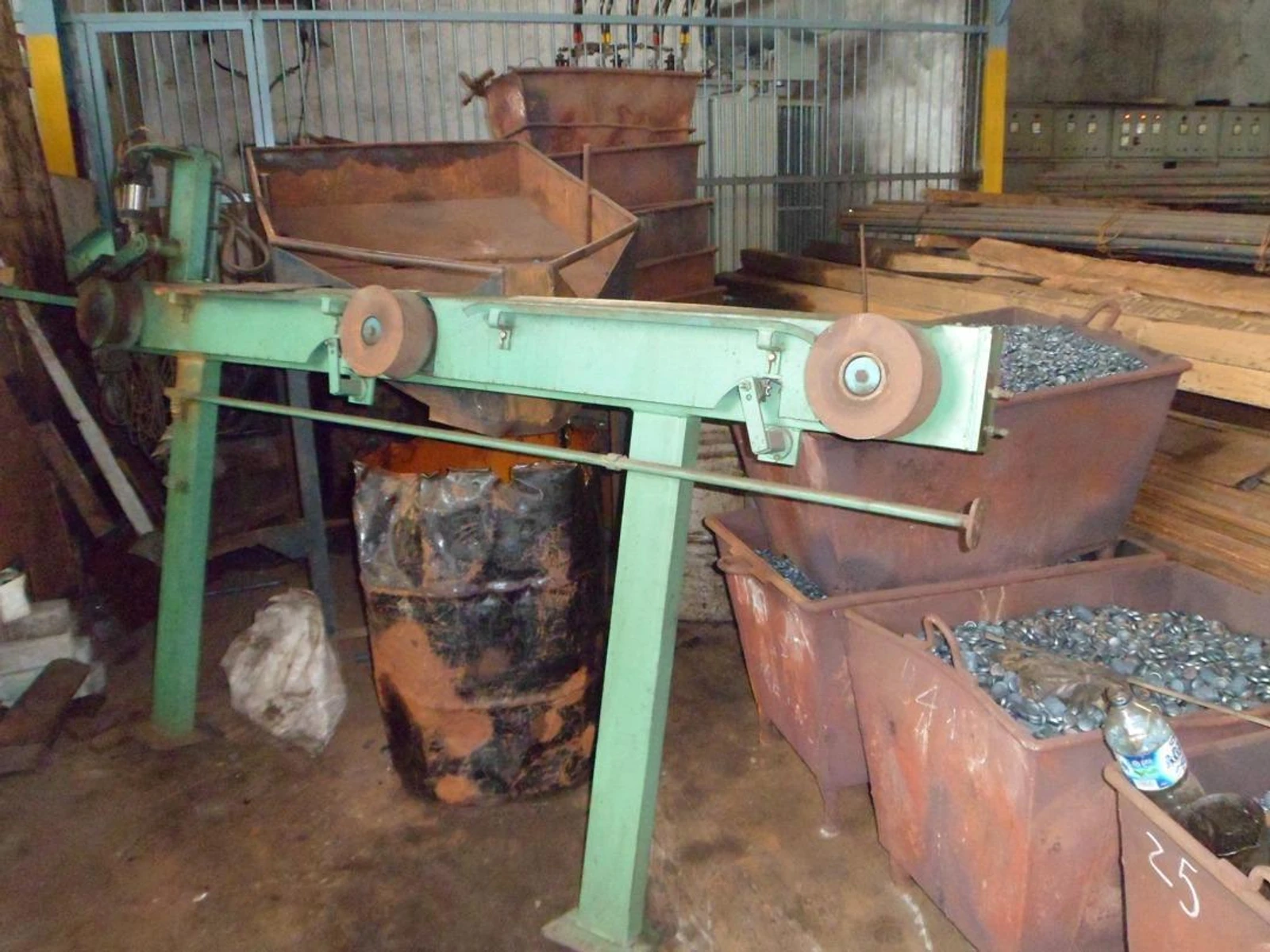

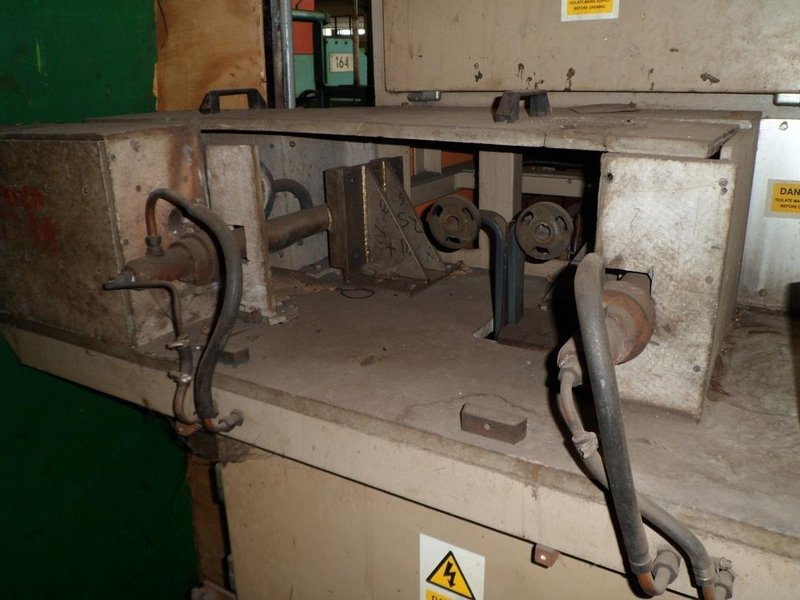

NEWELCO INDUCTION HEATER & BAR RACK
