60" x 9.00" x 40,000# Pro Eco Slitting Line

Used 60" x 9.00" x 40,000# Pro Eco Slitting Line

Material: Mild Steel or equivalent @ 50,000 PSI
Material Thickness: 0.010" - 0.250"
Max Coil Weight: 40,000 lbs.
Max Coil Width: 60" (62" Untrimmed)
Coil O.D.: 72" Max
Coil I.D. (Entry): 16" & 20"
Coil I.D. (Exit): 20"
Line speed: 200 & 600 FPM constant
build up to 1200 FPM with tach disconnect
Electrical supply: 460V/3PH/60Hz
Air supply: 80 PSI
Mode of operation: Pull-through/Loop Slitting
Line direction: Left to Right

Line Includes:

-Entry 4 Arm Turnstile:
C-Hook Type Arms
Powered Rotation

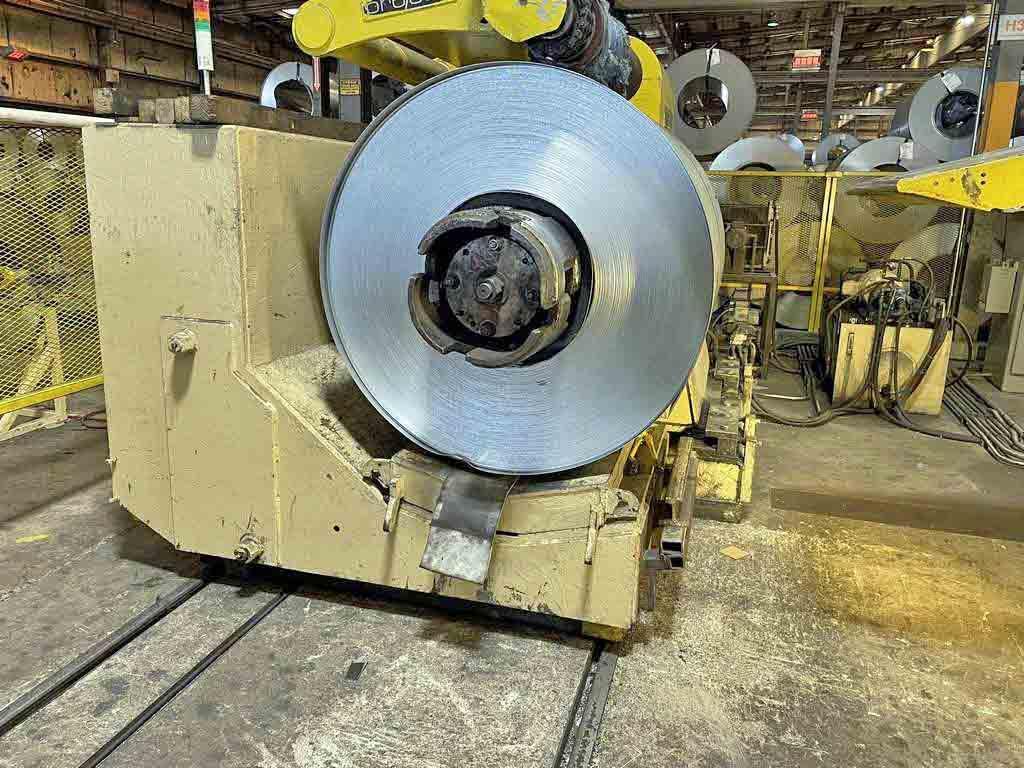

-Entry Coil Car:
Above Floor Type
Removable Saddle for Small Coil O.D.'s
Self-Contained Hydraulics

-Uncoiler:
Pumpkin Tooth Mandrel
Hydraulic Expansion
Threading Drive
Brake
Holddown Roll
Sliding Base

-Entry Unit:
Peeler Table
Entry Driven Pinch Rolls
Entry Side Guides
Hydraulic Crop Shear

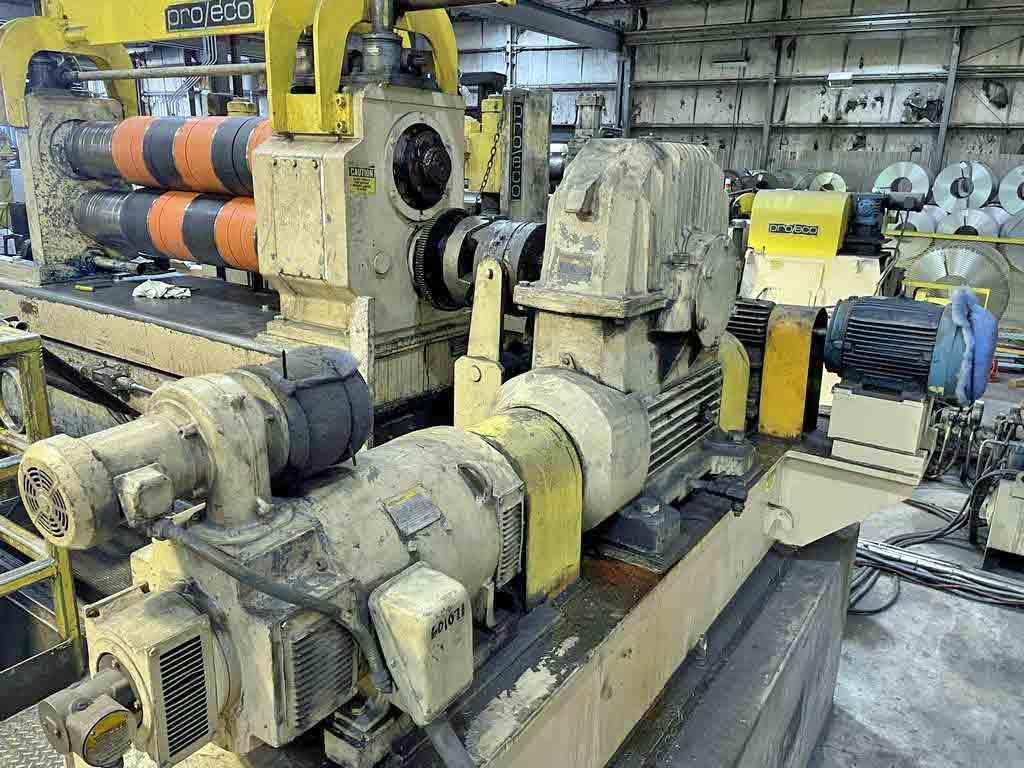

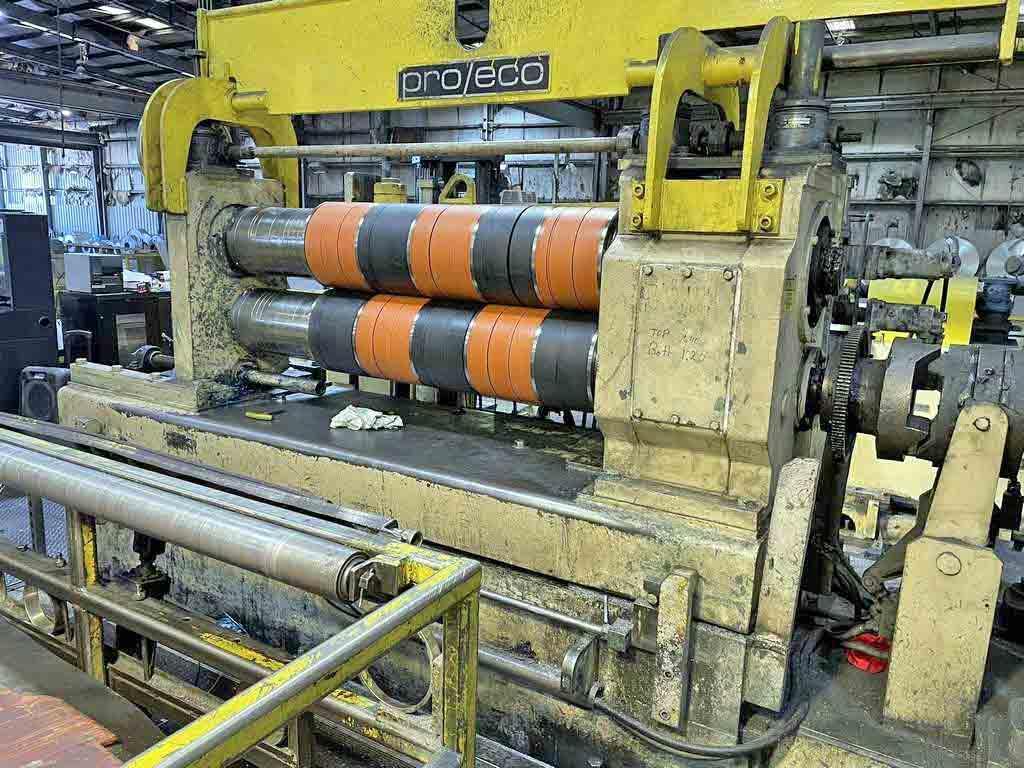

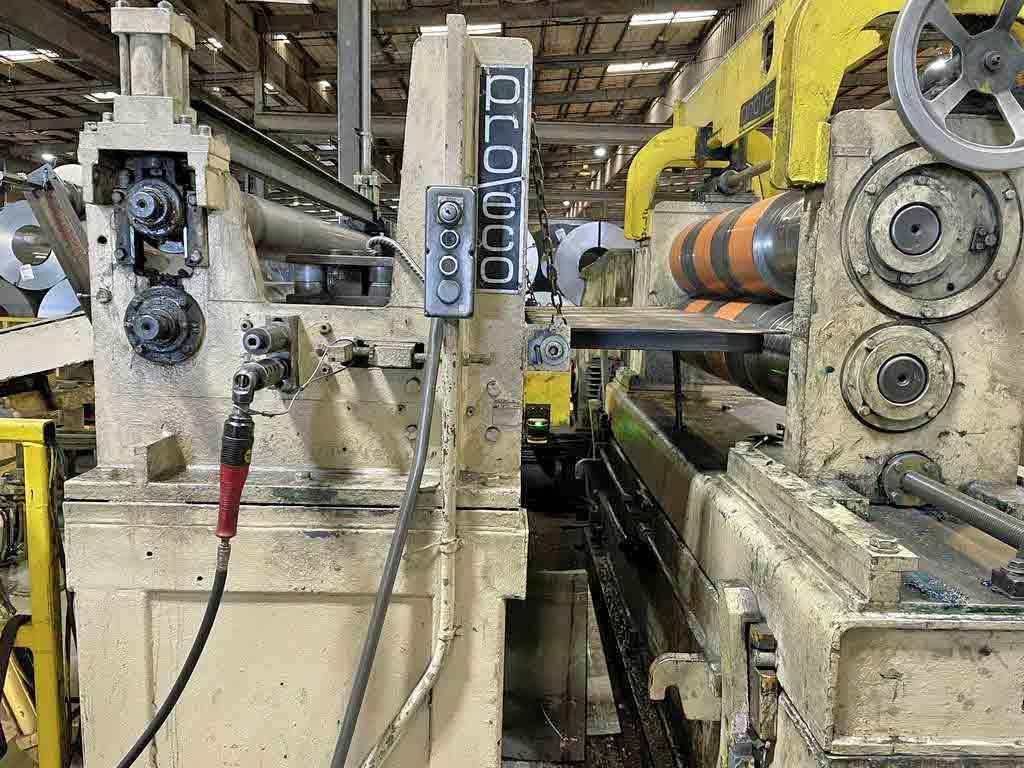

-Slitter Head: (2) Heads
Crane Load Type
9.00" Dia. Arbors
Single Eccentric Arbor Adjustment
50 HP Baldor DC Motor, 1750/2100 RPM, 500 V
Right Angle Reducer

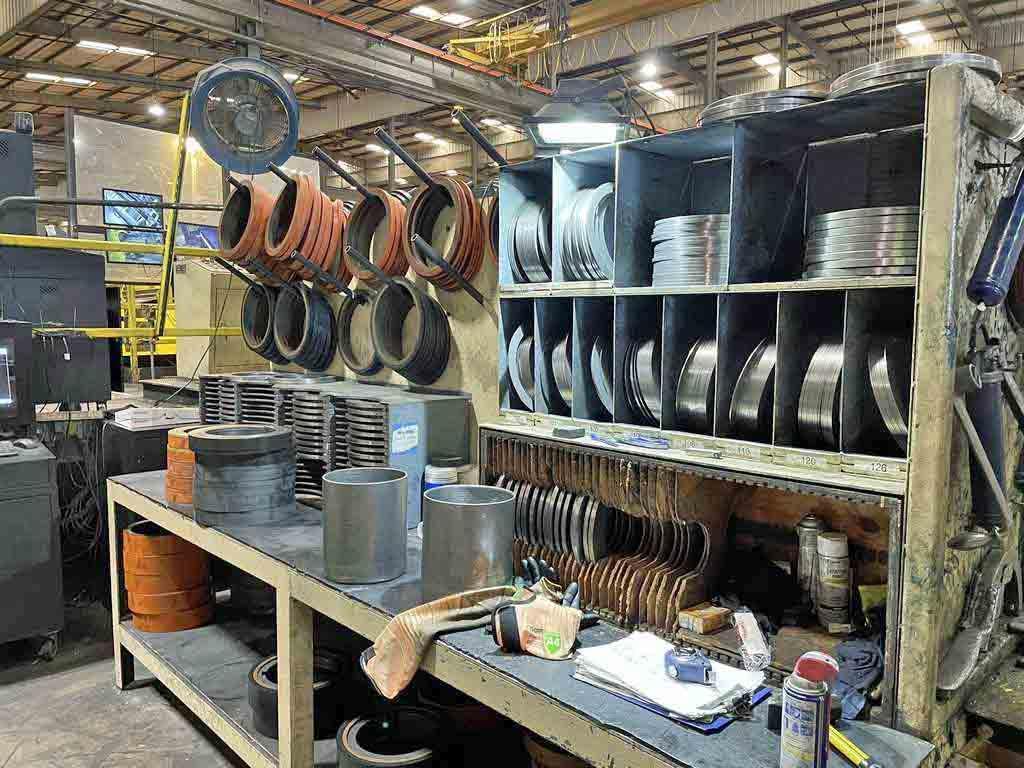

Tooling Station
Shimless Tooling

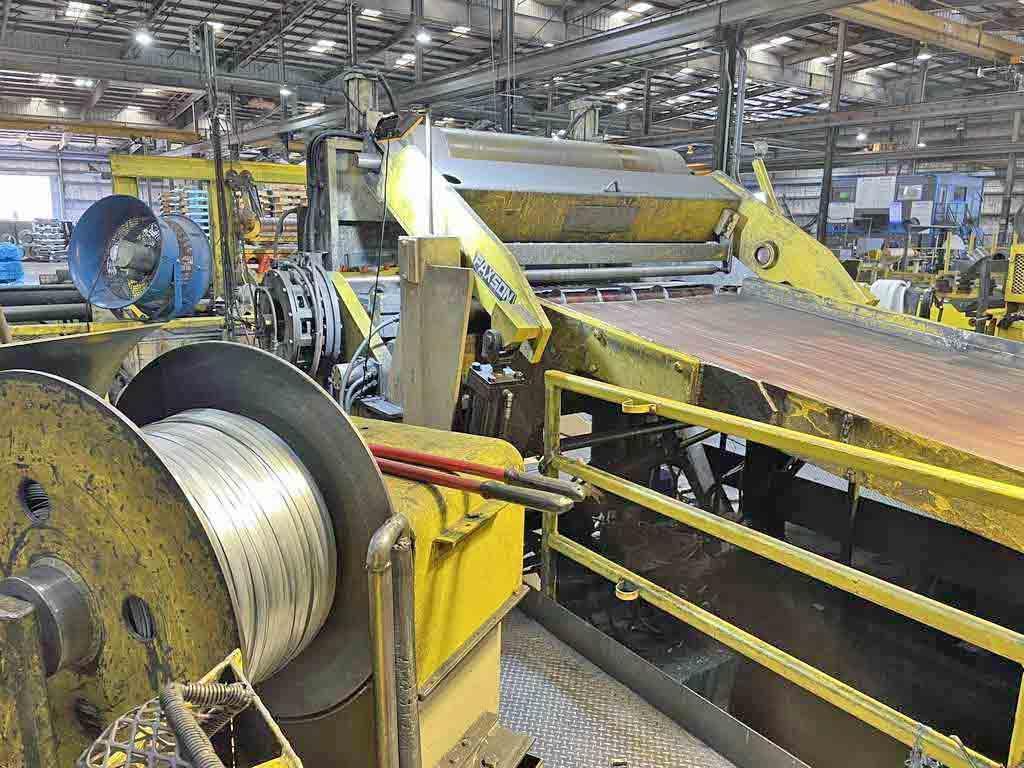

-(2) Scrap Winders:
Oscillate Wind
Power Eject
Hydraulic Motor Driven

-Looping Pit:

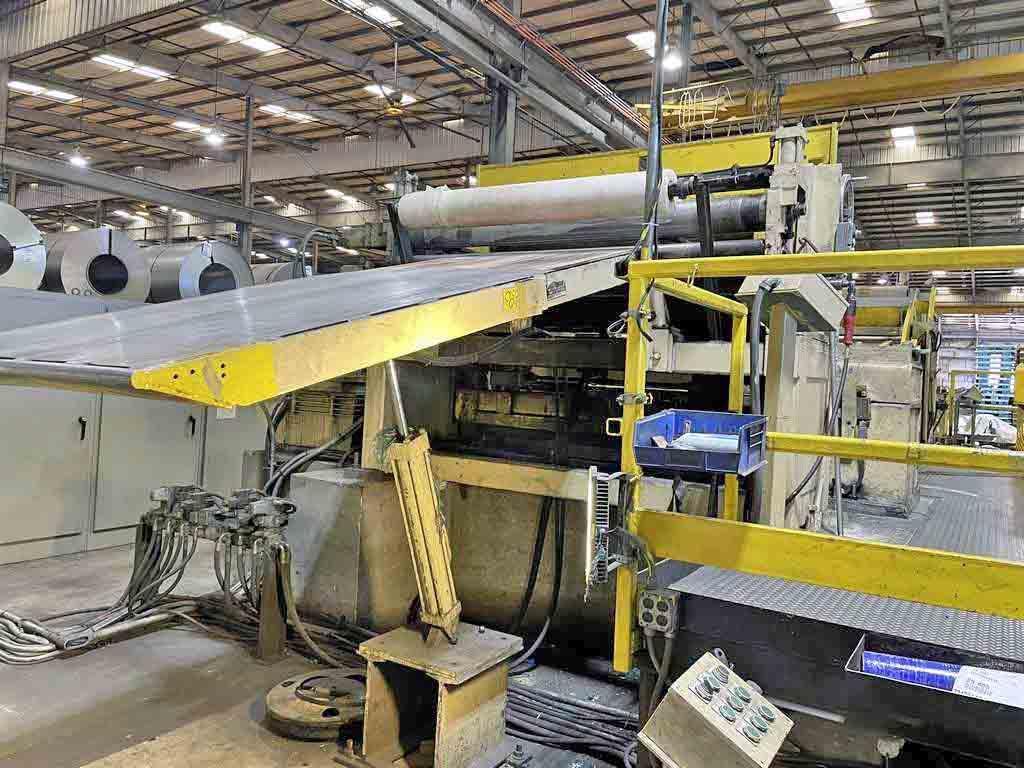

-Pit Carryover Table:

-Tension Stand: Paxson
Entry Separator Tooling Bar
Combination Pad and Roll Type
Water Cooled Brake on Bottom Roll

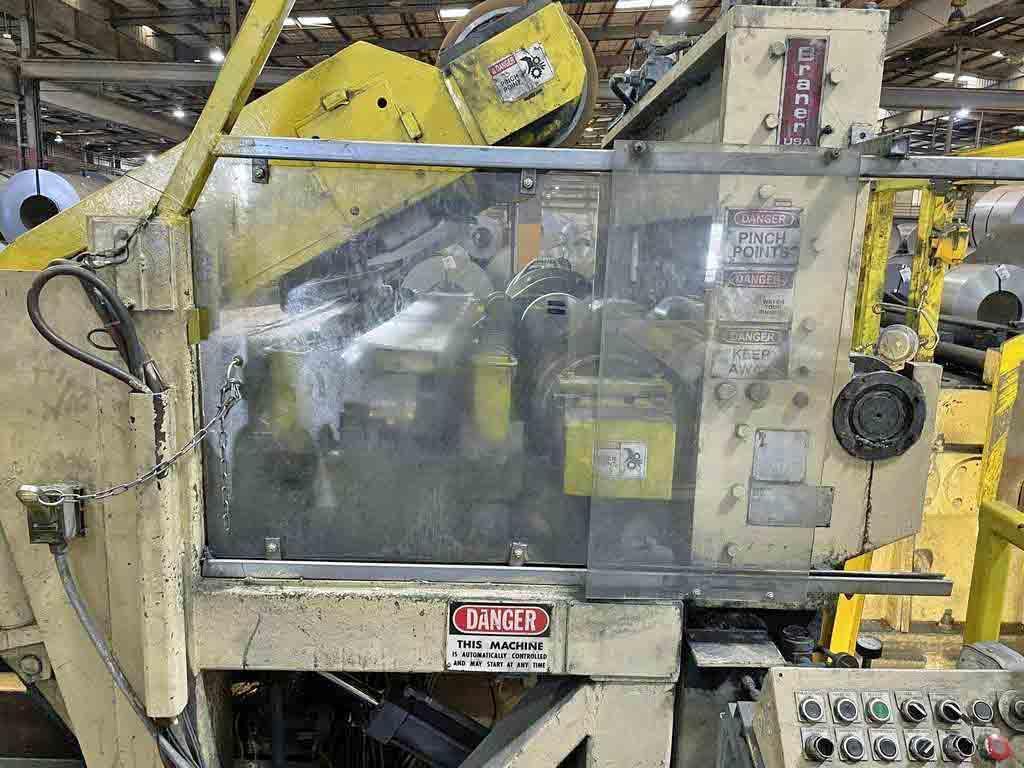

-Exit Crop Shear: Braner
Hydraulic Downcut
Exit Passline Roll

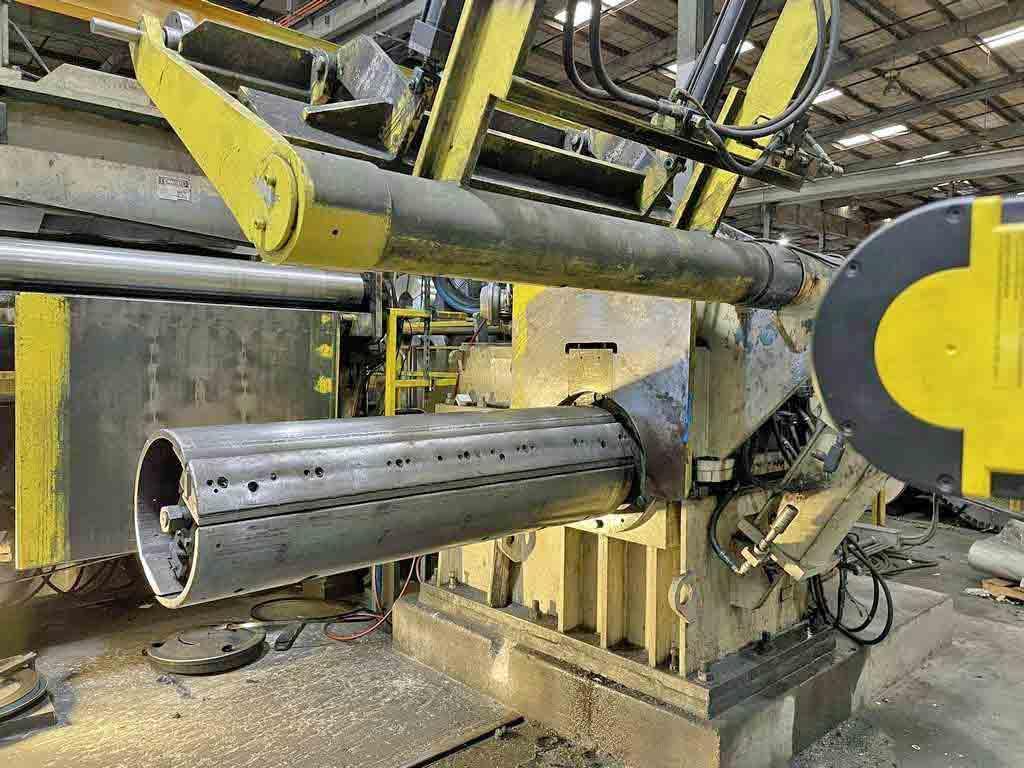

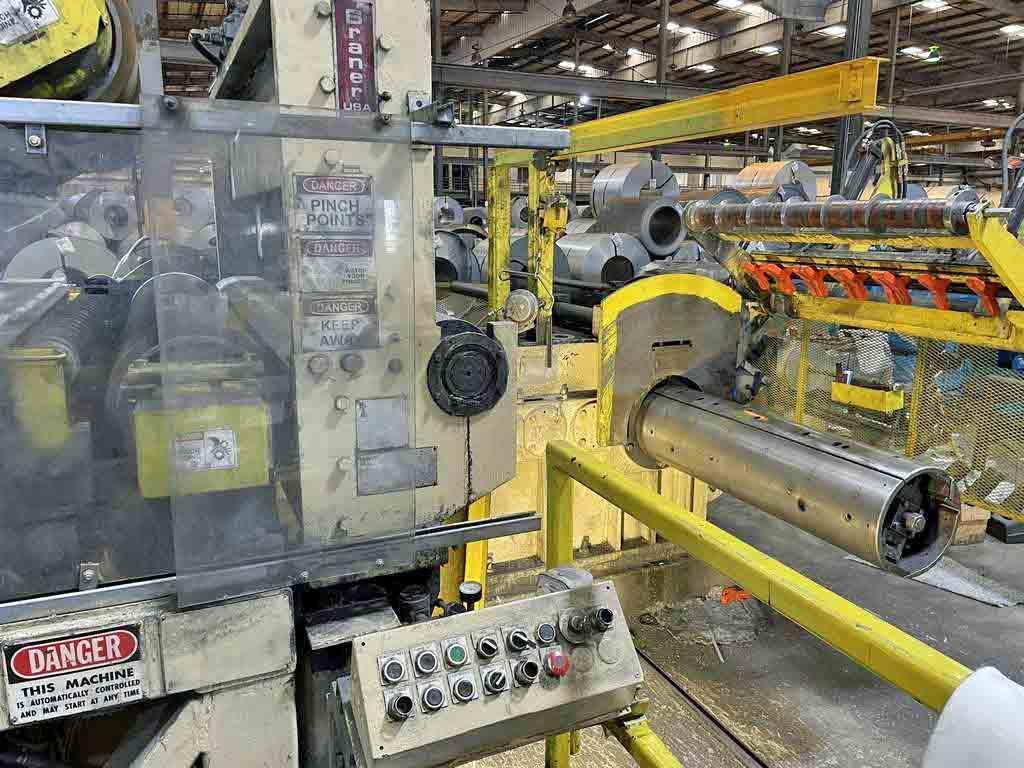

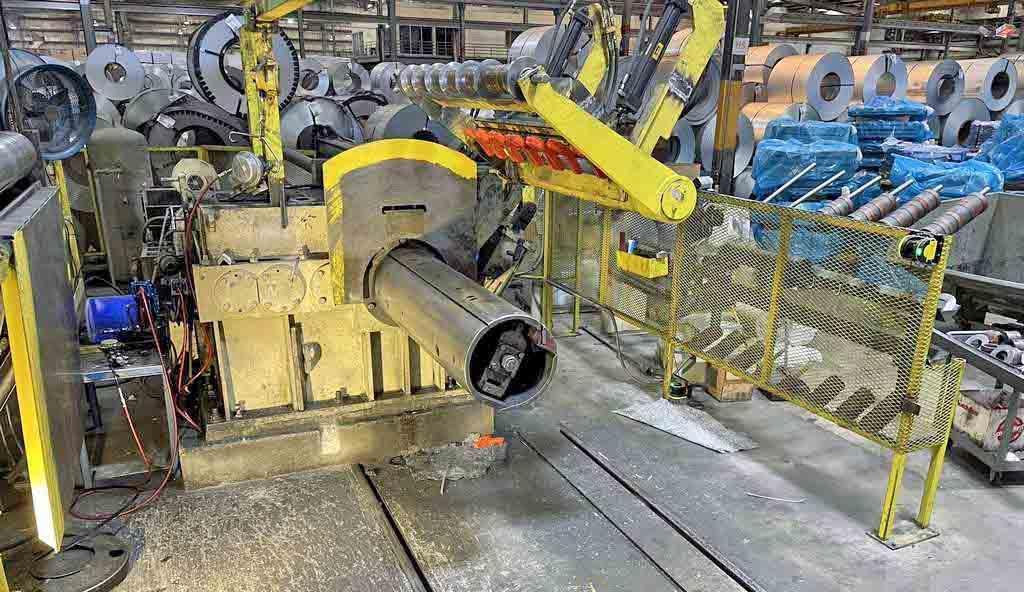

-Recoiler:
20" Dia. Drum
Powered Clamp and Expansion
Hydraulic Pushoff
Overarm Separator
100 HP DC Motor, 650/1950 RPM, 500 V

-Exit Coil Car:
Above Floor Type

-Exit 4 Arm Turnstile:
Powered Rotation
Hydraulic Pushoff

-Line is Installed and Running
