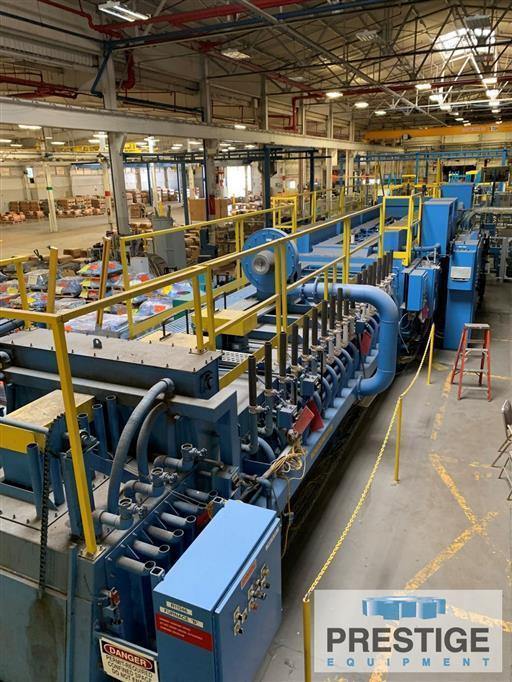

16" SXP Seamless Pipe Annealing Furnace

SPECIFICATION:
Pipe Capacity Range, Stainless 3.8" - 16"
Pipe Length Capacity 108" - 564"
Maximum Furnace Temp., Fahrenheit 2100°
Recuperation Burners, Qty. 8 Left /7 Right
Air Compression System, 2 Zone 100 MBar
Max Throughput 48 Pipes/ 12 Hour
Distance Between Inside Walking Beams . 9.84"
Interior Moveable Beams 10
Walking Beam Lift Distance 3.14" - 3.93"
Walking Beam Transportation 5.90" Horizontally
Roller Belt Speed 3937 IPM



Equipped With:
Hydraulic Walking Beam Movement (Installed Under Platform)
Horizontally & Vertically Adjusted Walking Beams
Electromechanically Controlled Entry & Exit Doors
Infeed Roller Belts
Outfeed Conveyance with Quench Tank
Ticklers
Rolls
Spare Support Parts


NOTE: See Process Description For Additional Information
