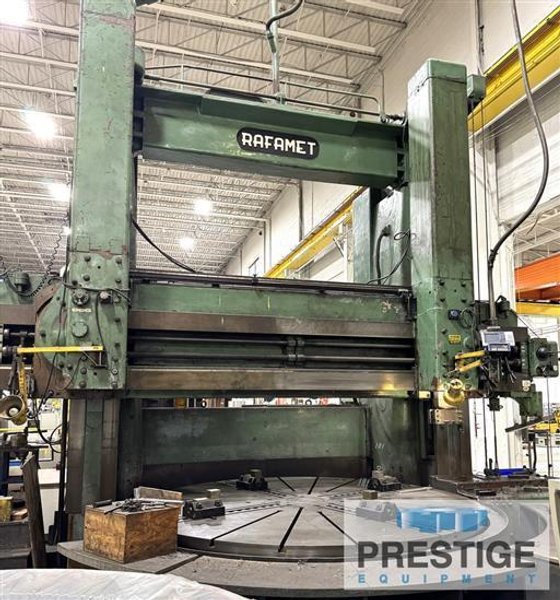

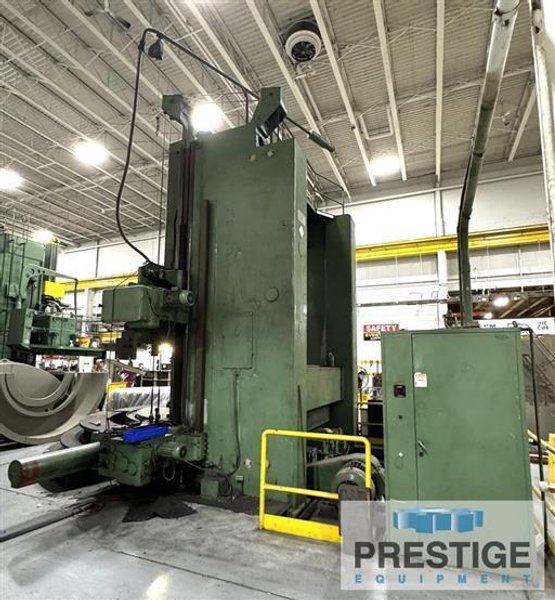

Rafamet 126" Vertical Boring Mill, 2-Rams, Side Head
Brand
Category
Model
KCFB-320
Stock #
44266
Year
1974
Condition
Not specified
Location
Not specified
|
Serial Number126240

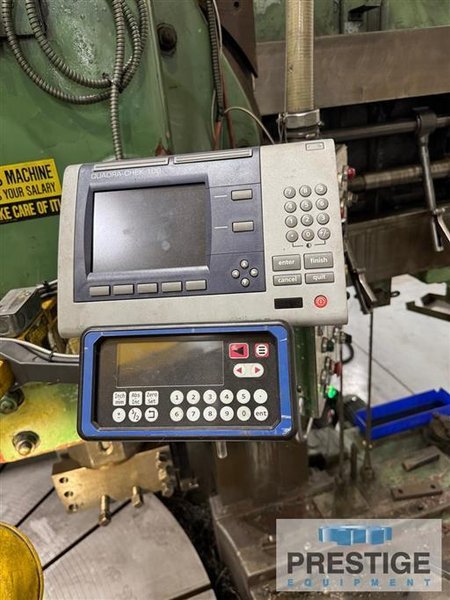

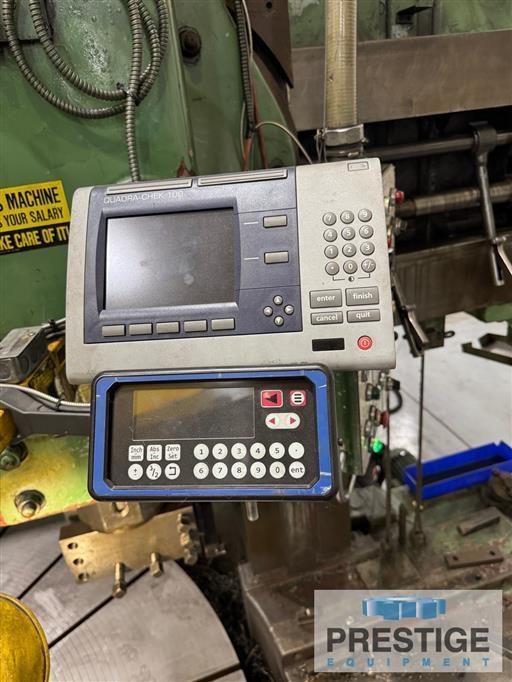

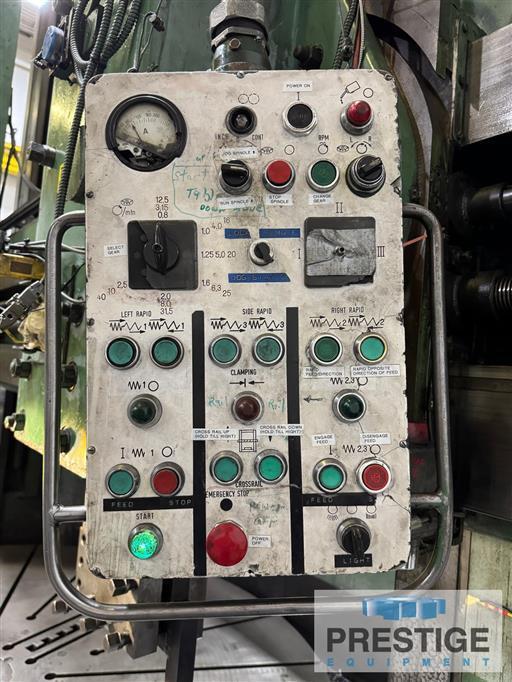

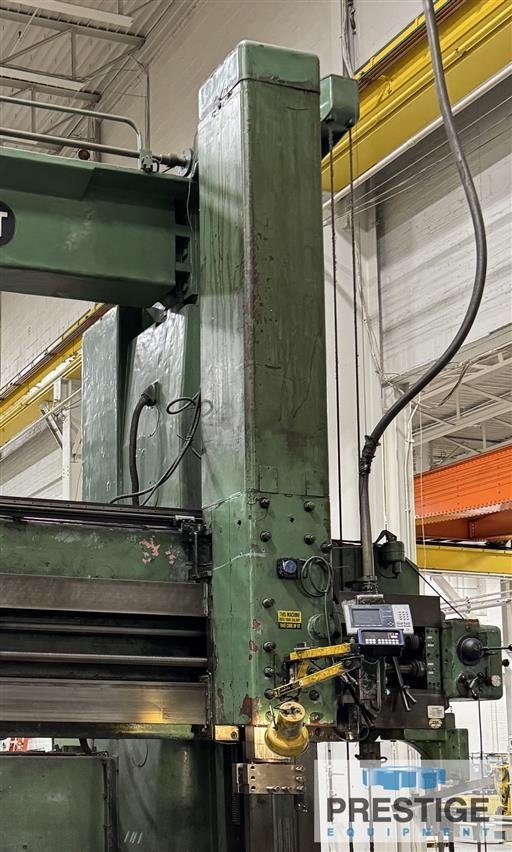

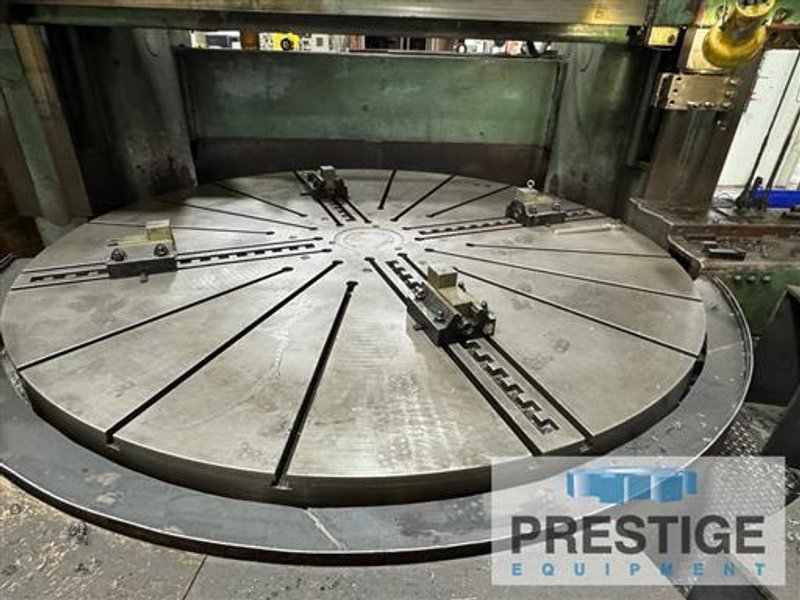

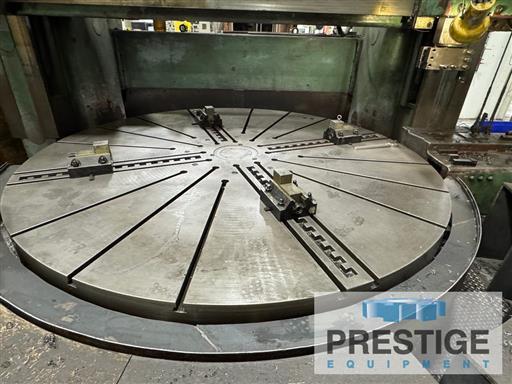

Specifications: Table Diameter 125.98" Maximum Turning Diameter 137.79" Maximum Height Under Rail 98.45" Ram Stroke 39.47" Ram Swivel +/- 30 Degrees Minimum Distance Between Rams 20" Table Speeds (18) .8-40 RPM Feeds (18) .0049-.2188 IPR Threading, Inch 1-11 TPI Threading, Metric 2-20 MM Table Load Capacity 55,000 Lbs Machine Weight 170,000 Lbs Floor Space L-R x F-B 259" x 245" Overall Height 304" Equipped With: Pendant Controls 2-Axis Quadra Check Digital Readouts 2-Swiveling Rams Right Hand Side Head 126" Face Plate Type Chuck with 4-Top Jaws Threading & Taper Turning 74 HP Main Motor Note: Left Ram is Not Operational |
