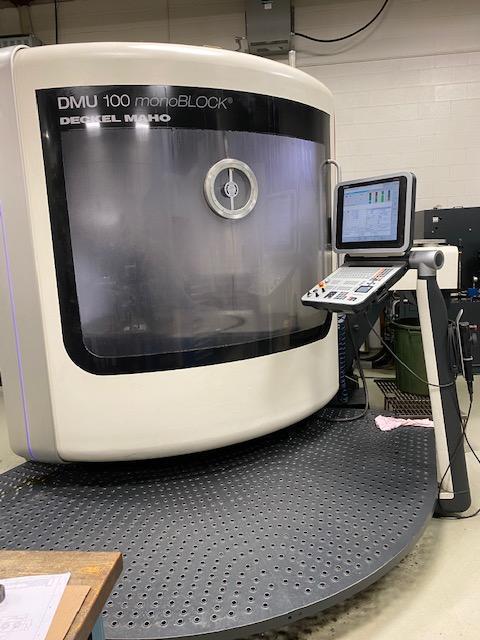

DMG Mori DMU 100 Monoblock UMC, 2008 – Coolant Thru Spindle, Blum Laser, Probing

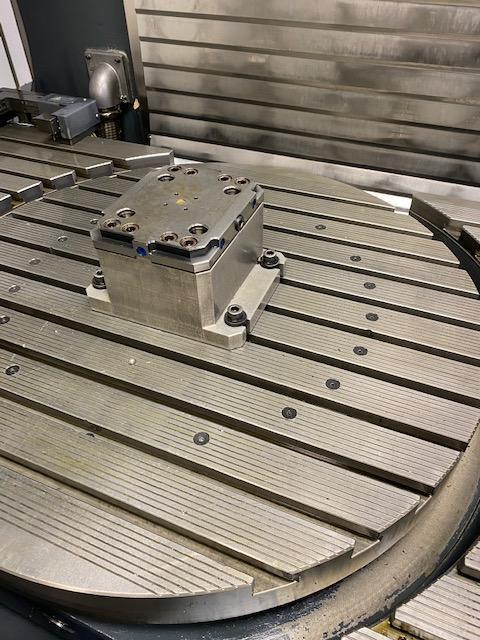

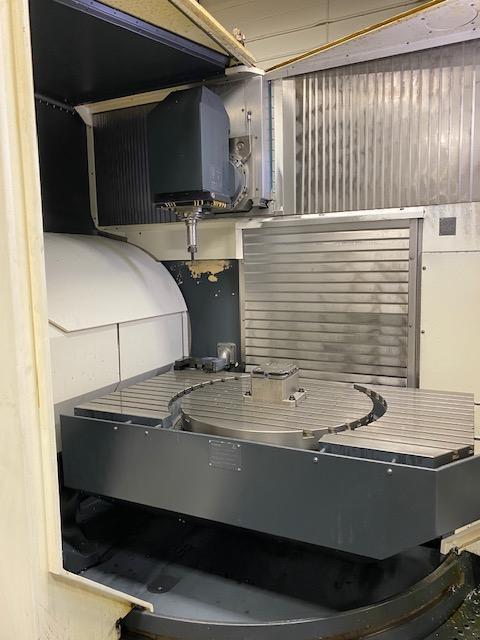

Table Size: 59.1″ X 31″ X – Axis Travel: 49.2″ Y – Axis Travel: 28″ Z – Axis Travel: 28″ Tool Changer Type: 32 Mag Pockets Spindle Motor (hp): 20.1 Hp/13.4 Hp Spindle Speed: 18,000 Rpm Spindle Taper (cat/bt) .hsk-63 Table Indexing: 0.001 Deg Table Weight Capacity: 1,760 Lbs Spindle Head: -120° /+30° Swivel Range Spindle Head Nutating: 0-90 Deg

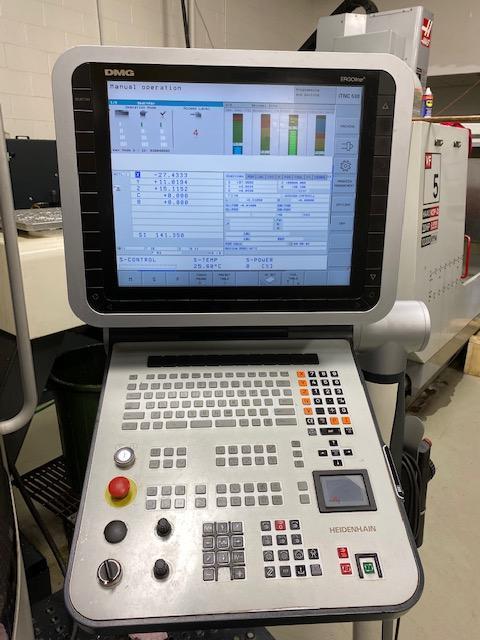

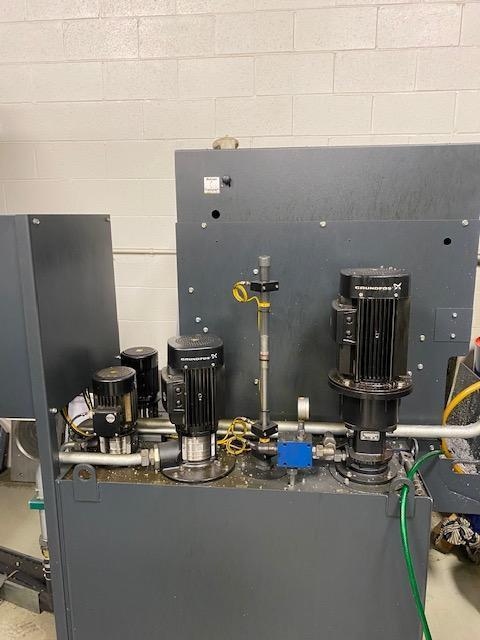

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Itnc 530 Control Nc Rotary Table Integrated Into Rigid Table Blum Laser M&h Measuring Probe Chip Conveyor Production Package: 40 Bar/23 I/min I 580 Psi/6 Gallon/min (theoretical Pump Performance) Tank 600 I / 160 Gallon Paper Band Filter Rotating Clear-view Window Chip Rinsing In Cabin Door Coolant Through Spindle Centre Motor Spindle SK 40

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
