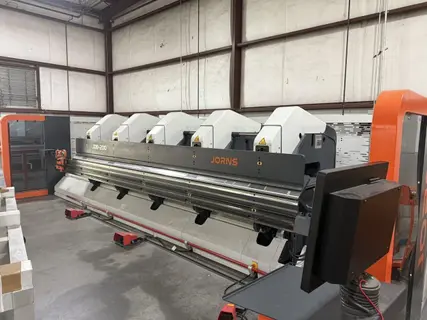

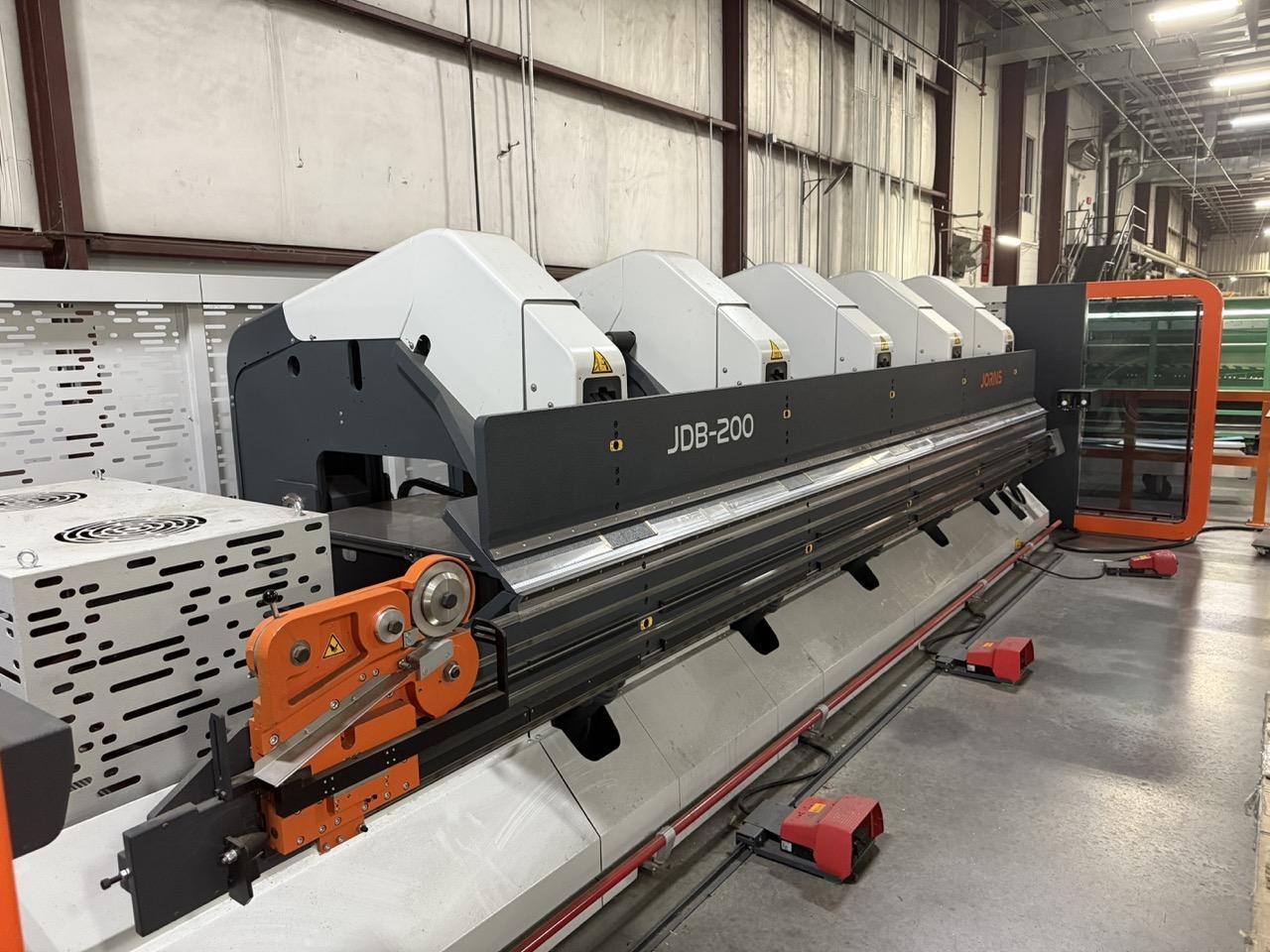

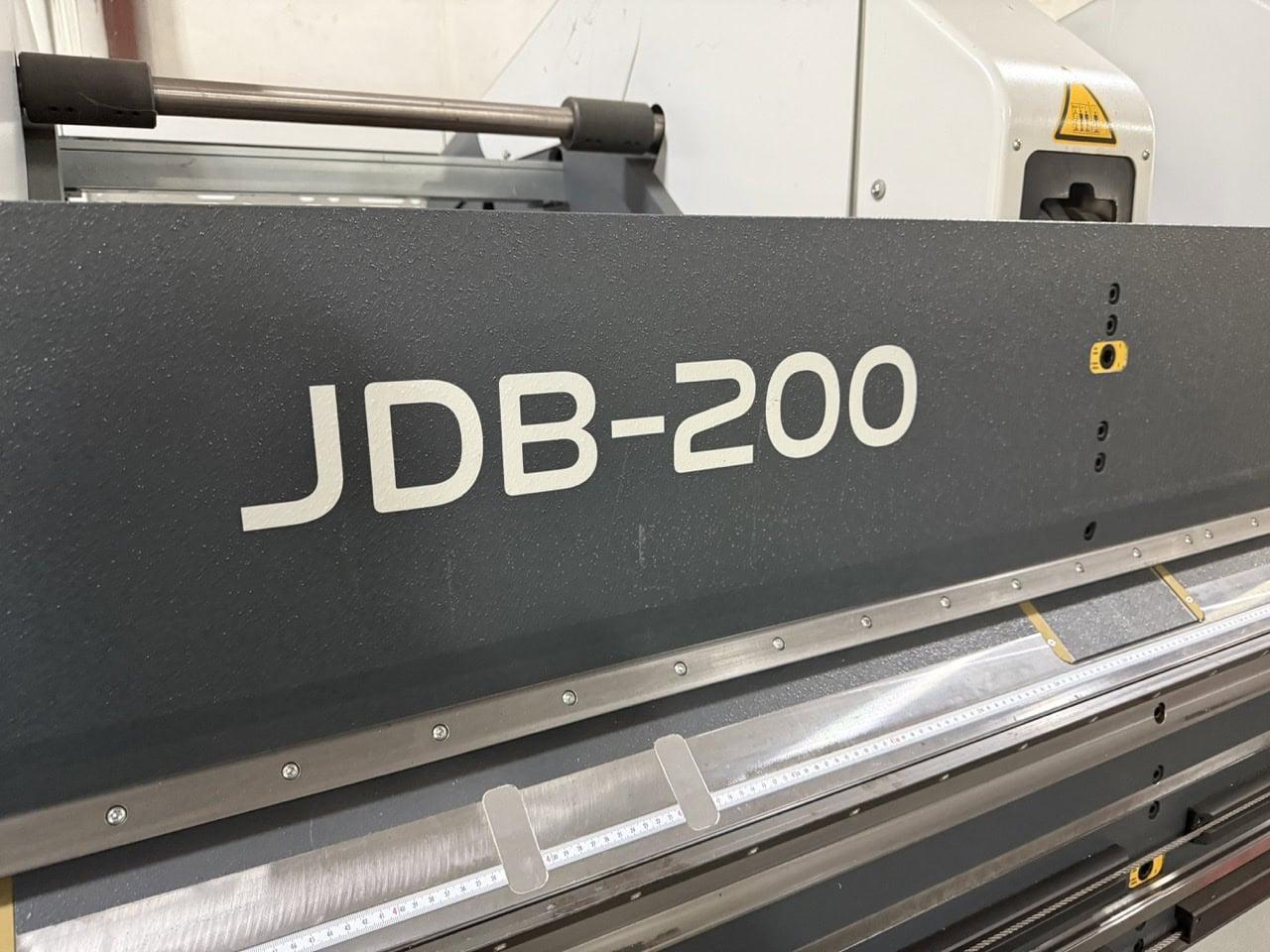

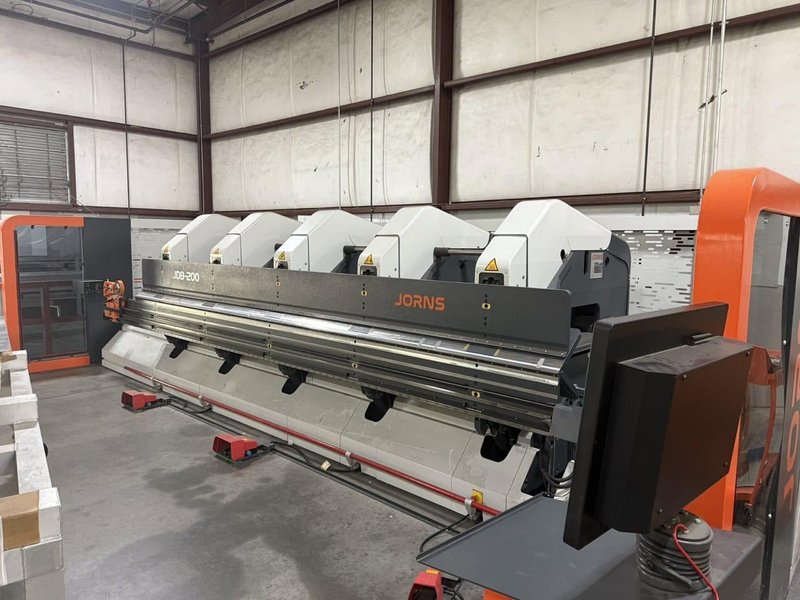

14 ga. x 17′ Jorns JDB-200G Folding Machine , 2021 – Slitter SL3 (3mm), Double Servo Pump, Hydraulic Cooling System

Maximum Bending Length: 204″ (5,200mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bending Capacity w/ Auxiliary Bar: Maximum Thickness Full Length, Mild Steel: 0.0787″ (2 mm) Maximum Thickness Full Length, Aluminum: 0.125″ (3 mm) Maximum Thickness Full Length, Stainless Steel: 0.059″ (1.5mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Slitter SL, 3mm Capacity, Hydraulic, 750mm/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Detachable Including Support Roller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DSP, Double Servo Pump

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hydraulic Cooling System CP300 Control System for Servo-Electric Gauge System Additional SD Card for Control Standard Safety Features Geometry ‘G’ RH Hydraulic Material Thickness Adjustment DP Dynamic Positioning Pretension of Bending Beam LED Operation of Control Lights Infeed Table, Automated Electric Clamping Fingers, Straight or Conical Bending (x4) Electric Short Part Clamping Finger (x2) Vacuum Gripper, Automated (x4)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
