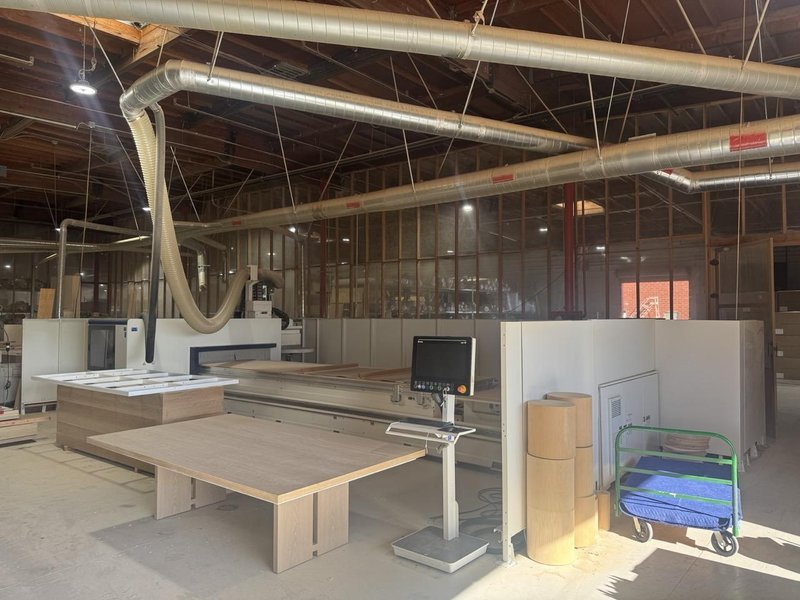

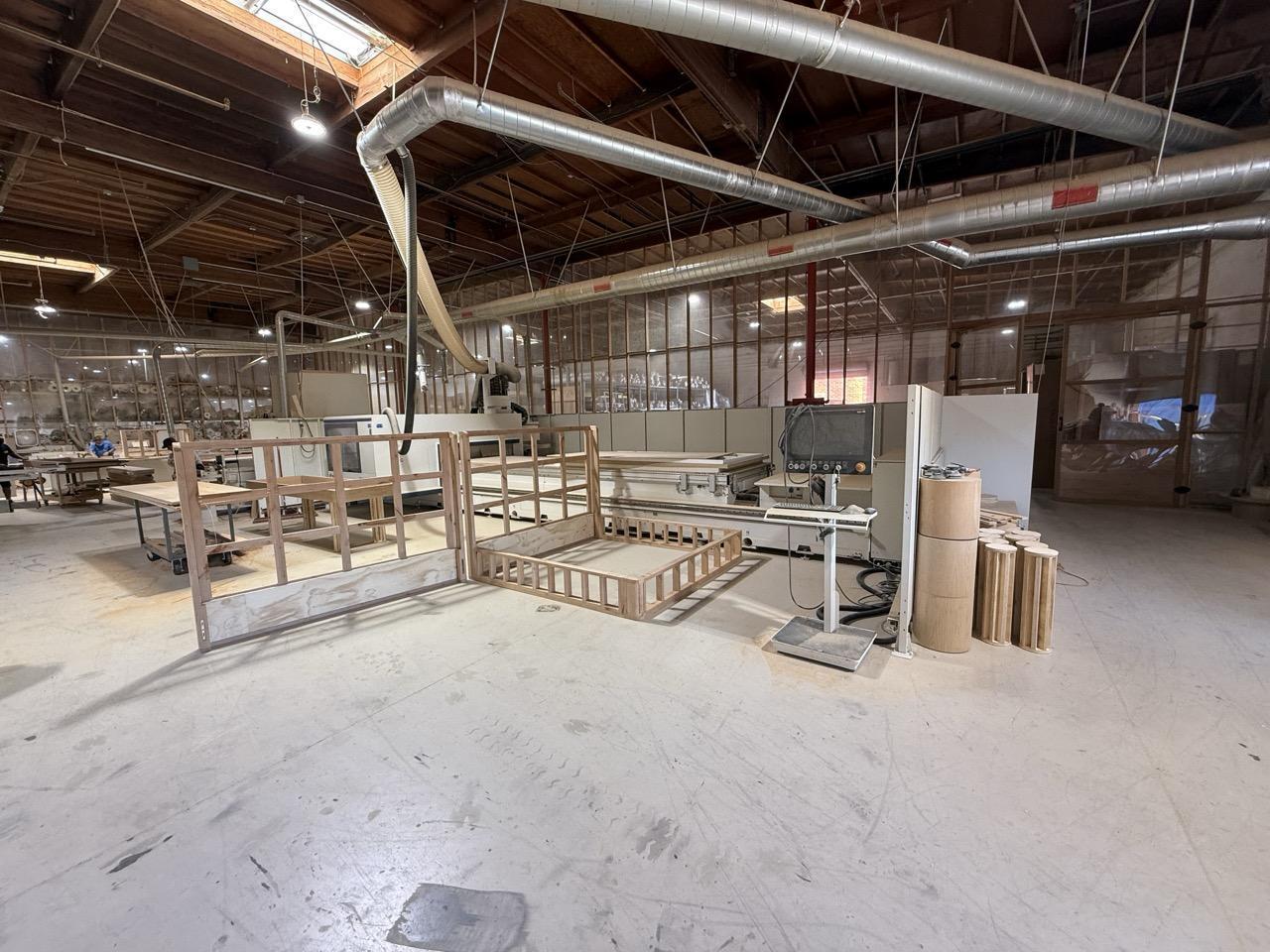

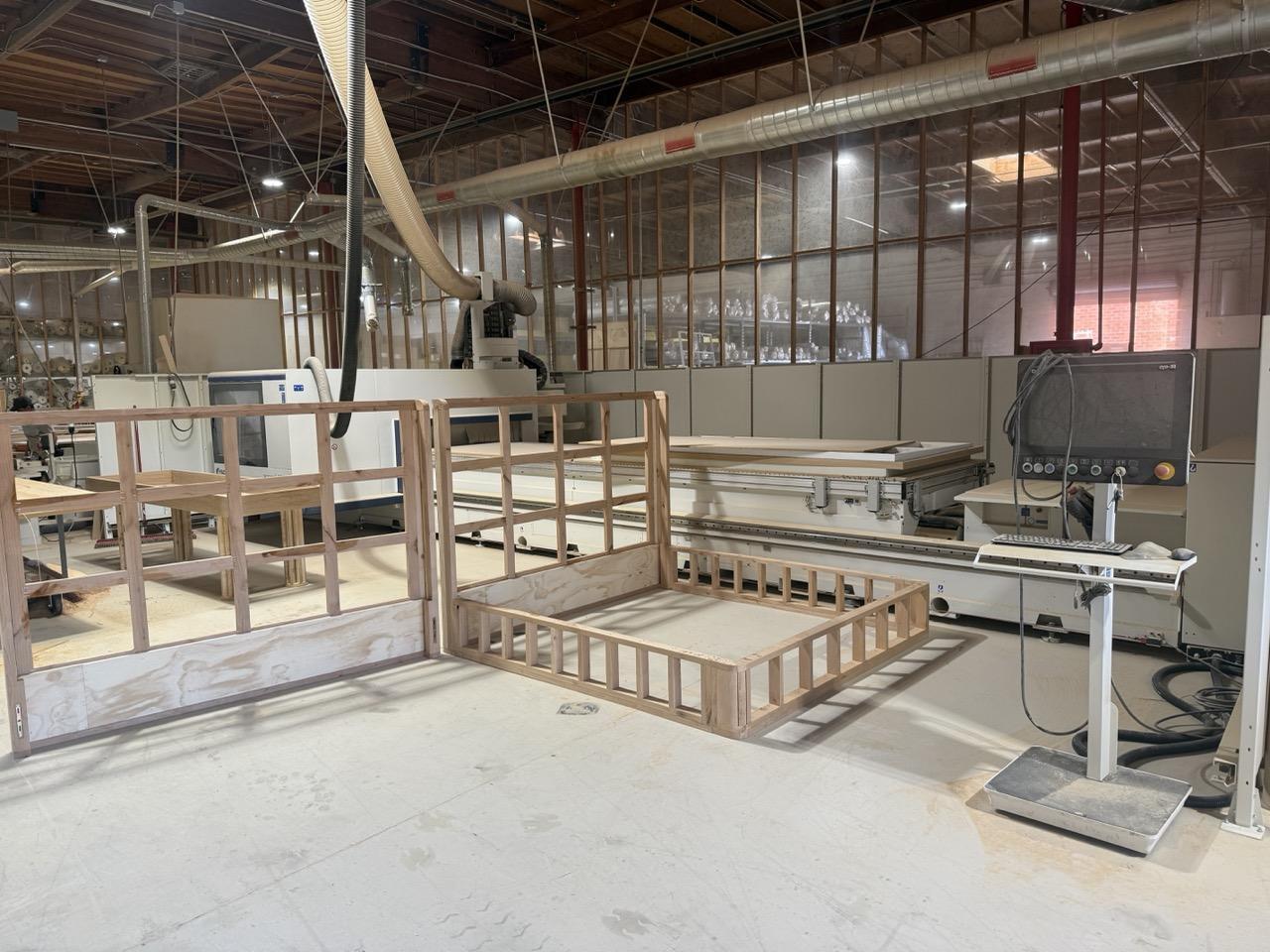

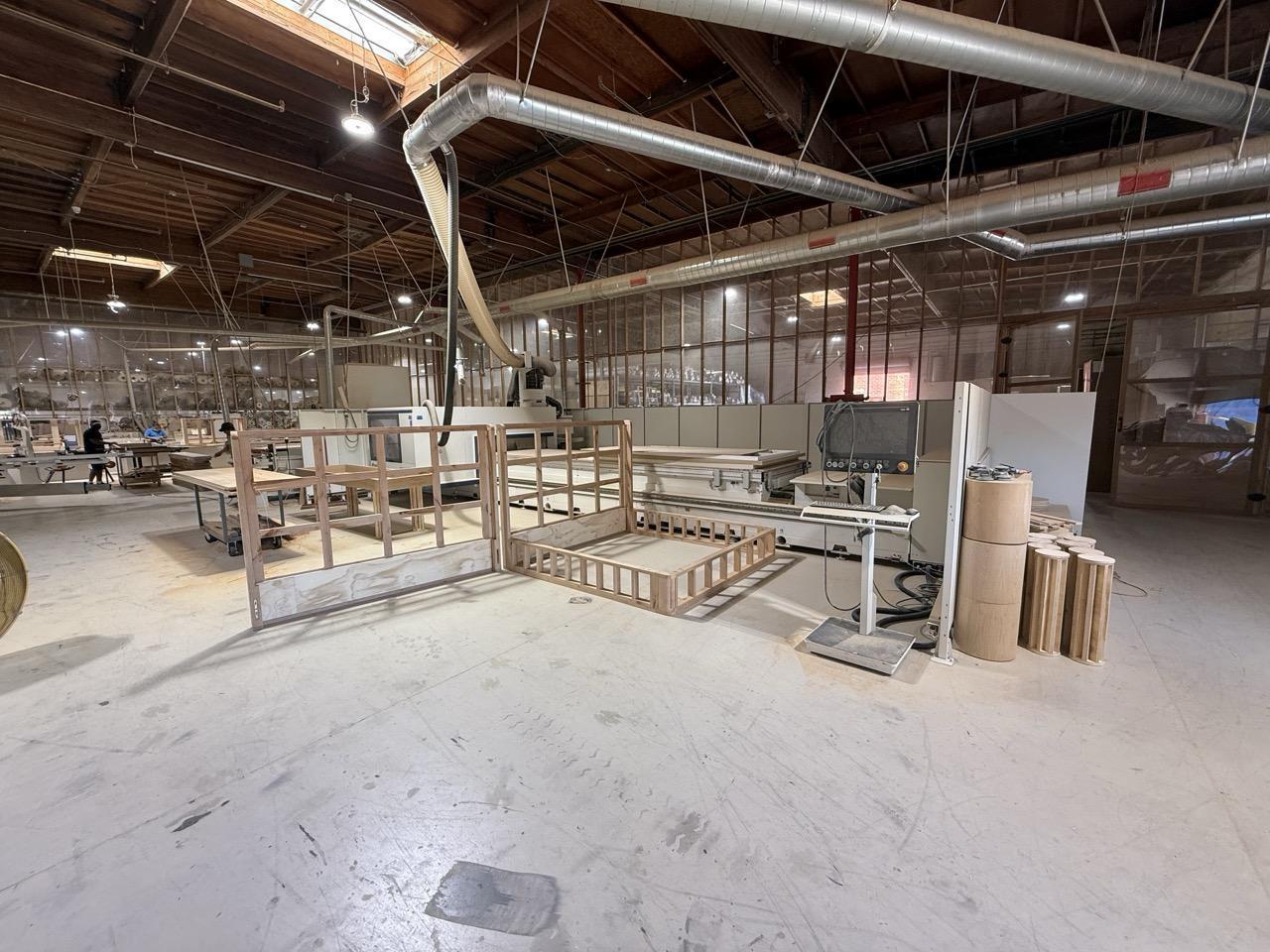

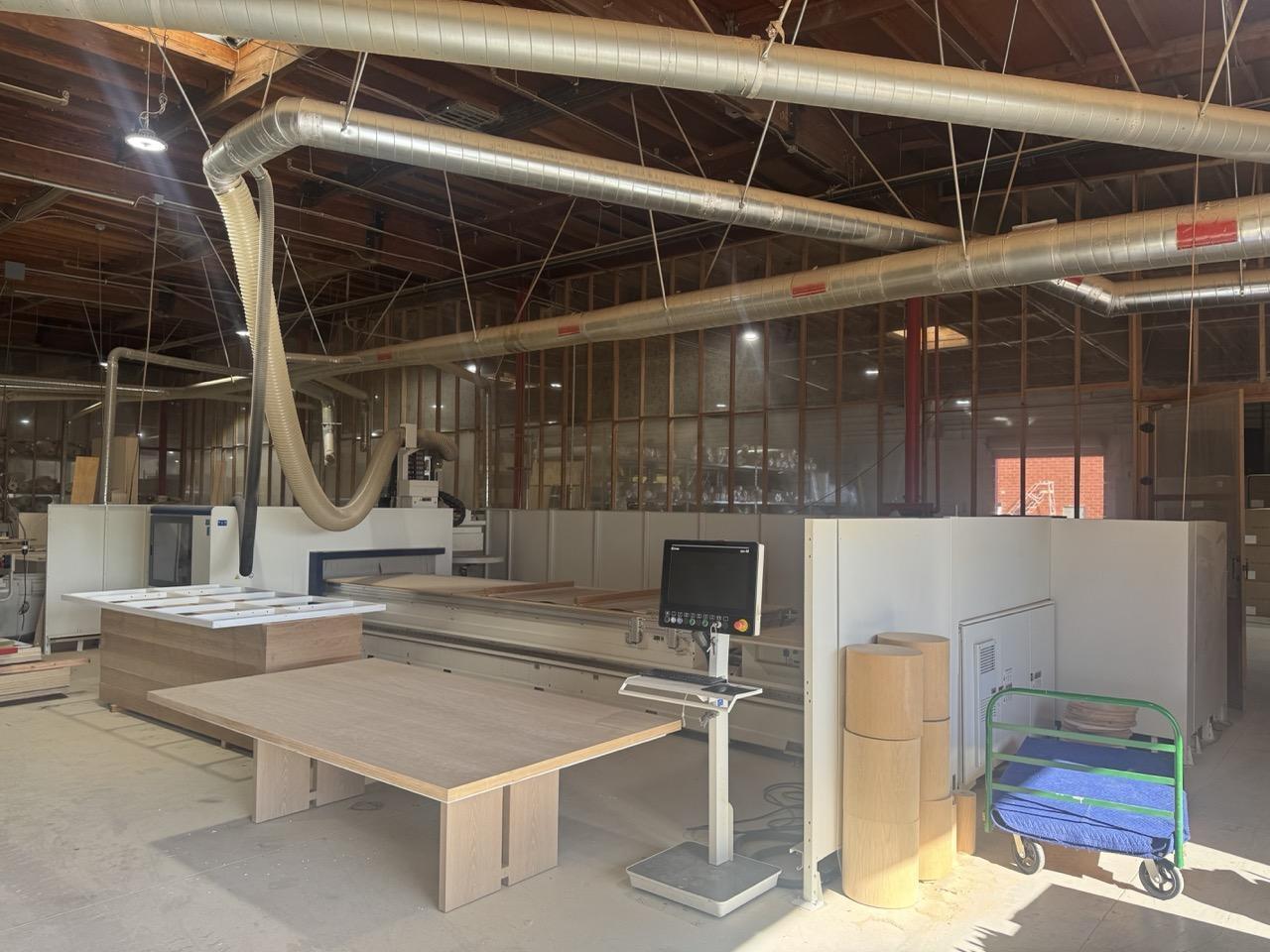

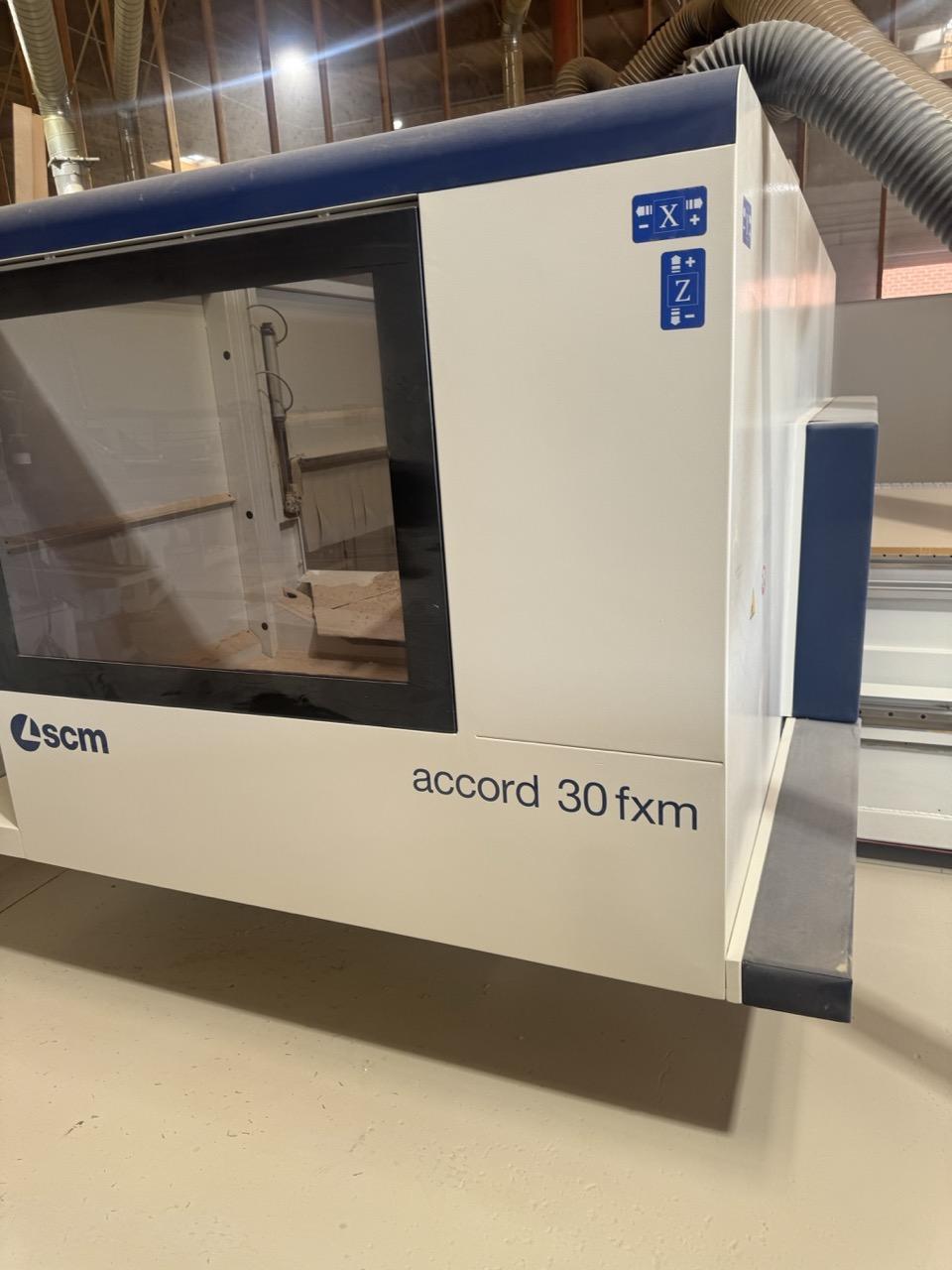

5′ x 20′ SCM Accord 30 fxm CNC Router, 2024 – 5 Axis Spindle, Toolchanger

X-Axis working area: 242.91” Y-Axis working area: 63” Z-Axis component clearance: 9.84” C-Axis rotation: 640° B-Axis rotation: 270°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrospindle power: 16.5 Hp Spindle speed: 20,000 Rpm Tool holder type: HSK F63 Tool Store on Board: 12 Positions Rear Tool Store: 24 Positions

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,F16 drilling unit:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– n° 10 independent vertical spindles − n° 4 horizontal spindles along the X axis − n° 2 horizontal spindles along the Y axis − on-off pneumatic vertical stroke for each spindle 60 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

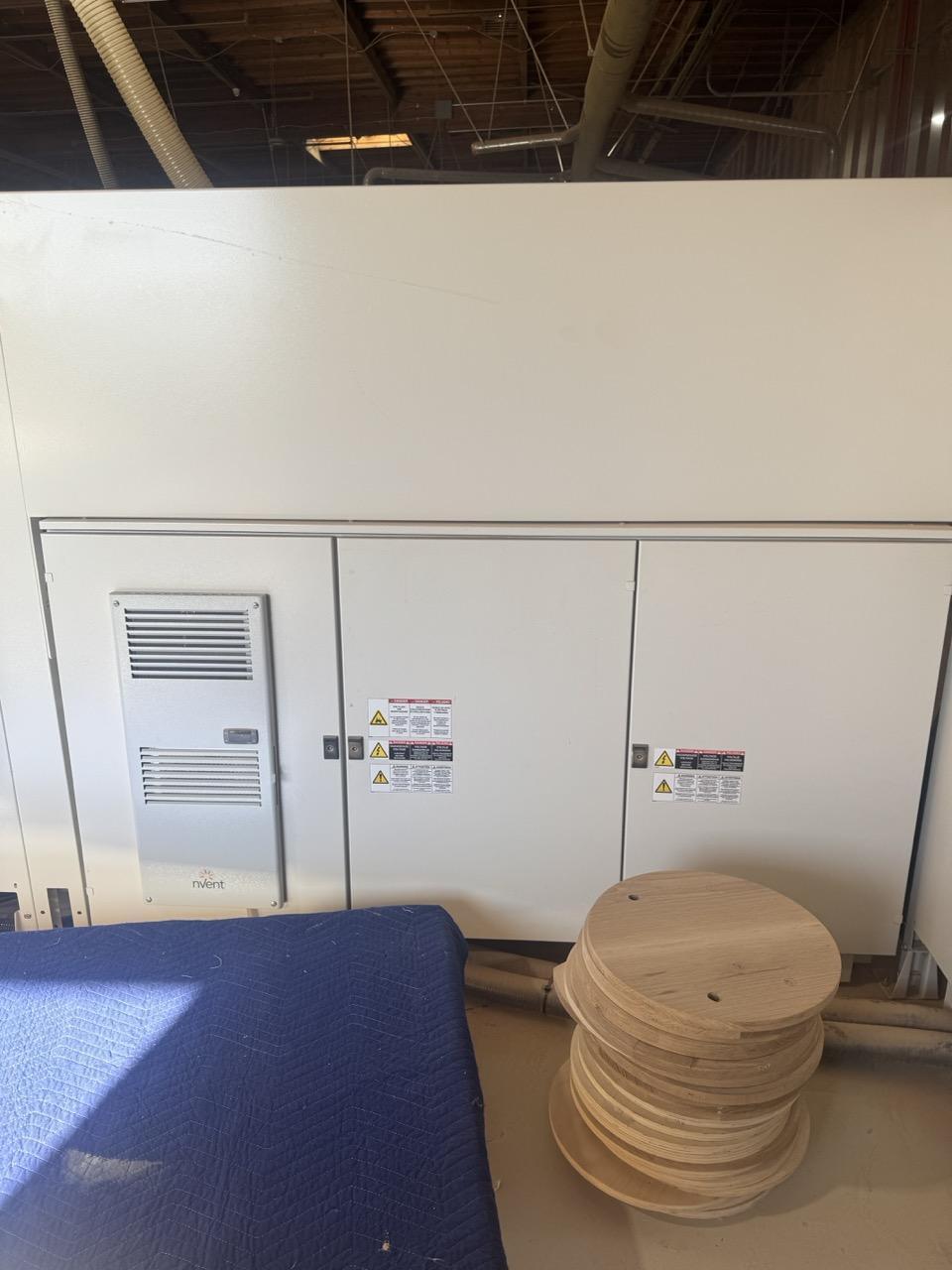

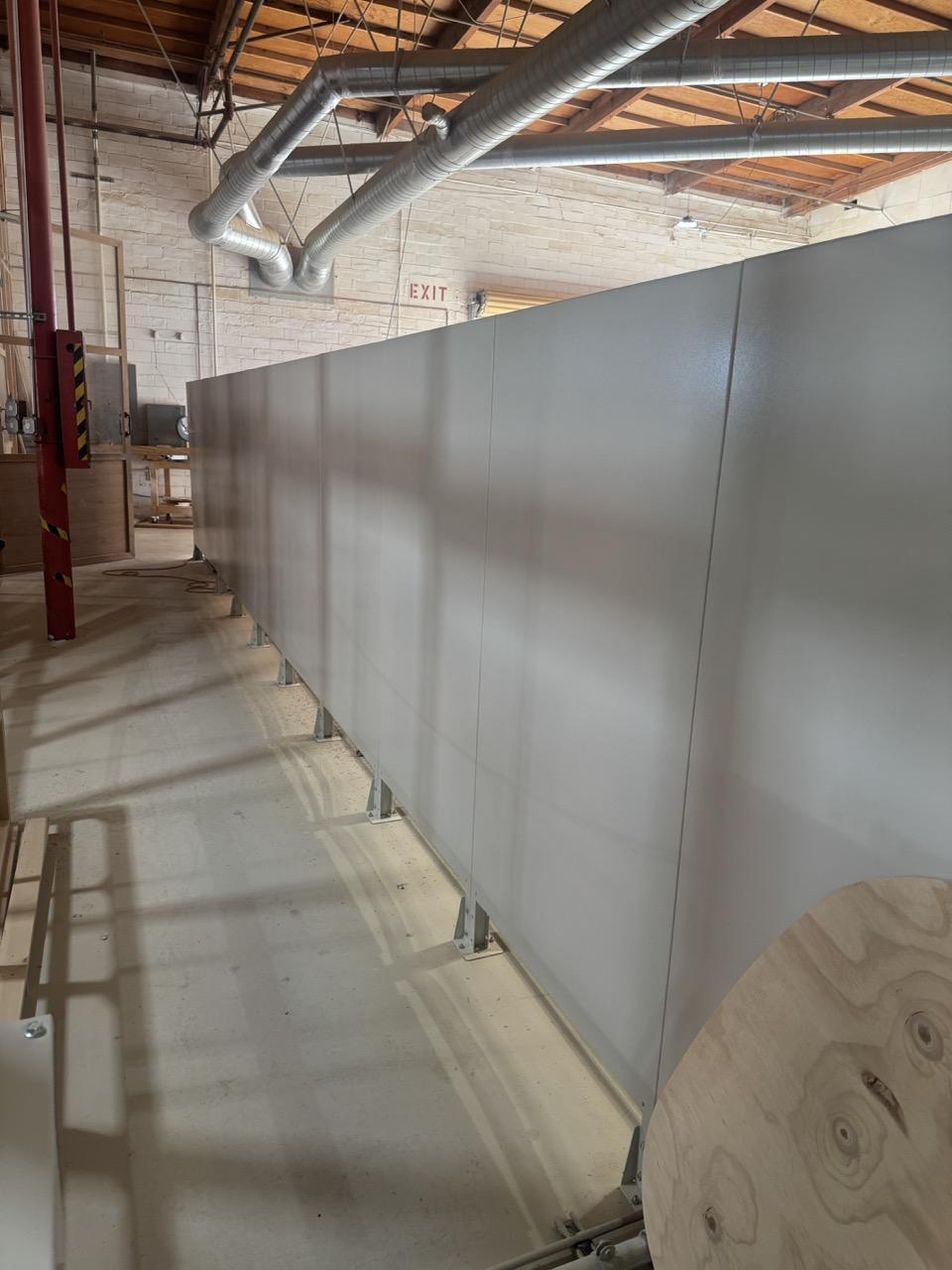

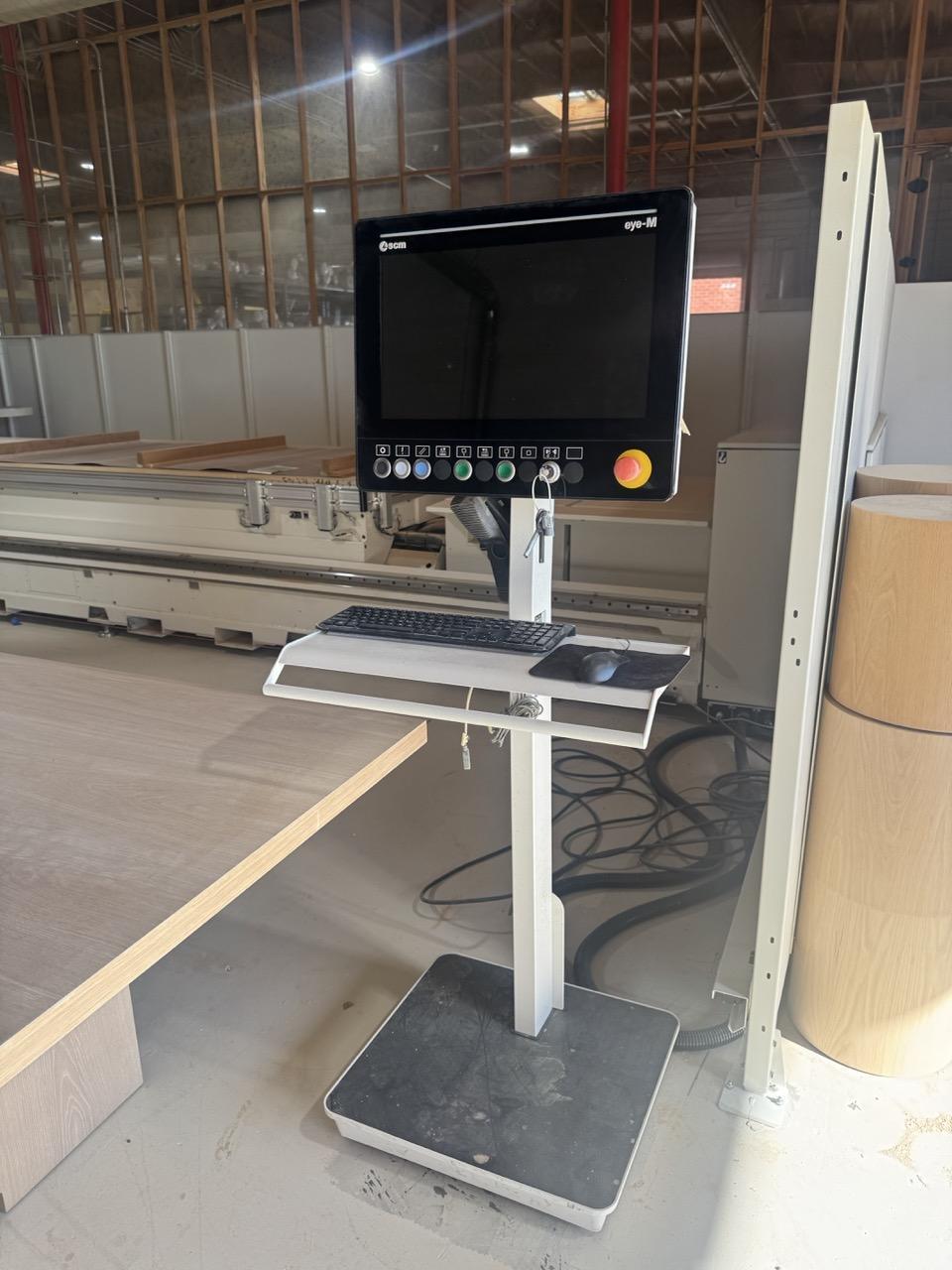

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mobile console with “eye-M PRO” integrated PC Pendulum machining Automatic axes lubrication TELESOLVE teleservice via internet Remote machine control DUO Prisma KT Machining Head Air blower for tool Measuring device for tool length F16 drilling unit 6 Perimetrical reference stops H110 High capacity vacuum of 500 (600) m3/h – 50 (60) Hz PRO-SPEED Safety system Rapid 12 Tool store on-board Rapid 24 – Rear Tool store RTCP Setting – Self-calibration system for Prisma machining head Air conditioning on electrical cabinet Enclosed cable-holder chain Safety strips curtains with ON-OFF vertical movement MAESTRO ACTIVE Human-Machine interface software (HMI) Maestro lab programming software Windows 10 embedded 64 bit operating system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
