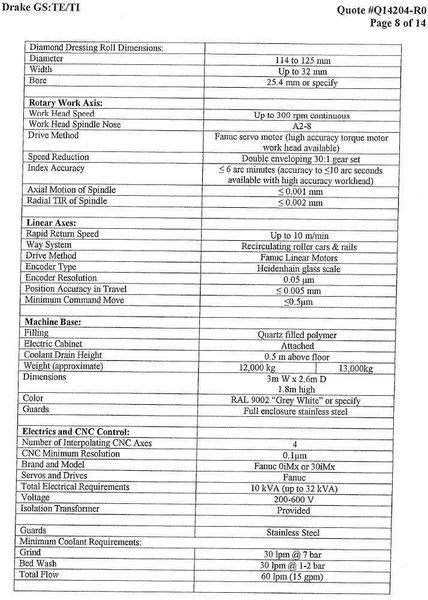

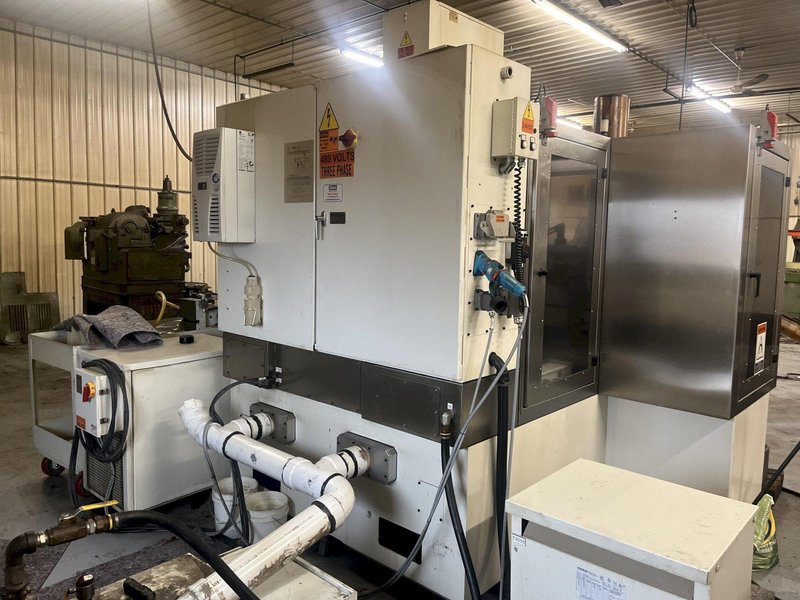

2015 DRAKE CNC MODEL #GS: TE/TI 650 PH THREAD GRINDER: YOBRO #24062
Brand
Category
Type
Model
GS:TE/TI 650 PH
Stock #
24062
Year
2015
Condition
Good
Location
Ohio
|
NEW .................................................... 2015

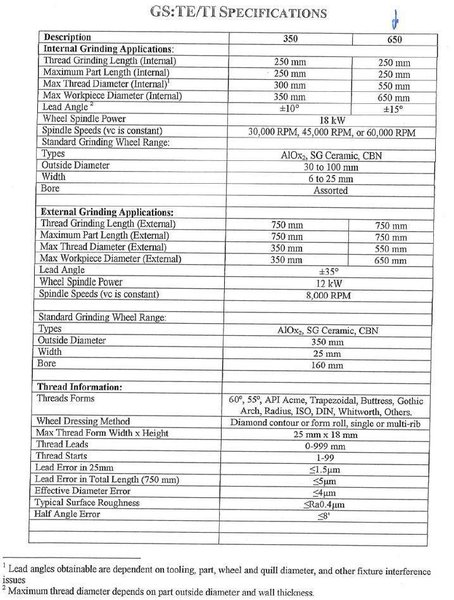

MODEL .................................................. GS:TE/TI 650 INTERNAL GRINDING APPLICATIONS THREAD GRINDING LENGTH ................................. 250 MM MAXIMUM PART LENGTH .................................... 250 MM MAXIMUM THREAD DIAMETER ................................ 550 MM MAXIMUM WORKPIECE DIAMETER ............................. 650 MM LEAD ANGLE ............................................. +/- 15° WHEEL SPINDLE POWER .................................... 18 kW SPINDLE SPEEDS ......................................... 30,000 RPM, 45,000 RPM, OR 60,000 RPM STANDARD GRINDING WHEEL RANGE TYPES .................................................. A1Ox2, SG CERAMIC, CBN OUTSIDE DIAMETER ....................................... 30 TO 100 MM WIDTH .................................................. 6 TO 25 MM BORE ................................................... ASSORTED EXTERNAL GRINDING APPLICATIONS THREAD GRINDING LENGTH ................................. 750 MM MAXIMUM PART LENGTH .................................... 750 MM MAX THREAD DIAMETER .................................... 550 MM MAX WORKPIECE DIAMETER ................................. 650 MM LEAD ANGLE ............................................. +/- 35° WHEEL SPINDLE POWER .................................... 12 kW SPINDLE SPEEDS ......................................... 8,000 RPM STANDARD GRINDING WHEEL RANGE TYPES .................................................. A1Ox2, SG CERAMIC, CBN OUTSIDE DIAMETER ....................................... 350 MM WIDTH .................................................. 25 MM BORE ................................................... 160MM ELECTRICS & CNC CONTROL NUMBER OF INTERPOLATING CNC AXES ....................... 4 CNC MINIMUM RESOLUTION ................................. 0.1𝒰m MODEL .................................................. FANUC 0iMx OR 30iMx ELECTRICAL REQUIREMENTS ................................ 10kVA (UP TO 32 kVA) VOLTAGE ................................................ 200-600 V THREAD INFORMATION THREADS FORMS .......................................... 60° 55° API ACME TRAPEZOIDAL BUTTRESS GOTHIC ARCH RADIUS ISO DIN WHITWORTH OTHERS WHEEL DRESSING METHOD .................................. DIAMOND CONTOUR OR FORM ROLL, SINGLE OR MULTI-RIB MAX THREAD FORM WIDTH x HEIGHT ......................... 25 MM x 18 MM THREAD LEADS ........................................... 0-999 MM THREAD STARTS .......................................... 1-99 LEAD ERROR IN 25 MM .................................... ≤1.5𝒰m LEAD ERROR IN TOTAL LENGHT (750 MM) .................... ≤5𝒰m EFFECTIVE DIAMETER ERROR ............................... ≤4𝒰m TYPICAL SURFACE ROUGHNESS .............................. ≤Ra0.4𝒰m HALF ANGLE ERROR ....................................... ≤8' DIAMOND DRESSING ROLL DIMENSIONS DIAMATER ............................................... 114 TO 125 MM WIDTH .................................................. UP TO 32 MM BORE ................................................... 25.4 MM OR SPECIFY ROTARY WORK AXIS WORK HEAD SPEED ........................................ UP TO 300 RPM CONTINUOUS WORK HEAD SPINDLE NOSE ................................. A2-8 DRIVE METHOD ........................................... FANUC SERVO MOTOR SPEED REDUCTION ........................................ DOUBLE ENVELOPING 30:1 GEAR SET AXIAL MOTION OF SPINDLE ................................ ≤0.001 MM RADIAL TIR OF SPINDLE .................................. ≤0.002 MM LINEAR AXES RAPID RETURN SPEED ..................................... UP TO 10 M/MIN WAY SYSTEM ............................................. RECIRCULATING ROLLER CARS & RAILS DRIVE METHOD ........................................... FANUC LINEAR MOTORS ENCORDER TYPE .......................................... HEIDENHAIN GLASS SCALE |
