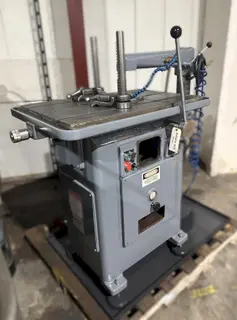

1/16 - 1 ½” Capacity Hansford Davis Model DA-15B Automatic Keyseater

Name: 1/16 - 1 ½” Capacity Hansford Davis Model DA-15B Automatic Keyseater
Brand: HANSFORD DAVIS
SKU: TMhan15x
Availability: PreOrder

Brand

HANSFORD DAVIS

Illinois

Keyway Cutting Capacity	1/16” – 1 ½”
Stroke	0 – 4 ½”
Table Movement	1 ½”
Throat Depth	19” (22” w/ DA-60 Extra Throat Depth Assembly)
Maximum Work Height	12” (18” w/ DA-1701 6” Extra Height Arm Post)
Maximum Length Of Cut With ¾ Bushing Holder	:
16” Long Cutter	4"
20” Long Cutter	8"
24” Long Cutter	12"
30” Long Cutter	18"
Strokes Per Minute	12 to 56 SPM (Variable Speed)
Air Pressure Requirement	80 PSI Minimum

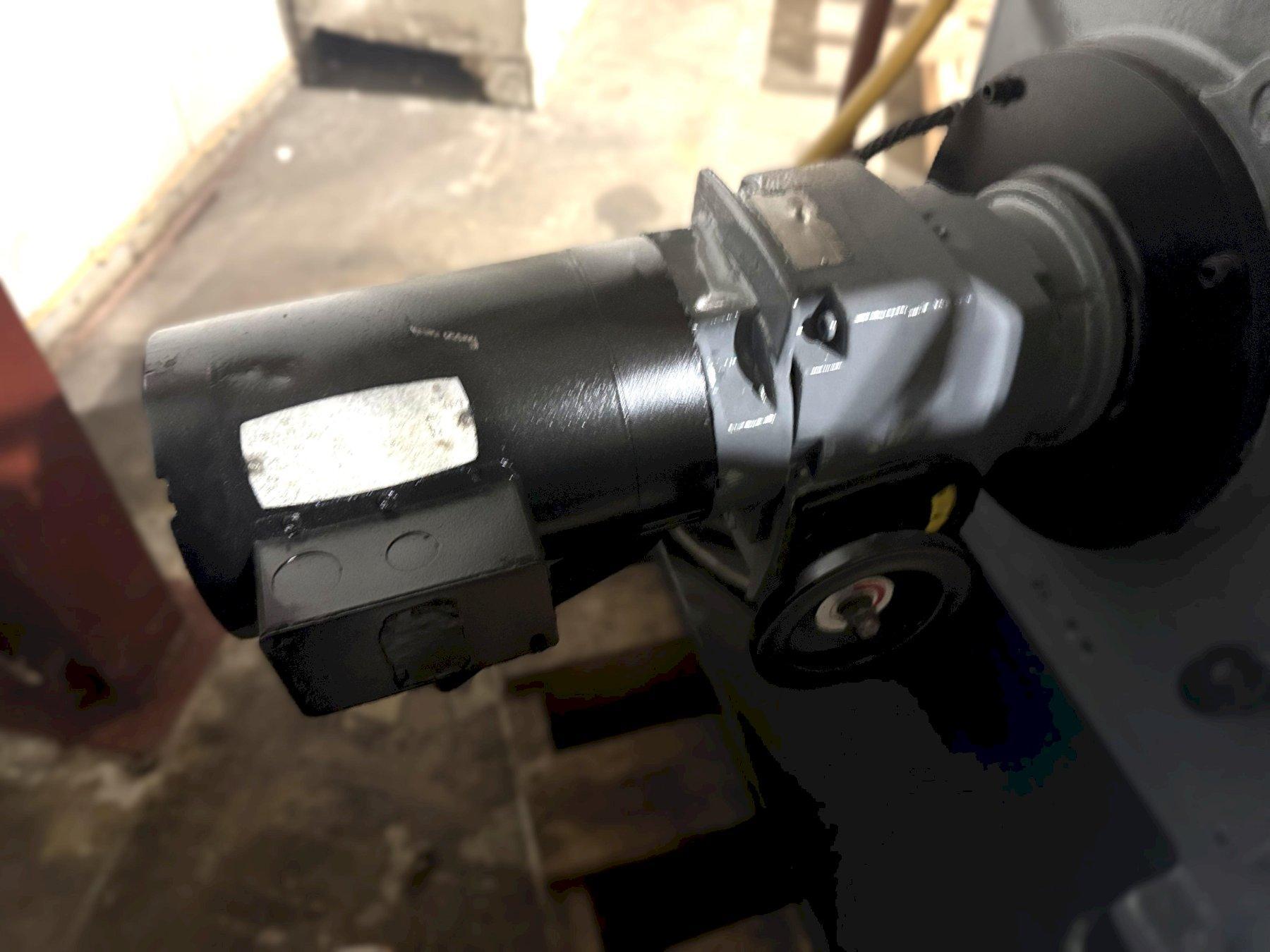

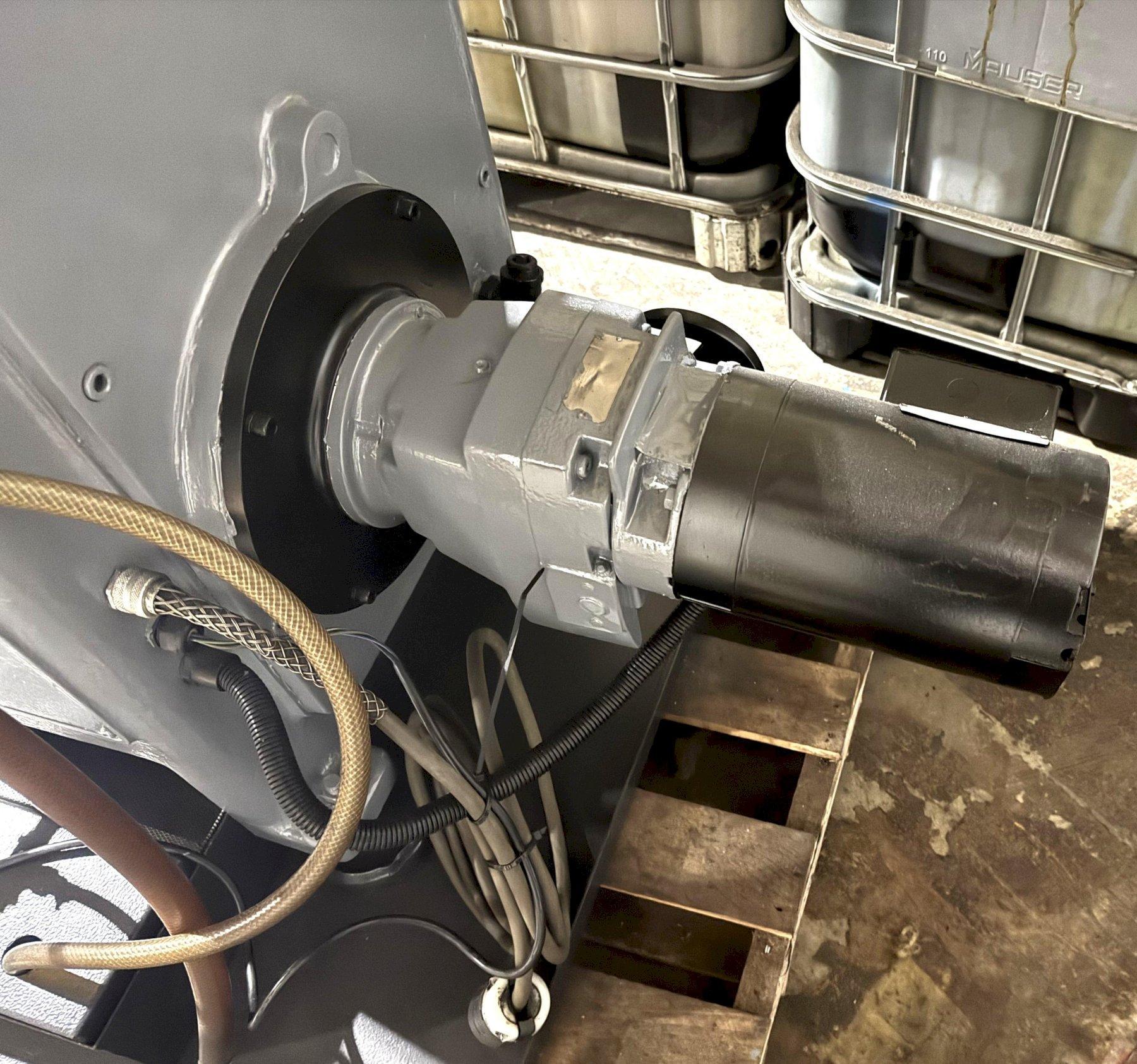

Motor	2 HP 3/ 60/ 208-230/ 460V
Wired For	3/ 60/ 460V
Table Size	20” x 31”
Number Of T-Slots In Table	3
Approx. Weight	1,500 Lbs.
EQUIPPED WITH: 2 HP 3/60/440V Variable Speed Drive. Micrometer Depth Stop. Automatic Feed Option. Ratcheting Arm Lift. Bijur Lubricating System. Coolant. Large Assortment of Tooling Including Cutters, Bushings, and More.
