1000 ton Verson S4-1000-144-84T Straight Side Mechanical Stamping Press For Sale

Name: Used VERSON S4-1000-144-84T For Sale 2964
Brand: VERSON
SKU: 2964
Availability: PreOrder

Brand

VERSON

Michigan

Tonnage	1000
Stroke	20 inches
Shut Height	60 inches
Adjustment	14 inches
Bed Size	144" x 84" FB
Ram Area	144" LR x 84" FB
SPM	13-26 VSPM

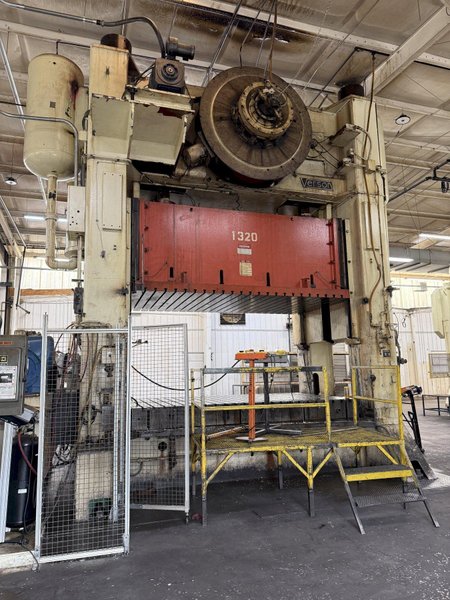

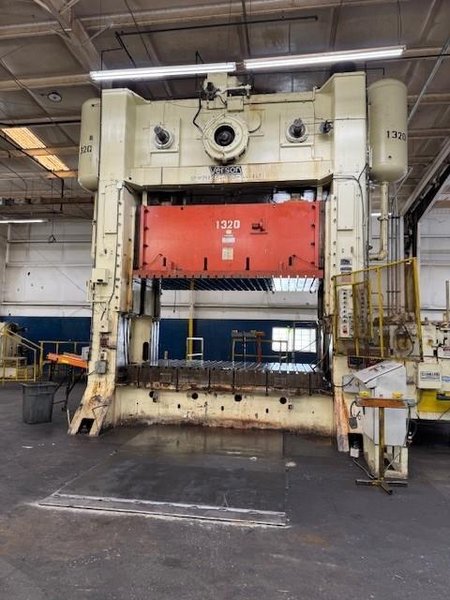

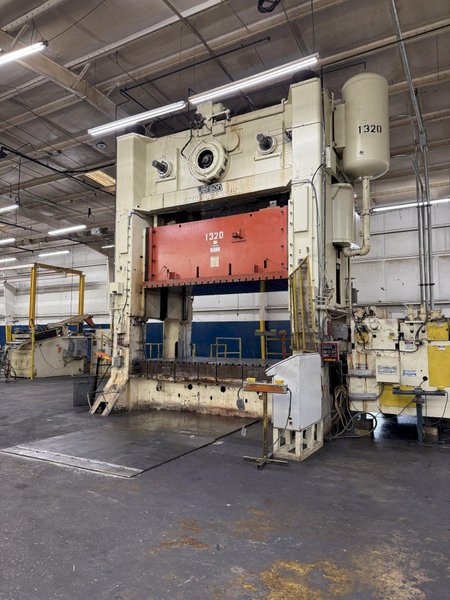

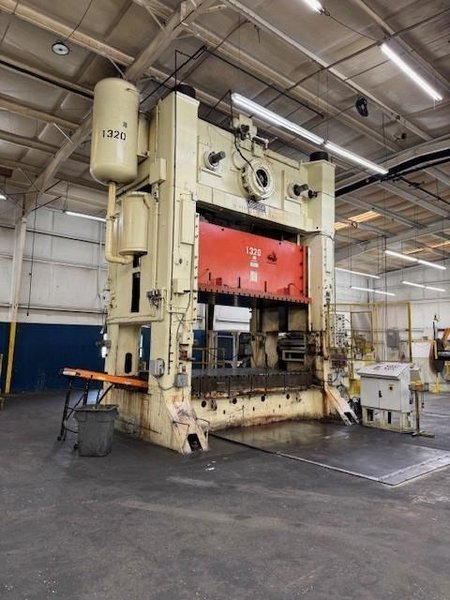

Preliminary Specifications 1000 ton Verson Metal Stamping Press Straight Side Double Crank Mechanical Press Model S4-1000-144-84T 1000 - ton Capacity 20" Stroke 60" Shut Height 14" Motorized Adjustment 144" LR x 84" FB Bed Area 144" LR x 84" FB Slide Area 13-26 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster Wintriss Die Protection Wintriss Tonnage Monitor Wintriss Programmable Out Puts Knockouts in Ram 60" Wide Windows 12" Thick Bolster Plate Motor and Controls Overall Height Above the Floor 21' 3" tall Can be seen under power in a plant! Click the link below for a video of the press running. The Verson S4-1000-144-84T is a powerful 1000-ton mechanical metal stamping press. As a straight-side, four-point press, it is designed for precision and stability during heavy-duty operations. The "S4" in its model name signifies it has four-point suspension, which distributes the force evenly across the large bed area of 144 by 84 inches. With a stroke of 20 inches, it is capable of handling deep draw stamping applications. It operates at a variable speed, making it adaptable to different production needs.
