SPECIFICATIONS:

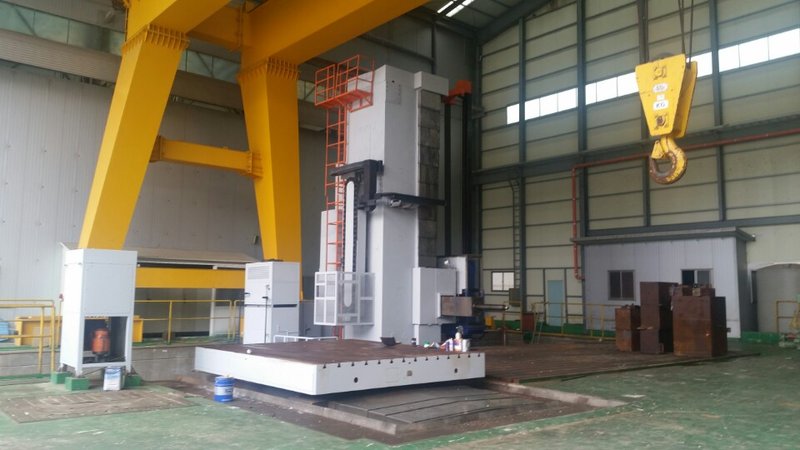

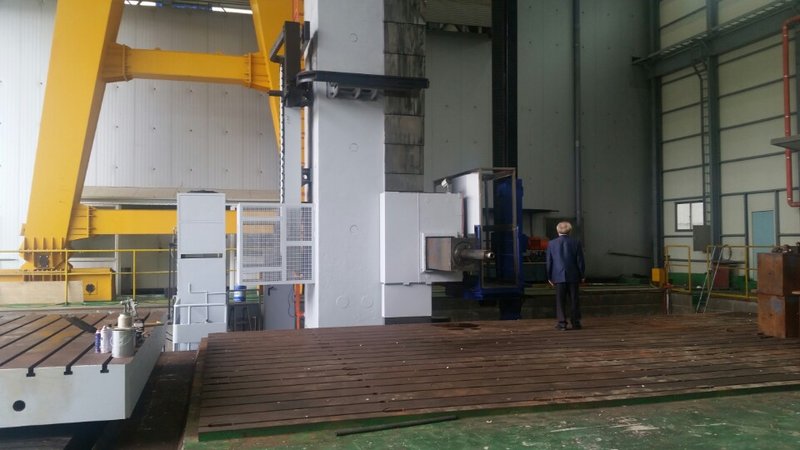

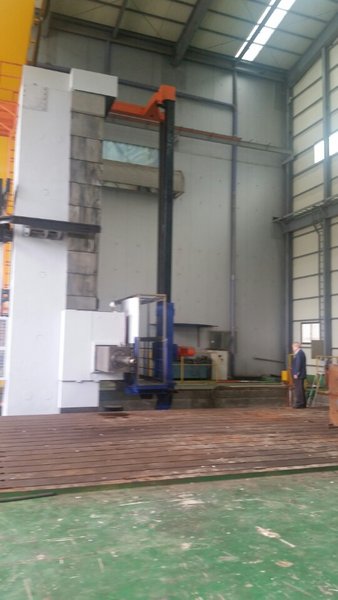

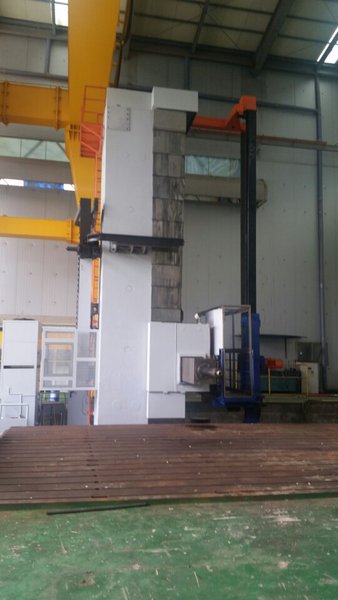

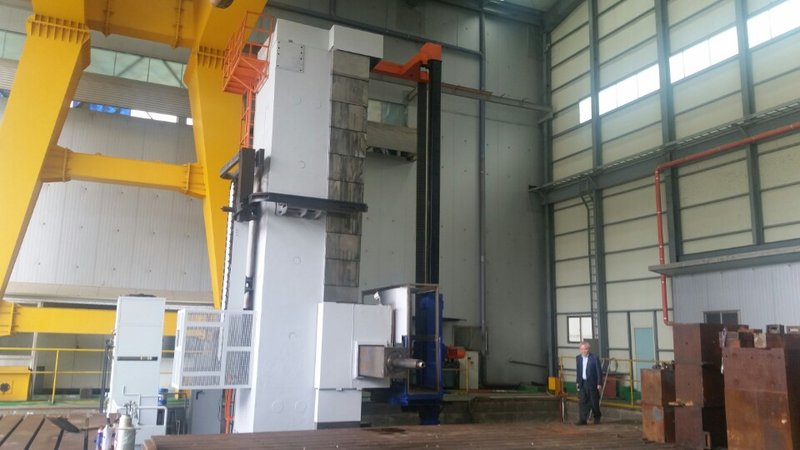

CNC floor type milling & boring machine

Maker : WUHAN Heavy Indusries Co.,Ltd
New : 2008
Model : TH69168/150X150 (13/20)

Spindle(Z axis)
Boring spindle diameter: 160mm
Boring Spindle taper : BT50
Milling spindle end diameter: 300mm

Boring spindle speed: 3~1500rpm/min
Max. axial travel of boring spindle : 1200mm
Feed speed range of boringspindle : 0.5~4500mm/min
Rapid feed speed of boring spindle: 7500mm/min

Ram(W axis)Size of ram cross section:480x520mm
Ram Axis travel : 1200mm
Feed speed range of ram:0.5~4500mm/min
Max. Feed resistance: 45000N
Rapid rapid speed : 7500mm/min

Z. W axis overlap travel: 2400mm

Headstock(Y axis)
Vertical travel : 5000mm
Feed range of headstock(stepless): 0.5~6000mm/min

Column(X axis)
Column Travel : 15000mm
Feed range(stepless) :0.5~6000mm/min

Electricity
Number of control axis: 7 axis
Number of simultaneously
controllable axis : any 4 axis
Main motor power(AC): 71kw

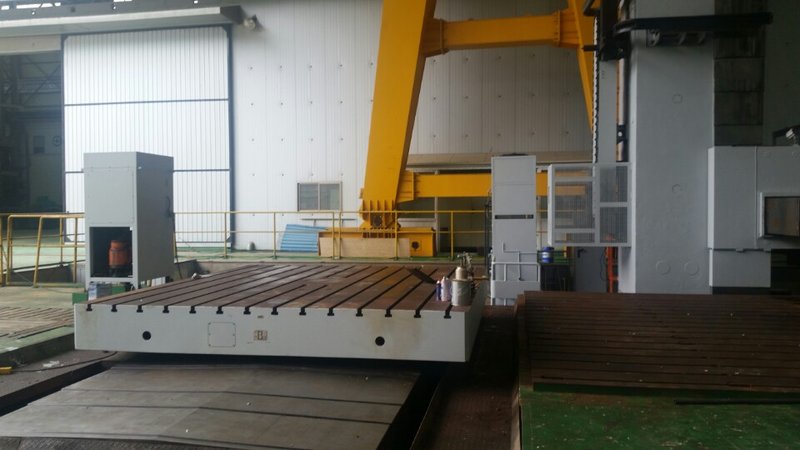

Rotary table
Model : TDVBO/2 CNC
Total height of table : 1250mm
Size of table plate : 3600x4000mm
Load capacity of table : 80t
Longitudinal travel of slide:3000mm
Overall size of table(length xwidth x heigt) :7340 x 3600 x 1250 mm
Table weight : 45t

Floor plate : 1800 x 4500 x 3ea
1800 x 3000 x 6ea

Tool change(ATC 60EA)
Taper: BT 50

CNC CONTROL SYSTEM
Model : FANUC18iM

Location: Asia -- Specifications subject to verification
