2010 VISION WIDE NF-3226 | Millers, Gantry, CNC

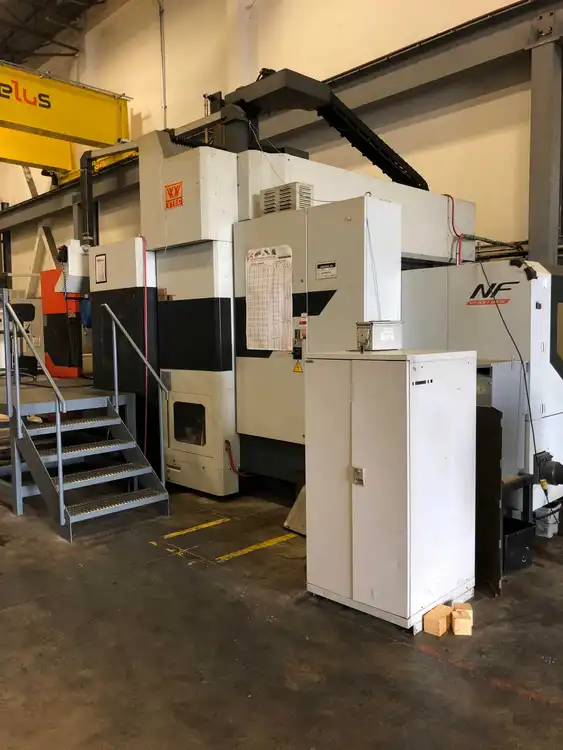

Vision Wide NF-3226 Bridge Type Vertical Machining Center
w/ Indexing Right Angle Head
New: 2014

Specifications:
Table Size L x W: 118" x 96"
Max. Workpiece Weight: 28,660 Lbs.
Travels:
X-Axis: 126"
Y-Axis: 102"
Z-Axis: 40"
Spindle Taper: CAT 50
Spindle Speed: 6000 RPM
Spindle Motor: 29 / 34 HP (30 min. rating)
Number of Tools: 40 ATC
Head Changer: Yes
Max. Tool Length: 17.700"
Max. Tool Diameter: 8.460" (with empty adjacent pockets)
Max. Tool Weight: 40.00 Lbs.
Number of Axes: 3
Distance Between Columns: 106"
Spindle Nose To Table (Min) 5.900
Spindle Center To Column 17.950

Equipped With:

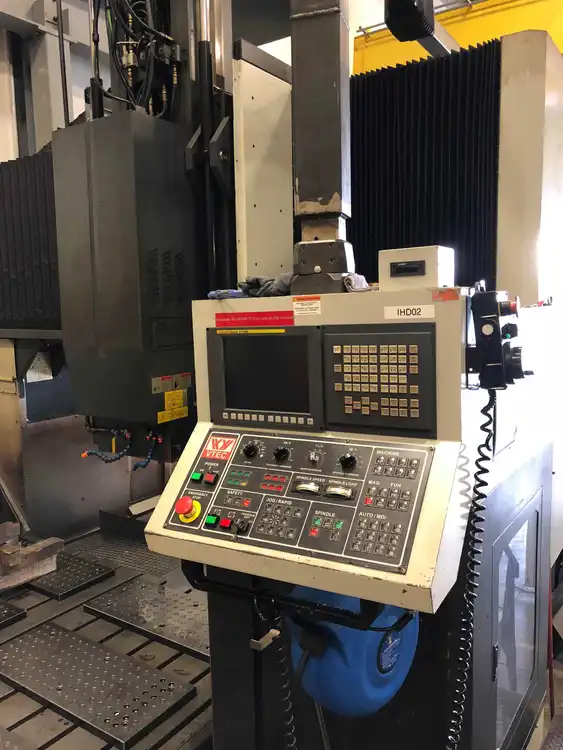

Fanuc 0iMD CNC Control
Coolant through spindle
Chiller unit
Chip conveyor
Indexing head attachment
Box way Z axis
Linear X & Y axis
Geared spindle head

Machine Weight : 80,248 Lbs.
Dimensions: L x W x H 393" x 251" x 185"
Electrical Requirement: 60 kVa
