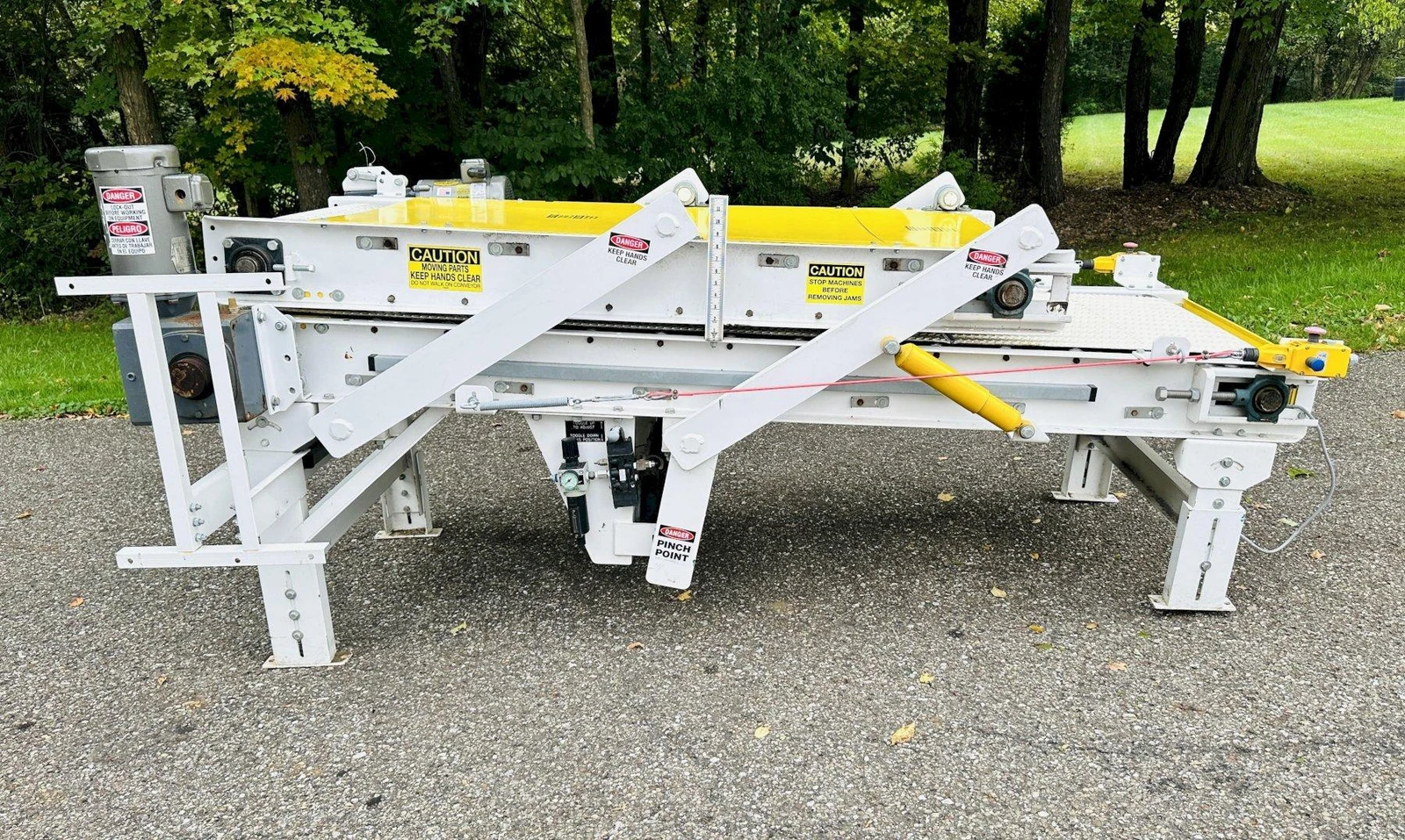

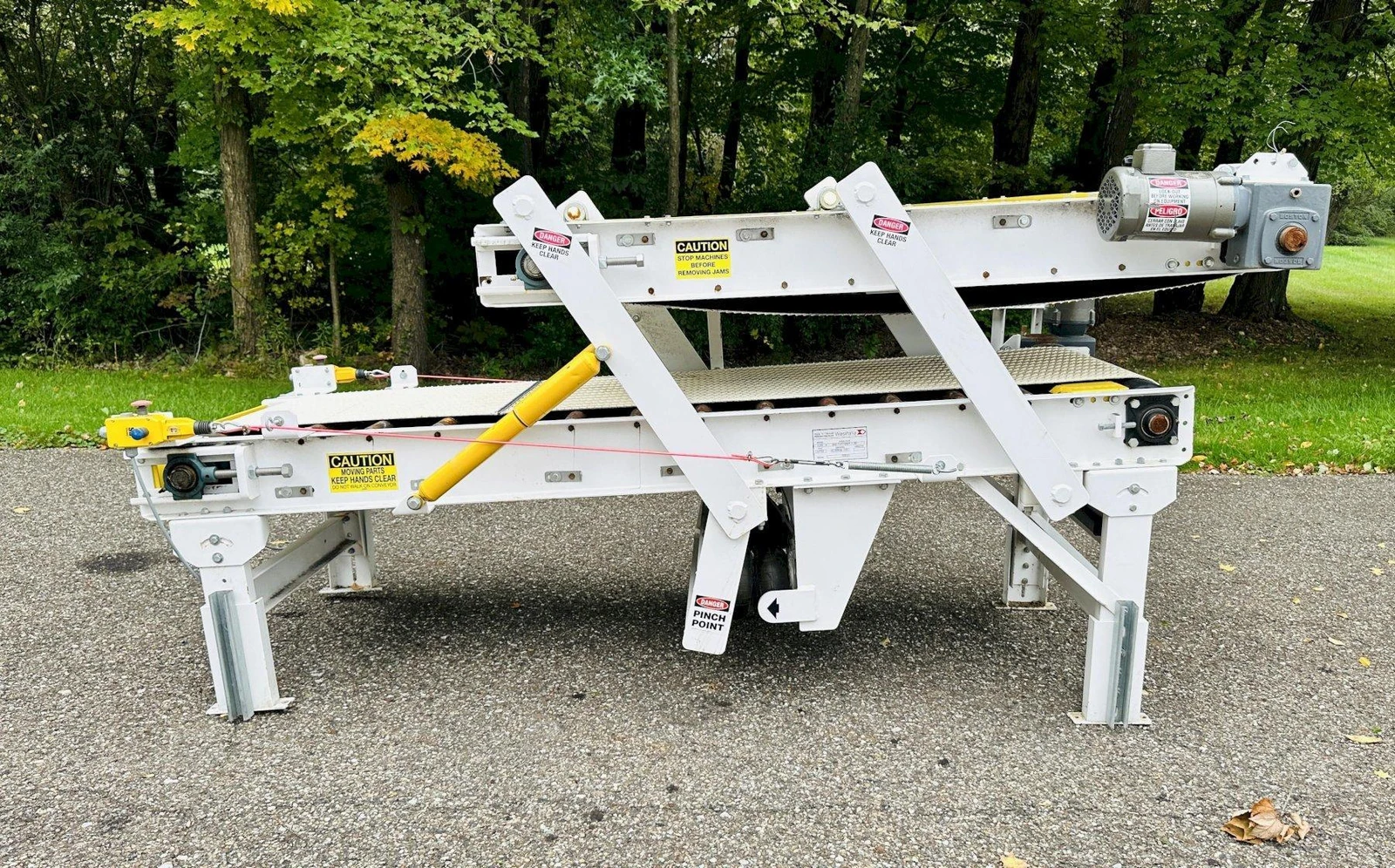

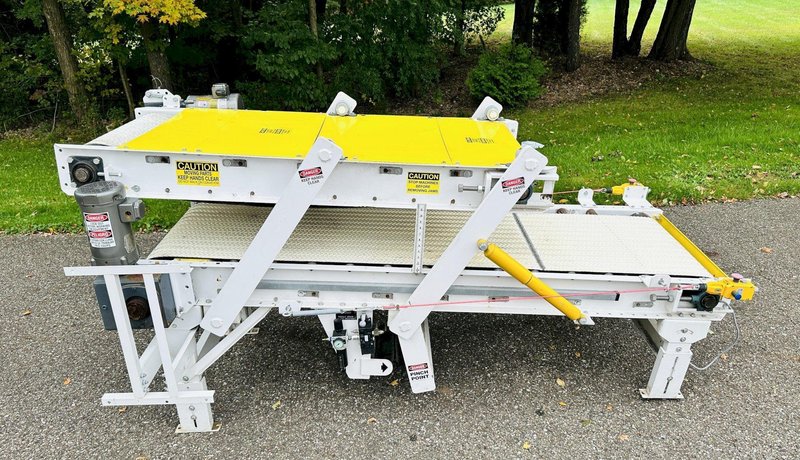

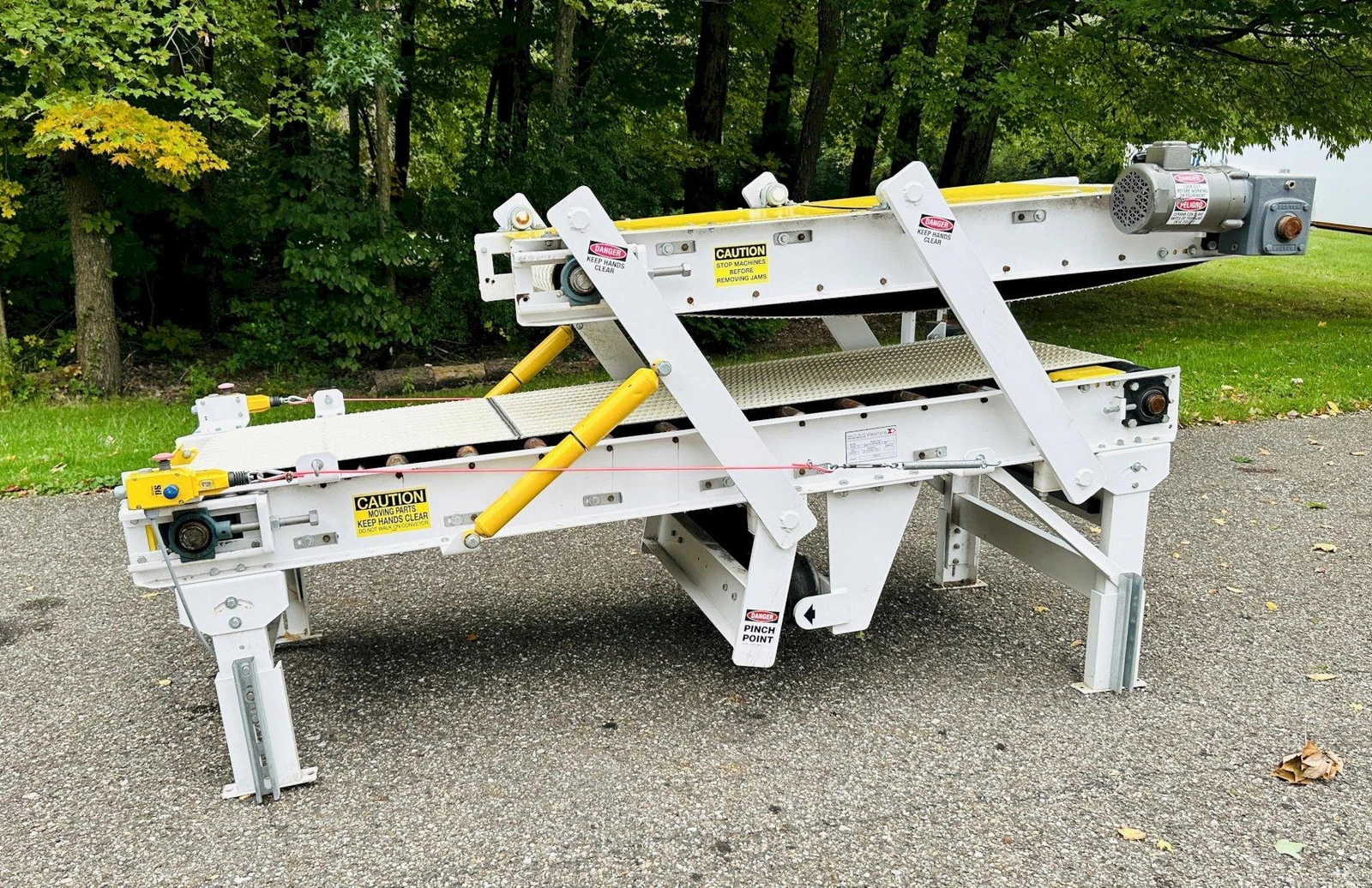

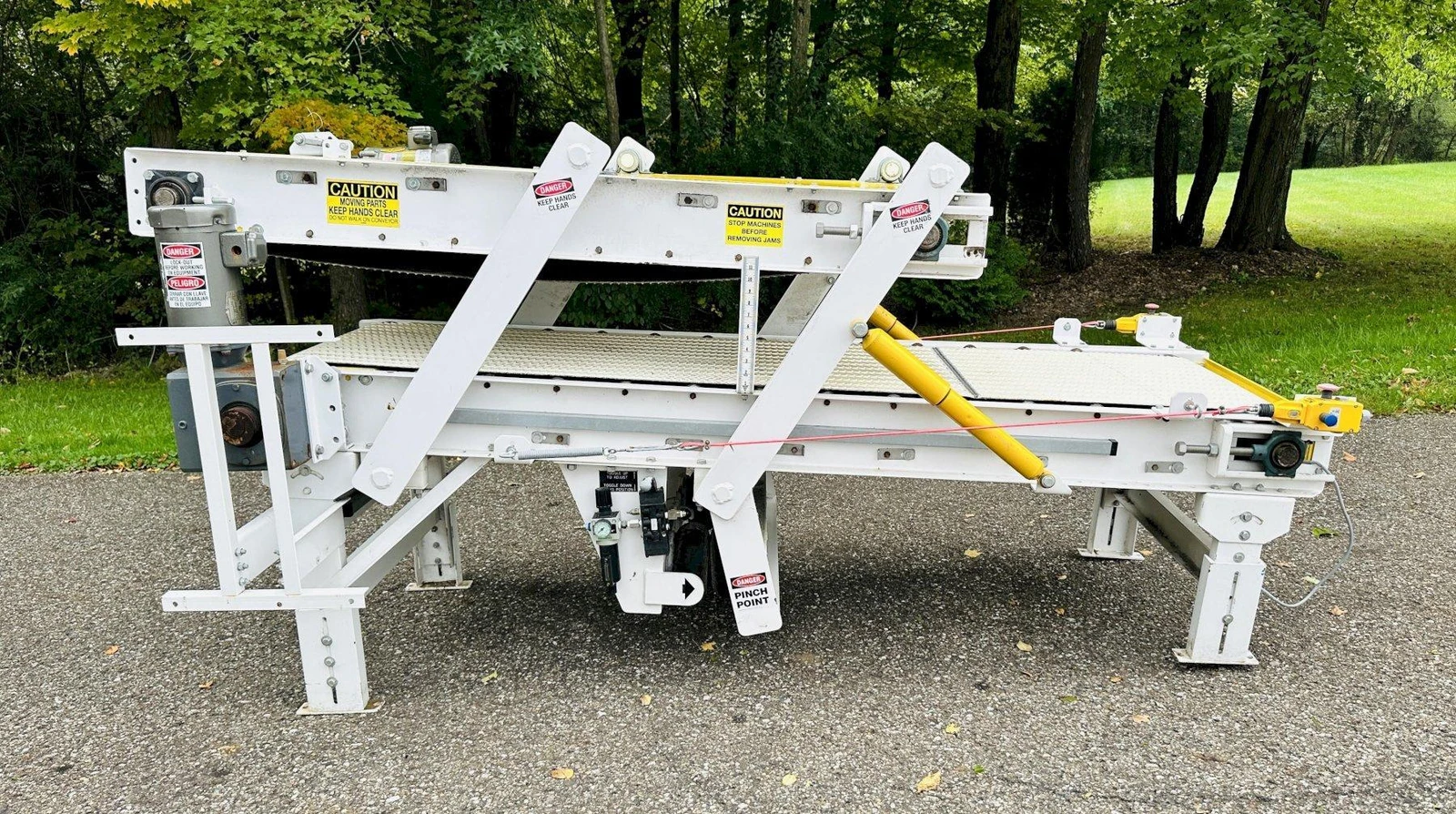

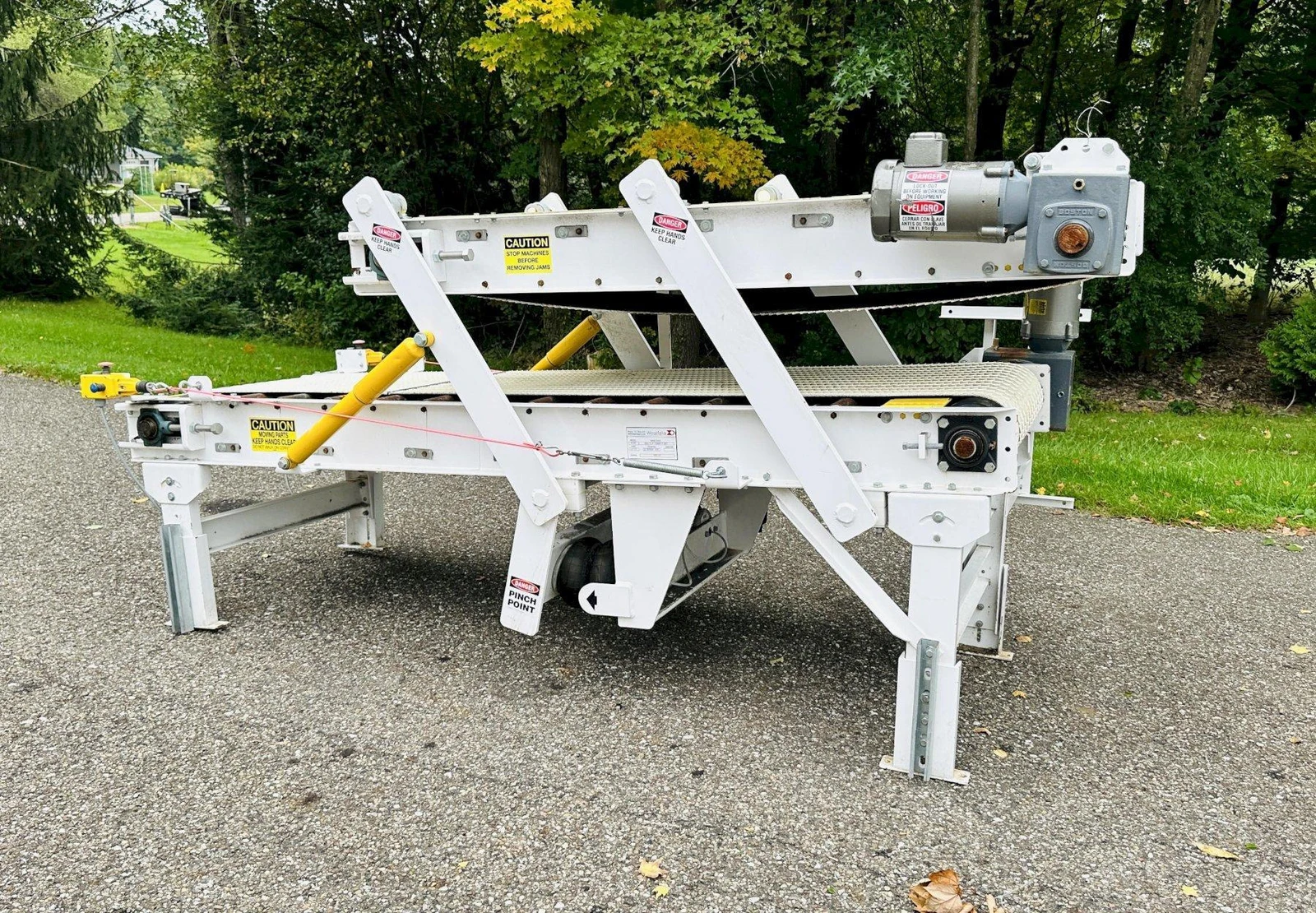

Westfalia 410D | 96” Bag Flattener

Westfalia

410D  |  96” Bag Flattener

Manufacturer:

Westfalia

Model:

410D | 96” Bag Flatenner

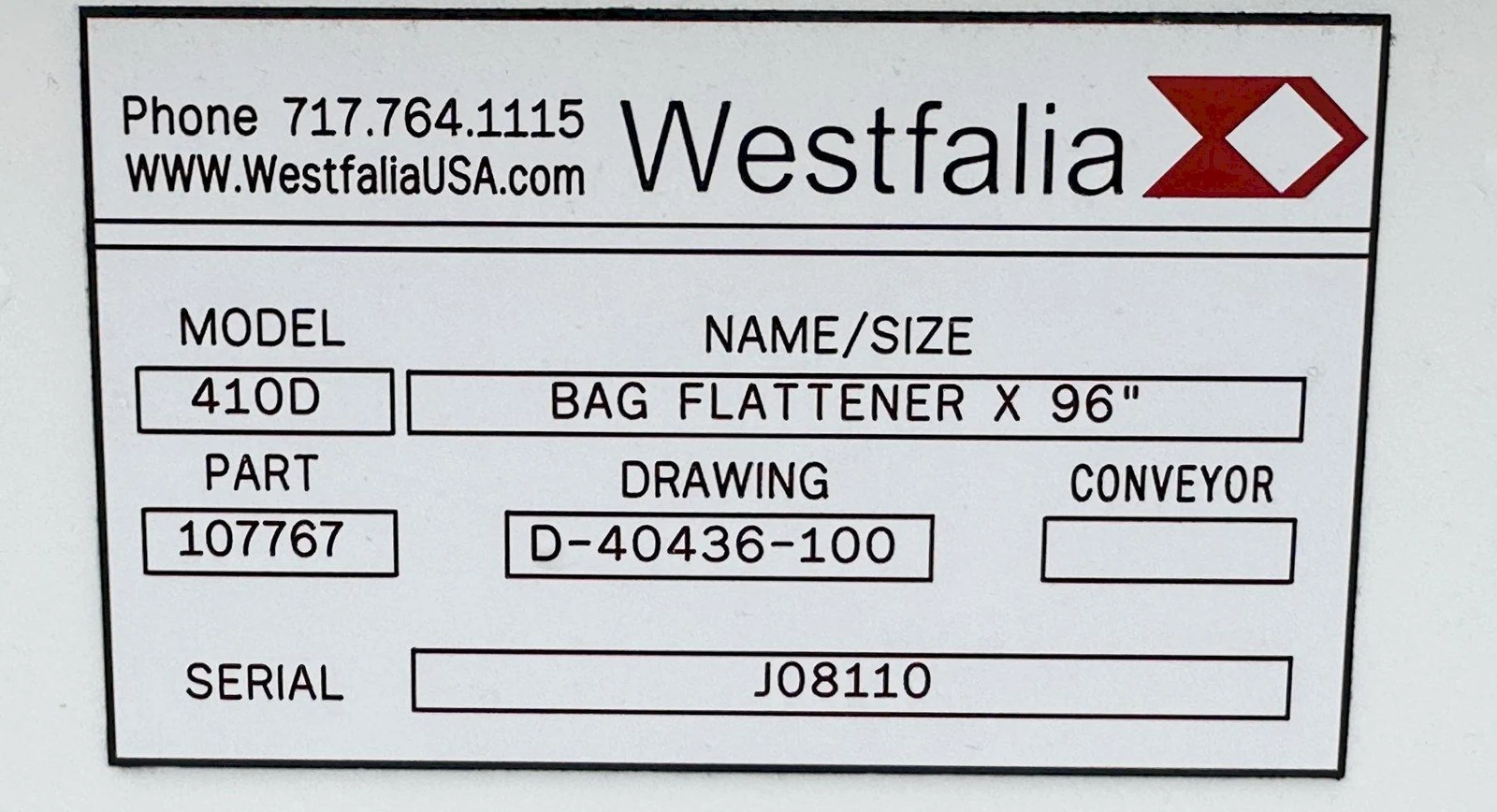

Serial No.:

J08110

Part No.

107767

Product Weight:

Up to 80lbs

Approx Feed Rate:

12 Bags per/min (size and weight dependent)

Conveyors:

Electrically Driven

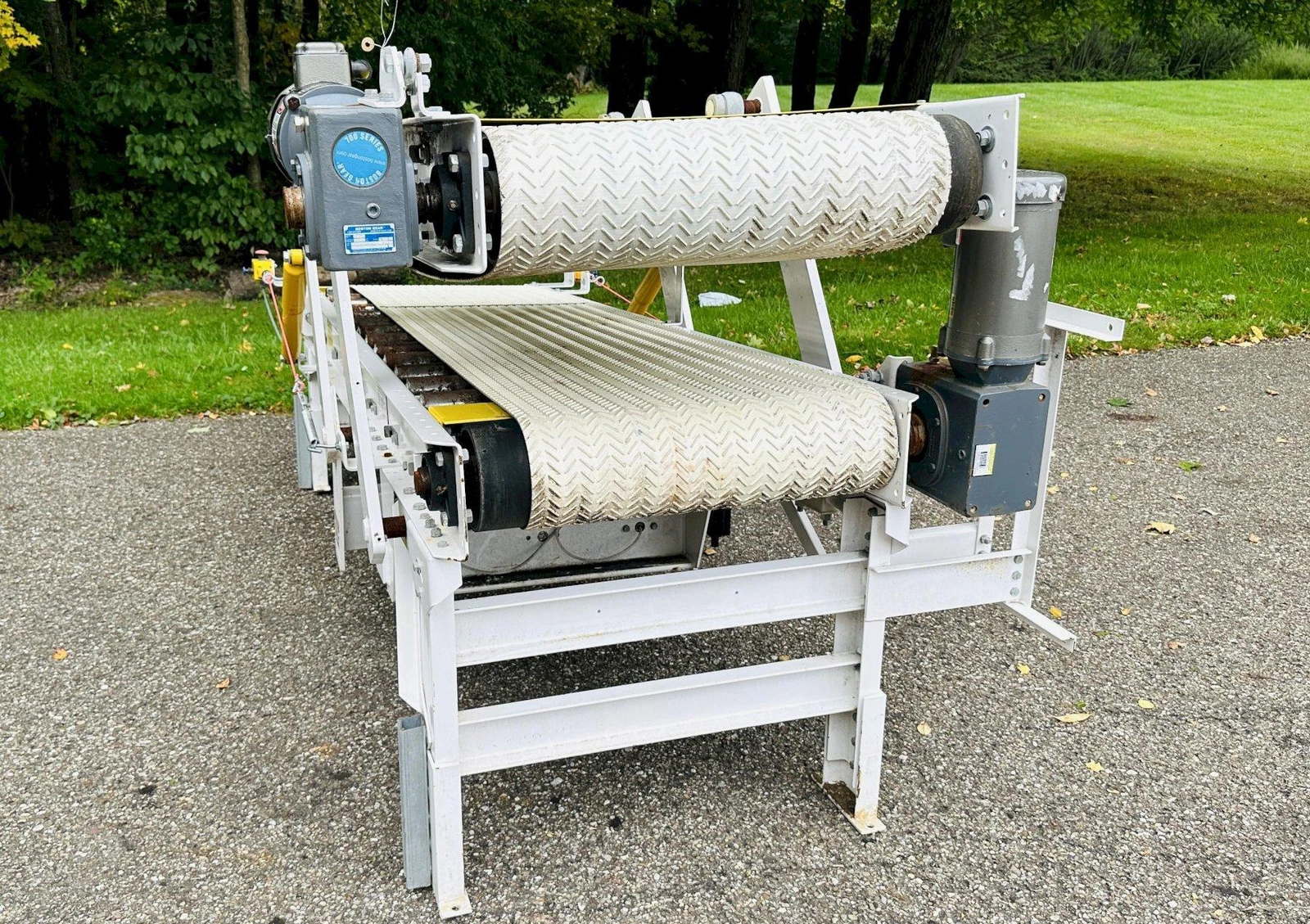

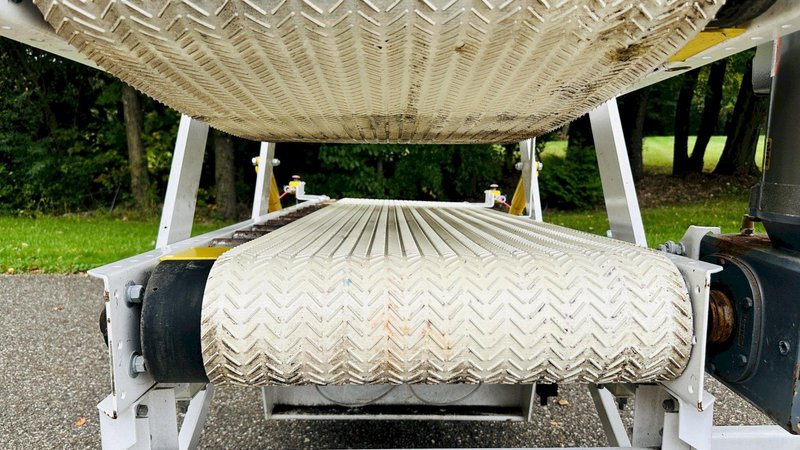

Top Belt Dim:

24"W X 64"L

Bottom Belt Dim:

24"W X 96"L

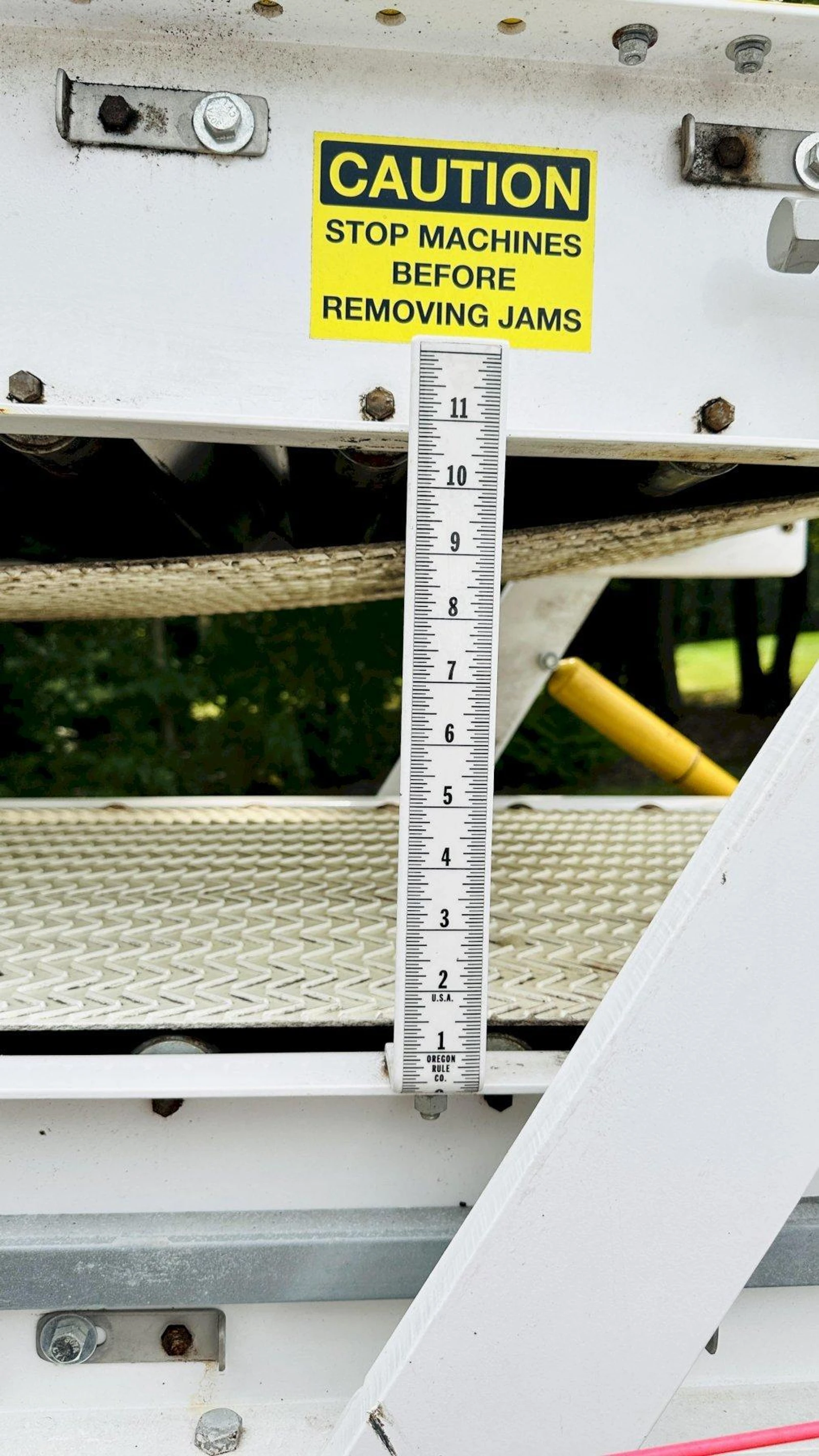

Flattener Section:

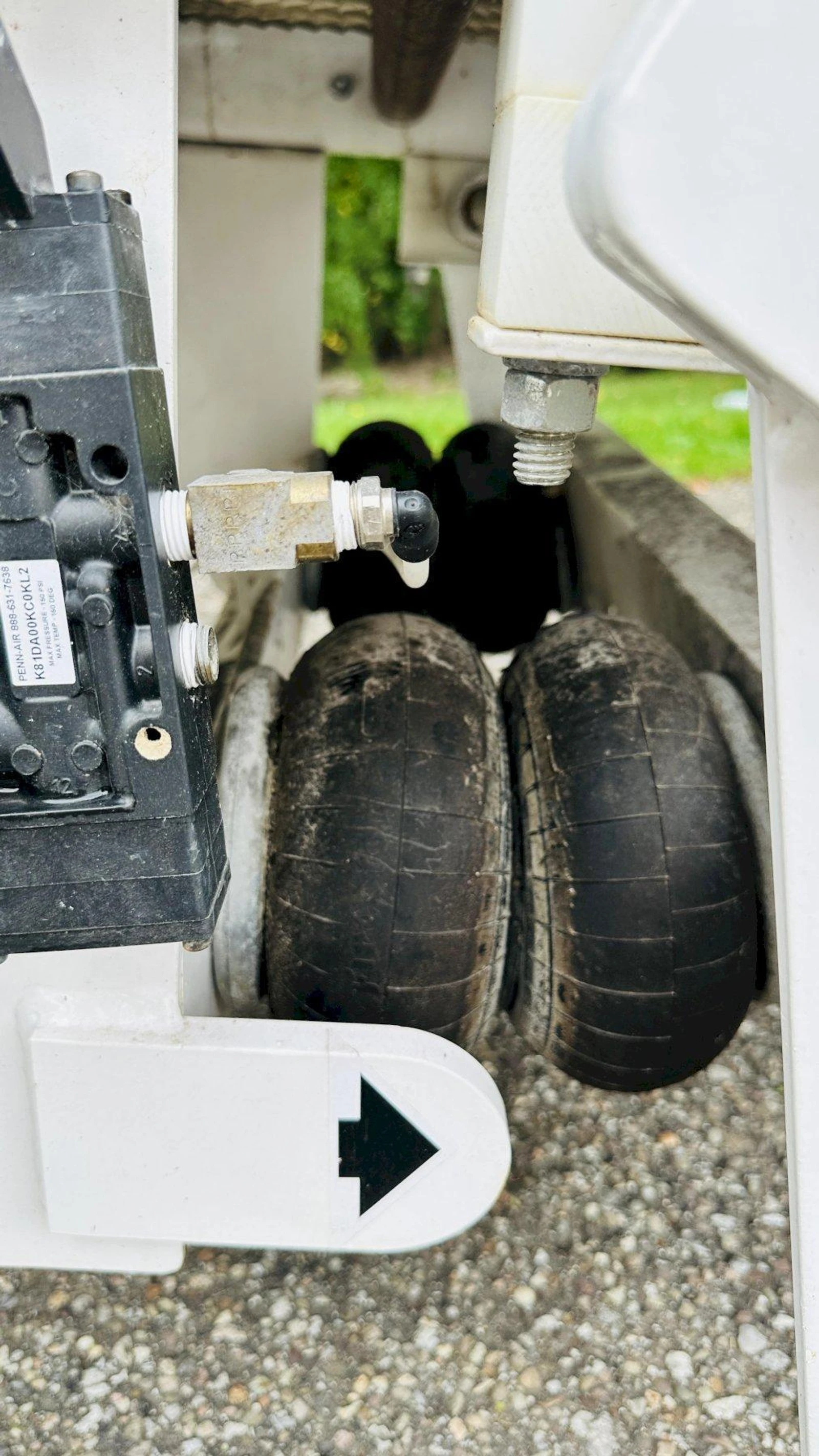

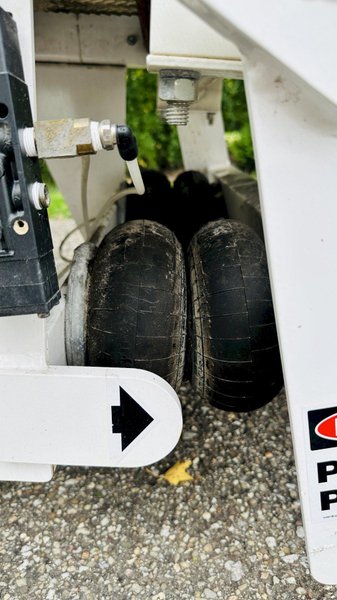

Articulated on Heavy-Duty Air Bag - Adjustable from 3” - 12” (approx.)

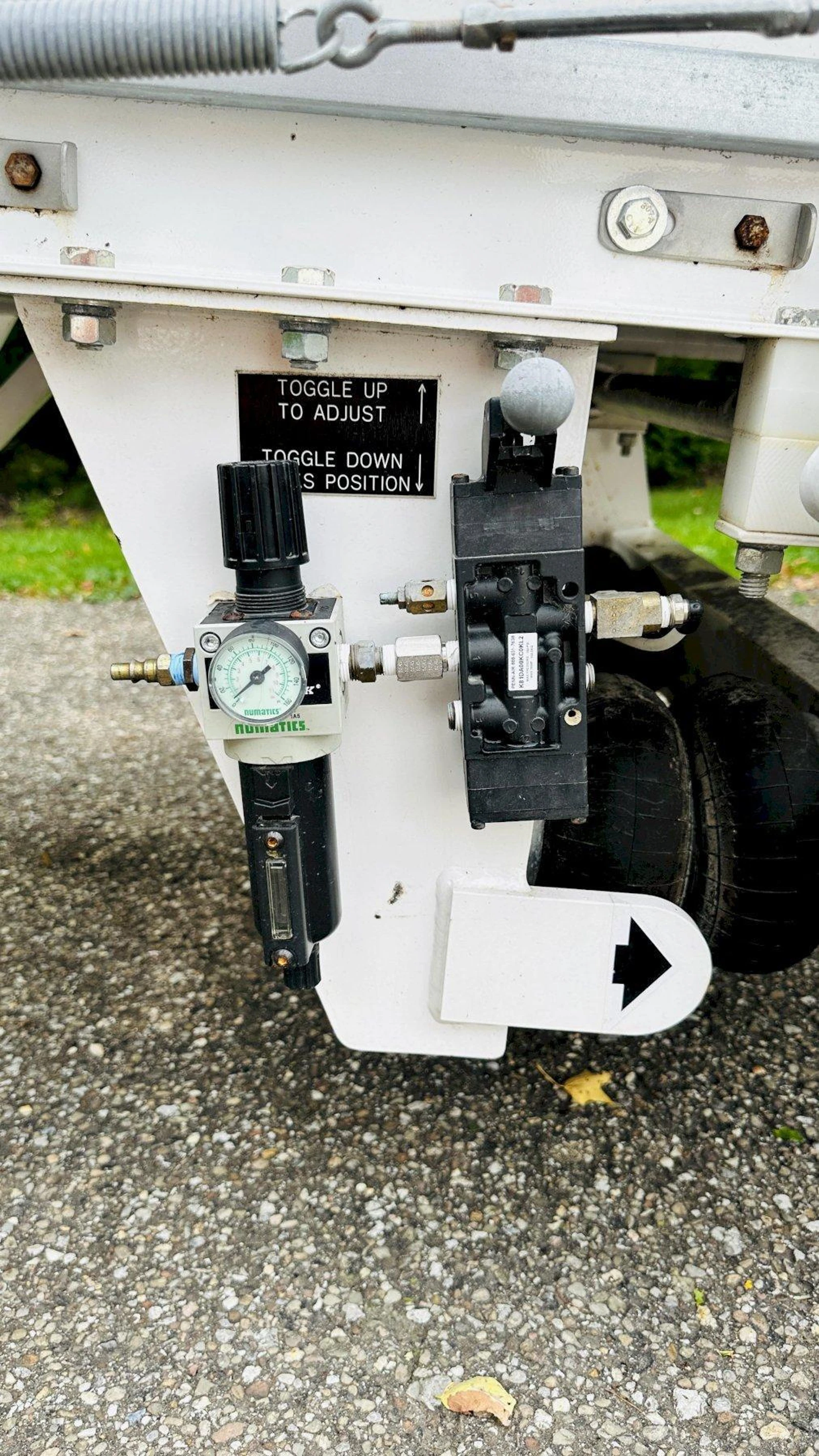

Controls:

Air Lever on the side of unit

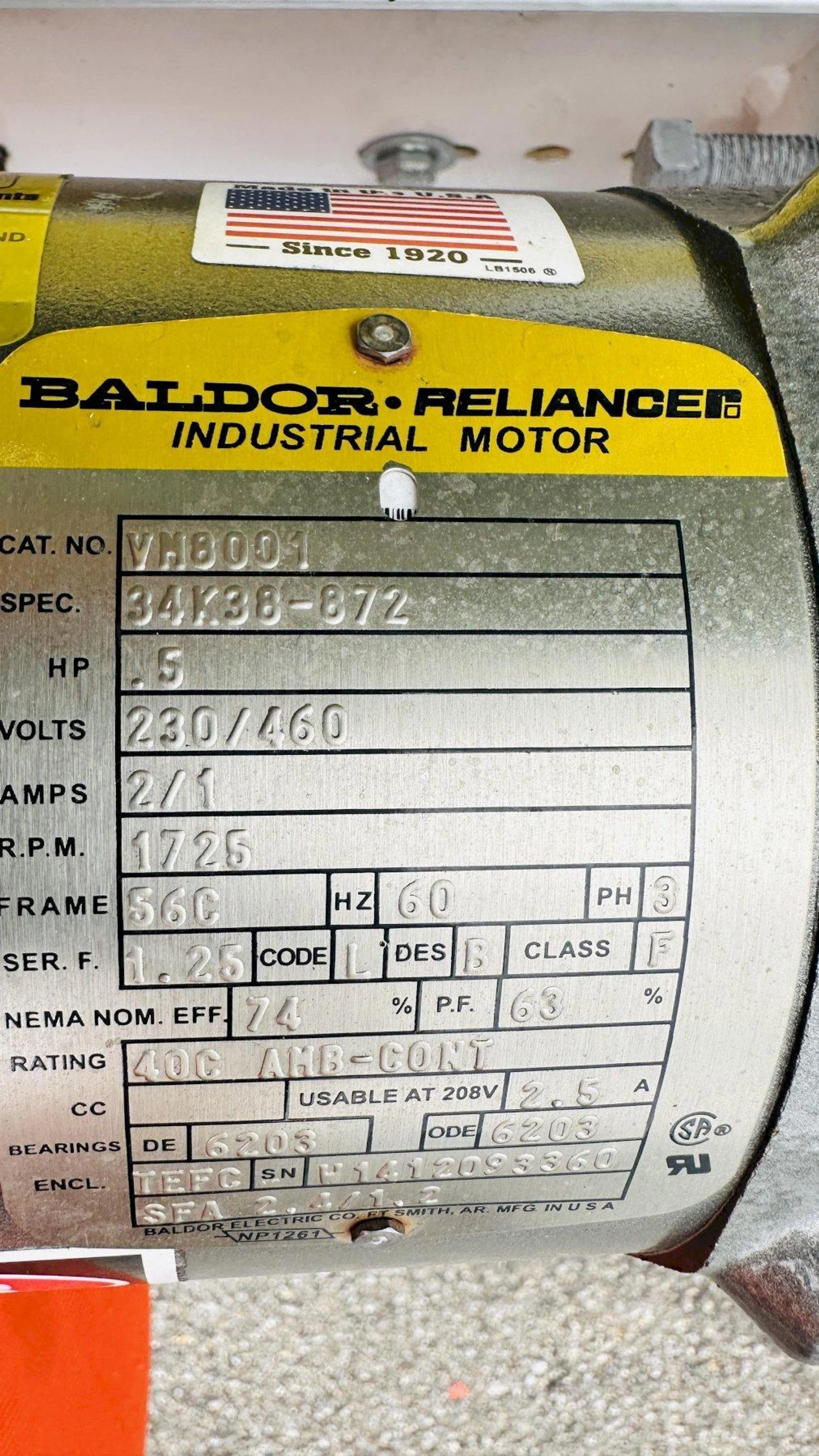

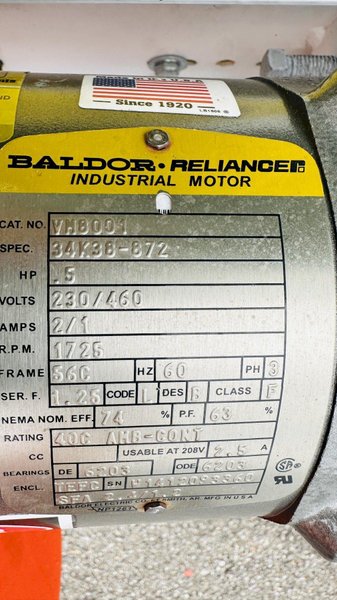

Electrical Specs:

3-Phase, 230/460V, 60Hz

Air Specs:

60-80psi of clean air

Manufacture Date:

N/A

Machine Dimensions:

54”W x 110”L x 53”H

Weight:

1450lbs (approx.)

Typical Materials Handled:

Bagged Products -  5 - 50lb bags of flour, sugar, dog food, lawn & garden along with bagged building products  |   Flat Products - Insulations to felts

Seller Note:

Unit is USED - Some minor scratching/blemishes/streaking can be seen on the surfaces of the unit, but is not affecting the unit intended use. The unit was removed from a working environment and was functioning as intended when removed from service. Unit is being sold AS-IS, WHERE-IS, AS-SHOWN. We have tested both the motors and the air bag lift function and both as intended with no issues noted. Pictures and video are of the actual unit being purchased. Unit is currently at our facility and ready to be inspected if chosen by the buyer. This unit is ready for immediate shipment. Buyer is always welcome to inspect the unit before purchasing at our location.
