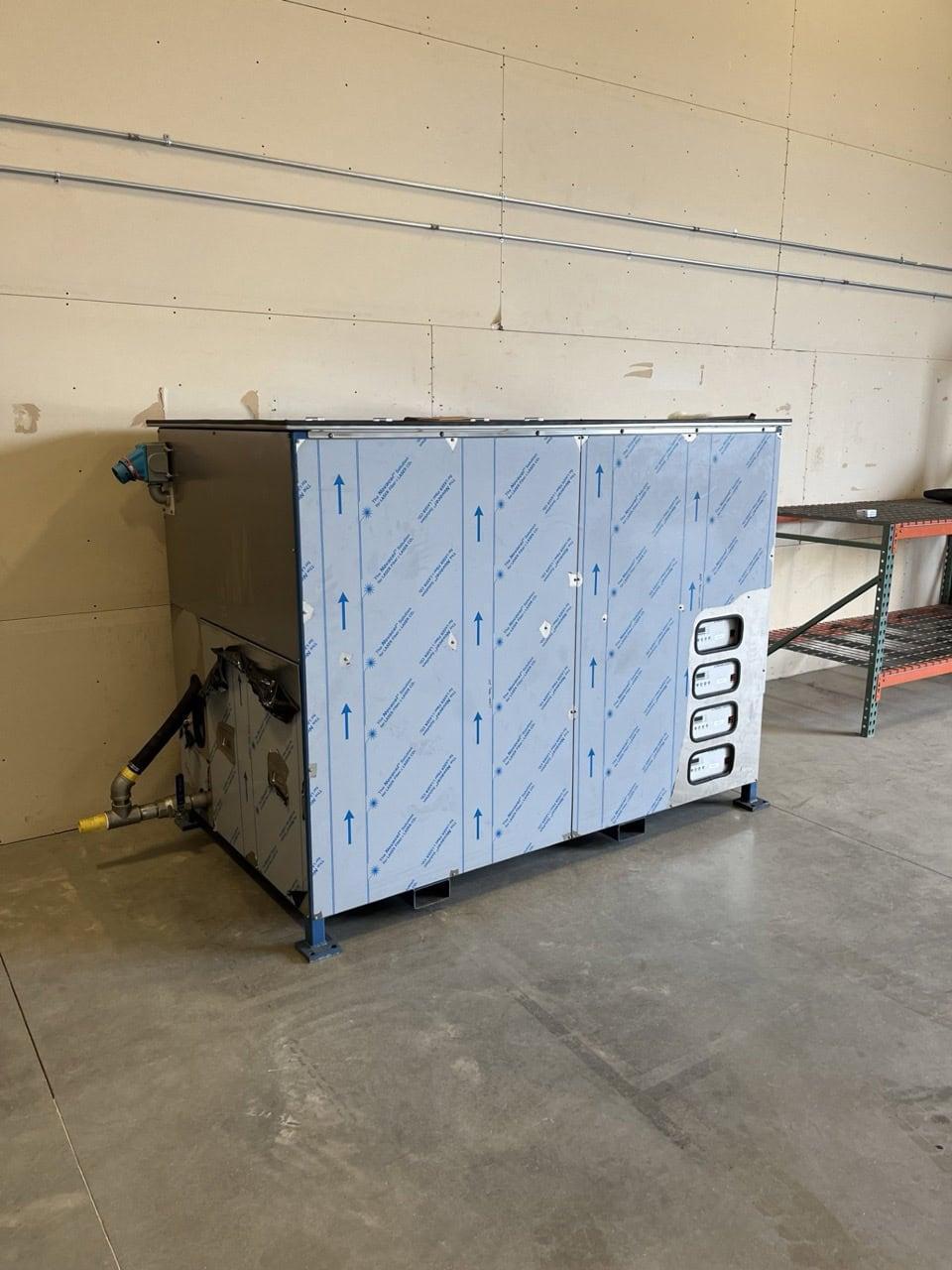

SHARPERTEK High-Capacity Ultrasonic Inline Washer – 4-Stage Industrial Heated Cleaning System

Equipment Overview SHARPERTEK inline ultrasonic cleaner system designed for automated, multi-stage parts cleaning. This 4-stage model features ultrasonic cleaning, heated rinse, and integrated degassing. Ideal for high-throughput industrial or precision cleaning environments.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Brand: SHARPERTEK

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System Type: Inline multi-stage ultrasonic cleaning system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Number of Stages: 4 tanks (Wash, Rinse, Degas, Dry assumed based on configuration)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ultrasonic Frequency: 40 kHz (standard for SharperTek industrial models)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heating System: Integrated electric heating, 160°F max

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction: Stainless steel with full-body insulation and protective film

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank Interior: Basket rails, mesh floor guard, visible bottom-mounted elements

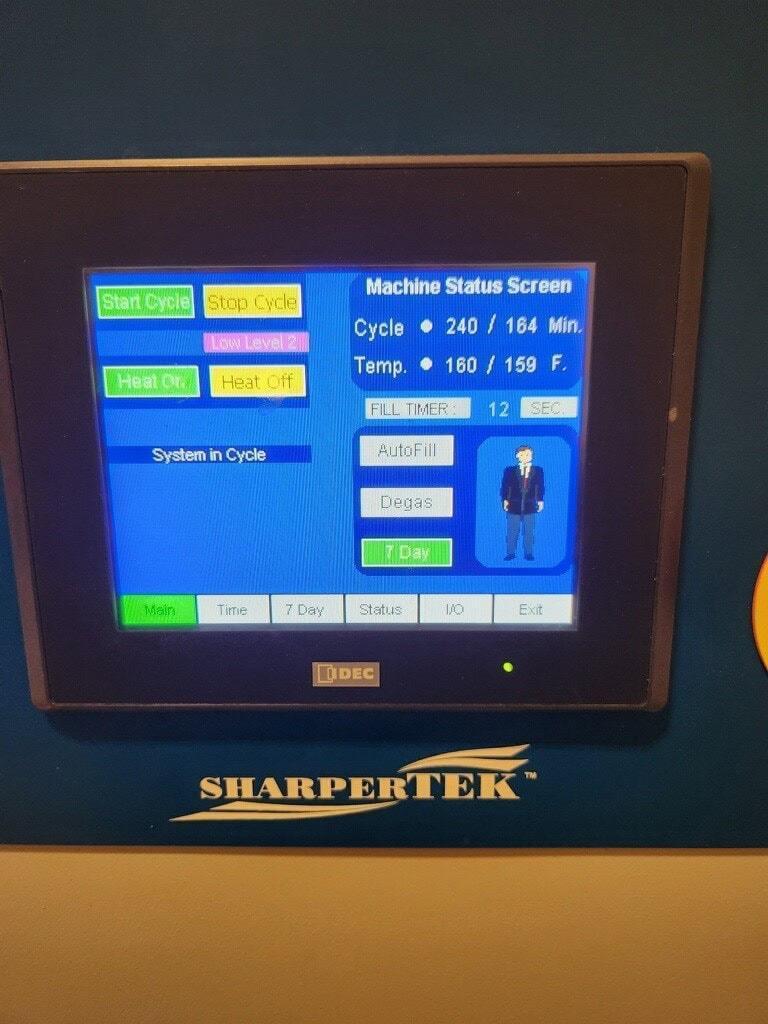

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Interface: IDEC touchscreen HMI with Cycle Timer, Fill Timer, Alarms, AutoFill & Degas

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automation: Programmable PLC with full HMI logic

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cycle Modes: Manual, timed, and automatic fill/degas cycles

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mounting: Steel skid base with leveling feet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Connections: Water Inlet, Gas Line (possible steam assist or dual-energy configuration)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Finish: Brushed stainless with full-wrap protective film

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accessories Included: Mounted control cabinet, internal utility lines, electronics enclosure

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Software: 7-day programmable scheduler (standard IDEC feature)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
