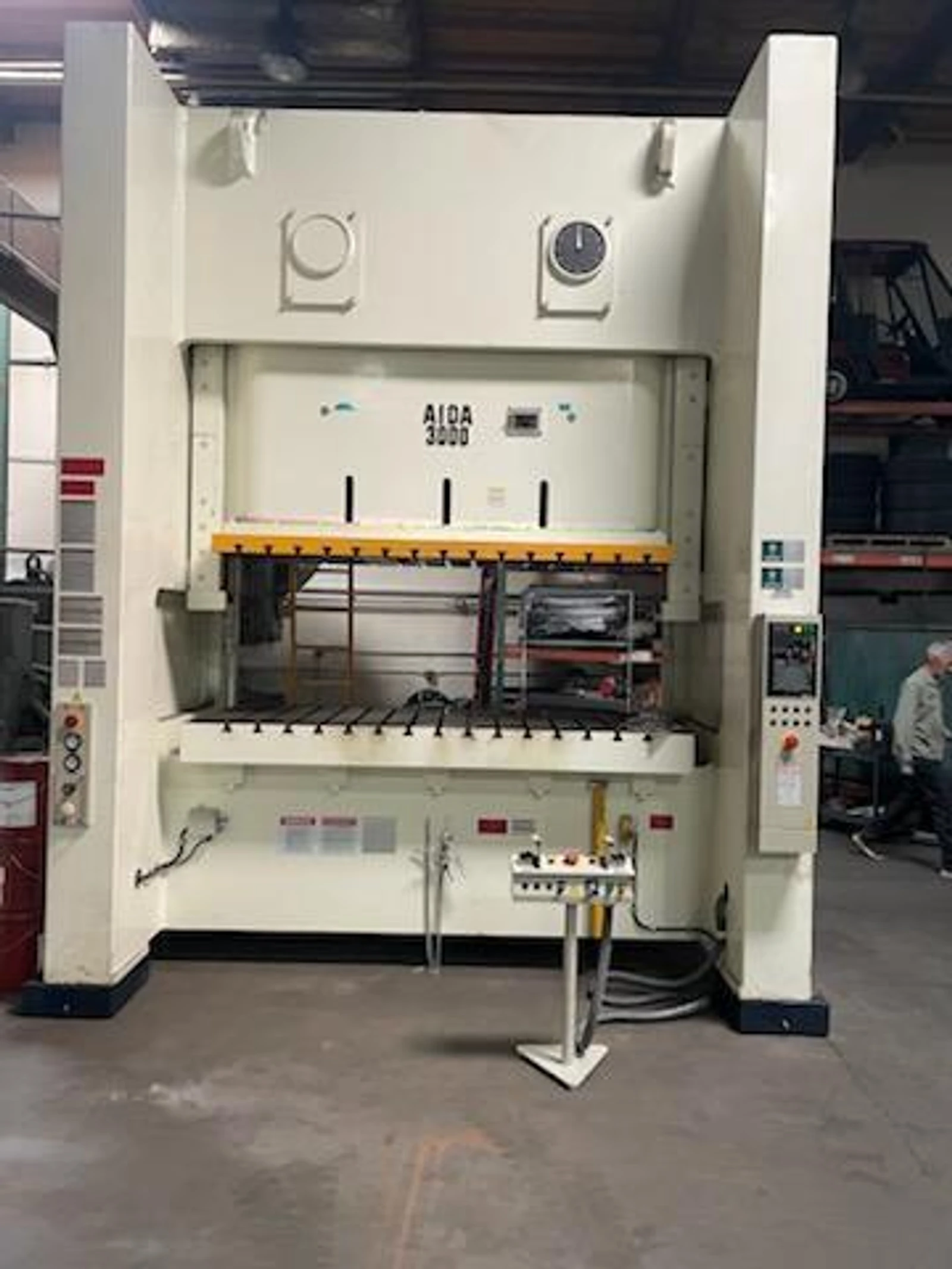

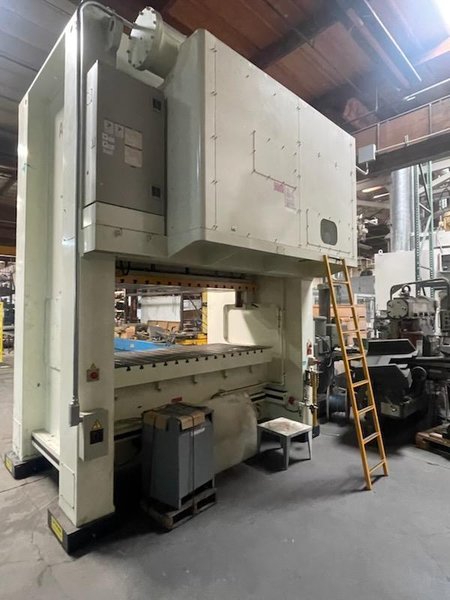

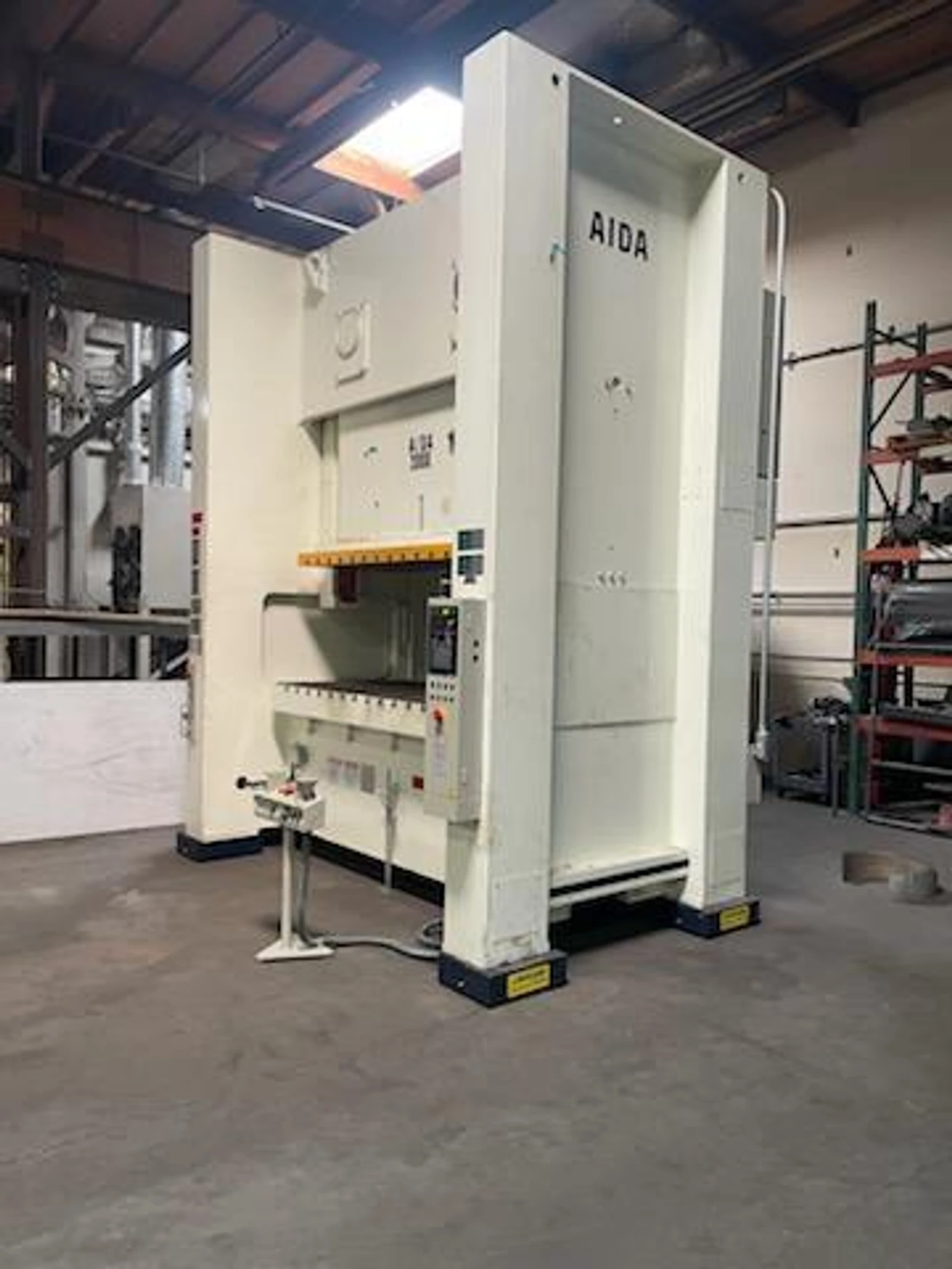

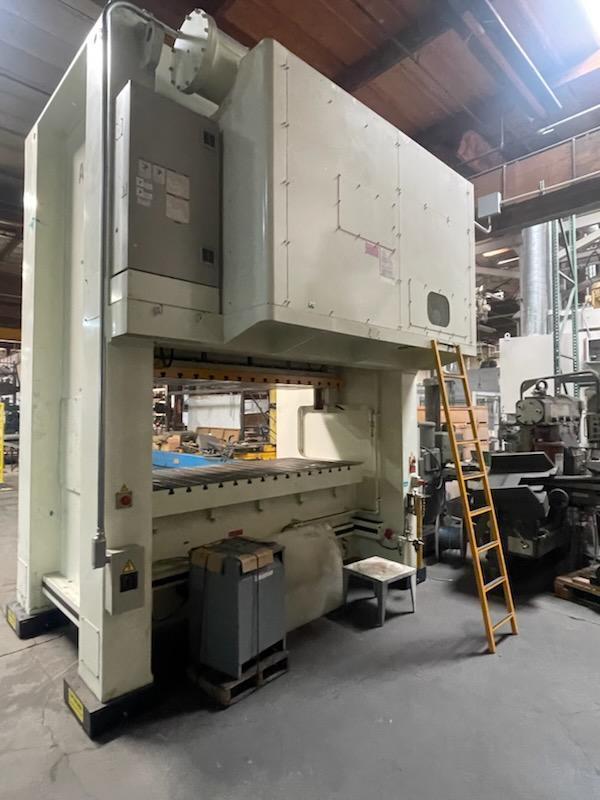

Aida NS2-3000(2) 3000 kN Straight Side Press, 2020-Heavy-Duty Stamping Press

Name: Used AIDA NS2-3000 For Sale 83890
Brand: AIDA
SKU: 83890
Availability: PreOrder

Brand

AIDA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Capacity 330 tons Rated Tonnage Point: Above BDC 0.236″ Slide Stroke (Max) 11.81″ Speed Range 15–35 spm Maximum Die Height: 25.59″ Slide Adjustment: 5.12″ Slide Area (L–R × F–B): 94.5 x 35.4″ Bolster Area (L–R × F–B): 102.4 x 47.2″ Side Opening (F–B × H) 48.0 x 22.8″ Bolster Thickness: 7.87″ Foot to Top of Bolster (no mounts): 45.3″ Max Upper Die Weight @ 73 psi 5,070 lb Overall Height (no mounts) 175.6″ Overall Dimensions (L–R × F–B): 137.8 x 117.2 ” Main Motor Power 50 HP Electrical Supply: AC 460V, 60 Hz Control Voltage: DC 24V, AC 100V Required Air Pressure: 73 psi Total Approx. Weight: 99,210 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
