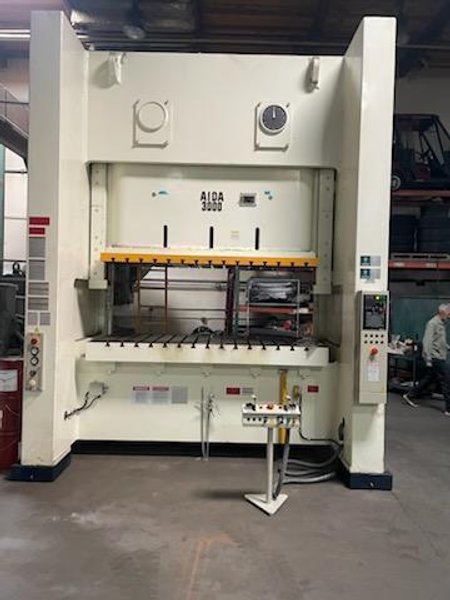

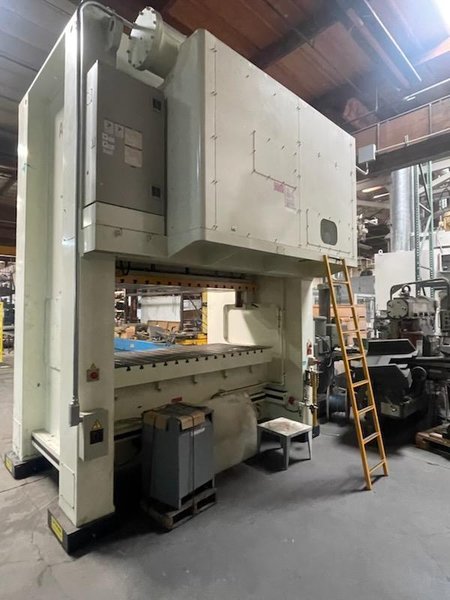

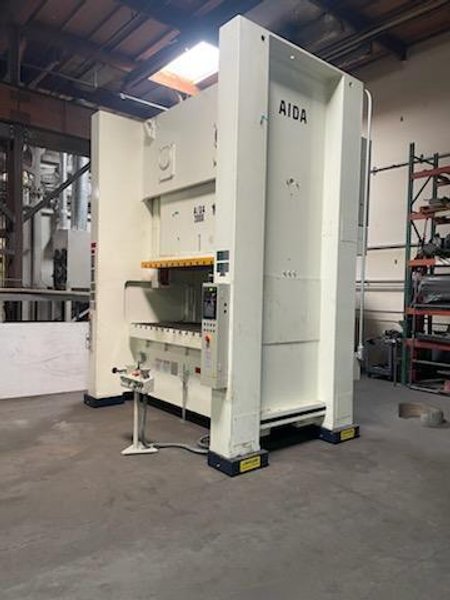

Aida NS2-3000(2) 3000 kN Straight Side Press, 2020-Heavy-Duty Stamping Press
Brand
Category
Type
Model
NS2-3000
Stock #
83890
Year
2020
Condition
Not specified
Location
Not specified
|
Capacity 330 tons
Rated Tonnage Point: Above BDC 0.236″
Slide Stroke (Max) 11.81″
Speed Range 15–35 spm
Maximum Die Height: 25.59″
Slide Adjustment: 5.12″
Slide Area (L–R × F–B): 94.5 x 35.4″
Bolster Area (L–R × F–B): 102.4 x 47.2″
Side Opening (F–B × H) 48.0 x 22.8″
Bolster Thickness: 7.87″
Foot to Top of Bolster (no mounts): 45.3″
Max Upper Die Weight @ 73 psi 5,070 lb
Overall Height (no mounts) 175.6″
Overall Dimensions (L–R × F–B): 137.8 x 117.2 ”
Main Motor Power 50 HP
Electrical Supply: AC 460V, 60 Hz
Control Voltage: DC 24V, AC 100V
Required Air Pressure: 73 psi
Total Approx. Weight: 99,210 lb
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
