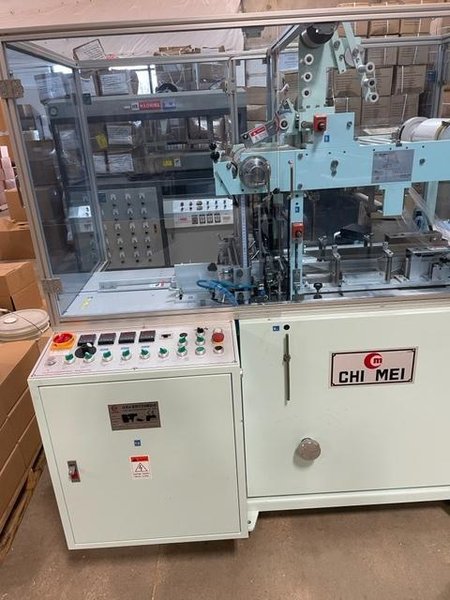

Chie Mei PM-800C Automatic Overwrapping Machine, 2016 – CE-Certified, Excellent Condition

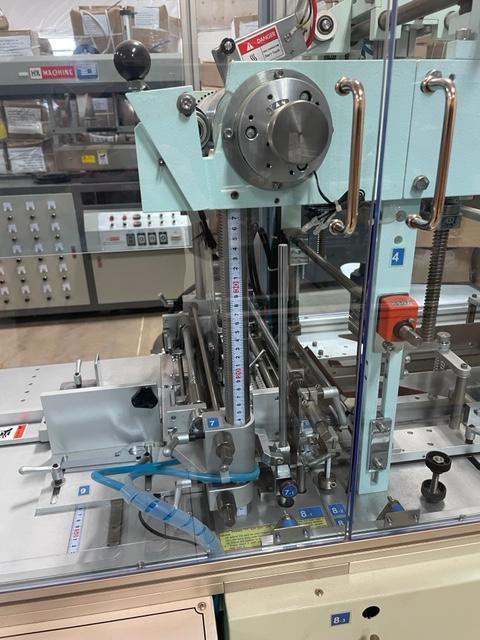

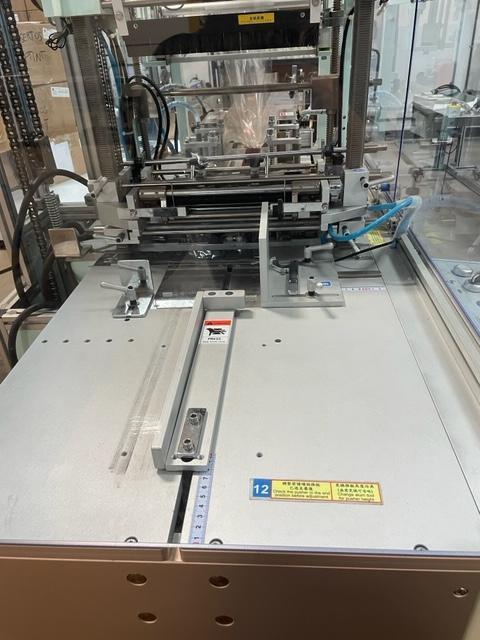

Equipment Overview This 2016 Chie Mei PM‑800C is a CE-certified automatic overwrapping machine, structurally and functionally equivalent to the PM‑808C. It features a quick-change forming assembly and high-speed cam-driven wrap system designed for BOPP/cellophane packaging of rectangular items. Suitable for cosmetic boxes, pharmaceuticals, or bundled cartons.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Certifications: CE, ISO 9001

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power: 220V, 1 Phase, 50/60 Hz, 10A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heater: 1.2 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor: ¼ HP + 90W

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speed: 20–40 packs per minute

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Package Size Range: Length 55–160 mm, Width 30–80 mm, Depth 50–200 mm

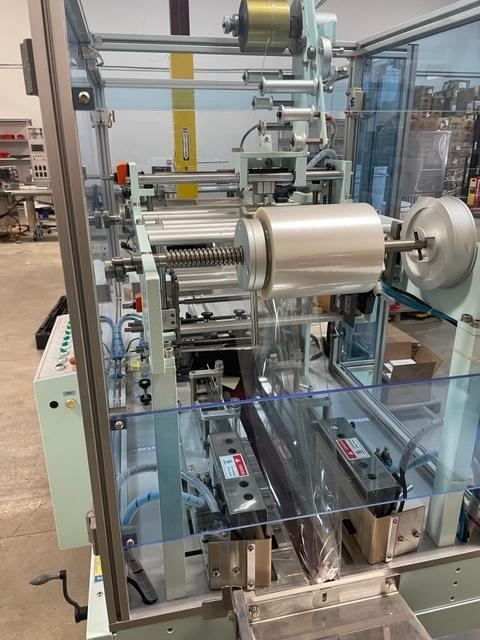

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Film Types: Cellophane, BOPP, KOP, heat-sealable films

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Size: 1630 × 2640 × 1880 mm (L×W×H)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Changeover Time: Approx. 15 minutes (tool-less design)

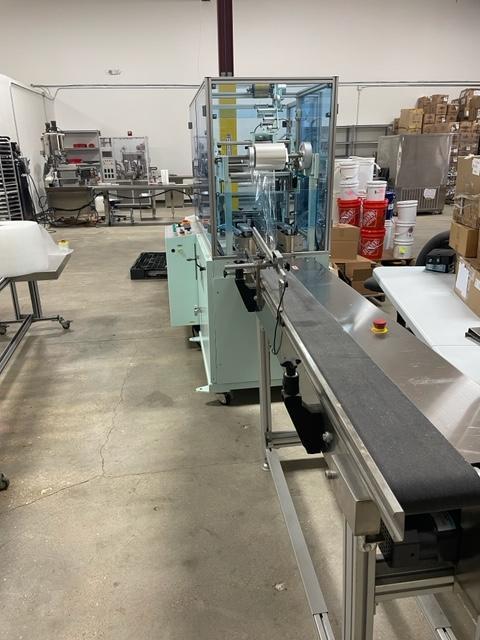

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Conveyor Exit: Yes, integrated linear belt

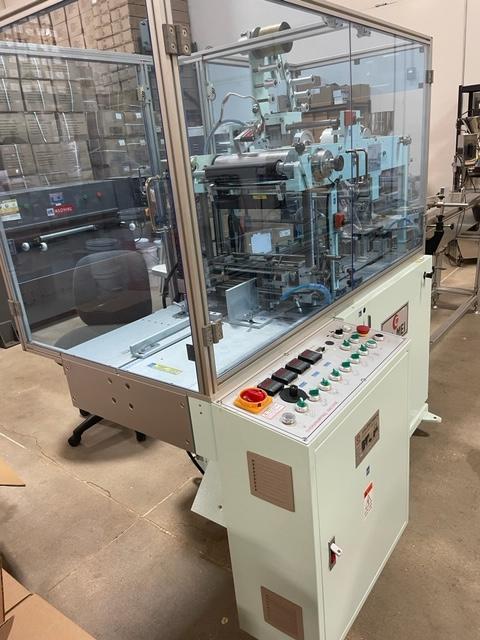

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controls: Push-button and rotary switch panel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Guarding: Clear polycarbonate panels, interlock-protected

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sealing System: Rotary & reciprocating sealing jaws

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
