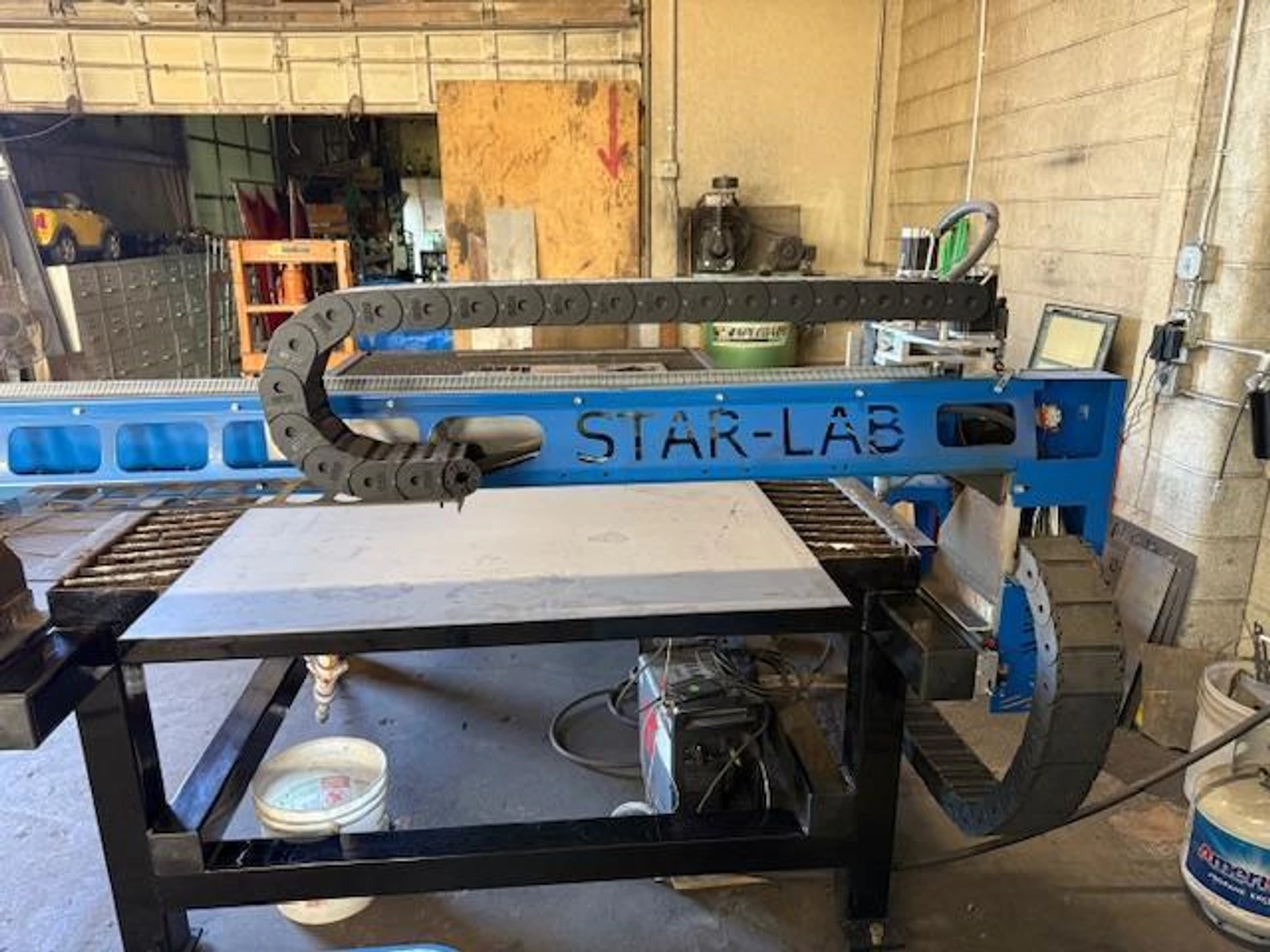

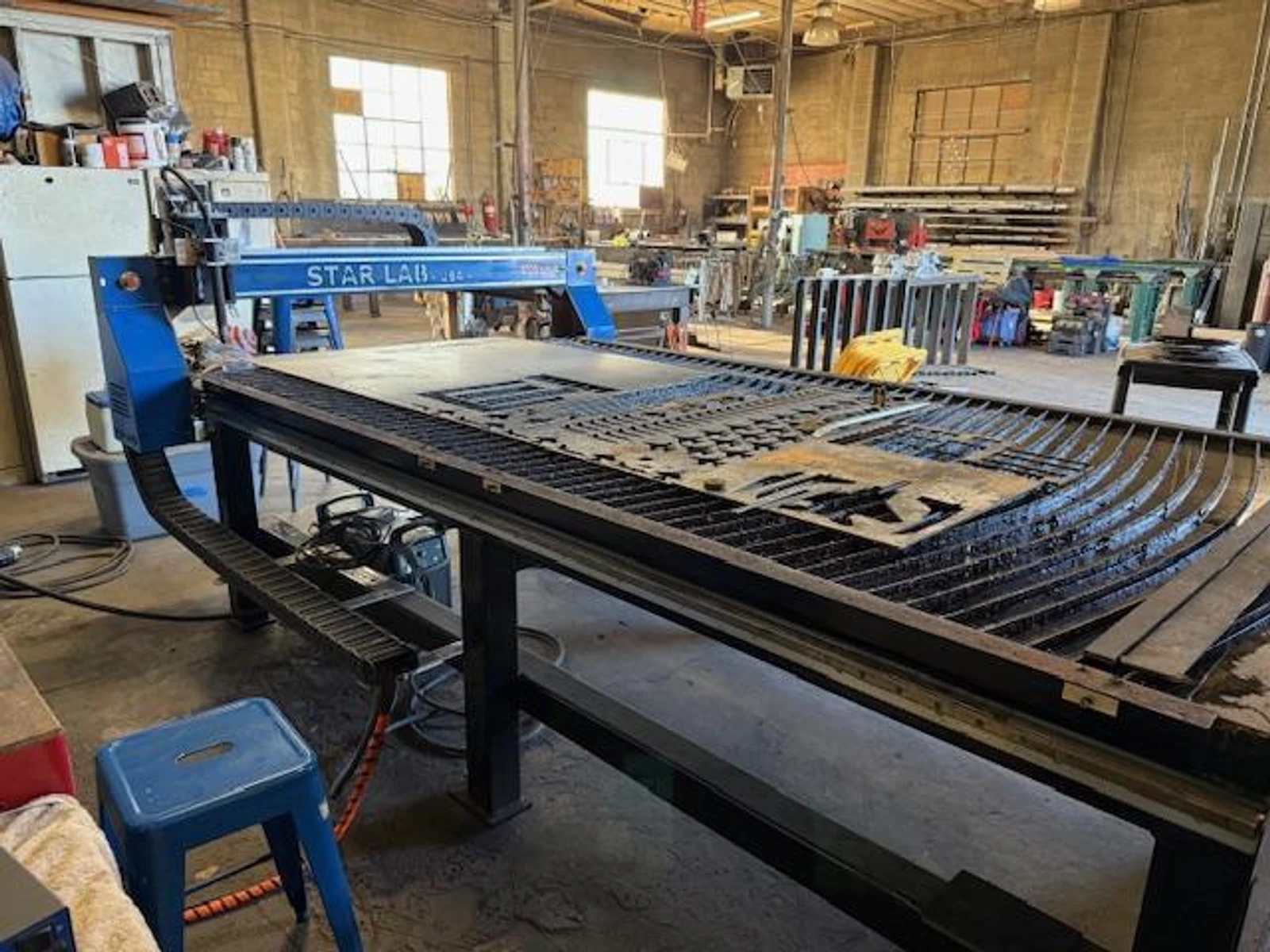

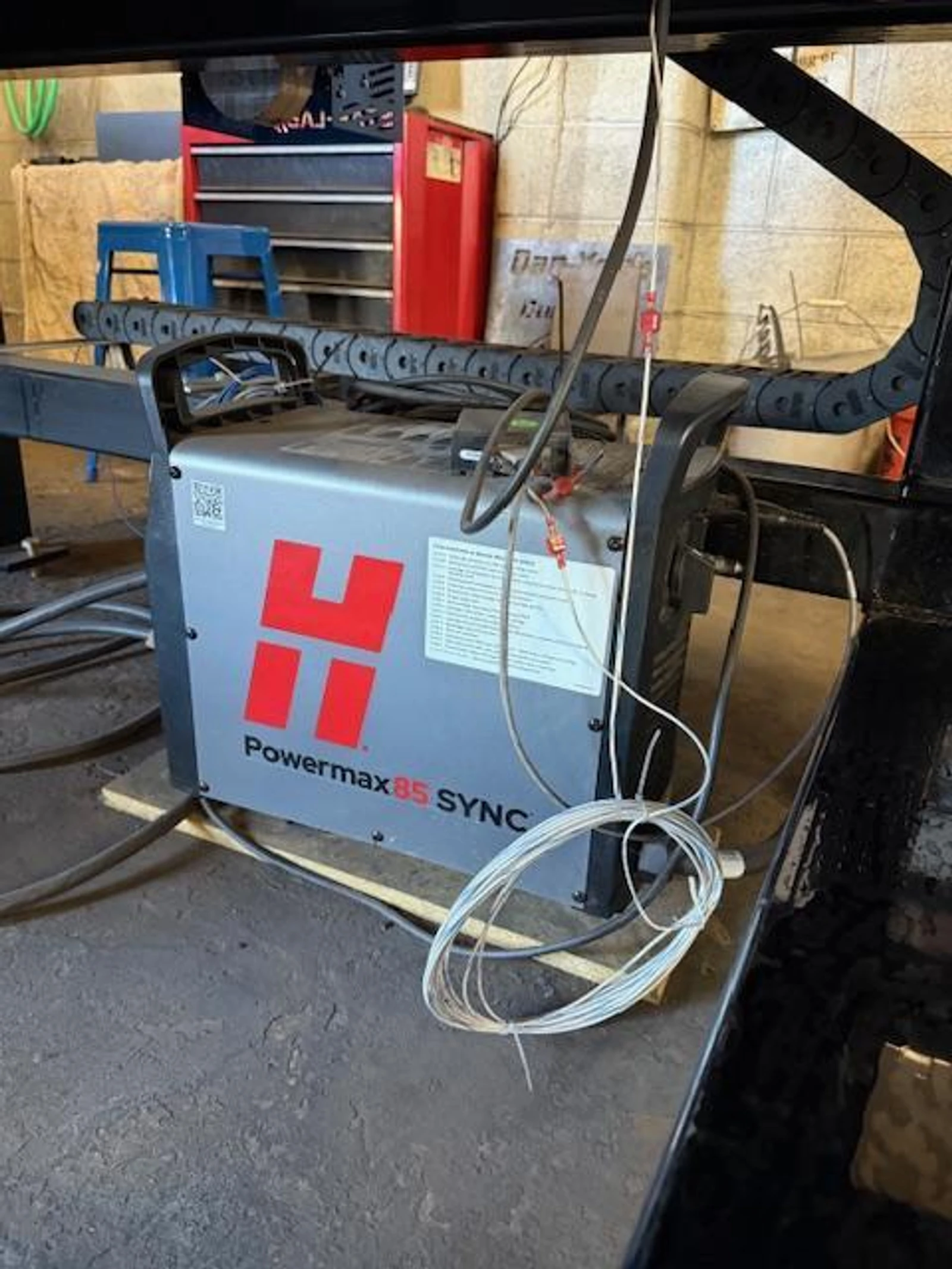

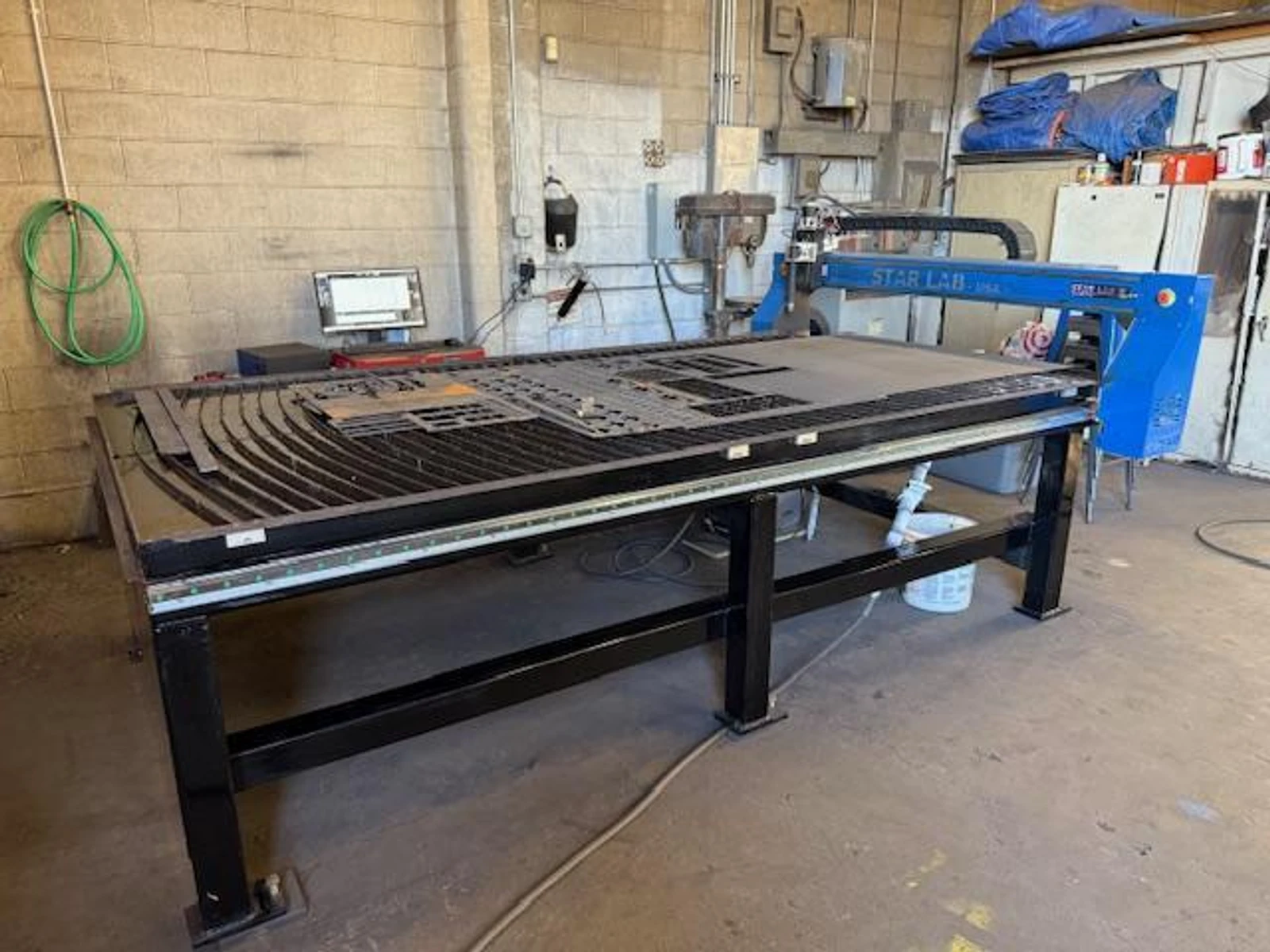

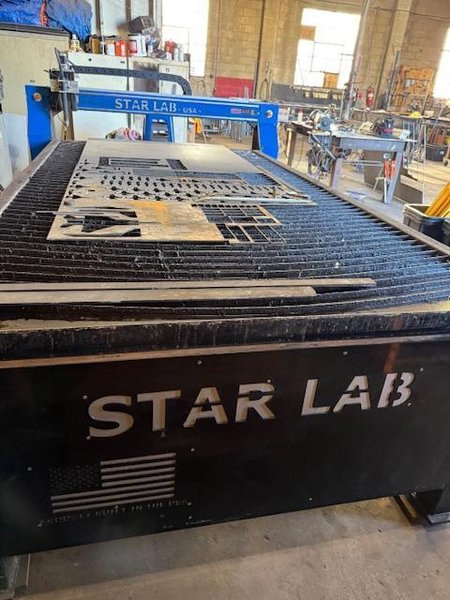

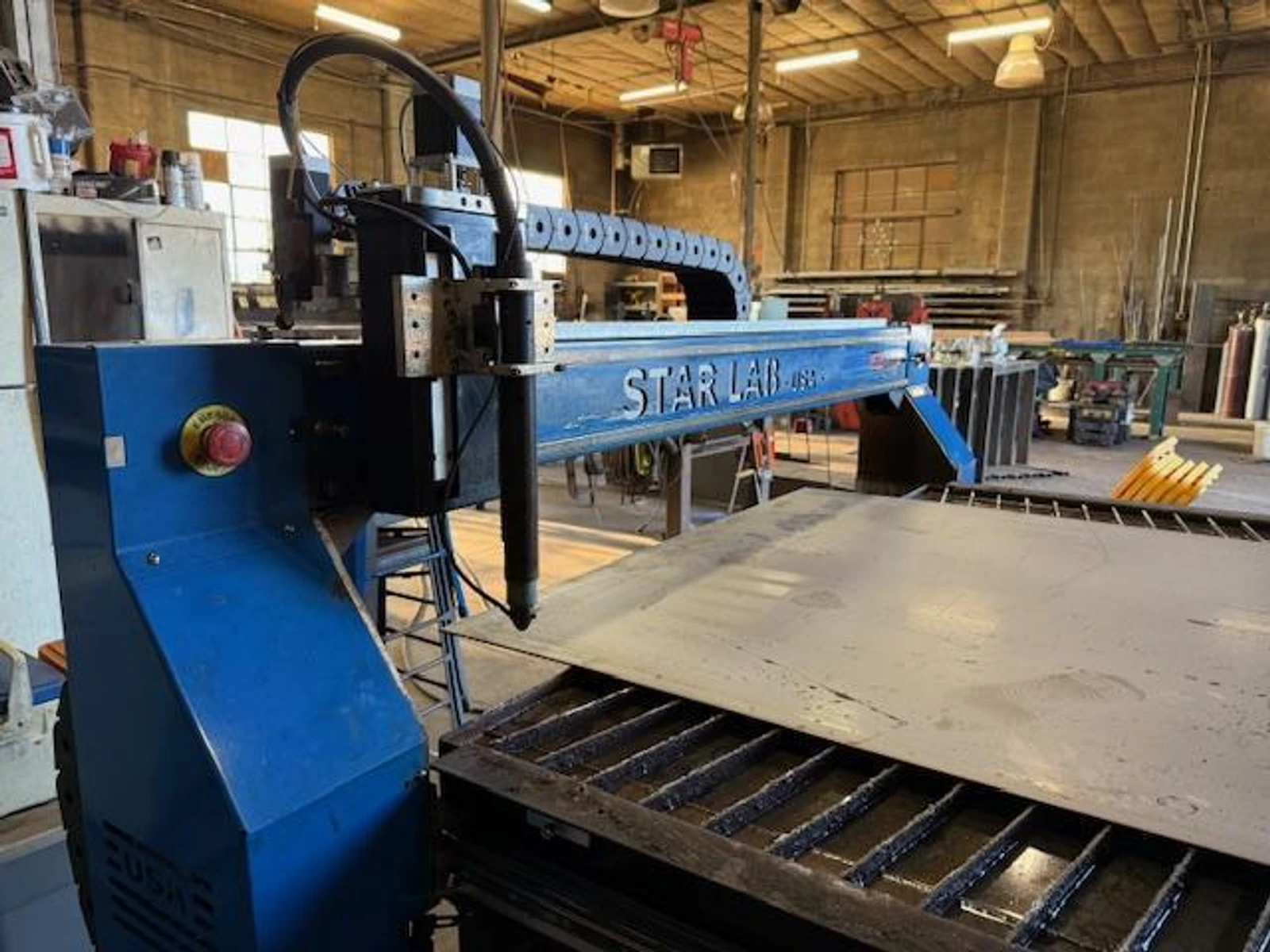

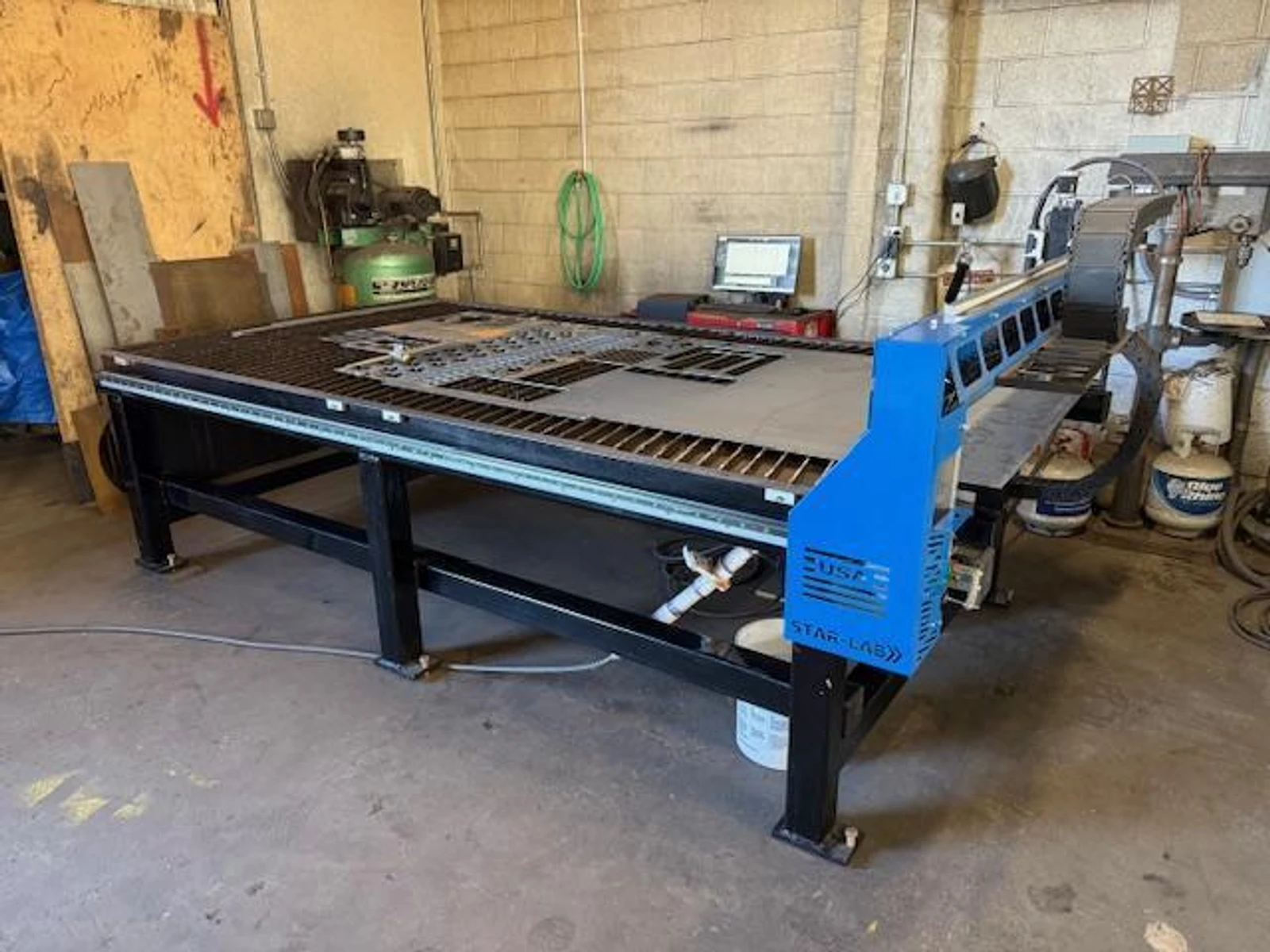

5’x10′ Starlab CNC Plasma Table, 2012 – 85 Amp Hypertherm Sync 85, Water Table, Flashcut OS and Controllers

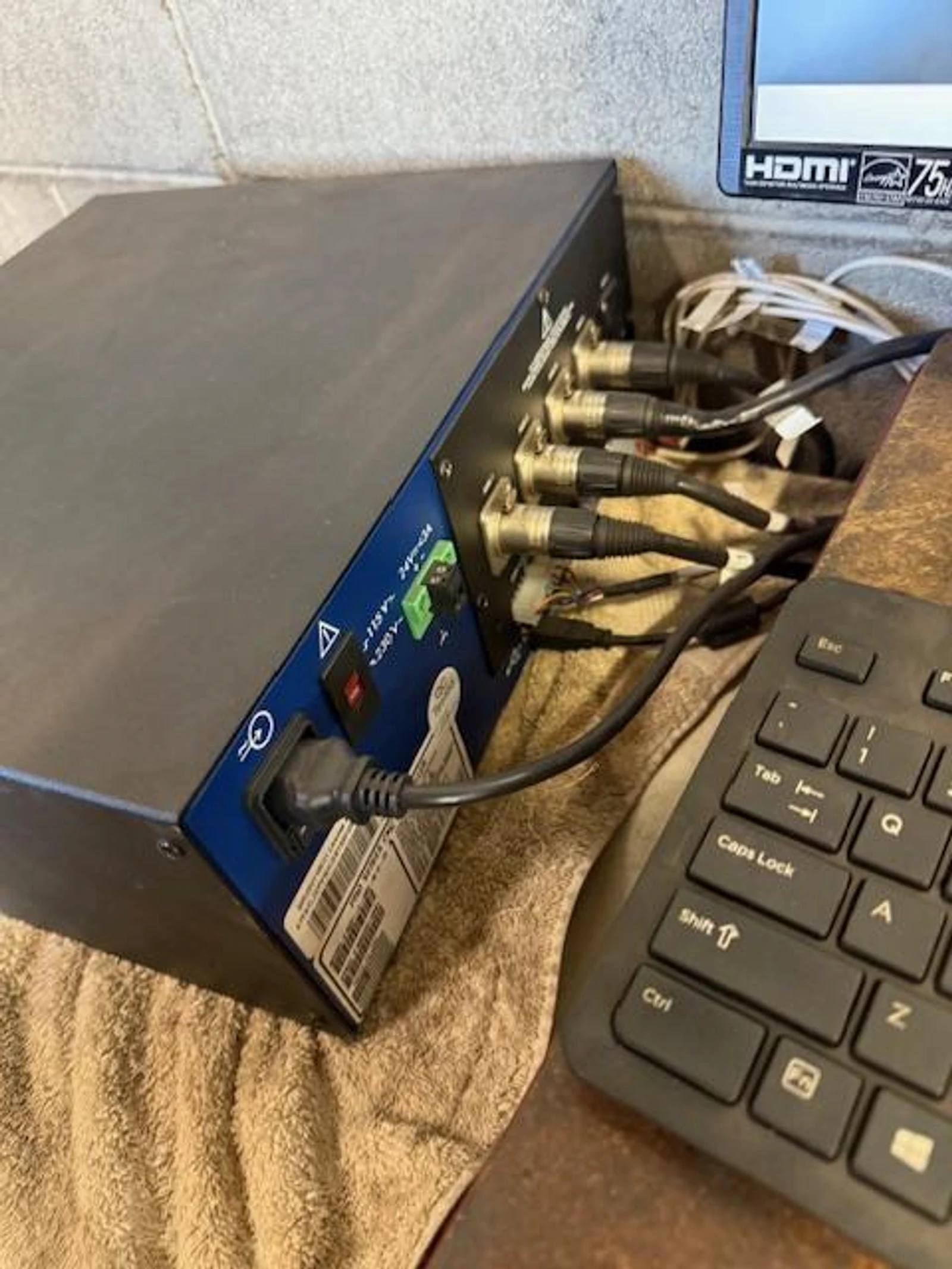

X-Axis Travel: Approx. 121.5″ Y-Axis Travel: Approx. 61.5″ Z-Axis Clearance: Approx. 8.0″ Cutting Speed: Up To 1,500 IPM Duty Cycle: 60 Percent At 85 Amps On 230 To 600 Volt 3-Phase Or 480 Volt Single-Phase Duty Cycle Alternate: 50 Percent At 85 Amps On 240 Volt Single-Phase Duty Cycle Continuous: 100 Percent At 66 Amps On 3-Phase Or Single-Phase Power Source Dimensions: Approx. 19″ Deep × 9.2″ Wide × 17″ High Power Source Weight: Approx. 67 Lbs CSA Version Or 52 Lbs CE Version Gas Supply Requirements: Clean Dry Oil-Free Air Or Nitrogen At 75 To 120 PSI, 450 SCFH Flow Control System: FlashCut CNC OS Pro v10.0 Or Linux/Windows Based Controller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: FlashCut CNC Software Magnetic Breakaway Torch Dual-Drive Precision Gearing System Auto-Home And Auto-Square Switches Hardened Precision Rails With Wipers OSHA Blue Powder-Coated Frame Ball-Screw Driven Z-Axis

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
