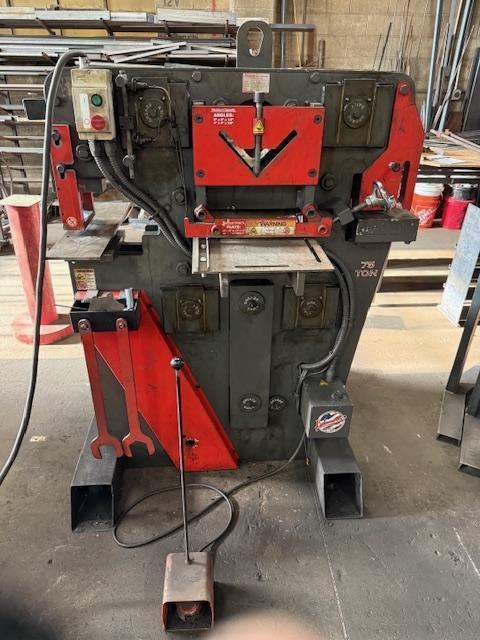

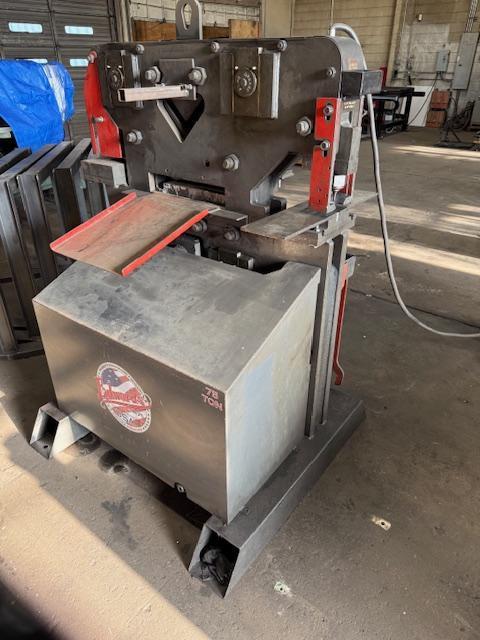

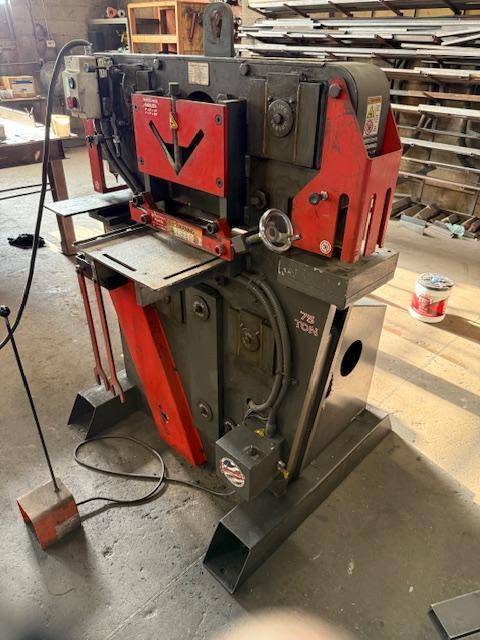

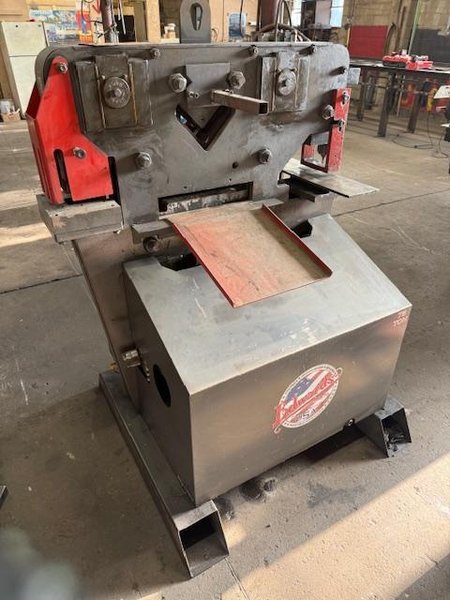

65 Ton Edwards Ironworker, 2012 – Pipe Bending Attachment, Dies, Tooling Included

Punch Station Rating: 65 Tons Maximum Punch Capacity: 1-1/16″ Diameter In 3/4″ A36 Steel Stroke: 1-13/16″ Throat Depth: 9-3/4″ Open Height: 8-3/4″ Shut Height: 6-15/16″ Work Height: 36-9/16″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Flat Bar Shear Max Capacity: 3/8″ × 24″ Max Capacity: 1/2″ × 14″ Max Capacity: 1″ × 4″ Round Or Square Capacity: 1″ Work Height: 34-1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Angle Shear Max Capacity: 5″ × 5″ × 3/8″ Work Height: 43-1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Coper Notcher Max Capacity: 2-1/2″ × 5″ × 3/8″ Work Height: 39-1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Open Tooling Cavity Width: 12″ Height: 8-3/4″ Work Height: 43″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hydraulic System Pump Flow: 10.5 GPM 2-Stage Pressure: 3,500 PSI Reservoir Capacity: 17 Gallons Ram Cylinder Diameter: 3-1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard: 7.5 HP, 3-Phase, 208/230 V, 1,765 RPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions And Weight Machine Size L × W × H: 45″ × 62-1/8″ × 57″ Shipping Weight: Approx. 4,750 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equiped With Pipe Bending Attachment

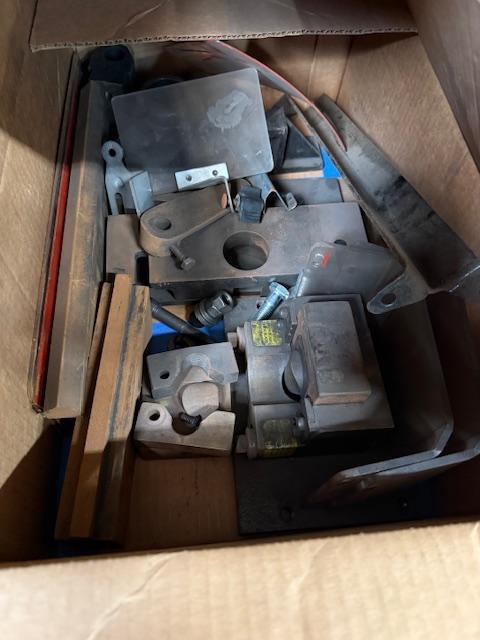

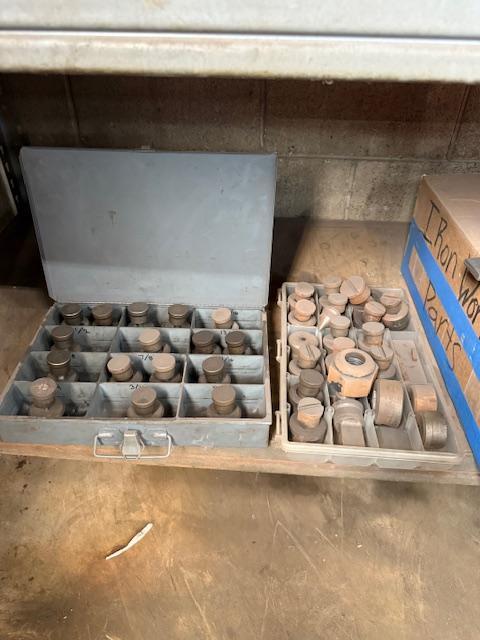

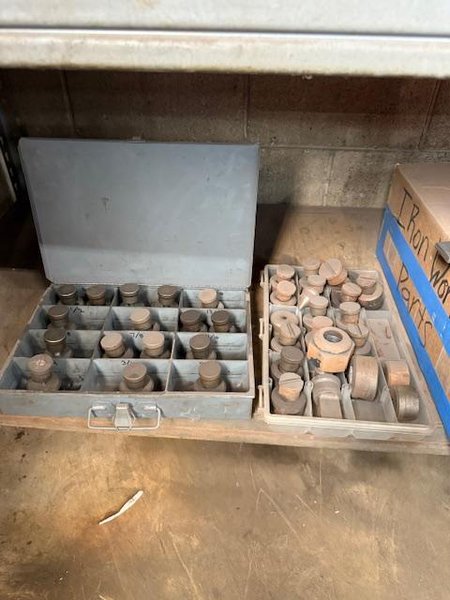

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Assorted Dies and Tooling Included

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
