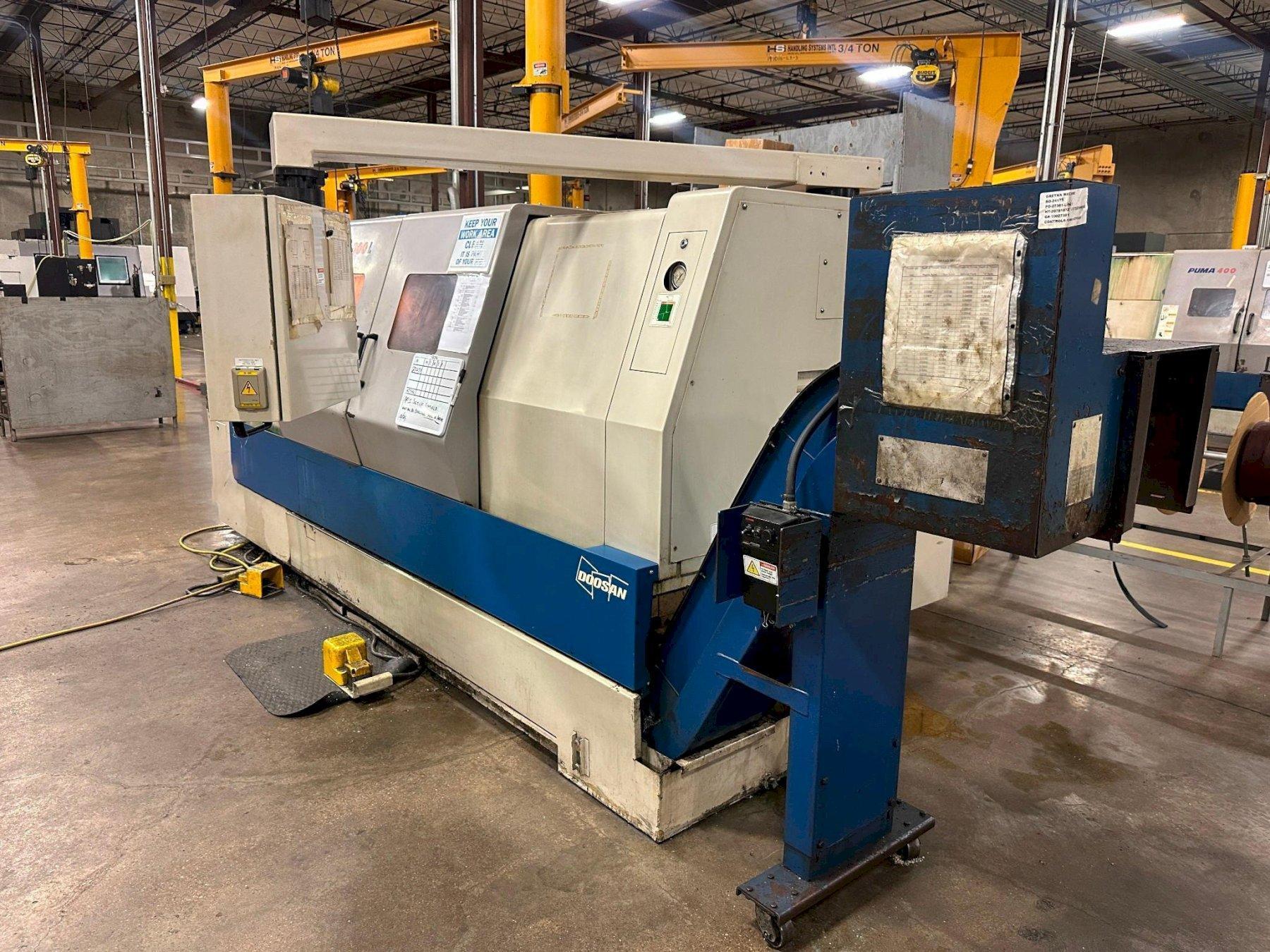

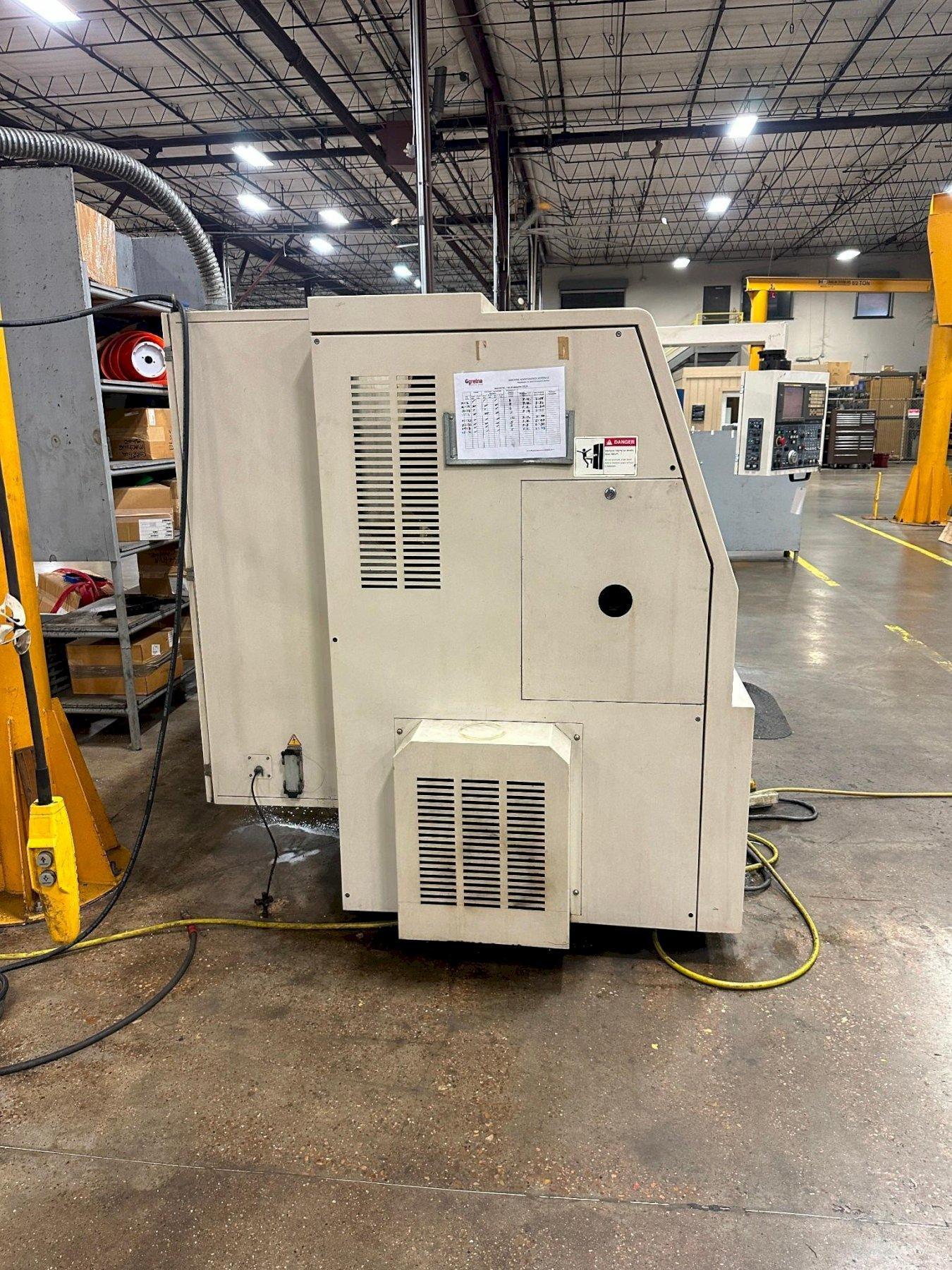

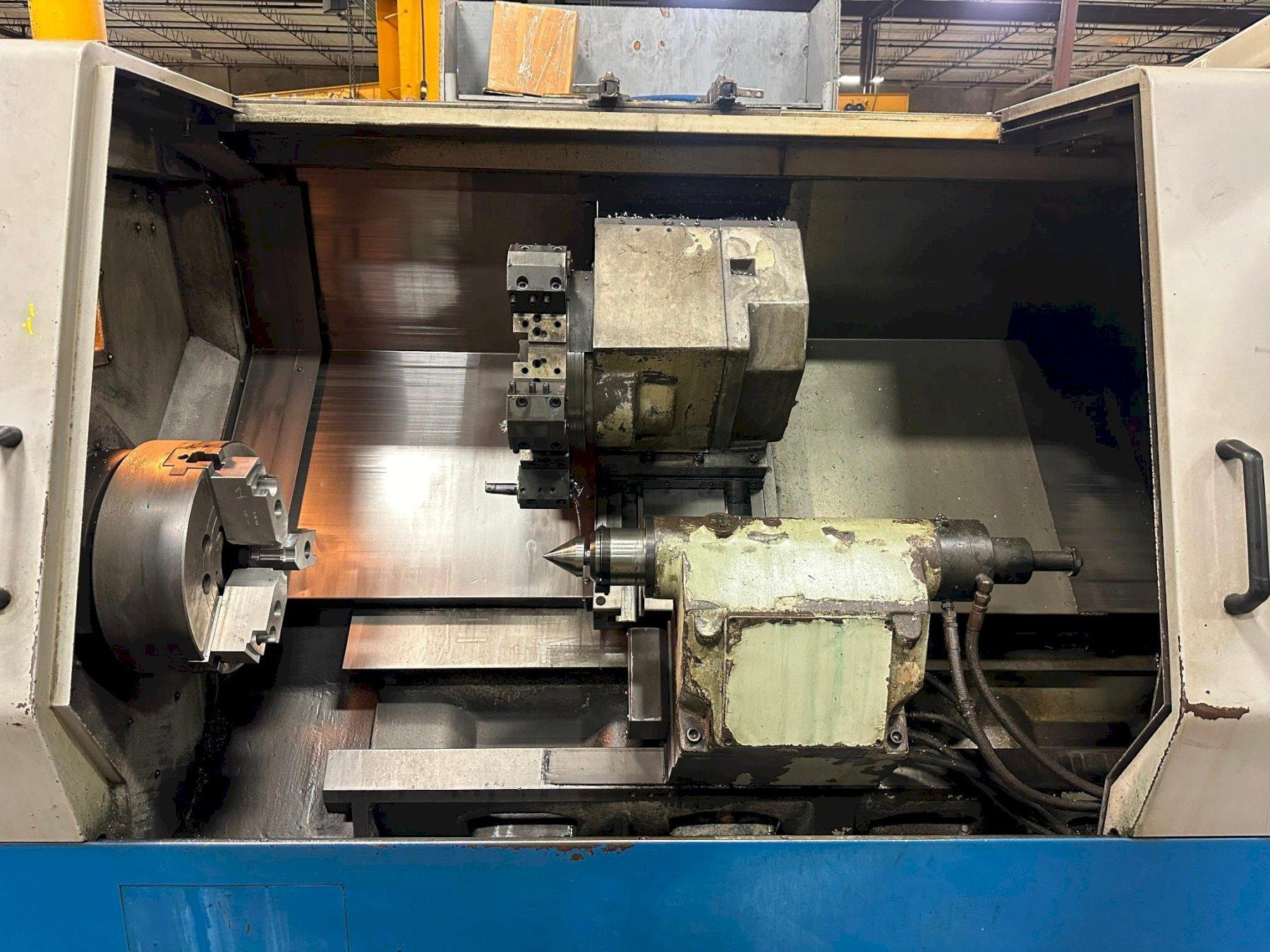

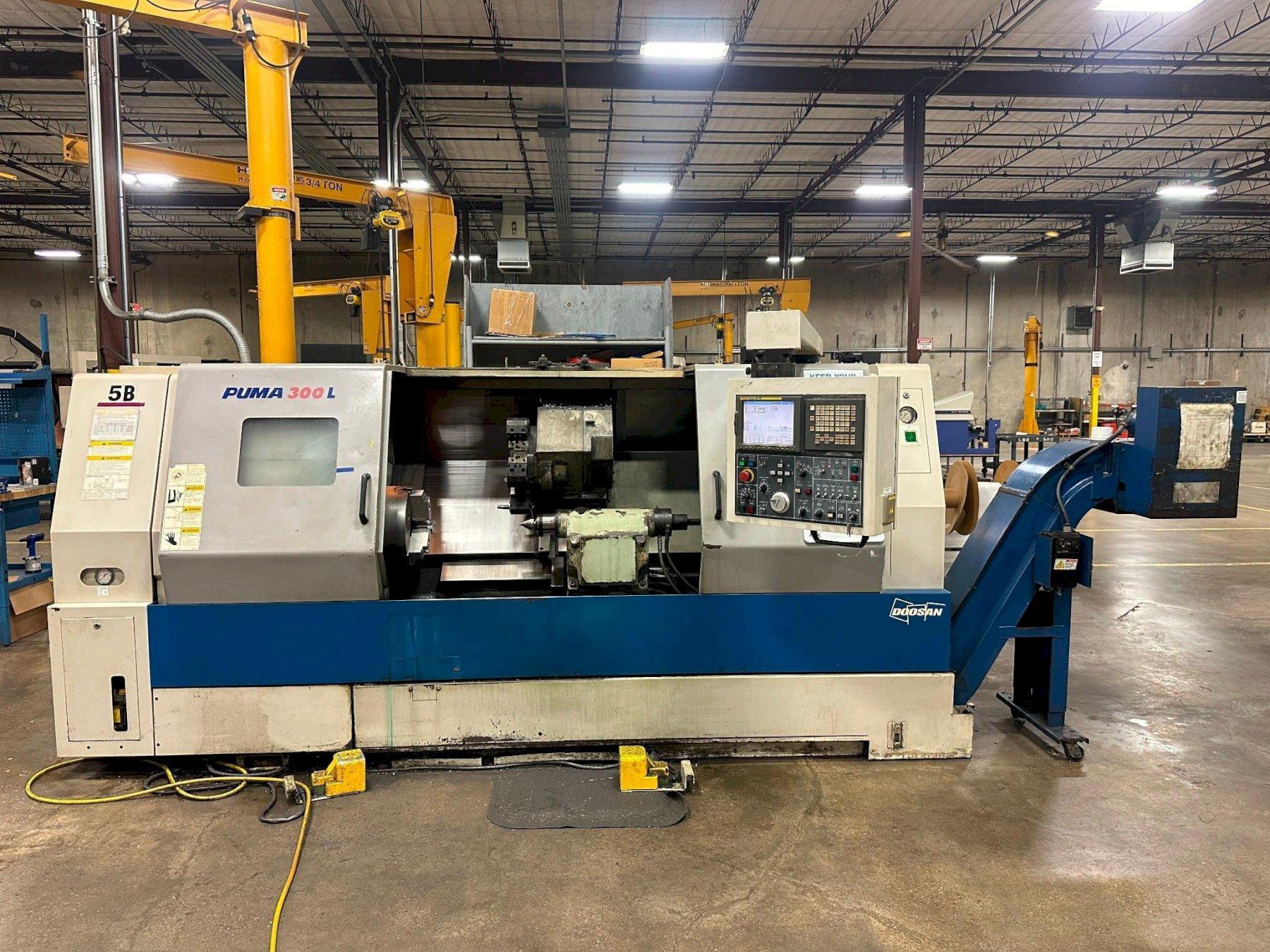

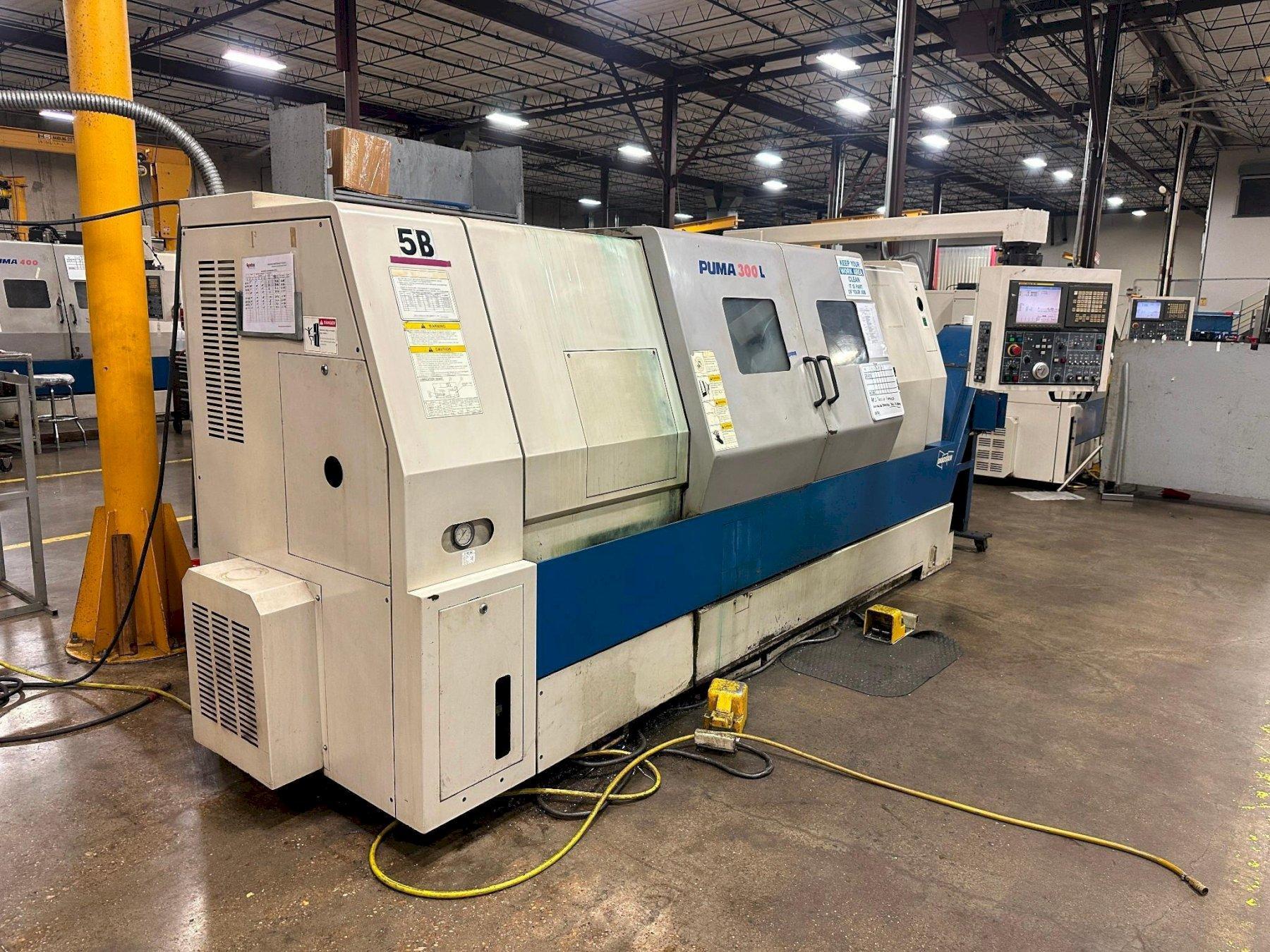

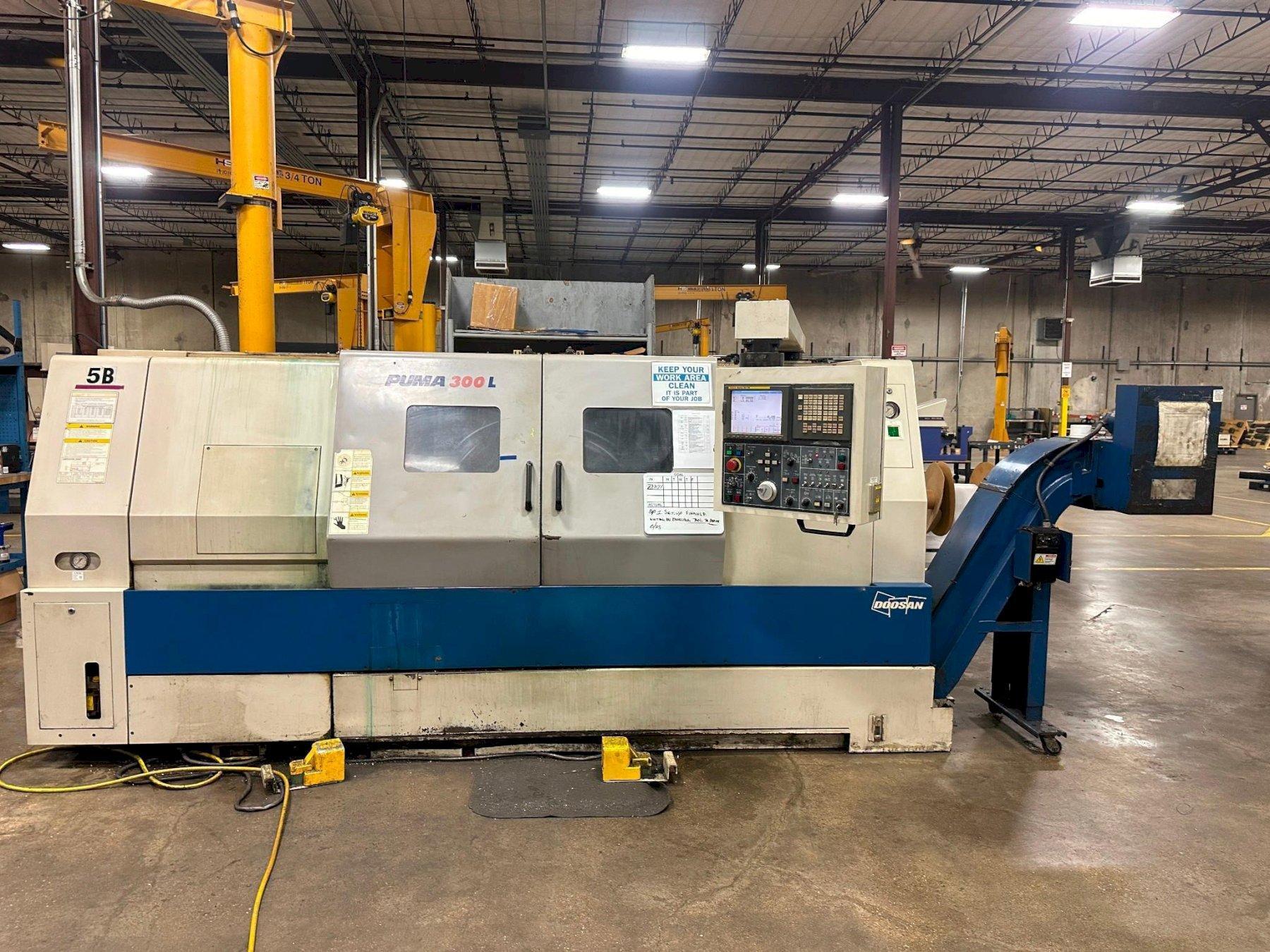

Doosan Puma 300LC CNC Lathe, 2006 – Low Hours, 15″ Chuck, Chip Conveyor, Programmable Tailstock, Presetter
Brand
Category
Type
Model
Puma 300LC
Stock #
839961
Year
2006
Condition
Not specified
Location
Not specified
|
Max Turning Diameter: 15.7″
Max Turning Length: 50.4″
Max Bar Capacity: 4.05″
Swing Over Bed: 22.4″
Distance Between Centers: 52.8″
X-Axis Travel: 11.1″
Z-Axis Travel: 52.4″
Rapid Traverse (X-Axis): 787 IPM
Rapid Traverse (Z-Axis): 945 IPM
Spindle Nose: A2-11
Spindle Bore: 4.625″
Spindle Speed: 0–2800 RPM
Spindle Motor: 35 HP

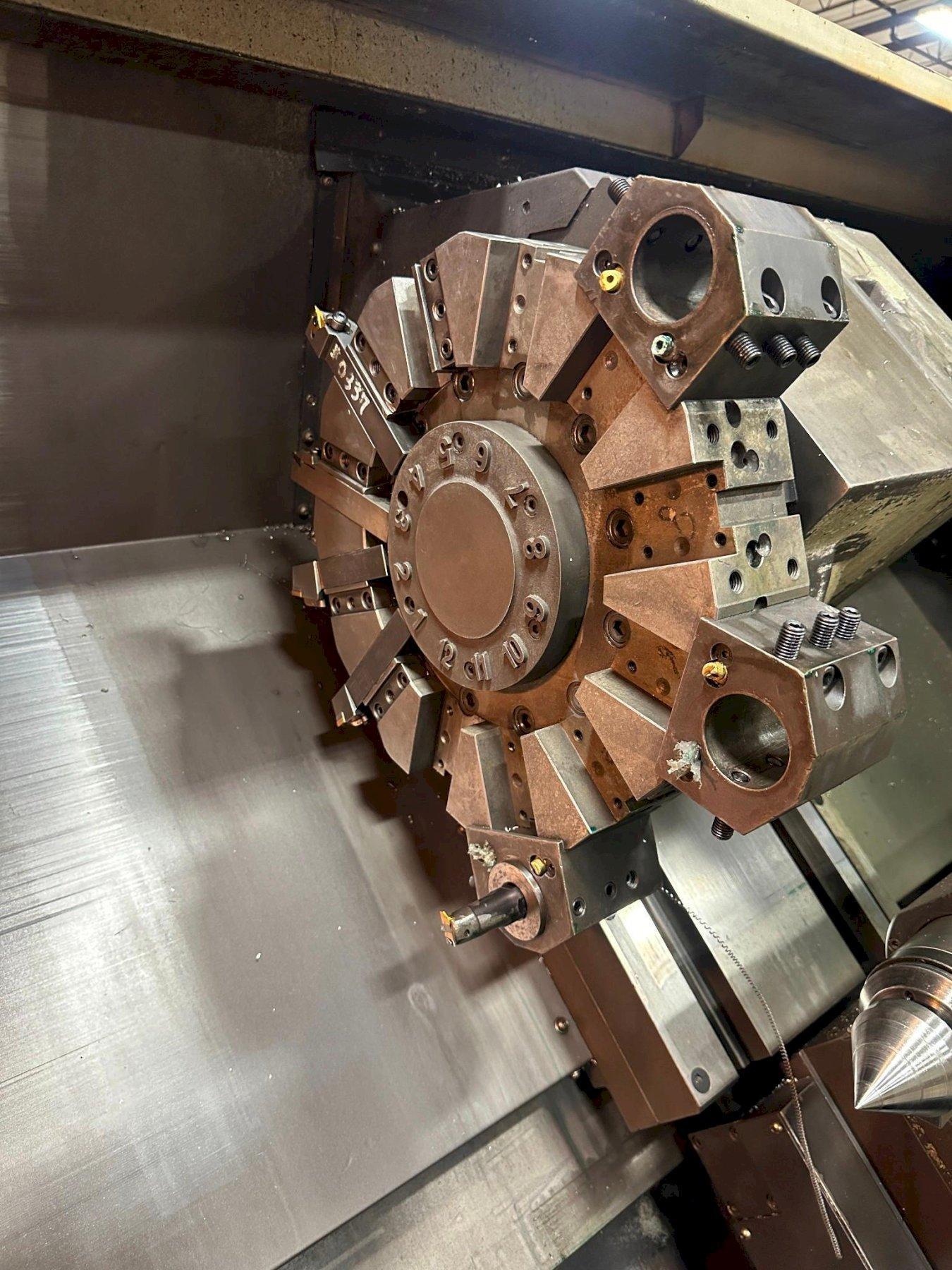

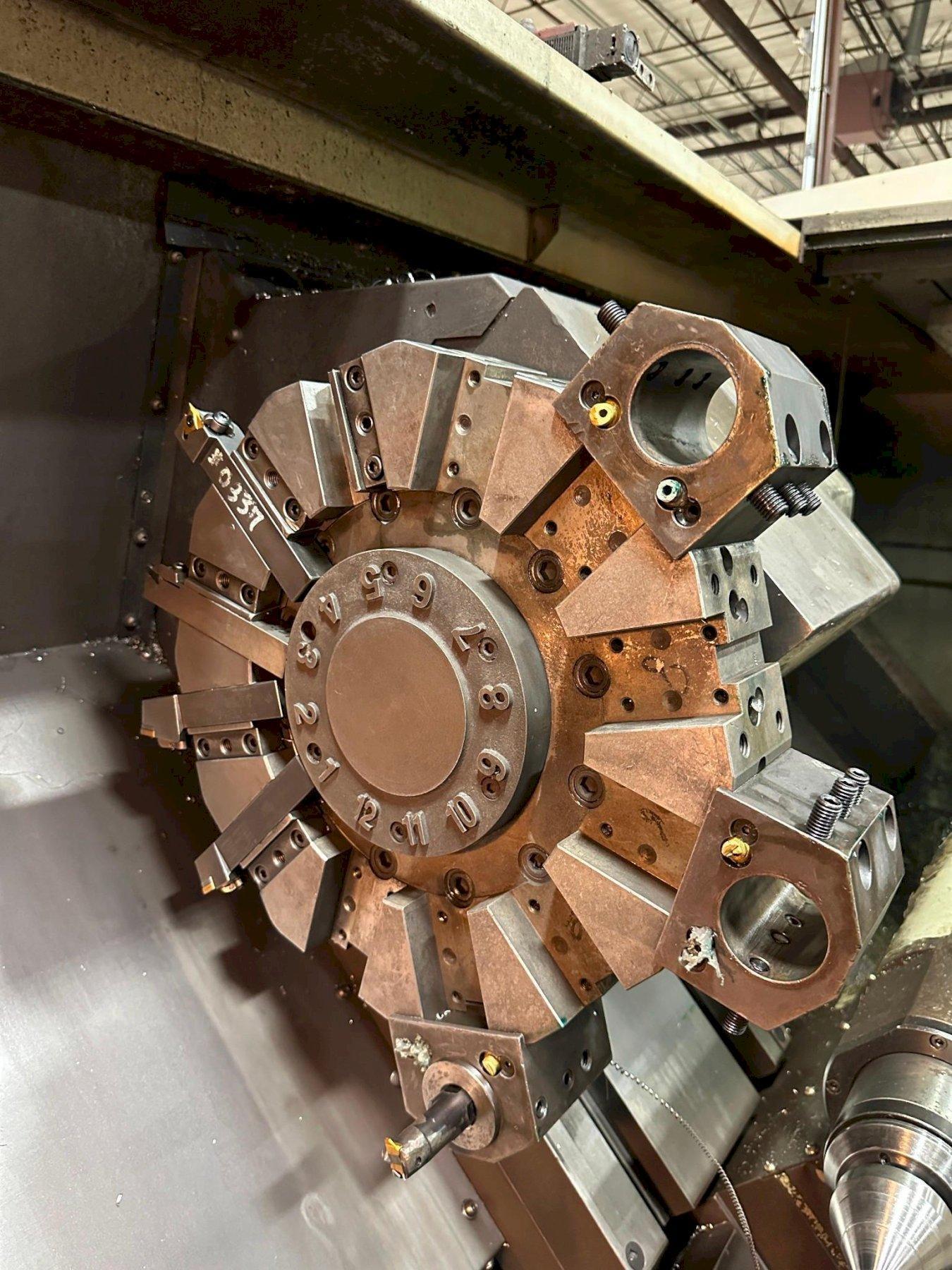

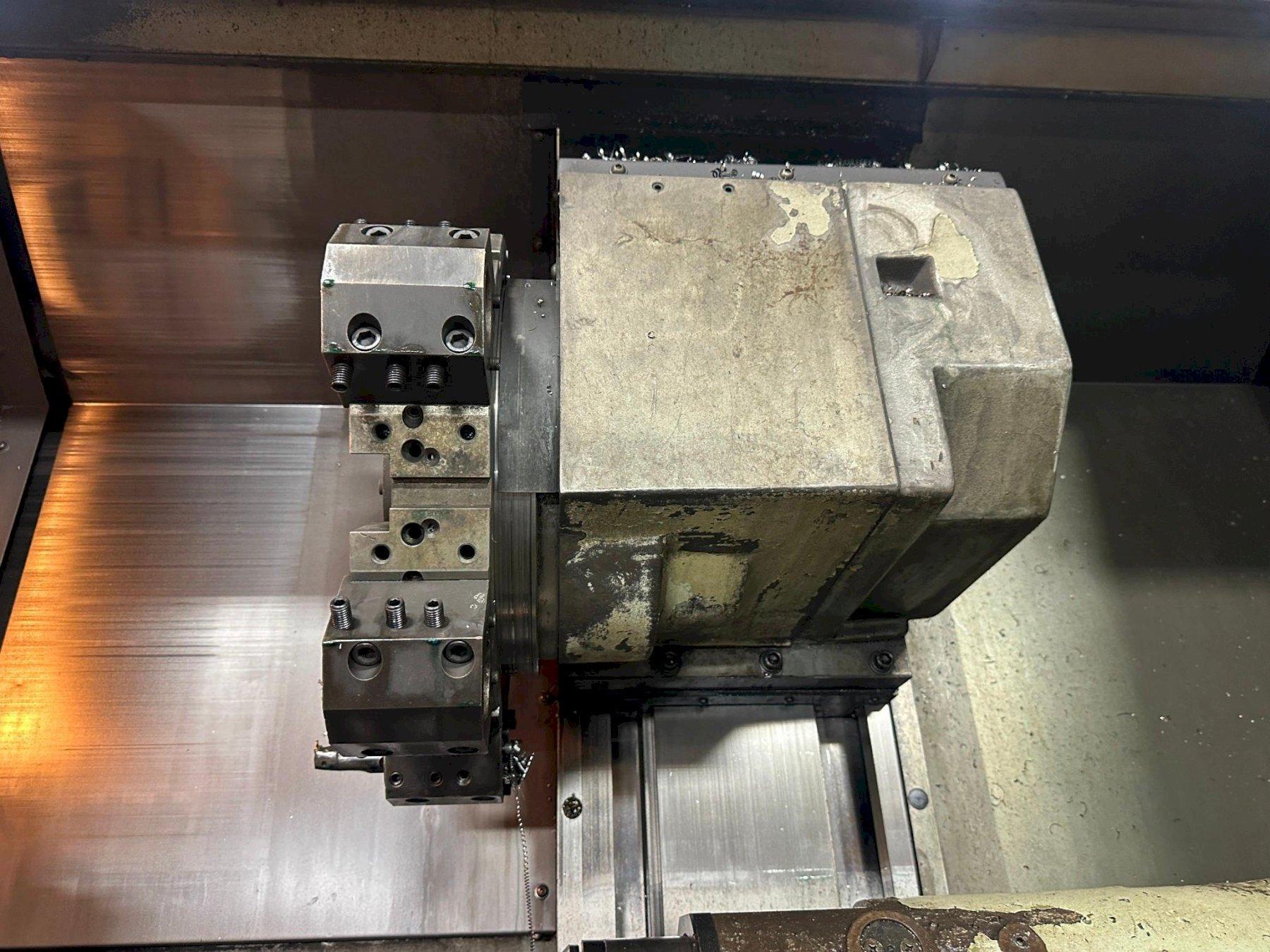

Turret Capacity: 12 stations
Turret Index Time: 0.15 second

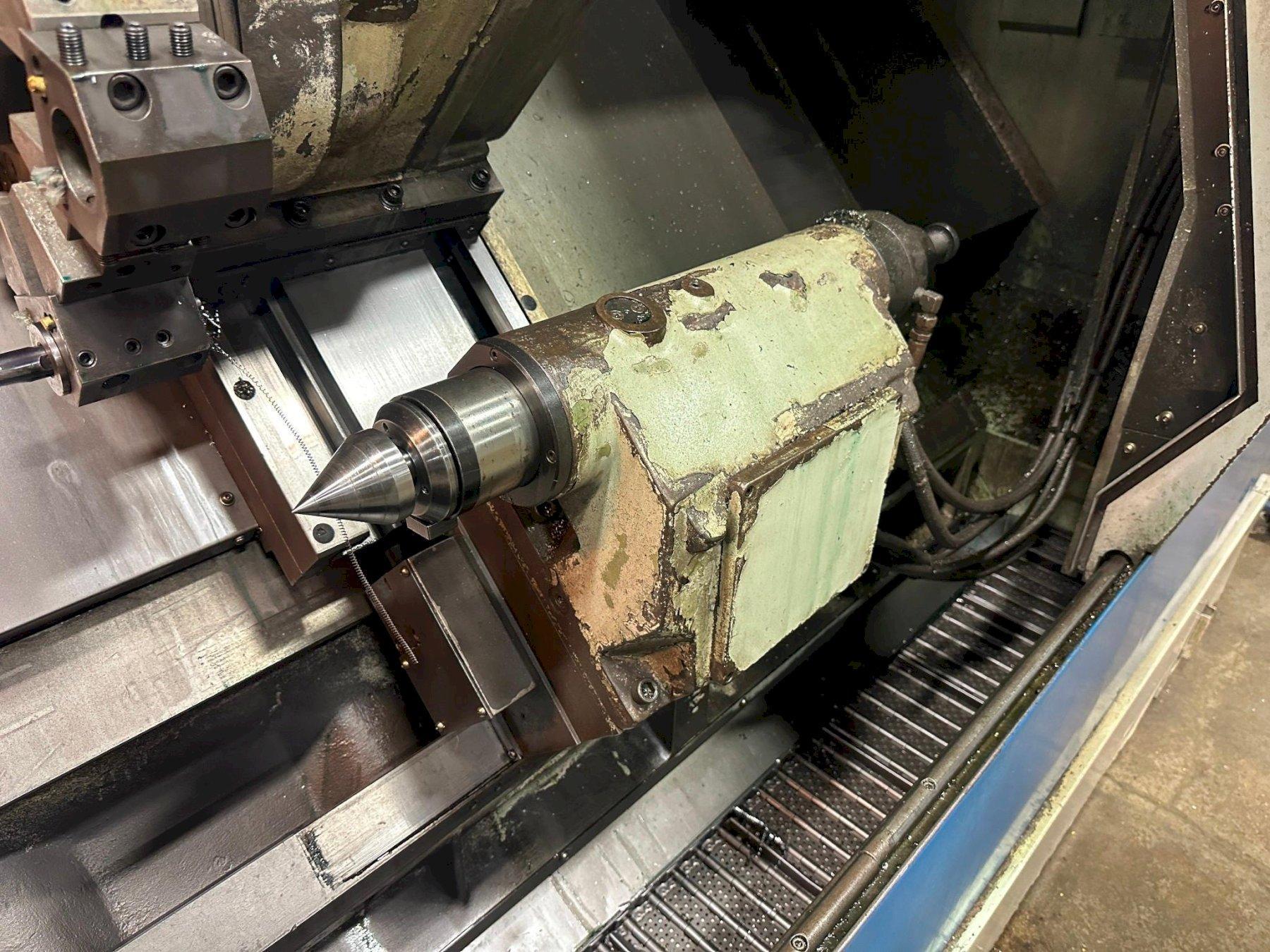

Tailstock Taper: MT-4
Tailstock Quill Diameter: 3.97″
Tailstock Quill Travel: 4.7″

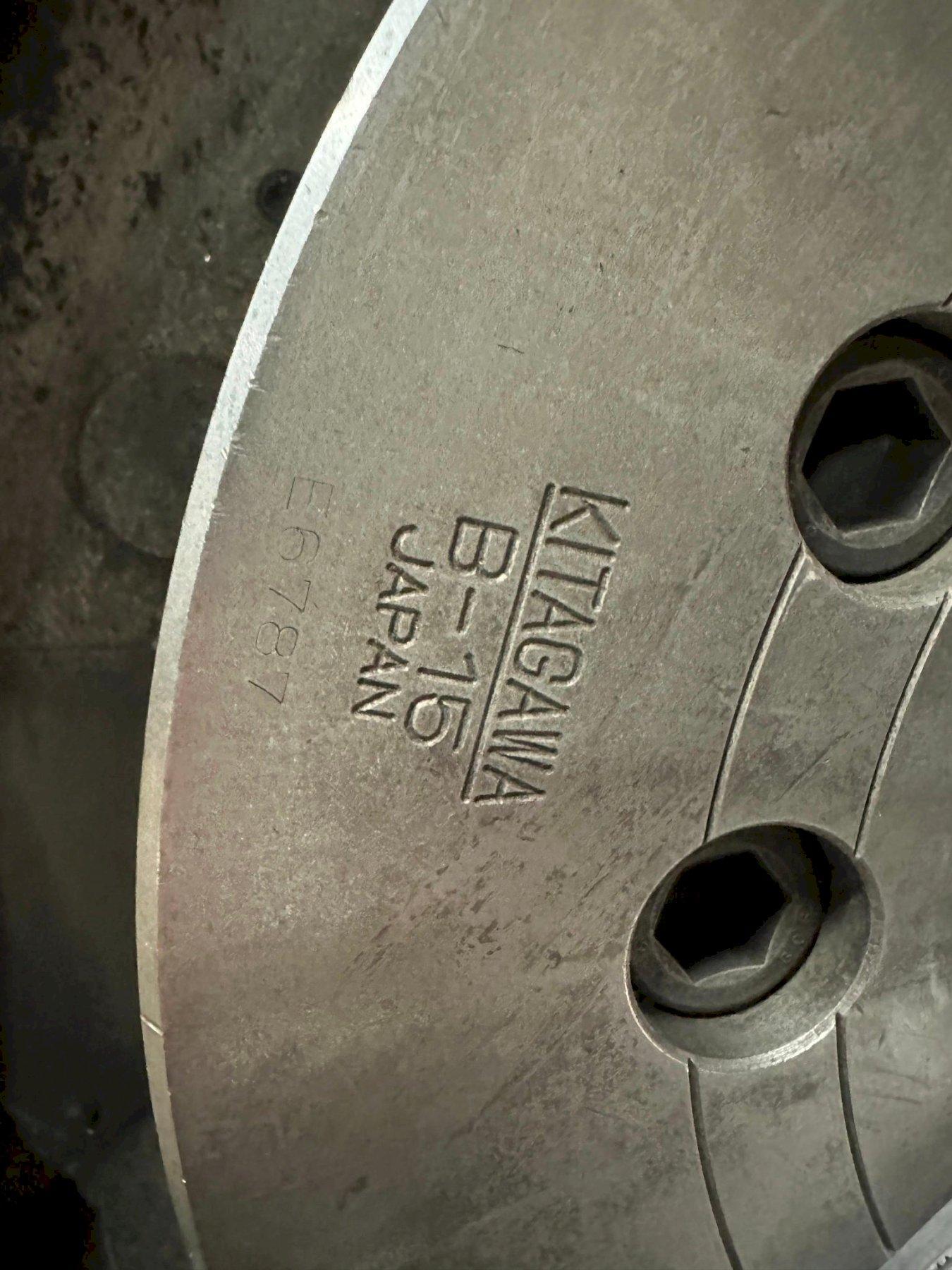

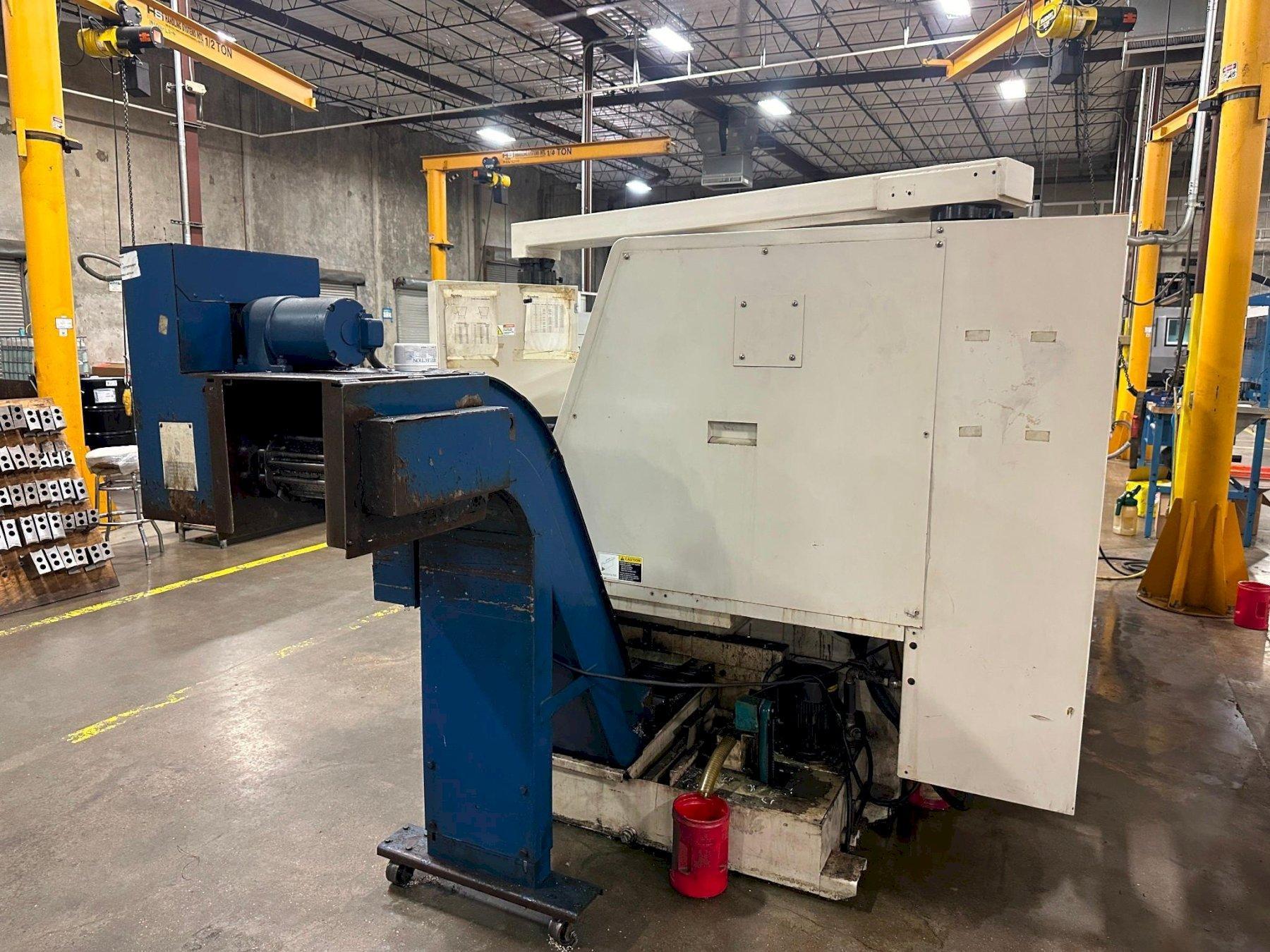

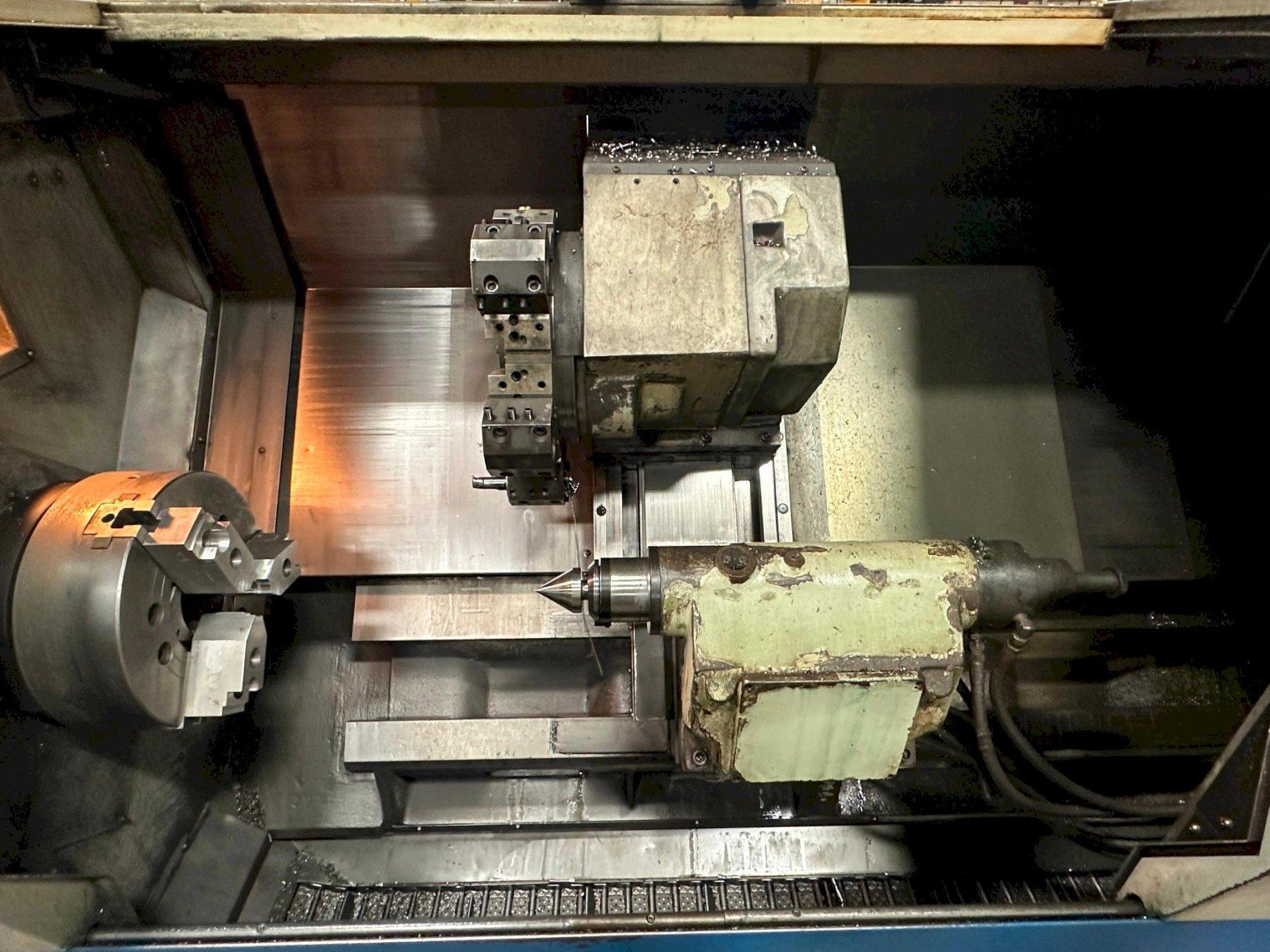

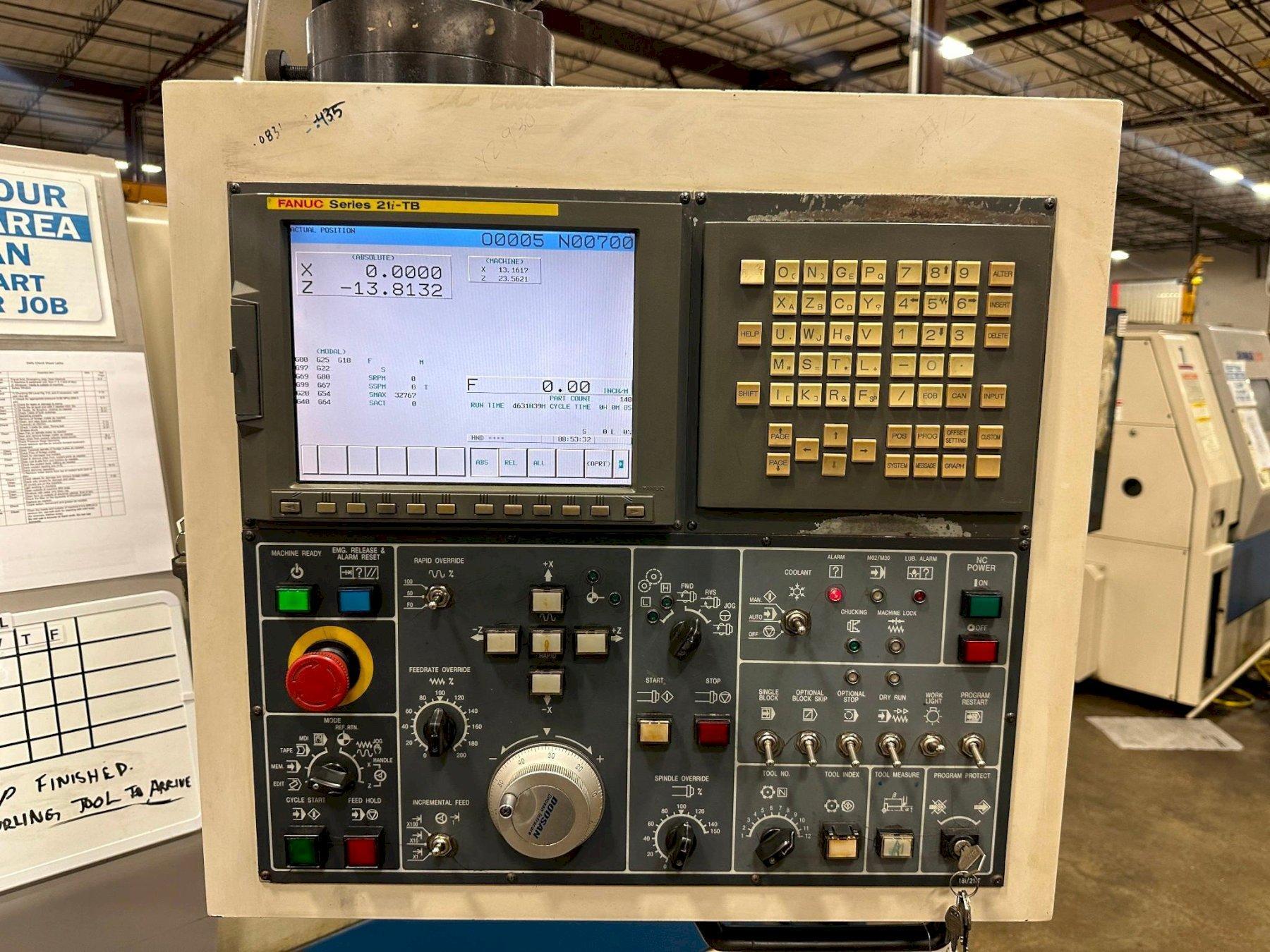

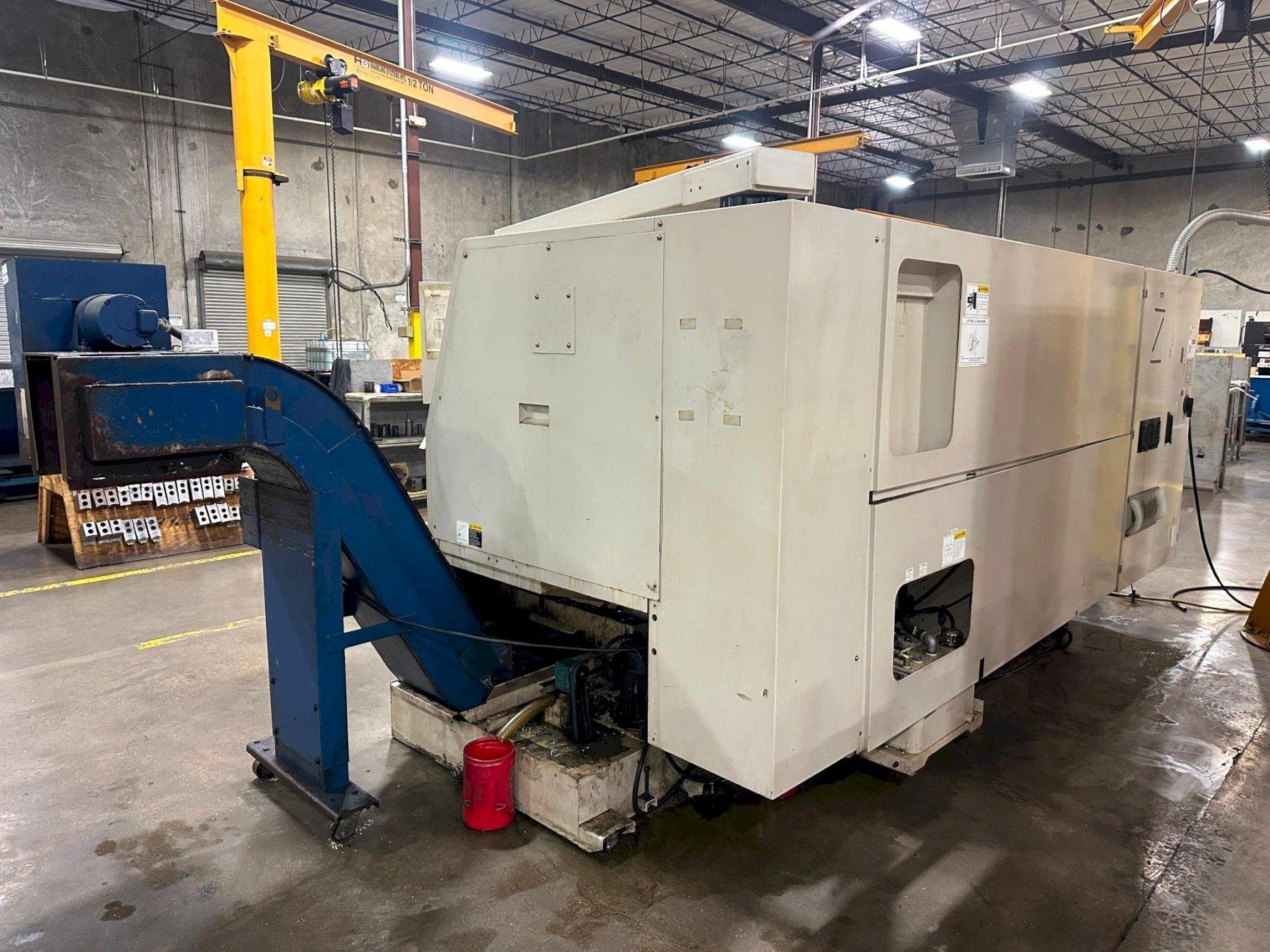

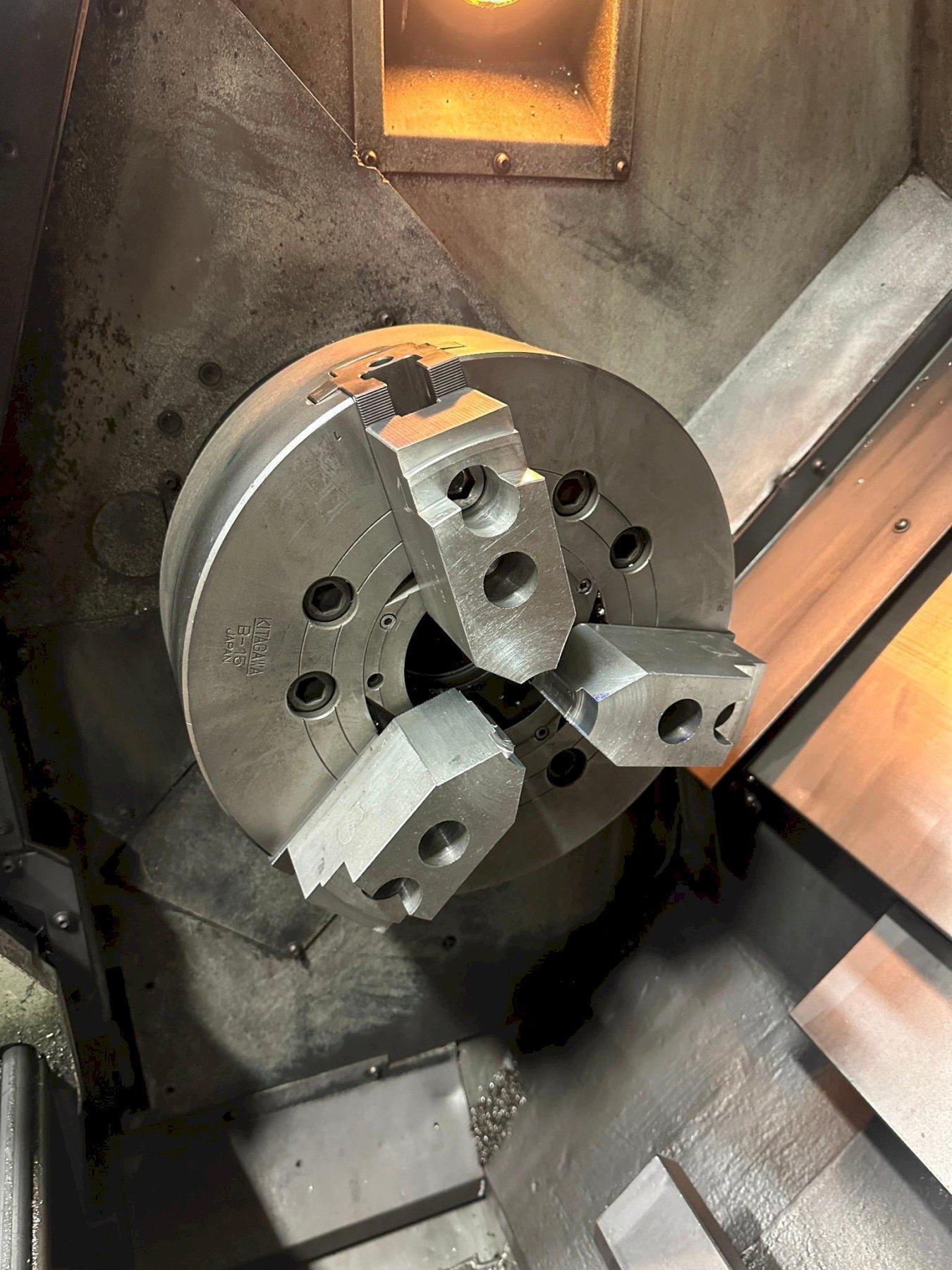

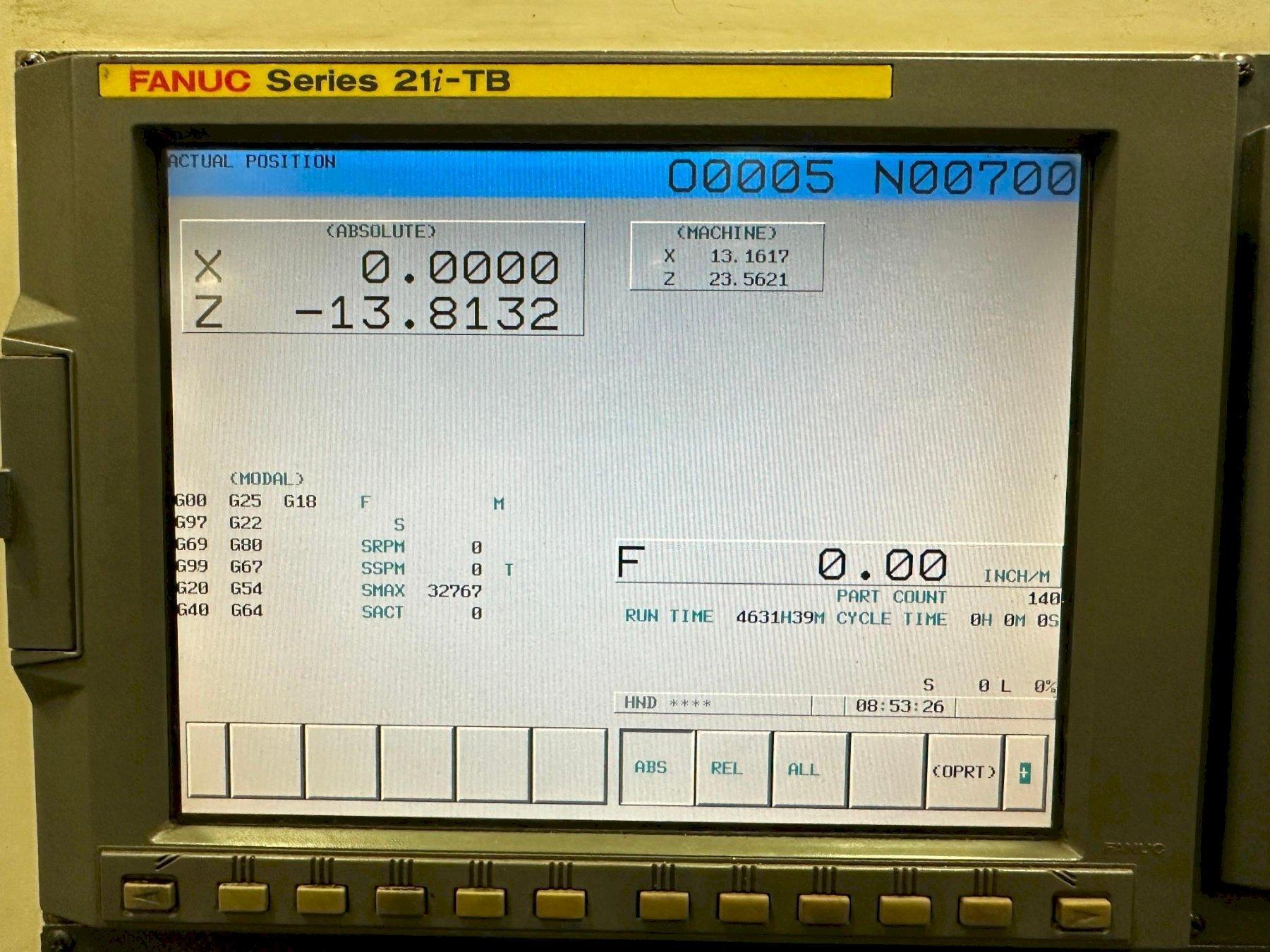

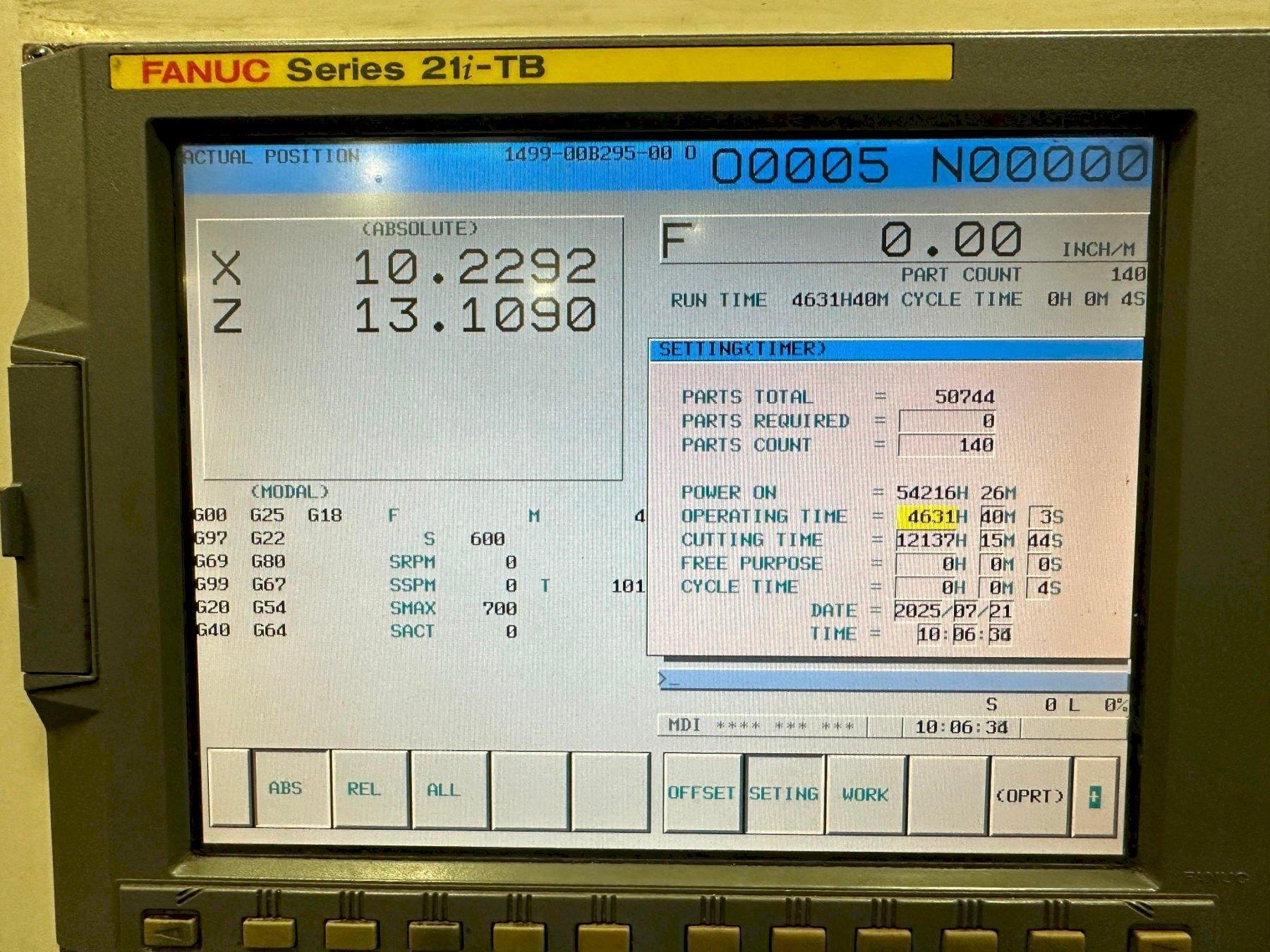

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: 15″ Kitagawa B-15 chuck Chip conveyor Fanuc 21i-TB CNC control Programmable tailstock Presetter All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Note: Tool blocks shown are included; no tooling. All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
