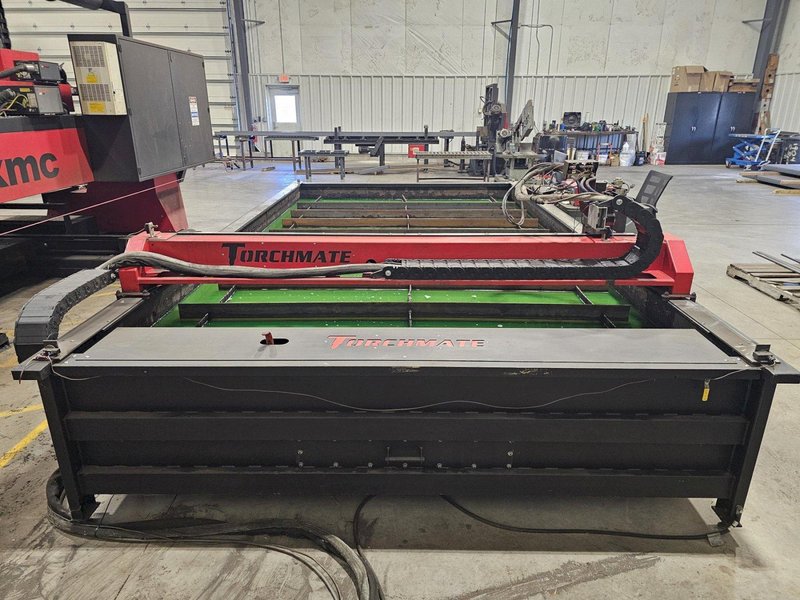

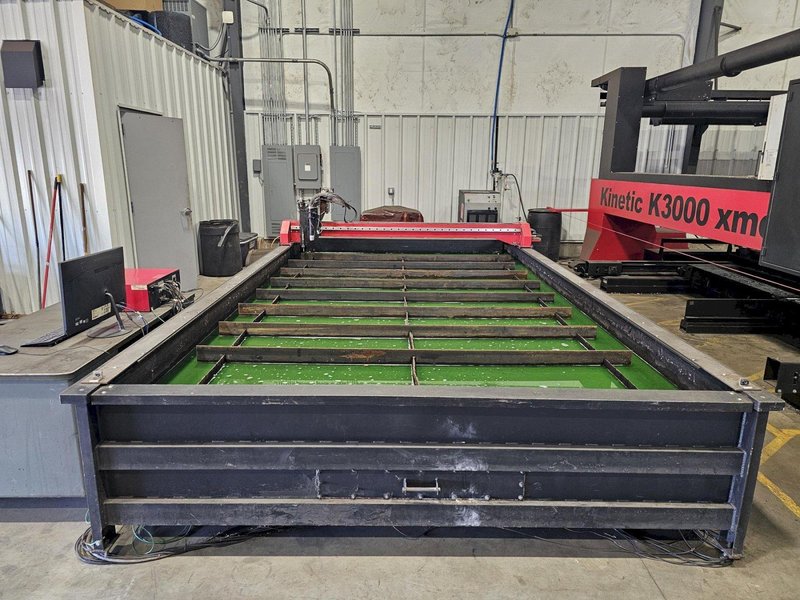

5′ x 10′ Lincoln Torchmate Plasma Table, 2009 – Rebuilt in 2019, Hypertherm Hyspeed HSD130

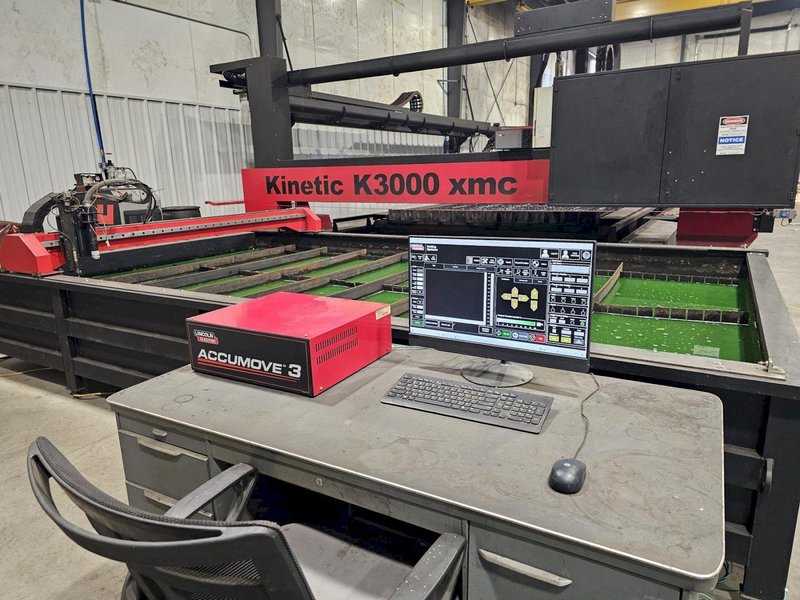

Table size: 5’x10′ Water Table Rebuild Information: – (2012) Upgraded it from servo motors to larger, more powerful stepper motors through Torchmate. – (2018) Upgraded to the Accumove 3 w/ VMD, Lifter station & torch breakaway, larger motors (from 1/4″ shaft to 3/8” shaft) through Lincoln/Torchmate. – (2019) rebuilt/replaced all spur gears, gear racks, precision rails, cables, cassettes, and upgraded the lifter station again to the newest version available.

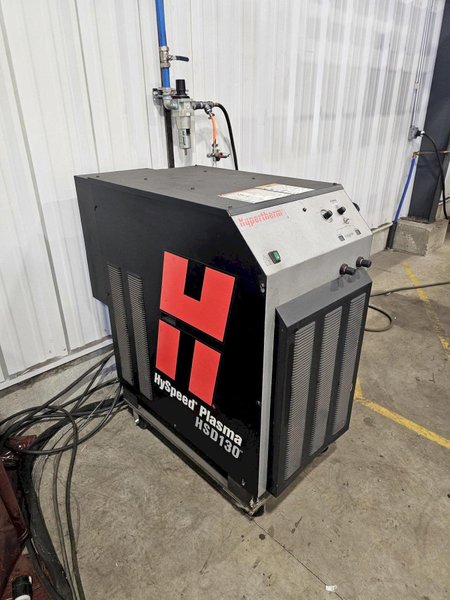

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hypertherm Hyspeed Specifications: Output Current Range: 130 A Duty Cycle: 100% at 40 °C (19.5 kW) Open Circuit Voltage: 311 VDC Dimensions: 42.25″ L × 22.5″ W × 44″ H Weight: 631 lbs (286 kg) Cutting Capacity: – Mild Steel: -Dross-Free: up to 5/8″ (16 mm) -Pierce: up to 1″ (25 mm) -Max Edge Start: up to 1.5″ (38 mm) – Stainless Steel: up to 1″ (25 mm) -Aluminum: up to 1″ (25 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
