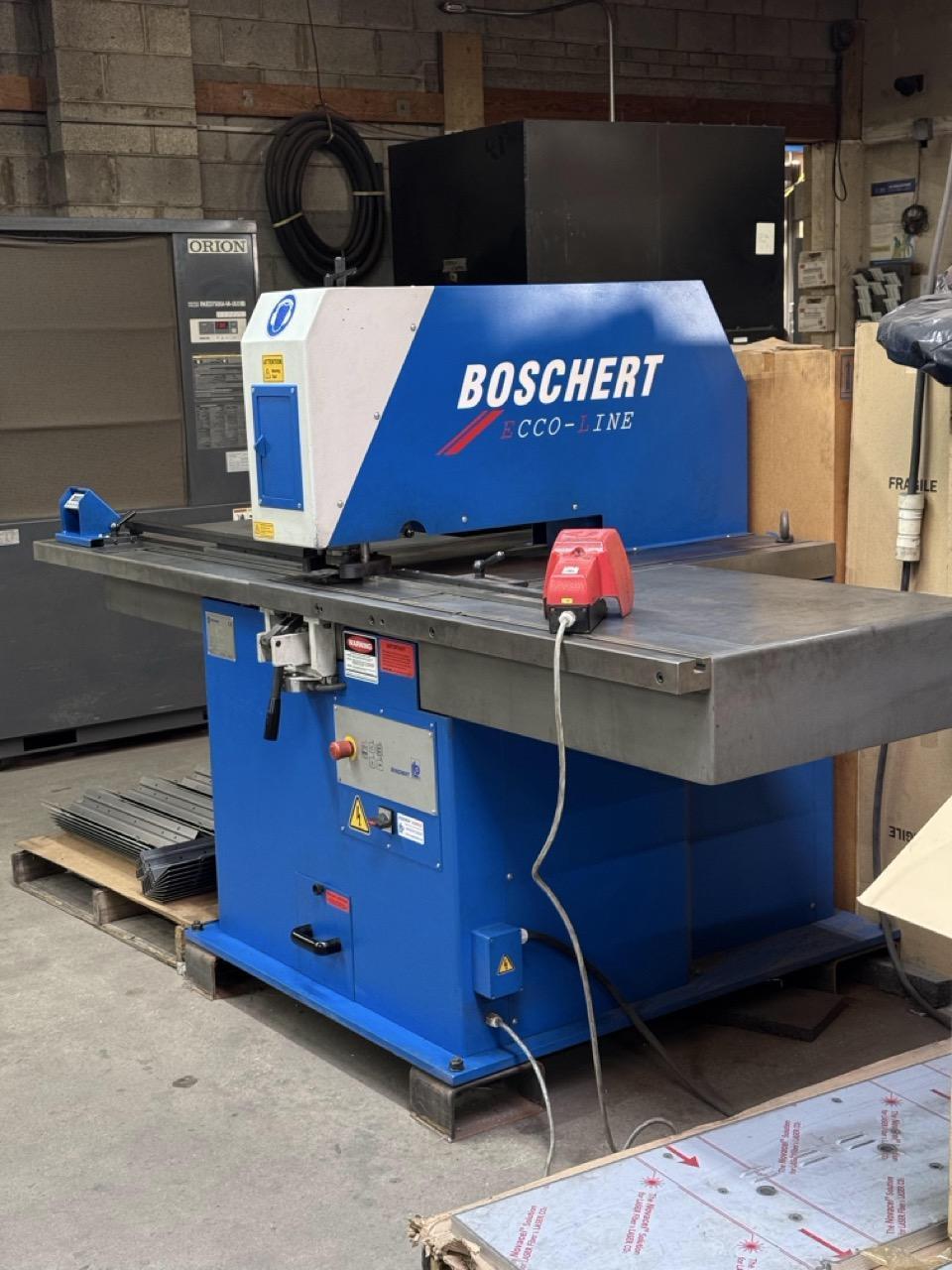

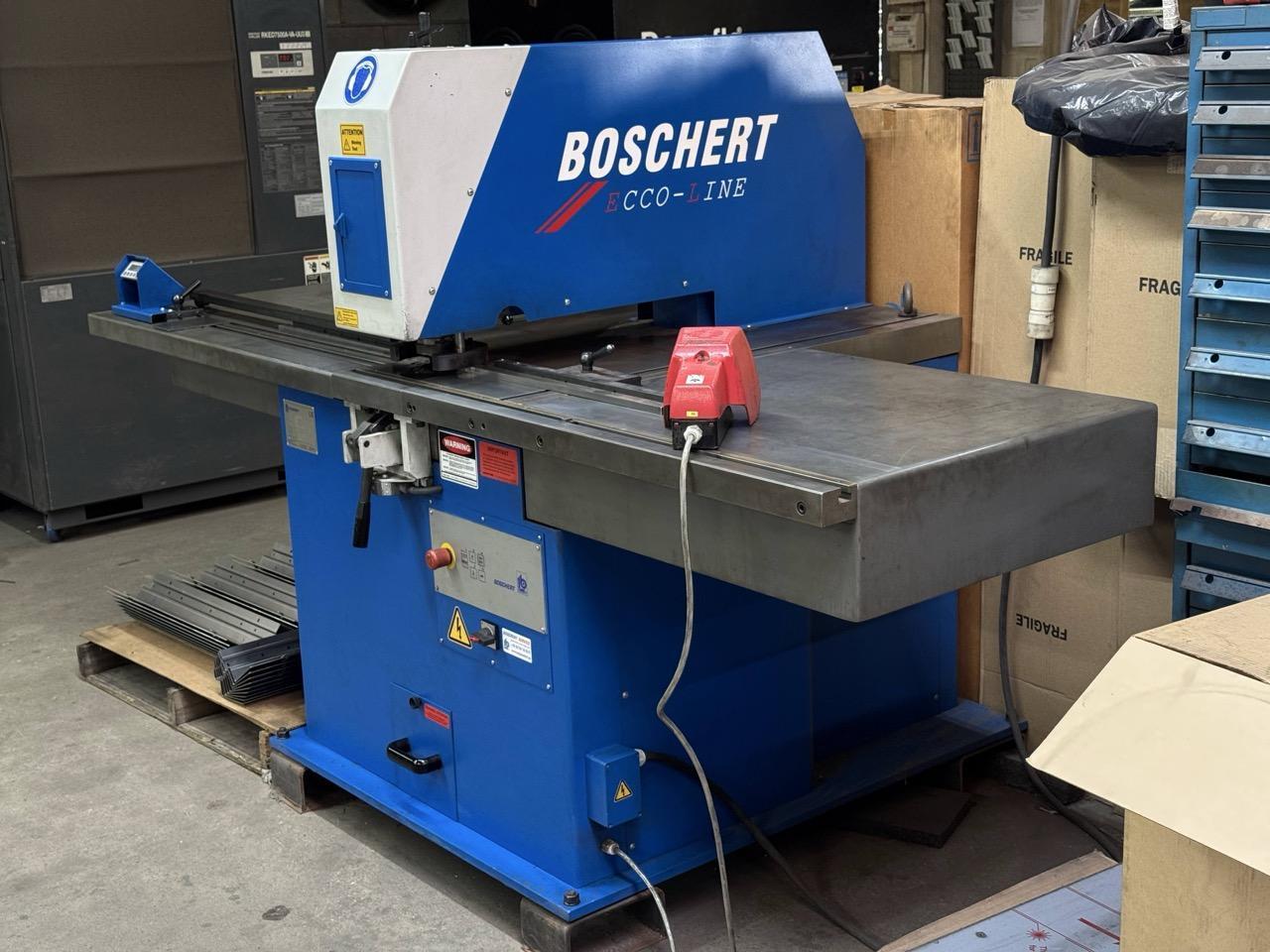

28 Ton Boschert EL 500 Digital Single-Station Punch Press, 2019
Brand
Category
Type
Model
EL 500 Digital
Stock #
514990
Year
2019
Condition
Not specified
Location
Not specified
|
Punching Force: 28 Tons
Work Table Dimensions: 19.7″ × 39.4″
Maximum Sheet Thickness: 0.24″
Maximum Punch Diameter: 4.13″
Stroke Ram Height: 0″ To 1.57″ Adjustable
Throat Depth: 19.7″
Working Area X: 47.2″
Working Area Y: 22.4″
Maximum Strokes Per Minute: 180 SPM
Press Drive Power Requirement: 6.7 HP
Voltage: 3-Phase 400 V 50 Hz
Hydraulic Oil Reservoir: 13.2 Gallons
Machine Length: 94.5″
Machine Width: 62.2″
Machine Height: 60.6″
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
