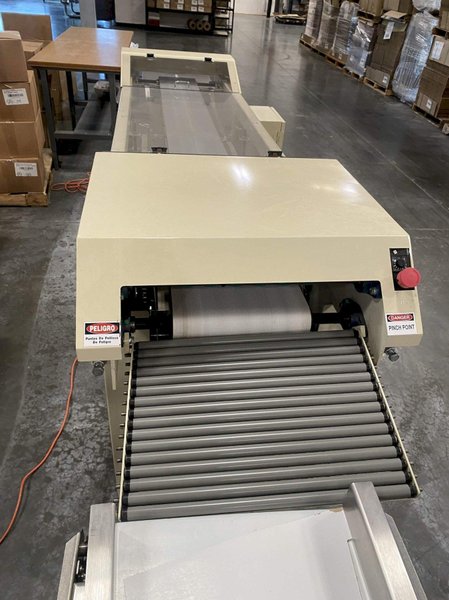

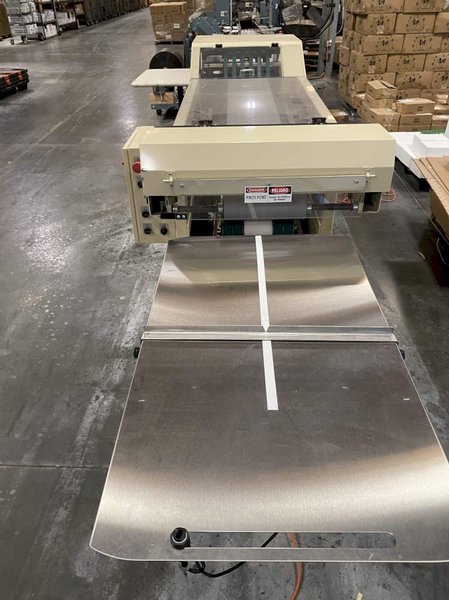

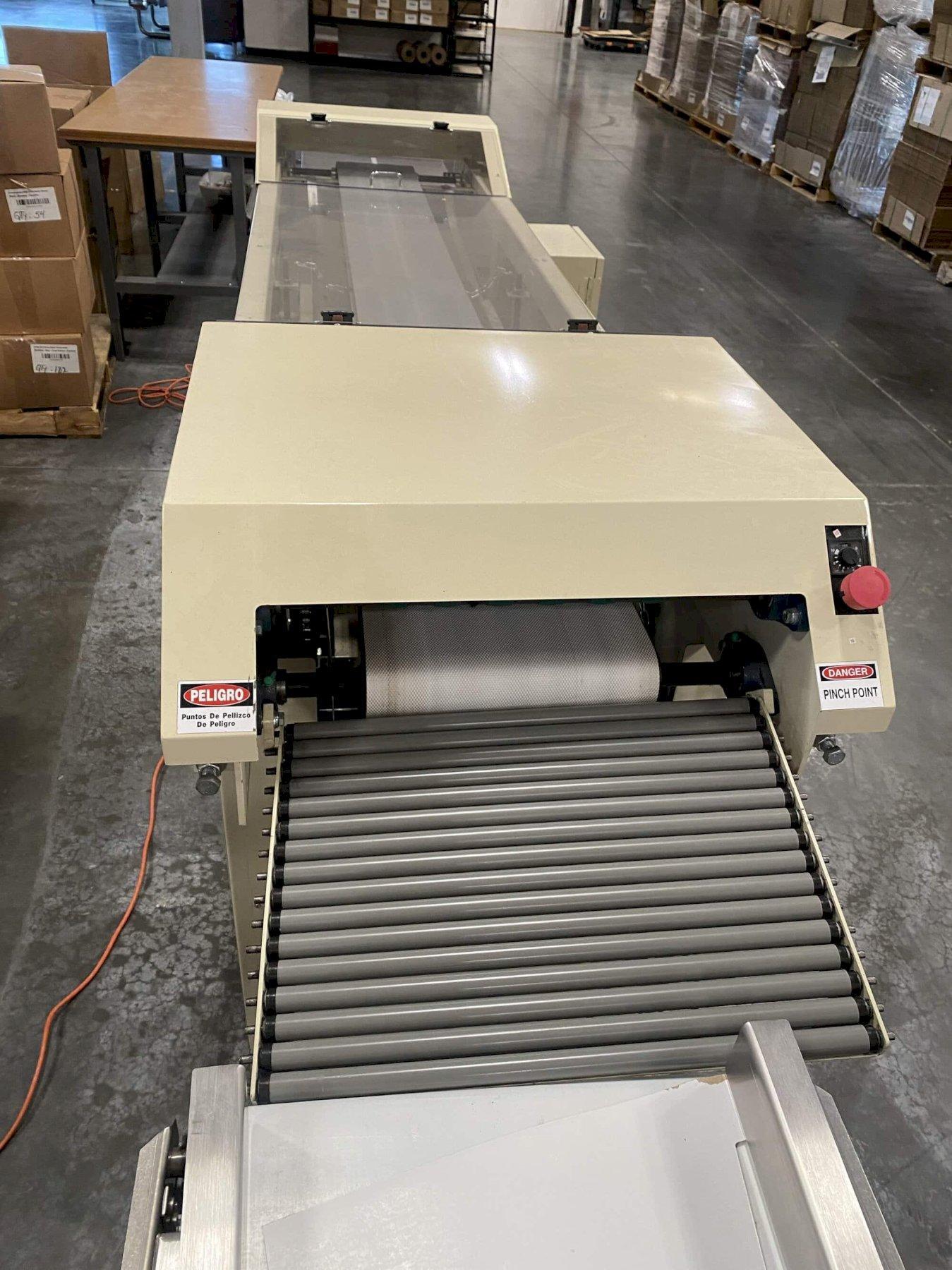

NEDCO E‑Z Fold 2000‑S Automatic Textile Folder – 1,000/hr, Bagging + Heat Seal, OEM Verified

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Industrial-grade, pneumatic garment folding machine with integrated bagger and heat-sealer, built for high-throughput operations. Proven model for screen printers, fulfillment centers, and apparel production. Clean controls, programmable logic, and expandable modular setup.

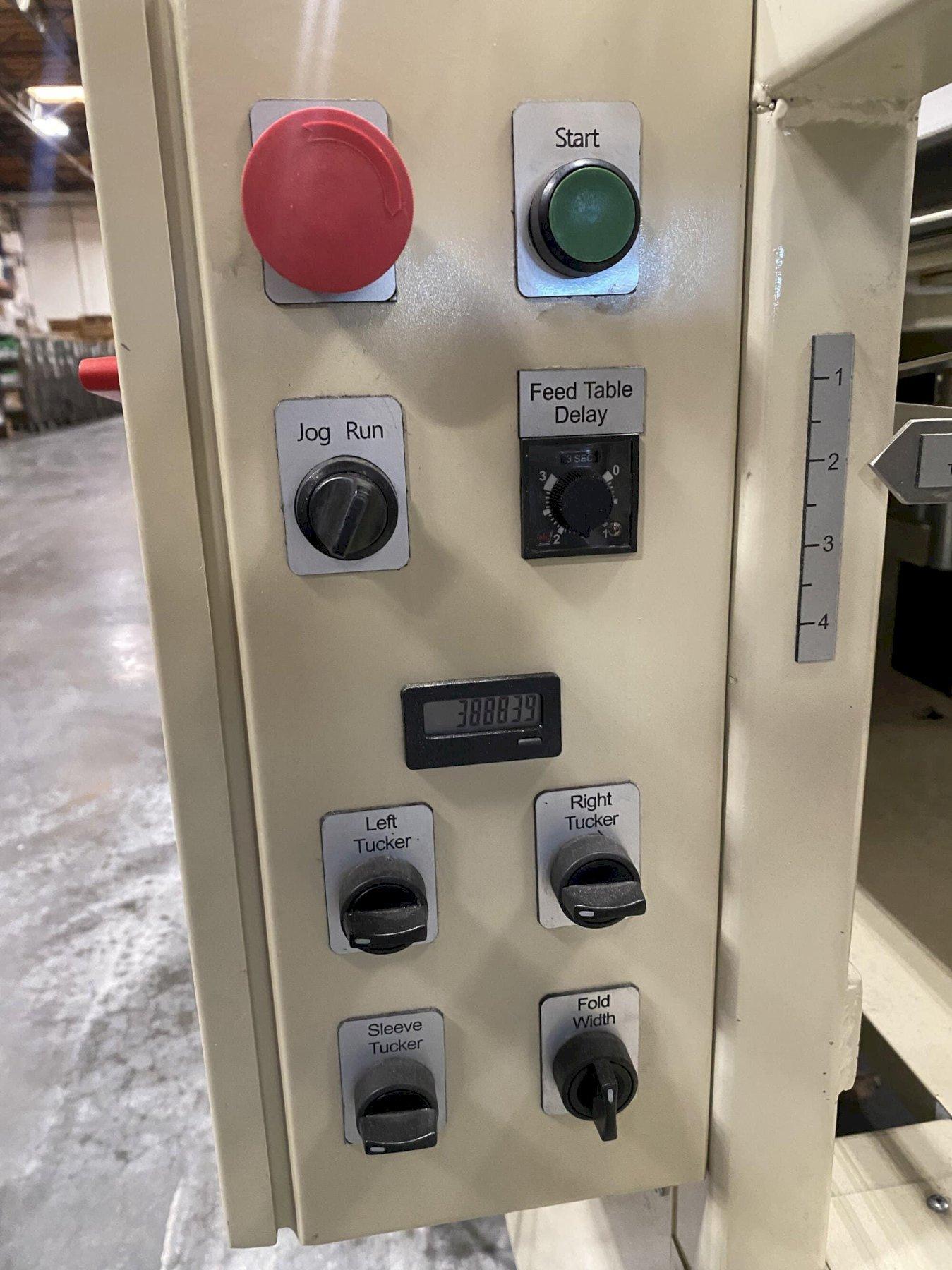

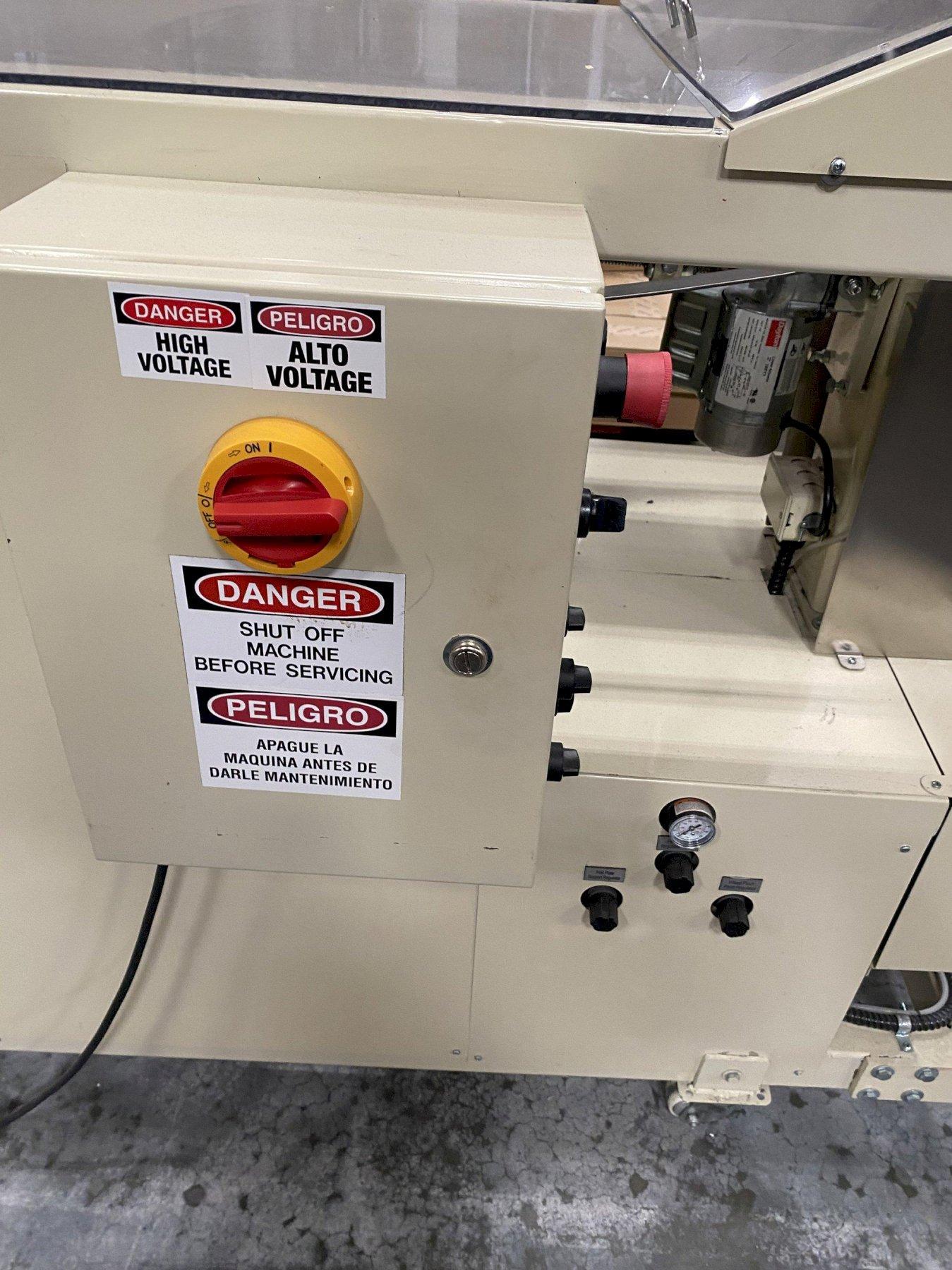

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications • Throughput: Up to 1,000 garments per hour • Power: 110 V, 50 Hz (optional 220 V upgrade available) • Air Requirements: 100 psi, 3–5 CFM, clean dry air • Dimensions: Unit: 11 ft (L) × 2 ft (W) × 50 in (H); Shipping: 12′ × 6′ × 3′ crate, ~1,600 lb • Weight: ~1,200 lb operational • Folding Adjustments: Manual controls for fold width, tucker positions, infeed table delay, stainless steel loading bed • Safety Features: Emergency stops (front/rear), Main disconnect switch, Guards over chains and pinch points • Controls: Jog/Run selector, Start button, Tally counter, Delay timers, Feed width, tucker toggles • Construction: Powder-coated steel frame, Stainless steel working surface • Included Modules: Inline bagger, Heat sealer, Sleeve tucker module • Modular Compatibility: Compatible with LS-4200-S long sleeve folder, conveyor stackers, auto counters

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
