A.P.E.S. Explosion Proof Liquid Filling Line, 2021 – NEVER USED, Still on OEM Skidding

A.P.E.S. Explosion Proof Liquid Filling Line, 2021 – NEVER USED, Still on OEM Skidding

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Intended use was for hand sanitizer

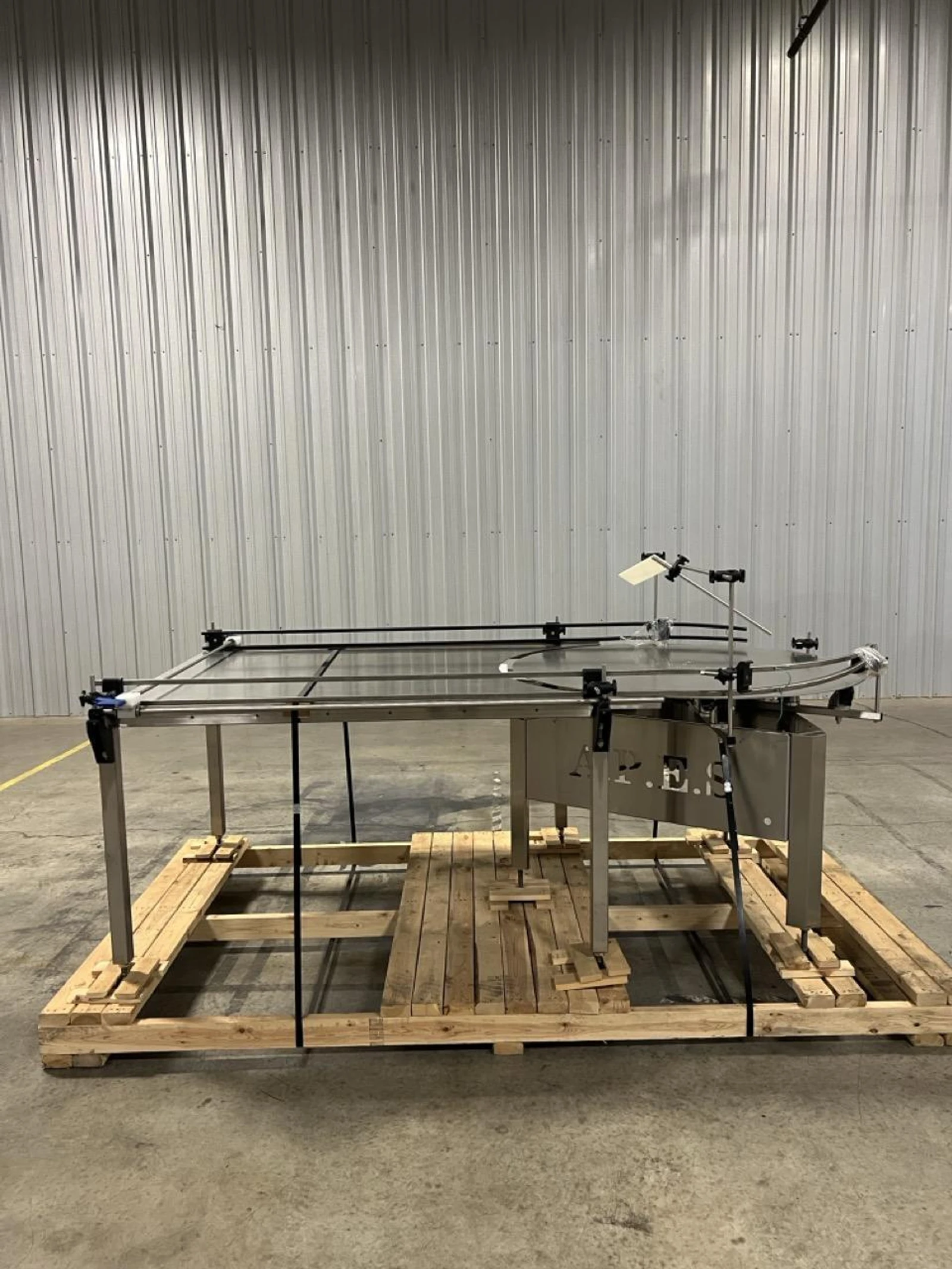

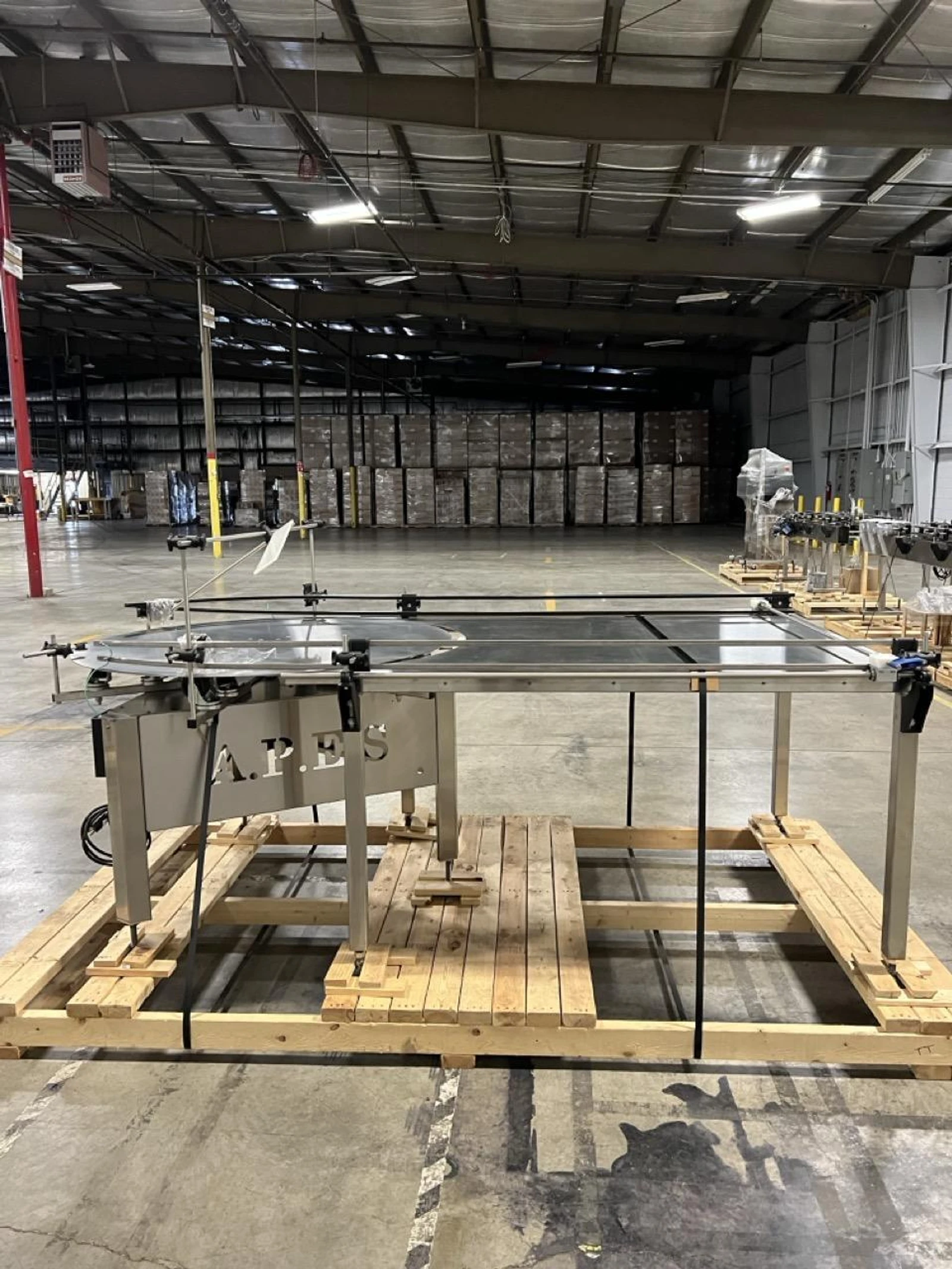

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,36″ rotary feed table – 304 stainless steel construction with leveling pads – Single 304 stainless steel rail system – Stainless steel guide rail brackets – Variable speed DC drive controls wired into filler control panel – 120/240VAC / 1 phase / 50-60Hz

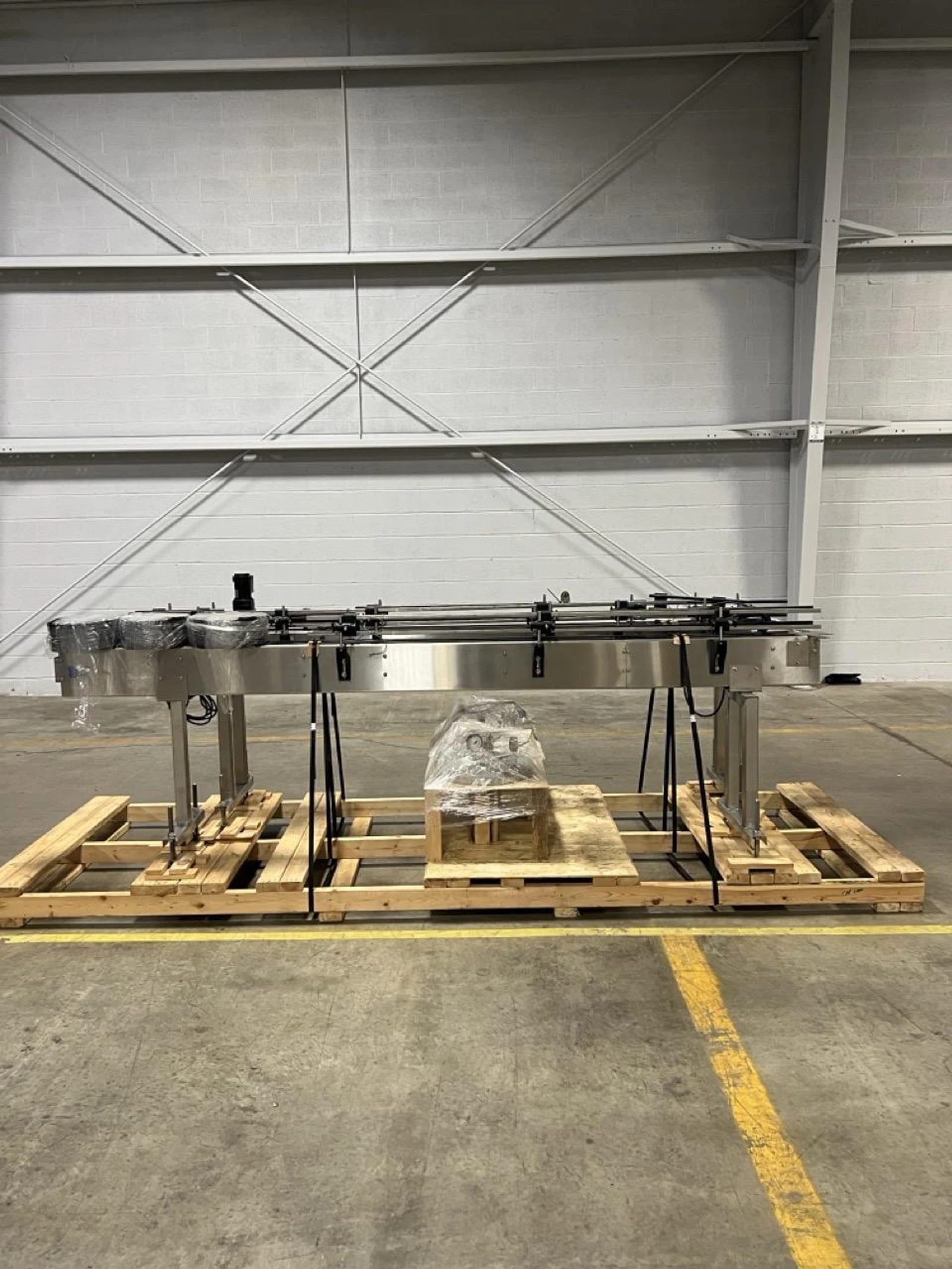

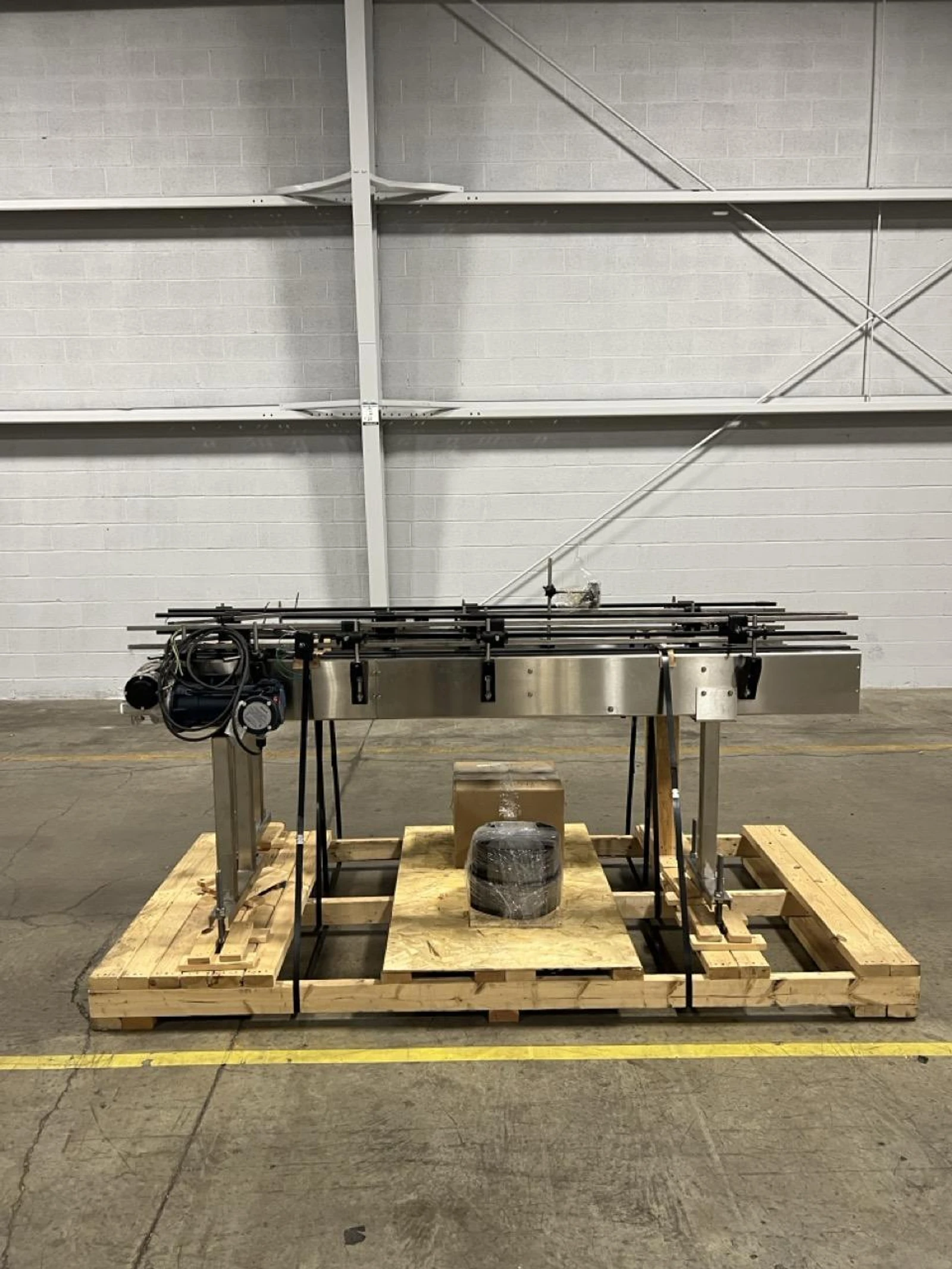

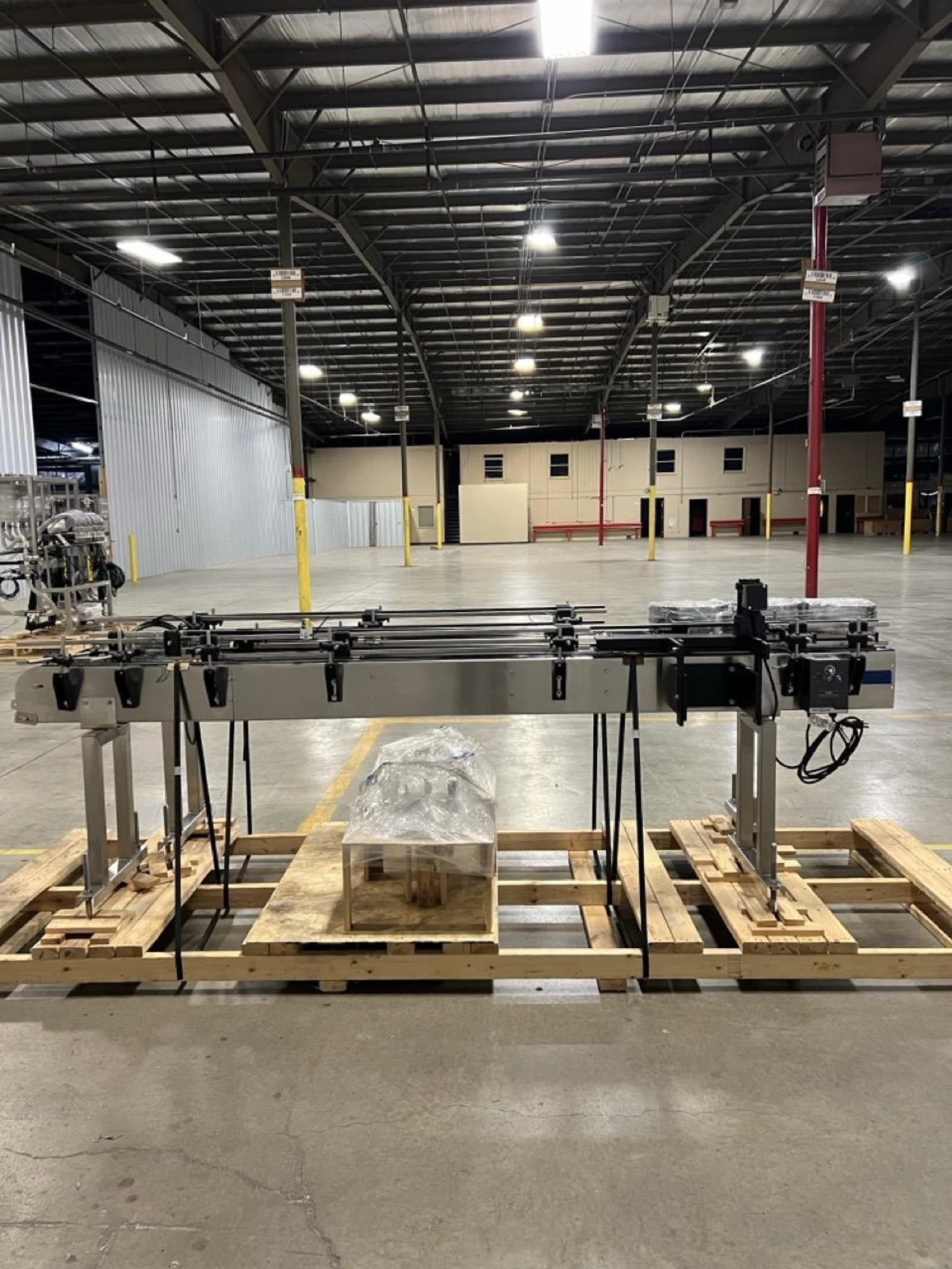

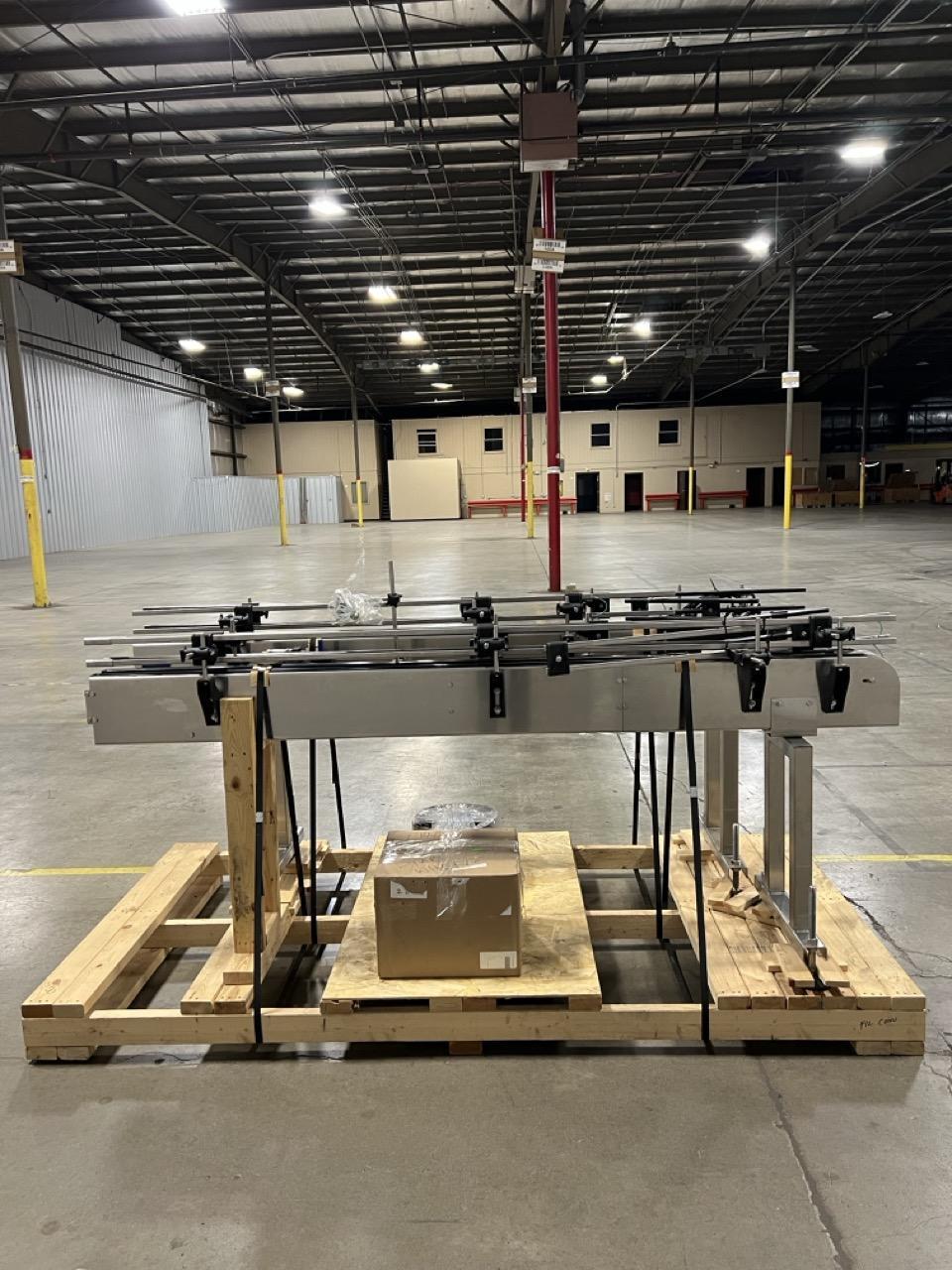

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,30′ Intrinsically-safe Filler Conveyor – 304 stainless steel construction with leveling pads – 4.5″ wide static dissipative belt – Dual 304 stainless steel rail system with anti-static wear strip material – Stainless steel guide rail brackets – Hazardous location rated 90Volt DC ½ HP Leeson motor (Class I, Div. I Groups C&D) – 36:1 gearbox for speed rates up to 70 ft./min – Variable speed DC drive controls wired into filler control panel – 120/240VAC / 1 phase / 50-60Hz

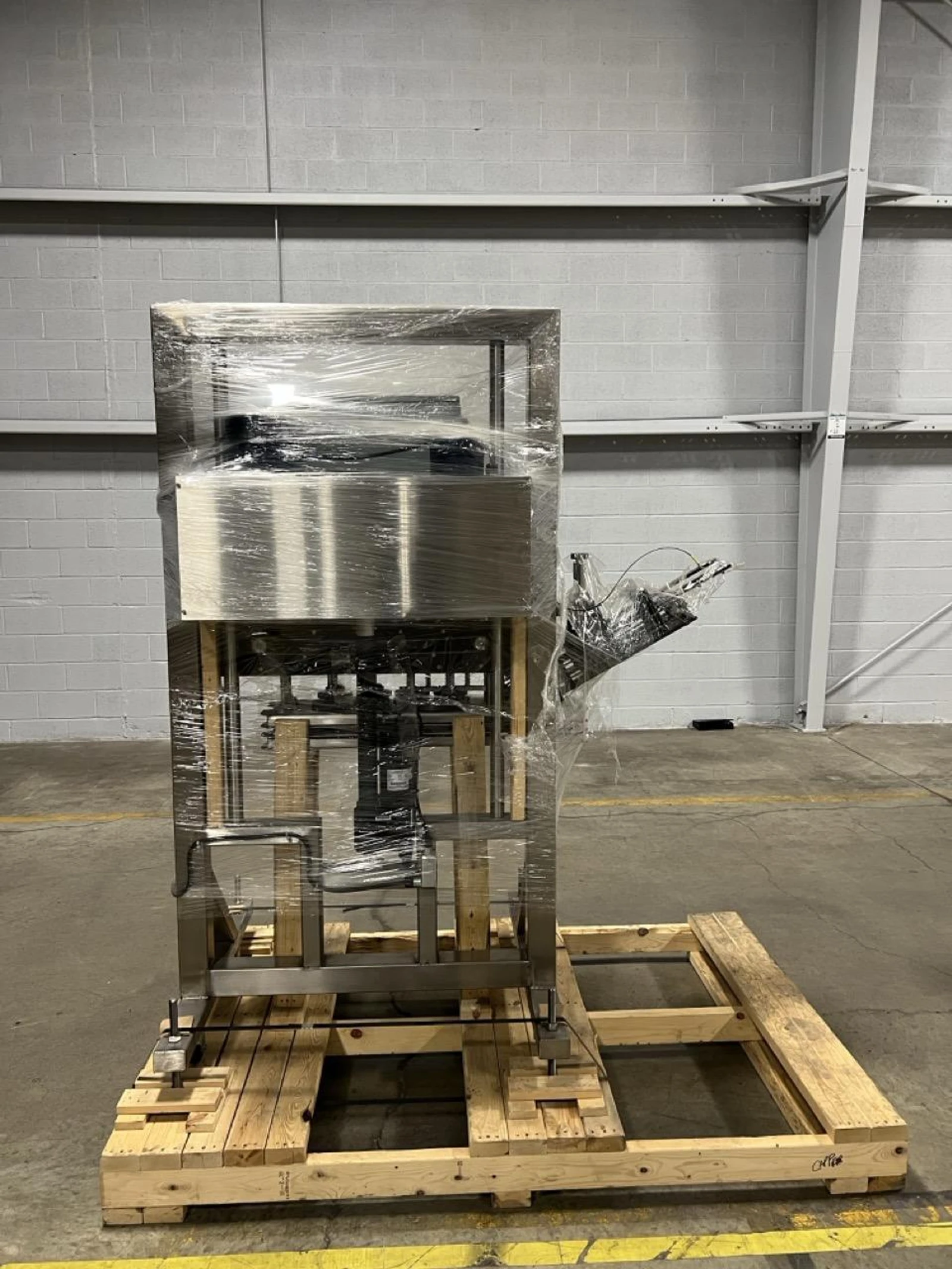

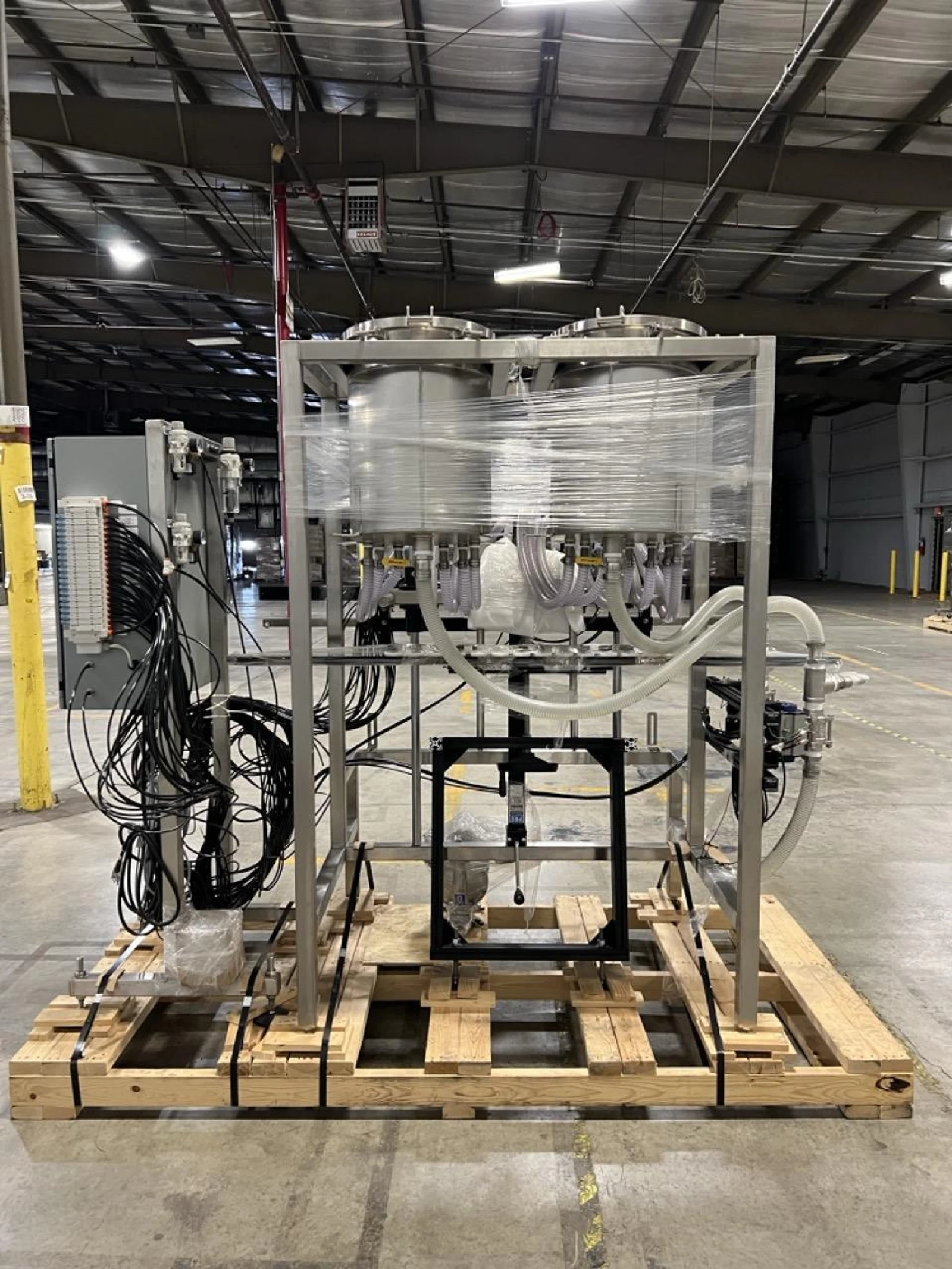

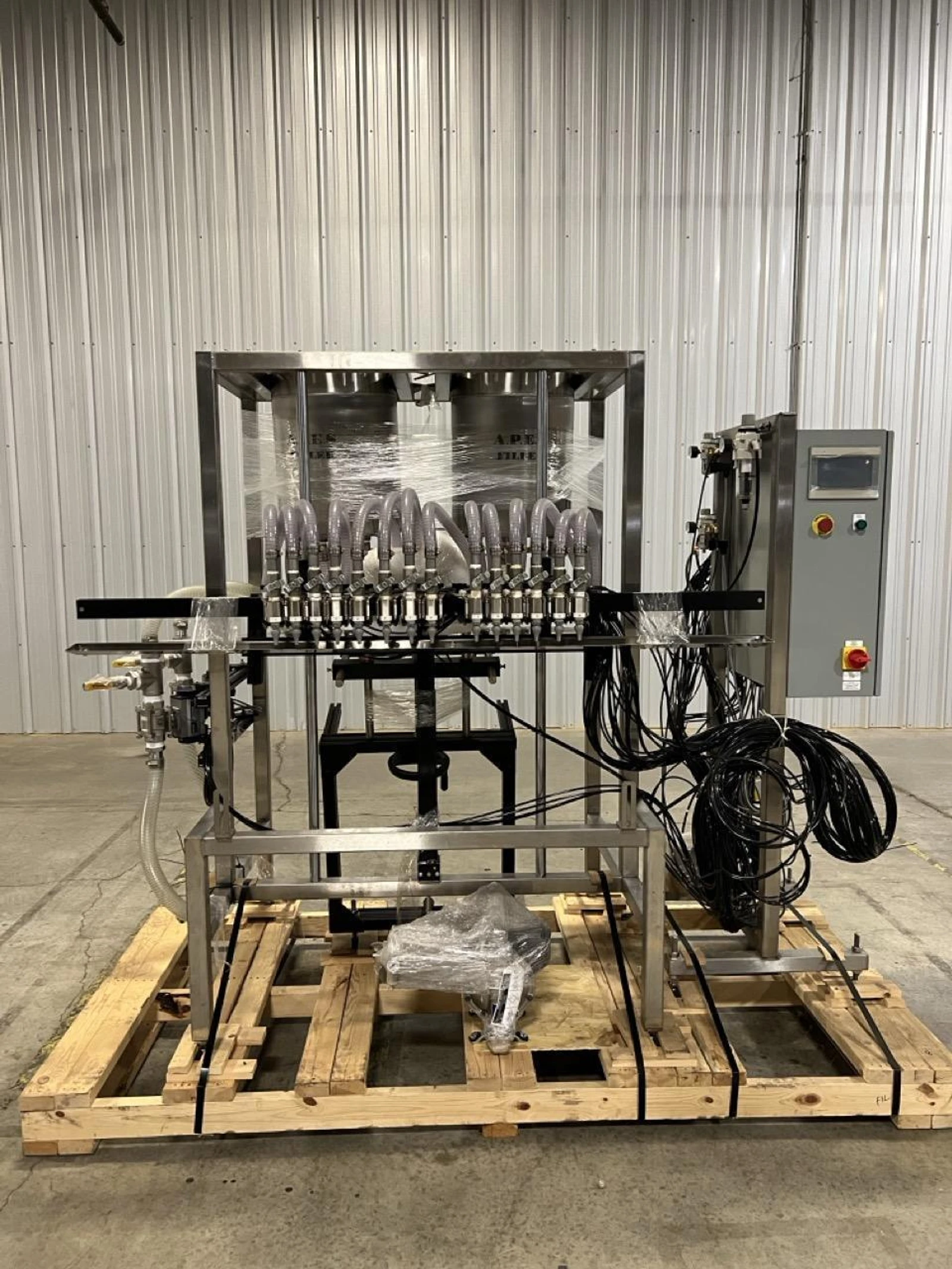

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,14 Head Automatic Pressure/Gravity Filler – 304 stainless steel heavy-duty frame construction with adjustable leveling pads – 316 stainless steel 3/4″ pneumatically actuated fill head assemblies – Wire reinforced PVC product tubing with stainless steel hose barbs – (2) 304 stainless steel pressurize product reservoir with 316 stainless steel level sensing dual ball float for safety back-up. Includes digital pressure controller, pressure gauge, pressure relief valve rated for 15 psi, manual throttling valve and necessary hardware – (2) 1.5″ stainless steel product supply control valves – Low head pressure/no fill system controls – User-friendly Allen Bradley/MicroLogix 1200 PLC controls with 6” Maple Systems with color touch screen which offers user-friendly setup capabilities and 50 job recipe storage capability – All level sensors and photo sensors will include intrinsically safe barriers to provide milliampere signal to and from PLC – Stainless steel stand to allow filler control panel to be remotely mounted away from filler – Automatic bottle neck locators to ensure proper bottle alignment beneath fill heads – Automatic drip tray protects bottles from potential drips – Automatic star wheel indexing to bring bottles in and out of fill station – includes double-stacked star wheel for 12 oz. container – No Bottle/No Fill sensor to ensure proper bottle count prior to filling – Anti-bottle back-up sensor to pause filling cycle if downstream jam is detected – Manual crank height adjustment for fill heads – Supply pump and motor starter not included – NEMA 12, painted steel enclosure – Requires clean, dried air at 80-100Psi – 120/240VAC / 1 phase / 50-60Hz

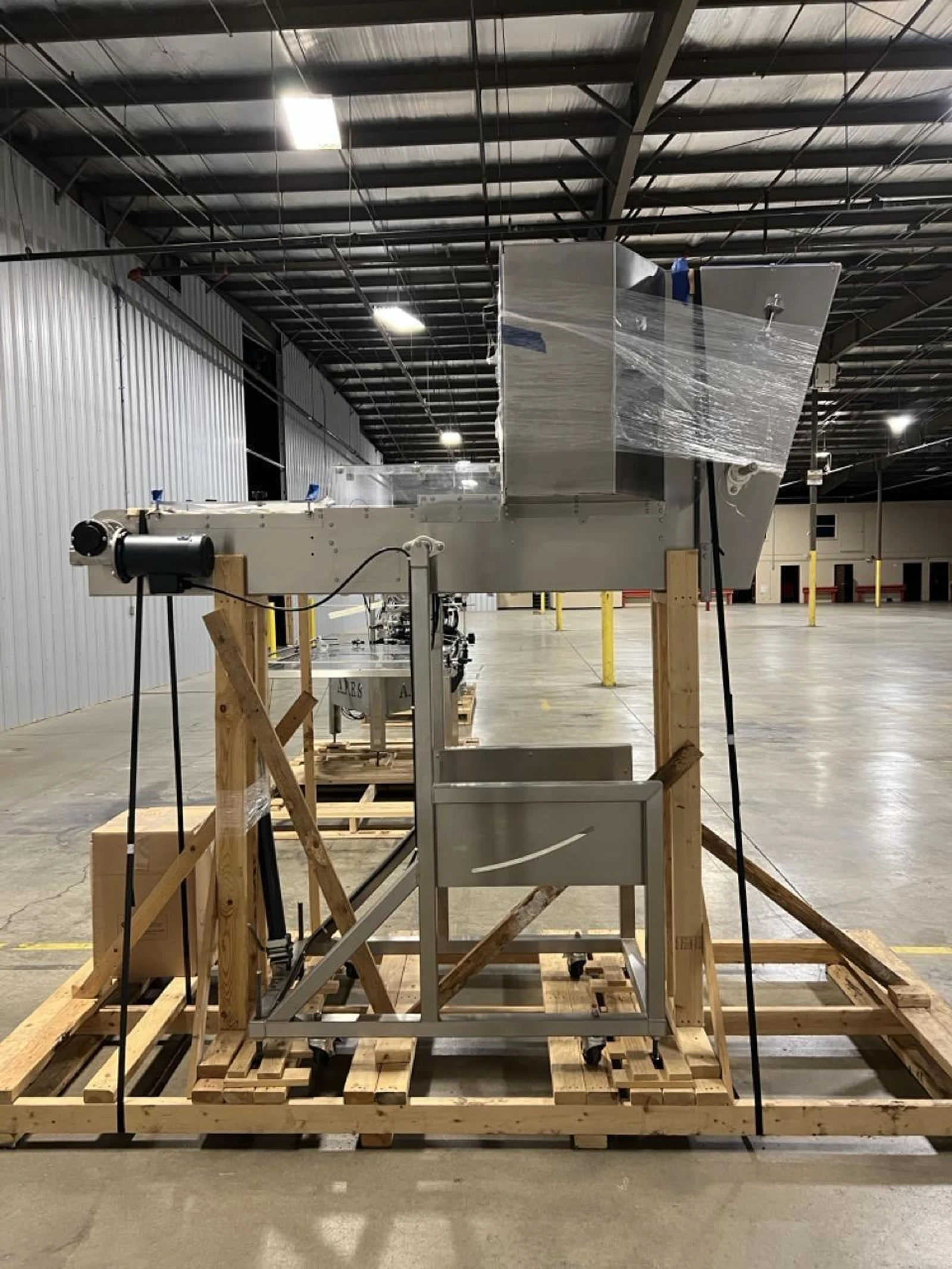

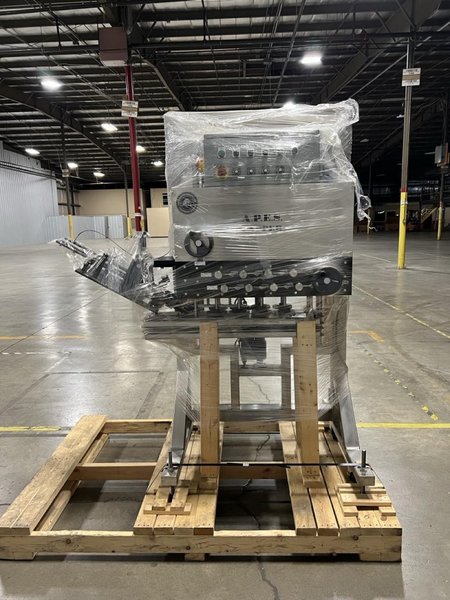

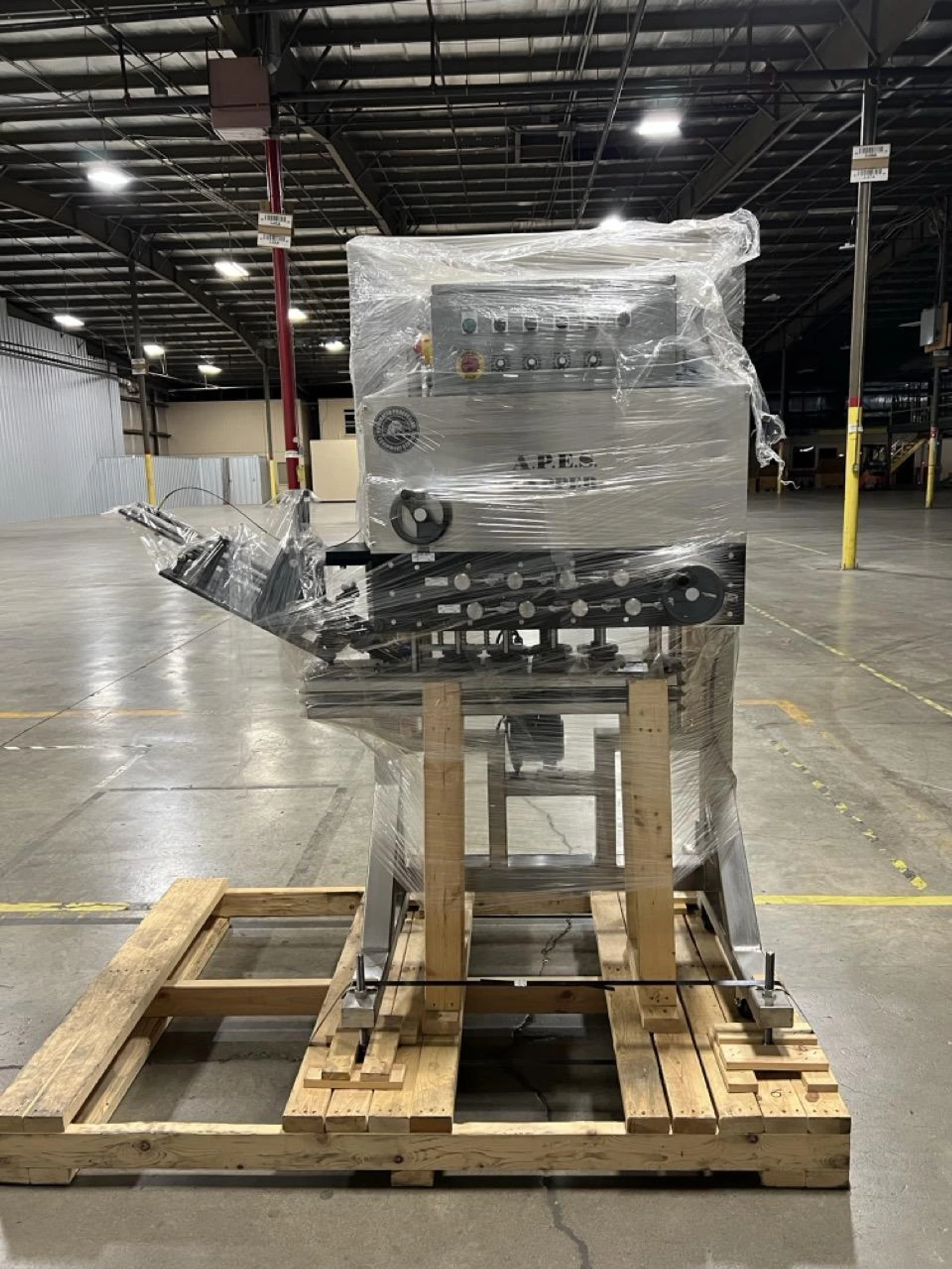

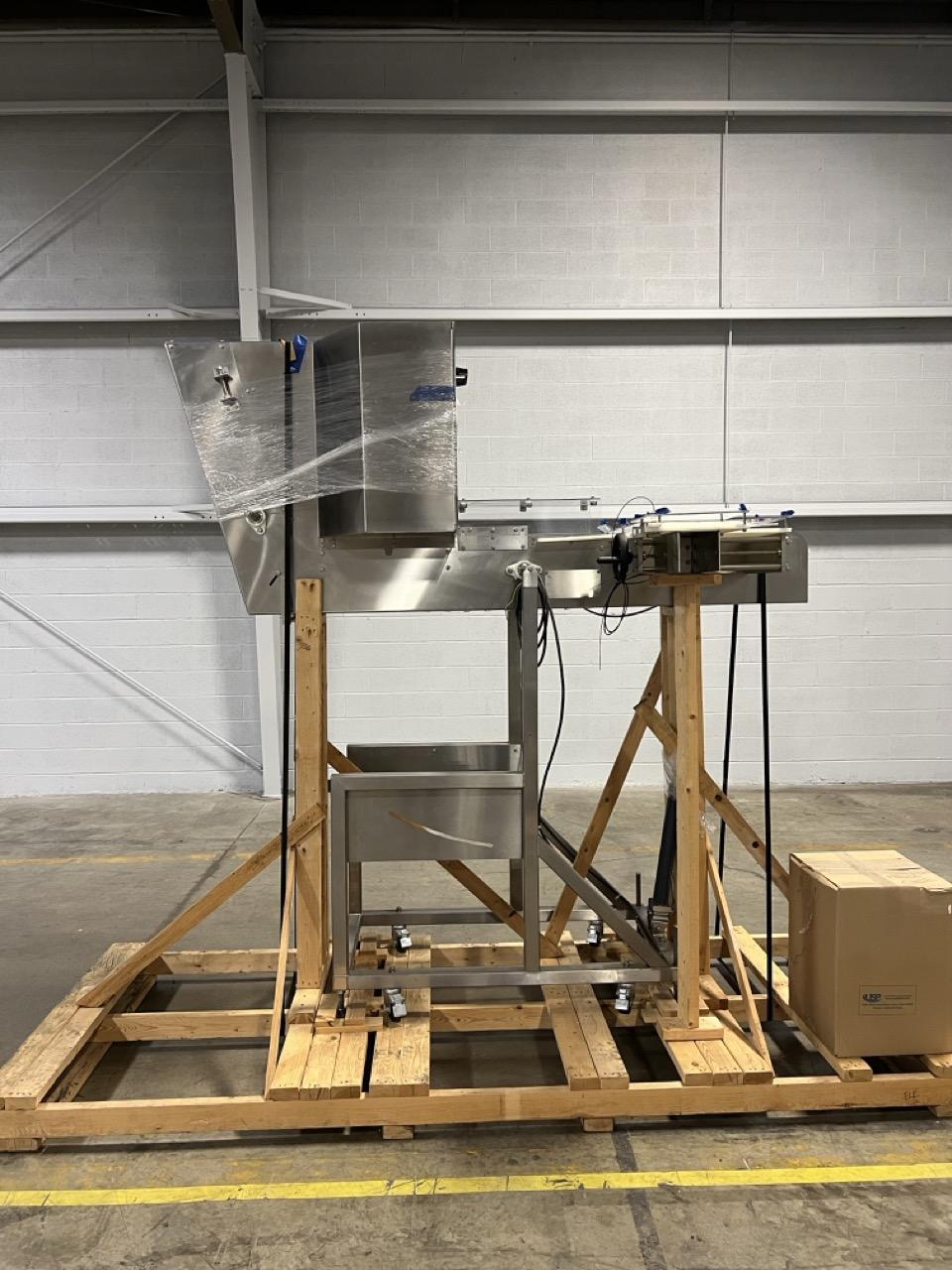

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fully Automatic 4-Station Spindle Capper – 304 stainless steel frame construction with castor wheels and leveling pads – 304 stainless steel and anodized aluminum components – 304 stainless steel cap sorting elevator – Anodized aluminum cap chute, tool-less adjustment for easy changeover (accommodates cap diameters from 20mm – 110mm – Variable speed drive controls for spindle wheels and gripper belts – Mechanical friction clutch torque control on 3rd & 4th spindle set – Spring loaded poly cap stabilizer – Automatic full chute pause sensor – Power height adjustment – Dual 3/4″ gripper belts. Includes toolless adjustment vertically and horizontally – Independent base designed to mount over existing conveyor – 120VAC/1 phase/50-60Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
